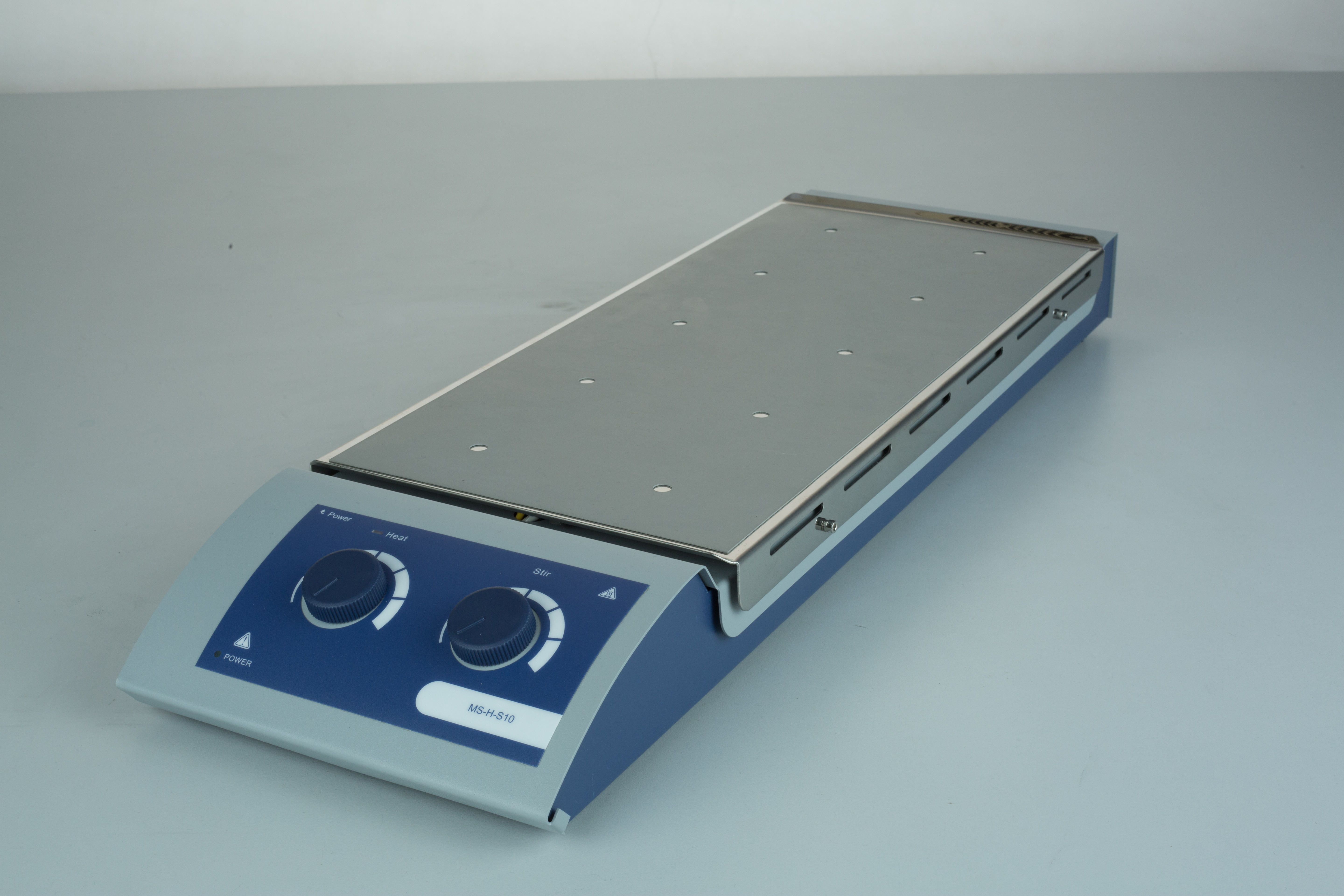

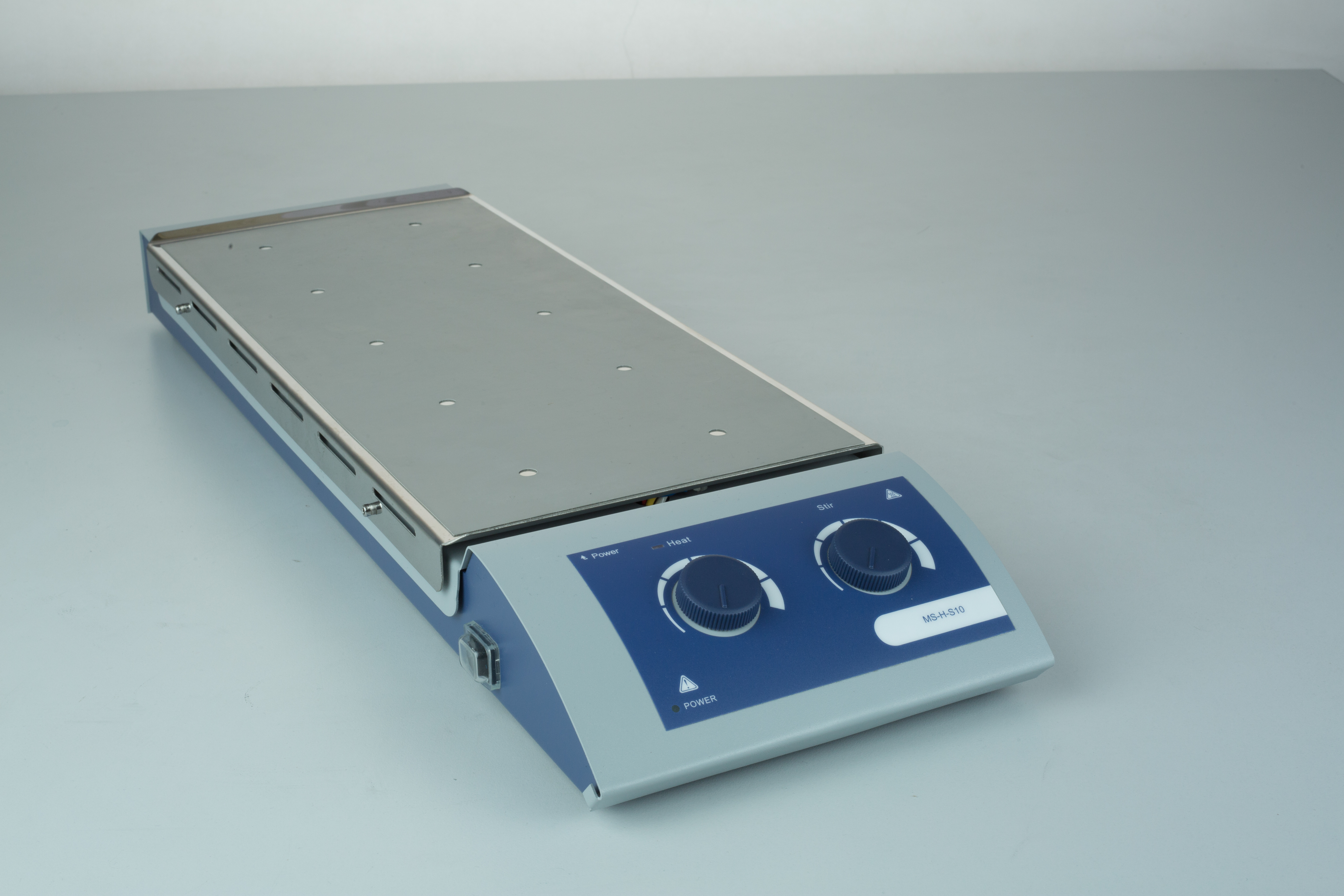

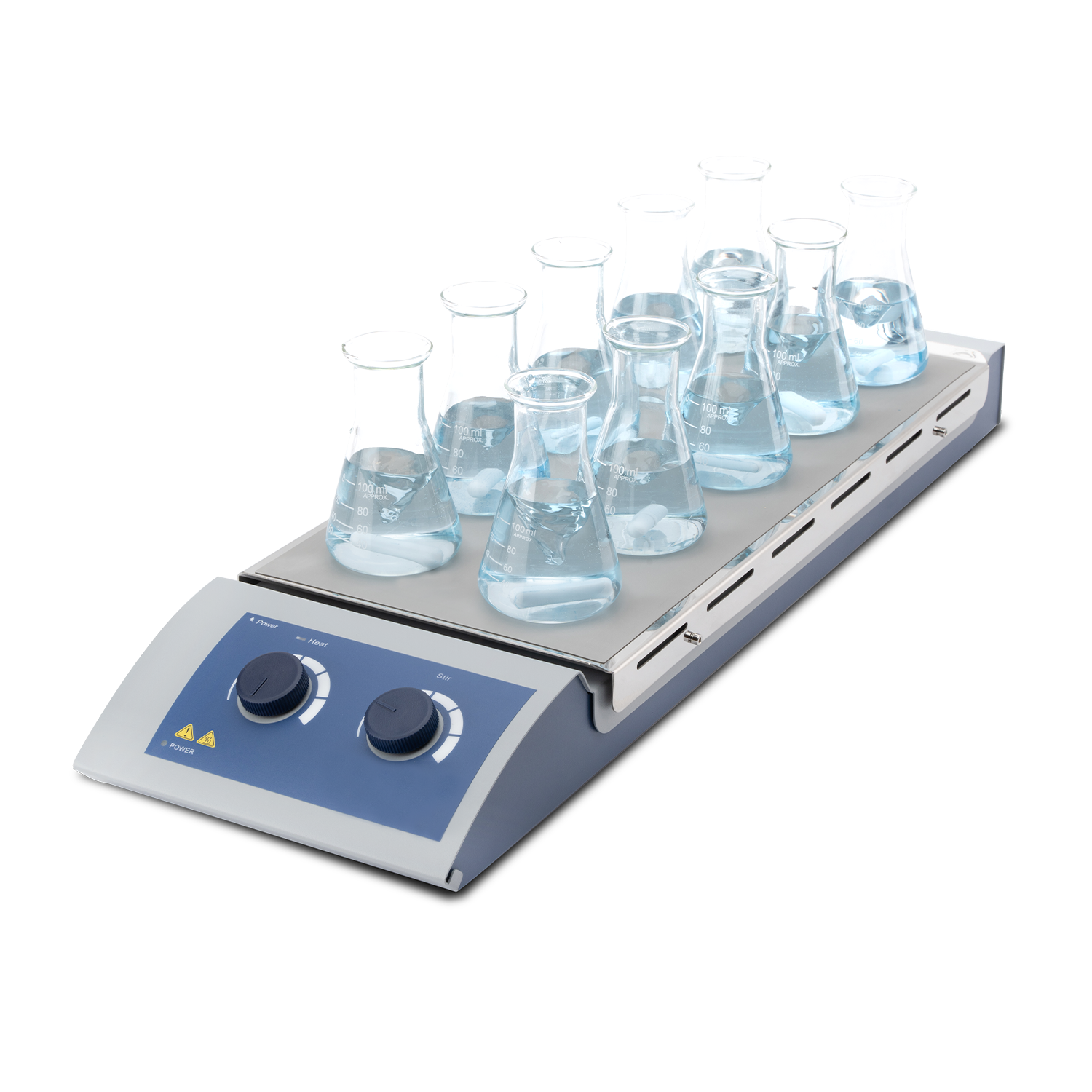

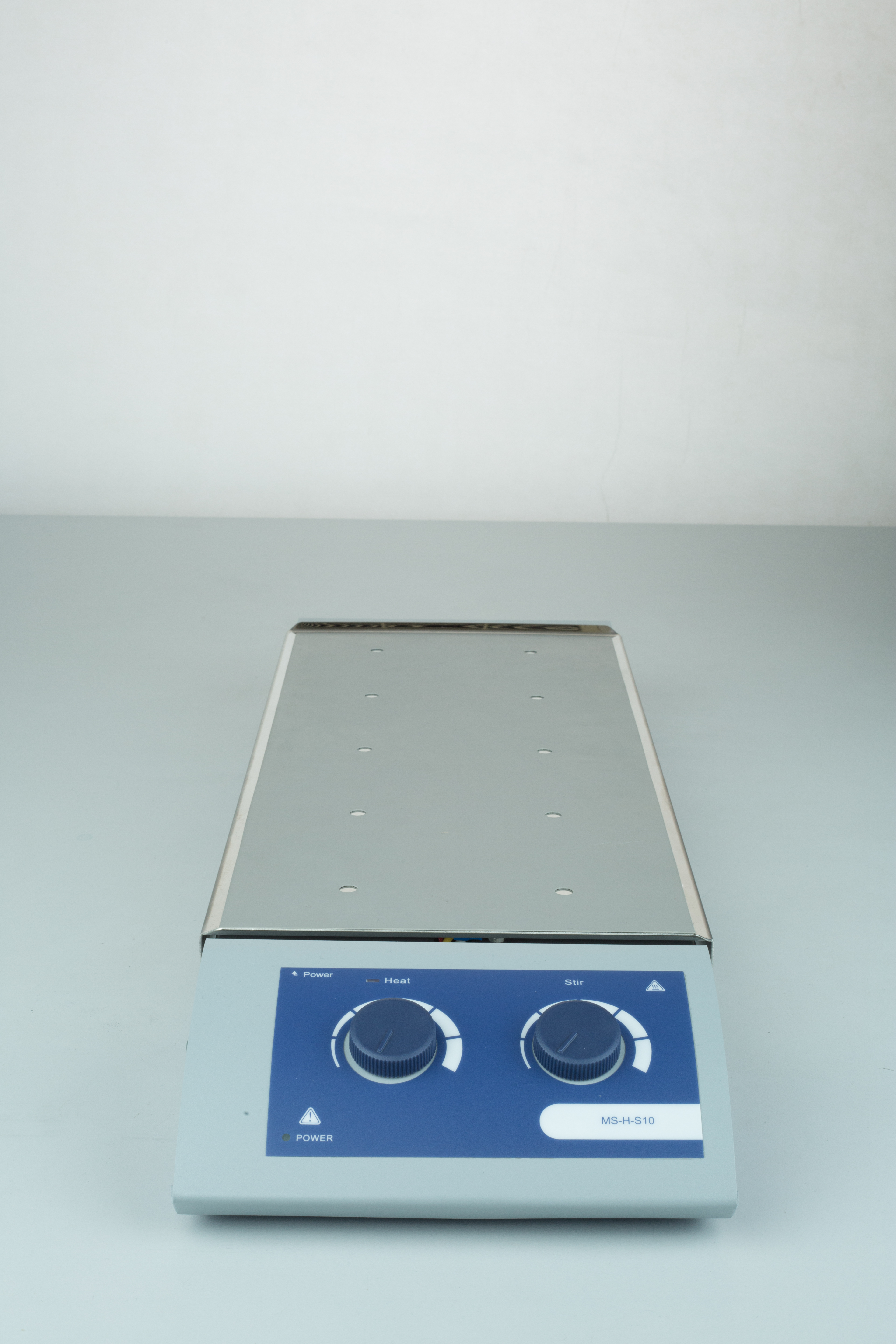

10-Position Magnetic Hotplate Stirrer

• LSM-H-10S 10-Position Magnetic Hotplate Stirrer features 10 independent stirring positions to process 10 batches of samples simultaneously, maximizing lab bench utilization, ideal for experiments requiring multiple parallel reactions & simultaneous mixing with heating.
• Core parameters: 180×450mm integrated aluminium work plate, 10 stirring positions; max single-position stirring volume 0.4L, compatible with magnetic stir bars up to 40mm length; maintenance-free brushless DC motor, 4W rated motor output, total unit power 490W, heating power 470W.

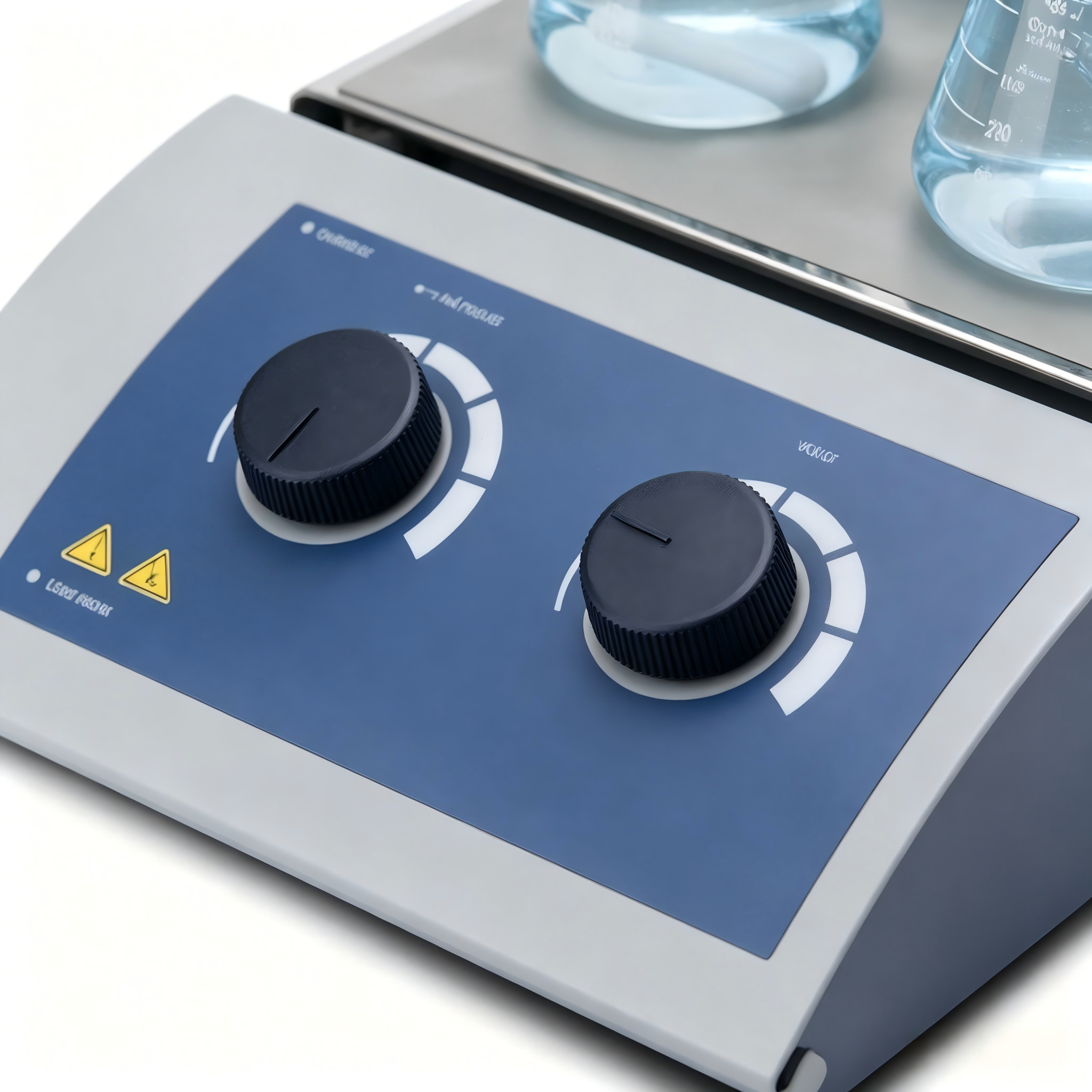

• Speed range 0–1100rpm, heating range room temperature to 120℃; separate scale knobs for speed & temperature adjustment; over-temperature protection at 140℃; IP20 protection class; dual wide voltage 100–120V/200–240V, universal 50/60Hz.
• Dimension 182×622×65mm, net weight 3.2kg. Permissible ambient operating condition: 5–40℃, max 80%RH.
• Key advantages: 10-position simultaneous stirring & heating, maintenance-free brushless DC motor, max stirring speed 1100rpm, plate heating up to 120℃, anti-slip silicone coated aluminium plate with uniform heat distribution, 140℃ safety overheat protection, dual universal voltage for global markets, dedicated for batch parallel assay

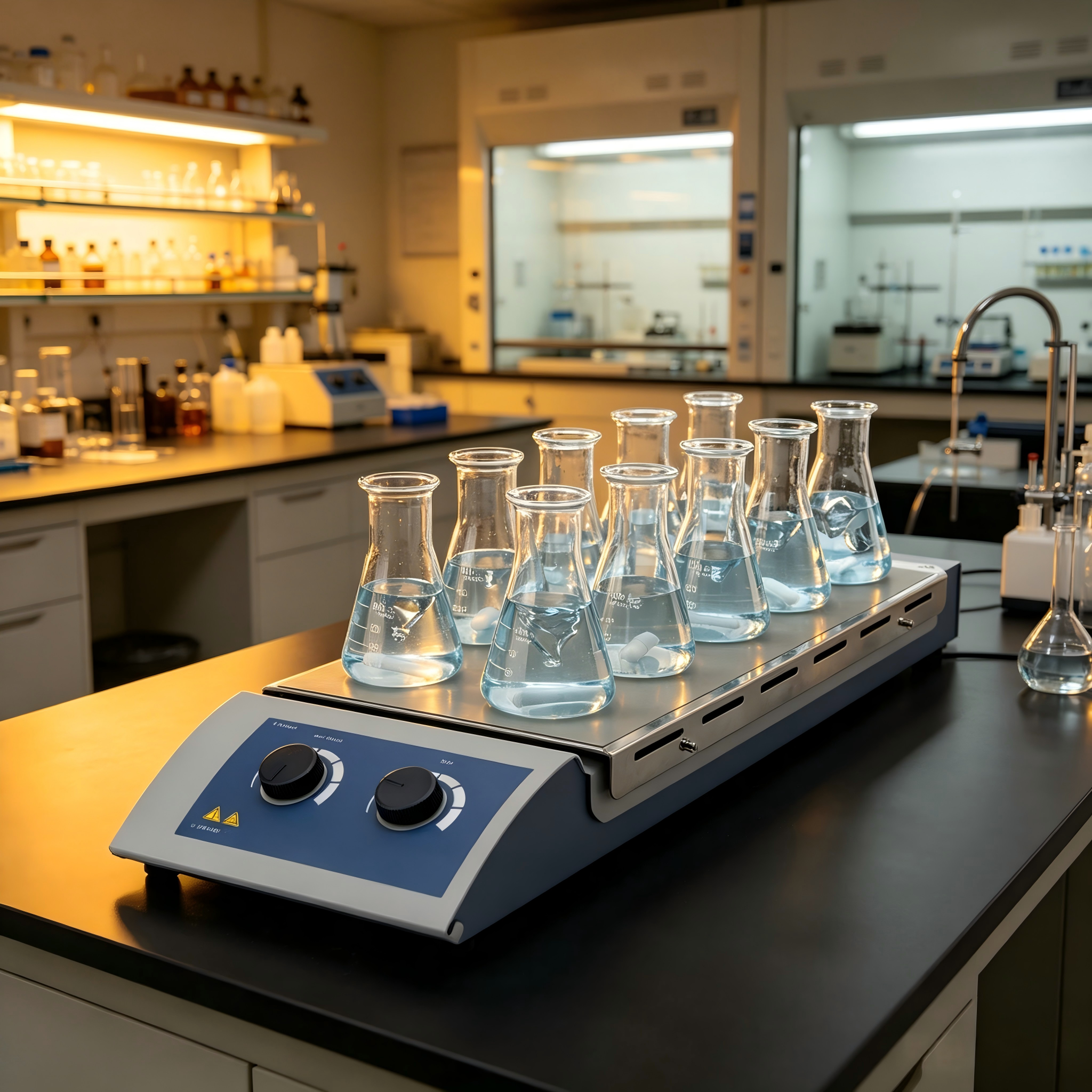

• LSM-H-10S 10-position magnetic hotplate stirrer is high-throughput equipment dedicated to parallel assays for biological incubation, drug screening, environmental water testing and university teaching labs; one unit completes constant-temperature mixing for 10 sample batches simultaneously to drastically cut multi-batch experiment cycle time.
• Integrated long aluminium heat-conducting base delivers uniform heating without local temperature difference; surface anti-slip silicone layer secures small Erlenmeyer flasks and sample beakers against sliding or tipping during stirring & heating.
• Rated 0.4L per position fits micro & small-volume parallel reaction systems with standard 40mm stir bars; synchronous rotation across 10 positions delivers consistent mixing force for superior repeatability of parallel test data.
• 4W brushless DC drive motor provides synchronized transmission with zero speed deviation among all stations; wide 0–1100rpm speed range covers full workflows from gentle micro-sample blending to high-speed powder dispersion.
• 470W high-power heating module steadily raises plate temperature up to 120℃, paired with dual 140℃ overheat power-off protection for safe long-duration constant-temperature heating experiments.
• Slim elongated chassis fits easily inside fume hoods and compact lab workstations, replacing 10 separate single-position stirrers to save massive bench space.
• Dual universal voltage design compatible with global power grids, no separate 110V/220V stock versions required for export orders to simplify bulk shipment inventory management.
• Simple low-maintenance structure without consumable carbon brush parts offers lower long-term operating cost for bulk procurement in third-party testing facilities, university teaching labs and enterprise screening R&D departments.

• Biological, pharmaceutical and environmental testing labs require simultaneous 10-group parallel control & high-throughput batch constant-temperature mixing experiments:
  Choose LSM-H-10S with 10-position synchronous stirring & heating; one unit replaces multiple single-position devices to boost sample throughput and save bench space.
• Daily processing of micro samples under 0.4L with standard 40mm stir bars demands consistent uniform mixing force across all stations:
  Synchronous brushless motor drive delivers identical rotation speed for every position to guarantee stable repeatable parallel assay data.
• Assays require constant heating up to 120℃ with safety concerns over dry burning and overheating, demanding active safety protection:
  Built-in auto power-off protection activates at 140℃ to cut heating supply instantly and prevent high-temperature hazards.
• Limited bench space or fume hood installation requires slim elongated equipment to minimize footprint:
  Slender 182×622mm low-profile chassis fits perfectly inside fume hoods and compact lab workstation layouts.
• Bulk export to multi-country overseas clients covering both 110V European/American and 220V Asian markets without separate model inventory:
  Dual universal voltage 100–120V/200–240V supports all global grids with one single model to simplify stock and shipment workflows.
• Bulk procurement for university teaching and third-party testing labs aiming to cut consumable replacement & equipment repair frequency and lower maintenance expenditure:
  Maintenance-free brushless DC motor without abrasive carbon brush parts eliminates frequent consumable change and drastically reduces post-purchase repair workload.

• Standard factory package includes LSM-H-10S 10-position magnetic hotplate stirrer main unit, power cord and printed English operation manual. Simultaneous stirring & heating experiments for 10 micro sample batches can be carried out right after unboxing and power-on without extra basic accessories.
• OEM private branding customization service is available for bulk orders to create exclusive brand visuals for online lab instrument stores and overseas biological, pharmaceutical & environmental testing research exhibition promotion.
• Thick shockproof separate carton filled with high-density foam buffer withstands long-distance jolt and extrusion during sea & air freight, greatly reducing risks of shell dent and internal motor/heating component damage in cross-border shipment.
• In-stock orders ship within 3–10 working days. Goods will be packed and dispatched uniformly after parameter confirmation to shorten lead time for overseas R&D & teaching labs and instrument distributors.
• Multiple cross-border logistics options including sea freight, air freight and international courier are offered to match cost-effective transport solutions based on order volume and requested arrival time.

Selling Units

Single item

Package size perbatch

69*41*26cm

Gross weight perbatch

7.500kg
