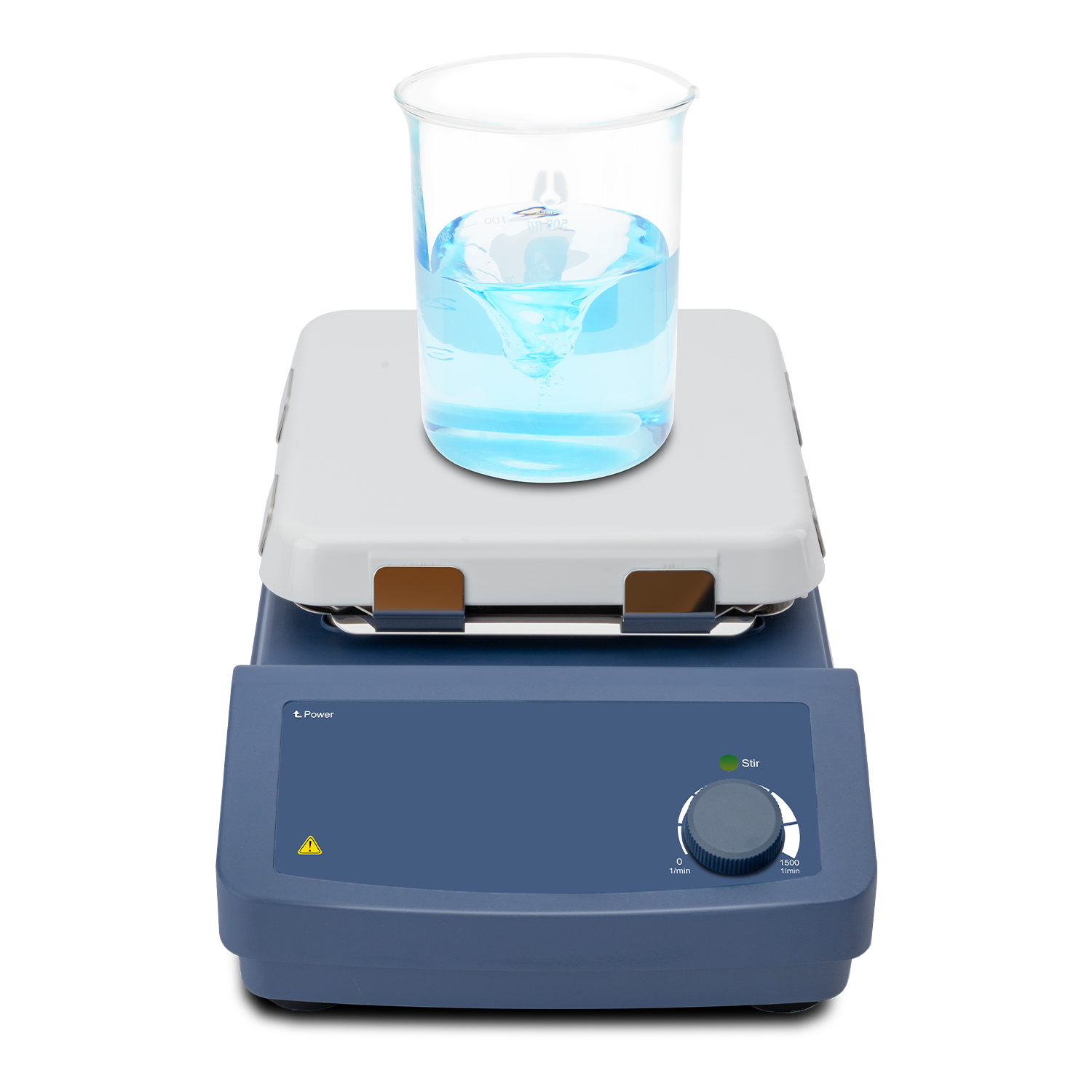

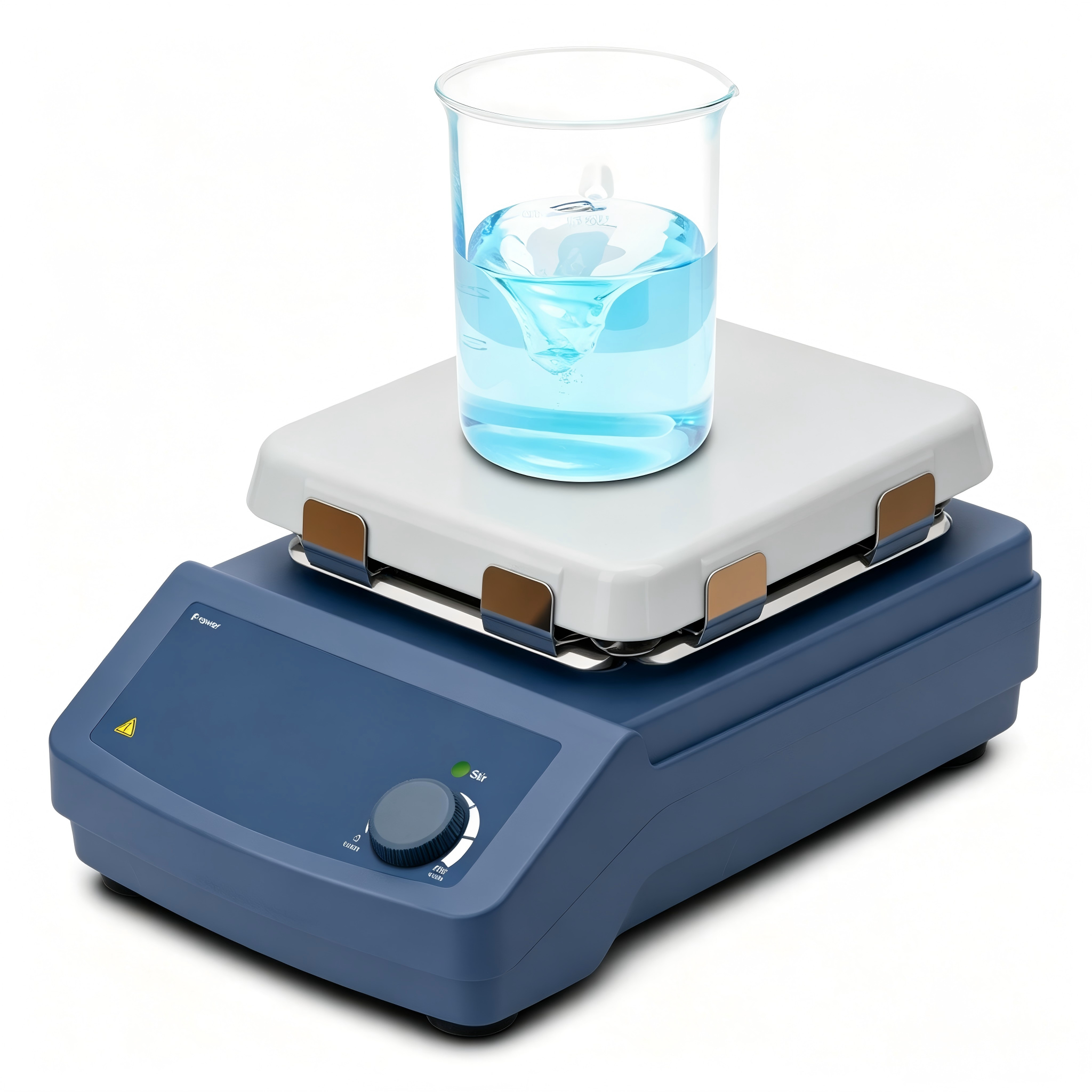

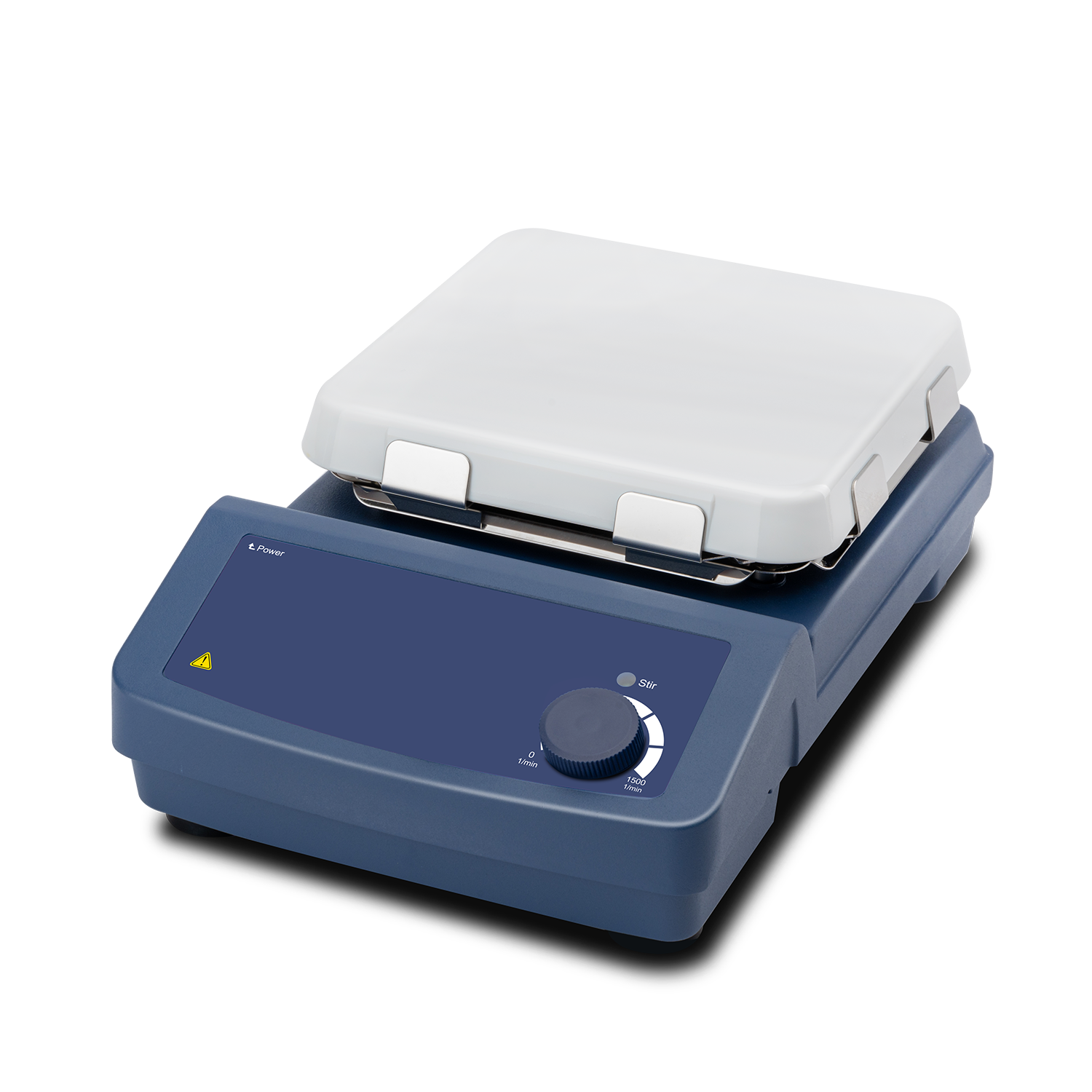

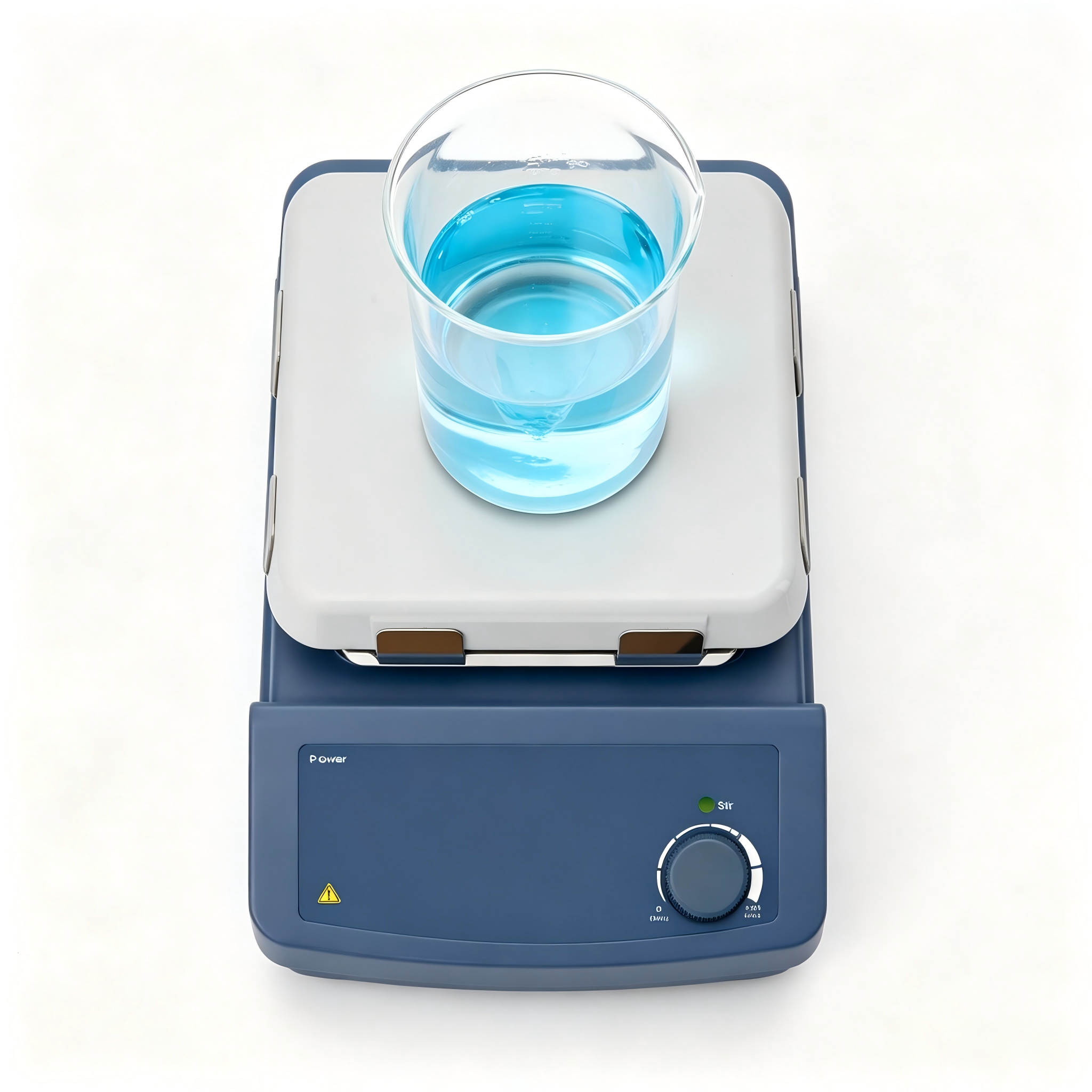

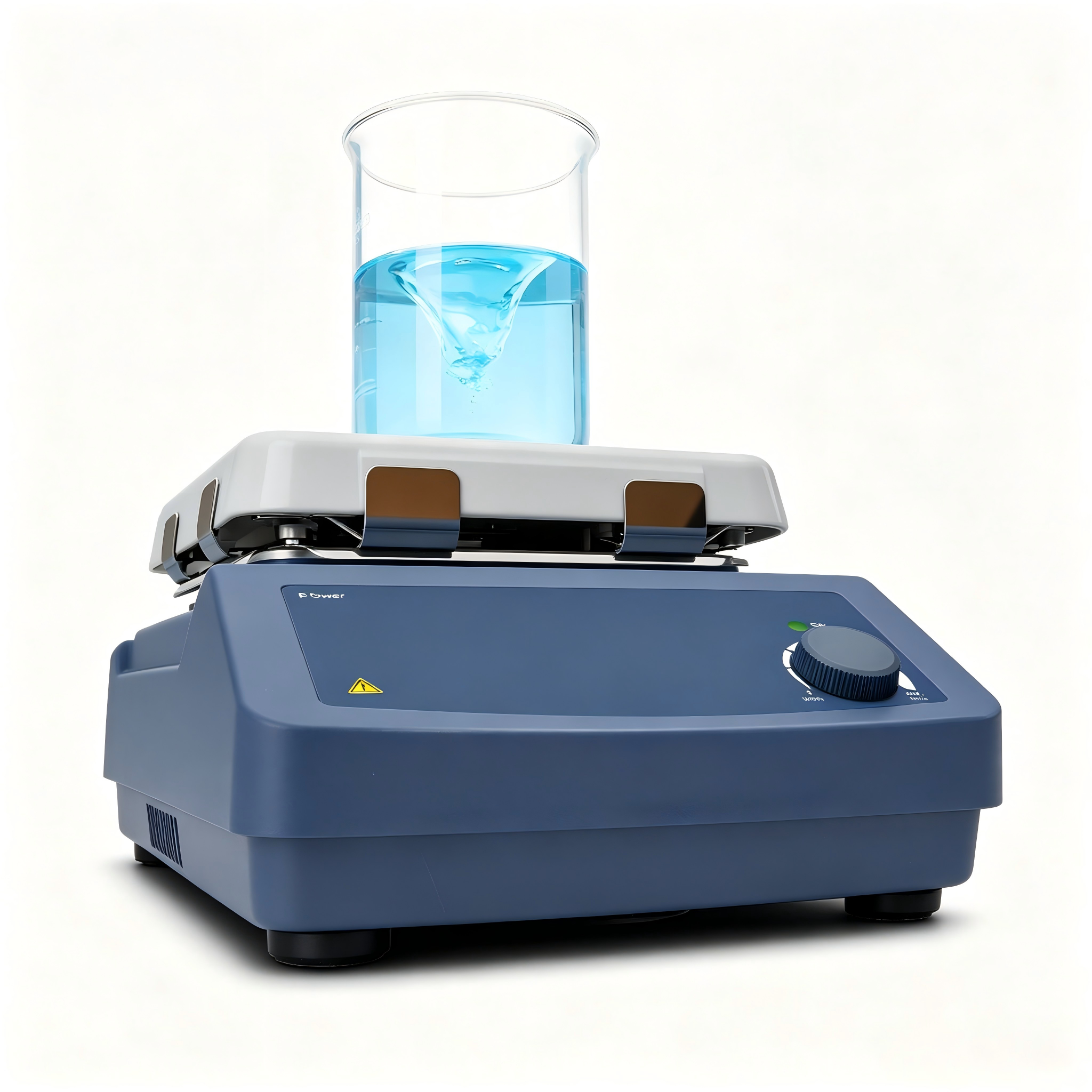

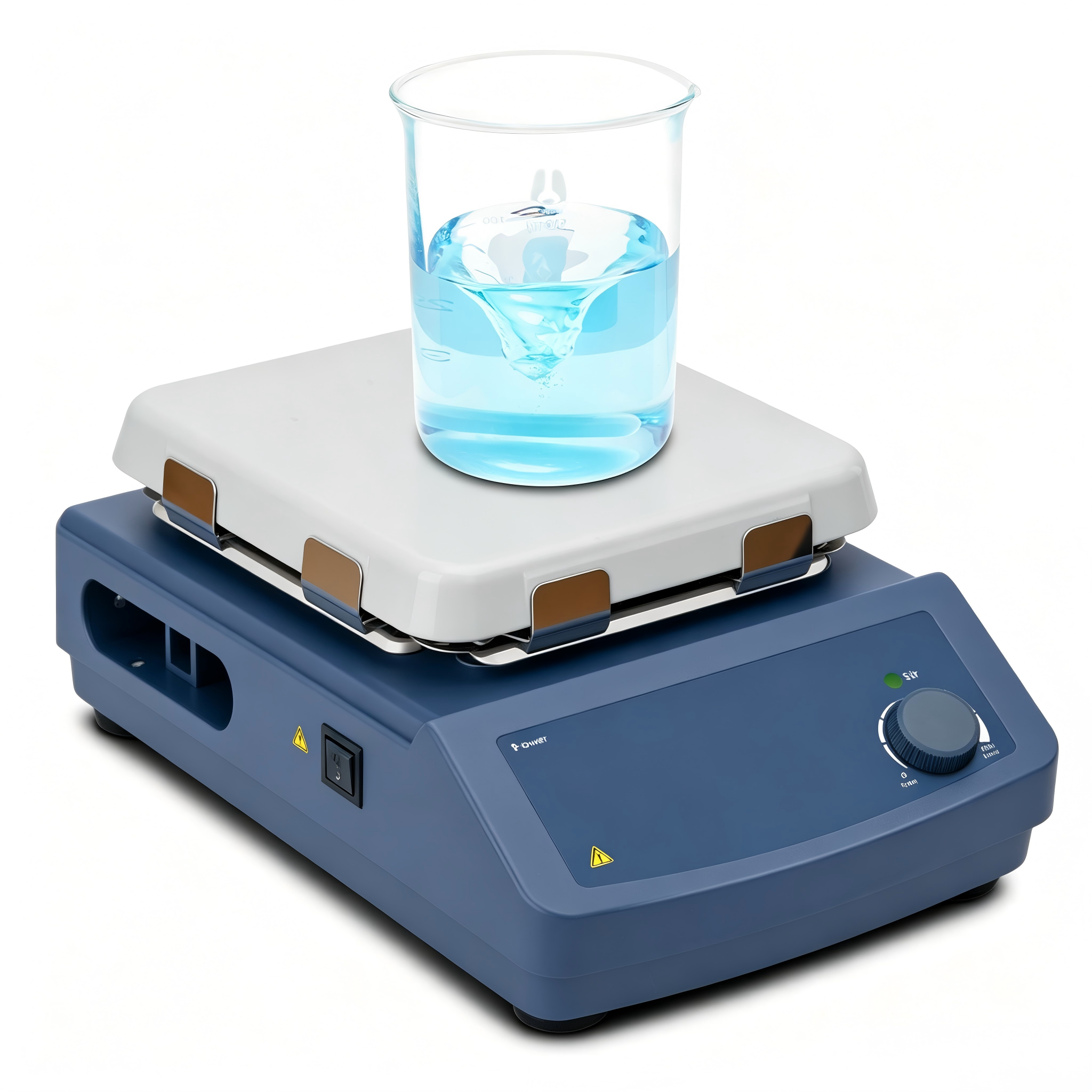

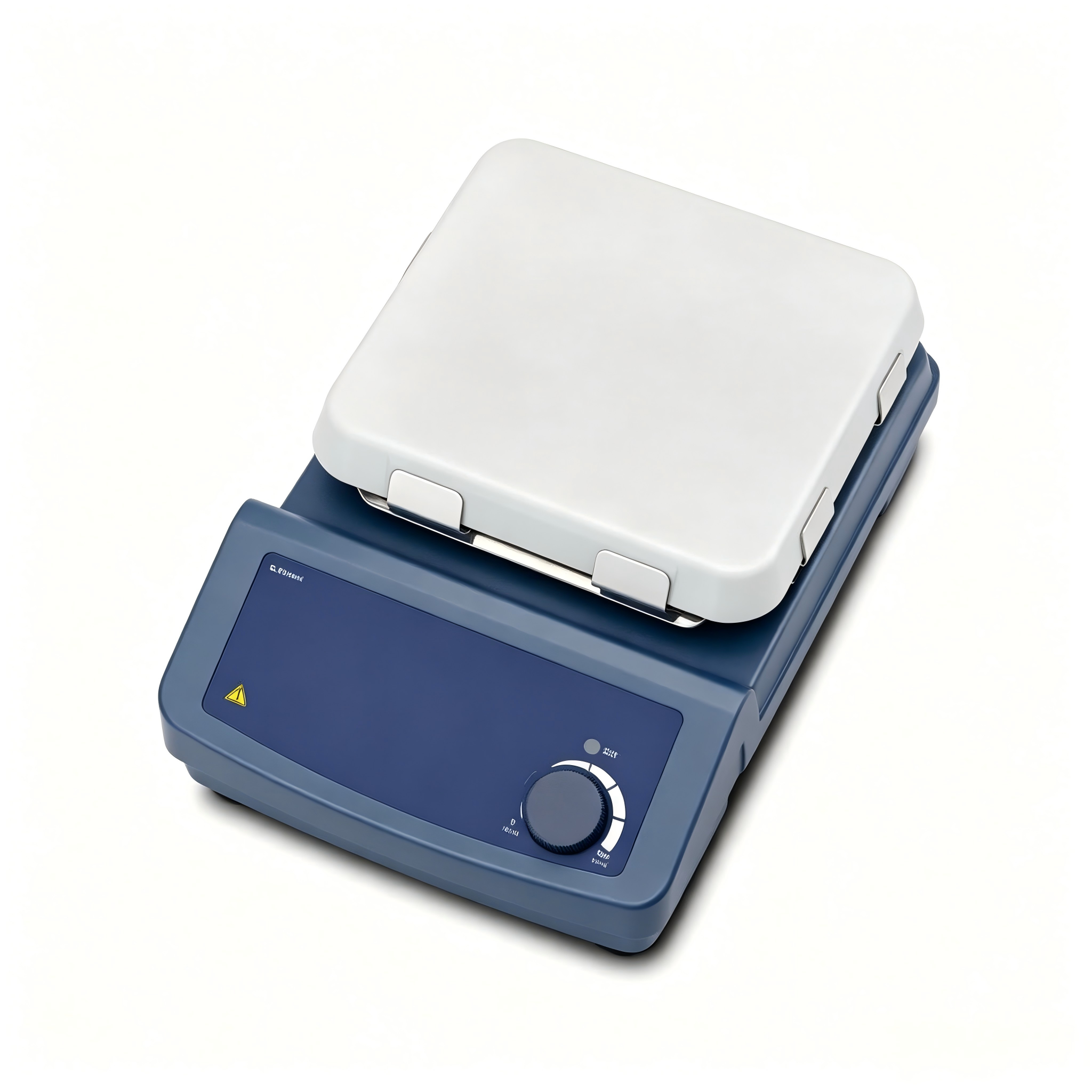

7 Inch Square Magnetic Stirrer

• L7SM-S 7-inch large square magnetic stirrer is designed for mixing low-viscosity liquids and solid-liquid systems, widely adopted in chemical synthesis, physical & chemical analysis, biopharmaceutical and material science labs.
• Core parameters: 184×184mm (7 inch) monolithic glass ceramic square work plate, single stirring position; max working volume 10L per station, compatible with magnetic stir bars up to 80mm length; shaded pole motor, 1.5W motor output power, total unit power 30W.
• Speed range 0–1500rpm with scale knob speed adjustment; IP21 protection class; dual wide voltage 100–120V/200–240V, universal 50/60Hz.
• Dimension 215×360×112mm, net weight 3.8kg. Permissible ambient operating condition: 5–40℃, max 80%RH.
• Key advantages: 7-inch extra-large glass ceramic platform, superior chemical resistance, efficient heat conductivity, 10L large single-position stirring capacity, compatible with 80mm extra-long stir bars, wide 0–1500rpm scale speed regulation, heavy-duty stable chassis, universal mixing performance for multi-discipline routine experiments.

• L7SM-S 7-inch glass ceramic magnetic stirrer is medium-capacity general mixing equipment for chemical synthesis, biopharmaceutical, material R&D and physical & chemical testing labs, featuring extra-large corrosion-resistant glass ceramic platform, 10L stirring volume and stable durable performance.
• Monolithic glass ceramic plate delivers superior chemical tolerance over Nylon and standard stainless steel coated surfaces, resisting corrosion, discoloration and cracking during long-term organic synthesis and acid-base titration assays, with good thermal conductivity compatible with heated model upgrade.
• 10L stirring volume paired with 80mm extended stir bars bridges 5L lab small-scale and 20L pilot-scale equipment, ideal for process scale-up exploration and simultaneous blending of bulk parallel samples.
• Simple shaded pole motor structure with low failure rate; heavy weighted 3.8kg chassis ensures stable center of gravity without sliding or tipping under full large-volume load to guarantee safe long-duration continuous experiments.
• Stepless 0–1500rpm scale knob speed adjustment with intuitive operation and no complicated setup, easy for student operators and frontline testing staff to master quickly.
• Dual wide voltage design allows one unit compatible with 110V European & American markets and 220V Asian markets, reducing inventory pressure without separate stock versions for export.
• Spacious regular chassis enables neat side-by-side multi-unit arrangement to maximize lab bench utilization and boost overall sample throughput.
• Integrated rigid body with minimal wear parts offers outstanding comprehensive cost performance for bulk procurement in university teaching labs, third-party testing institutions and enterprise R&D facilities.

• Routine chemical, biological and pharmaceutical labs require large corrosion-resistant platform for medium-volume low-viscosity & solid-liquid samples within 10L per batch:
  Choose L7SM-S with 7-inch monolithic glass ceramic anti-corrosion plate, 10L stirring capacity and 80mm long stir bars to eliminate sediment dead zones.
• Frequent use of strong acid, alkali and various organic solvents causes easy damage to standard Nylon/aluminum coated plates:
  Integral glass ceramic surface withstands all common corrosive reagents with wear & aging resistance to extend equipment replacement cycle drastically.
• Lab scale-up experiments between 5L small-scale and 20L pilot scale demand stable medium-large volume stirring equipment:
  Rated 10L mixing capacity matched with heavy 3.8kg weighted base delivers vibration-free stable running under full load for scale-up exploration assays.
• Bulk export to multi-country overseas clients covering both 110V and 220V mains zones without separate model inventory:
  Dual universal voltage 100–120V/200–240V supports all global markets with one single model to simplify stock management.
• Sufficient lab bench space with demand for side-by-side multi-stirrer layout to raise daily sample throughput:
  Regular wide chassis allows neat parallel arrangement; 7-inch large platform offers better compatibility with all beaker and Erlenmeyer flask sizes.
• Bulk procurement for university teaching and third-party testing labs prioritizing simple low-failure structure with minimal post-purchase maintenance:
  Shaded pole motor features simple durable construction without fragile precision spare parts, extremely low repair and consumable cost over long service life.

• Standard factory package includes L7SM-S magnetic stirrer main unit, power cord and printed English operation manual. Medium-volume 10L solid-liquid & low-viscosity material mixing experiments can be carried out right after unboxing and power-on without extra basic accessories.
• OEM private branding customization service is available for bulk orders to create exclusive brand visuals for online lab instrument stores and overseas chemical & biopharmaceutical research exhibition promotion.
• Thick shockproof separate carton filled with high-density foam buffer withstands long-distance jolt and extrusion during sea & air freight, greatly reducing risks of shell dent and internal motor component damage in cross-border shipment.
• In-stock orders ship within 3–10 working days. Goods will be packed and dispatched uniformly after parameter confirmation to shorten lead time for overseas R&D & teaching labs and instrument distributors.
• Multiple cross-border logistics options including sea freight, air freight and international courier are offered to match cost-effective transport solutions based on order volume and requested arrival time.

Selling Units

Single item

Package size perbatch

49*35*26cm

Gross weight perbatch

6.500kg

• Contact customer service to obtain complete original electronic documents for product selection, online store listing, exhibition promotion and customer consultation.
• Official electronic files for this product include full technical parameters, English operation manual, safety instructions, equipment dimension drawings and product brochures. All documents comply with official factory standards with verifiable data.
• Enterprise promotional materials are available, including company brochure, real workshop photos and factory introduction files.
• We provide full-series product resources of stirring equipment, hotplates and other laboratory instruments, supporting unified store operation and multi-product marketing promotion.
