Home > All Collections > Drying Ovens > Constant temperature forced air drying oven

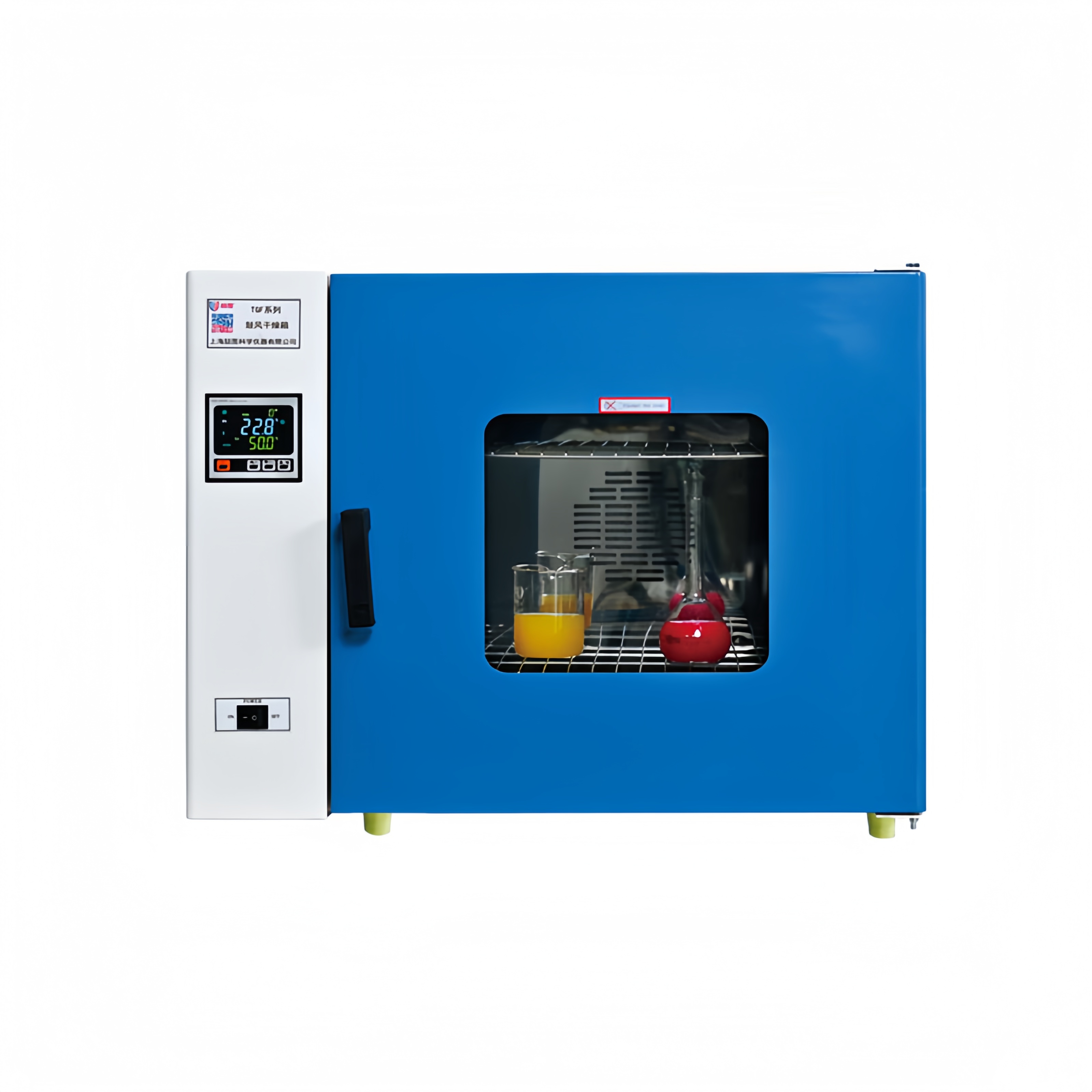

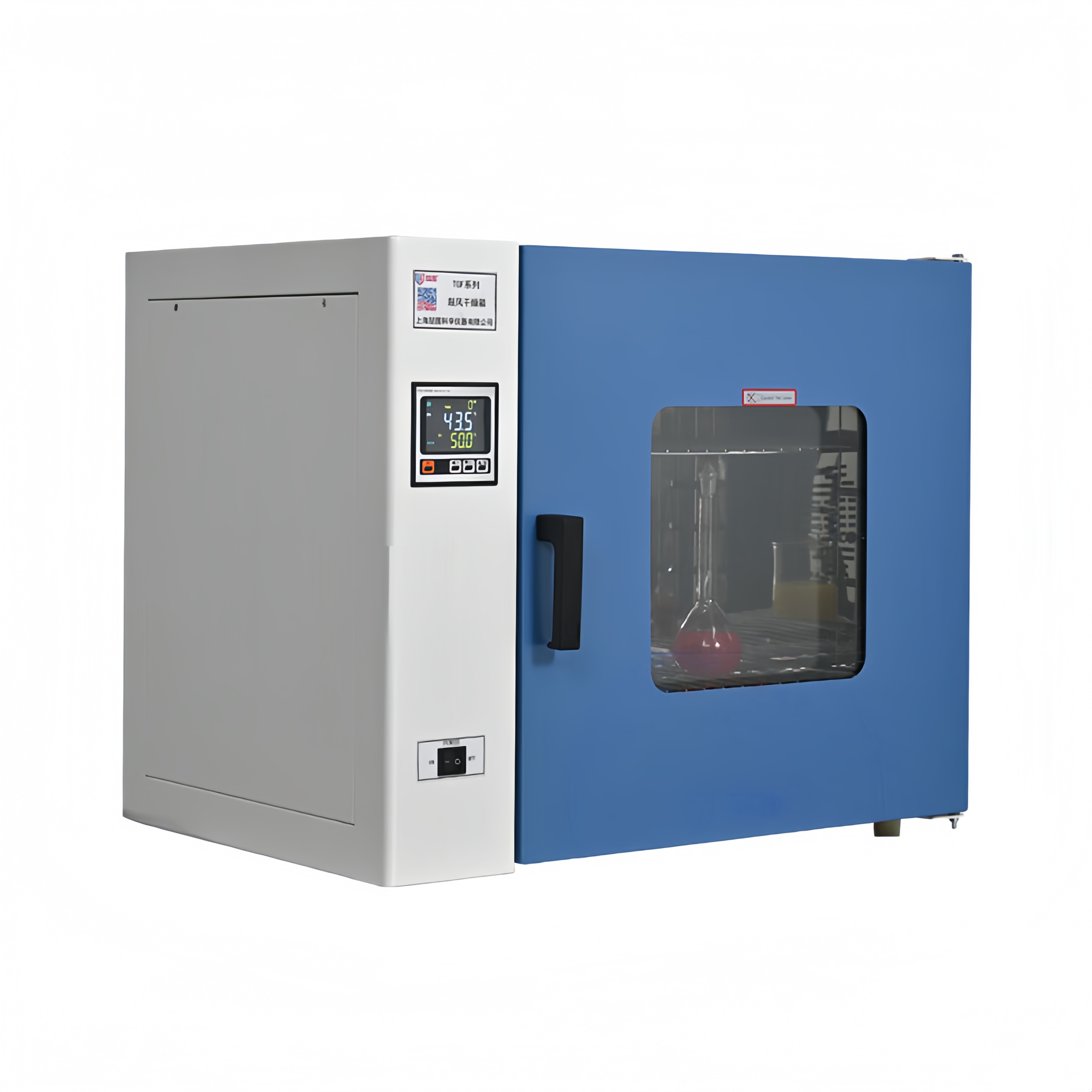

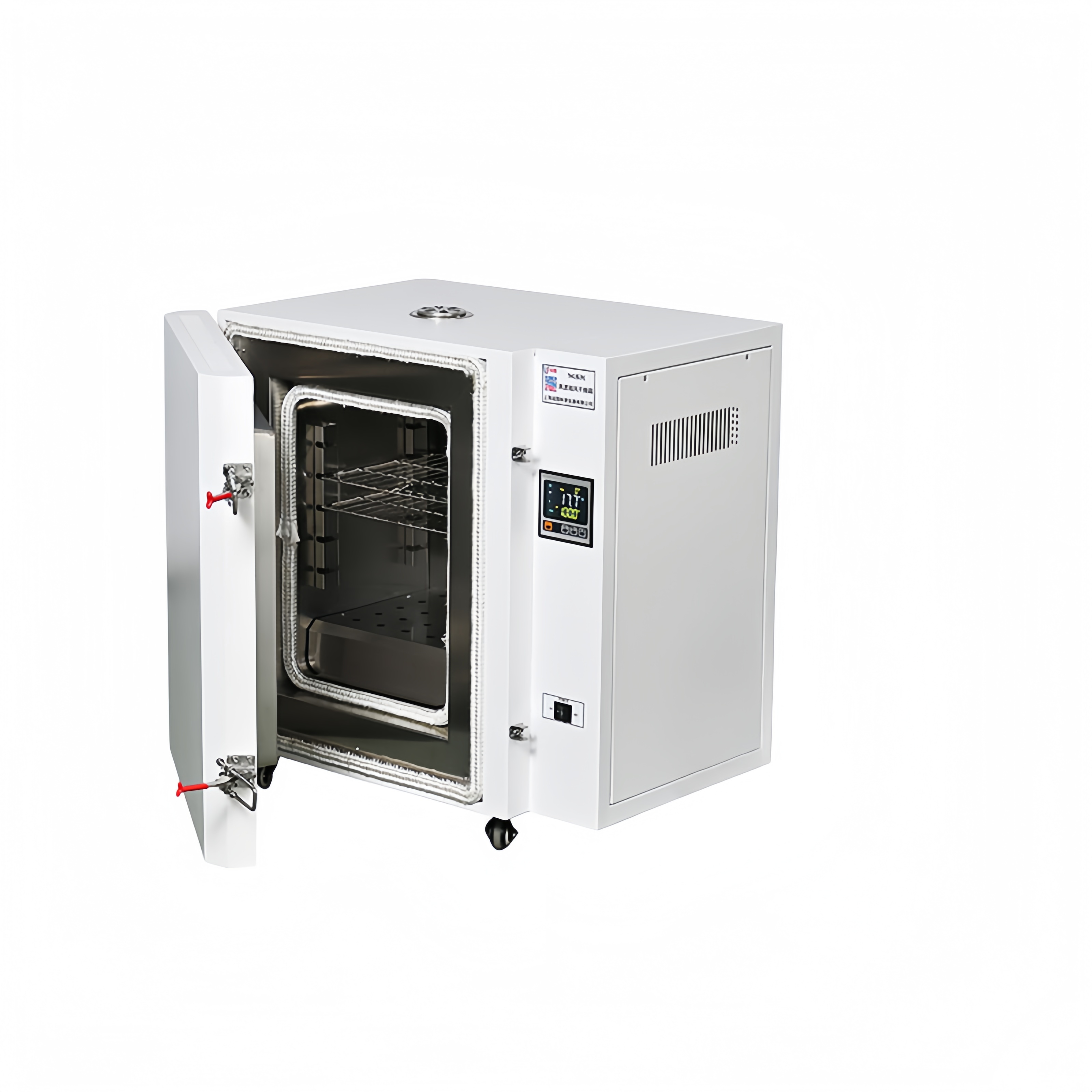

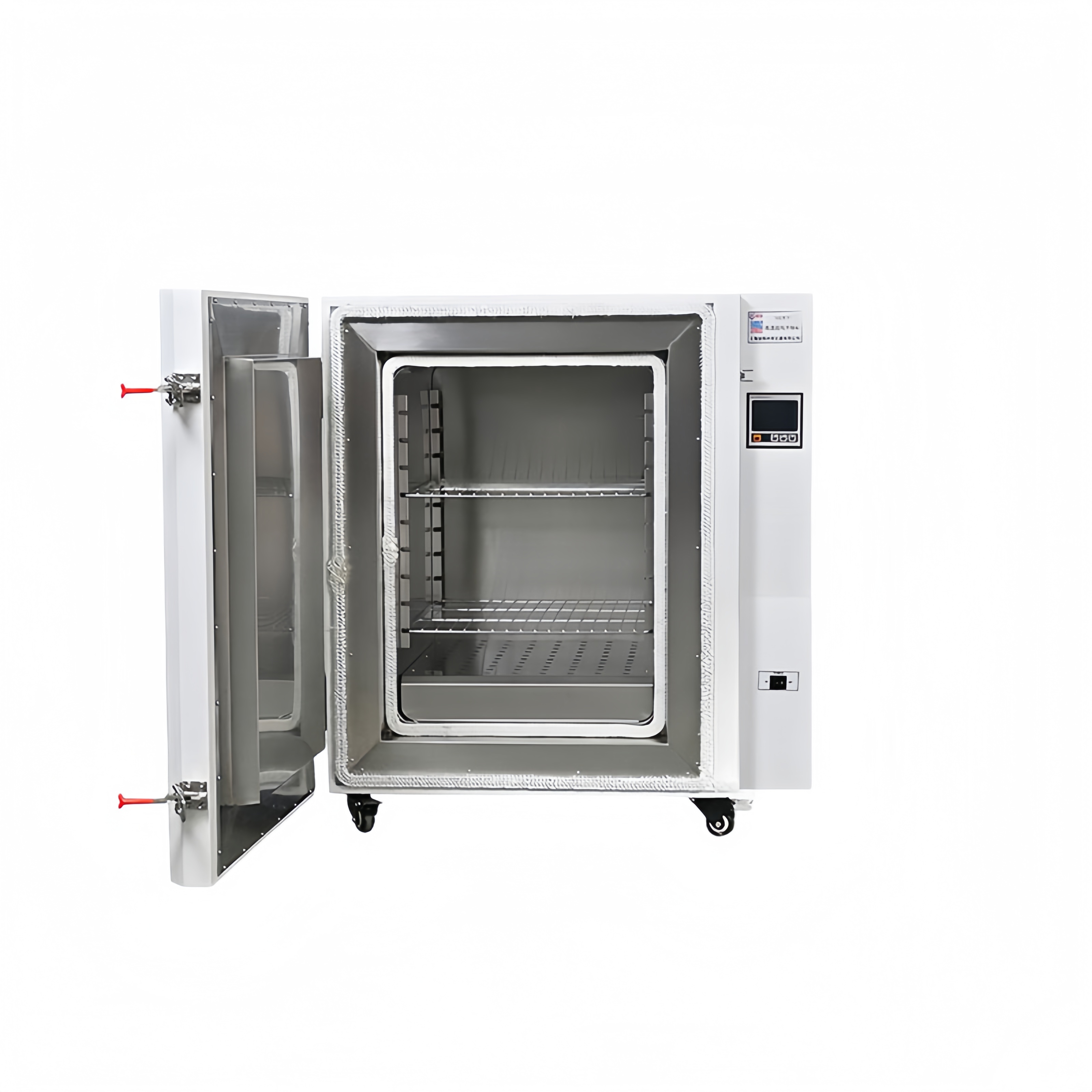

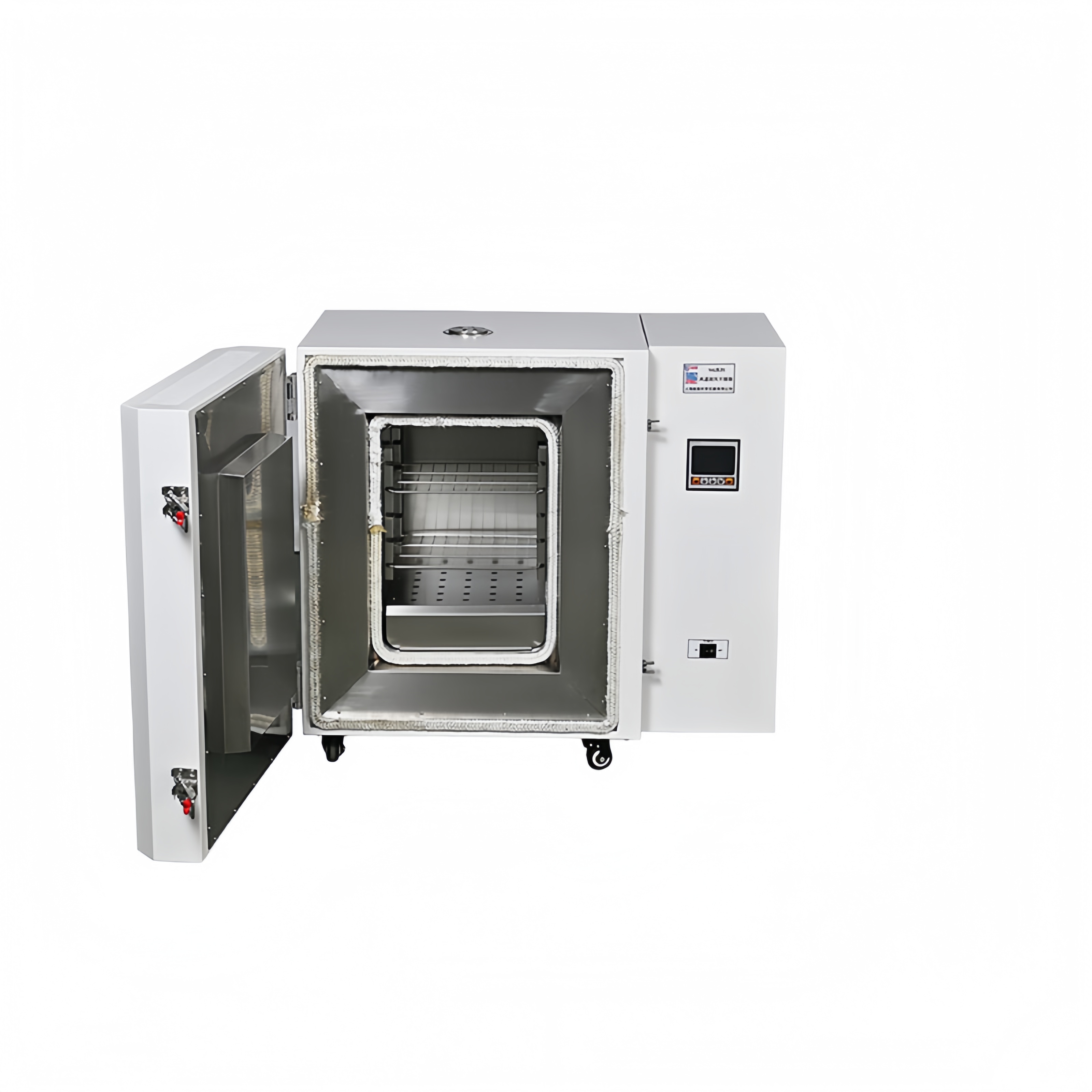

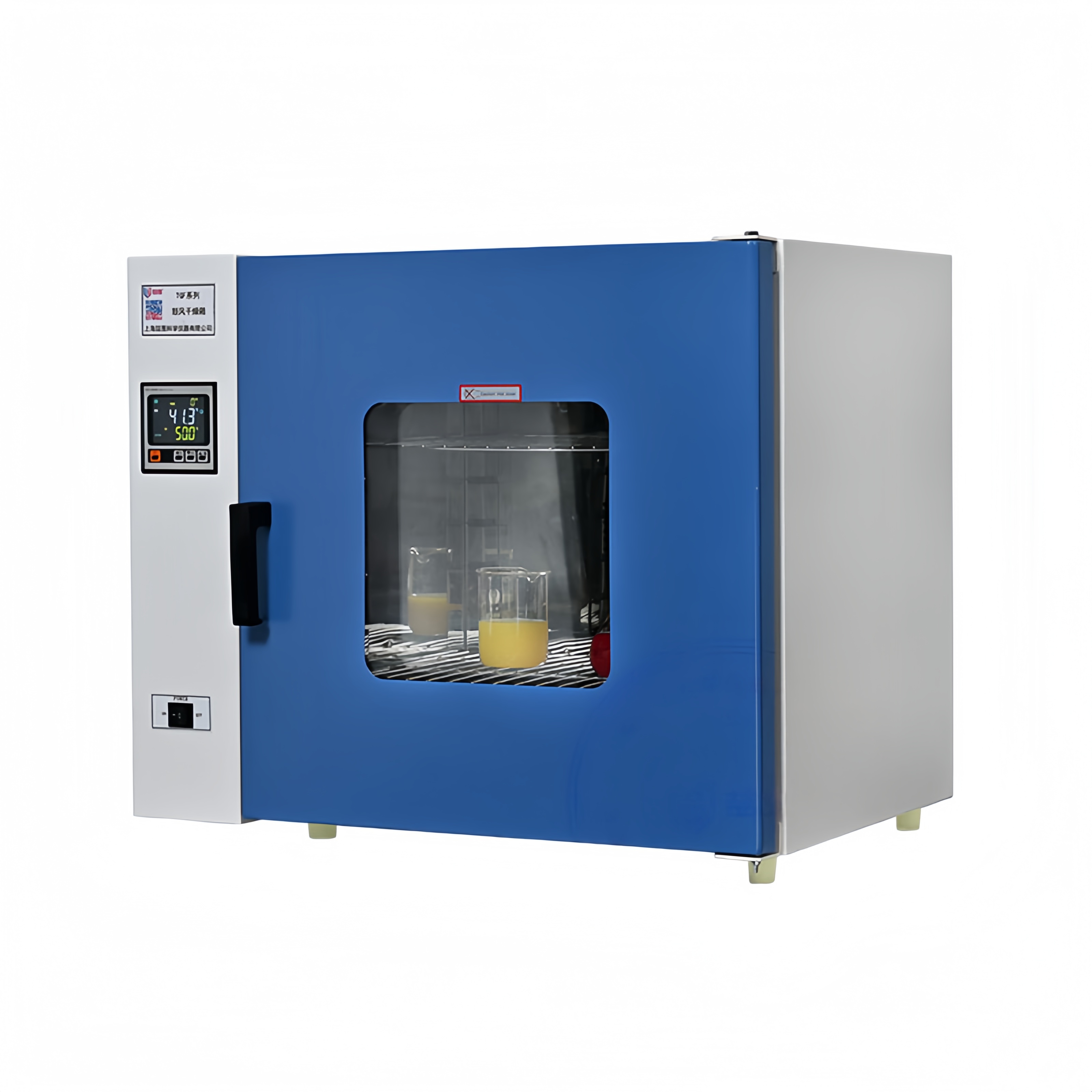

Constant temperature forced air drying oven

Name: Constant temperature forced air drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601653356915 (TGF)
Price: 760.60 USD
Availability: InStock

No.1601653356915 (TGF)

TGF Series Blast Drying Oven is compact and portable. It is widely used in industrial and mining enterprises, universities, biopharmaceutical, food, R&D and medical institutions for drying, baking, wax melting and disinfection of non-flammable, non-explosive, non-volatile materials. Ideal for glassware drying, sample denaturation, moisture testing, heat treatment, dehumidification, dry heat sterilization and electronic component aging.

$760.60

color&model:

White

TGF

Inner Size:

250*260*250mm

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

TGF series blast drying oven, also known as electric blast drying oven or desktop blast drying oven, features compact structure and easy movement. It is widely used in industrial and mining enterprises, colleges and various laboratories.
It is suitable for drying, baking, wax melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials. Widely applied in biomedicine, food processing, scientific research, pharmaceutical raw materials and glassware drying.
It can realize thermal denaturation of samples, thermal treatment of food and chemicals, coating curing, thermal hardening, moisture removal, dry heat sterilization, sterilization of biotech vessels and appliances, as well as drying of electronic components.
Equipped with three-color LCD instrument panel and built-in self-diagnosis function. Microcomputer PID temperature controller supports overtemperature deviation protection and timing function. Self-developed hot air circulation system can automatically discharge water vapor inside the chamber.
Two temperature range options: RT+10~250℃ / RT+10~300℃. Available volumes: 16L, 30L, 50L, 70L, 140L, 240L, 268L. All models adopt AC220V 50Hz power supply.

Details Images

Large three-color LCD panel displays multiple groups of data simultaneously with simple and intuitive operation interface. Built-in self-diagnosis function shows fault code directly on screen for quick troubleshooting.
Microcomputer PID intelligent temperature controller integrates overtemperature deviation protection and timing control system to realize precise temperature control and support long-time unattended drying experiments.
Double-layer tempered glass observation window enables direct observation of internal samples. The main door is equipped with large transparent glass viewing window and outward flip door lock with two-stage rotary locking structure for excellent sealing performance.
Self-developed hot air circulation duct structure provides forced convection to keep internal air circulating continuously and guarantee uniform temperature inside working chamber.
High-temperature circulating fan can operate continuously for a long time under high temperature, disturbing chamber air and balancing temperature distribution with outstanding temperature uniformity.
Horizontal cabinet structure with controller installed on side panel, so control panel will not be blocked during door opening, convenient for operation and debugging.
Stainless steel inner liner and brackets feature beautiful appearance and corrosion resistance. New high-temperature resistant silicone rubber sealing strip offers tight sealing, high temperature resistance, anti-deformation property, no harmful substance precipitation and long service life.
Overtemperature alarm threshold can be set freely. Once temperature exceeds limit value, the device will trigger automatic audio-visual alarm to avoid sample damage caused by overheating.
Built-in parameter memory function prevents data loss caused by power failure or accidental shutdown, experiments can be continued after power recovery.

	TGF-9010A TGF-9015A	TGF-9030A TGF-9035A	TGF-9050A TGF-9055A	TGF-9070A TGF-9075A	TGF-9140A TGF-9145A	TGF-9240A TGF-9245A	TGF-9240AH TGF-9245AH
model	TGF-9010A TGF-9015A	TGF-9030A TGF-9035A	TGF-9050A TGF-9055A	TGF-9070A TGF-9075A	TGF-9140A TGF-9145A	TGF-9240A TGF-9245A	TGF-9240AH TGF-9245AH
power supply voltage	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Temperature control range	RT(room temperature)+10~250 ℃	RT(room temperature)+10~250 ℃	RT(room temperature)+10~250 ℃	RT(room temperature)+10~250 ℃	RT(room temperature)+10~250 ℃	RT(room temperature)+10~250 ℃	RT(room temperature)+10~300 ℃
temperature uniformity	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)	±2.5 ℃ (unloaded at 100 ℃)
Constant temperature fluctuation	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃
temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
input power	550W/600W	800W/850W	850W/1100W	1100W/1550W	1550W/2050W	2050W/2500W	2500W/2800W
inner dimensions WDH(mm)	250260250	340330320	420350350	450400450	550450550	600595650	600595750
Overall dimensions WDH(mm)	535380420	625450490	705520520	735520635	835580730	880720830	880720930
Nominal volume	16L	30L	50L	70L	140L	240L	268L
inner liner material	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Brushed stainless steel	Brushed stainless steel
Load carrier	1 piece	1 piece	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces
timing range	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min
Optional accessories	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen

Horizontal desktop cabinet design with compact size, easy to transport. No fixed base required, it can be placed on lab bench or ground for flexible layout.
Double-layer thermal insulation door structure. Outer shell is electrostatic sprayed for anti-corrosion; mirror or brushed stainless steel inner liner is easy to wipe and resistant to chemical corrosion.
Built-in forced hot air circulation system continuously discharges water vapor during drying, effectively reducing chamber humidity and accelerating sample dehydration.
Two-stage rotary door lock compresses sealing strip tightly after closing to reduce heat loss and improve constant temperature stability. Samples can be observed through transparent window without opening door.
PID intelligent constant temperature control realizes stable temperature rise, small overshoot and low fluctuation, suitable for drying and curing experiments requiring precise temperature control.
Standard timing function ranges from 1~9999min. Optional program controller supports automatic multi-segment heating and cooling curves.
Various optional accessories: USB data export, RS485 communication, independent temperature limiter, test hole, micro printer, wind speed adjustment switch and color touch screen.
Dual overtemperature protection: built-in controller alarm plus optional independent temperature limit device, preventing continuous high temperature caused by control failure to protect samples and equipment.
Two maximum temperature options: standard model up to 250℃ and high-temperature AH model up to 300℃ to meet different drying process requirements.

Drying small amount of samples and glassware for small labs: choose 16L / 30L small-volume model.
Conventional sample baking, moisture testing and material drying: select mainstream volumes of 50L / 70L.
Mass sample curing, heat treatment and industrial production: choose large-capacity models of 140L, 240L and 268L.
Maximum working temperature below 250℃: select standard A series. For 300℃ high-temperature process, choose AH high-temperature series.
Automatic multi-segment temperature cycle and unattended operation required: equip intelligent program controller or upgrade to color touch screen.
High-value samples requiring double overheat protection: install independent temperature limiting controller.
Continuous temperature curve recording and data export required: select USB interface or RS485 communication port.
External probe temperature measurement required: choose optional test hole.
Hard-copy temperature records needed: equip micro printer. Wind speed adjustment switch is optional if airflow intensity adjustment is required.

Standard factory package: blast drying oven main unit, stainless steel shelves, power cord and bilingual operation manual. All extended accessories are separately optional.
Thick shockproof package with foam buffer protects fragile parts including inner liner, control panel and observation window glass to avoid collision damage during long cross-border transportation.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Selling Units	Single item	Package size per batch	655451cm
Gross weight per batc	28.000kg

Name	Qty
Constant temperature forced air drying oven	1
Stainless steel drying shelf	2 pcs
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Complete factory electronic documents can be obtained by contacting support, for cross-border website listing, overseas chemical & food exhibition promotion and technical consultation for clients.
Supporting documents: bilingual full specification sheet, standard operation manual, heating & fan maintenance guide, dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and photos of optional accessories for unified multi-product online store operation.

What are the two temperature ranges? What is the difference between AH model and standard A model? A Standard A series: RT+10~250℃; AH high-temperature series: RT+10~300℃ with higher maximum temperature.
Under what condition is temperature uniformity tested? A Tested at 100℃ without load, uniformity ±2.5℃.
Is there any difference in inner liner material? A 16L~140L models adopt mirror-finished stainless steel; 240L and 268L adopt brushed stainless steel.
How to discharge water vapor during drying? A Built-in hot air circulation system can automatically discharge vapor inside chamber.
Can internal samples be observed? A Double-layer tempered glass window allows direct sample observation without opening door.
Will temperature and timing settings be lost after power failure? A Built-in memory function retains all settings automatically after power recovery.
Does it support automatic multi-segment heating & cooling programs? A Standard configuration supports single segment constant temperature. Optional program controller enables multi-segment operation.
Is overtemperature alarm protection available? A Standard controller overtemperature alarm; optional independent temperature limiter provides double protection.
What is the maximum timing duration? A Timing range:1~9999 minutes.
Can running temperature curve data be exported? A Optional USB interface supports data storage and export via USB flash drive.
Can temperature be monitored remotely via PC? A Optional RS485 interface connects upper computer for remote monitoring and data export.
Is test hole reserved on chamber? A Test hole is optional accessory for external temperature sensor measurement.
What is the door lock structure? How about sealing performance? A Outward flip two-stage rotary lock matched with high-temperature silicone rubber sealing strip for excellent heat insulation and sealing.
Is running noise loud for daily lab use? A Low-noise circulation fan with moderate noise, suitable for regular use in university and enterprise laboratories.
Can flammable, explosive or highly volatile solvent samples be dried? A No. This oven is only applicable for non-flammable, non-explosive and low-volatility materials.
Are mobile casters equipped as standard? A Casters are not standard, mobile solution can be discussed as optional upgrade.
Can fan wind speed be adjusted? A Wind speed adjustment switch is optional accessory

TGF blast drying oven is suitable for sample drying, material curing, glassware dry heat sterilization, electronic component dehumidification and constant-temperature drying of pharmaceutical raw materials. Contact support to obtain complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, special inner liner requirement, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory inspection.
Contact ways: Email, WhatsApp, online message on website. Please state target model, volume, temperature version (A / AH), optional accessory demands and order quantity. A complete formal quotation will be provided within 24 hours to solve all purchasing inquiries.
