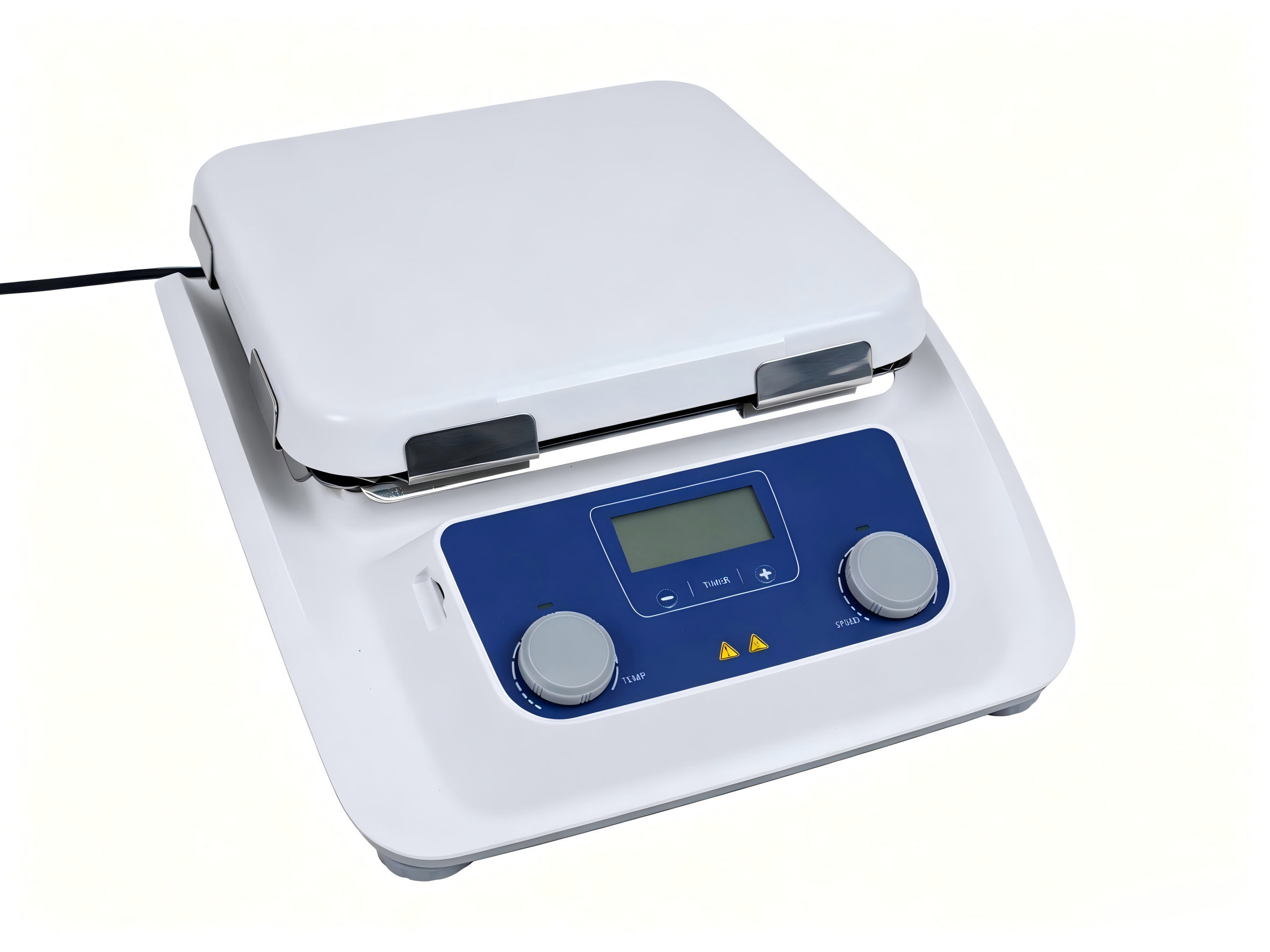

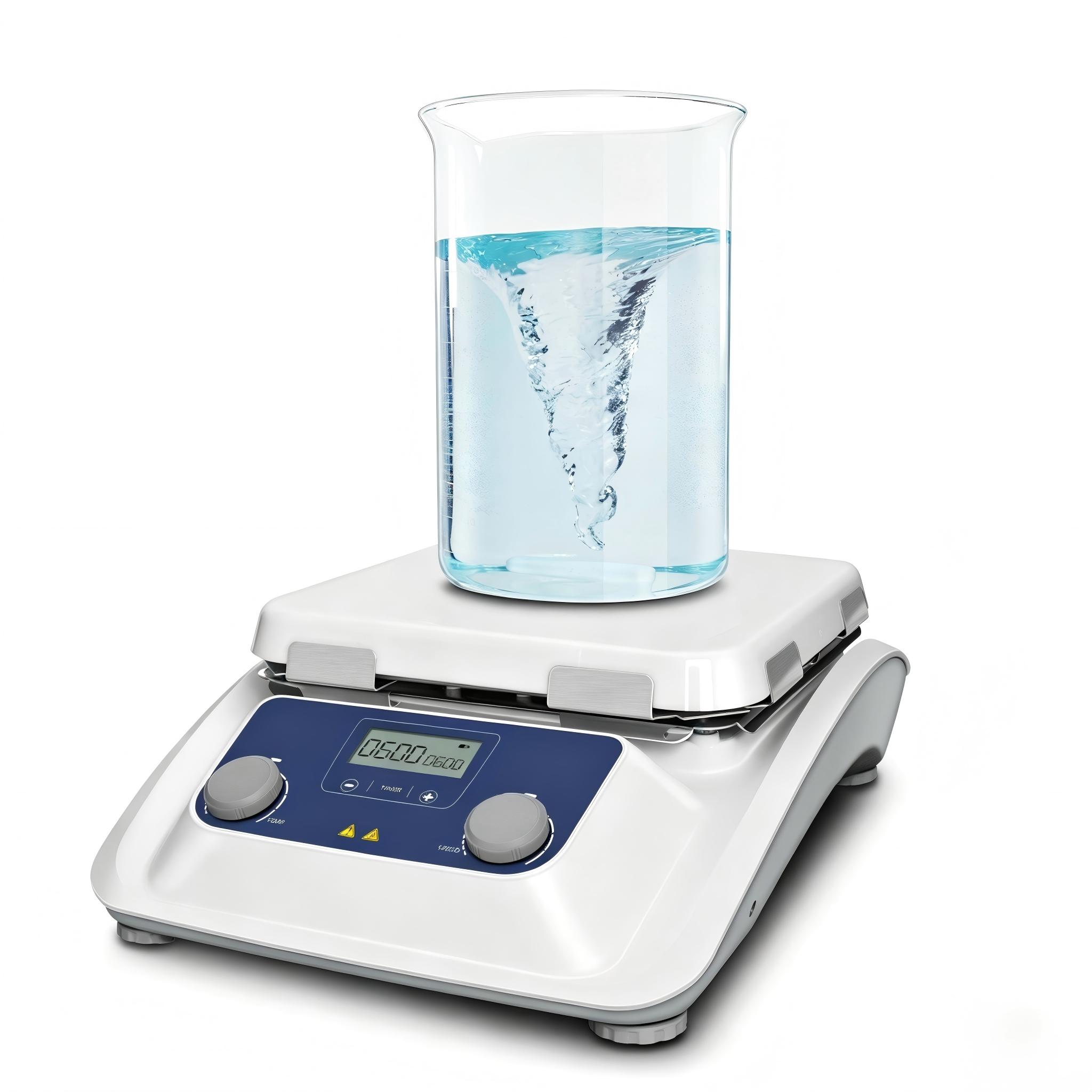

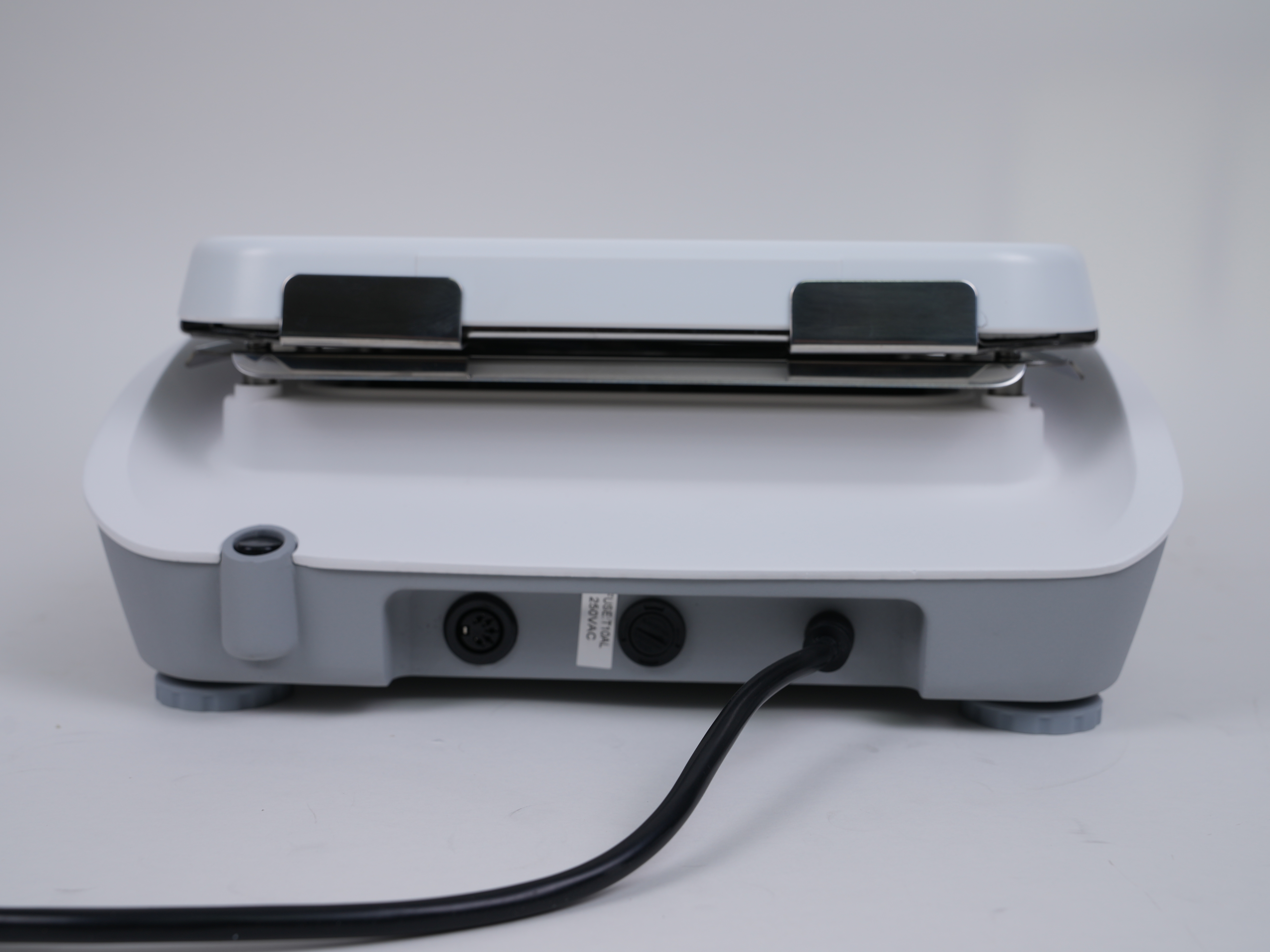

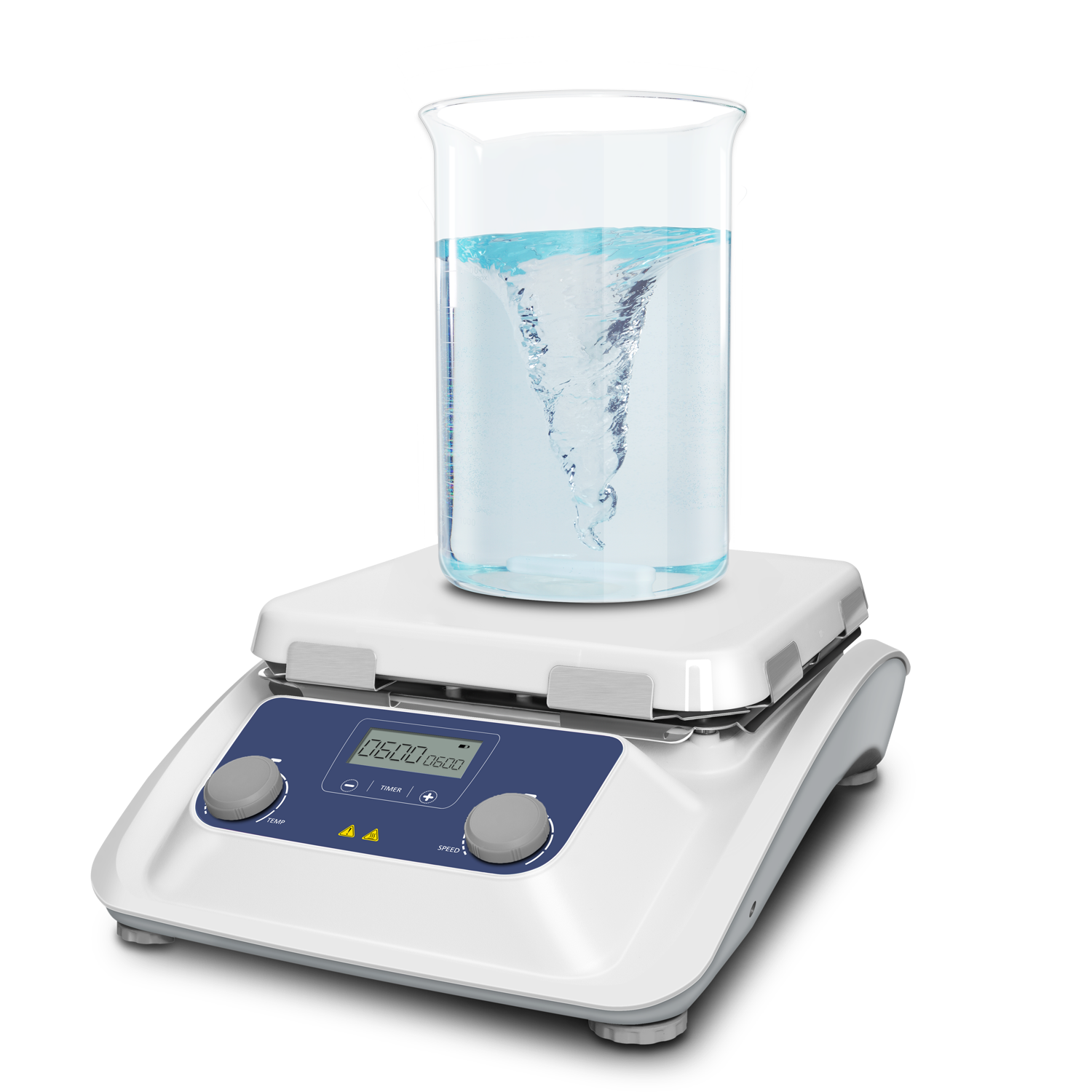

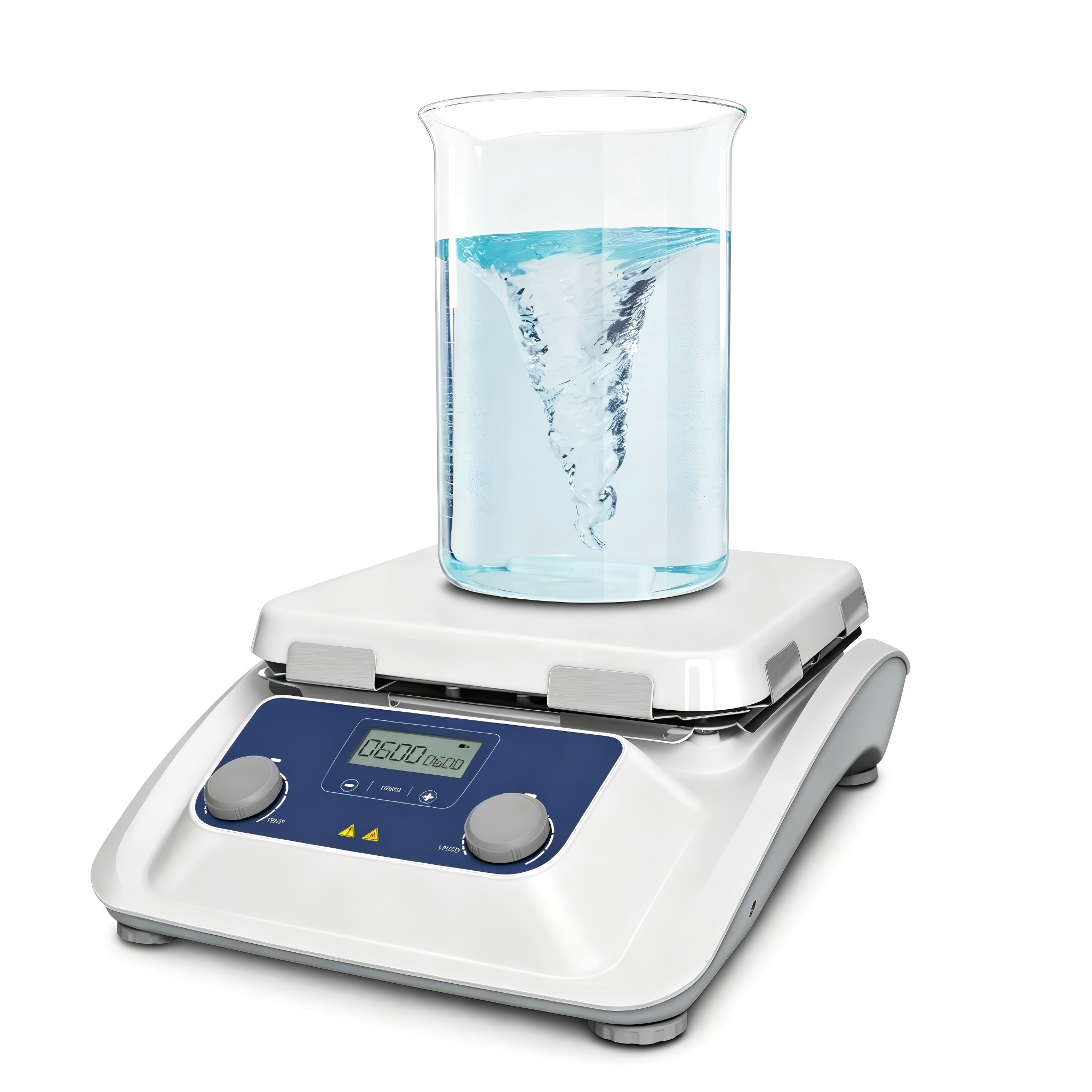

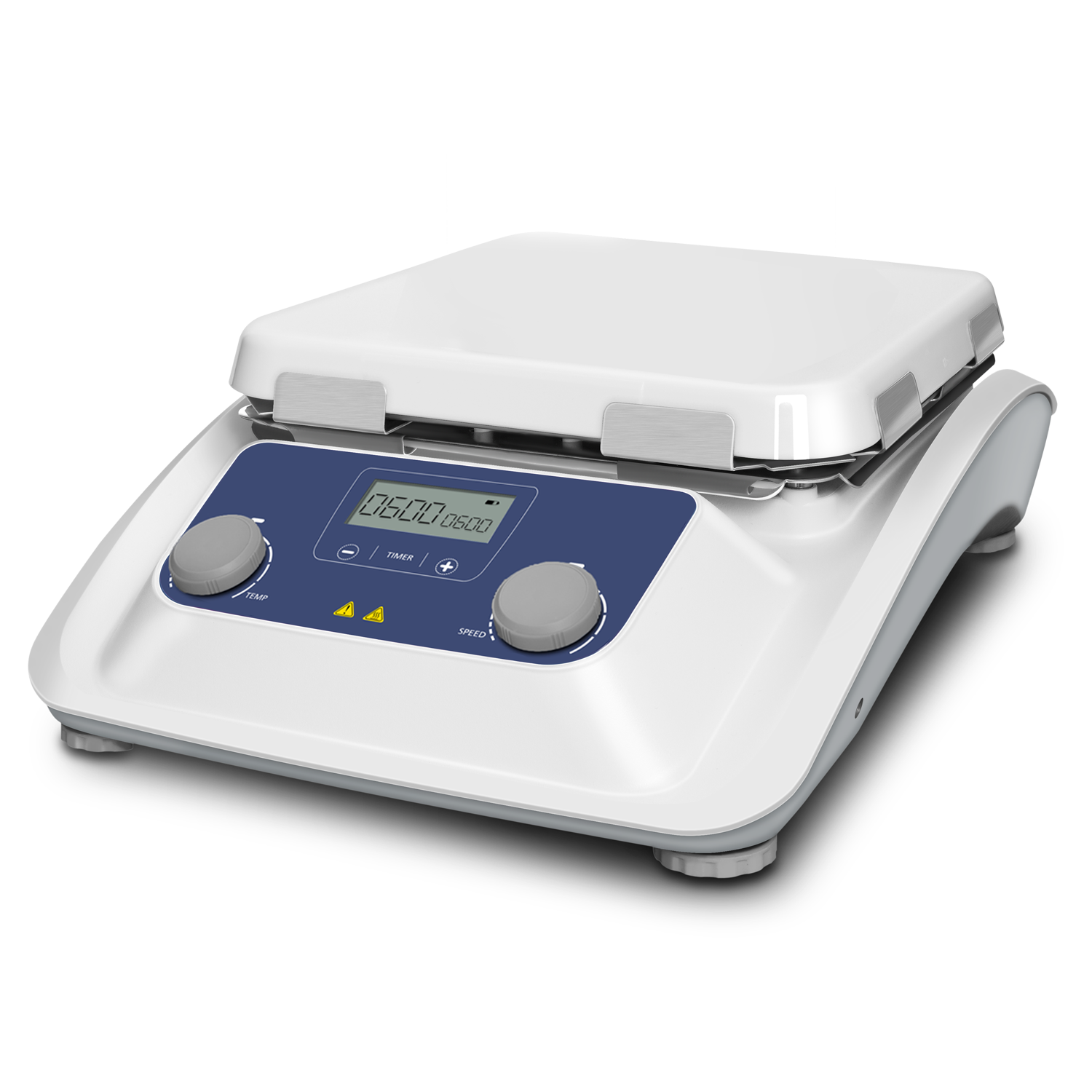

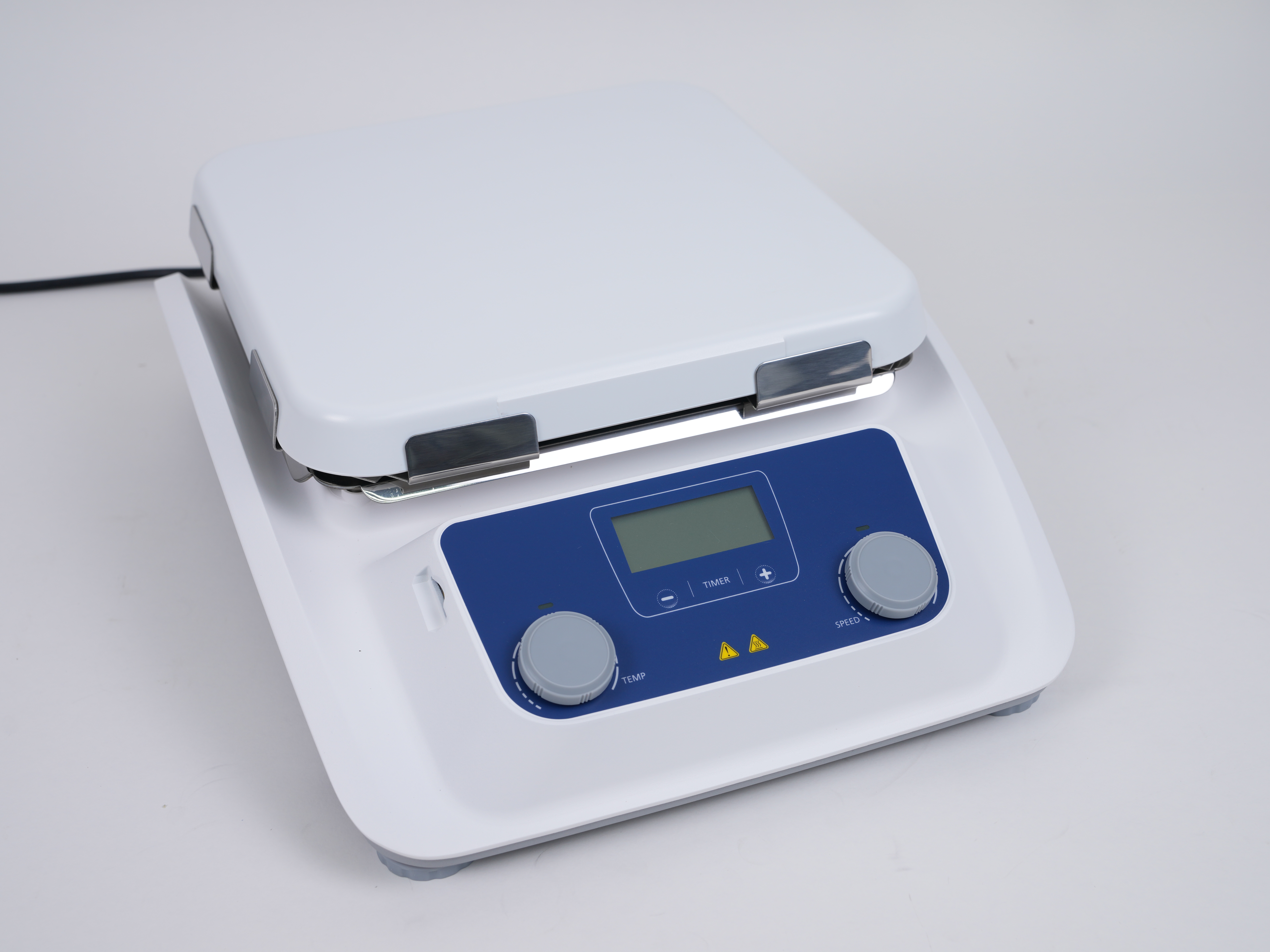

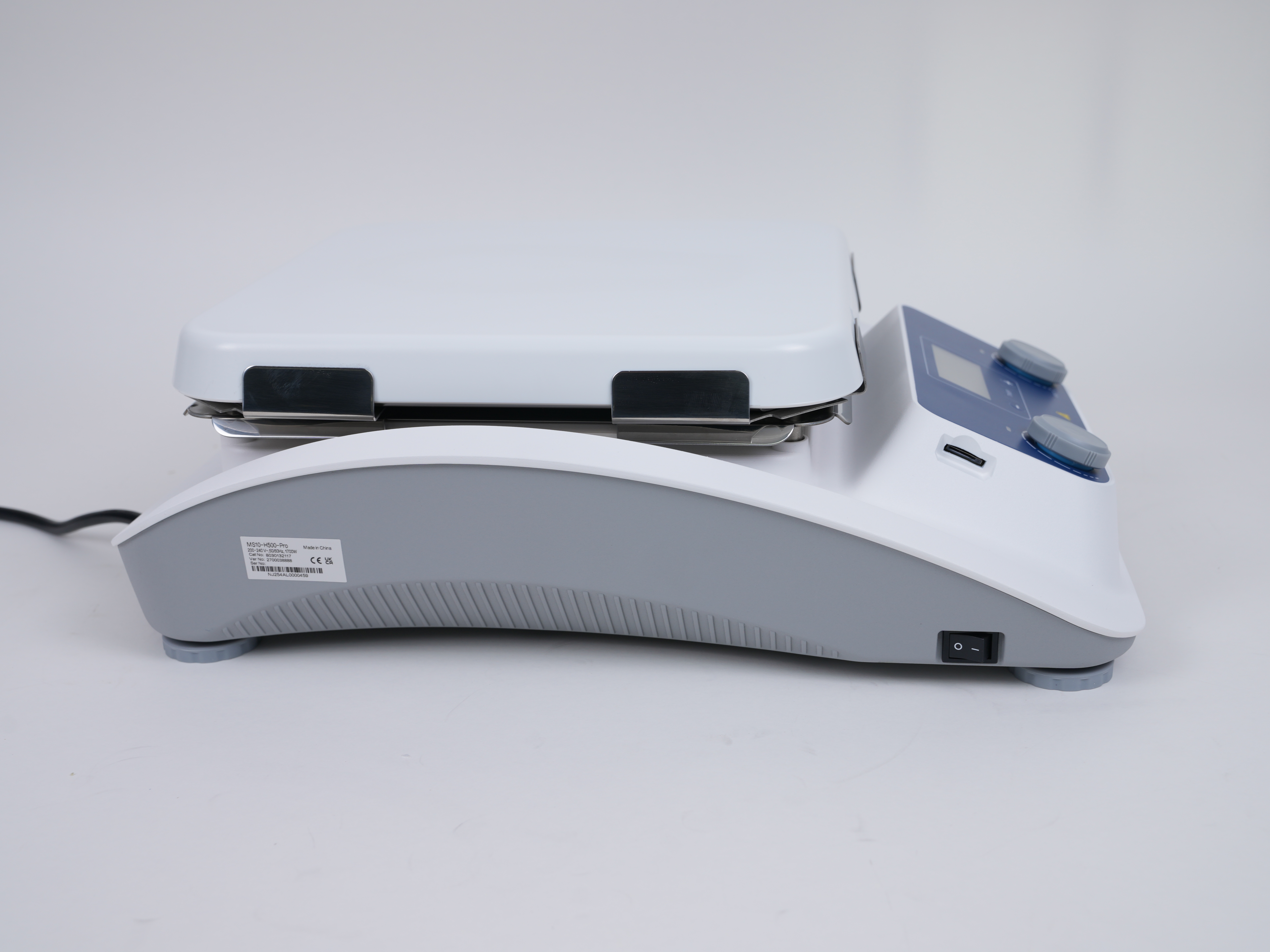

Laboratory high-temperature heating magnetic stirrer

• L500SM-H10-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Glass Ceramic Plate adopts 254×254mm glass ceramic work plate, max heating temperature up to 500℃, heating output 1350W, total power 1400W. Brushless DC motor input 18W, output 10W, max stirring volume 30L with 80mm magnetic bar compatible. It integrates 1min~99h59min timer, external PT1000 temperature sensor, flashing HOT warning above 50℃ after power off, real-time running data recording via SD card, 540℃ overheating protection and IP21 dust protection, digital speed control with ±1rpm high resolution.
• Large-size plate, ultra-large stirring capacity and wide high-temperature range with chemical-resistant glass ceramic surface, suitable for high-demand experiments including chemistry, material science, biology, mineral high-temperature digestion and pilot-scale bulk synthesis. Unit dimension 328×424×138mm, weight 7.2kg, stable load bearing for large beakers and reaction vessels.

• 10-inch 254×254mm extra-large glass ceramic plate, excellent chemical resistance and efficient heat transfer, supports multiple vessels or large-volume beakers, max stirring liquid volume up to 30L with powerful magnetic stirring torque.
• Glass ceramic surface resists acid, alkali and all kinds of organic solvents, high temperature resistant without crack or deformation, uniform & stable heat conduction.
• Dual independent LCD screens separately display speed and temperature; standard PT1000 external temperature sensor delivers ±0.2℃ measuring accuracy for true liquid temperature detection.
• Digital speed range 100~1500rpm with ±1rpm resolution for fine micro-step adjustment, matching systems from low to high viscosity.
• Max plate temperature 500℃, 540℃ overheating auto heating cut-off provides double safety backup for high-temperature melting and harsh digestion workflows.
• "HOT" warning flashes on LCD if plate temperature exceeds 50℃ after power off to prevent high-temperature scald injury.
• SD card data connector records all running data locally in real time; complete experimental records can be saved without PC for later export, archiving and traceability.
• Full-range timer function from 1 min to 99 h 59 min allows custom continuous runtime setting for overnight long constant-temperature reactions.
• Low-noise maintenance-free brushless DC motor, 18W input / 10W high output power ensures uniform mixing without sediment for 30L bulk samples; IP21 dust protection fits regular complex lab environments.

• Product positioning: Flagship 10-inch large-plate high-temperature magnetic hotplate stirrer up to 500℃ with 30L ultra-large stirring capacity, SD card offline local data storage and heavy-duty chemical-resistant glass ceramic surface. Targeted at material high-temperature synthesis, heavy metal mineral digestion, chemical pilot scale-up and high-precision academic high-temperature experiments.
• 10-inch extra-wide glass ceramic plate holds multiple parallel reaction vessels simultaneously; 30L bulk stirring capacity outperforms standard 5/7-inch small-plate models for pilot batch sample processing.
• 1350W high heating power with 500℃ maximum temperature paired with high-conductivity glass ceramic substrate delivers fast ramp-up and uniform surface temperature, ideal for harsh high-temperature workflows including melting, dry digestion and high-heat reflux.
• Independent SD card local data logging saves full temperature, speed and time records without PC connection, solving data traceability & archiving demands for offline experimental environments.
• Standard PT1000 high-precision external probe immerses directly into liquid to measure true sample temperature, eliminating plate-solution temperature offset for highly repeatable parallel assay data.
• Extended timer from 1 min to 99 h 59 min supports unattended overnight high-temperature reactions, controlled dual safety system of 540℃ overheat cut-off + 50℃ residual heat warning minimizes long-run operation risks.
• 18W high input brushless motor provides steady 10W stirring output, preventing sedimentation and stratification for 30L high-viscosity & suspended fluid samples with consistent mixing uniformity.
• IP21 full dust-proof chassis extends service life in dusty & humid lab environments such as workshops and fume hoods; universal wide voltage 100–240V fits lab power grids worldwide.

• Require 30L large-volume stirring & multi-vessel parallel tests with insufficient capacity on small standard plates:
  Select L500SM-H10-Pro with 10-inch large plate and max 30L stirring volume, supporting multiple large beakers for pilot batch sample pretreatment.
• Workflows demand extreme high temperature up to 500℃ for mineral digestion, material melting and high-heat organic synthesis:
  This unit reaches 500℃ max heating with 1350W heating power, 540℃ overheat safety cut-off and high-temperature resistant glass ceramic plate, perfectly matching all harsh high-temperature experiments.
• No dedicated lab PC available, need offline local storage of complete experimental data for papers or official test reports:
  Exclusive real-time SD card local recording saves all operating parameters without PC linkage, data can be exported anytime for archiving & traceability.
• Accurate real liquid temperature measurement required; plate surface temperature reading error fails compliance standards:
  Standard PT1000 external temperature probe delivers ±0.2℃ liquid measuring precision to eliminate plate temperature offset, data meets academic and third-party testing specifications.
• Frequent unattended overnight high-temperature runs demand timer function and multi-layer high-temperature safety protection:
  Extended 1~99h59min timer paired with dual safeguards (540℃ overheat shutoff + 50℃ post-power-off flashing HOT alert) greatly improves safety level for unsupervised long-duration experiments.
• Experimental media includes strong acid, alkali and organic solvents; standard stainless steel plates corrode easily:
  Integrated glass ceramic plate resists all common lab chemicals, high temperature resistant without corrosion or staining to cut long-term maintenance cost.
• Export to multi-region overseas markets with mixed 110V/220V power grids, single model universal voltage required:
  Universal wide voltage 100-120/200-240V 50/60Hz works globally, one unified model satisfies overseas lab procurement demands across all regions.

• Standard factory package includes L500SM-H10-Pro main unit, power cord, external PT1000 temperature sensor and printed English operation manual. Magnetic stir bars, support clamps and SD memory card are optional accessories.
• Independent thick shockproof carton with full high-density foam inner buffer; 10-inch large glass ceramic plate is individually isolated to avoid impact crack during long sea & air transit and reduce breakage risk.
• In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
• Multiple cross-border logistics options: sea freight, air freight and international courier. Unit net weight 7.2kg; full-container sea shipment reduces unit logistics cost for large bulk orders.

Selling Units

Single item

Package size perbatch

53.5*44.5*16cm

Gross weight perbatch

9.500kg

• Contact customer service to obtain full original factory electronic documents for high-temperature large-volume stirrer model comparison, cross-border independent website listing, overseas material & chemical industry exhibition promotion and customer technical consultation for high-temperature experiments.
• Official electronic files for this model include full technical spec sheet, SD card data recording operation guide, PT1000 external temperature probe tutorial, 500℃ high-temperature safety operation specification, English operation manual, dimension drawing and product brochure. All information is strictly extracted from the two original factory datasheets with verifiable true parameters.
• Enterprise brand promotional materials available: brand brochure, real production workshop photos and factory introduction files.
• Full resource library of all magnetic hotplate stirrers: product documents and marketing materials for all single-position models with different plate sizes & temperature ranges for unified store operation and multi-category synchronous promotion.

• If you place bulk order for L500SM-H10-Pro 10 Inch Glass Ceramic 500℃ Magnetic Hotplate Stirrer with SD Card Timer for material high-temperature synthesis, mineral digestion, chemical pilot scale-up, university research labs, third-party testing labs or premium lab instrument distribution, contact us for official detailed quotation. Tiered volume discount applies with zero hidden charges.
• OEM private label customization supported for bulk orders. Dedicated account manager full-cycle coordination: tiered unit price calculation, full technical function verification, factory QC control, production lead time coordination and full negotiation on logo & packaging customization details.
• Contact channels: Email, WhatsApp, website message. Please state full model L500SM-H10-Pro, order quantity and required optional accessory specs in your message. Full formal quotation sheet will be issued within 24 hours, covering unit price, tiered bulk discount, production lead time and complete cross-border logistics solution to resolve all procurement inquiries in one stop.
