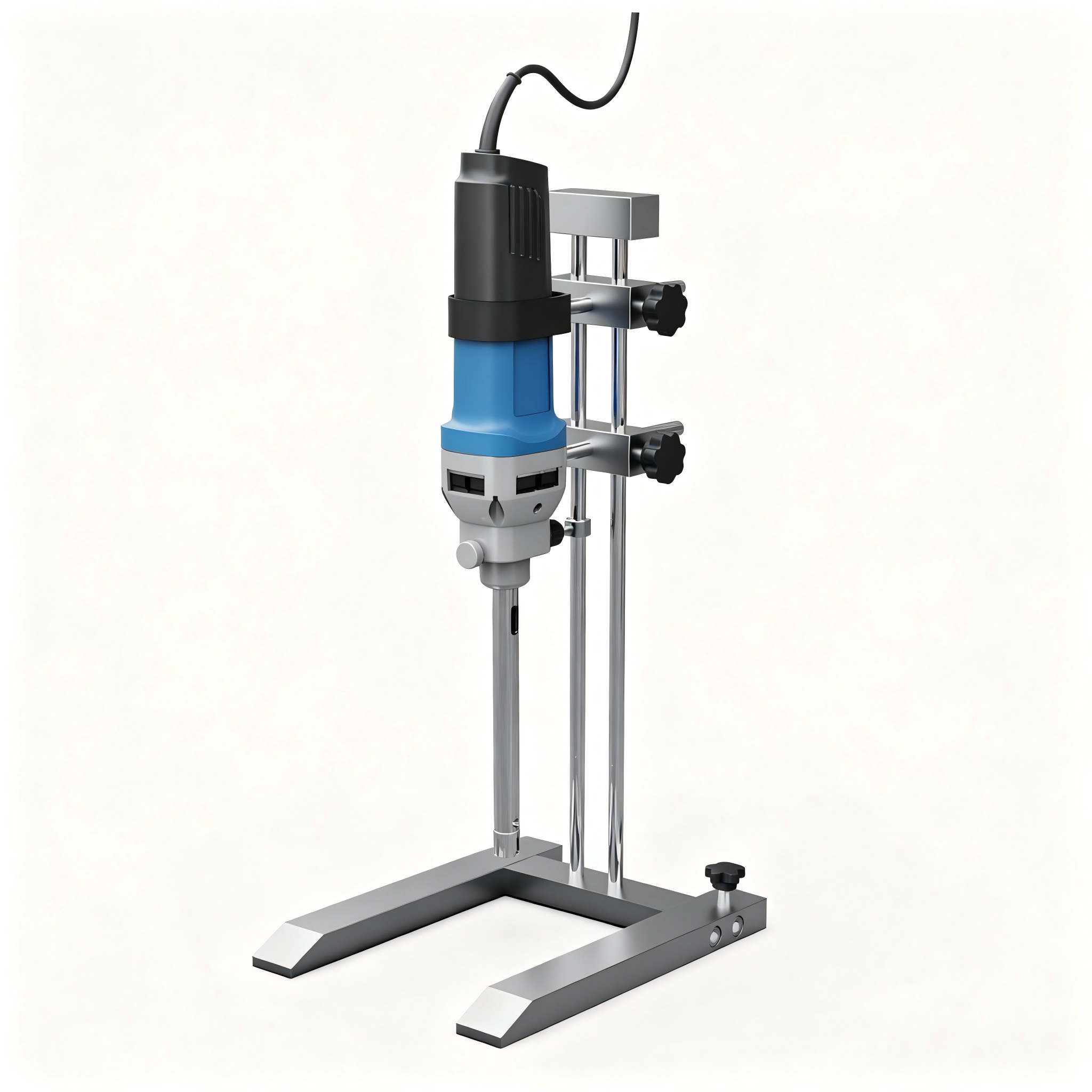

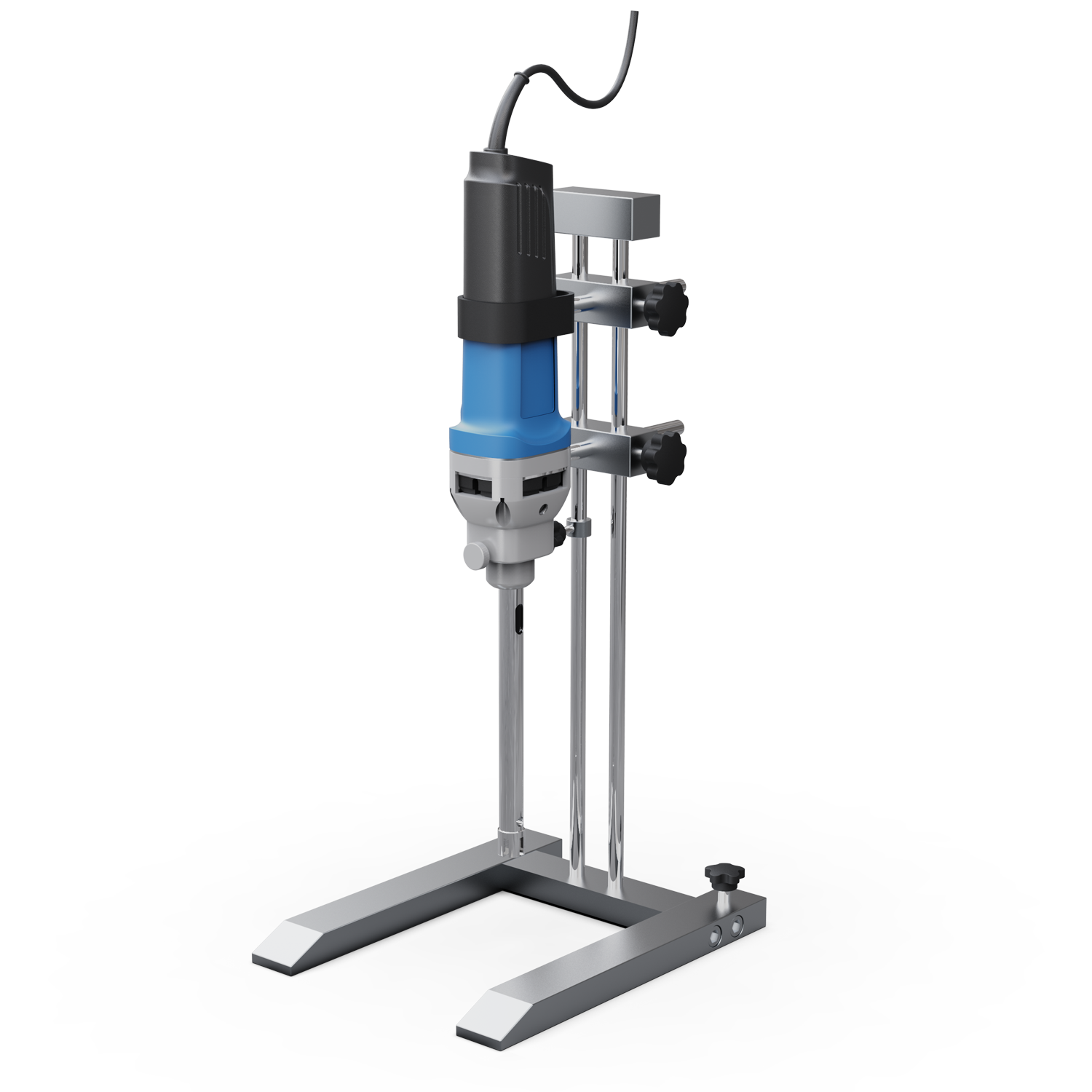

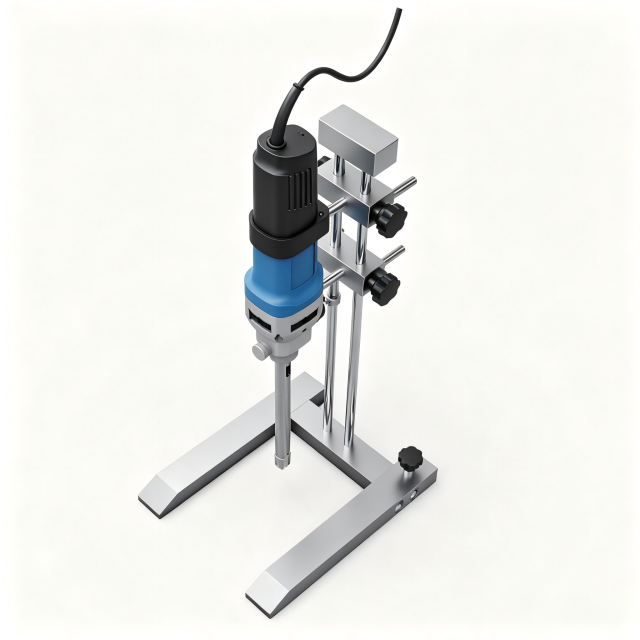

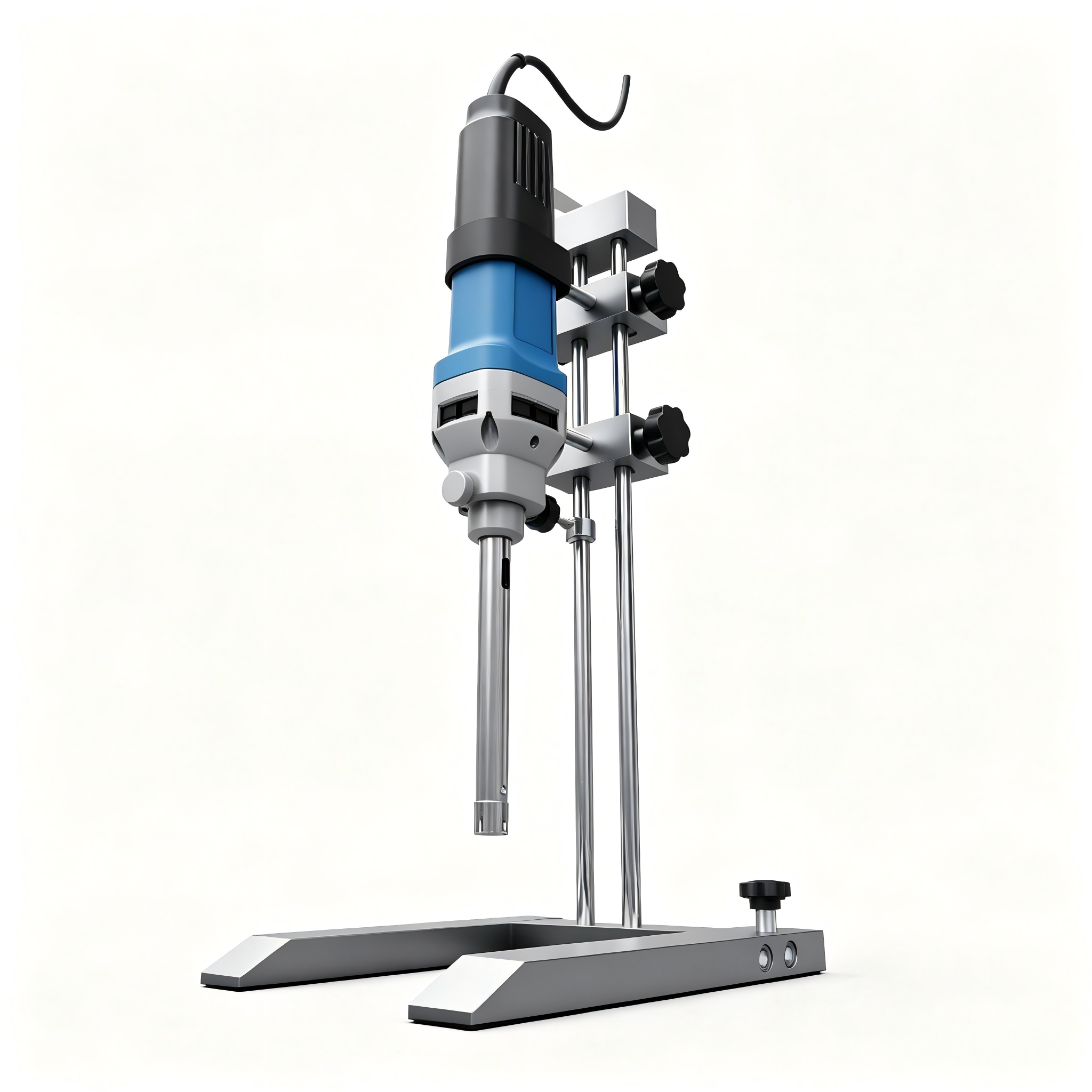

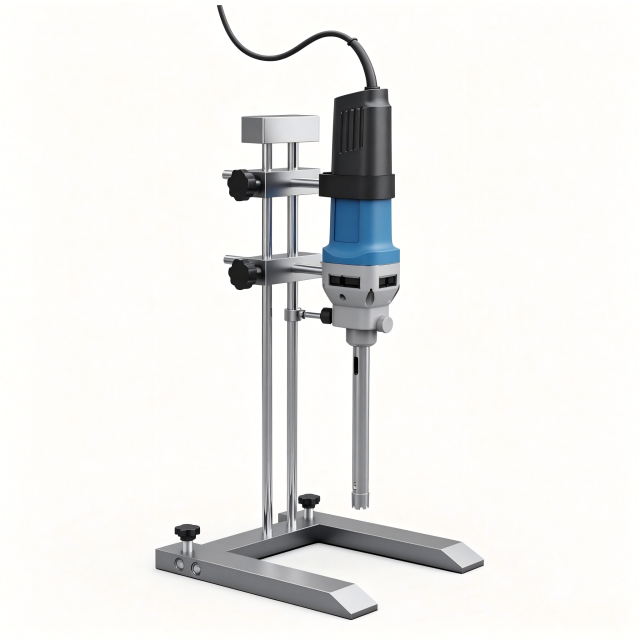

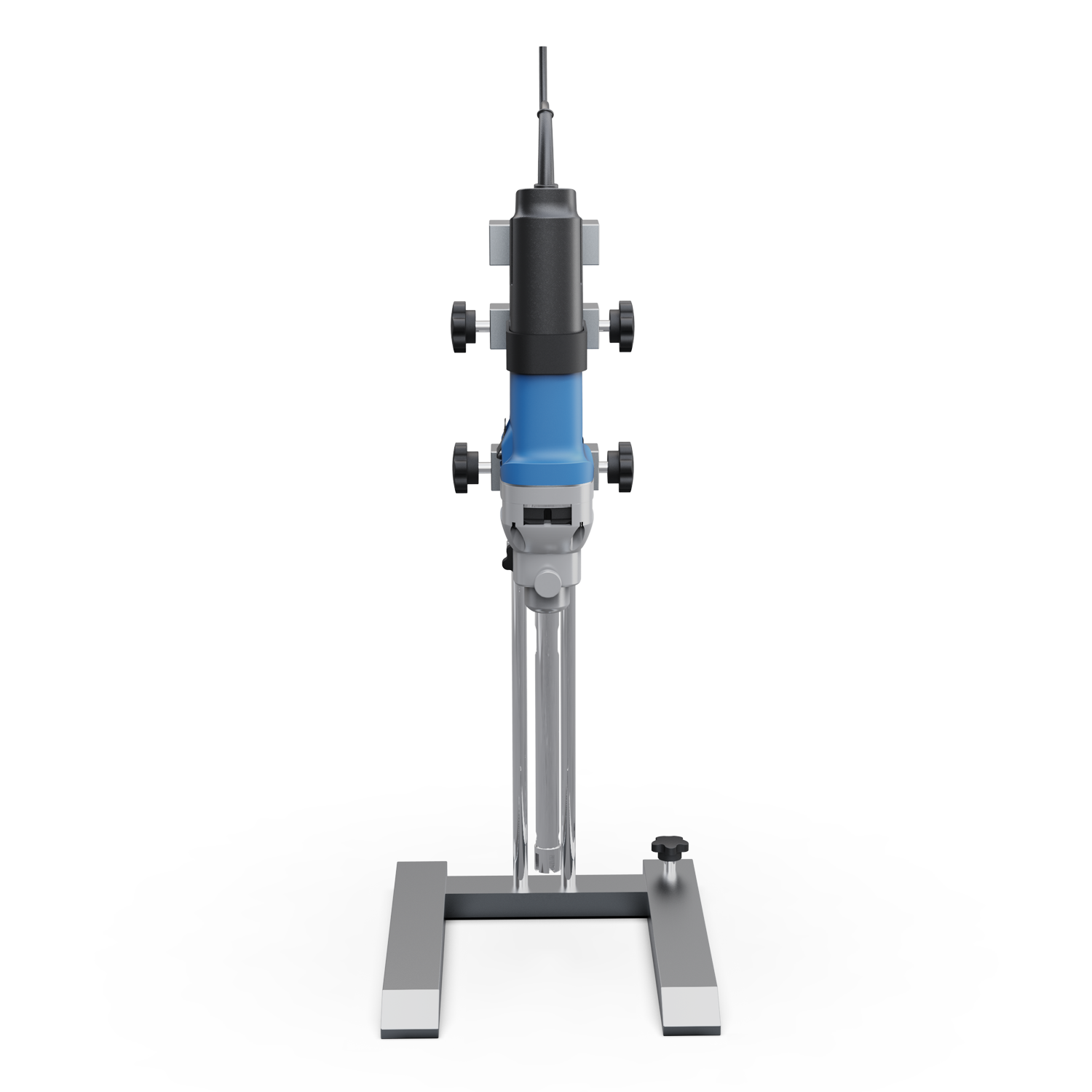

High Shear Homogenizer

• LH-500 laboratory high shear homogenizer is applicable to various workflows from sample pre-processing to formulation research. The motor drives the rotor to rotate at high speed, realizing rapid homogenization and dispersion of samples through the gap between rotor and stator.
• Core parameters: speed range 10000–30000rpm, max linear velocity 22.7–36m/s, 6 adjustable speed stages; working volume 10–40000mL H₂O, max applicable viscosity 10000mPa·s; dispersing shaft material SS 316L stainless steel + PTFE.
• Noise level 79dB(A), IP20 protection class. AC carbon brush motor, power 500W. Dimension 75×75×280mm, net weight 1.7kg. Dual voltage compatible: 110–120V/60Hz, 220–240V/50–60Hz. Permissible ambient condition: 0–40℃, 85%RH.
• Functional features: 316L stainless steel rotor-stator resistant to corrosion and autoclaving; detachable rotor & stator for easy cleaning and sterilization; interchangeable rotors and stators share the same shaft for cost saving; automatic overload protection extends motor service life; smooth motor startup and acceleration to prevent sample splashing.

• Standard factory package includes LH-500 homogenizer main unit, support stand, selected rotor-stator assembly, power cord and printed English operation manual. Homogenization and dispersion experiments can be carried out right after unpacking and assembly without extra basic accessories.

• OEM private branding customization service is available for bulk orders to create exclusive brand visuals for online scientific instrument stores and overseas cosmetic & pharmaceutical R&D exhibition promotion.

• Thick shockproof separate carton filled with high-density foam buffer withstands long-distance jolt and extrusion during sea & air freight, greatly reducing risks of shell dent and internal motor component damage in cross-border shipment.

• In-stock orders ship within 3–10 working days. Goods will be packed and dispatched uniformly after parameter confirmation to shorten lead time for overseas formulation R&D labs and instrument distributors.

• Multiple cross-border logistics options including sea freight, air freight and international courier are offered to match cost-effective transport solutions based on order volume and requested arrival time.

Selling Units

Single item

Package size perbatch

63*31*23cm

Gross weight perbatch

8.500kg

• Contact customer service to apply for complete factory digital documents for overseas pharmaceutical & cosmetic R&D tendering, homogenizer equipment evaluation, distributor online store operation and fine chemical industry exhibition marketing.
• Electronic supporting documents for this unit include full LH-500 specification sheet, factory full English operation manual, equipment dimension drawings and product brochure. All technical data follow original factory standards and can be verified.
• Enterprise promotional materials are also available: workshop real-shot images, factory introduction, full-series homogenizer and lab instrument brochures to help distributors create store detail pages, exhibition display boards and product catalogues.
• Complete compliance certification documents can be supplied. All unit performance indicators meet EU standards for biological, cosmetic and pharmaceutical lab equipment to pass qualification audits of overseas R&D institutions.

• Q: What experimental workflows and industries is LH-500 high shear homogenizer suitable for?

  A: Applied in sample pre-processing and formulation R&D, widely used in cosmetic, pharmaceutical, biological cell lysis, food and chemical dispersion labs for emulsification, homogenization, powder dispersion and cell disruption.

• Q: Speed range, adjustable speed stages and working volume range?

  A: Speed 10000–30000rpm with 6 adjustable stages; working volume 10–40000mL H₂O, compatible with micro samples up to 40L lab batch trials.

• Q: What is dispersing shaft material, is autoclave sterilization supported?

  A: SS316L stainless steel + PTFE, fully detachable rotor-stator assembly supports autoclaving and resists acid, alkali and organic solvent corrosion.

• Q: Can rotors and stators be replaced without changing the whole unit?

  A: Multiple interchangeable rotors and stators fit one single shaft without main unit replacement, matching variable throughput assays and cutting consumable cost.

• Q: Is motor overload protection equipped on the unit?

  A: Built-in automatic overload protection limits current under abnormal load to avoid motor burnout and extend equipment service life.

• Q: Will startup operation cause splashing and waste of micro samples?

  A: Smooth steady motor ramp-up eliminates instant high-speed liquid impact to greatly reduce sample splatter and overflow waste.

• Q: What is the maximum applicable sample viscosity?

  A: Max viscosity 10000mPa·s, works with aqueous liquid, emulsion and suspension paste medium-viscosity materials.

• Q: Voltage specifications, compatible with lab power grids worldwide?

  A: Dual voltage 110–120V/60Hz and 220–240V/50–60Hz, universal for global R&D labs without extra transformers.

• Q: Dimension, net weight and noise level of the unit?

  A: Dimension 75×75×280mm, net weight 1.7kg; noise 79dB(A), compact lightweight body occupies minimal bench space.

• Q: Protection class and permissible ambient temperature & humidity?

  A: IP20 protection class; operating environment 0–40℃, max relative humidity 85%RH.

• Q: Is OEM private labeling available for bulk orders, how long to receive complete quotation?

  A: OEM customization supported for bulk purchases. Full quotation including unit price, volume discount, lead time and logistics will be sent within 24 hours after submitting model, optional rotor specs, quantity and demands.

• Q: What original electronic documents and compliance certificates can be obtained?

  A: Complete product spec sheet, English operation manual, factory promotional materials and full-series instrument documents are available, together with full compliance test certificates complying with EU standards for biological, pharmaceutical and cosmetic lab equipment.

• If you need to purchase LH-500 high shear homogenizer in bulk for formulation R&D laboratories, biological cell lysis platforms, pharmaceutical & cosmetic R&D institutions or scientific instrument distribution, you may inquire for official detailed quotations with zero hidden fees. Larger order volumes enjoy more favorable unit prices, ideal for centralized procurement of overseas R&D institutions and large stock preparation by distributors.

• OEM private branding customization is supported for bulk orders. We assign dedicated one-on-one account managers to assist full-cycle coordination including price calculation, technical parameter verification, factory quality control, lead time scheduling and complete branding customization negotiation.

• You can reach us via email, WhatsApp or website message. Please leave notes of product model, optional rotor-stator specifications, order quantity and supporting experimental demands. A full formal quotation sheet will be sent to you within 24 hours, covering unit price, tiered volume discount, production lead time and full logistics solution to resolve all your procurement questions in one stop.
