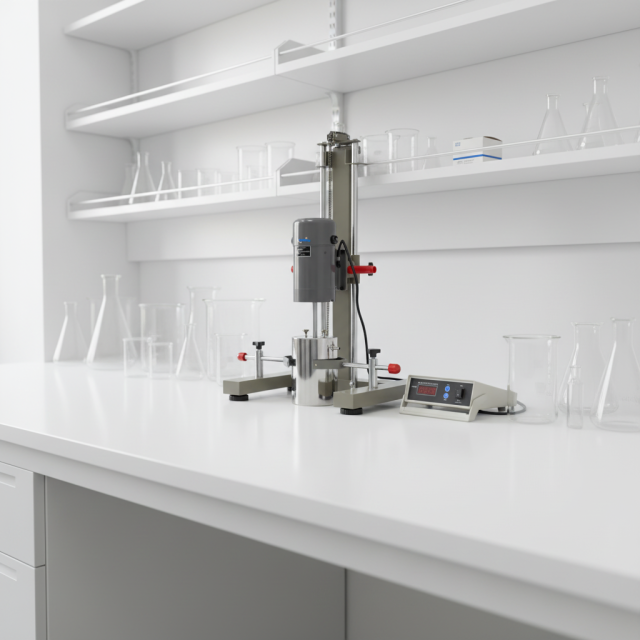

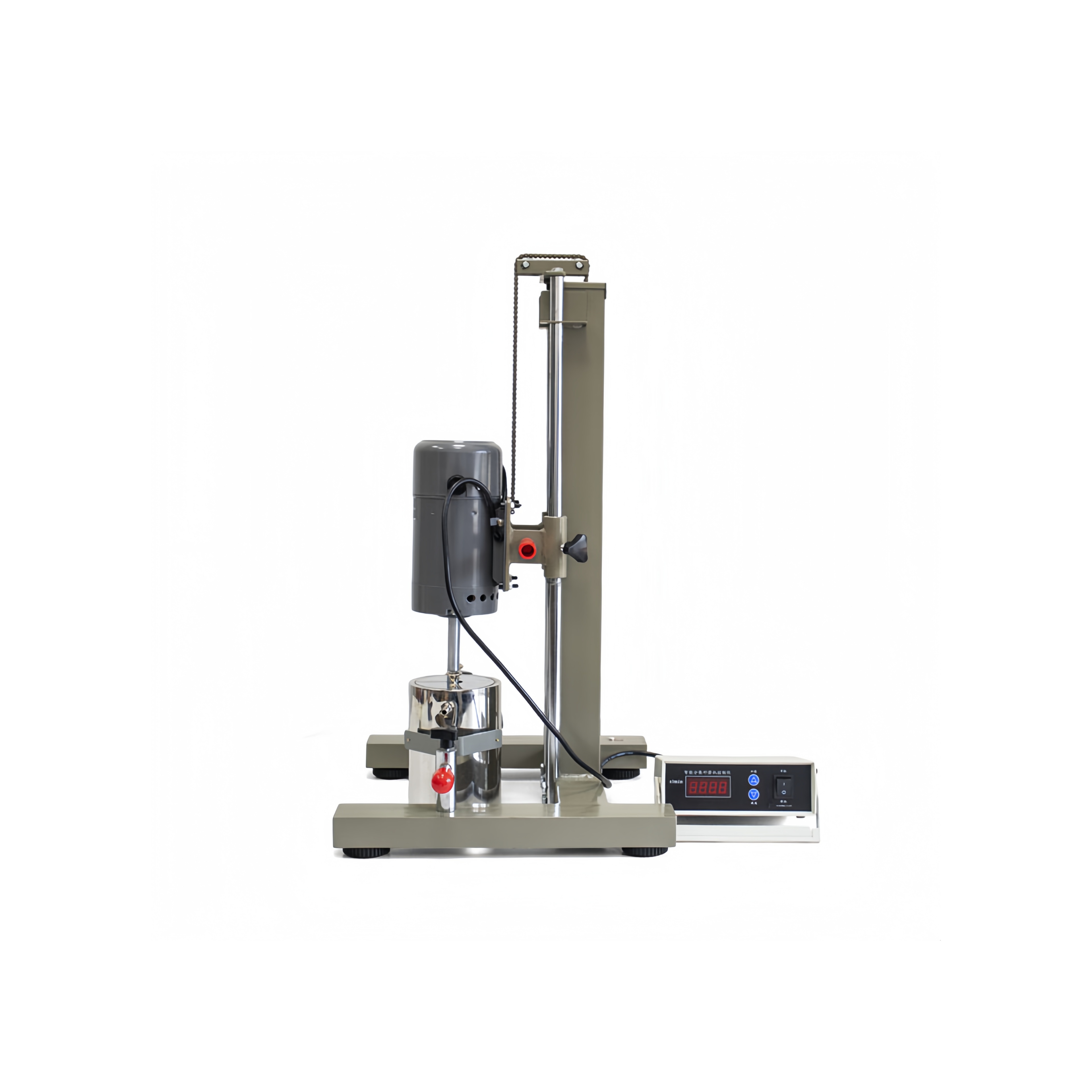

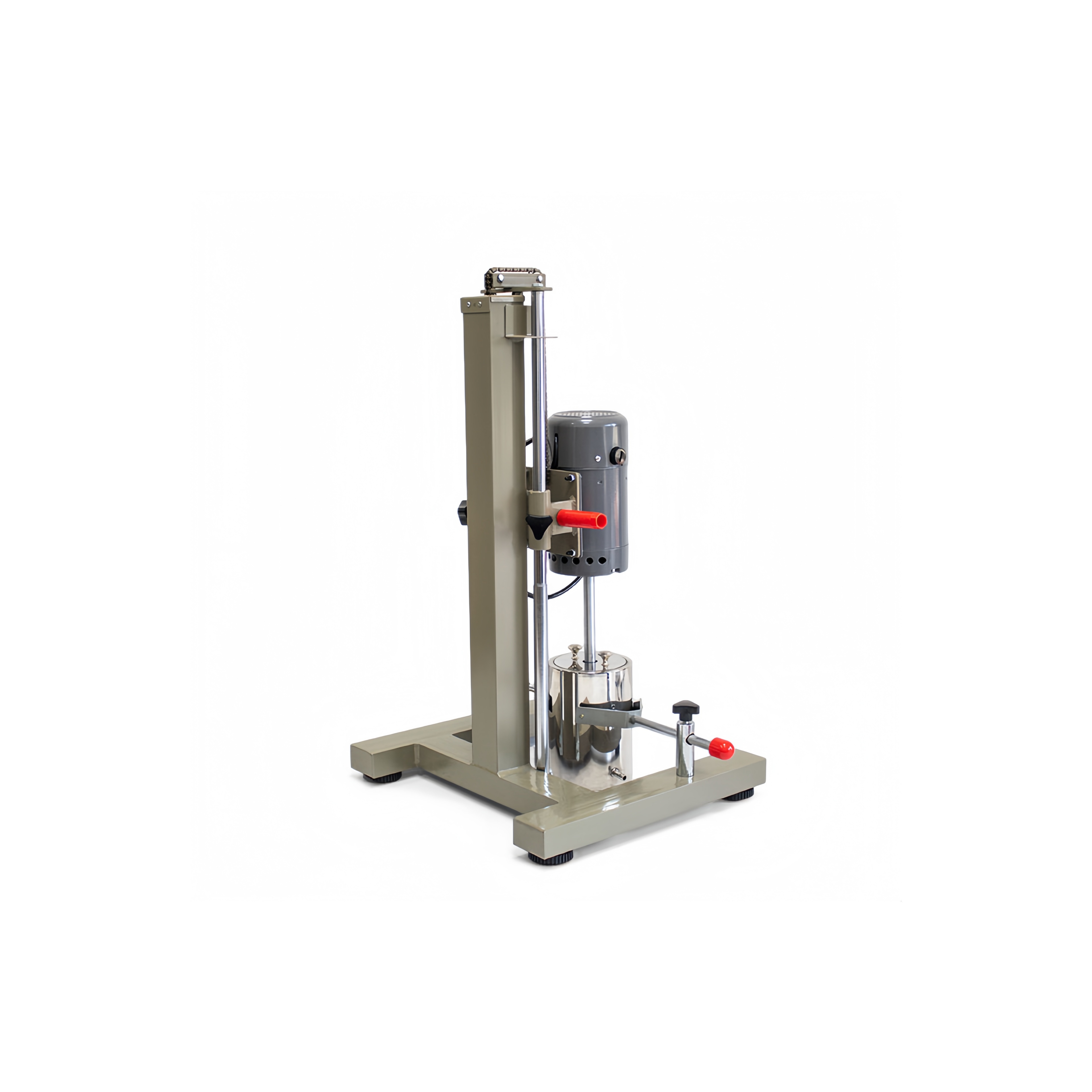

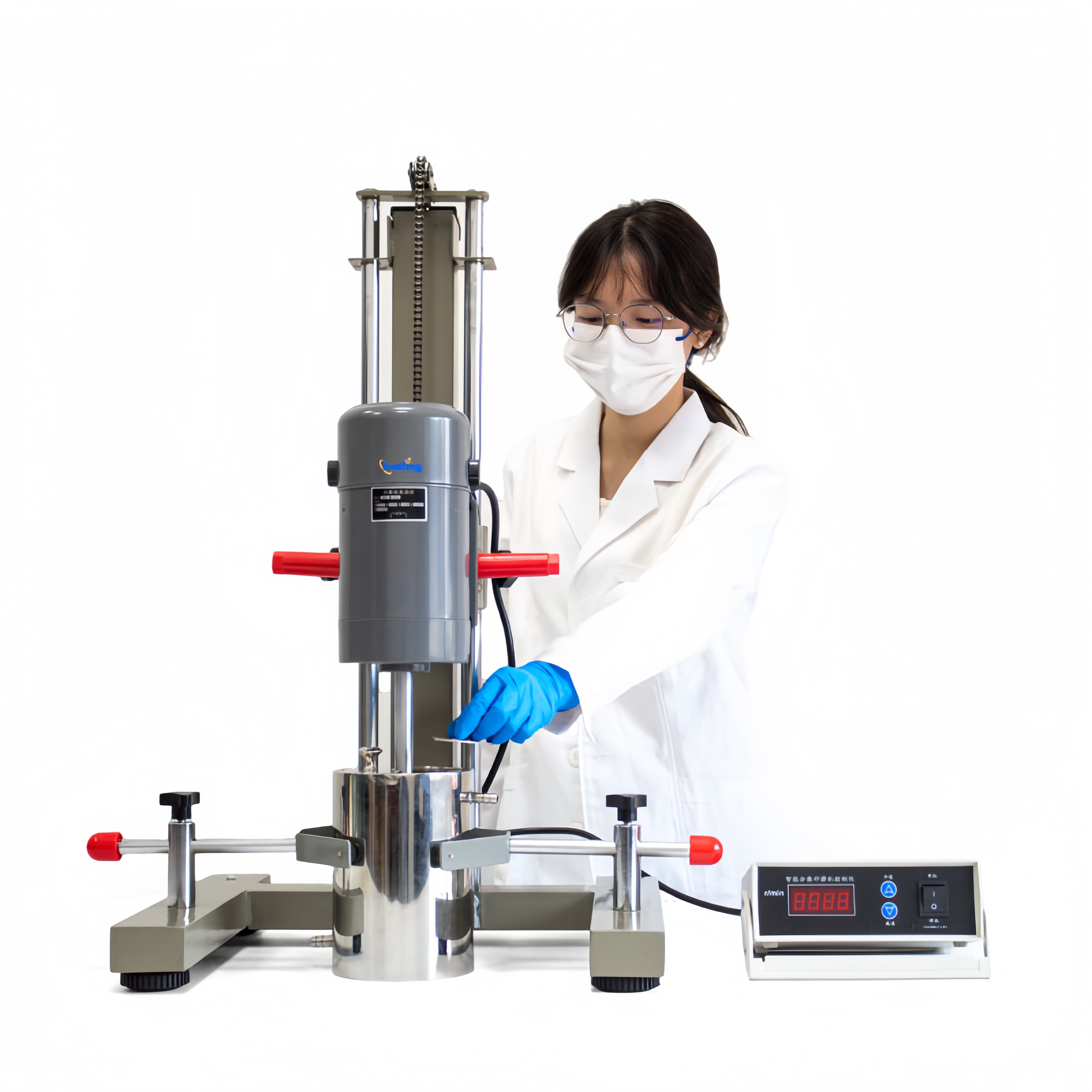

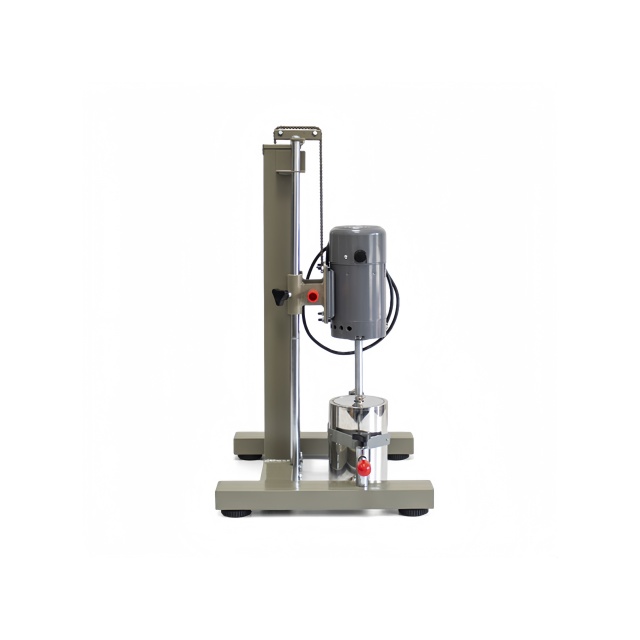

Digital display high-speed homogenizing disperser

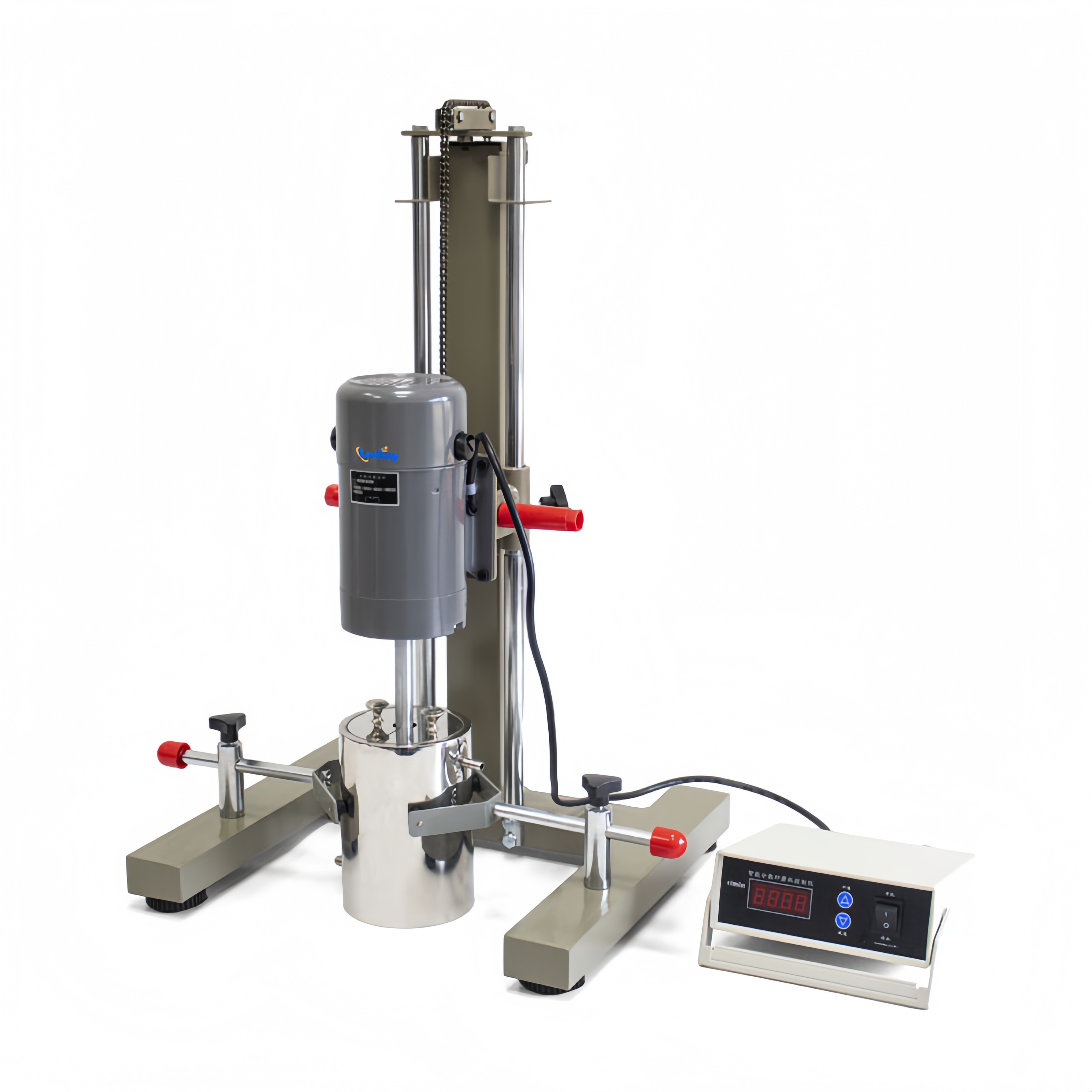

No.1601715932904— SN-FS400-ST
Driven by the motor at high speed, it generates rotational tangential high linear velocity. Under the immense centrifugal force, the material undergoes powerful hydraulic shearing and high-frequency mechanical effects, subjecting the fluid material to thousands of shearing and high-frequency mechanical actions per minute. This achieves efficient mixing, dispersion, and homogenization. Combining dispersion and agitation functions into one, it completes both dispersion and homogenization processes using a single machine and a single vessel.
$522.10
model number:
LSN-FS-400ST
barrel volume (l):
1.5
Request a Quote
  • High speed disperser with LED digital display and lift function for efficient emulsification
  • Digital display high-speed homogenizing disperserIlabcarta Technology Co., Ltd.
  • Digital display high-speed homogenizing disperserIlabcarta Technology Co., Ltd.
  • Digital display high-speed homogenizing disperserIlabcarta Technology Co., Ltd.
  • Digital display high-speed homogenizing disperserIlabcarta Technology Co., Ltd.
  • Digital display high-speed homogenizing disperserIlabcarta Technology Co., Ltd.

  • Description

  • Key Features

  • Parameter

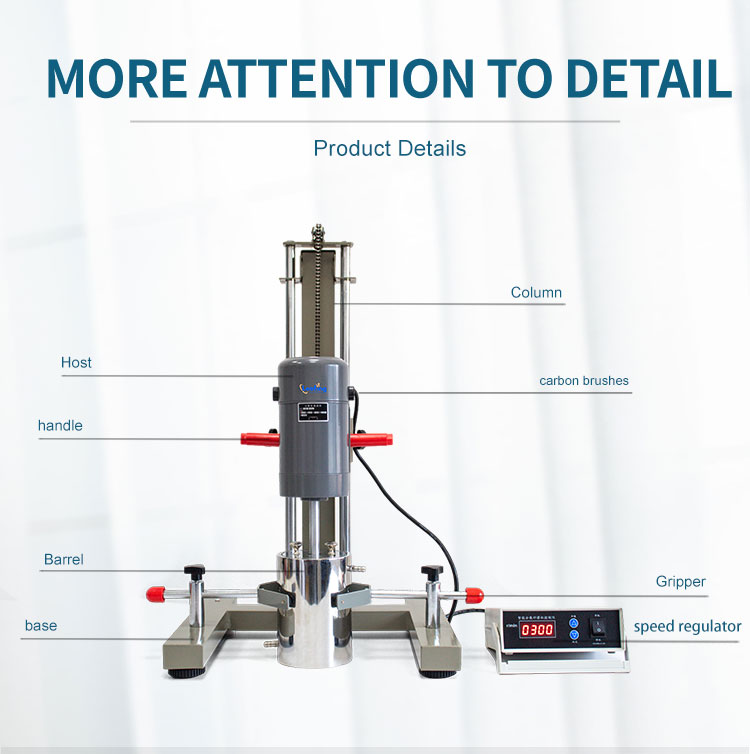

  • Product Details

  • How to Choose

  • Packaging & delivery

  • Download

  • FAQ

  • Get a Quote

  1. If you need equipment for material mixing, dispersion and homogenization pre-processing, SN-FS series digital high-speed disperser meets your workflow demands. Driven by high-speed motor, the dispersing disc generates high tangential velocity. Under centrifugal force, materials receive frequent hydraulic shear and mechanical effects. One single machine and container can finish both dispersion and homogenization procedures, integrating dispersing and stirring functions together.
  2. Four standard models are available: SN-FS-400S, SN-FS-400ST, SN-FS-1100S, SN-FS-1100ST, with two power grades 400W and 1100W. All models share speed range 100–8000rpm, processing volume covers 0.5–5L and 0.5–8L, suitable for small & medium batch processing of coatings, daily chemicals, biological samples and other systems.
  3. Equipped with LED digital tube speed display for clear real-time rotation reading. Adjustable barrel fixing bracket firmly holds the container to prevent offset during operation. AC brushed carbon motor supports stepless speed regulation with sufficient torque and stable output, featuring quick startup and wide adjustable speed range.
  4. Standard double-layer stainless steel barrel allows coolant circulation for constant-temperature sample processing, smooth surface for easy cleaning. Two lifting structures are optional: S square tube manual chain lifting, ST round tube manual spring lifting. The motor column can rotate 360° with sufficient lifting stroke for flexible operation.
  5. Widely used in laboratory R&D, lab-scale sample preparation and pilot small-batch production for coatings, ink, daily care, biomedicine, food additives and new material homogenization & dispersion. It adopts standard AC220V/50Hz lab power supply with simple operation.

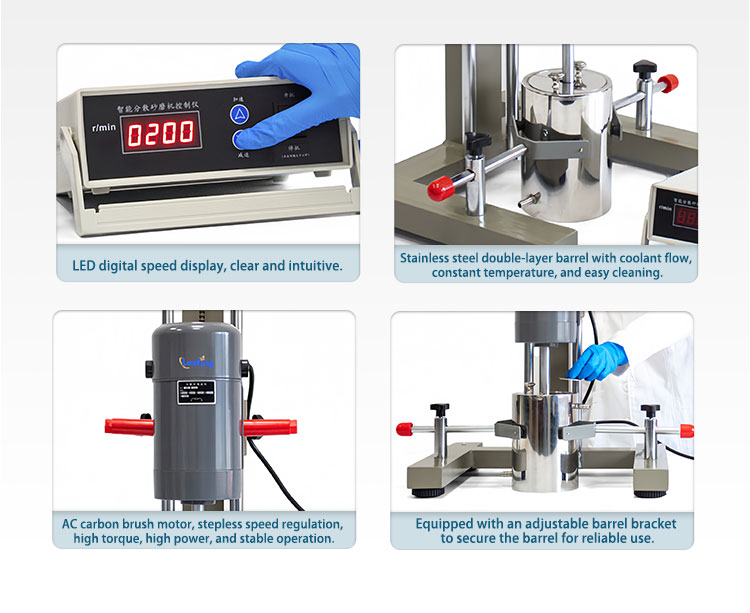

  1. Equipped with LED digital display to show real-time running speed, convenient for checking and recording speed data during experiments for comparison and archiving.
  2. Matched with adjustable locking bracket to fix sample barrel firmly, preventing shaking and shifting under high-speed operation and improving operation safety.
  3. AC brushed carbon motor delivers sufficient torque with smooth stepless speed change, quick startup and wide adjustable speed range to fit material tolerance of different samples.
  4. Standard double-jacket stainless steel barrel supports circulating coolant access for constant-temperature dispersion. Smooth inner wall reduces material residue and shortens cleaning time.
  5. Two lifting types optional as required: S model with square tube manual chain lifting, ST model with round tube manual spring lifting to match different operation habits.
  6. The motor column can rotate 360° freely with ample lifting stroke, allowing flexible adjustment of dispersing head height and position for easy barrel loading and unloading.
  7. Standard dispersing impeller and sanding disc are supplied together, one machine completes both dispersing and sanding pre-processing without extra accessories purchase.
  8. Integrates dispersing, stirring and homogenizing functions in one unit, finishing multiple sample pretreatment steps without equipment replacement, cutting lab instrument cost and bench occupation.
  9. Compact and stable structure, net weight 37kg / 39kg with small footprint, fits common lab workbenches and features simple installation & commissioning.
Specifications SN-FS-400S SN-FS-400ST SN-FS-1100S SN-FS-1100ST
Power Supply AC220V/50Hz AC220V/50Hz AC220V/50Hz AC220V/50Hz
Power(W) 400 400 1100 1100
Display Mode LED Digital Tube LED Digital Tube LED Digital Tube LED Digital Tube
Speed Range(rpm) 100–8000 100–8000 100–8000 100–8000
Processing Volume(L) 0.5–5 0.5–5 0.5–8 0.5–8
Max Viscosity(mPas) 10000 10000 10000 10000
Lifting Type Square Tube Manual Chain Lift Round Tube Manual Spring Lift Square Tube Manual Chain Lift Round Tube Manual Spring Lift
Lifting Stroke(mm) 250 280 250 280
Motor Type AC Brushed Carbon Motor AC Brushed Carbon Motor AC Brushed Carbon Motor AC Brushed Carbon Motor
Dispersing Impeller Size(mm) Φ50, Φ60 Φ50, Φ60 Φ50, Φ60, Φ80 Φ50, Φ60, Φ80
Sanding Disc Size(mm) Φ60 Φ60 Φ60 Φ60
Barrel Volume(L) 1.5 1.5 1.5 1.5
Net Weight(kg) 37 37 39 39
Dimension(L×W×H mm) 450×400×800 450×400×800 450×400×800 450×400×800
  1. Product Positioning: High-speed disperser dedicated for lab R&D and small-scale sample preparation, replacing multiple traditional stirring & homogenizing instruments. It finishes high-shear material dispersion in single unit, ideal for new formula trial production of coatings, daily chemicals and biomedicine.
  2. High-speed rotating dispersing disc generates strong tangential flow velocity. Materials receive continuous frequent shear force under centrifugal effect to break agglomerated particles rapidly and realize uniform mixing & fine homogenization without container switching for separate procedures.
  3. Direct LED digital speed display and stepless speed regulation precisely match tolerance of different materials: low speed for gentle stirring, high speed for intensive dispersion to cover various formula test demands.
  4. Double-jacket stainless steel barrel supports external cold/hot circulating water for constant-temperature processing of heat-sensitive materials. Integrated smooth barrel structure eliminates residual dead space to reduce cross-contamination between different samples.
  5. Two manual lifting structures for selection: chain lifting delivers stable load-bearing, spring lifting offers smooth pulling operation. 360° rotatable motor column allows barrel replacement without moving the whole machine for labor-saving flexible operation.
  6. Multiple sizes of dispersing impellers and sanding discs are supplied as standard: 400W models equipped with Φ50/Φ60 discs, 1100W models add large Φ80 impeller for free replacement according to processing volume.
  7. Stable power output from AC brushed motor with wide 100–8000rpm speed range, compatible with materials up to 10000mPas viscosity, handling both high-viscosity paste and low-viscosity liquid steadily.
  8. Unified overall dimension 450×400×800mm with compact footprint, fits standard lab benches. Net weight 37/39kg enables easy manual moving and placement by single operator.
  9. Standard 220V lab power input without extra voltage stabilizer or transformer required. Ready for sample dispersion experiments right after unpacking and power connection with simple commissioning and low operation learning threshold.
  1. For small-dose formula R&D with single batch volume 0.5–5L and low-viscosity materials: 400W SN-FS-400S / SN-FS-400ST are recommended with economical cost and sufficient power for routine trial preparation.
  2. For larger single batch volume 0.5–8L and frequent high-viscosity paste processing: Prioritize 1100W high-power SN-FS-1100S / SN-FS-1100ST with stronger torque and large dispersing impeller for stable heavy-load operation.
  3. For heavy frequent long-term lifting operation requiring stable load-bearing: Choose S square tube manual chain lifting models (SN-FS-400S / SN-FS-1100S), chain structure provides reliable support for repeated lifting.
  4. For smooth labor-saving quick lifting and frequent barrel replacement: Select ST round tube manual spring lifting models (SN-FS-400ST / SN-FS-1100ST) with smooth spring rebound for faster barrel loading & unloading.
  5. For heat-sensitive raw material processing requiring temperature-controlled dispersion: All four models come with standard double-jacket constant-temperature barrel compatible with external coolant, select model based on your processing volume and power demand only.
  6. For simultaneous dispersing and sanding experiments without extra accessory purchase: All series are pre-equipped with dispersing impellers and sanding discs, supporting two workflows directly without extra consumable procurement.
  7. For long-term processing of high-viscosity paste close to 10000mPas: 1100W high-power models deliver adequate torque to avoid speed drop under heavy load for consistent homogenization performance.
  8. For labs with limited bench space requiring compact equipment: All four models share identical overall dimension and footprint, select by power and lifting type without extra space occupation.
  9. For university teaching labs or small startup R&D labs with limited budget and low sample throughput: 400W low-power models offer higher cost performance and fully meet all routine lab-scale dispersion demands.
  1. Standard factory package includes disperser main unit, matched dispersing impeller & sanding disc, double-jacket constant-temperature barrel, barrel fixing bracket, lifting accessories, Chinese & English manual and power cord. Special-size dispersing discs are separate optional accessories.
  2. Thick shockproof individual wooden/carton package with full surrounding high-density foam buffer protecting precise components such as motor, dispersing shaft and display screen, preventing deformation and failure during long-distance logistics transportation.
  3. In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
  4. Multiple cross-border logistics options including sea freight, air freight and international courier. Neat dimension and moderate weight facilitate consolidated shipment to cut international transportation cost.
  5. Custom printed logo and exclusive packaging are available for bulk orders of lab distributors, university chemical & material departments, daily chemical and biomedicine enterprises, suitable for unified brand promotion at overseas exhibitions and cross-border independent stores.
Selling Units Single item Package size per batch 50*50*90cm
Gross weight per batch  40.000kg

Name Qty
High speed disperser 1
Dispersing disc 1
Round tube lifting stand 1
Stainless steel material barrel 1
Power Cable 1
User Manual 1
Packing List / Certificate of Conformity 1
Warranty Card 1
  1. Contact customer service to obtain complete original factory electronic documents, which can be used for cross-border independent store listing, overseas chemical industry exhibition promotion and answering technical consultation about disperser model selection for potential clients.
  2. Exclusive digital documents for this series: full Chinese & English bilingual technical specification sheet, standard high-speed disperser operation guide, motor & dispersing shaft routine maintenance manual, equipment dimension drawings and product brochures.
  3. Supporting marketing materials include real photos of four models, footage of material dispersion trial operation, full spec comparison table of all dispersing impellers for unified multi-category online store operation and promotion.
  1. What is the maximum material viscosity compatible with this series disperser? A All models support max viscosity 10000mPas. 400W fits medium & low-viscosity systems, while 1100W high-power version performs better on high-viscosity paste materials.
  2. What are the core differences between S and ST lifting structures for model selection? A S model adopts square tube manual chain lifting with stable load-bearing for long-term frequent lifting. ST model uses round tube manual spring lifting for smooth labor-saving pulling, suitable for frequent barrel replacement. Users can select based on operation habits.
  3. Is temperature control available for the barrel, can coolant be circulated inside? A Standard double-jacket stainless steel barrel is equipped with reserved ports for circulating cold and hot water to realize constant-temperature dispersion for heat-sensitive samples.
  4. What is the difference of dispersing disc sizes between 400W and 1100W models? A 400W models come with Φ50 & Φ60 impellers as standard; 1100W adds extra large Φ80 impeller to process more materials per batch with higher dispersion efficiency.
  5. Can the motor column rotate? Do I need to move the whole machine to adjust dispersing head position? A The motor support column can rotate 360° fully, no machine relocation required. Rotate the column directly to adjust horizontal position of dispersing head for easy barrel access.
  6. What is the adjustable speed range, can the machine run stably at minimum and maximum speed? A All models share unified 100–8000rpm speed range. AC brushed stepless motor delivers stable output across full range, working smoothly for low-speed stirring and high-speed dispersion.
  7. What is the power supply voltage, is extra transformer needed for overseas export? A Standard AC220V/50Hz input. Corresponding voltage converter needs to be prepared separately if local power standard is inconsistent, the machine has no wide-voltage self-adaptive function.
  8. Is sanding disc included in standard package, extra purchase required? A All four models are supplied with standard sanding disc and dispersing impeller at factory, no extra accessories needed for routine dispersing & sanding experiments.
  9. Does bulk order support logo silk printing and custom outer packaging? A Silk printing logo on disperser body and exclusive custom packaging are available for bulk orders, consult dedicated account manager for full customization solution and corresponding production lead time.
  1. Users can place bulk orders of SN-FS series 400W & 1100W high-speed dispersers for lab R&D, coating & ink, daily care, biomedicine and new material lab-scale sample dispersion & homogenization. Full detailed quotation is available upon request; unit price reduces with larger order quantity with zero hidden charges.
  2. For bulk OEM customization demands (instrument logo silk printing, bulk purchase of large-size dispersing discs, custom outer packaging design), dedicated sales staff will assist full-cycle spec verification, production lead time scheduling, complete cross-border logistics planning and factory finished product quality control.
  3. Contact channels include Email, WhatsApp and website message. Please note required model numbers, order quantity and demand for extra large-size dispersing discs in your message. Formal complete quotation sheet will be issued within 24 hours, covering unit price, tiered volume discount, production lead time and full cross-border transportation solution to resolve all procurement inquiries in one go.
