Handheld Homogenizer-Disperser

Name: Handheld Homogenizer-Disperser
Brand: labcarta Technology Co., Ltd.
SKU: 1601017952564- LH-160
Price: 996.10 USD
Availability: InStock

No.1601017952564- LH-160

YF-107 handheld homogenizer reaches 30,000 rpm, fits 0.1–250 ml samples with various dispersing heads, and uses rotor-stator shearing for fast tissue homogenization, separation, and emulsification. Applications: biopharmaceuticals, gene research, clinical pathology, nanomaterials, cosmetics, paints, fine chemicals, environmental protection, and more.

$996.10

Specification&model:

LH-160

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

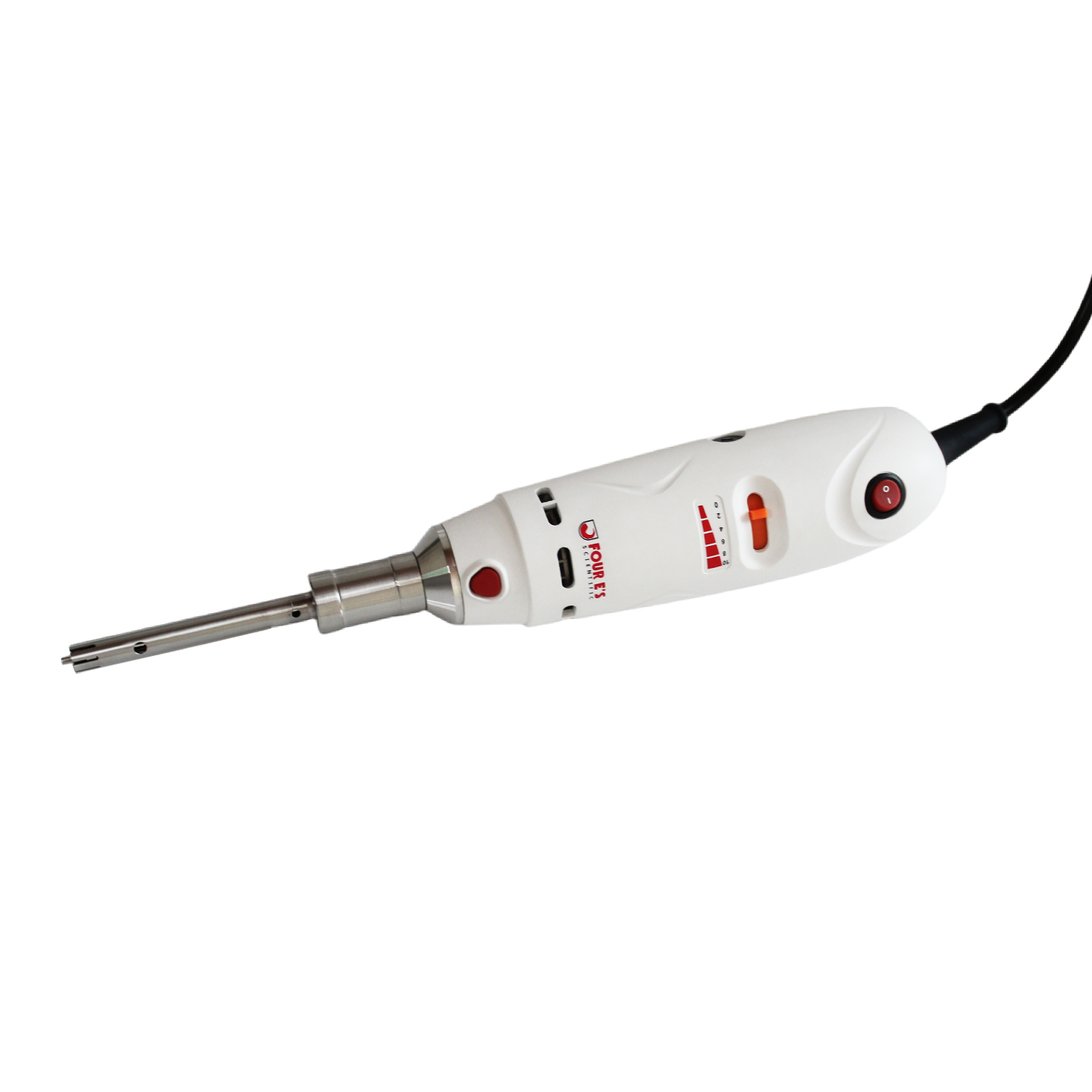

LH-160 Handheld Homogenizer is designed for rapid homogenization, emulsification, suspension and disruption of biological samples such as animal tissue, bacteria, yeast and plant samples in liquid medium.
Processing volume ranges from 0.1mL to 250mL depending on the selected dispersing shaft: DS-160/5 (0.1–50mL), DS-160/7 (1–150mL), DS-160/10 (1–250mL).

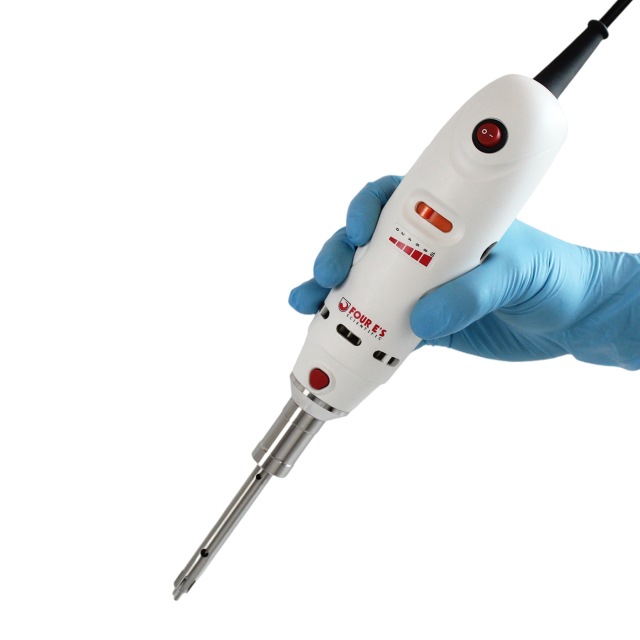

Lightweight and portable with ergonomic housing for manual handheld operation. Equipped with AC carbon brush motor, variable speed 8000–32000rpm with 10 speed levels, max linear velocity 6.3 / 10 / 14 m/sec.
Dispersing shaft adopts SS 316L stainless steel and PTFE, fully autoclavable. Interchangeable shafts enable easy disassembly and cleaning, maximum han

Portable lightweight unit with ergonomic design, ideal for long-time manual handheld operation.
Compatible with multiple dispersing shafts, covering processing volume of 0.1–50mL and 1–250mL.
Wide variable speed 8,000–32,000rpm with 10 speed levels to meet diverse homogenization & disruption requirements.
316L stainless steel dispersing shafts are fully autoclavable to avoid cross-contamination.
Interchangeable shafts, easy to disassemble for thorough cleaning after experiments.
Maximum applicable viscosity up to 5,000mPas, suitable for viscous emulsions and pasty samples.
Three shaft options with different linear velocities for micro to medium volume samples.
Compact dimension, operable by hand or mounted on optional stand for stationary running.
Low noise level ≤72dB(A) for comfortable lab operation.

Specification	LH-160
Speed range	8000–32000rpm
Max linear velocity	6.3, 10, 14 m/sec
Speed level	10 stage
Working volume [H₂O]	DS-160/5: 0.1–50mL DS-160/7: 1–150mL DS-160/10: 1–250mL
Max. viscosity	5,000mPas
Material of Dispersing Shaft	SS 316L stainless steel, PTFE
Noise Level	72 dB(A)
Protection class	IP20
Voltage, Frequency	110–120V/60Hz; 220–240V/50–60HZ
Power	160W
Motor Type	AC carbon brush motor
Dimension [W×D×H]	45×55×190mm
Weight	0.54 kg
Permissible ambient Temperature and humidity	0–40℃, 85%RH

LH-160 compact handheld homogenizer, lightweight (0.54kg) for easy single-hand operation.
Stable AC carbon brush motor with 10 adjustable speed levels, suitable for cell disruption, tissue homogenization and emulsion preparation.
Three optional dispersing shafts cover pretreatment from micro biological samples to medium-volume emulsions.
316L stainless steel working head resistant to organic solvents, fully autoclavable to prevent cross-contamination.

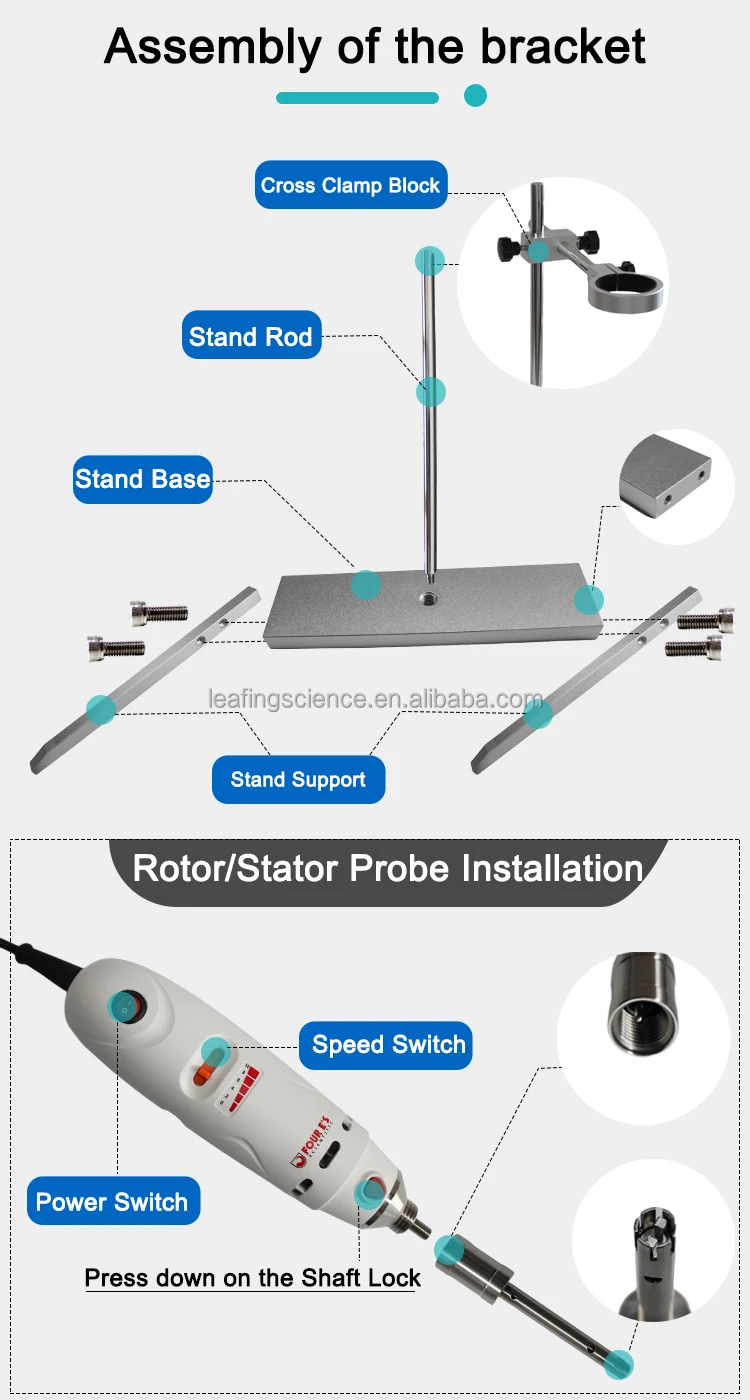

Quick-release interchangeable shaft design for easy cleaning and minimal sample residue.
Handles viscosity up to 5,000mPas, ideal for cosmetic cream, slurry and viscous reagent homogenization.

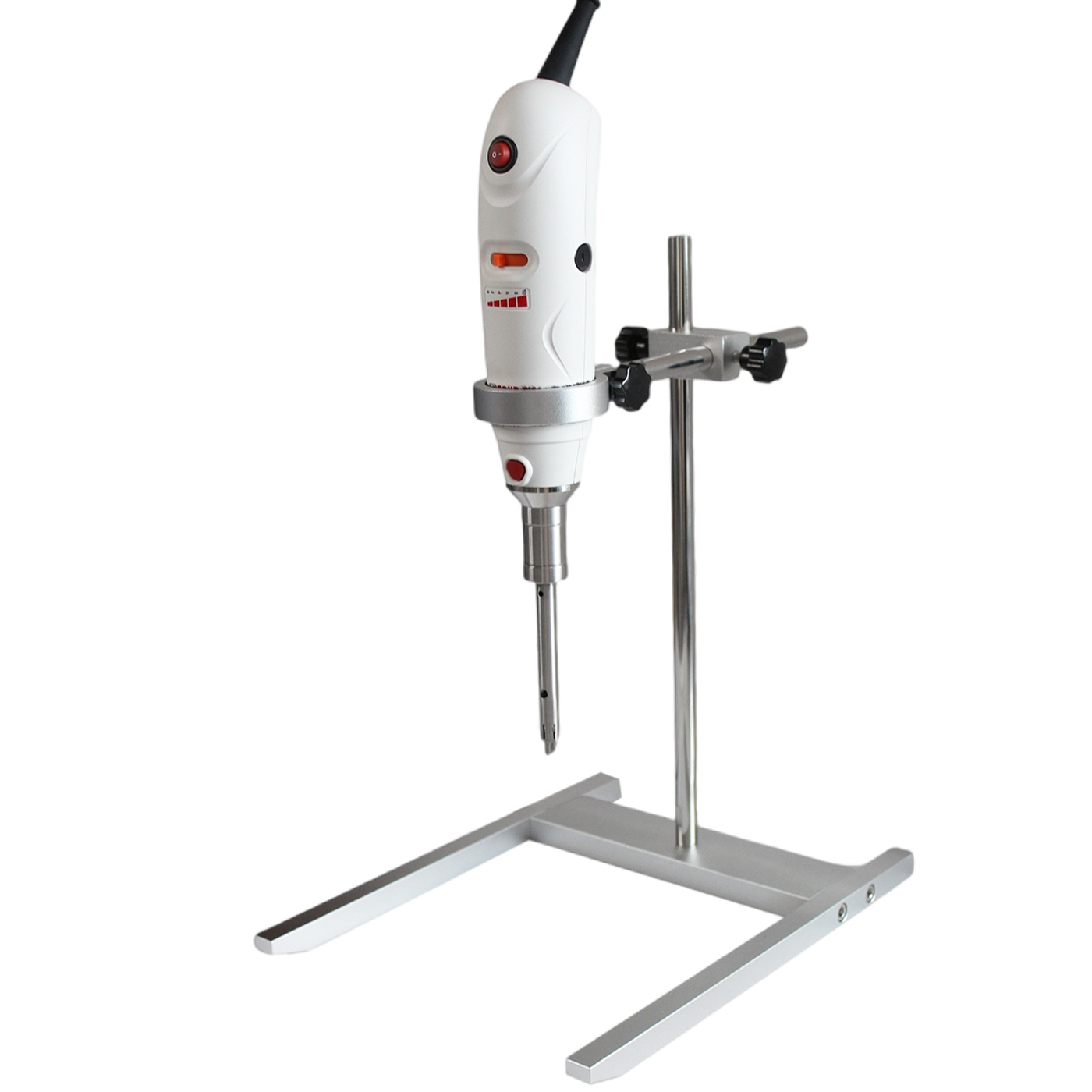

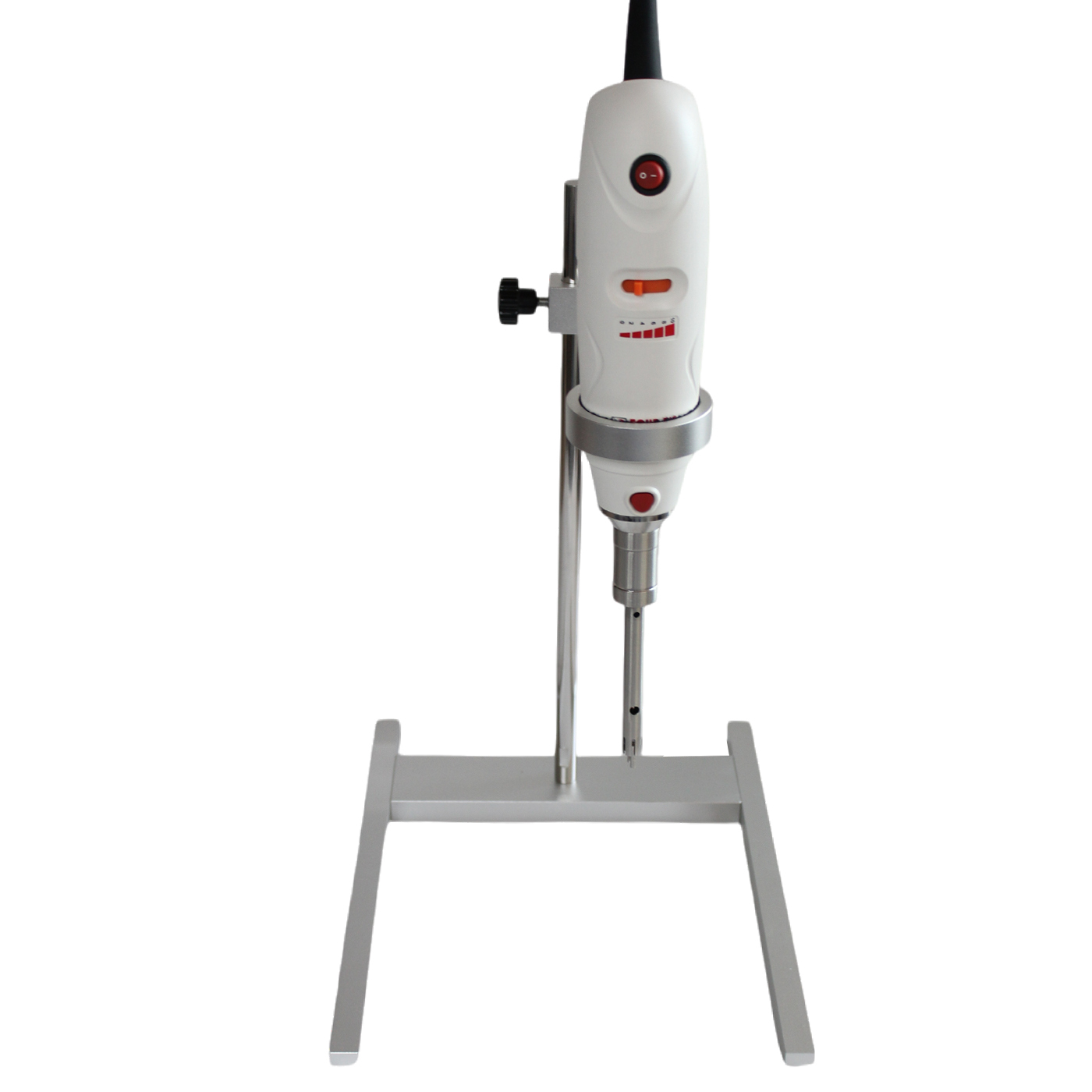

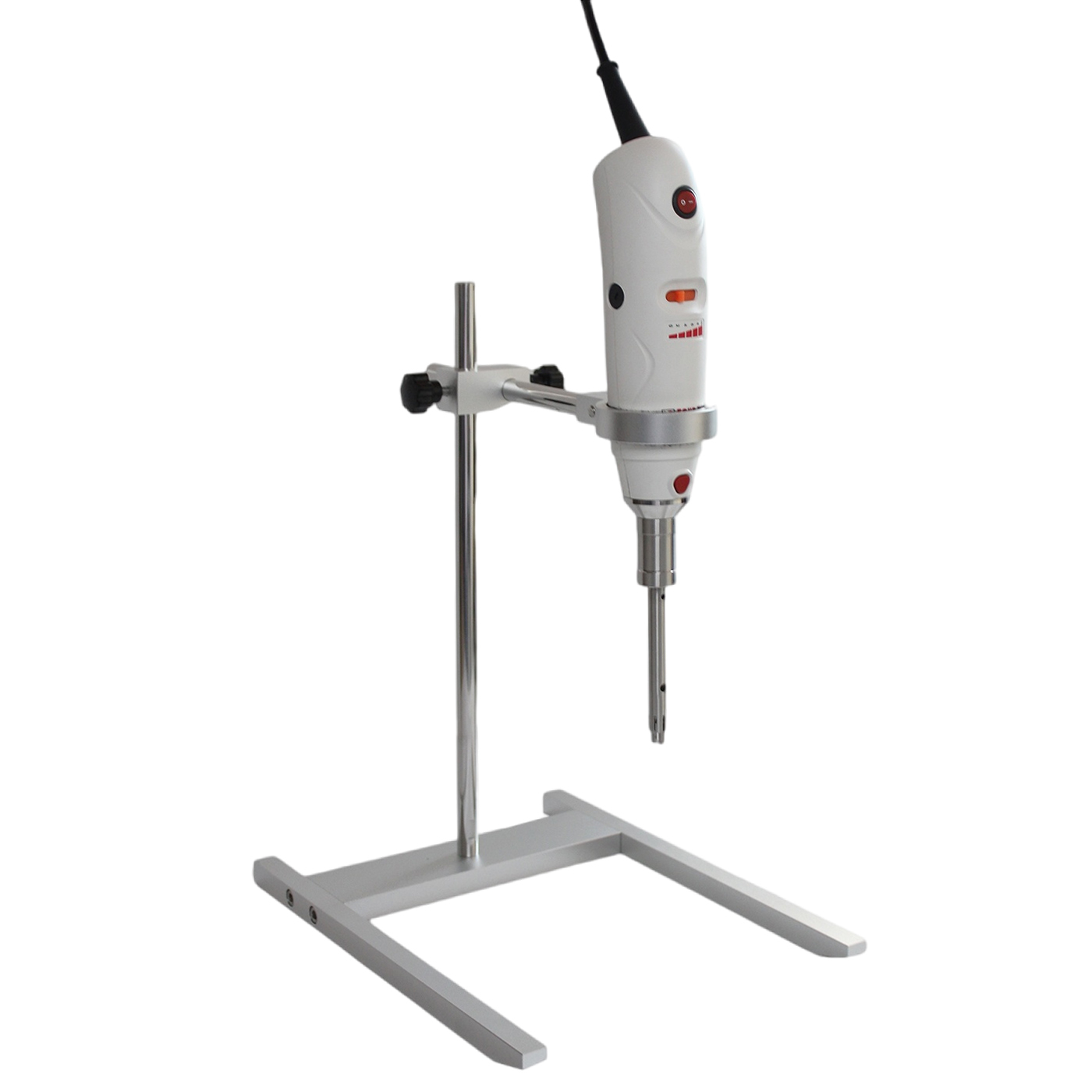

Supports intermittent handheld operation or continuous running when mounted on stand.
Wide voltage 110–240V, compatible with laboratories worldwide.
Noise limited to 72dB(A), suitable for open lab environments.

Micro biological samples (0.1–50mL, cells & tiny tissue): select DS-160/5 shaft.
Medium volume samples (1–150mL) for regular tissue homogenization: select DS-160/7 shaft.
Emulsion, cream and food samples 1–250mL: select DS-160/10 shaft.
Frequent sterilization required to avoid cross-contamination: this model with autoclavable shaft is recommended.
High-viscosity samples (cream, thick slurry): ensure viscosity does not exceed 5,000mPas.
Occasional intermittent handheld use; vertical stand recommended for long continuous experiments.

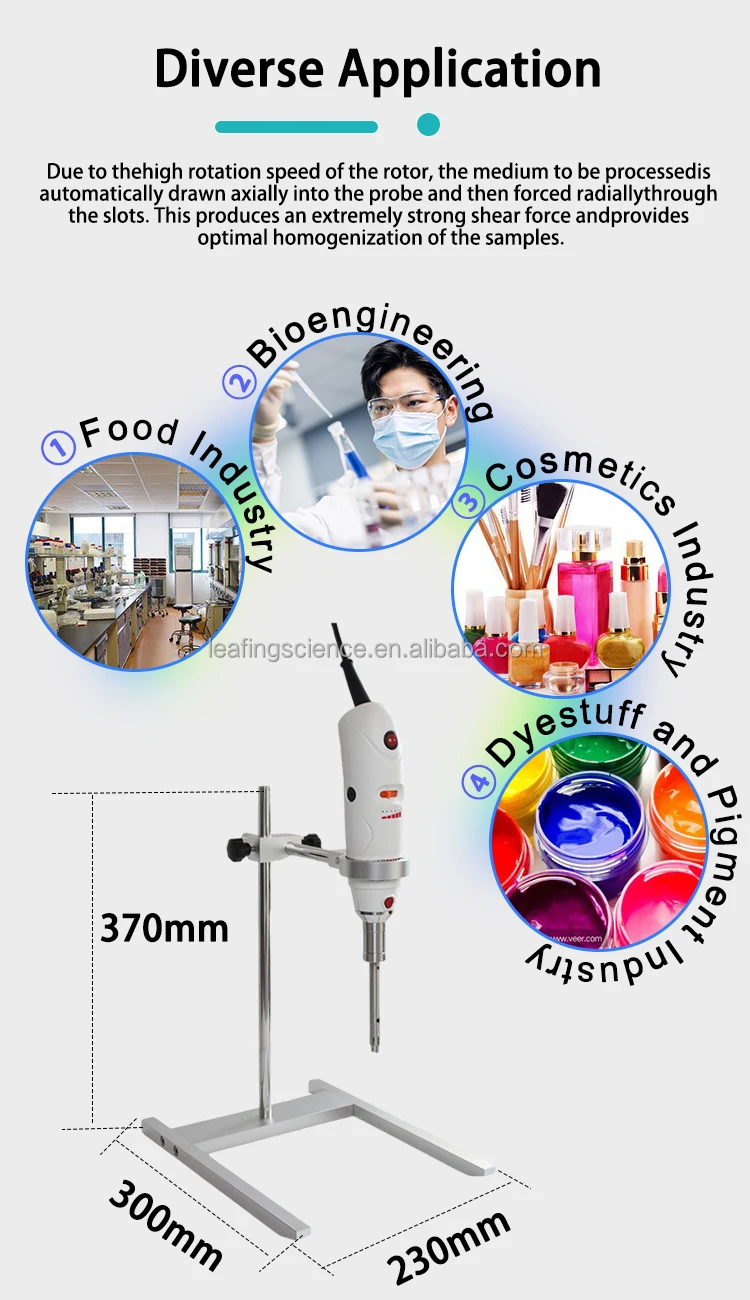

Biological & pharmaceutical sample disruption: DS-160/5 or DS-160/7 preferred.
Cosmetic & detergent emulsion preparation: DS-160/10 large-volume shaft recommended.
Export orders: wide voltage 110V/220V available for European & American markets.

Standard kit: LH-160 main unit, power cord, operation manual. Dispersing shafts are optional items to be ordered separately.
Optional accessories: DS-160/5 / DS-160/7 / DS-160/10 dispersing shafts, vertical mounting stand.
Reinforced carton with buffer protection to avoid motor and shaft damage during transit
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging..

Packaging and delivery

Selling Units	Single item	Package size per batch	372415cm
Gross weight per batc	3.000kg

Item Name	Qty
Handheld Homogenizer Main Unit	1 unit
DS-160/5 Dispersing Shaft	1 pc

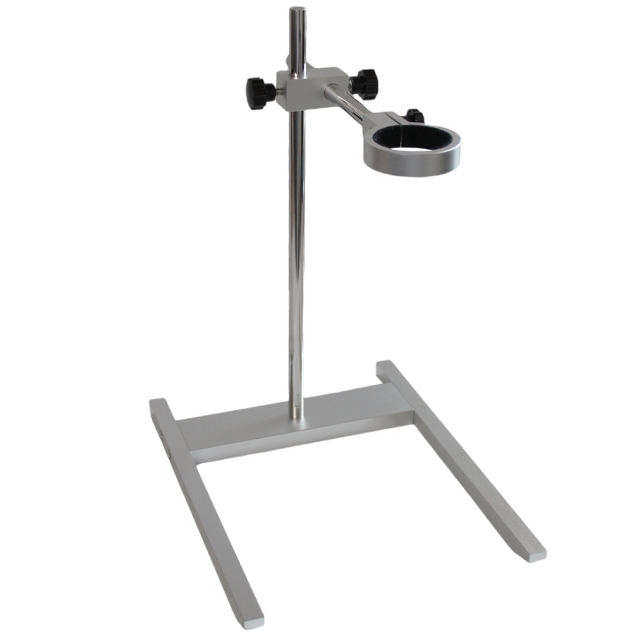

H370 Support Stand	1 set
Power Cord	1 pc
User Manual	1 copy
Certificate & Warranty Card	1 set

Contact support team to get complete digital documents: bilingual specification sheet and electronic brochure PDF.
Supporting files: operation manual, dispersing shaft cleaning & sterilization maintenance guide.

How many types of dispersing shafts are optional and what are their working volumes? 3 types: DS-160/5 (0.1–50mL), DS-160/7 (1–150mL), DS-160/10 (1–250mL).
What is the speed range and how many speed levels are available? Speed range 8000–32000rpm, total 10 adjustable levels.
What material is the dispersing shaft? Can it be autoclaved? Made of SS 316L stainless steel and PTFE, fully autoclavable.
Are the dispersing shafts interchangeable? Shafts are interchangeable, easy to detach for cleaning.
What is the maximum applicable sample viscosity? Max. viscosity 5,000mPas.
What type is the motor? AC carbon brush motor.
Is dispersing shaft included as standard accessory? Only main unit is standard; dispersing shafts are optional and ordered separately.

Please specify model LH-160, order quantity, and mark required dispersing shaft and stand for inquiry.
Formal English quotation will be issued within 24 hours. Tiered discounts are available for bulk orders without any hidden charges.
OEM service is available: Logo printing on the unit body and customized outer packaging.
Separate quotations for various dispersing shafts can be provided to meet your future consumable purchasing demands.
Logistics solutions for sea freight and air freight can be arranged for cross-border orders.
Small sample trial orders are acceptable.
Stable supply prices can be negotiated for long-term framework orders.
Contact channels: Email, WhatsApp and official website online message are available. The quotation covers standard main unit kit, and optional accessories such as shafts and stand will be listed separately.
