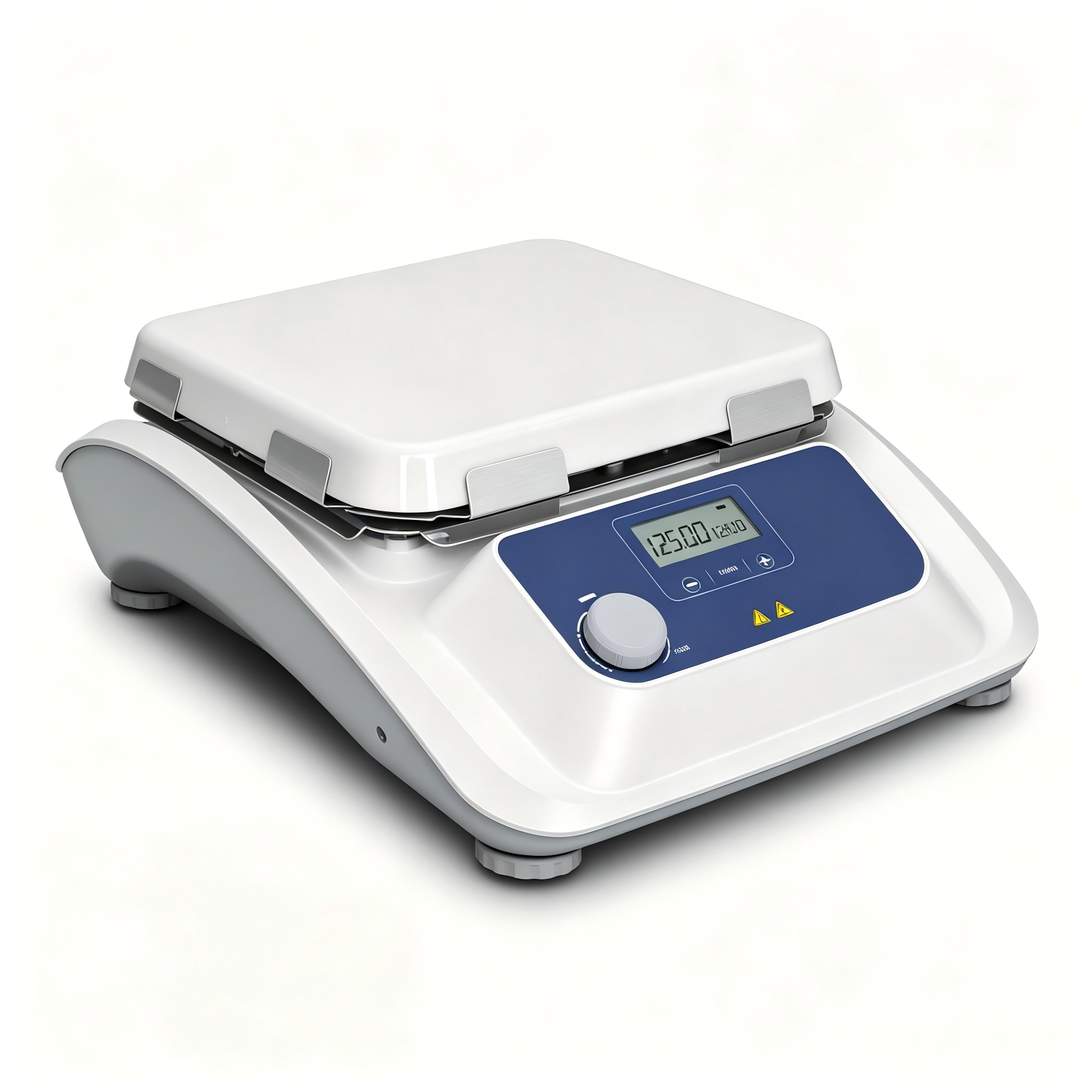

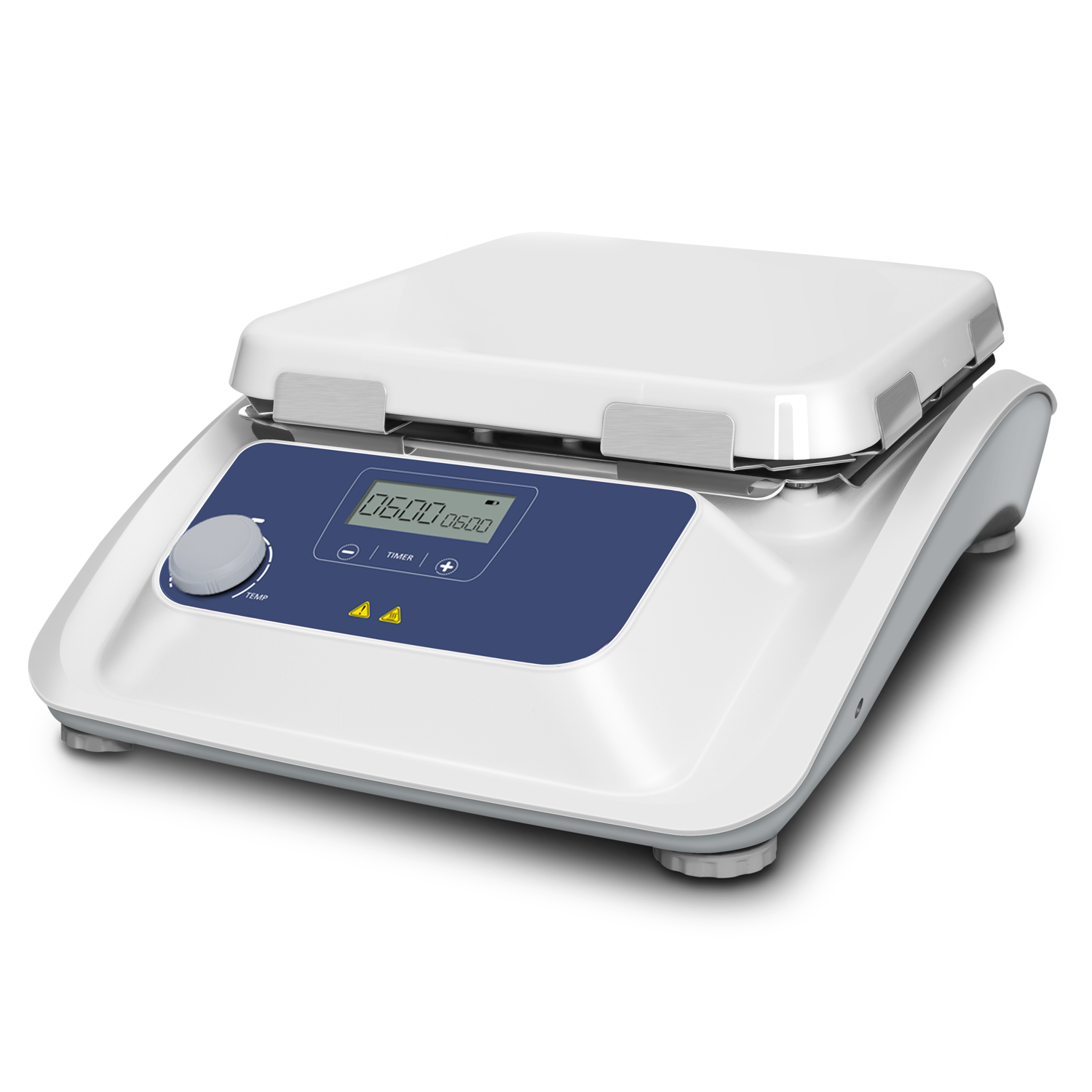

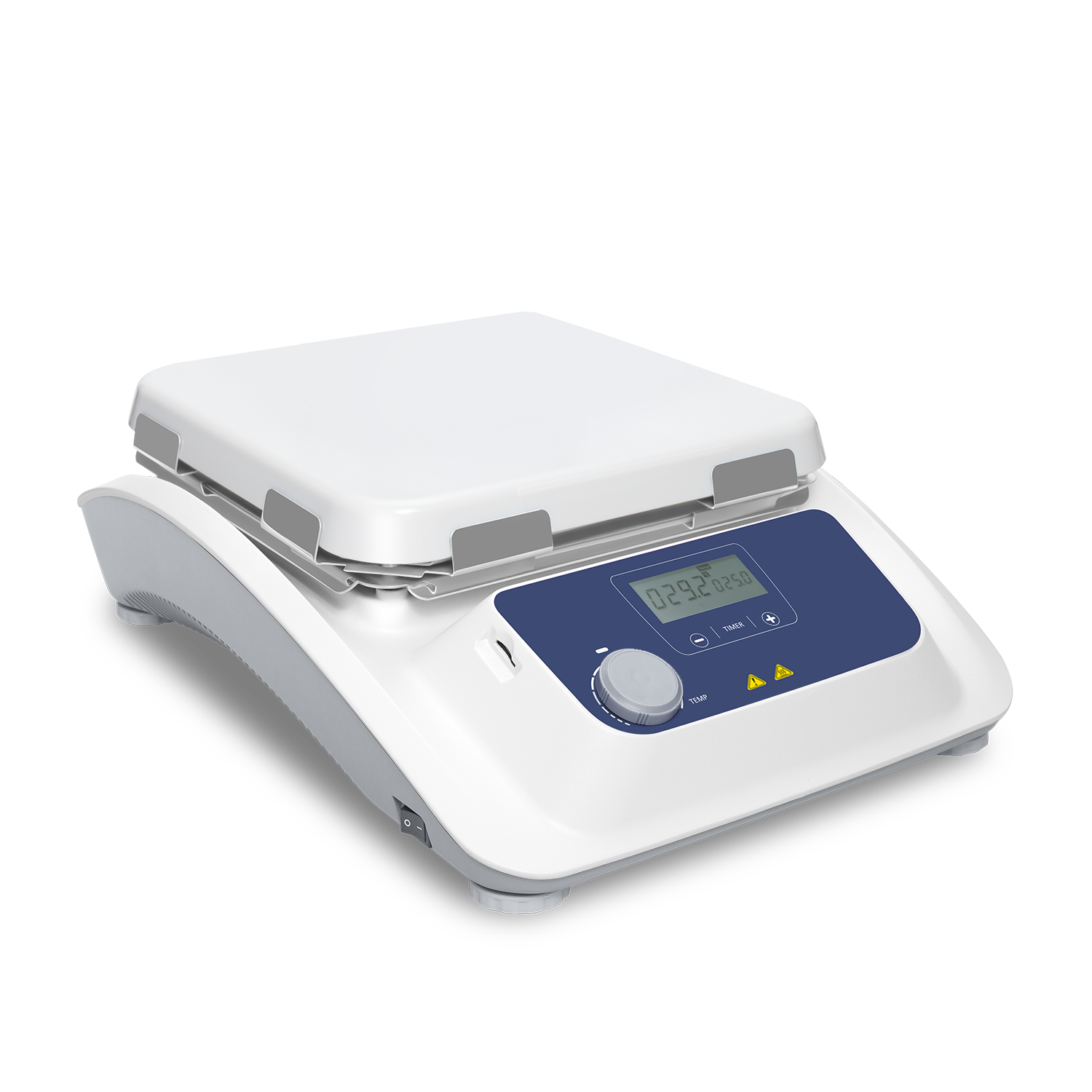

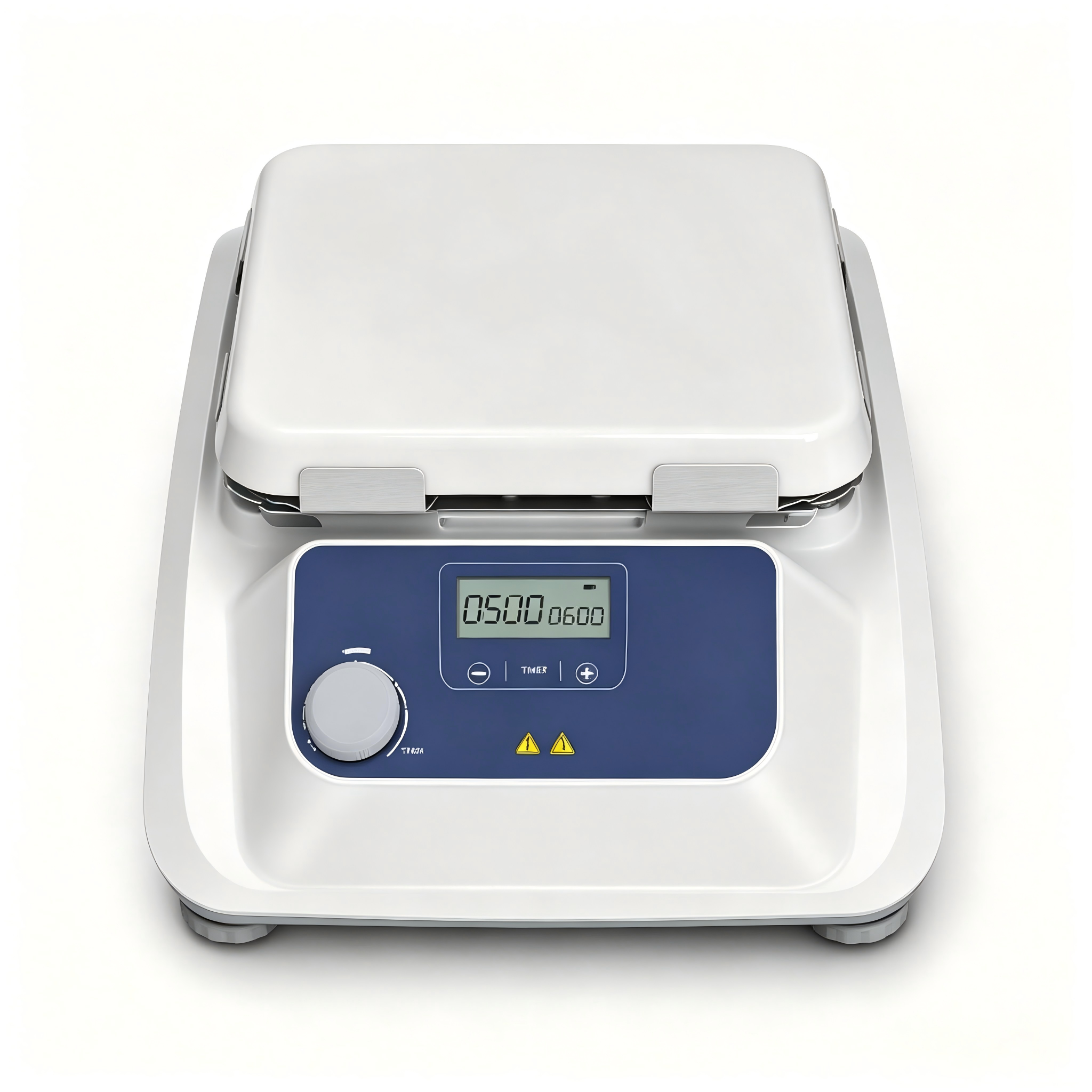

LCD Digital Hotplate

• Max heating temperature up to 500℃, suitable for organic synthesis, sample digestion, solvent evaporation, biological incubation and high-temperature drying workflows.
• Large integrated 10-inch glass ceramic work plate provides fast uniform heat distribution. Dense non-porous material resists acid, alkali and organic solvents, easy to wipe clean with no coating peeling or rust risk.
• High-resolution LCD screen simultaneously displays real temperature and timer value with ±0.1℃ high readout precision for full visual monitoring of heating cycles.

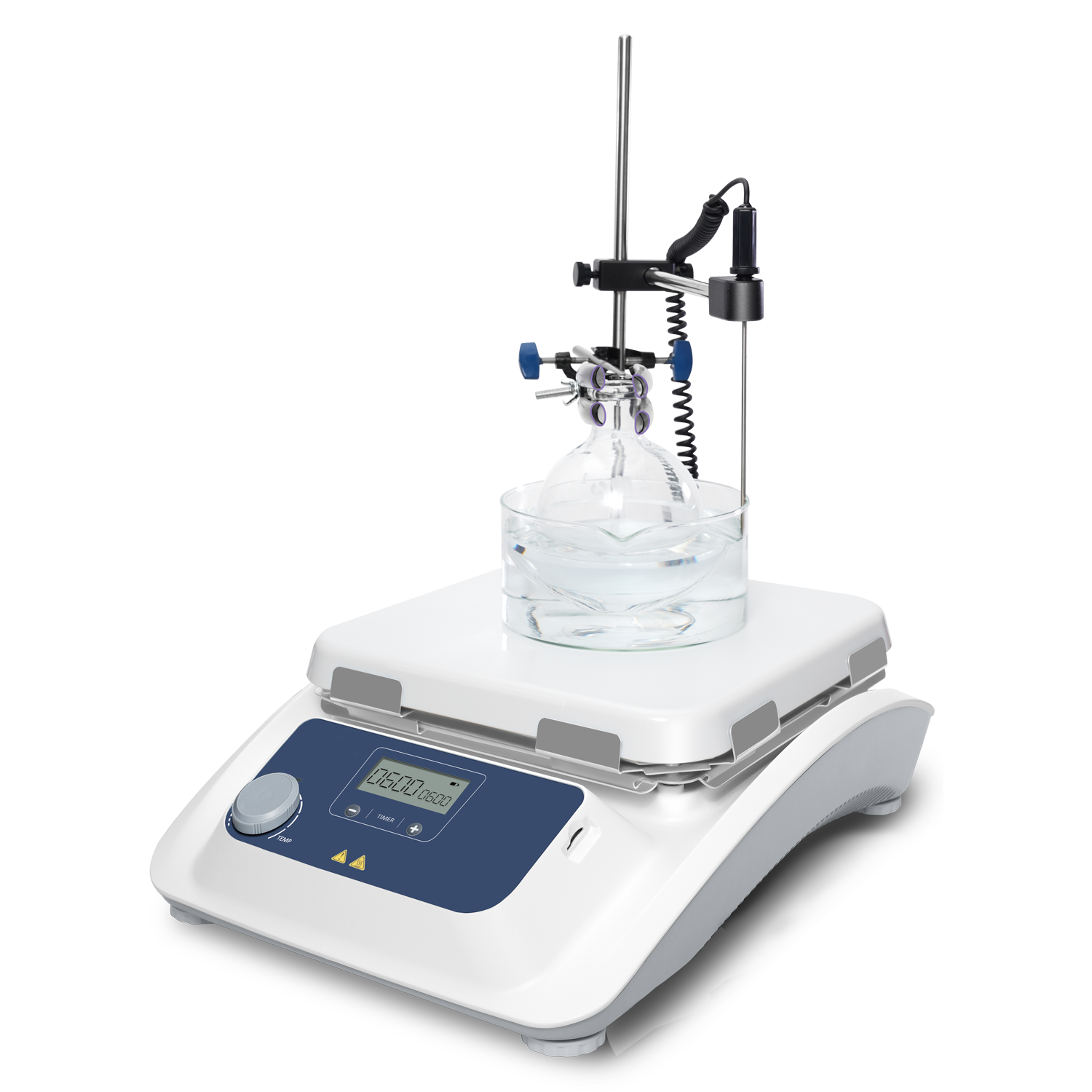

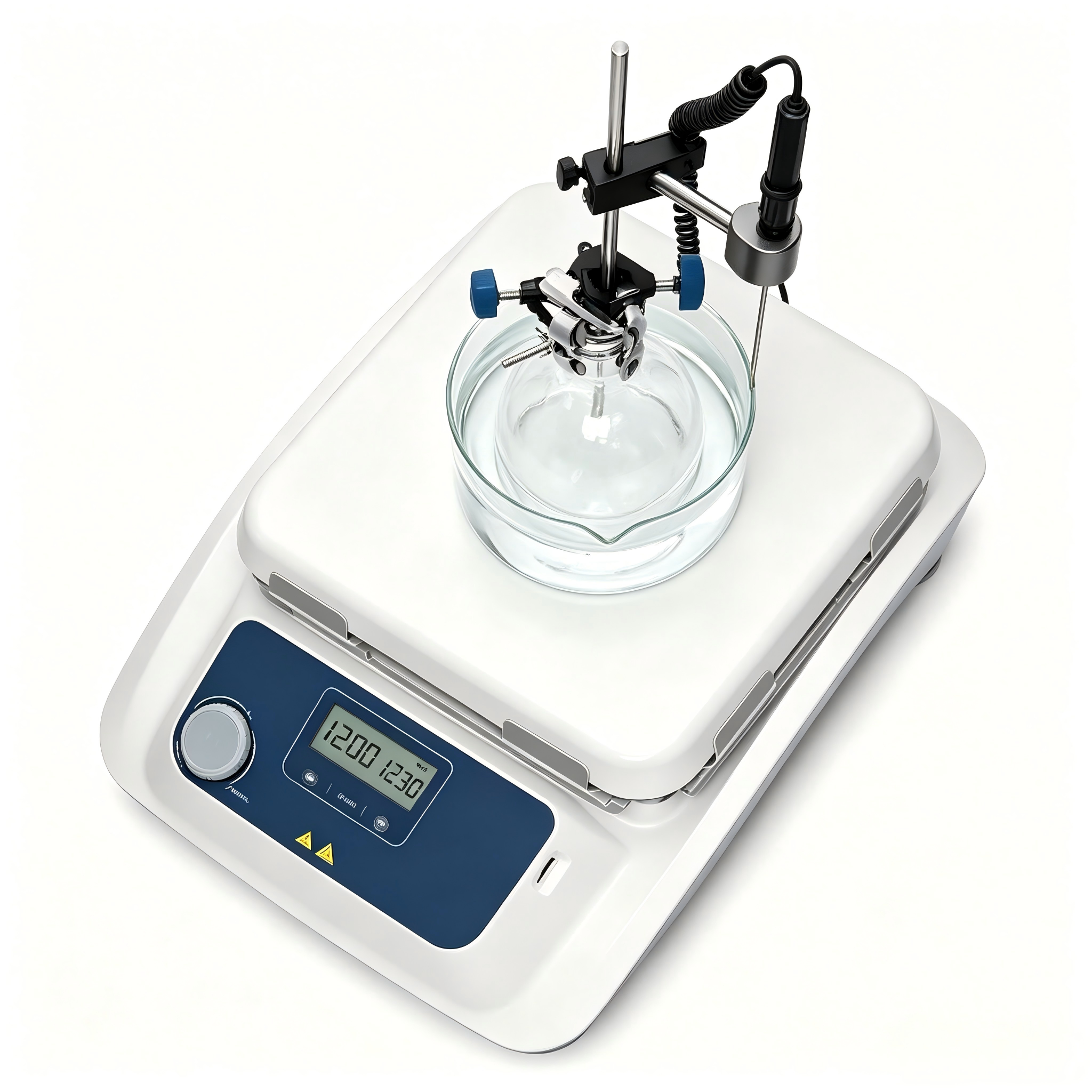

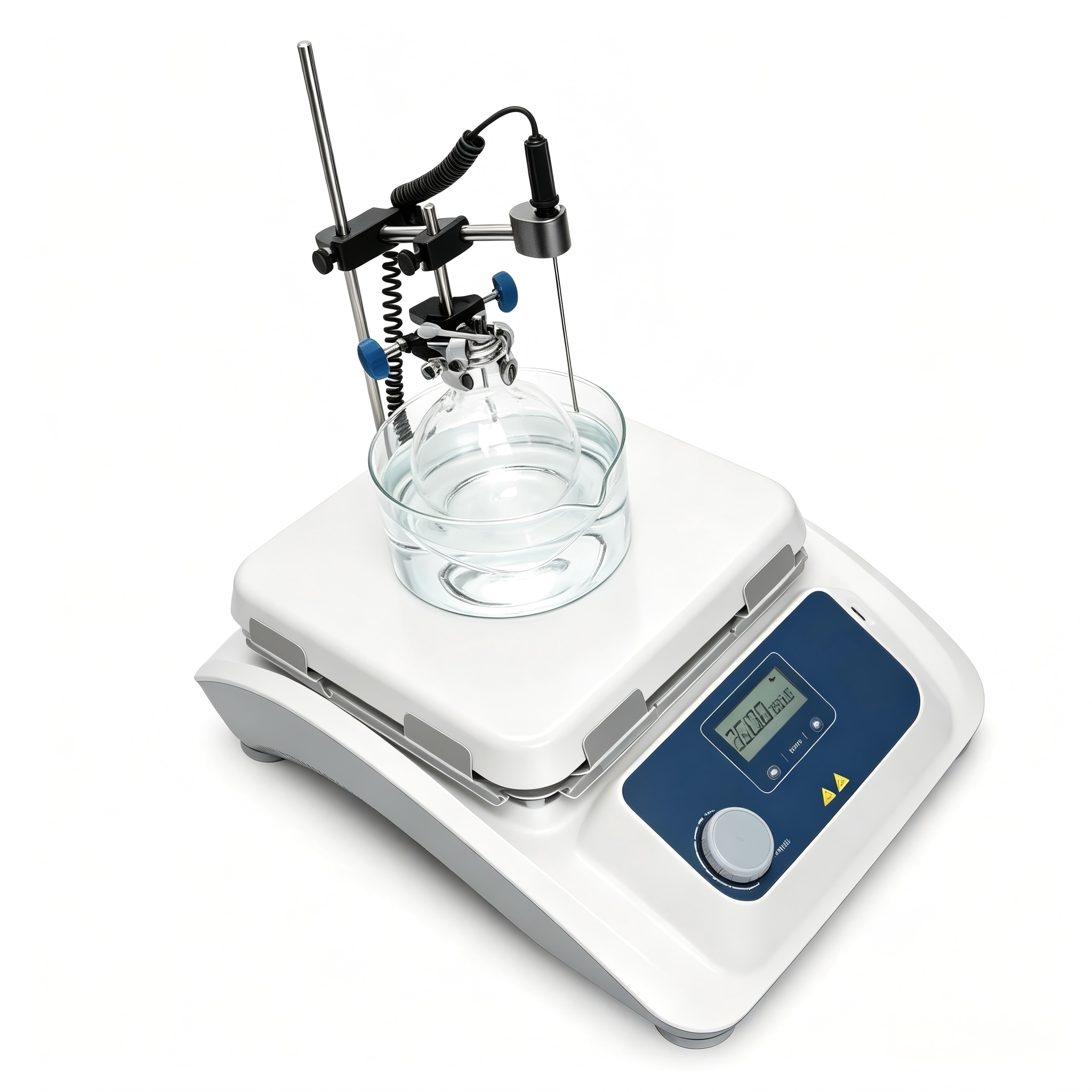

• Standard PT1000 high-precision external probe immerses directly into liquid samples to capture genuine internal temperature, unit auto-compensates thermal offset for consistent parallel test results.
• Independent hardware safety circuit cuts heating power automatically once temperature hits 540℃ to prevent hazards caused by uncontrolled dry heating.
• Long-duration timer adjustable from 1 minute to 99 hours 59 minutes, ideal for extended constant-temperature reactions and overnight digestion runs.
• Built-in SD card data connector records full-process temperature and runtime data in real time for convenient data archiving and traceability of compliant assays.
• Continuous residual heat warning: the "HOT" icon keeps flashing after power-off if plate temperature is over 50℃ to prevent operator scald injuries.
• 1400W high-power heating element accelerates temperature ramp-up; universal dual voltage and IP21 dust & splash-proof casing guarantee stable operation in all standard open labs worldwide.

• L500HP-Pro large-plate high temperature hotplate serves chemistry, biology, pharmaceutical, food and environmental R&D testing labs, integrating precise temperature control, long timer and automatic data logging for compliance workflows requiring full assay traceability.
• 1350W effective heating power paired with extra-large 10-inch glass ceramic platform delivers fast uniform heating up to stable 500℃ constant temperature, holding multiple large beakers, flasks and evaporating dishes for simultaneous parallel batch processing.
• Monolithic glass ceramic plate without exposed metal substrate resists acid, alkali and organic corrosive reagents. Smooth dense surface allows easy wipe cleaning of spills with no coating degradation for extended long-term high-temperature service life.
• PT1000 high-precision external probe immerses directly into liquid specimens to capture genuine sample temperature; unit auto-adjusts power to eliminate thermal offset, with segmented optimized control accuracy for low and medium-high temperature runs to guarantee consistent parallel results.
• High-definition LCD dual display shows live temperature and remaining heating time with ultra-high ±0.1℃ readout precision to capture subtle temperature shifts. Adjustable timer up to 99h59min supports overnight and multi-day constant-temperature reactions.
• Local SD card data logging automatically stores full-process temperature and runtime records without constant PC connection, simplifying lab report compilation and process traceability for pharmaceutical and fine chemical compliance R&D.
• Triple safety protection system: independent hardware cut-off at 540℃ over-temperature; IP21 dust & splash-proof casing blocks minor reagent spills; continuous HOT residual heat warning after power-off to eliminate scald and dry-burning hazards.
• Sturdy 7.2kg unit with stable load-bearing large platform; universal dual 100–240V voltage works plug-and-play for all overseas labs without power adapter replacement for export.

• R&D and testing labs processing batch parallel samples require 10-inch wide heating platform with max 500℃ medium-high constant temperature:
  Choose L500HP-Pro, 254×254mm large surface holds multiple reaction vessels at once, stable max 500℃ with even heating via 1400W power, ideal for batch digestion and organic synthesis parallel assays.
• Pharmaceutical and fine chemical labs need full experimental data archiving and traceability with built-in data logging:
  Onboard SD card real-time data storage automatically saves temperature and runtime records, paired with long-period timer to archive complete multi-day reaction data for compliance R&D standards.
• Assays demand high precision control of genuine internal sample temperature via external closed-loop probe:
  Standard PT1000 external immersion sensor with ±0.2℃ precision auto-compensates plate thermal offset, segmented accurate control for low and high temperature runs to deliver excellent parallel test repeatability.
• Long-duration continuous heating and overnight digestion workflows require extended adjustable timer:
  Timer range from 1 minute to 99h59min enables unattended heating for multi-day synthesis and constant-temperature incubation.
• Frequent workflows with corrosive acid, alkali and organic solvents need durable easy-clean anti-corrosion work plate:
  Monolithic glass ceramic surface with no peelable coating, all corrosive spills wipe away effortlessly for daily high-throughput sample pre-treatment batches.
• Residual plate heat after power-off creates scald hazard, continuous visible high-temperature warning required:
  Built-in flashing HOT indicator stays active above 50℃ after shutdown to clearly signal thermal risk and standardize lab safety protocols.
• Cross-border R&D and testing labs with inconsistent power grid standards need equipment without extra voltage converters:
  Universal auto-adaptive 100–120V / 200–240V dual voltage compatible with 50/60Hz grids worldwide for plug-and-play use in all R&D labs.

Selling Units

Single item

Package size perbatch

54*44*27cm

Gross weight perbatch

8.300kg
