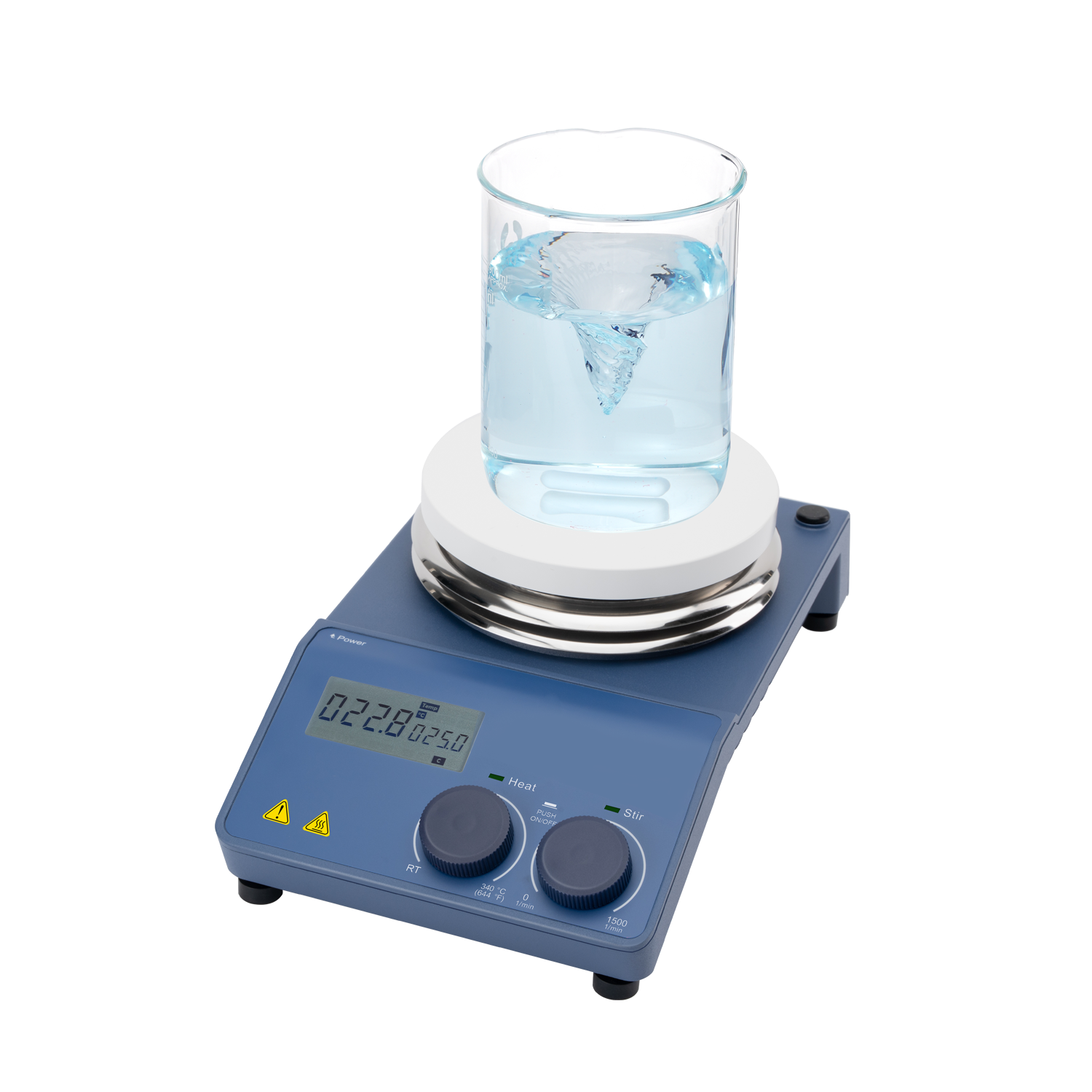

LCD Digital Magnetic Hotplate Stirrer

• LSM+H-Pro LCD Digital High-Torque High-Temperature Magnetic Hotplate Stirrer equipped with 10W high-power explosion-proof brushless DC motor, max stirring volume up to 20L. It fits chemical synthesis, pilot scale reaction, biological fermentation, large-volume wet digestion and mineral sample pretreatment, supporting unattended long-duration constant-temperature stirring workflows.
• Original factory core specs: Φ135mm (5 inch) round work plate with stainless steel substrate & ceramic coating; 10W high-power explosion-proof brushless DC motor, total unit power 550W, heating power 500W; max stirring volume 20L water, compatible with magnetic stir bars up to 80mm length; speed range 100–1500rpm with ±1rpm resolution, dual independent LCD for speed & temperature readout; heating range Room Temp – 340℃, 1℃ temperature increment, temperature display accuracy ±0.1℃; liquid control accuracy ±1℃ below 100℃, ±1% above 100℃; external PT1000 temperature sensor with ±0.2℃ precision; auto overheat cut-off at 420℃, flashing "HOT" residual heat warning at 50℃ after power off; built-in RS232 data connector for PC remote control & data export; IP21 dust protection; no timer function; dual wide voltage 100-120V/200-240V, universal 50/60Hz.
• Operating environment: permissible ambient temperature 5–40℃, relative humidity ≤80%RH.
• Dimension 160×280×100mm, net weight 2.8Kg. High torque design handles large-volume & high-viscosity fluids, qualified for continuous unattended lab operation.
• Key advantages: 10W high-torque stirring motor, 20L ultra-large stirring load; stable heating up to 340℃; RS232 PC data communication; high-resolution speed adjustment ±1rpm; accurate external PT1000 temperature measurement; 50℃ post-shutdown residual heat warning; spark-free explosion-proof maintenance-free motor; chemical-resistant stainless steel ceramic plate; dual independent overheat safety circuits; universal dual voltage for global markets.

• Reinforced 10W high-power explosion-proof brushless motor delivers greatly upgraded torque, supporting maximum 20L aqueous solution stirring with up to 80mm long stir bars; no slipping or magnetic attenuation for high-viscosity fluids and pilot large-volume reactions.
• Speed range 100–1500rpm with ±1rpm high resolution, fine stepless digital speed control: gentle low-speed mixing and powerful high-speed homogenization for precise adjustment matching fluid viscosity & volume.
• Digital constant heating up to 340℃ with 1℃ adjustment increment and closed-loop PID temperature control, minimal temperature fluctuation at high thermal range, ideal for pilot synthesis and mineral high-temperature digestion workflows.

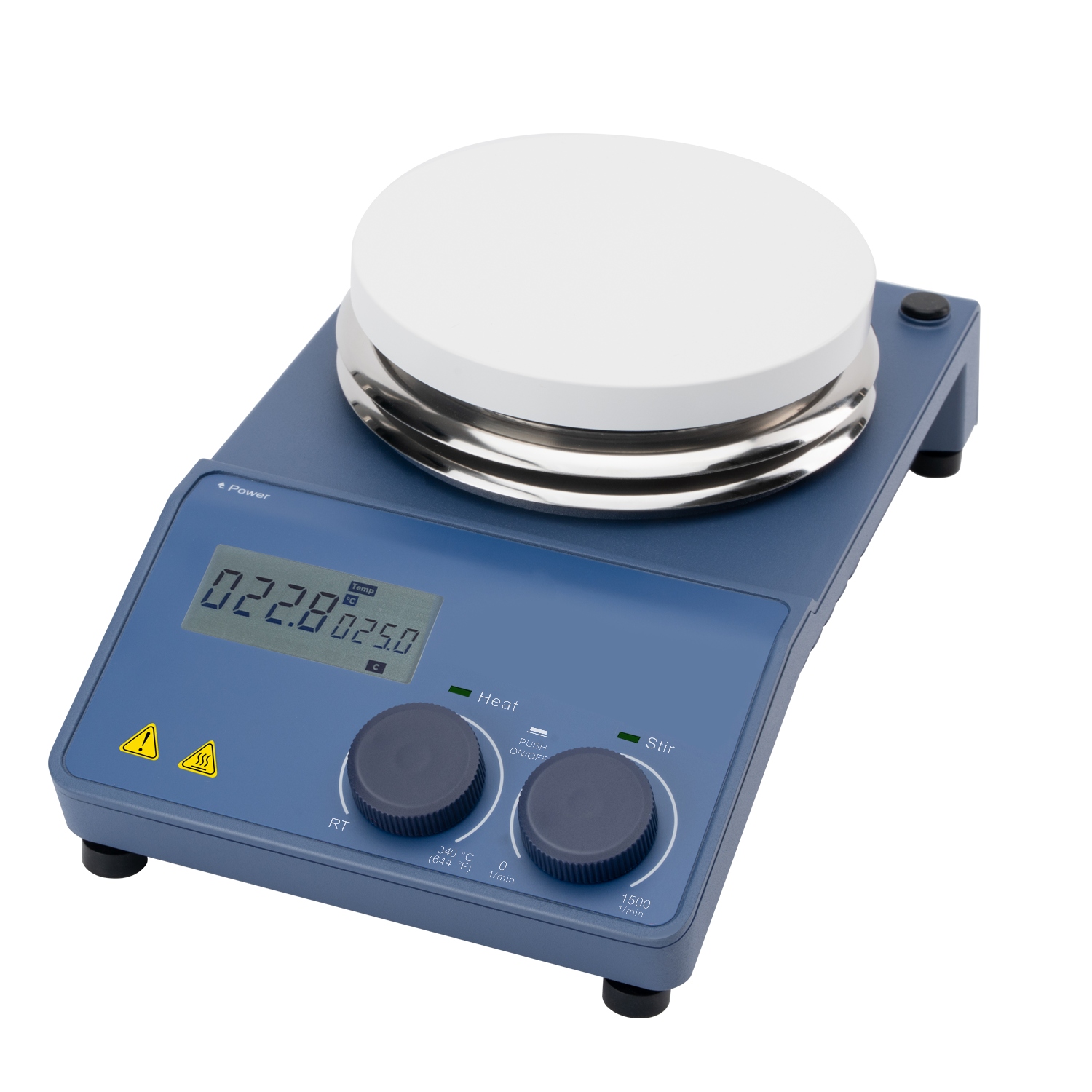

• Φ135mm stainless steel composite ceramic coated plate delivers outstanding resistance to strong acid, alkali and organic solvents, uniform fast heat transfer, no peeling/deformation under long-term 340℃ heating, easy wiping after reagent spills.

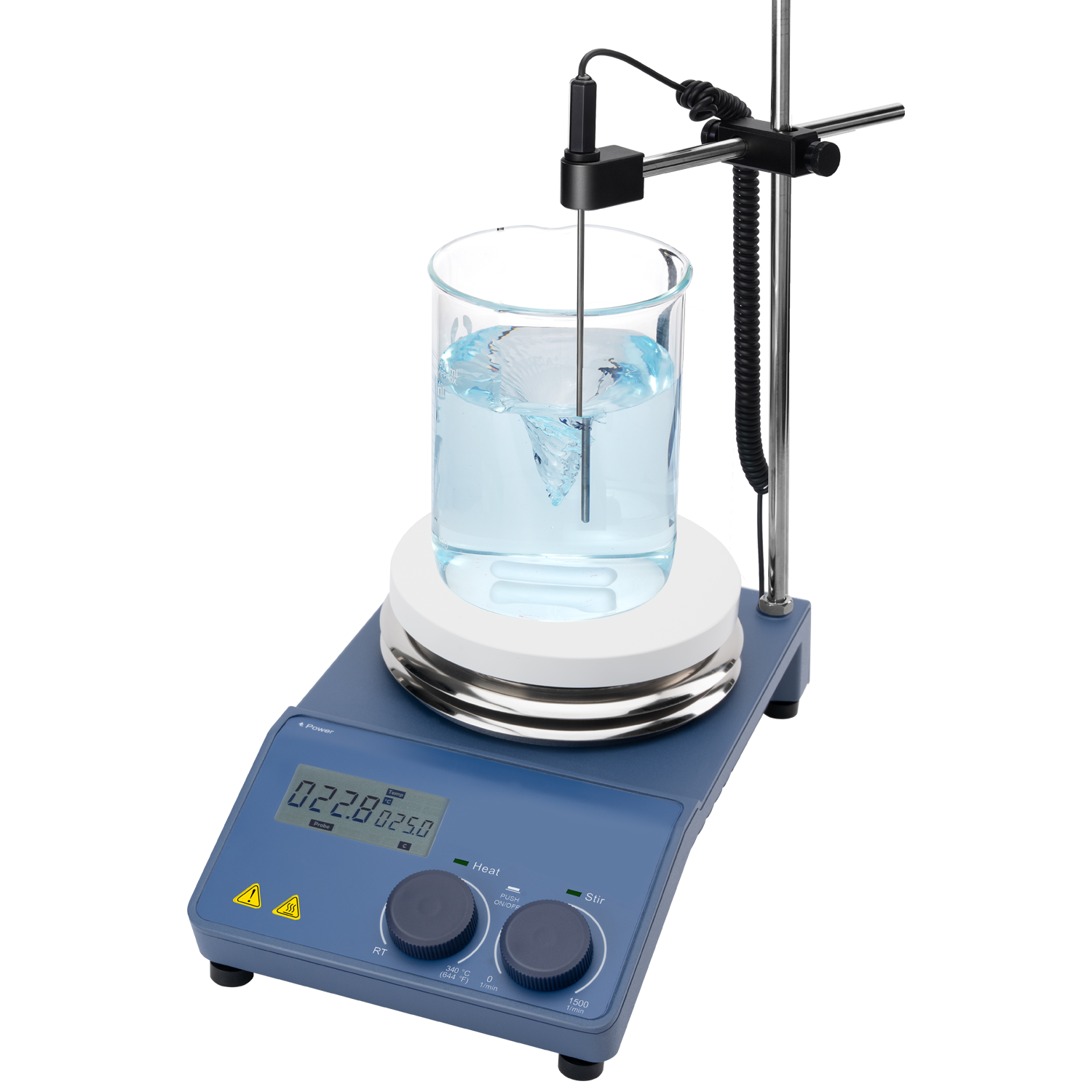

• Standard high-precision external PT1000 temperature probe immerses directly into reaction liquid to eliminate plate-solution temperature offset, capturing real internal sample temperature to meet strict data standards for test reports and academic research.
• Dual independent overheat safety circuits automatically cut heating output at 420℃ threshold, multi-layer safeguards prevent dry heating and vessel rupture, enabling safe unattended overnight continuous operation.
• Residual heat "HOT" warning system: LCD flashes "HOT" continuously if plate temperature exceeds 50℃ while power cable remains connected after shutdown, preventing operator scald injury.
• Built-in RS232 data connector supports PC remote control for unit start/stop, temperature & speed setting, plus real-time export of full-process experimental data for traceability and file archiving.
• Spark-free explosion-proof brushless DC motor eliminates carbon brush wear for maintenance-free operation, safe for reaction systems with low-boiling flammable solvents including methanol, acetone and petroleum ether.

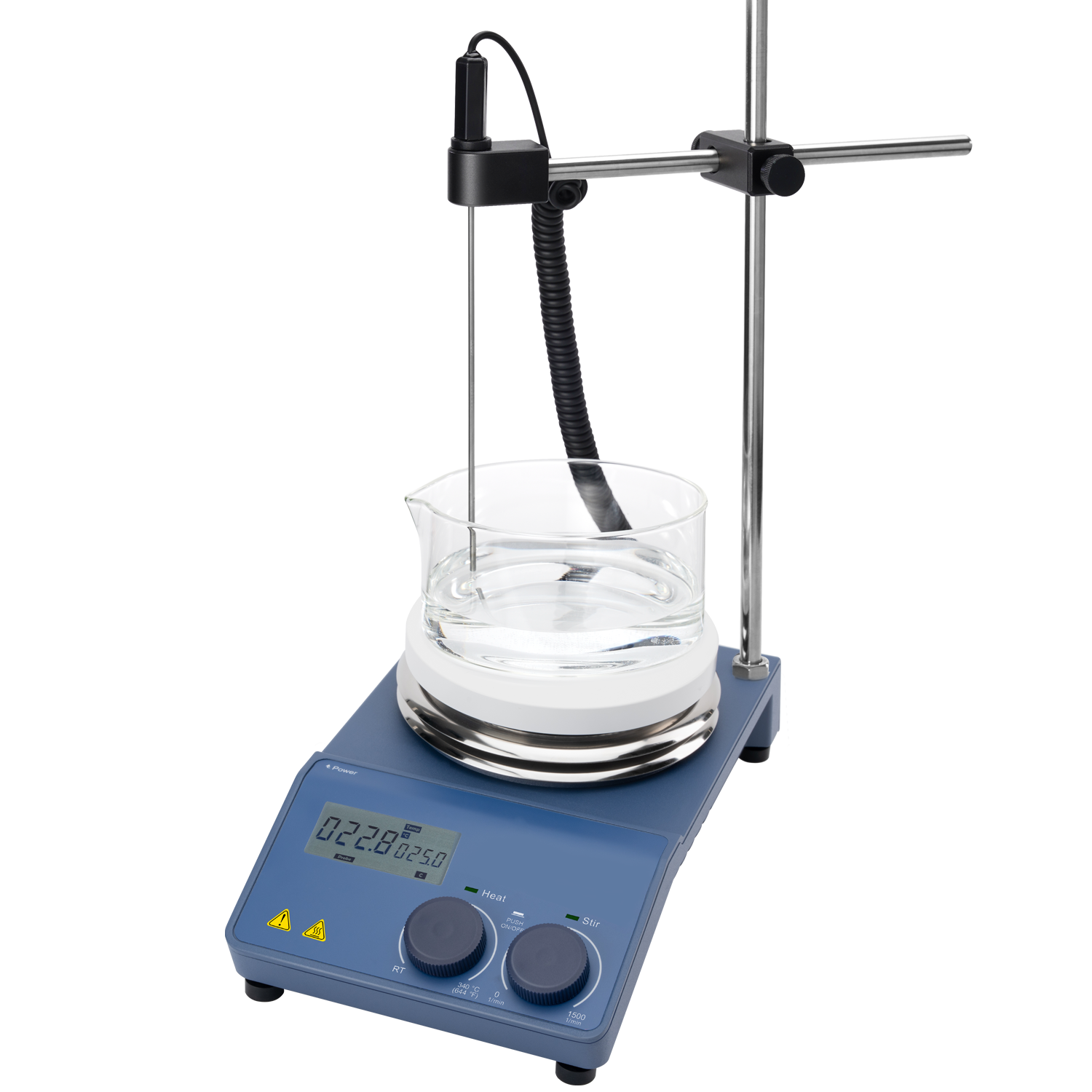

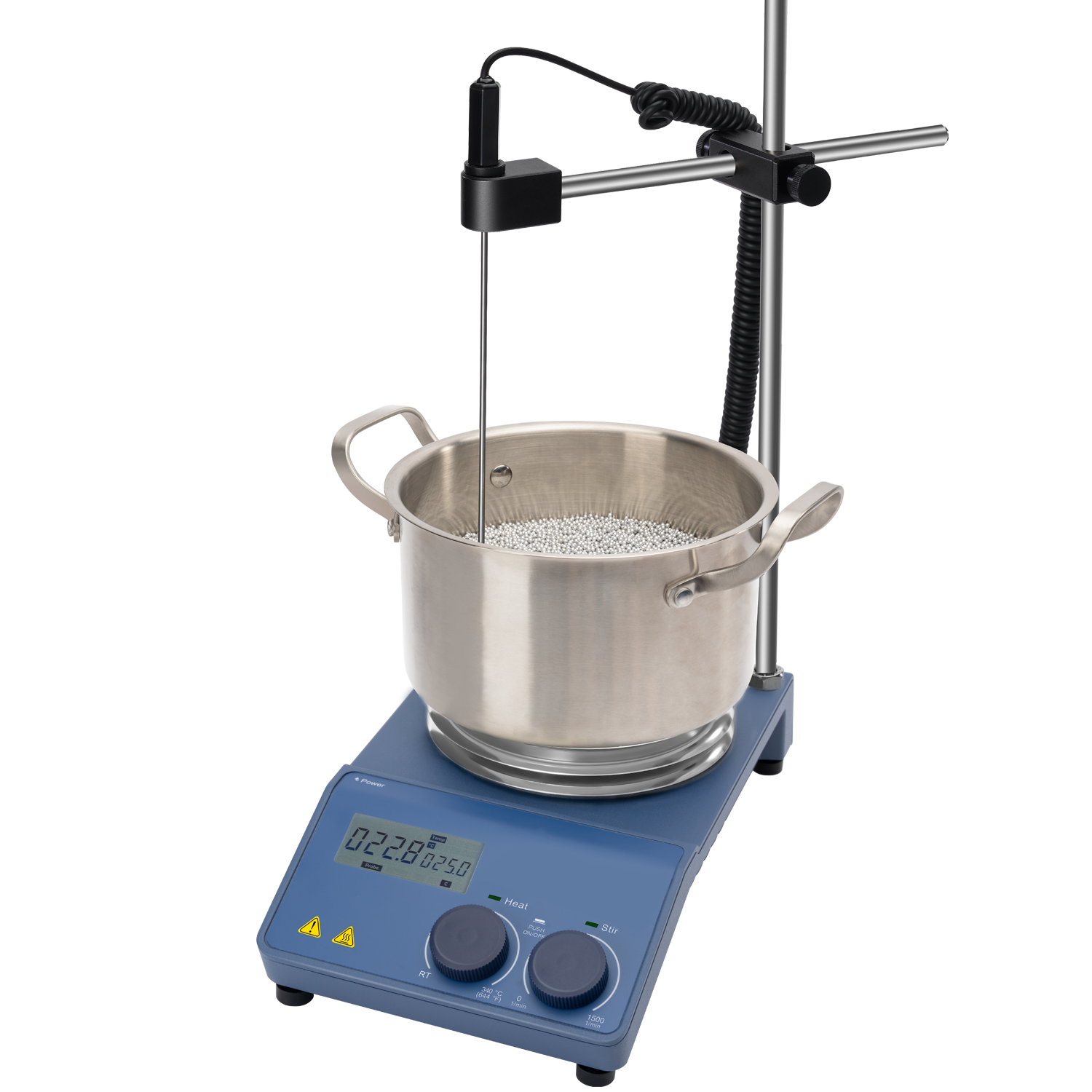

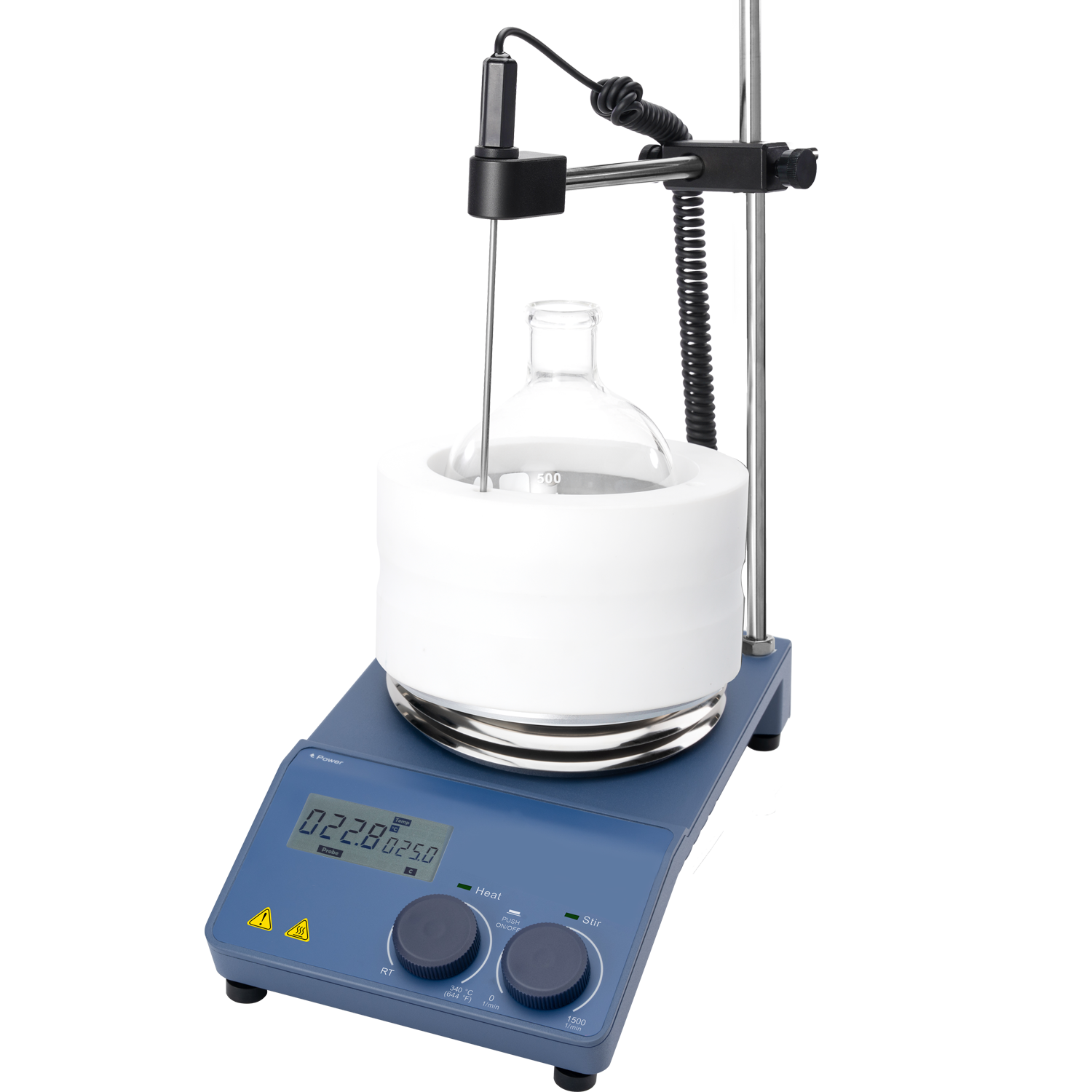

• Wide range of optional accessories including support stands, clamps and temperature probes for flexible assembly of complete reflux, distillation and constant-temperature reaction setups.

• Product positioning: High-torque pilot-scale high-temperature magnetic stirrer supporting 20L ultra-large volume sample processing, engineered for chemical pilot reactions, large-scale biological fermentation, batch environmental soil/water digestion and polymer synthesis, filling the gap of standard small-volume (3–5L) stirrers unable to handle bulk fluid reactions.
• 10W high-torque brushless motor delivers multiple times stronger stirring power than standard 1.8W/3W units, maintains homogeneous mixing for full 20L aqueous load and high-viscosity fluids; matched with 80mm extended stir bars to eliminate sedimentation & stratification at vessel bottom.
• Wide heating range up to 340℃ with precise 1℃ adjustment increment and stable closed-loop PID control, suitable for high-boiling solvent reflux, mineral heavy metal thermal decomposition and polymer polymerization mid-temperature workflows.
• Industrial RS232 data port connects to PC software for remote speed/temperature setting, automatic full-process parameter logging and exportable data sheets, complying with traceability & archiving compliance standards for academic research and third-party testing institutes.
• Stainless steel ceramic composite round plate provides superior chemical resistance against acid, alkali and organic solvent spills; smooth dense surface enables easy cleaning, no discoloration or aging under prolonged high-temperature operation.
• Complete multi-layer safety protection suite: dual independent overheat circuits with mandatory 420℃ power cut, flashing residual heat warning at 50℃, IP21 dust-proof housing and spark-free explosion-proof motor, fully safe for unattended overnight operation.
• Universal dual wide voltage design works directly with 100–120V EU/US and 200–240V Asian power grids, one single model covers all mainstream overseas export regions to reduce distributor stock SKUs.
• Full range of optional experimental accessories including support stands, clamps, temperature probes and reflux assemblies enable fast setup of integrated constant-temperature reflux & distillation reaction systems for one-stop lab solution demands.

• Single batch processing of 10–20L large-volume fluids for chemical pilot tests & batch environmental digestion, standard ≤5L stirrers lack sufficient torque causing stratification:
  Select LSM+H-Pro with 10W high-power motor and max 20L stirring load, compatible with 80mm long stir bars to deliver uniform mixing without sedimentation for pilot-scale batch workflows.
• Thermal processes require temperature above 300℃, stable up to 340℃ for high-boiling solvent reflux, mineral thermal decomposition and polymer synthesis:
  This unit delivers consistent heating up to 340℃ with fine 1℃ adjustment step and low-fluctuation PID closed-loop control, ideal for harsh mid & high-temperature synthesis and digestion experiments.
• Lab requires PC connection for automatic experimental data logging and remote control to meet traceability archiving standards for papers & official test reports:
  Built-in RS232 data communication port supports remote PC operation and full-process data export, perfectly matching compliance demands of academic and third-party testing labs.
• Frequent experiments with low-boiling flammable organic solvents, fire/explosion safety concerns, long unattended overnight operation required:
  Spark-free explosion-proof brushless motor paired with dual independent overheat circuits and residual heat warning multi-layer safeguards for reliable unattended all-night runs.
• High precision speed adjustment needed for switching between gentle low-speed homogenization and powerful high-speed dispersion:
  Speed range 100–1500rpm with ±1rpm high resolution for accurate micro-value tuning, covering both mild low-mix and intense high-shear mixing scenarios.
• Bulk export to multi-region overseas markets covering both 110V EU/US and 220V Asia grids, unified single model to simplify inventory stock:
  Universal dual wide voltage 100-120V/200-240V fits all global power grids without separate voltage stock versions.
• Complete reflux & distillation reaction setup required with supporting stands, clamps and full accessories:
  Full range of optional lab accessories compatible with this unit enables fast assembly of integrated constant-temperature reflux systems for one-stop synthesis setup demands.

• Standard factory package includes LSM+H-Pro high-torque high-temperature LCD magnetic hotplate stirrer main unit, power cord, external PT1000 temperature sensor and printed English operation manual. 20L large-volume high-temperature stirring pilot experiments can be performed immediately after unboxing without extra basic accessories.
• OEM private branding customization service is available for bulk orders to create exclusive brand visuals for lab instrument independent online stores and overseas chemical, environmental & biological research exhibition marketing channels.
• Thick shockproof separate carton fully lined with high-density foam buffer withstands long-distance sea & air freight vibration and compression, preventing ceramic plate scratch impact and internal high-power motor/heating component damage.
• In-stock orders ship within 3–10 working days. Goods will be packed and dispatched uniformly after model & accessory confirmation to shorten lead time for overseas pilot plants, research institutes and instrument distributors.
• Multiple cross-border logistics options including sea freight, air freight and international courier are offered to match cost-effective transport solutions based on order volume and requested arrival time.
