Home > All Collections > Incubators > Vertical blower drying oven

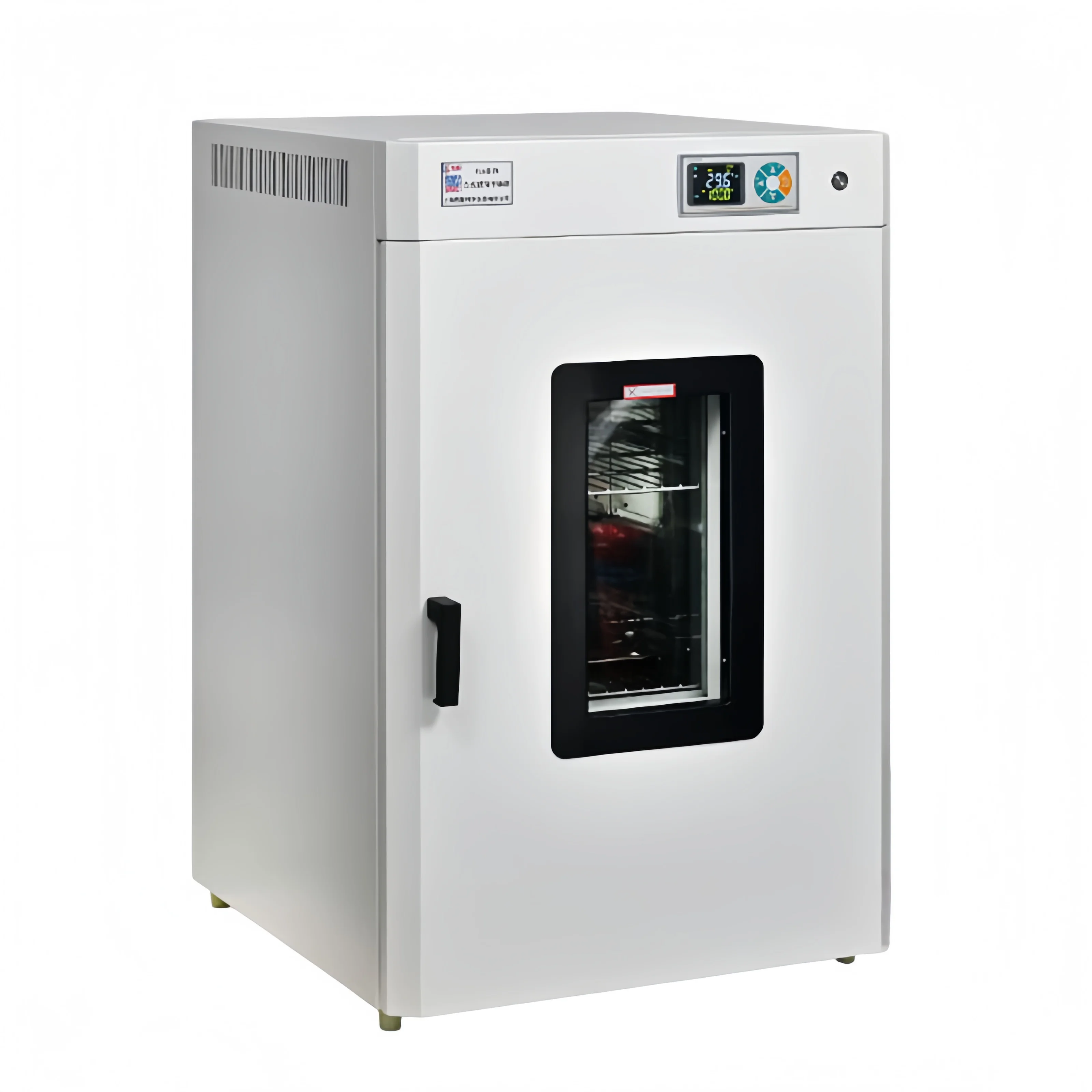

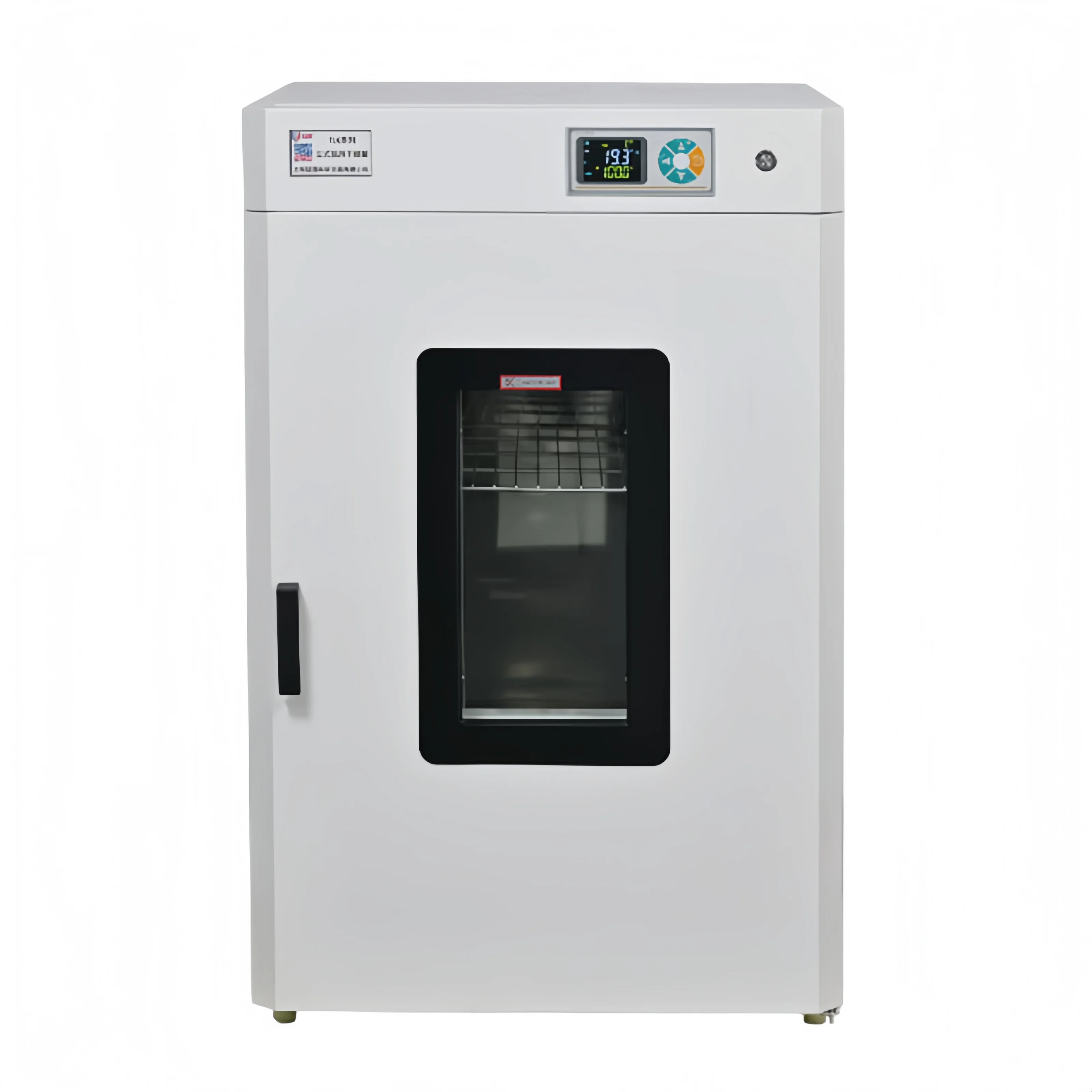

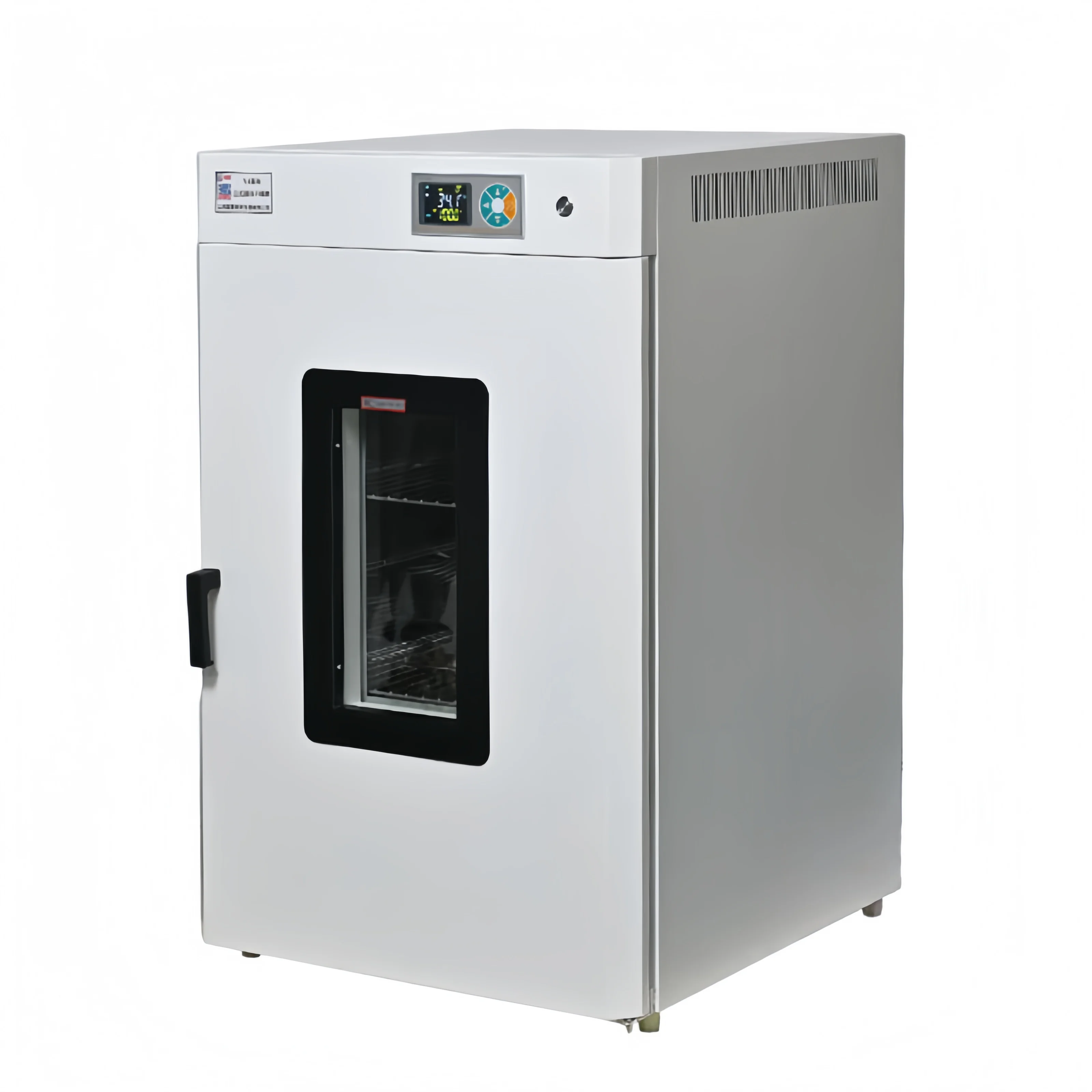

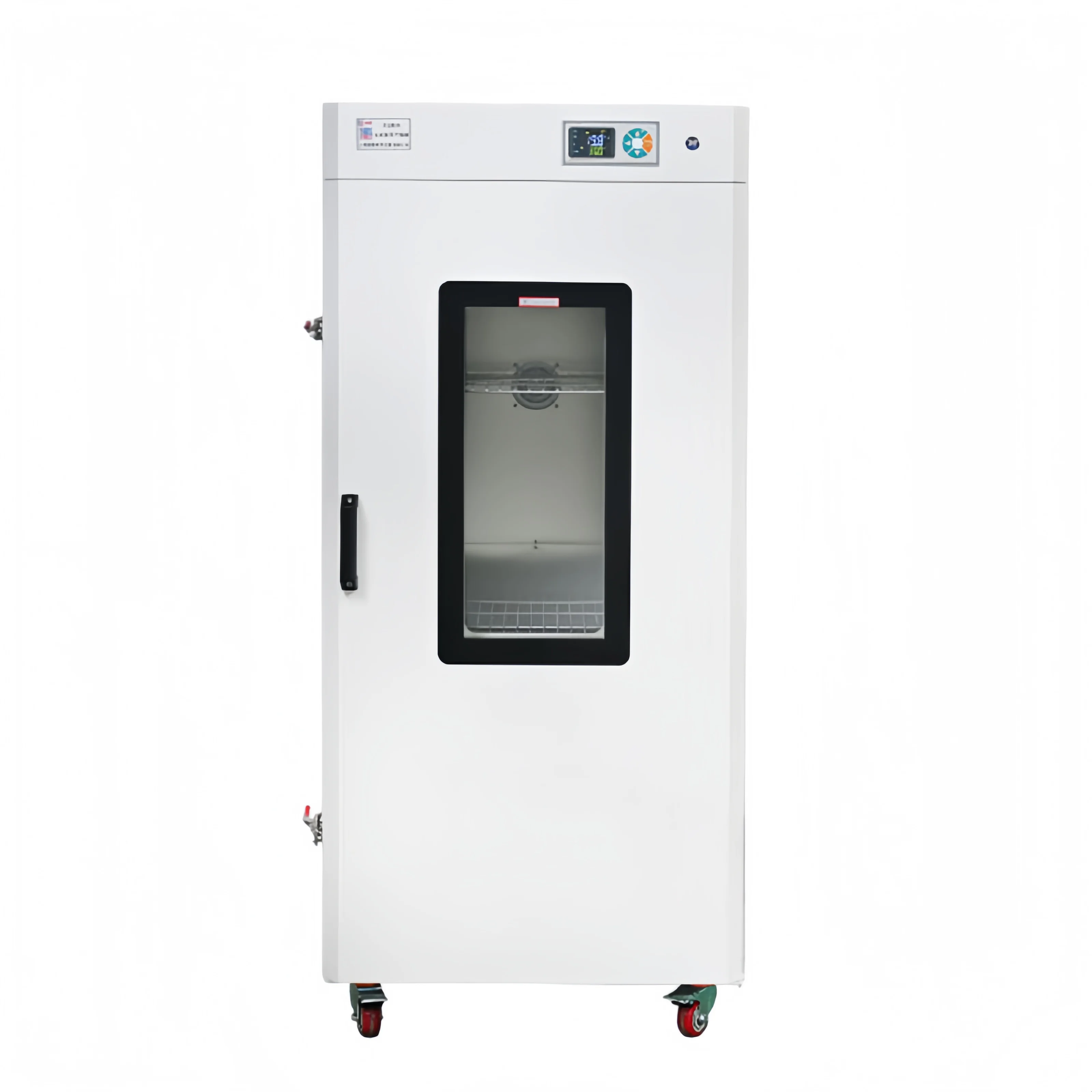

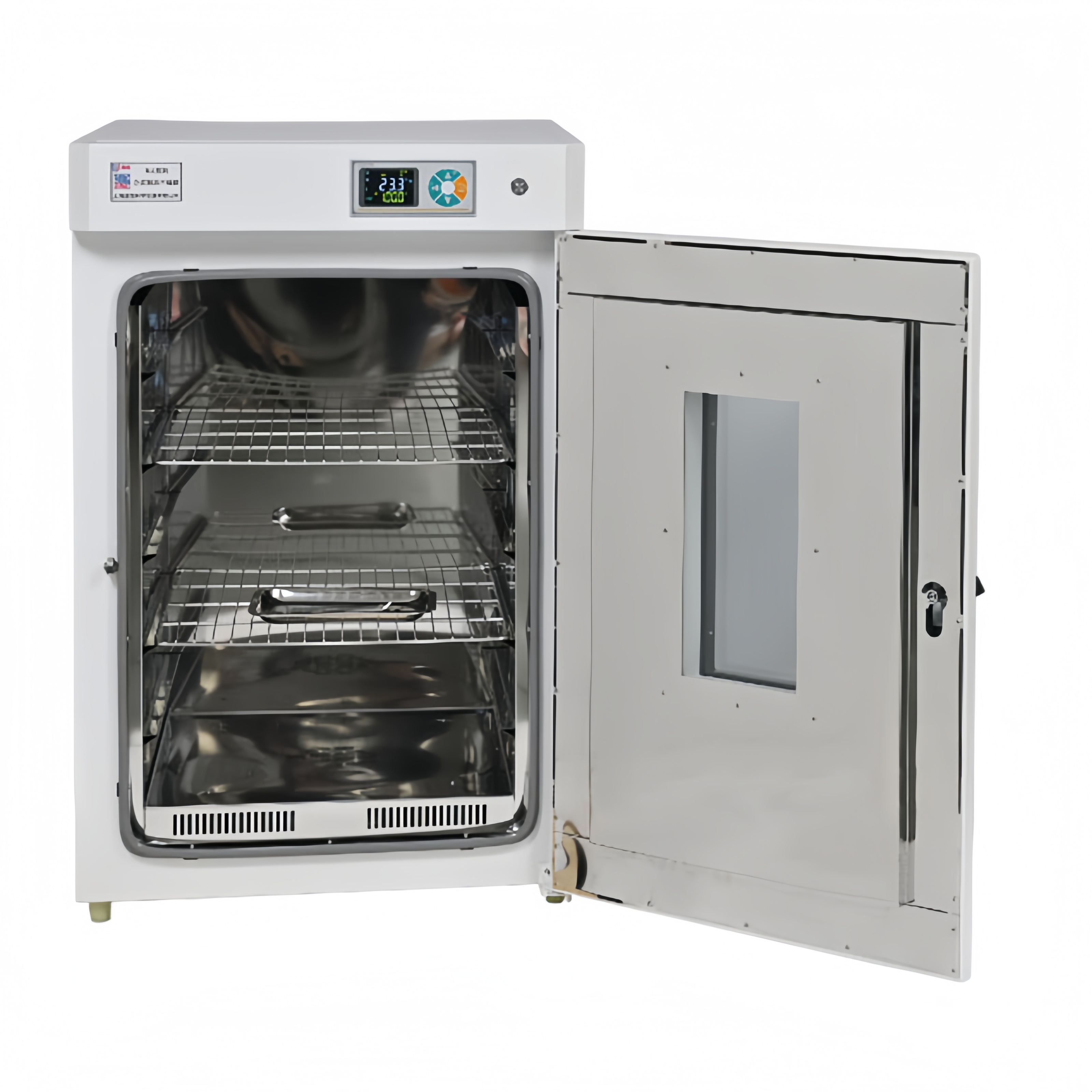

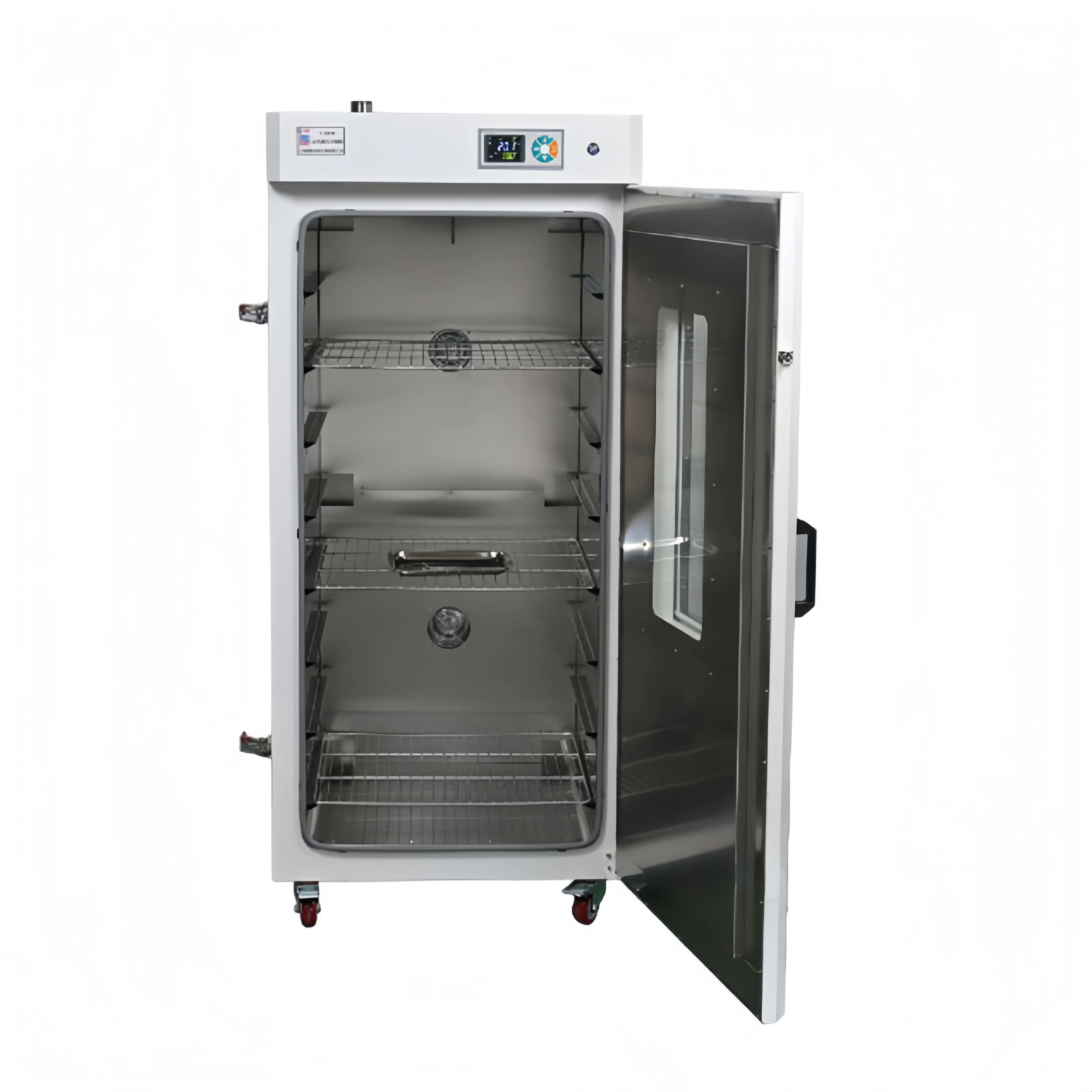

Vertical blower drying oven

Name: Vertical blower drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601658014051 (TLG)
Price: 1259.90 USD
Availability: InStock

No.1601658014051 (TLG)

TLG series vertical blast drying oven features a rectangular floor-standing design. Bench-top for small models and floor-mounted for large ones, with controls at bottom or top for easy operation. Suitable for drying and constant temperature tests of electronics, automotive, aviation, chemical, food and hardware products.

$1259.90

model number:

TLG

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

TLG series vertical blast drying oven adopts vertical floor-standing structure. Small models can be placed on workbenches, and large-capacity models are floor-standing, suitable for laboratories and factory workshops.
It is used for drying, baking and constant temperature adaptability tests of electronic components, electric appliances, automotive, aviation, communication, plastic, machinery, chemical, food and hardware tools under constant temperature conditions.
Equipped with large three-color LCD instrument panel and built-in fault self-diagnosis function. Microcomputer PID temperature controller integrates overtemperature deviation protection and timing control for accurate and stable temperature control.
Self-developed hot air circulation system can automatically discharge water vapor inside the chamber. Double-layer tempered glass observation window allows direct viewing of internal samples.
Two temperature range options: RT+10~250℃ / RT+10~300℃. Available volumes: 30L, 75L, 140L, 250L, 420L, 640L, 660L, 960L, 1040L. Power supply includes AC220V and AC380V options.

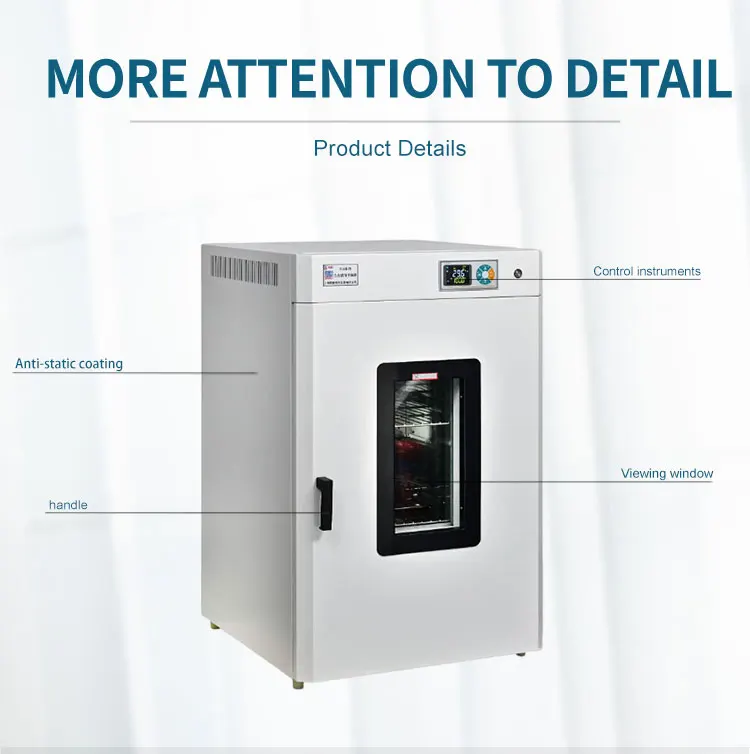

Details Images

Large three-color LCD panel displays multiple groups of operating parameters simultaneously with simple human-machine interface. Built-in self-diagnosis function directly shows fault codes for quick troubleshooting.
Microcomputer PID intelligent temperature controller is equipped with overtemperature deviation protection and timing display function, featuring high control precision and supporting long-time unattended drying experiments.
Double-layer tempered glass observation window provides reliable constant temperature insulation. The main door has large transparent glass viewing window with pull-out brackets and adjustable spacing, easy for sample removal and cleaning.
Long-handle zinc alloy outward flip door lock with two-stage rotary locking structure ensures tight sealing after closing, excellent heat insulation and less heat loss.
Forced convection hot air circulation duct with reasonable layout keeps air circulating continuously and guarantees uniform temperature in working area.
High-temperature circulating fan can run continuously for a long time to balance internal air flow. Special internal air channel optimizes air distribution and shortens temperature rise time.
Vertical floor-standing cabinet structure with electrostatic sprayed anti-corrosion outer shell. Stainless steel inner liner and brackets are beautiful, durable and easy to clean.
New synthetic high-temperature resistant silicone rubber sealing strip has strong sealing performance, anti-deformation property, no harmful substance precipitation and long service life.
Multiple safety protection supported, overtemperature alarm threshold can be set freely. Optional independent temperature limiter will cut off heating and trigger audio-visual alarm when exceeding limit to protect samples and equipment.

Model	TLG-9030A TLG-9035A	TLG-9070A TLG-9075A	TLG-9140A TLG-9145A	TLG-9240A TLG-9245A	TLG-9420A TLG-9425A	TLG-9640A TLG-9645A	TLG-9660A TLG-9665A	TLG-9960A TLG-9965A	TLG-A1040 TLG-B1040
power supply voltage	AC220V 50Hz					AC380V 50Hz
Temperature control range	RT+10~250℃/RT+10~300℃
temperature uniformity	±2.5℃(unloaded at 100℃)
constant temperature fluctuation	±0.5℃
temperature resolution	0.1℃
input power	80Ow 850w	1100w 1550W	1550w 2050w	2050w 2500w	300ow 3500w	400ow 4500w	400ow 4500w	600ow 6500w	600ow 6500w
inner dimensions WDH(mm)	300300 345	400425 445	450550 550	500600 750	600550 1300	80O800 1000	80O640 1300	100o600 1600	1000800 1300
Overall dimensions WDH(mm)	445420 700	545545 800	640670 905	690720 1120	770705 1750	980910 1450	980750 1750	1180720 2150	1180910 1750
Nominal volume	30L	75L	140L	250L	420L	640L	660L	960L	1040L
Load carrier	2 pieces				3pieces	4pieces
timing range	1~9999min
Optional accessories	USB interface,intelligent program controller,R5485 interface,independent temperature limiting controller, test hole,micro printer,wind speed adjustment switch,color touch screen

Vertical floor-standing cabinet design. Small models can be placed on lab benches; large-capacity floor-standing models save horizontal space, ideal for laboratories and workshops with limited space.
Double-layer thermal insulation door structure with electrostatic sprayed outer shell and stainless steel inner liner. Double-layer tempered glass allows sample observation without opening door and reduces heat loss.
Built-in forced hot air circulation system continuously discharges water vapor during drying, accelerates sample dehydration and maintains stable uniform temperature field inside chamber.
Two-stage rotary outward flip door lock matched with high-temperature silicone rubber sealing strip for excellent heat insulation, resistant to aging and air leakage under long-term high temperature.
PID intelligent constant temperature control delivers stable temperature rise, small overshoot and low fluctuation, suitable for drying, curing and heat treatment of electronics, plastic, hardware, food and other materials.
Standard timing function from 1~9999min. Optional program controller realizes automatic multi-segment heating and cooling cycles for unattended continuous process experiments.
Wide range of optional parts: USB data export, RS485 communication, independent temperature limiter, test hole, micro printer, wind speed adjustment switch and color touch screen.
Dual overheat protection: standard built-in controller alarm, optional independent temperature limiter provides secondary protection to avoid sample damage caused by control failure.
Two maximum temperature options: standard 250℃ version and high-temperature 300℃ version. Small-volume models adopt AC220V power supply; models above 420L offer AC380V industrial power supply option.

Drying small batches of samples, electronic component dehumidification and basic lab tests: select 30L /75L small vertical models.
Conventional material baking, moisture measurement and plastic curing: choose mainstream volumes of 140L /250L.
Mass industrial heat treatment and bulk workpiece baking: select large vertical models of 420L, 640L, 660L, 960L, 1040L.
Max working temperature ≤250℃: choose standard A series. For 300℃ high-temperature process, select 35 suffix high-temperature version.
Single-phase 220V lab power supply: choose models 30L~250L. For long-term heavy-duty workshop use, models above 420L support AC380V industrial power.
Automatic multi-segment temperature cycle and unattended operation required: equip intelligent program controller or upgrade to color touch screen.
High-value samples requiring double overheat safety protection: install independent temperature limiting controller.
Complete temperature curve recording and data export required: select USB interface or RS485 communication port.
External temperature probe measurement needed: choose optional test hole. Micro printer is optional for hard-copy experiment records.

Standard factory package: vertical blast drying oven main unit, stainless steel shelves, power cord and bilingual operation manual. All extended accessories are separately optional purchases.
Thick shockproof wooden crate with foam buffer protects precision fragile parts including inner liner, control panel and door glass against collision damage during long cross-border transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Selling Units	Single item	Package size per batch	5856.578.5cm
Gross weight per batc	40.000kg

Name	Qty
Vertical blower drying oven	1
Stainless steel drying mesh shelf	3 pcs
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Complete factory electronic documents can be obtained upon request for cross-border store listing, overseas industrial lab exhibition promotion and technical consultation for overseas buyers.
Supporting digital files: bilingual full specification sheet, standard operation manual, fan & heating system maintenance guide, overall dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and photos of all optional accessories for unified multi-category online store operation and promotion.

What is the difference between A suffix and 35 suffix models? A Model A max 250℃; model 35 max 300℃ for higher temperature drying processes.
How to distinguish power supply options? A 30L~250L adopt single-phase AC220V; models 420L and above support AC220V / AC380V optional.
Under what condition is temperature uniformity tested? A Tested at 100℃ without load, uniformity ±2.5℃.
How to discharge water vapor during operation? A Built-in hot air circulation system automatically exhausts vapor inside chamber.
Can samples be observed without opening door? A Double-layer tempered glass window allows direct sample observation with door closed.
Will settings and timing data be lost after power failure? A Built-in memory chip retains all settings automatically after power recovery.
Does it support multi-segment heating & cooling programs? A Standard configuration supports single segment constant temperature. Optional program controller enables multi-segment automatic operation.
Is overtemperature alarm protection available? A Standard controller overtemperature alarm; optional independent temperature limiter provides double safety protection.
What is the maximum timing duration? A Timing range:1~9999 minutes.
Can continuous temperature operation curves be exported? A Optional USB interface supports curve data storage and export via USB flash drive.
Can temperature be monitored remotely via PC? A Optional RS485 interface connects upper computer for remote viewing and data export.
Is external probe test hole reserved? A Test hole is optional accessory for external temperature sensor measurement.
What is door lock structure? How about sealing performance? A Long-handle two-stage rotary outward flip lock matched with high-temperature silicone rubber sealing strip for excellent sealing and heat insulation.
Is running noise loud for daily continuous use in factories and labs? A Low-noise circulation fan with moderate noise, suitable for long-term use in workshops and research laboratories.
Can flammable, explosive or highly volatile organic solvent samples be dried? A Not allowed. This oven is only for non-flammable, non-explosive materials.
Are mobile casters standard at bottom? A Casters are not standard accessories, mobile solution can be selected additionally.
Can fan wind speed be adjusted? A Wind speed adjustment switch is optional accessory.

TLG vertical blast drying oven is suitable for electronic component drying, hardware heat treatment, plastic curing, food baking and sample constant temperature aging. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, special inner liner specification, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory quality inspection.
Contact ways: Email, WhatsApp, online message on website. Please state target model, volume, temperature version, power specification, optional accessory demands and order quantity. A complete formal quotation will be provided within 24 hours to resolve all procurement questions at one time.
