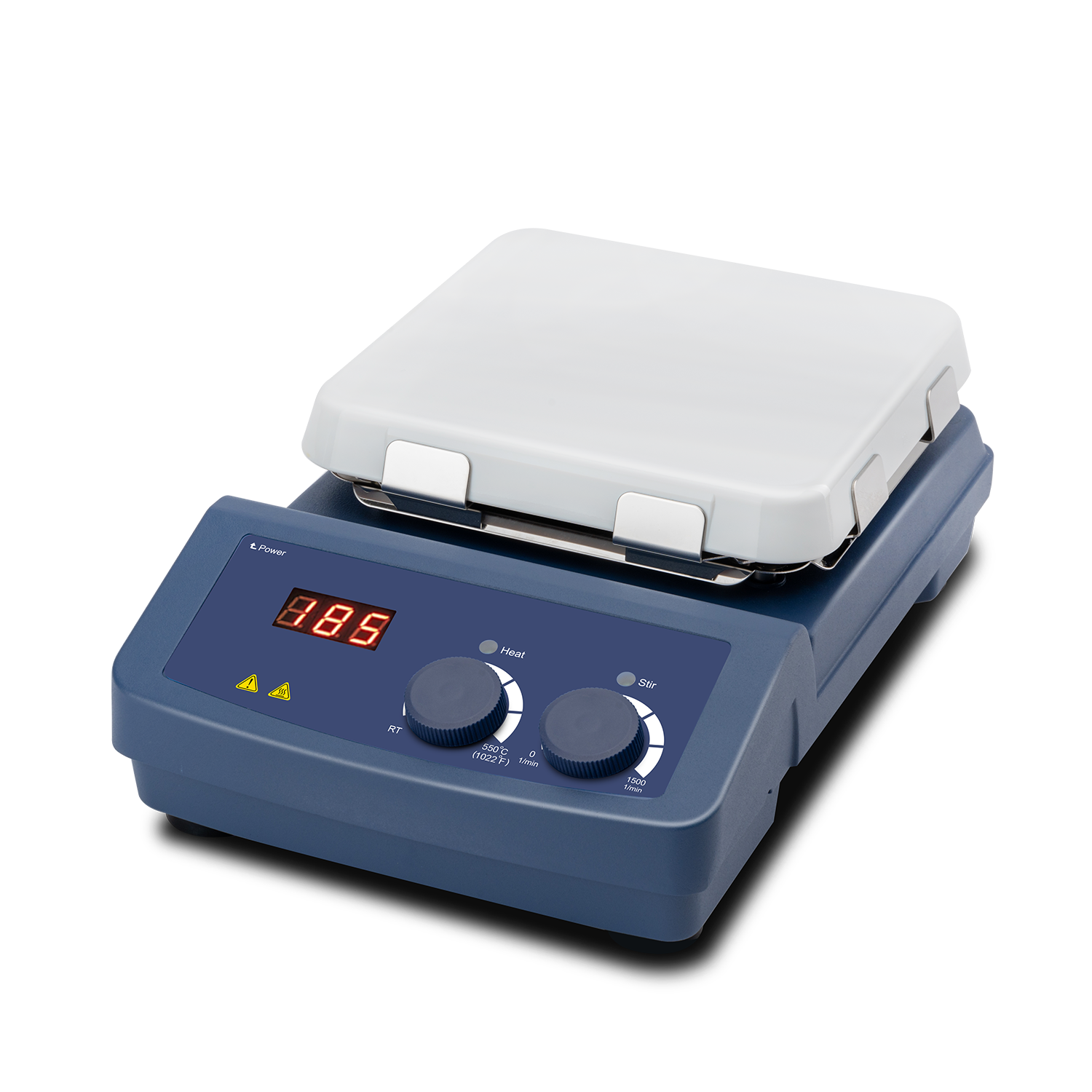

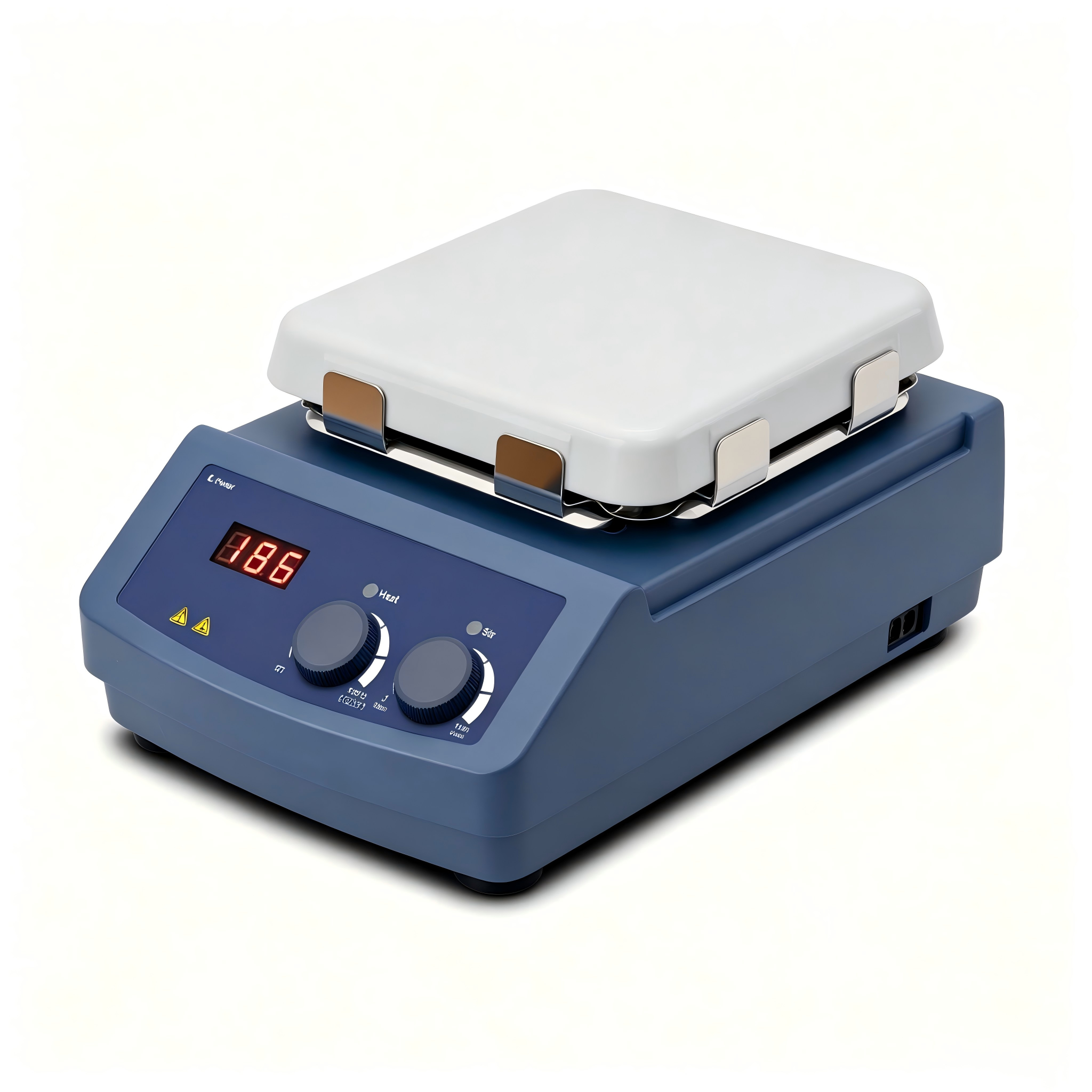

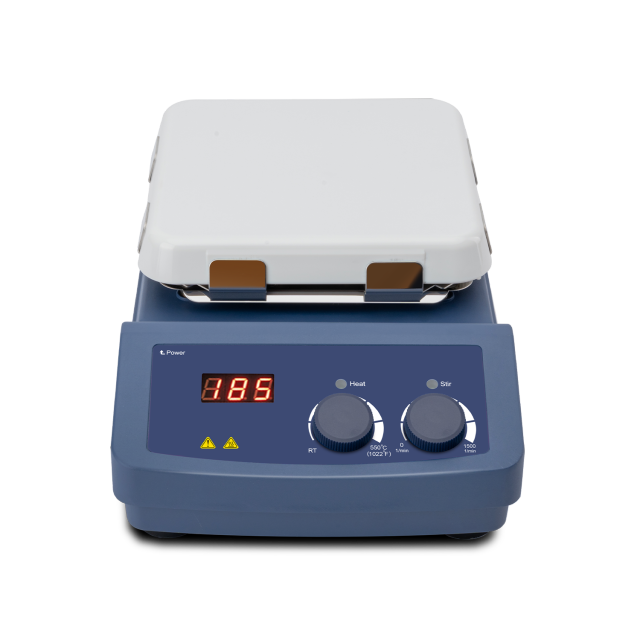

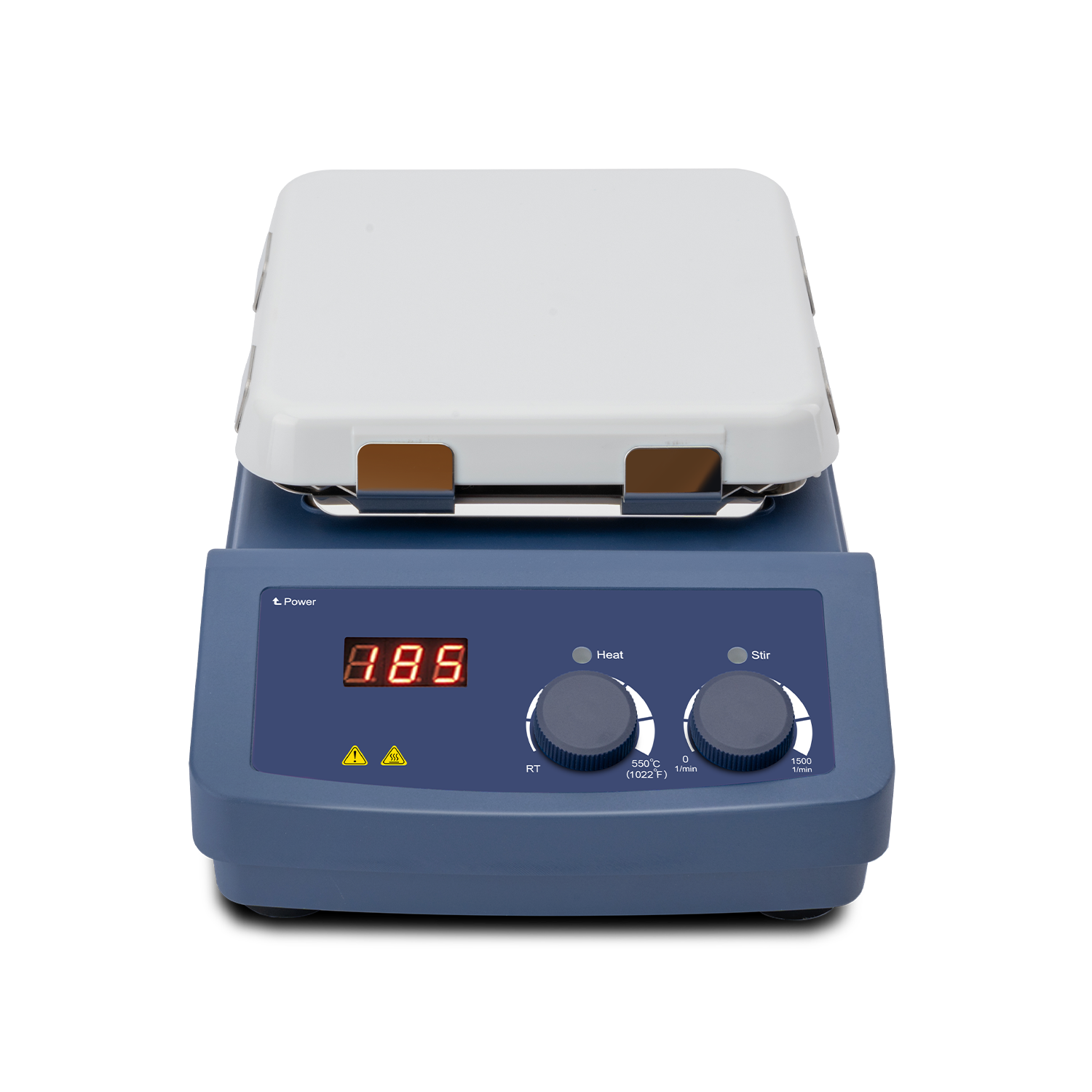

LED Digital Display High-Temperature Heating Magnetic Stirrer

• L550SM-H7-S LED Magnetic Hotplate Stirrer with 7-inch Glass Ceramic Plate adopts shaded pole motor, supporting max heating temperature up to 550℃ and 1000W high heating power, maximum stirring volume 10L. It features analog scale speed control, LED digital temperature readout, standard PT1000 external temperature sensor, flashing 50℃ residual heat warning and 580℃ overheat cut-off protection. Without timer or RS232 data port, it is specialized for ultra-high-temperature digestion, melting and high-boiling solvent reactions, widely used in chemical, material, mineral and pharmaceutical labs for high-temperature sample pretreatment.
• Original factory core specs: 184×184mm (7 inch) monolithic glass ceramic work plate; shaded pole motor with 15W rated input & 1.5W rated output; single stirring position, max stirring volume 10L water, compatible with stir bars up to 80mm length; speed range 0–1500rpm with mechanical scale dial for speed indication; LED digital tube for temperature display; heating range Room Temp.~550℃ with 5℃ adjustment increment; temperature control accuracy ±10℃, temperature display accuracy ±1℃; standard PT1000 external sensor with ±0.2℃ measuring accuracy; automatic heating cut-off at 580℃ overheat threshold; flashing "HOT" alert if plate temperature exceeds 50℃ after power off; no data connector, no timer function; IP21 dust protection; dual wide voltage 100-120/200-240V 50/60Hz; total unit power 1030W, heating output 1000W; dimension 215×360×112mm, net weight 4.5kg; permissible ambient condition: 5–40℃, ≤80%RH.
• Operating environment: Adapts to standard lab temperature & humidity, ideal for high-temperature melting and digestion workflows inside fume hoods.
• Key advantages: Large 7-inch monolithic chemical-resistant glass ceramic plate; ultra-high heating limit up to 550℃ with 1000W powerful heating output; stepless analog knob speed regulation; real-time LED temperature reading; accurate liquid temperature detection via PT1000 probe; 580℃ overheat safety shutdown; post-shutdown 50℃ residual heat reminder; excellent resistance to acid, alkali and organic solvents; universal dual voltage for global markets; IP21 dust-proof chassis, perfectly matched for harsh workflows like mineral digestion and high-temperature fusion.

• 7-inch integrated glass ceramic work plate provides outstanding resistance to strong acid, alkali and organic solvents, uniform heat transfer, no deformation or cracking under long-term 550℃ heating, easy to wipe and clean.
• Max heating temperature reaches 550℃ with 1000W high-power heating module for fast temperature ramp-up, suitable for ultra-high-temperature workflows including mineral fusion, heavy metal thermal digestion and high-boiling solvent reflux.
• Max stirring volume 10L water, compatible with magnetic stir bars up to 80mm length. Stable shaded pole motor delivers 0–1500rpm stepless analog knob speed regulation with intuitive scale dial reading.
• Separate LED digital tube displays real-time plate temperature with clear readout for instant heating status monitoring, easy for all-level operators.

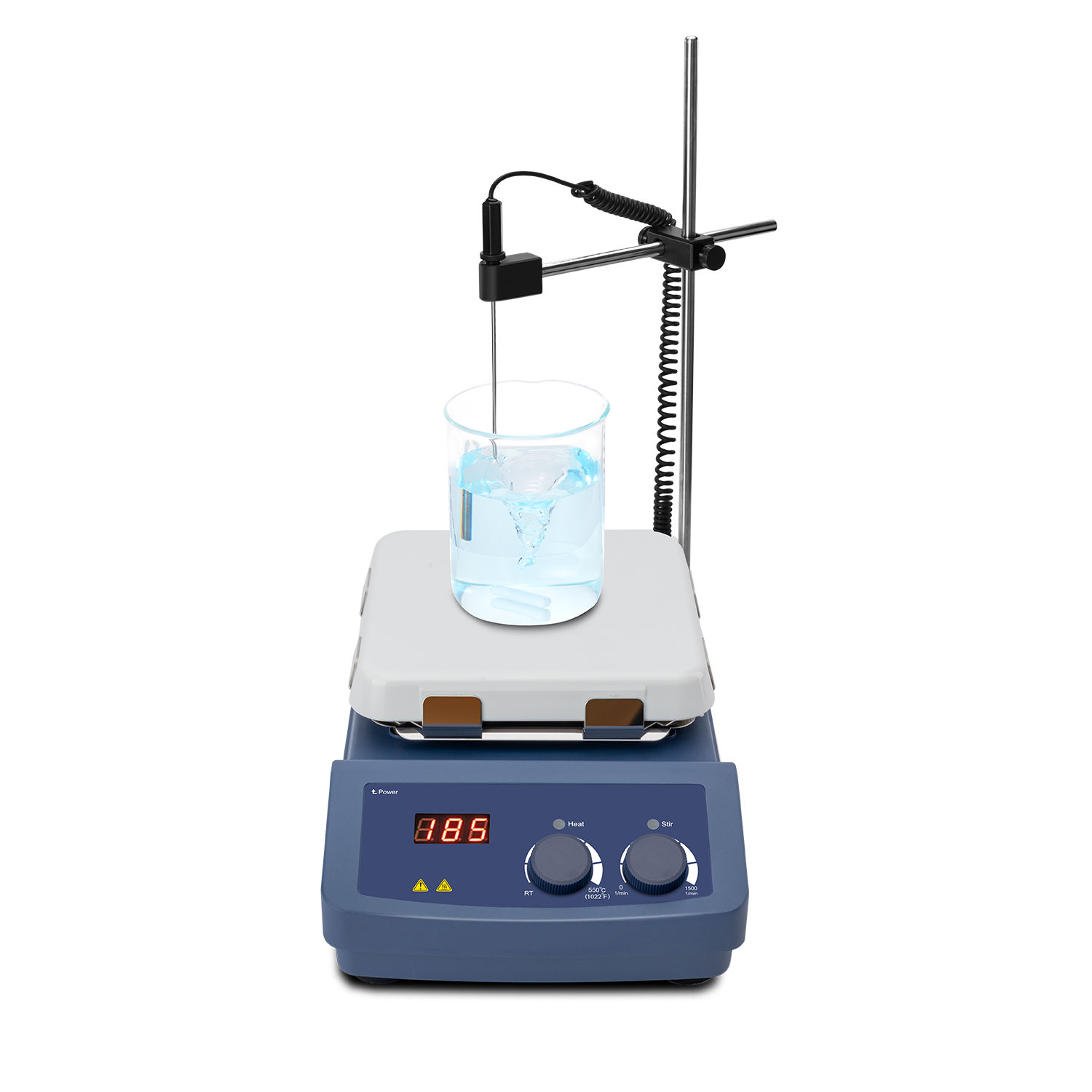

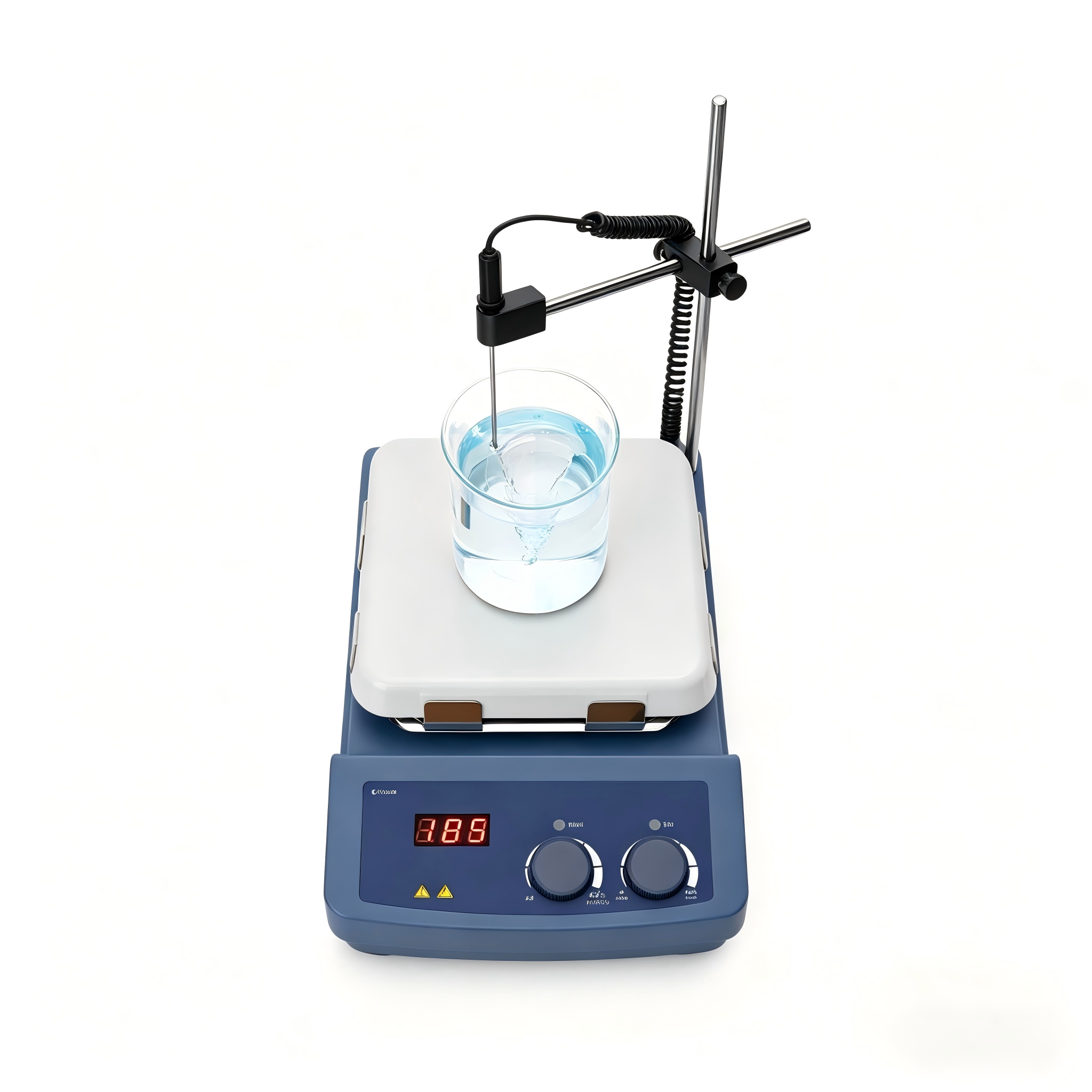

• Standard high-precision PT1000 external temperature probe immerses directly into reaction liquid to eliminate plate-solution temperature offset, capturing real internal sample temperature with ±0.2℃ accuracy.
• Global overheat protection automatically cuts all heating output at 580℃ threshold to avoid dry heating, instrument burnout and vessel rupture, protecting equipment and samples for long-term use.
• Post-shutdown residual heat safety alert: "HOT" indicator keeps flashing if plate temperature exceeds 50℃ after power cut, preventing accidental operator scald injury.
• Robust shaded pole motor structure with minimal wearing parts supports long-duration continuous high-temperature stirring; solid heavy-duty chassis delivers reliable performance in demanding lab environments.
• IP21 dust-proof housing blocks dust ingress to internal circuits for extended service life; universal dual wide voltage works directly with 110V / 220V global power grids.

• Product positioning: Cost-effective ultra-high-temperature magnetic hotplate stirrer differentiated by max 550℃ heating limit and large 7-inch glass ceramic plate. Target labs for mineral digestion, material fusion, high-boiling solvent synthesis and heavy metal testing, ideal for basic high-temperature pretreatment workflows that do not require timer or PC data logging, prioritizing large plate size, ultra-high heating capacity and chemical resistance.
• 1000W high-power heating matched with monolithic 7-inch glass ceramic plate delivers wide heat transfer area and stable performance up to 550℃, supporting simultaneous high-temperature heating of large crucibles & beakers to improve efficiency of mineral fusion and dry digestion.
• Simple, reliable shaded pole motor with low failure rate, 0–1500rpm wide-range analog speed regulation and 10L max stirring volume for medium-batch sample homogenization; 80mm long stir bar fits large reaction vessels.
• Separate LED digital temperature readout paired with standard PT1000 immersion probe distinguishes plate surface temperature from actual liquid temperature, offsetting large temperature gap between plate and solution under ultra-high heat to improve experimental data reference value.
• Integrated triple-layer safety system: mandatory heating cut-off at 580℃ overheat threshold, flashing residual heat alert at 50℃ post power-off, IP21 dust-proof insulated chassis for secure unattended overnight high-temperature digestion runs.
• Premium electronic functions (timer, RS232 data port) are removed to cut procurement cost, perfect for bulk procurement of university teaching labs, industrial testing stations and small chemical high-temperature pretreatment workshops.
• Universal dual wide voltage design works directly for 110V EU/US and 220V Asian power grids, one unified model reduces distributor stock SKU classification.
• Optional supporting accessories including stands, clamps and extended temperature probes enable fast assembly of complete high-temperature reflux & fusion setups for one-stop mineral & material pretreatment equipment matching.

• Experiments require ultra-high temperature above 500℃ for mineral fusion, heavy metal dry digestion or high-boiling low-volatility solvent reactions:
  Select L550SM-H7-S with stable max 550℃ heating, 1000W high-power heating module and large 7-inch chemical-resistant glass ceramic plate; it is one of the few cost-effective magnetic stirrers supporting 550℃ high limit at this price tier.
• Require large heating surface to hold multiple crucibles and large beakers for parallel high-temperature processing:
  184×184mm monolithic 7-inch glass ceramic plate offers far wider heating area than standard 5-inch models to process more samples simultaneously.
• Only basic stirring & high heating needed, no demand for advanced digital functions like timer or PC data export, tight procurement budget:
  This unit omits timer and RS232 communication modules while retaining core high-temperature stirring and PT1000 temperature measurement, delivering superior cost performance for bulk basic lab orders.
• Work with highly corrosive strong acid, alkali and organic solvents, need heat-resistant chemical inert work plate:
  Monolithic glass ceramic construction resists all common lab reagents, no cracking or peeling under long-term 550℃ heating, simple daily cleaning & maintenance.
• Accurate real liquid temperature reading required for high-temperature assays, cannot rely solely on plate surface readings:
  Standard PT1000 immersion probe per unit directly measures internal sample liquid temperature with ±0.2℃ precision to eliminate high-temperature plate-liquid offset error.
• Long unattended overnight high-temperature digestion runs with concerns over dry heating and scald hazards:
  Equipped with dual safety safeguards: automatic heating cut-off at 580℃ overheat threshold + flashing HOT residual heat alert at 50℃ post shutdown, paired with IP21 dust-proof housing to minimize experimental risks.
• Export to multi-region overseas markets covering both 110V and 220V grids, unified single model to reduce stock variety:
  Universal dual wide voltage 100-120V / 200-240V fits all global power grids, no separate voltage stock variants required for mainstream overseas labs.
• Single batch sample volume ≤10L for regular medium-volume high-temperature homogenization & digestion:
  Max stirring capacity 10L with wide 0–1500rpm speed range and stable shaded pole motor, matching standard sample mixing demands for teaching and industrial testing labs.

• Standard factory package includes L550SM-H7-S 7-inch 550℃ ultra-high-temperature magnetic hotplate stirrer main unit, power cord, external PT1000 temperature sensor and printed English operation manual. 10L high-temperature digestion & fusion experiments can be launched immediately after unboxing without extra basic accessories.
• OEM private branding customization service available for bulk orders with exclusive brand printing and custom outer packaging design, suitable for high-temperature instrument independent online stores and overseas mineral/material science industry exhibition marketing.
• Thick shockproof separate carton with full high-density foam buffer; large glass ceramic plate is individually isolated for anti-impact protection to prevent plate cracking and chassis damage during long sea & air freight transit.
• In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
• Multiple cross-border logistics solutions (sea freight, air freight, international courier) are offered to match cost-effective transport options based on order volume and requested delivery timeline.
