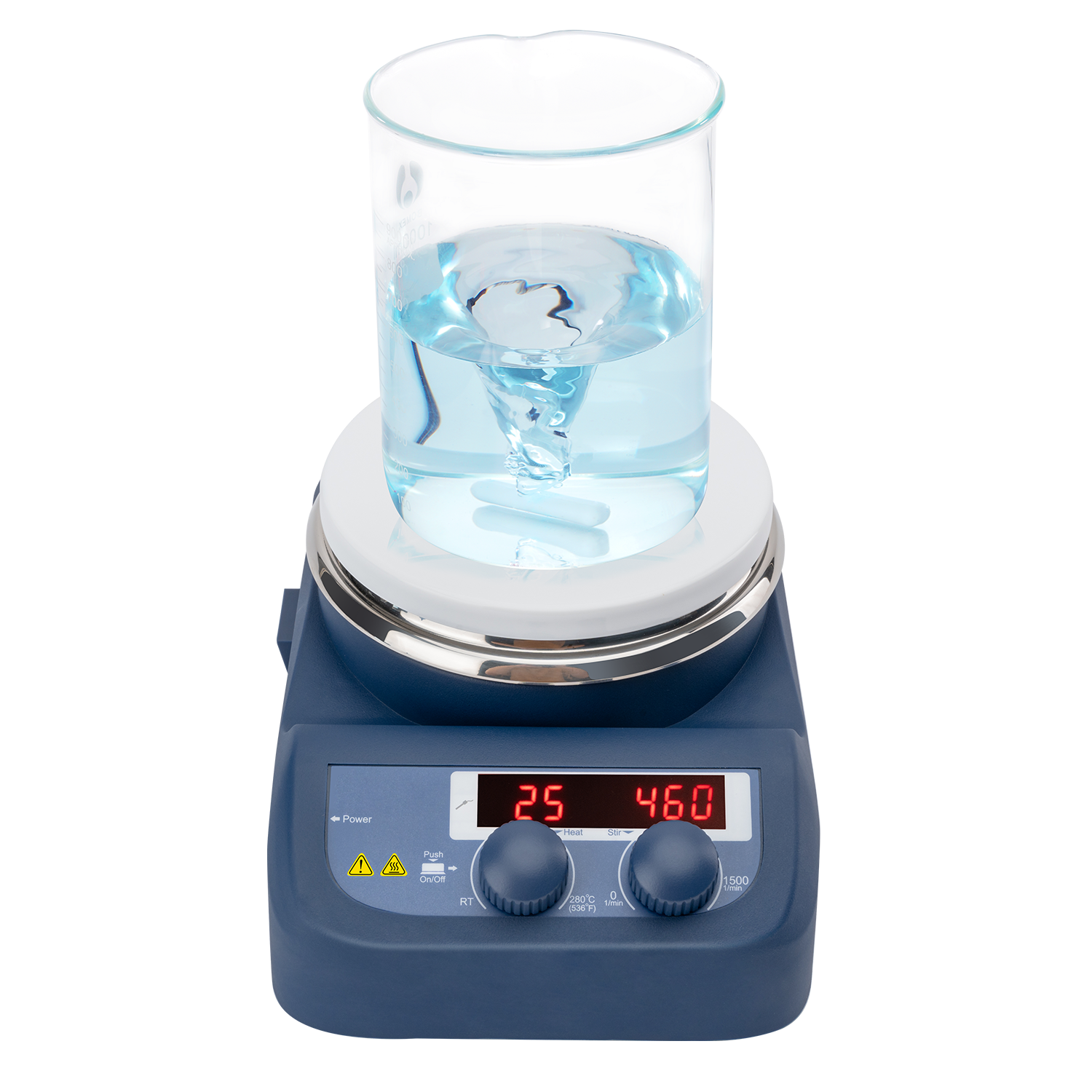

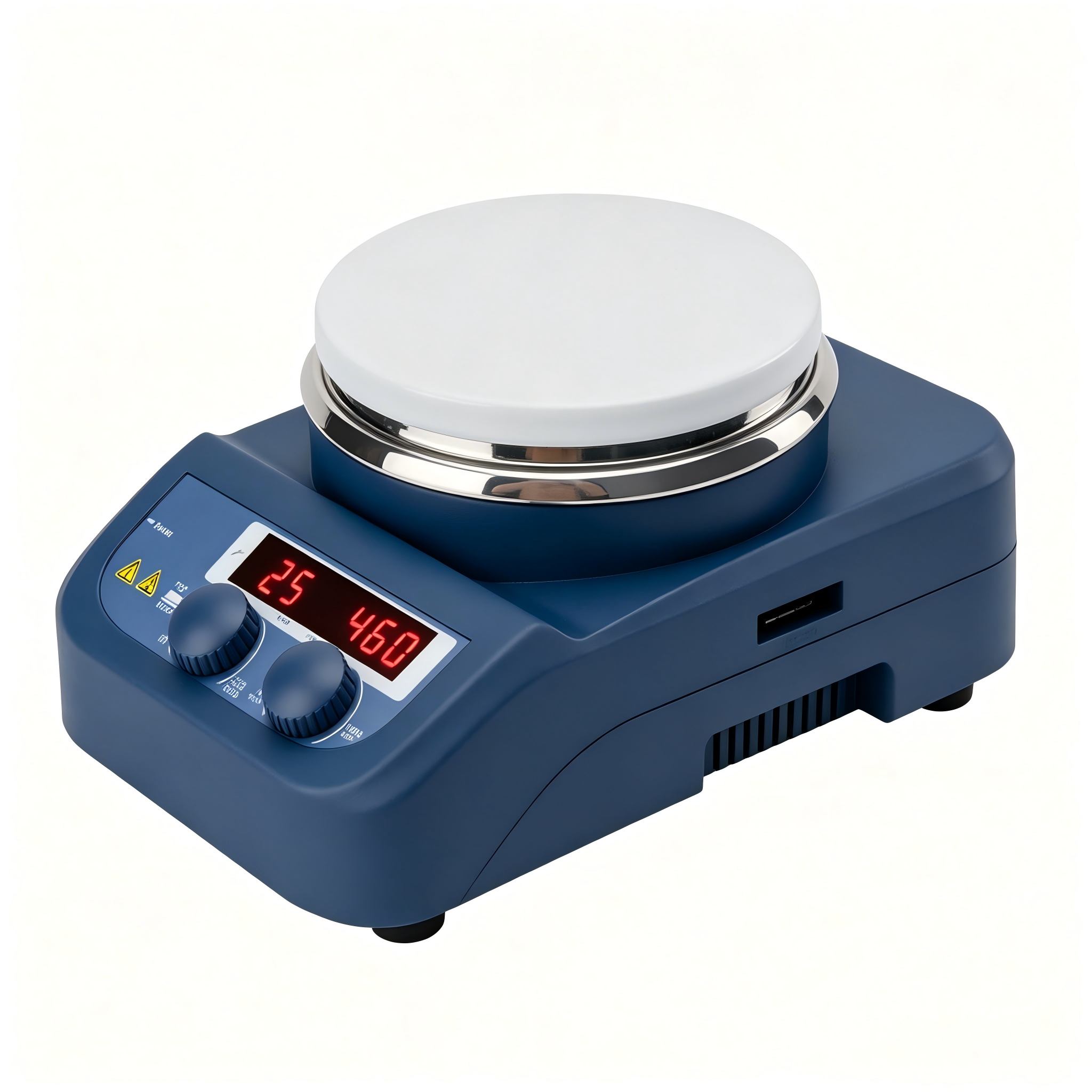

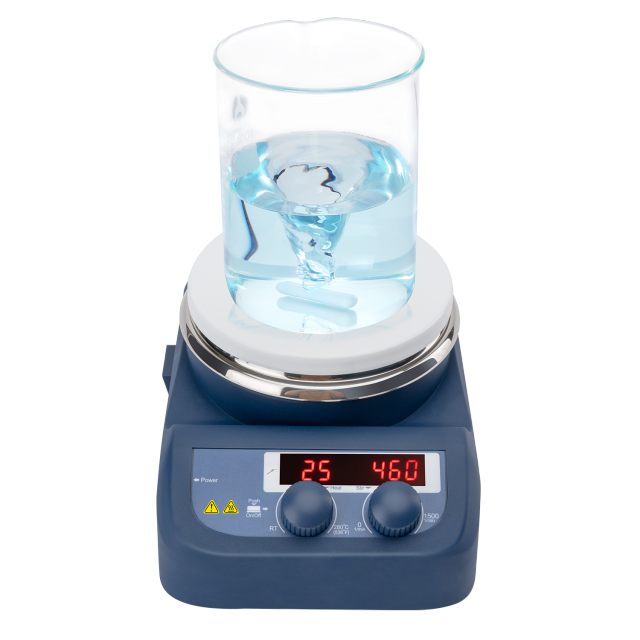

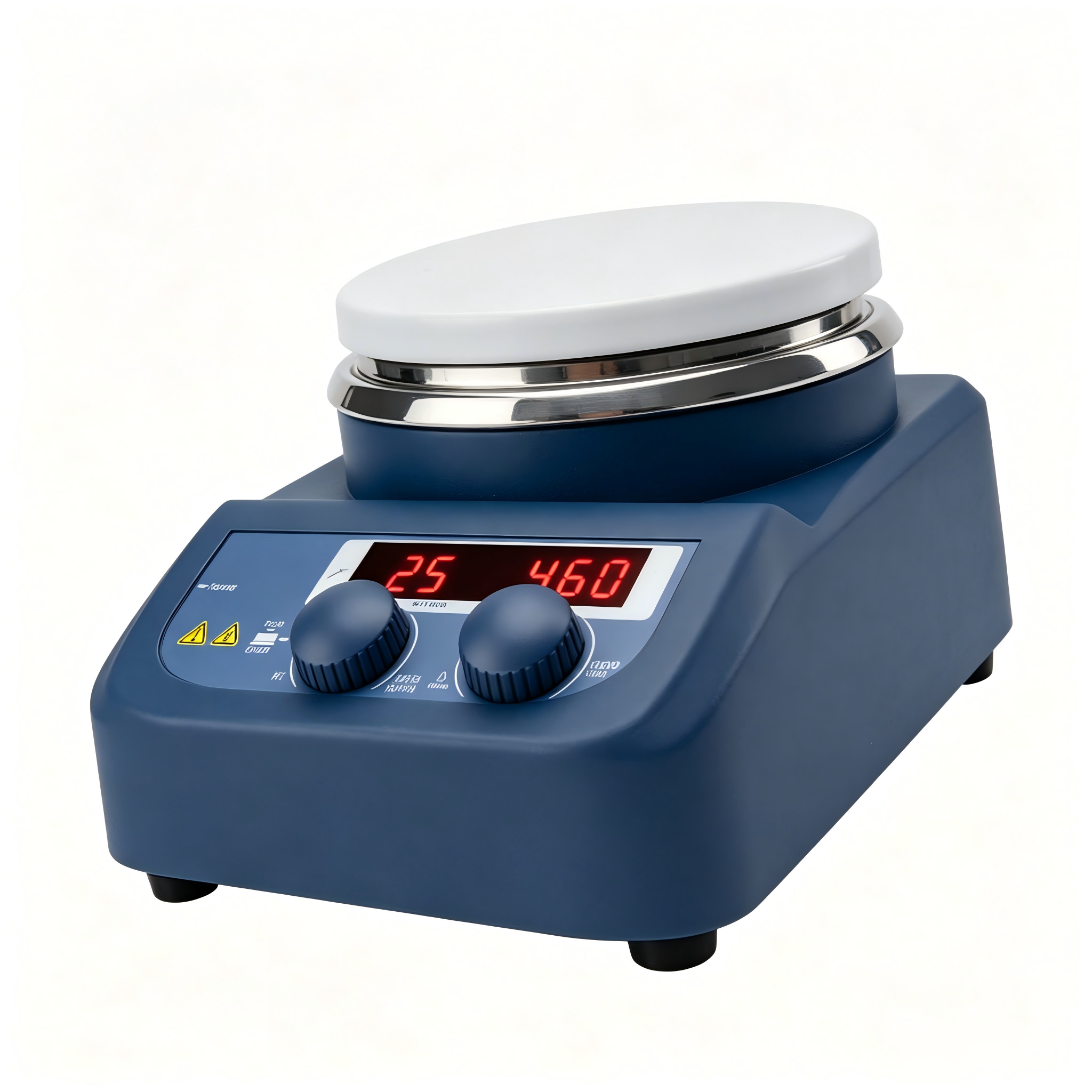

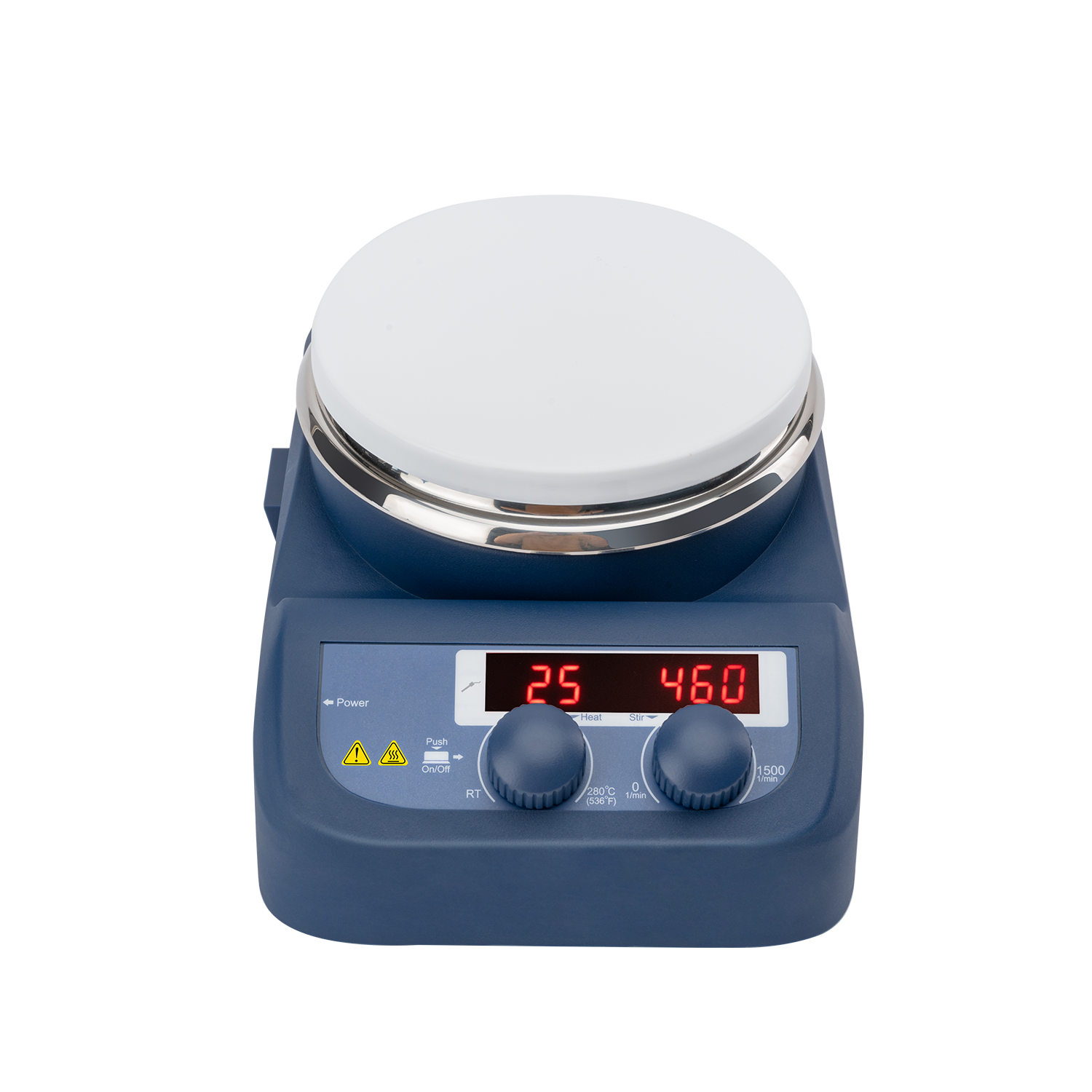

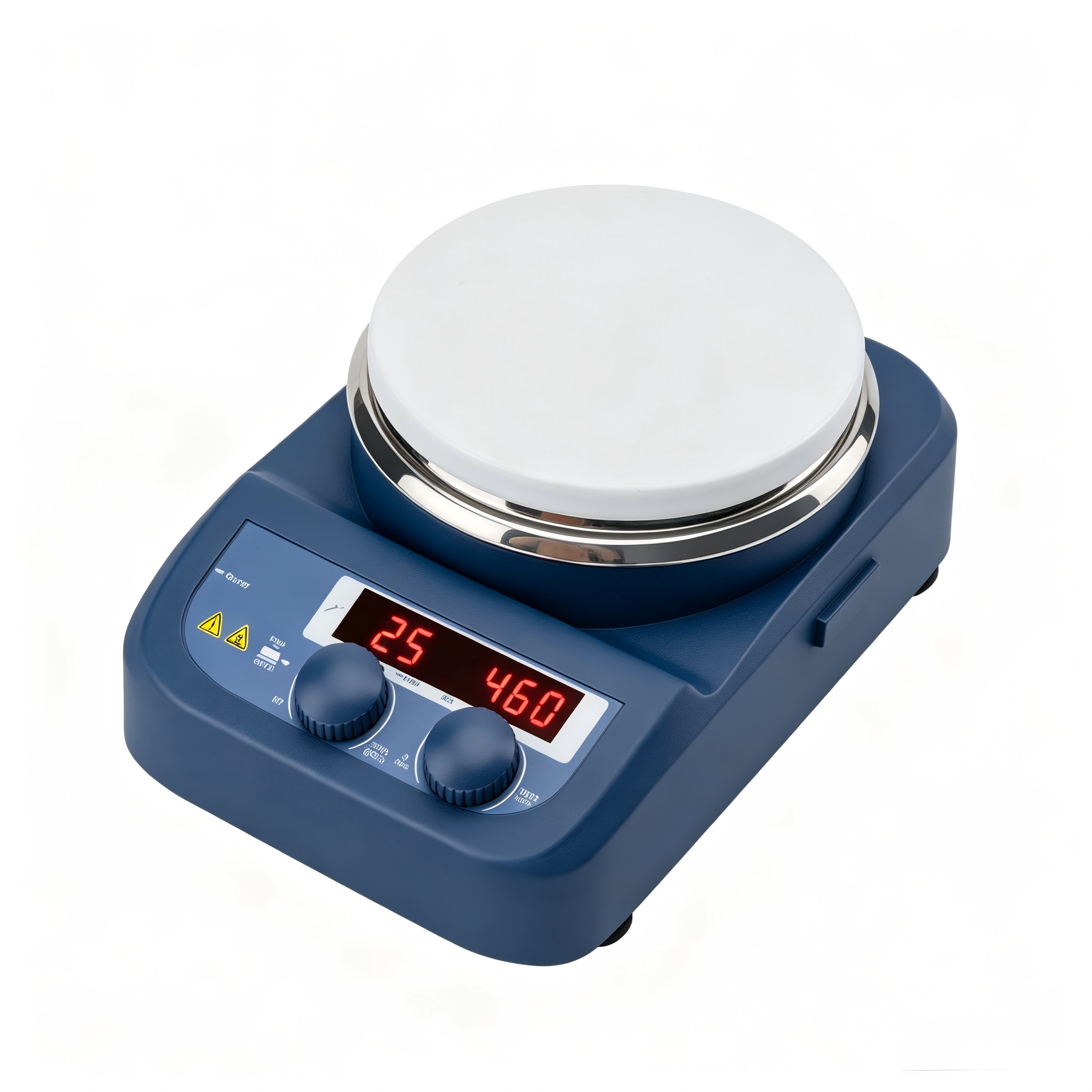

LED Digital Magnetic Hotplate Stirrer

• L280SM-H-Pro LED Digital Magnetic Hotplate Stirrer is single-position heating stirring equipment for biotechnology, physical & chemical analysis labs. It supports constant-temperature mixing, precise temperature control and high-speed stirring for micro-volume sample reactions, digestion and extraction, ideal for daily small-volume sample pre-processing.
• Common core specs: Φ135mm (5 inch) round work plate with stainless steel substrate & ceramic coating; maintenance-free brushless DC motor, 3W rated motor output, total unit power 515W, heating power 500W; max stirring volume 3L per position, compatible with magnetic stir bars up to 50mm length; speed range 200–1500rpm, separate LED displays for speed and temperature; heating range room temperature to 280℃, temperature display accuracy ±1℃; temperature control accuracy ±1℃ below 100℃, ±1% above 100℃; external PT1000 temperature sensor with ±0.2℃ measurement accuracy; auto overheating protection at 320℃; flashing "HOT" warning when plate temperature above 50℃ after power off; IP42 protection class; dual wide voltage 100-120V/200-240V, universal 50/60Hz.
• Operating environment: permissible ambient temperature 5–40℃, relative humidity ≤80%RH.
• Dimension 150×260×100mm, net weight 1.8Kg, compact slim design for fume hoods and compact lab benches.
• Key advantages: 5-inch anti-corrosion stainless steel ceramic plate; stable heating up to 280℃; stepless speed regulation 200–1500rpm; accurate external PT1000 temperature measurement; dual LED digital readout; high-temperature safety warning after power cut; IP42 dust & splash resistance; spark-free maintenance-free motor; dedicated for daily micro-volume experiments; universal dual voltage for global markets

• Compact lightweight chassis developed for micro & small-volume sample experiments, rated 3L per station, compatible with small Erlenmeyer flasks, beakers and reaction tubes, easy for daily teaching and routine testing.
• Integrated ceramic coating on stainless steel substrate delivers outstanding resistance to strong acid, alkali and organic solvents, uniform & fast heat transfer, dense smooth surface for quick wiping after reagent spills, wear-resistant and anti-discoloration under long-term heating.

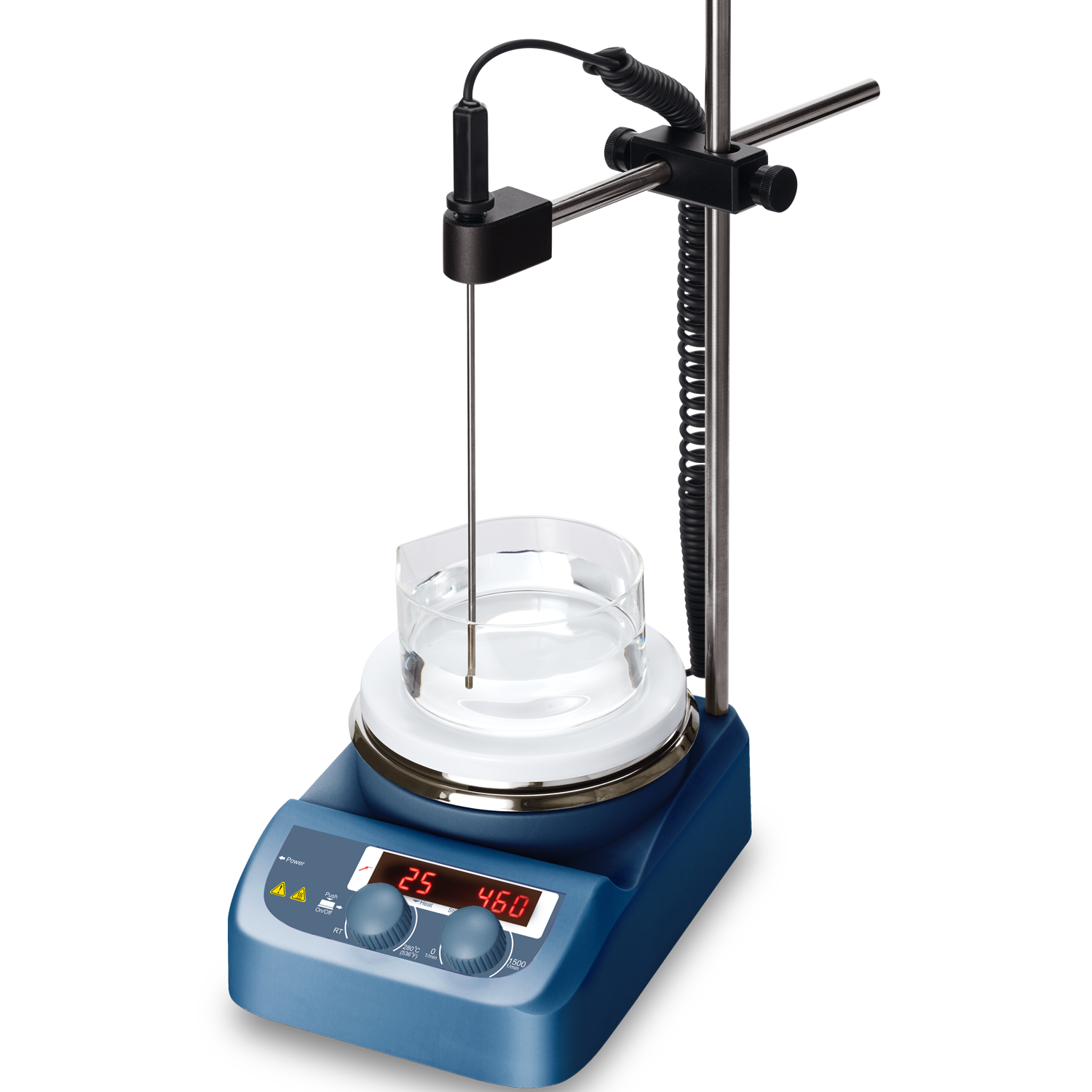

• Closed-loop PID digital temperature control system stably heats up to 280℃; matched with external PT1000 probe to immerse into sample liquid and detect actual fluid temperature, eliminating temperature deviation between plate and solution for excellent data repeatability.
• Stepless speed regulation 200–1500rpm with smooth vibration-free brushless DC motor transmission; spark-free operation safe for low-boiling flammable organic solvent systems.
• Two independent LED digital tubes display real-time stirring speed and plate temperature separately for intuitive parameter reading.
• High-temperature warning mechanism: after power cut-off, the LED flashes "HOT" continuously if plate temperature exceeds 50℃ to prevent operator scald injury.
• Auto power-off overheat protection at 320℃, paired with IP42 dust & splash resistant housing to resist minor liquid spills and dust ingress, extending service life and operation safety.
• Universal dual wide voltage design compatible with 110V European/American and 220V Asian markets, no separate voltage stock versions required for export inventory.

• Product positioning: Compact single-position high-temperature magnetic hotplate stirrer for daily constant-temperature processing of micro samples in biological and physical-chemical labs, suitable for small-volume synthesis, wet digestion, solvent reflux and sample extraction routine workflows.
• 5-inch stainless steel ceramic composite platform balances mechanical strength, heat transfer efficiency and chemical resistance; no deformation or peeling under long-term heating up to 280℃, compatible with all acid, alkali and organic reagent systems.
• External high-precision PT1000 temperature probe collects real actual liquid temperature inside samples to correct temperature deviation between plate and solution, meeting strict temperature accuracy requirements of pharmacopoeia and testing standards.
• 3W brushless DC drive motor runs quietly without electric sparks for safe experiments with organic solvents and low-boiling flammable reagents; zero carbon brush wear parts eliminate regular consumable replacement to cut lab maintenance cost.
• Multi-layer safety protection system: auto power cut at 320℃ overheat threshold, flashing HOT warning after power off at 50℃, IP42 dust & splash resistant housing to protect internal motor and heating modules from minor liquid spills and dust accumulation.
• Slim lightweight chassis with net weight only 1.8Kg fits narrow fume hood work zones and compact bench tops, replacing bulky old-fashioned stirrers to save lab space.
• Dual universal voltage specification covers both 110V European/American and 220V Asian markets; distributors manage one single model for all mainstream overseas regions to simplify inventory control.
• Excellent cost performance for bulk orders, ideal for university teaching labs, small third-party testing institutes and enterprise R&D micro screening experiments.

• Daily processing of single micro sample batches under 3L, compact equipment required for narrow fume hood workstations:

  Choose slim single-position L280SM-H-Pro, net weight only 1.8Kg with compact dimension; 5-inch anti-corrosion ceramic plate meets standard small-volume stirring & heating demands.

• Experiments require high-temperature workflows up to 280℃ beyond standard stirrer limits, with demand for accurate real liquid temperature measurement:

  Stable constant heating up to 280℃ matched with external PT1000 probe to eliminate plate-solution temperature gap, ideal for strong-acid digestion and high-temperature organic synthesis.

• Frequent use of organic solvents and low-boiling flammable reagents with safety concerns over electric spark generation:

  Spark-free brushless DC motor design eliminates carbon brush discharge for full safe operation with all flammable reaction systems.

• Minor liquid spills and dust accumulation occur during experiments, dust & splash resistant housing required for extended equipment service life:

  IP42 protection grade housing blocks dust and trace reagent splashes; paired with dual safety systems (320℃ overheat cut-off + post-run HOT warning) for full protection.

• Bulk export to multi-region overseas markets covering both 110V and 220V grids without separate model inventory:

  Dual universal wide voltage 100–120V/200–240V supports all global power grids with one unit to reduce stock SKU pressure.

• Bulk procurement for university teaching, small third-party testing and enterprise micro-screening R&D prioritizing low maintenance, high precision and cost-effective compact hotplate stirrer:

  Maintenance-free brushless motor requires zero regular consumable replacement; easy-to-clean anti-corrosion ceramic plate and precise PID temperature control suit standardized bulk micro-sample processing.

• Standard factory package includes L280SM-H-Pro compact LED magnetic hotplate stirrer main unit, power cord, external PT1000 temperature sensor and printed English operation manual. Constant-temperature stirring & heating experiments for micro samples can be carried out right after unboxing and power-on without extra basic accessories.
• OEM private branding customization service is available for bulk orders to create exclusive brand visuals for online lab instrument stores and overseas biological, pharmaceutical & physical testing research exhibition promotion.
• Thick shockproof separate carton filled with high-density foam buffer withstands long-distance jolt and extrusion during sea & air freight, greatly reducing risks of shell dent and internal motor/heating component damage in cross-border shipment.
• In-stock orders ship within 3–10 working days. Goods will be packed and dispatched uniformly after parameter confirmation to shorten lead time for overseas R&D & teaching labs and instrument distributors.
• Multiple cross-border logistics options including sea freight, air freight and international courier are offered to match cost-effective transport solutions based on order volume and requested arrival time.

Selling Units

Single item

Package size perbatch

30*24*22cm

Gross weight perbatch

3.00kg
