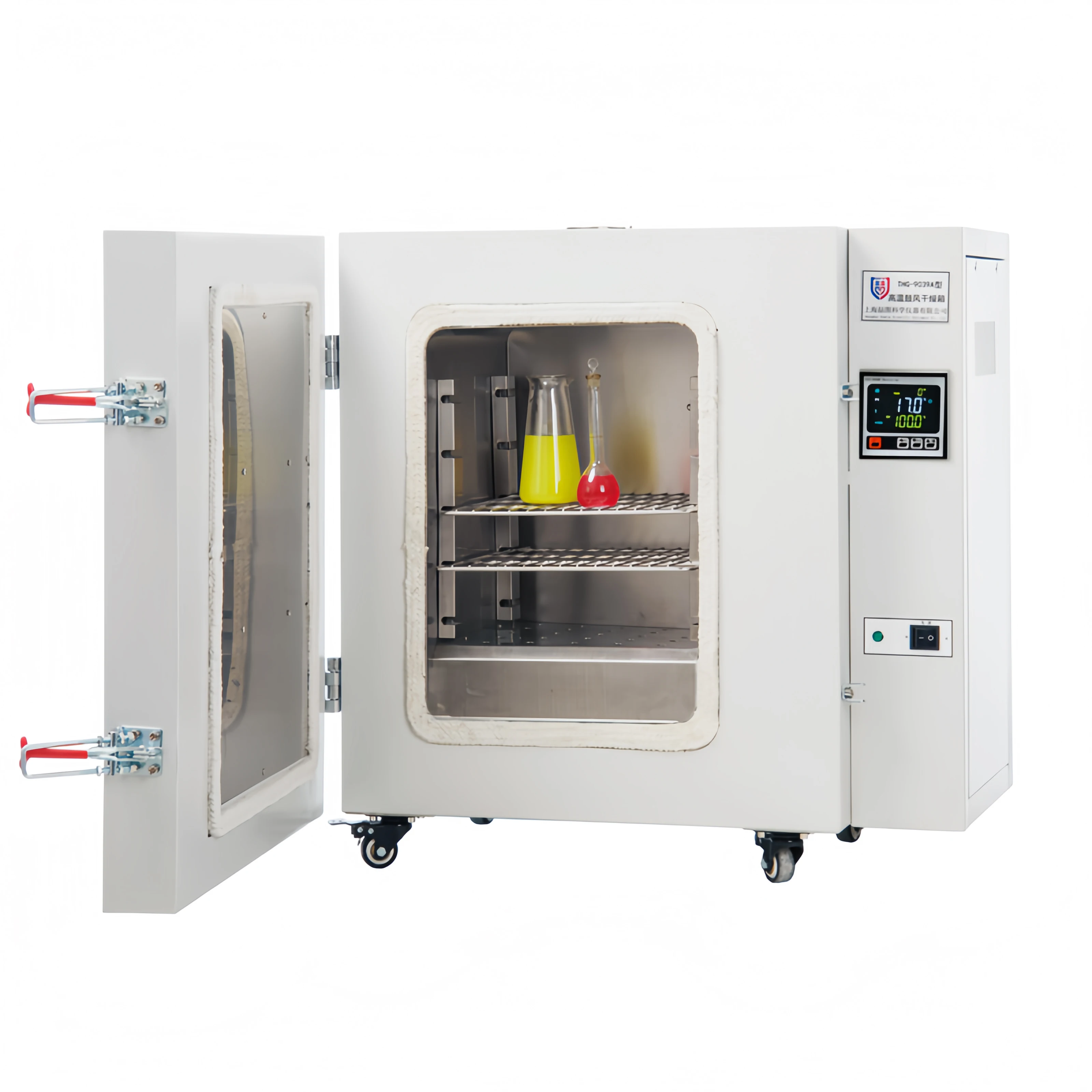

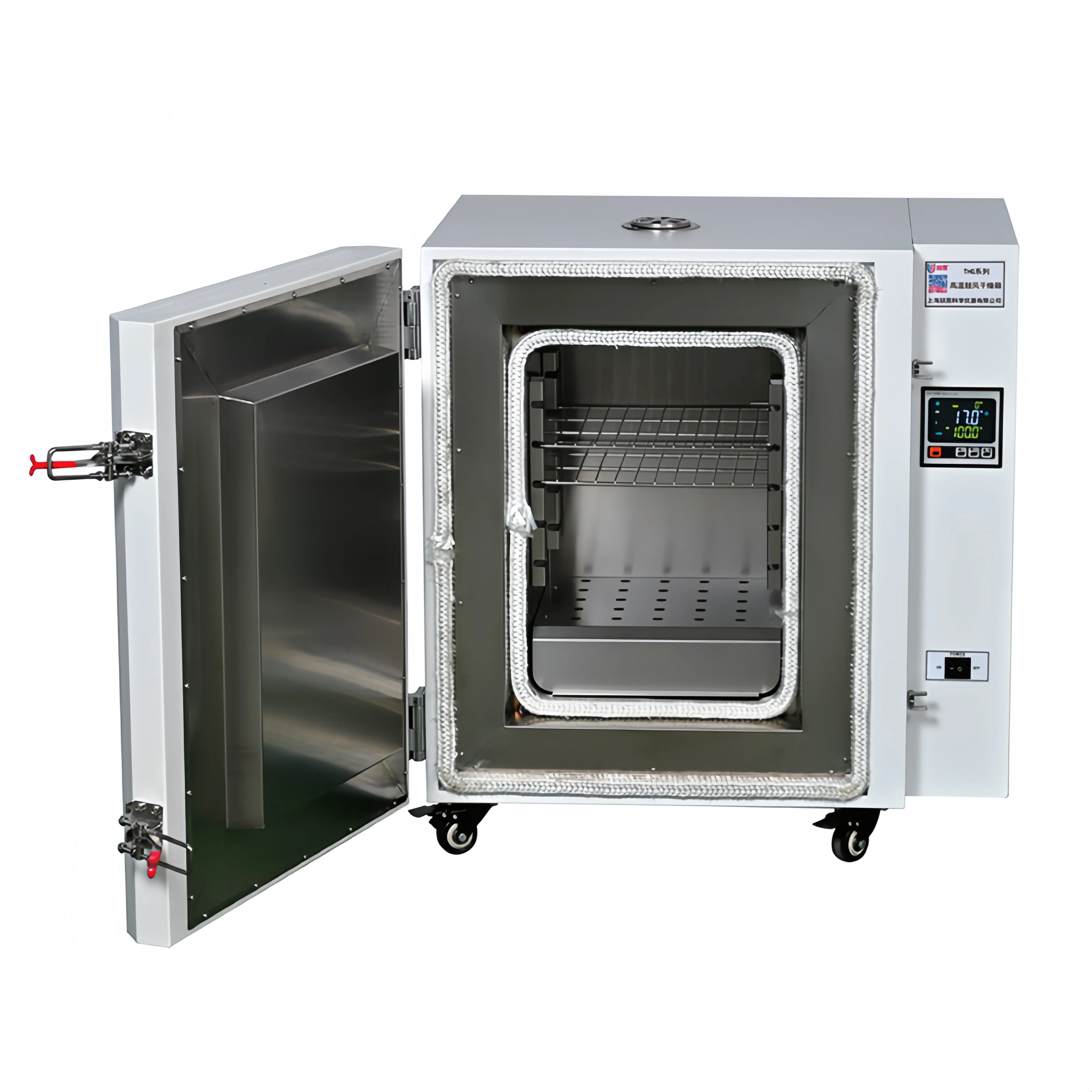

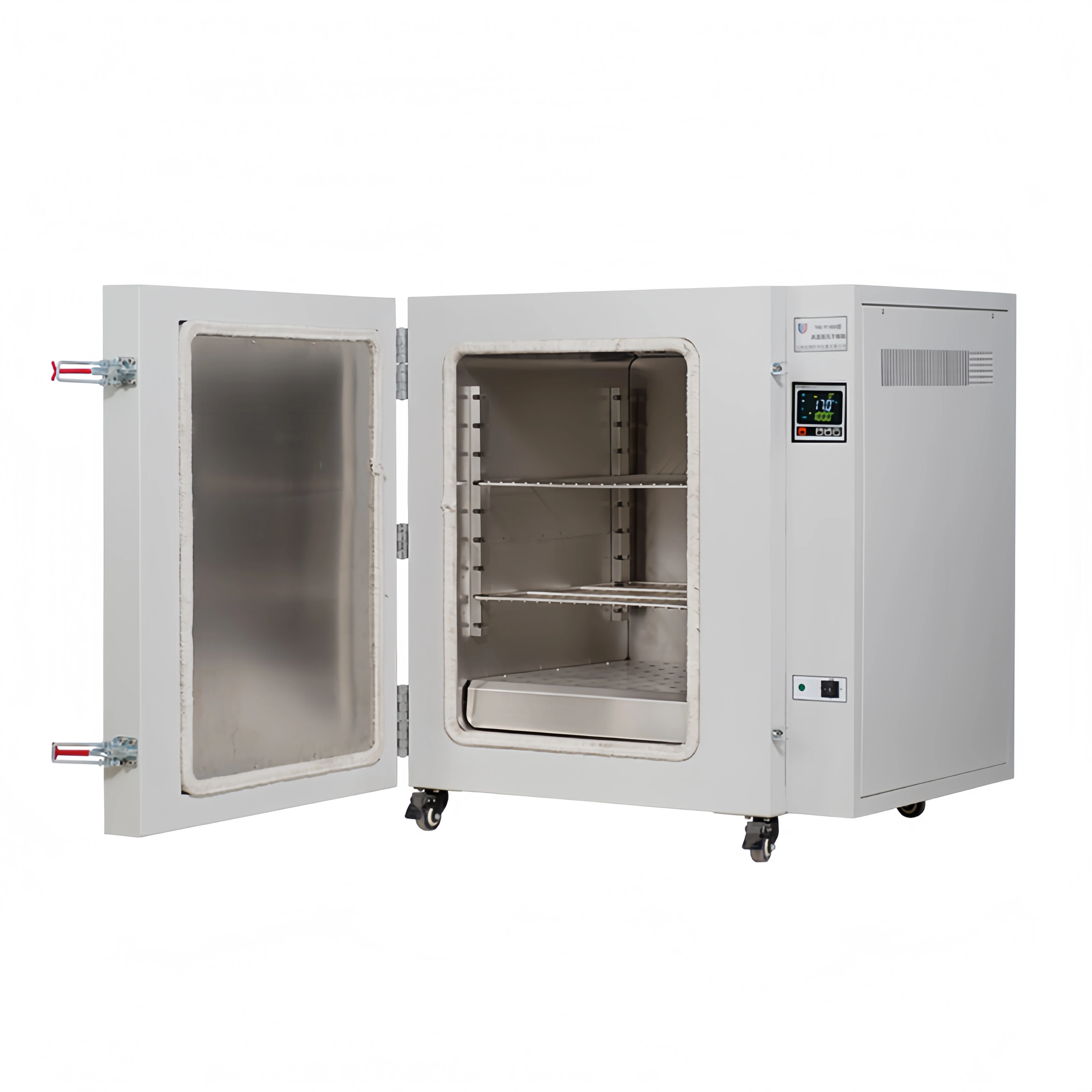

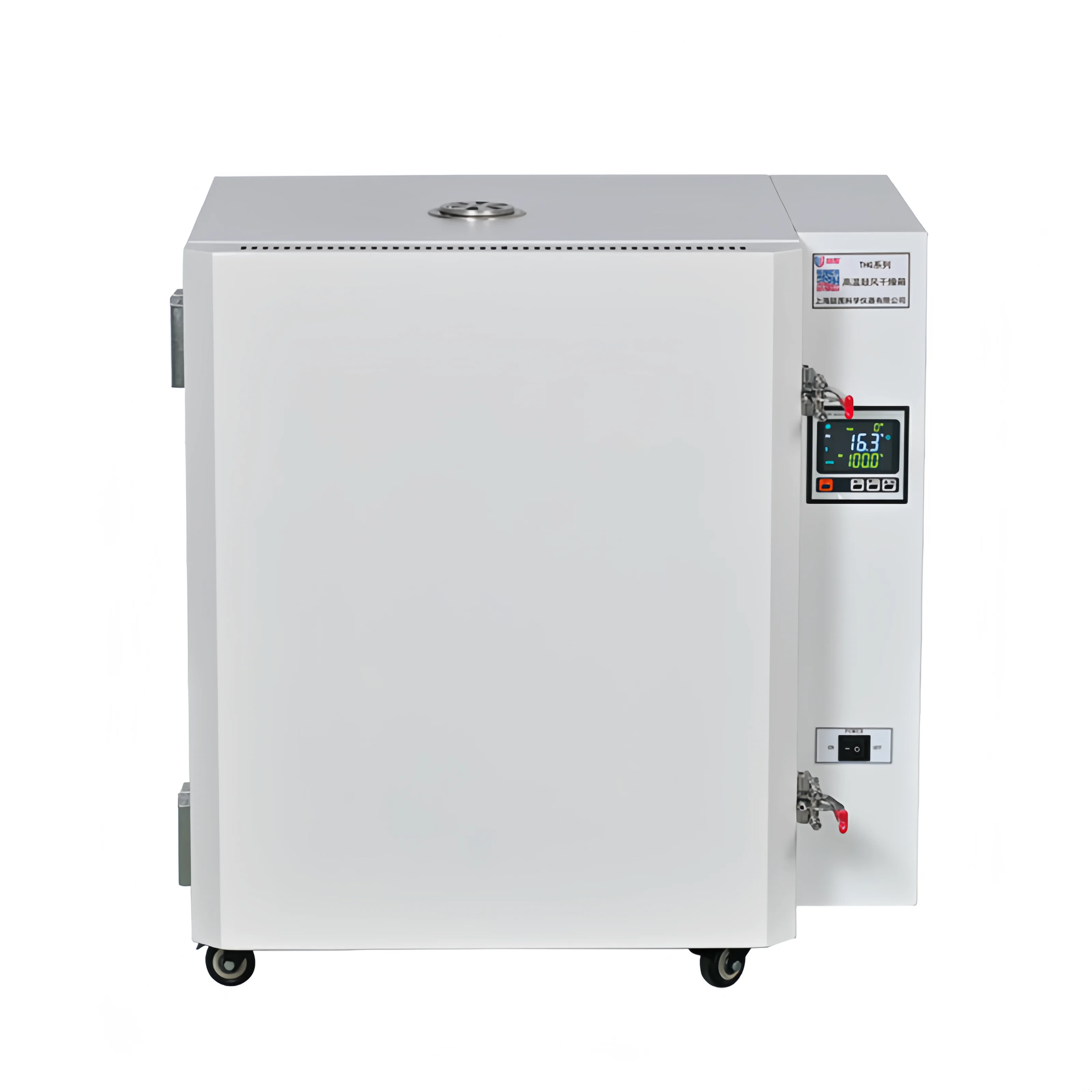

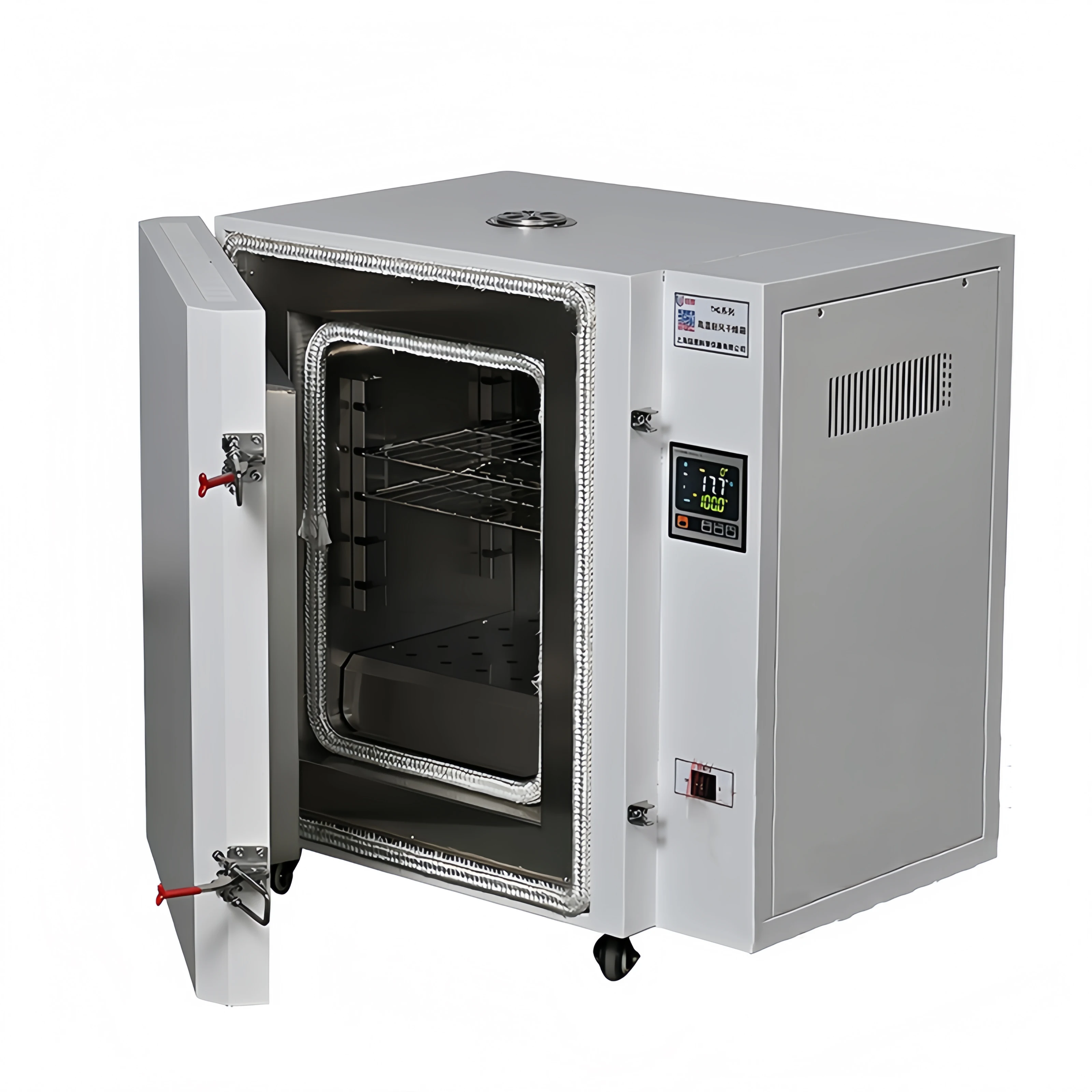

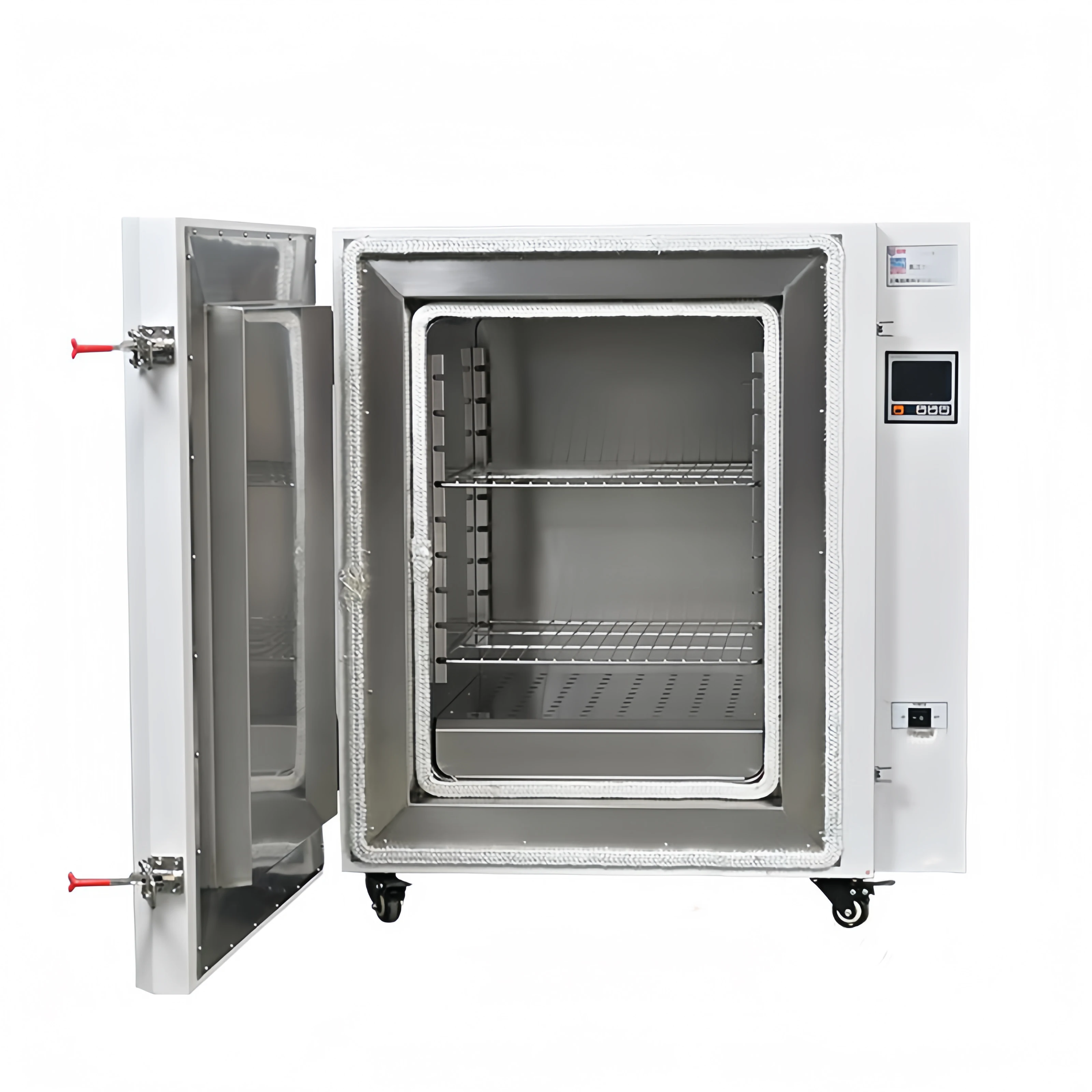

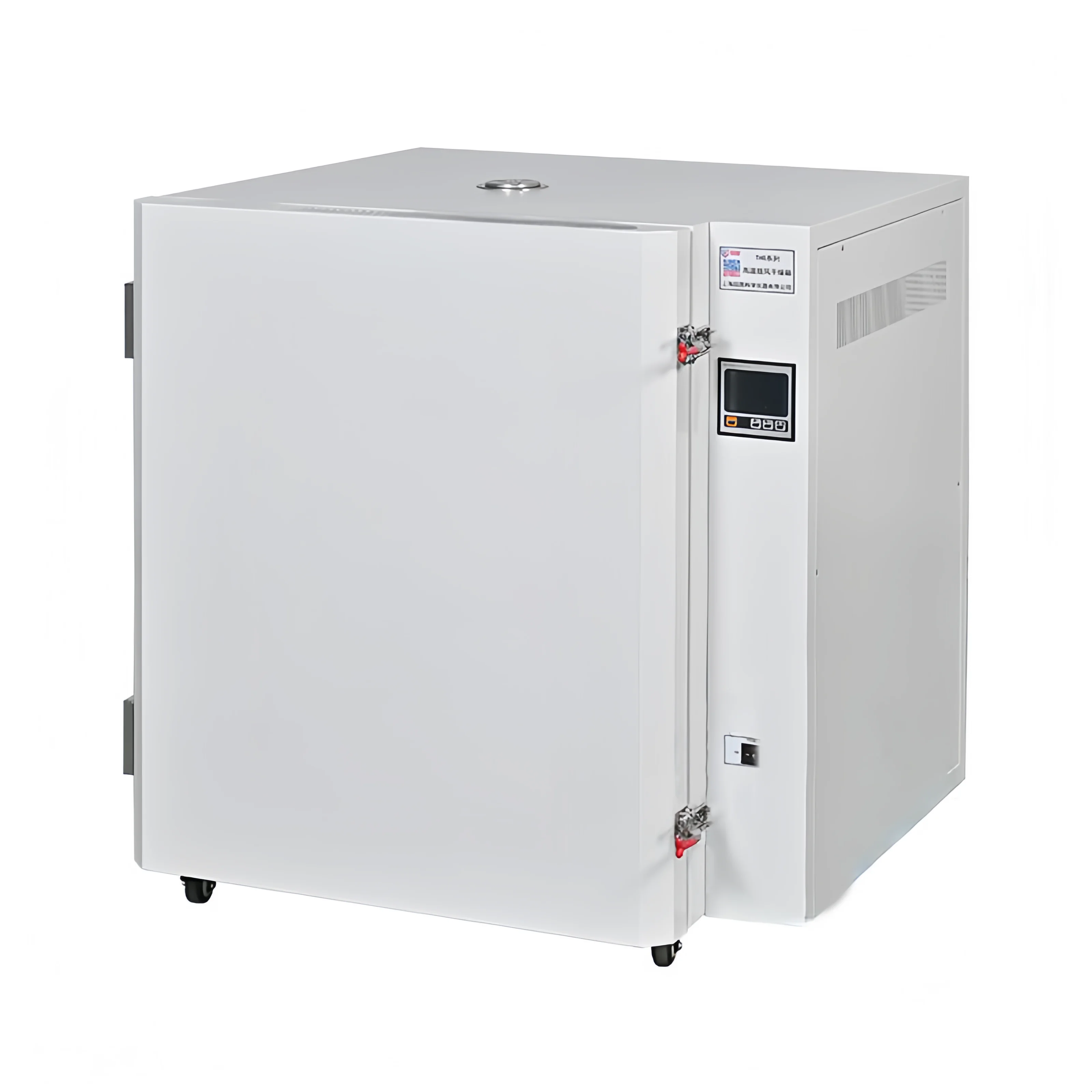

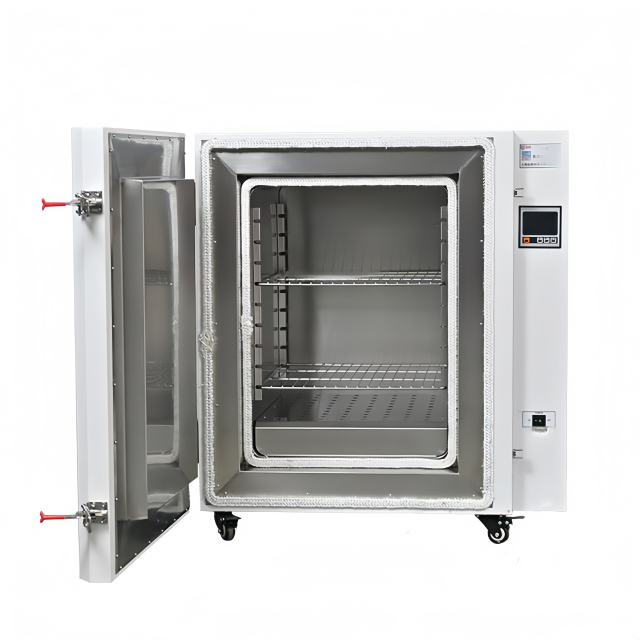

High temperature blast drying oven

Name: High temperature blast drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601658808131 （THG)
Price: 2525.70 USD
Availability: InStock

No.1601658808131 （THG)

The THG and G6 series high-temperature air blast drying ovens are equipped with high-power fans and a dual-airflow thermal circulation system. They utilize stainless steel high-temperature electric heaters combined with air circulation for rapid heating. These ovens are widely used for high-temperature drying of special materials, heating and installation of workpieces, high-temperature testing of materials, and reaction treatment of chemical raw materials.

$2525.70

model number:

THG

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

THG and G6 series high-temperature blast drying ovens are equipped with high-power fans and dual-channel hot air circulation system. Stainless steel electric heating tubes realize fast temperature rise. They are widely used for high-temperature drying of various materials, workpiece heating curing, material high-temperature testing and reaction treatment of chemical raw materials.
THG series has two temperature ranges: RT+20~400℃, RT+20~500℃; G6 series maximum temperature reaches RT+20~600℃. All adopt K-type temperature sensor with rapid temperature response.
Equipped with three-color LCD operation panel and built-in fault self-diagnosis function. Microcomputer PID temperature controller integrates overtemperature deviation protection and timing function to realize precise and stable temperature control.
Drawer-style material racks with adjustable and detachable partitions for easy cleaning. Self-developed hot air circulation duct adopts forced convection to improve internal temperature uniformity and heating speed.
Electrostatic sprayed anti-corrosion outer shell and brushed stainless steel inner liner. Standard timing function ranges from 1~9999min. Various optional accessories meet high-temperature process demands for scientific research and industry.

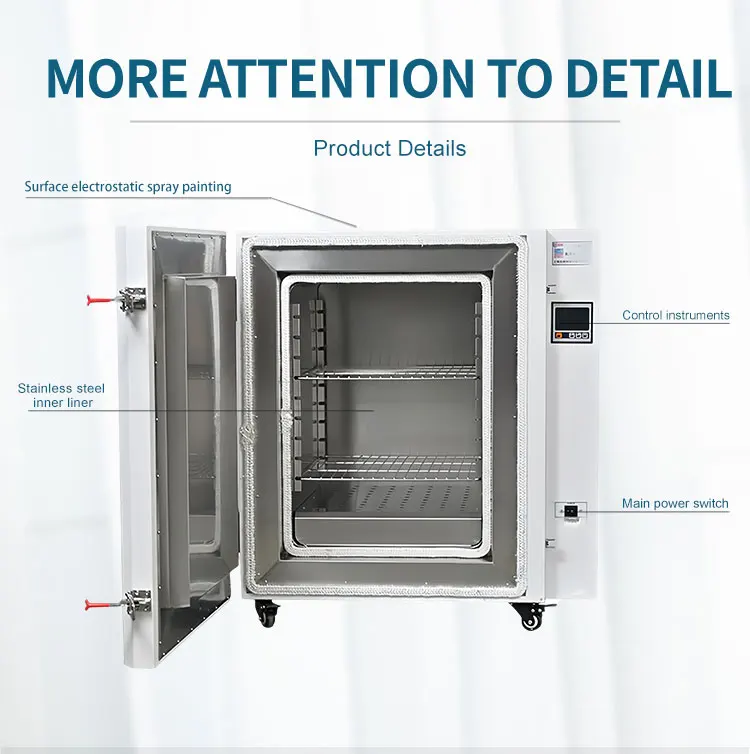

Details Images

Large three-color LCD instrument panel displays multiple groups of data simultaneously with intuitive operation interface. Built-in self-diagnosis function shows fault codes directly for quick troubleshooting.
Microcomputer PID intelligent temperature controller integrates overtemperature deviation protection and timing display function with excellent control precision, supporting long-time unattended high-temperature experiments.
Drawer-style material rack with adjustable detachable partitions, convenient for sample loading and chamber cleaning. Door locking structure cooperates with sealing ring to achieve good thermal insulation.
Special built-in hot air circulation channel provides forced convection to keep air circulating inside chamber, guarantee uniform temperature and shorten heating time.
High-temperature resistant low-noise motor and multi-blade centrifugal fan ensure stable continuous high-temperature operation. Multiple electrical protections cover electric leakage, short circuit and overheating.
Electrostatic sprayed corrosion-resistant outer shell. Brushed stainless steel inner liner and brackets feature high temperature resistance, anti-oxidation property and durable appearance.
New synthetic high-temperature silicone rubber sealing material provides reliable sealing, anti-deformation under high temperature, no harmful substance precipitation and long service life.
Overtemperature alarm threshold can be set freely. The device will trigger audio-visual alarm once exceeding limit. Optional independent temperature limiting system cuts off heating circuit automatically when overheating.
Optional accessories: RS485 interface, independent temperature limiting controller, test port, micro printer, wind speed control switch, color touch screen and intelligent program controller.

Model	THG-9038A THG-9038AP	THG-9078A THG-9078AP	THG-9148A THG-9148AP	THG-9248A THG-9248AP	THG-9039A THG-9039AP	THG-9079A THG-9079AP	THG-9149A THG-9149AP	THG-9249A THG-9249AP
power supply voltage	AC220V 50Hz				AC220V 50Hz		AC380V 50Hz
Temperature control range	RT(room temperature)+20~400℃				RT(room temperature)+20~500℃
sensor type	K-type				K-type
constant temperature fuctuation	±1℃				±1℃
temperature resolution	0.1℃				0.1℃
input power	1800W	2500W	2800W	3400W	2400W	3400W	3600W	5500W
inner dimensions wDH(mm)	300300 350	400400 450	450550 550	500600 750	300300 350	400400 450	450550 550	500600 750
overall imensions wDH(mm)	670480 700	770580 800	820730 900	870780 1100	670480 700	770580 800	820730 900	870780 1100
Nominal volume	30L	70L	140L	240L	30L	70L	140L	240L
Load carrier	2 pieces				2 pieces
timing range	1~9999min
Optional	RS485 interface,independent temperature limiting controller,test port,mcro printer,wind speed control switch, colo touch screen,intelligent program controller

High-temperature hot air circulation structure adapts to working temperature of 400℃, 500℃ and 600℃. Widely used for ceramic sintering, component aging, material heat treatment, pharmaceutical drying and mold preheating.
Drawer-style sample rack with freely detachable adjustable partitions, convenient for batch sample loading without dead corners for cleaning.
K-type thermocouple sensor features high temperature resistance and fast temperature response. PID constant temperature algorithm suppresses overshoot and keeps low temperature fluctuation under high temperature.
Double-layer thermal insulation cabinet structure with electrostatic sprayed outer shell and brushed stainless steel inner liner, anti-oxidation and high temperature resistant for long-time continuous high-temperature operation.
Built-in high-temperature resistant centrifugal fan provides forced hot air circulation to accelerate heat exchange, improve temperature uniformity and shorten heating waiting time.
Three-color LCD controller supports timing function from 1~9999min. Optional program controller realizes automatic multi-segment temperature cycles for unattended high-temperature processes.
Multiple safety protections including electric leakage, short circuit and overheat protection. Optional independent temperature limiter provides double protection to prevent sample damage caused by control failure.
High-temperature resistant silicone rubber sealing avoids hardening and deformation under high temperature, reduces heat loss and maintains stable chamber temperature.
Various optional components: RS485 communication, test port, micro printer, wind speed control switch, color touch screen and intelligent program controller to meet data traceability demands of industry and scientific research.

High-temperature testing for small batches of samples and component aging in labs: choose 30L /70L small-volume models.
Conventional chemical raw material heat treatment and ceramic sample sintering: select mainstream 140L model.
Mass workpiece baking and bulk material high-temperature curing in factories: choose 240L large-volume model.
Max process temperature ≤400℃: THG-XX38A/AP series; ≤500℃: THG-XX39A/AP series; 600℃ working temperature: choose G6 series.
Single-phase 220V lab power supply: prefer 30L,70L models; large-volume 140L /240L high-temperature models adopt AC380V industrial power.
Automatic multi-segment temperature cycle required: equip intelligent program controller or upgrade to color touch screen.
High-value samples requiring double overheat protection: install independent temperature limiting controller.
External temperature probe measurement required: choose optional test port.
Remote monitoring and continuous temperature curve export required: select RS485 interface; micro printer optional for hard-copy records.

Standard factory package: high-temperature blast drying oven main unit, stainless steel shelves, power cord and bilingual operation manual. All extended accessories are separately optional purchases.
Thick shockproof wooden crate with foam buffer protects precision fragile parts including inner liner, control panel and door glass against collision damage during long cross-border transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Selling Units	Single item	Package size per batch	80.566.591 cm
Gross weight perbatch	92.00kg

Name	Qty
High temperature blast drying oven	1
Stainless steel high temperature shelf	2 pcs
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Complete factory electronic documents can be obtained upon request for cross-border website listing, overseas new material & electronics exhibition promotion and technical consultation for overseas buyers.
Supporting digital files: bilingual full specification sheet, standard operation manual, fan & high-temperature heating system maintenance guide, overall dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and photos of all optional accessories for unified multi-category online store operation.

What is the maximum temperature difference between THG-38, THG-39 and G6 models? A THG-XX38 series max 400℃; THG-XX39 series max 500℃; G6 series maximum up to 600℃.
What sensor type is equipped? A All models adopt standard K-type thermocouple with high temperature resistance for high-temperature working conditions.
What is the test condition for temperature fluctuation? A Tested without load, constant temperature fluctuation ±1℃.
What structure realizes temperature rise? A Stainless steel electric heating tube matched with forced hot air dual-channel circulation system for fast heating and uniform temperature.
Can samples be observed without opening door? A Observation window is optional and can be configured as required for standard models.
Will temperature and timing settings be lost after power failure? A Built-in memory chip automatically saves all settings after power recovery.
Does it support multi-segment heating and cooling programs? A Standard single segment constant temperature. Optional intelligent program controller realizes automatic multi-segment process curves.
Is overtemperature alarm protection available? A Standard built-in controller overtemperature alarm; optional independent temperature limiter provides double safety protection.
What is the maximum timing duration? A Timing range:1~9999 minutes.
Can continuous temperature curve data be exported? A Optional USB/RS485 communication interface supports data storage and export.
Is test hole reserved for external temperature probe? A Test hole is optional accessory.
What is the structure of rack? A Drawer-style pull-out rack with detachable adjustable partitions for easy sample access.
Will sealing strip age rapidly under high temperature? A Special high-temperature resistant silicone rubber is adopted with longer service life than ordinary sealing strips.
Is running noise loud for long-term continuous workshop operation? A Low-noise high-temperature centrifugal fan with moderate noise, suitable for long-term industrial and scientific operation.
Can flammable, explosive or highly volatile materials be processed? A Not allowed. This oven is only used for high-temperature treatment of non-flammable materials without explosion risk.
How to distinguish power supply for large-capacity models? A 30L,70L support AC220V; 140L,240L high-temperature models adopt standard AC380V.
Can fan wind speed be adjusted? A Wind speed control switch is optional accessory.

THG/G6 high-temperature blast drying oven is suitable for ceramic sintering, electronic component high-temperature aging, chemical raw material heat treatment, mold preheating and sample extreme temperature testing. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, special inner liner specification, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory inspection.
Contact ways: Email, WhatsApp, online message on website. Please state target model, volume, maximum temperature version, power specification, optional accessory demands and order quantity. A complete formal quotation will be provided within 24 hours to solve all purchasing inquiries at one time.
