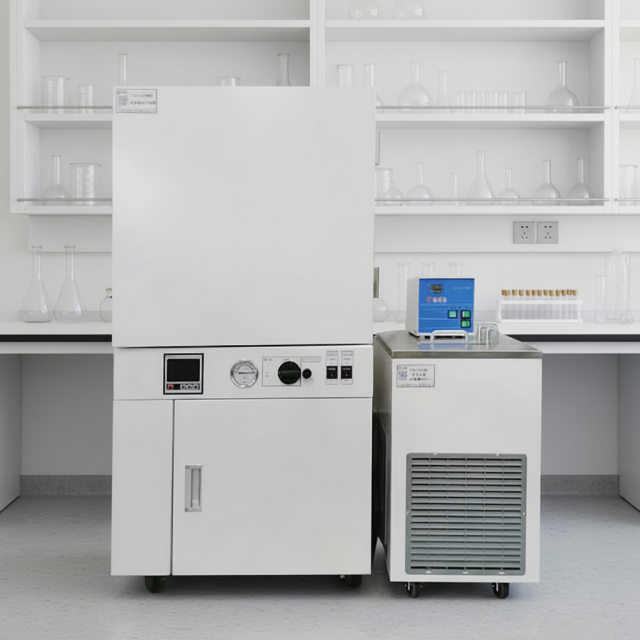

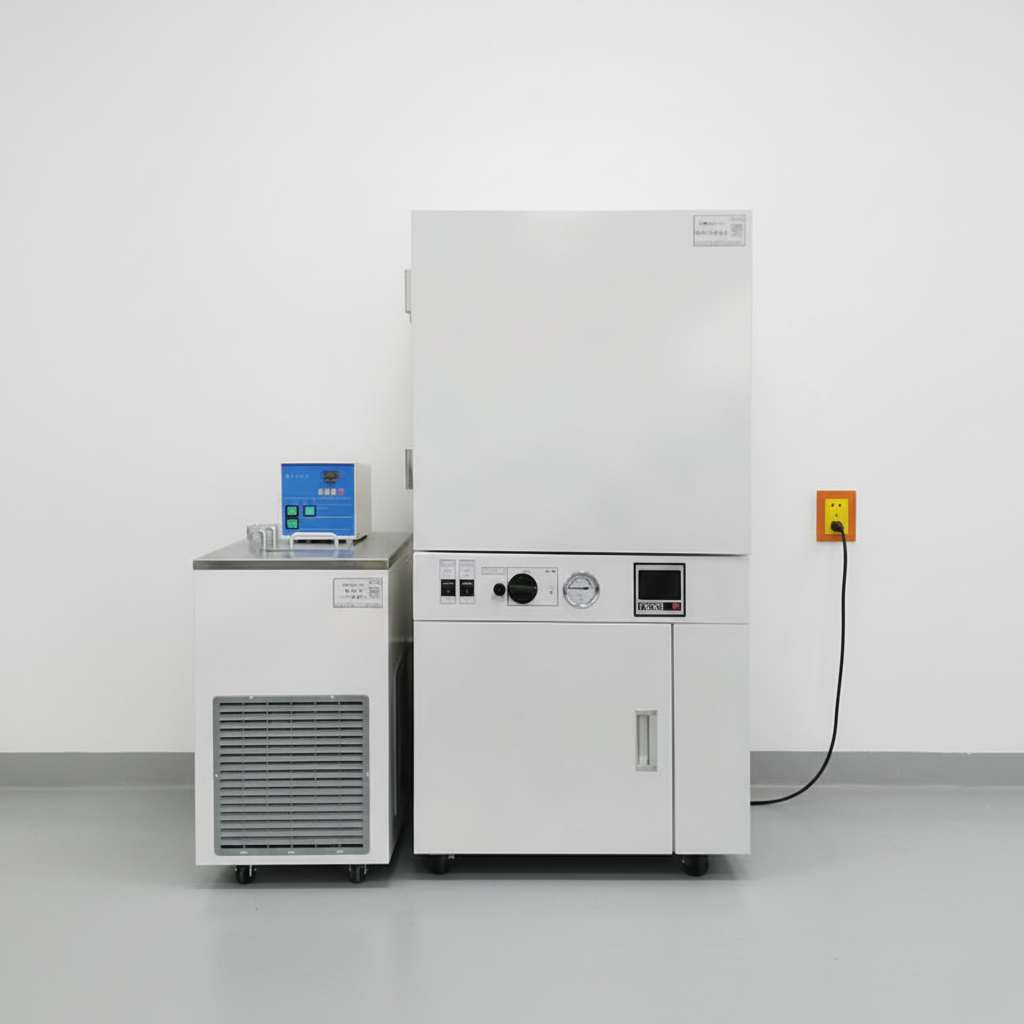

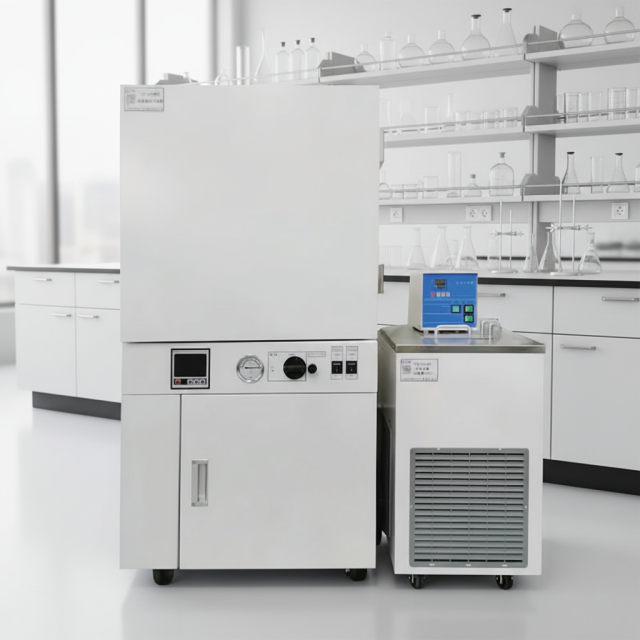

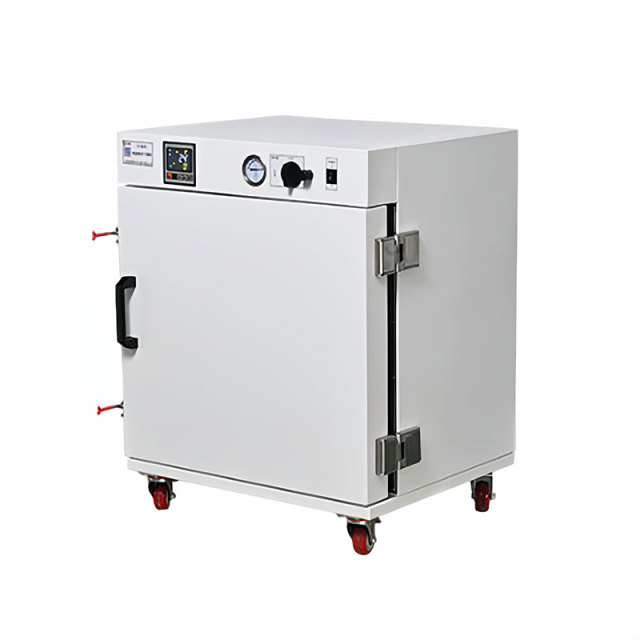

High-Temperature Vacuum Drying Oven

Name: High-Temperature Vacuum Drying Oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601702383885 (UR4 UR5 UR6)
Availability: InStock

No.1601702383885 (UR4 UR5 UR6)

High-Temperature Vacuum Drying Oven works under negative pressure. Its vacuum pump removes air and moisture to lower water boiling point and speed up drying. Suitable for powder drying, material annealing, semiconductor, new energy and aerospace testing, as well as defoaming, dehydration and curing of electronic products. Widely used in electronics, chemical, agricultural research and environmental protection.

$1498.60 - 17298.00

model number:

UR4

UR5

UR6

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

UR4, UR5 and UR6 are fan-free high-temperature vacuum drying ovens. The core difference lies in maximum working temperature: UR4 up to 400℃, UR5 up to 500℃, UR6 up to 600℃. No internal circulating fan prevents powder and light samples from scattering.
A vacuum pump extracts air and moisture to form negative pressure, lowering the boiling point of materials. It is widely used for vacuum dehydration, annealing and sintering of heat-sensitive, oxidizable, lithium/metal powder, semiconductors, ceramics and aerospace components.
Double-layer stainless steel inner tank with double explosion-proof glass window allows real-time sample observation without breaking vacuum. Unified vacuum index ≤133Pa, constant temperature fluctuation ±1℃, temperature resolution 0.1℃.
All series share identical volumes: 30L, 50L, 90L (AC220V 50Hz), 125L, 215L (AC380V 50Hz). Power rating rises with maximum temperature; UR4 has the lowest power while UR5 and UR6 adopt higher identical power.
Three control versions for each volume: LV with pointer vacuum gauge, LBV-I combined digital vacuum & temperature meter, LBV-II integrated color touch screen. Rotary vane pump, water circulator and soundproof cabinet are standard for all; LBV series are equipped with extra vacuum pump protector.

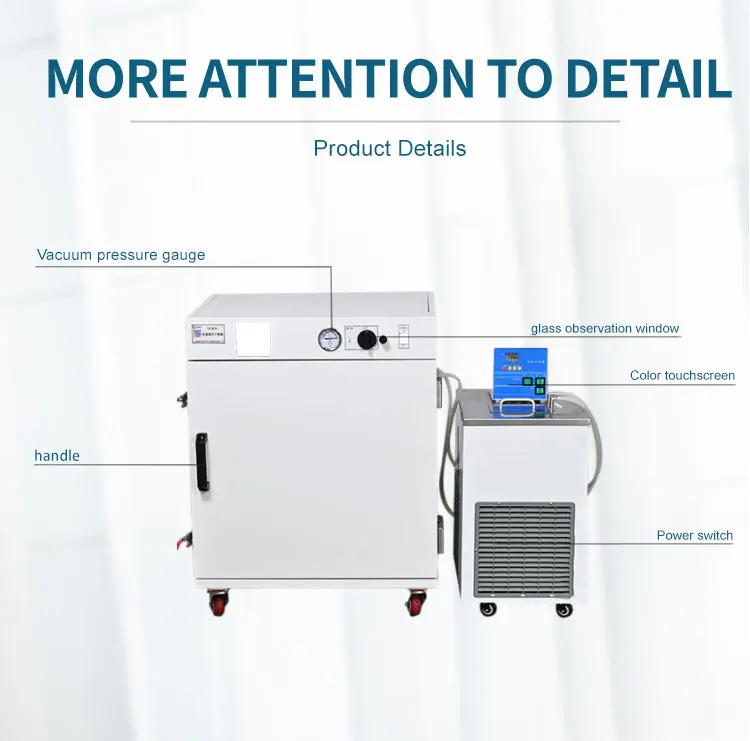

Details Images

Fan-free vacuum chamber without airflow disturbance, no dust during ultrafine metal & lithium powder drying. Sealed negative pressure isolates air to restrain sample oxidation and impurity residue.
Double explosion-proof glass window enables sample viewing without breaking vacuum, ensuring uninterrupted vacuum processes.
Large-screen LCD PID controller displays tri-color data; built-in self-diagnosis shows fault codes for quick maintenance.
Customizable overtemperature audio-visual alarm; power-off memory chip retains all temperature and vacuum parameters after restart.
High-density glass wool insulation reduces outer shell temperature, energy-saving and safer for long high-temperature lab operation.

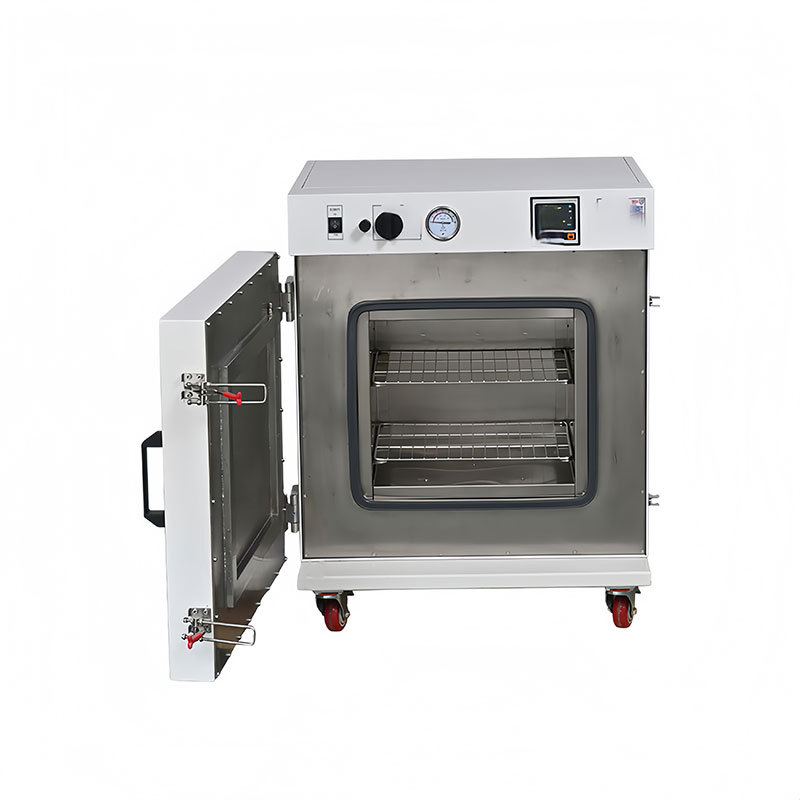

Pull-out adjustable stainless shelves support layered loading and dead-corner-free cleaning. Two-stage rotary door lock ensures stable vacuum sealing.
Standard vacuum mode, external nitrogen access for inert atmosphere to reduce oxidation and explosion hazards of heated materials.
Version difference: LV only single constant temperature; LBV-I & LBV-II support editable multi-segment heating, vacuum & nitrogen holding time with pump protector for 24h mass production.
Complete electrical protection against leakage, short circuit, overheat and overload. UR4, UR5, UR6 share identical structure and protection system, differing only in heating power and maximum temperature.

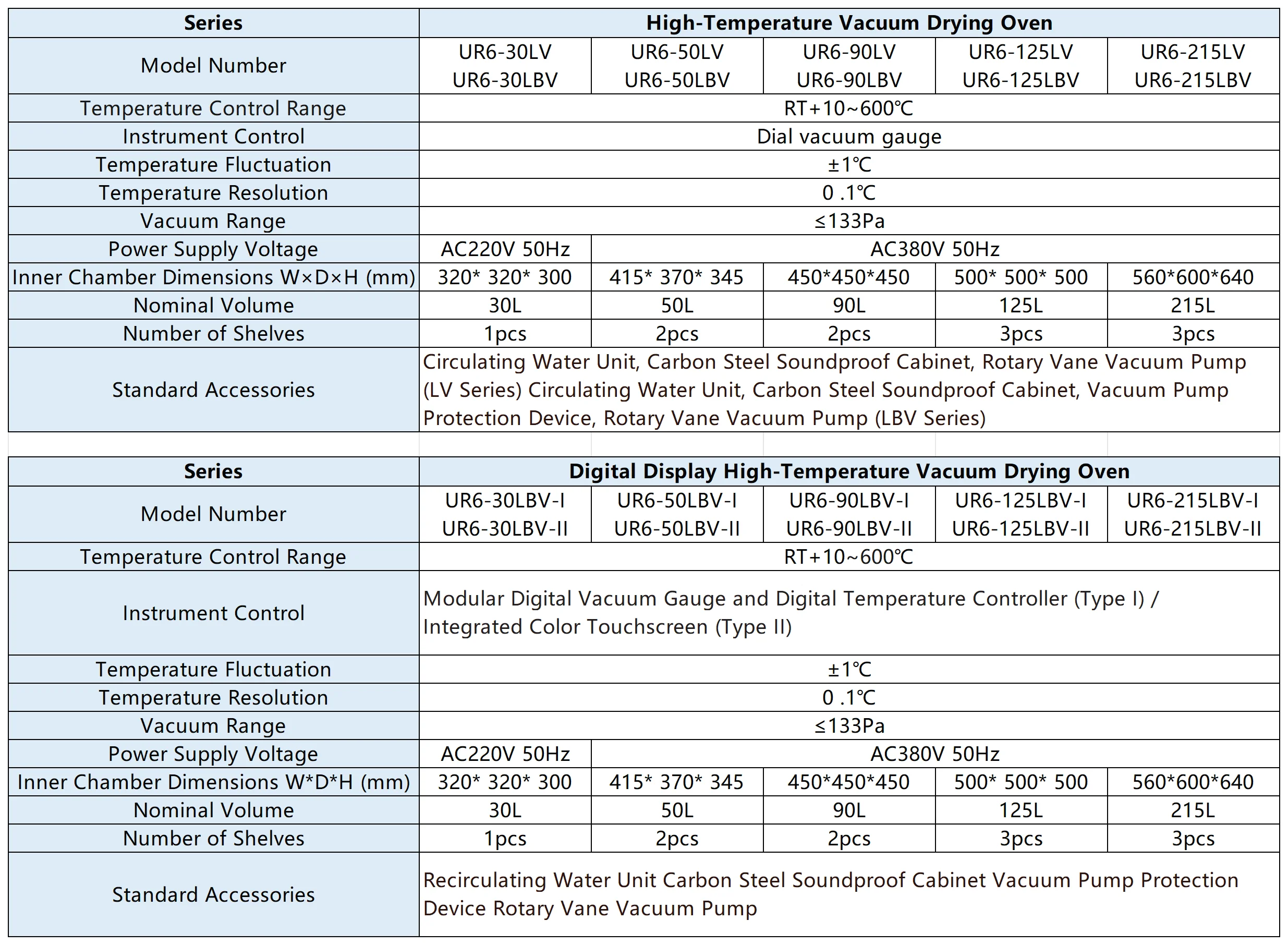

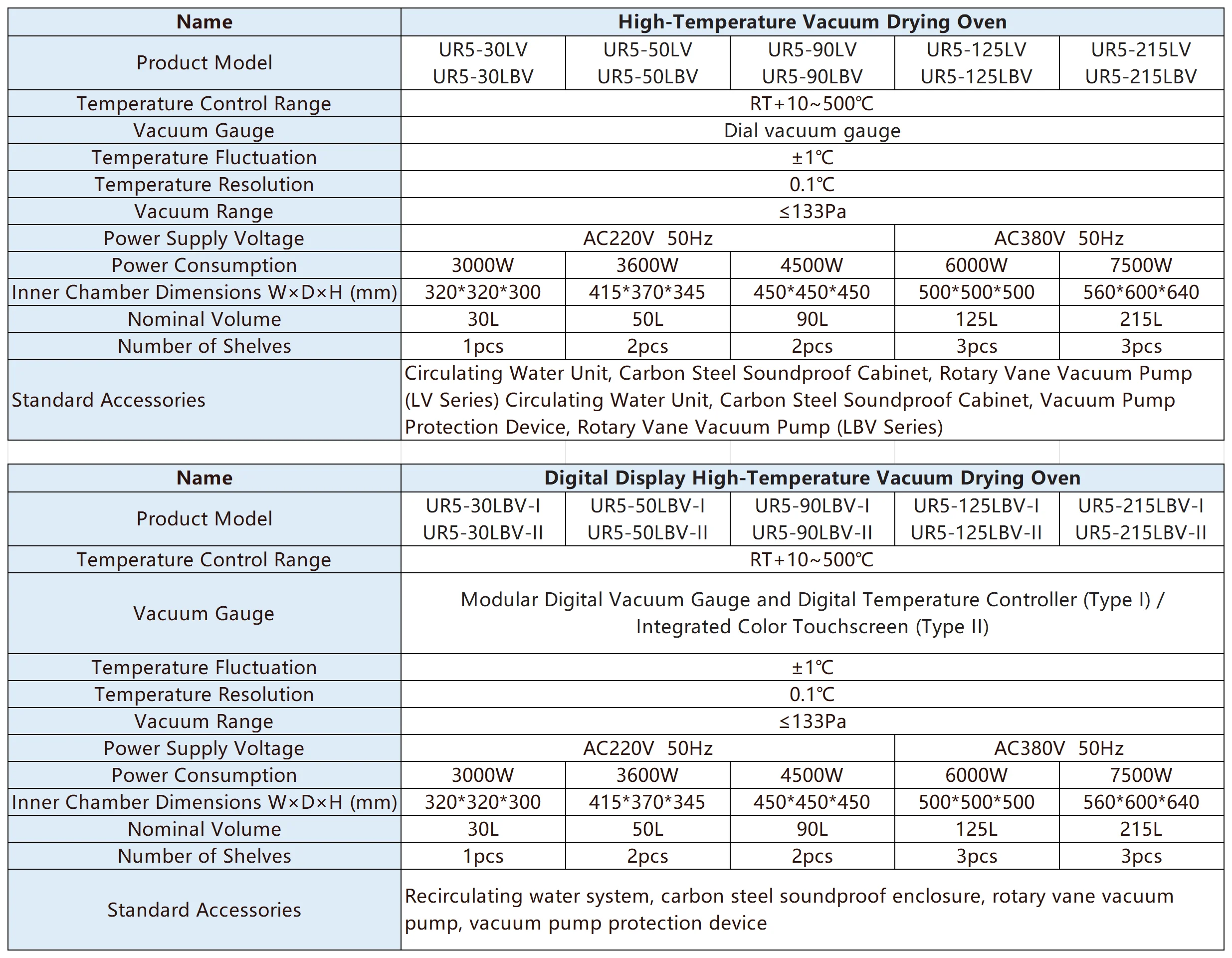

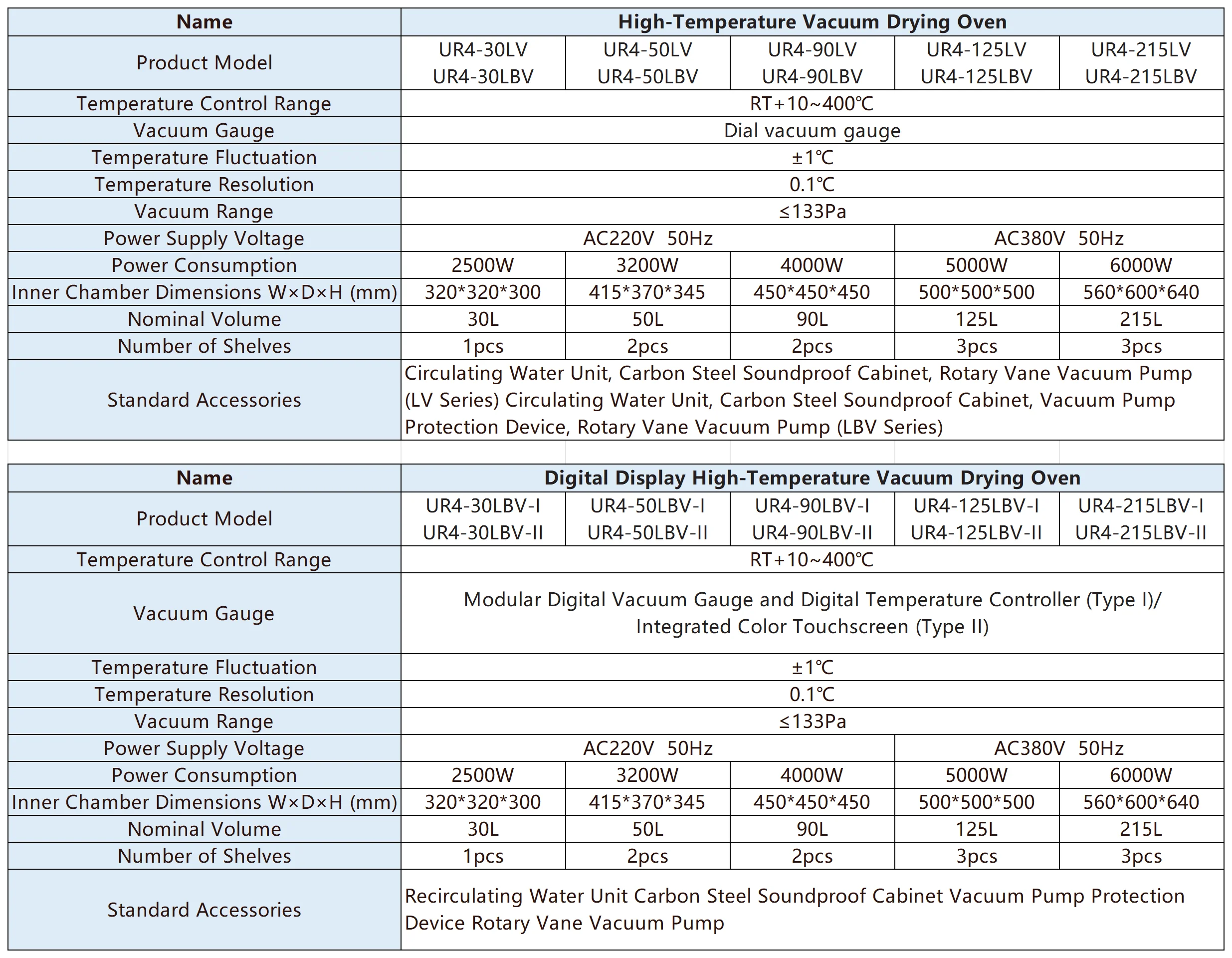

Item	UR4-30 UR5-30 UR6-30	UR4-50 UR5-50 UR6-50	UR4-90 UR5-90 UR6-90	UR4-125 UR5-125 UR6-125	UR4-215 UR5-215 UR6-215
Temperature Range	UR4: RT+10~400℃ UR5: RT+10~500℃ UR6: RT+10~600℃	UR4: RT+10~400℃ UR5: RT+10~500℃ UR6: RT+10~600℃	UR4: RT+10~400℃ UR5: RT+10~500℃ UR6: RT+10~600℃	UR4: RT+10~400℃ UR5: RT+10~500℃ UR6: RT+10~600℃	UR4: RT+10~400℃ UR5: RT+10~500℃ UR6: RT+10~600℃
Vacuum Gauge	LV: Pointer type LBV-I: Combined digital vacuum & temp meter LBV-II: Integrated color touch screen	LV: Pointer type LBV-I: Combined digital vacuum & temp meter LBV-II: Integrated color touch screen	LV: Pointer type LBV-I: Combined digital vacuum & temp meter LBV-II: Integrated color touch screen	LV: Pointer type LBV-I: Combined digital vacuum & temp meter LBV-II: Integrated color touch screen	LV: Pointer type LBV-I: Combined digital vacuum & temp meter LBV-II: Integrated color touch screen
Constant Temperature Fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃
Temperature Resolution	0.1℃	0.1℃	0.1℃	0.1℃
Ultimate Vacuum	≤133Pa	≤133Pa	≤133Pa	≤133Pa	≤133Pa
Power Supply	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC380V 50Hz	AC380V 50Hz
Rated Power	UR4: 2500W UR5: 3000W UR6: 3000W	UR4: 3200W UR5: 3600W UR6: 3600W	UR4: 4000W UR5: 4500W UR6: 4500W	UR4: 5000W UR5: 6000W UR6: 6000W	UR4: 6000W UR5: 7500W UR6: 7500W
Inner Size WDH(mm)	320320300	415370345	450450450	500500500	560600640
Nominal Volume	30L	50L	90L	125L	215L
Standard Shelves	1pc	2pcs	2pcs	3pcs	3pcs
Standard Accessories	LV: Rotary vane vacuum pump, circulating water device, carbon steel soundproof cabinet LBV: The above set + vacuum pump protector	LV: Rotary vane vacuum pump, circulating water device, carbon steel soundproof cabinet LBV: The above set + vacuum pump protector	LV: Rotary vane vacuum pump, circulating water device, carbon steel soundproof cabinet LBV: The above set + vacuum pump protector	LV: Rotary vane vacuum pump, circulating water device, carbon steel soundproof cabinet LBV: The above set + vacuum pump protector	LV: Rotary vane vacuum pump, circulating water device, carbon steel soundproof cabinet LBV: The above set + vacuum pump protector

UR4, UR5, UR6 share identical cabinet size and vacuum system, differing only in max temperature and heating power for easy temperature-based selection.
Fan-free design fundamentally solves powder scattering problem. Double sealed stainless tank with viewing window avoids frequent vacuum breaking for stable processes.
Cost-effective LV pointer version for intermittent small lab tests. LBV-I with clear digital reading and LBV-II with easy touch operation both have pump protector for long pilot & mass production.
Long-lasting glass wool insulation keeps outer shell cool under high temperature. Full electrical safety system saves all vacuum & temperature programs after power failure.
External nitrogen pipeline forms inert atmosphere to prevent oxidation loss of metal, lithium and ceramic powder.
Adjustable pull-out stainless shelves support layered bulk sample loading with easy dead-corner cleaning.
UR4 max 400℃ for regular annealing; UR5 max 500℃ for medium-high metal heat treatment; UR6 max 600℃ for special ceramic & precious metal extreme sintering.
Vacuum pump, water cooler and soundproof cabinet are standard for all models without extra purchase; LBV series add pump protector to extend service life.
Widely applied in university labs, new material institutes, lithium, ceramic and hardware pilot workshops.

Model selection by max process temp: ≤400℃ UR4; 400~500℃ UR5; extreme sintering 500~600℃ UR6.
Do not select blast oven for powder & light granules; this fan-free vacuum oven is mandatory.
Volume guide: 30L/50L for small R&D samples; 90L for pilot batches; 125L/215L for continuous mass production.
Control version: budget & intermittent test choose LV; digital reading & long run choose LBV-I; multi-formula & touch operation choose LBV-II.
Power supply: 30/50/90L fit lab AC220V; 125L/215L require workshop three-phase AC380V.
LBV series with pump protector is recommended for 24h non-stop production to avoid pump damage.
Nitrogen inert gas solution recommended for precious metal, lithium and oxidizable powder.
LV can cut cost if only single constant temperature without segmented heating.
Custom logo, non-standard chamber and special gas circuit available for bulk orders.

The whole machine is packed with thick shockproof export wooden crate fully covered by foam buffer.
Key protected parts: inner tank, explosion-proof glass, vacuum pump and control panel.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Packaging and delivery

Selling Units	Single item	Package size per batch	9396190cm
Gross weight per batc	192.000kg

Name	Qty
High Temperature Vacuum Drying Oven	1
Stainless steel vacuum load shelf	2 pcs
Vacuum & nitrogen inflation connector set	1 set
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Full factory digital documents free upon request for cross-border store, overseas exhibition and customer technical consultation.
Supporting files: bilingual full spec sheet, operation manual, vacuum pump maintenance guide, overall dimension CAD drawing.
Process tutorial: multi-segment vacuum programming guide with separate high-temperature tips for UR4/UR5/UR6.

What is the core difference between UR4, UR5 and UR6? They differ in maximum temperature: UR4=400℃, UR5=500℃, UR6=600℃, same chamber & vacuum structure.
Does the internal fan blow powder away? No circulating fan inside, powder will not be scattered.
What is the unified ultimate vacuum for all models? Ultimate vacuum ≤133Pa for all volumes and series.
Differences between LV, LBV-I and LBV-II? LV pointer gauge without pump protector, only single temp; LBV-I dual digital meter with pump protector & segmented function; LBV-II color touch screen with visual multi-program.
Which volumes support lab AC220V power? 30L, 50L, 90L; 125L and 215L require workshop AC380V three-phase power.
What is inner tank material, high temperature resistant? Double-layer stainless steel liner, resistant to high temperature and general chemical corrosion.
Can nitrogen be filled to prevent sample oxidation? External nitrogen inlet supports vacuum inert atmosphere to restrain oxidation.
Will saved processes disappear after power cut? Built-in memory chip retains all temperature & vacuum settings automatically after power recovery.
What is constant temperature fluctuation index? Unified ±1℃ fluctuation, temperature resolution 0.1℃ for all series.
Is vacuum pump supplied as standard? Rotary vane pump, water cooler and soundproof cabinet are standard for all units.
Can inner shelves be removed and height adjusted? Pull-out stainless shelves with adjustable layers and spacing.
Can samples be observed during operation? Double explosion-proof glass window allows viewing without breaking vacuum.
Any explosion risk during high-temperature processing? Vacuum & nitrogen atmosphere greatly reduce oxidation and explosion hazards.
Can LV edit multi-segment heating programs? No, only LBV-I and LBV-II support segmented vacuum heating processes.
What insulation material between tank and outer shell? High-density glass wool for energy saving and lower surface temperature.
Will the machine alarm when over temperature? Built-in audio-visual overtemperature alarm plus leakage & short circuit protection.
Why choose LBV for 24h continuous production? All LBV versions are equipped with vacuum pump protector to avoid long-time pump damage.

UR4/UR5/UR6 match vacuum dehydration, annealing and sintering of powder, metal, ceramic and precious metal under 400/500/600℃ separately.
Please state model (UR4/UR5/UR6), volume, LV/LBV-I/LBV-II and quantity during inquiry.
Formal full quotation within 24h, tiered bulk discount without hidden charges.
Vacuum pump, water cooler and soundproof cabinet are all included in quotation without extra cost.
Custom logo, chamber adjustment and special nitrogen gas circuit are supported.
Contact via Email, WhatsApp or official website online message.
Full bilingual spec sheet can be supplied for customer internal approval.
Sea & air logistics planning support for cross-border orders.
