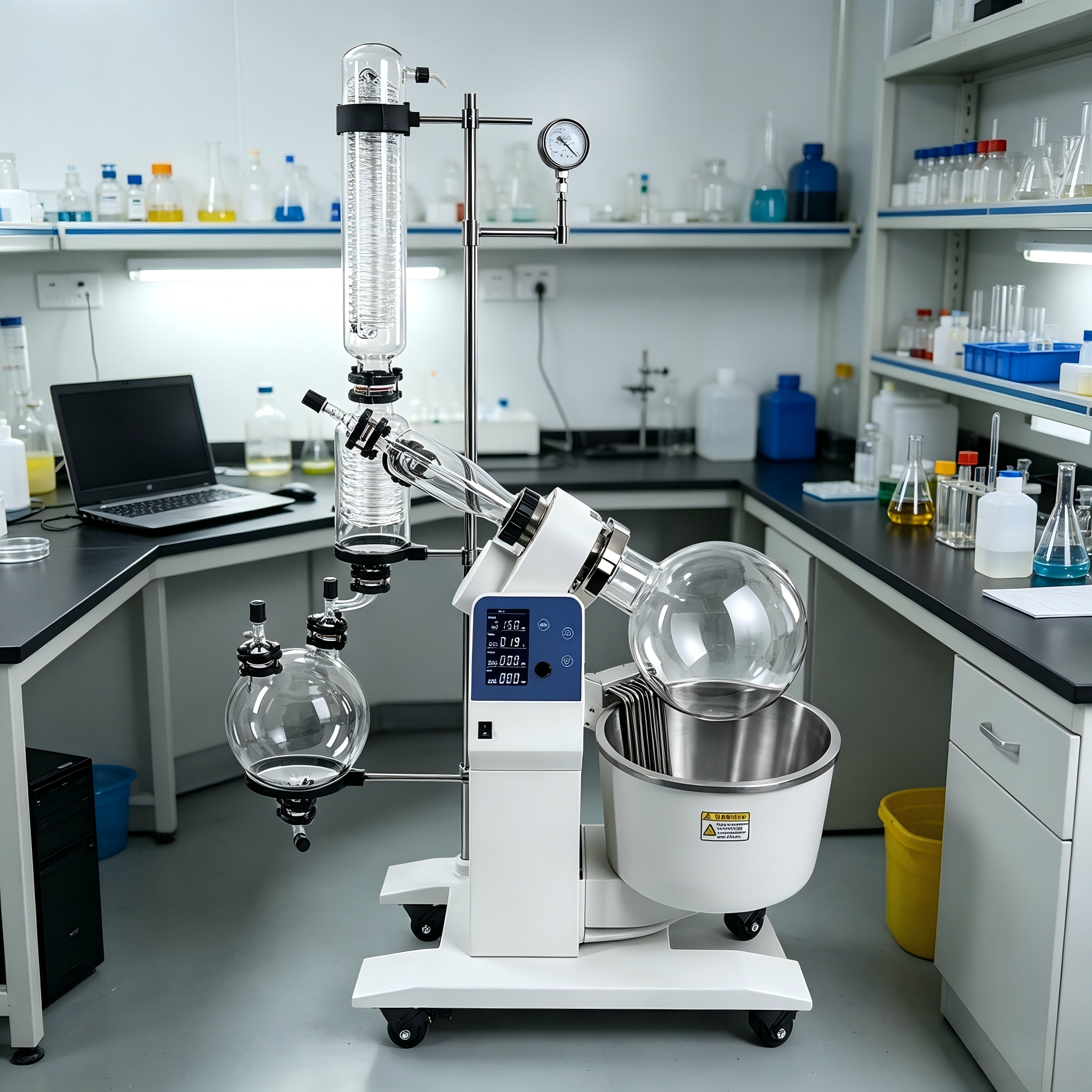

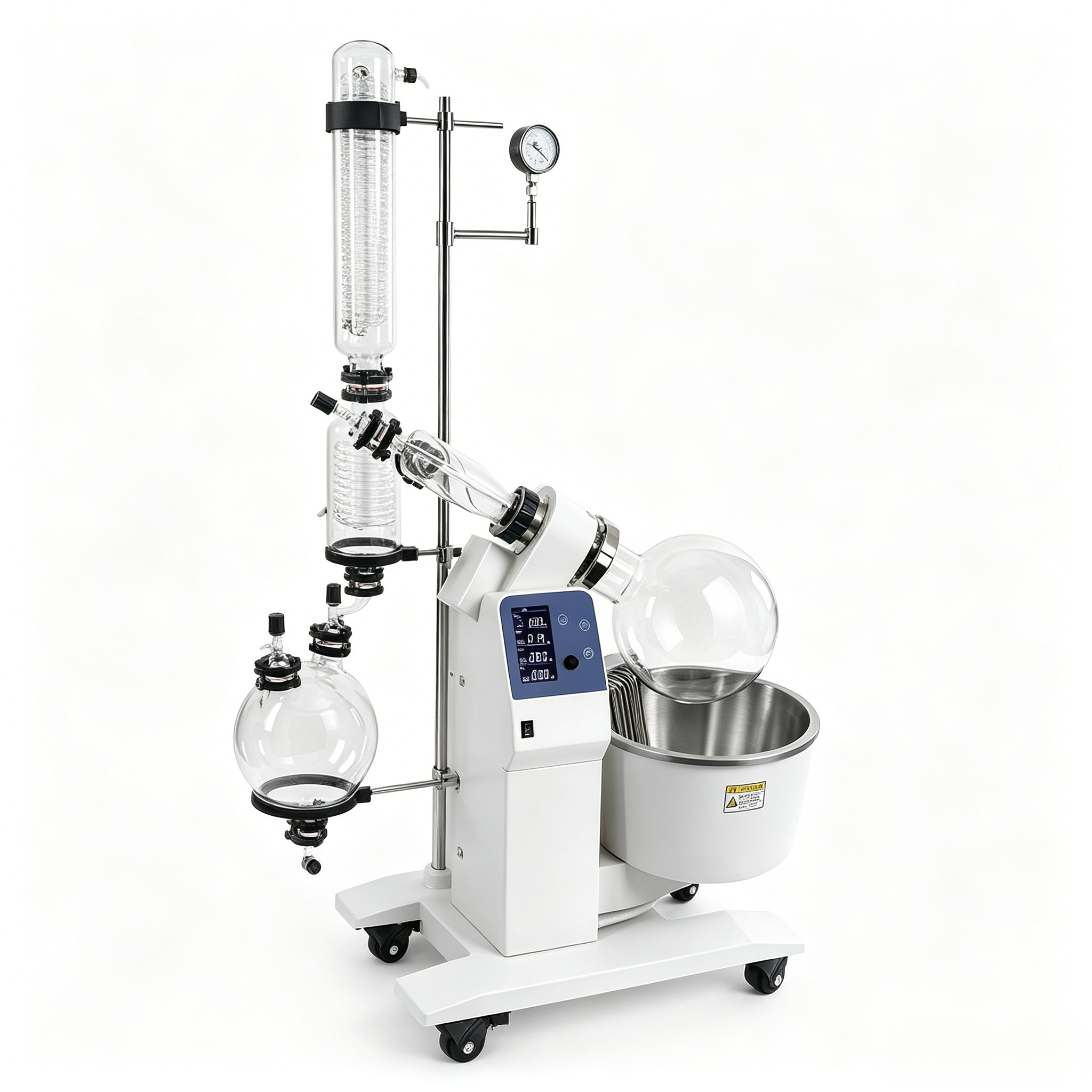

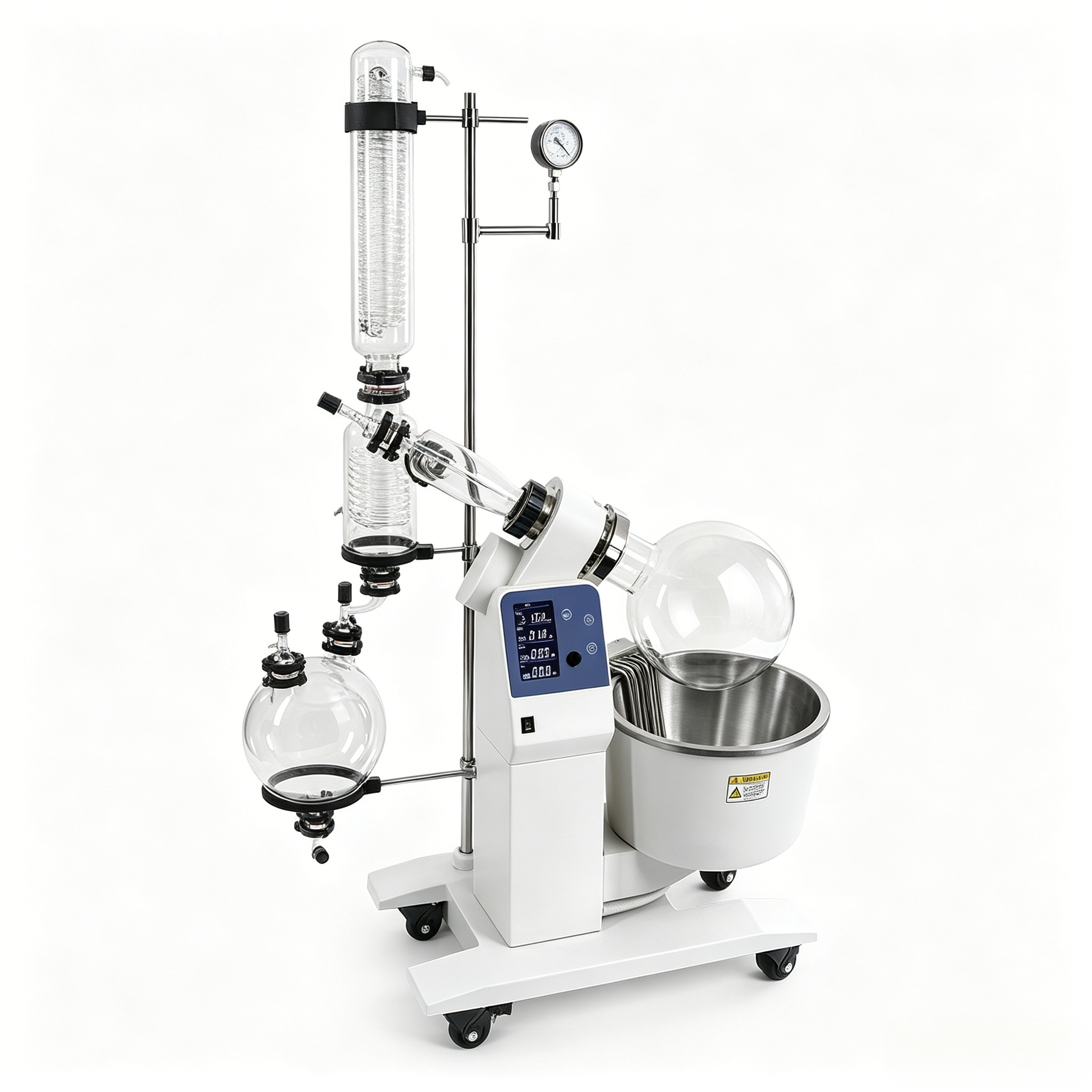

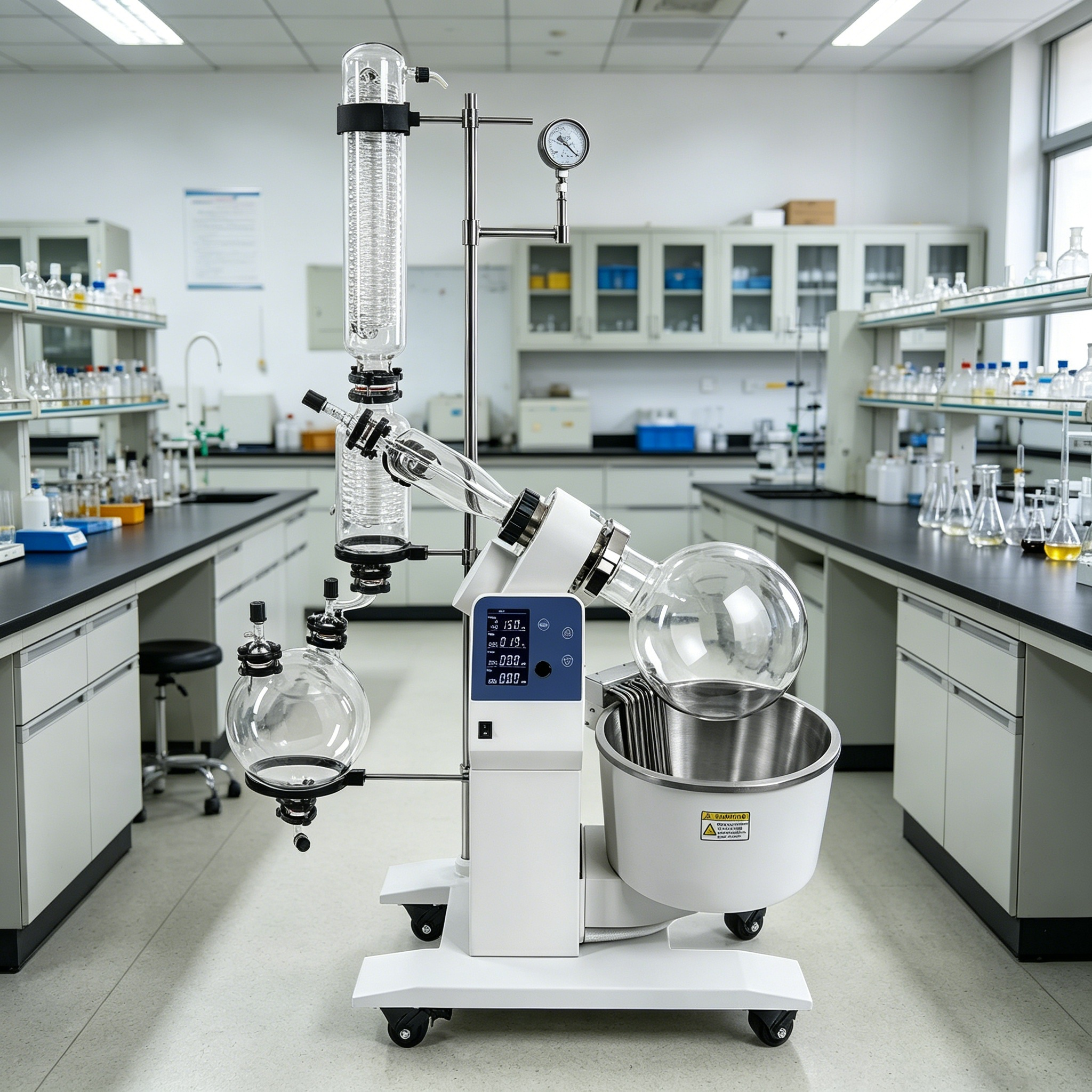

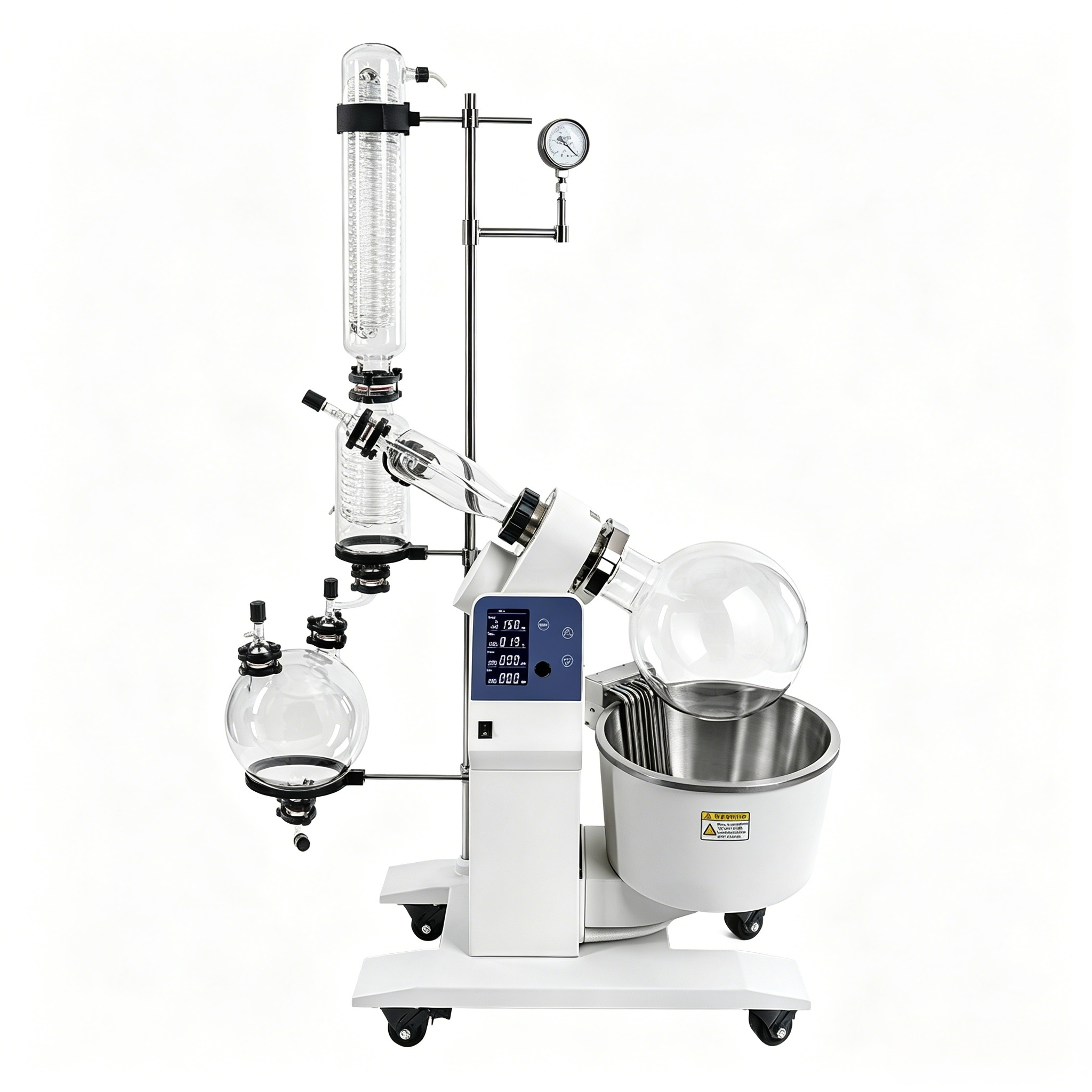

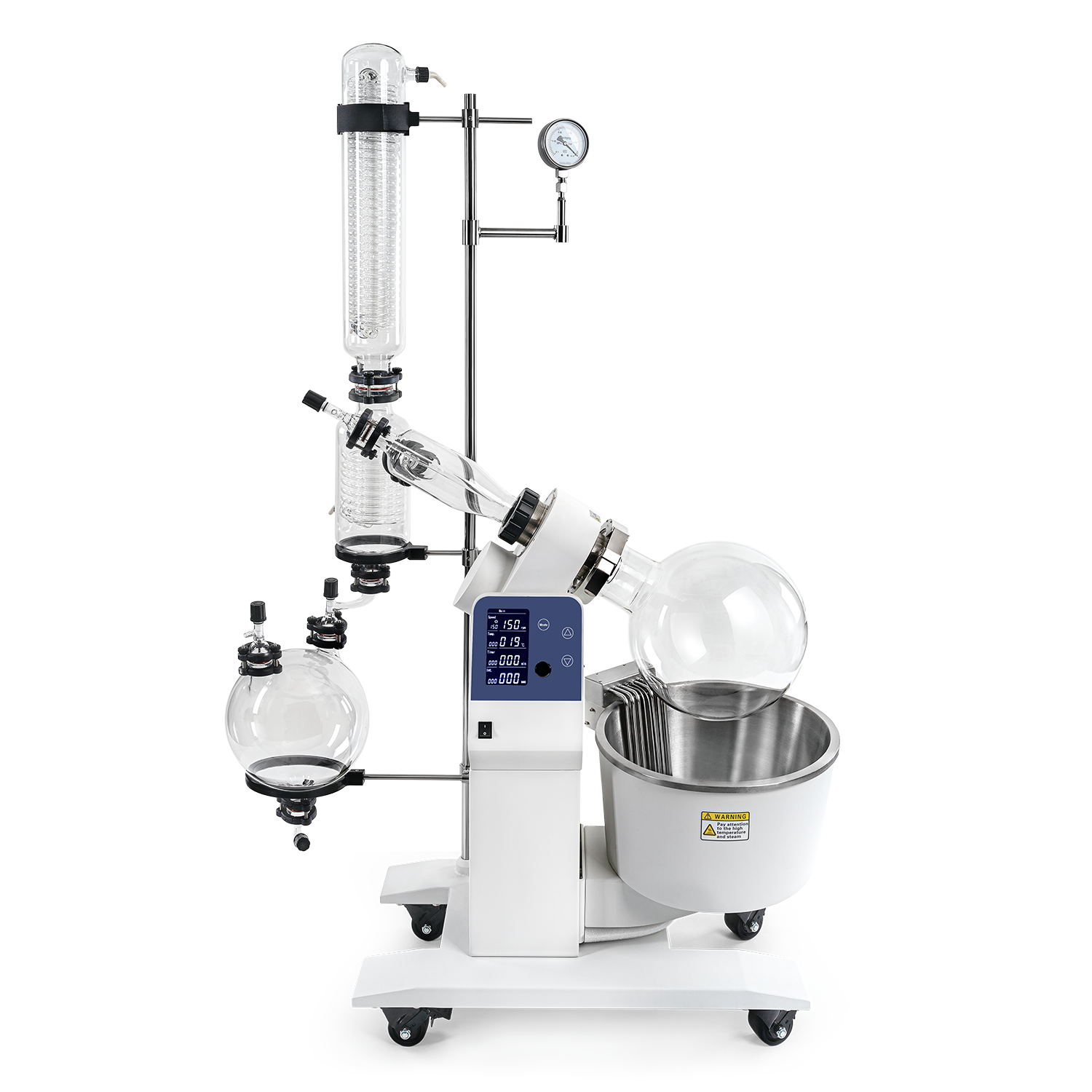

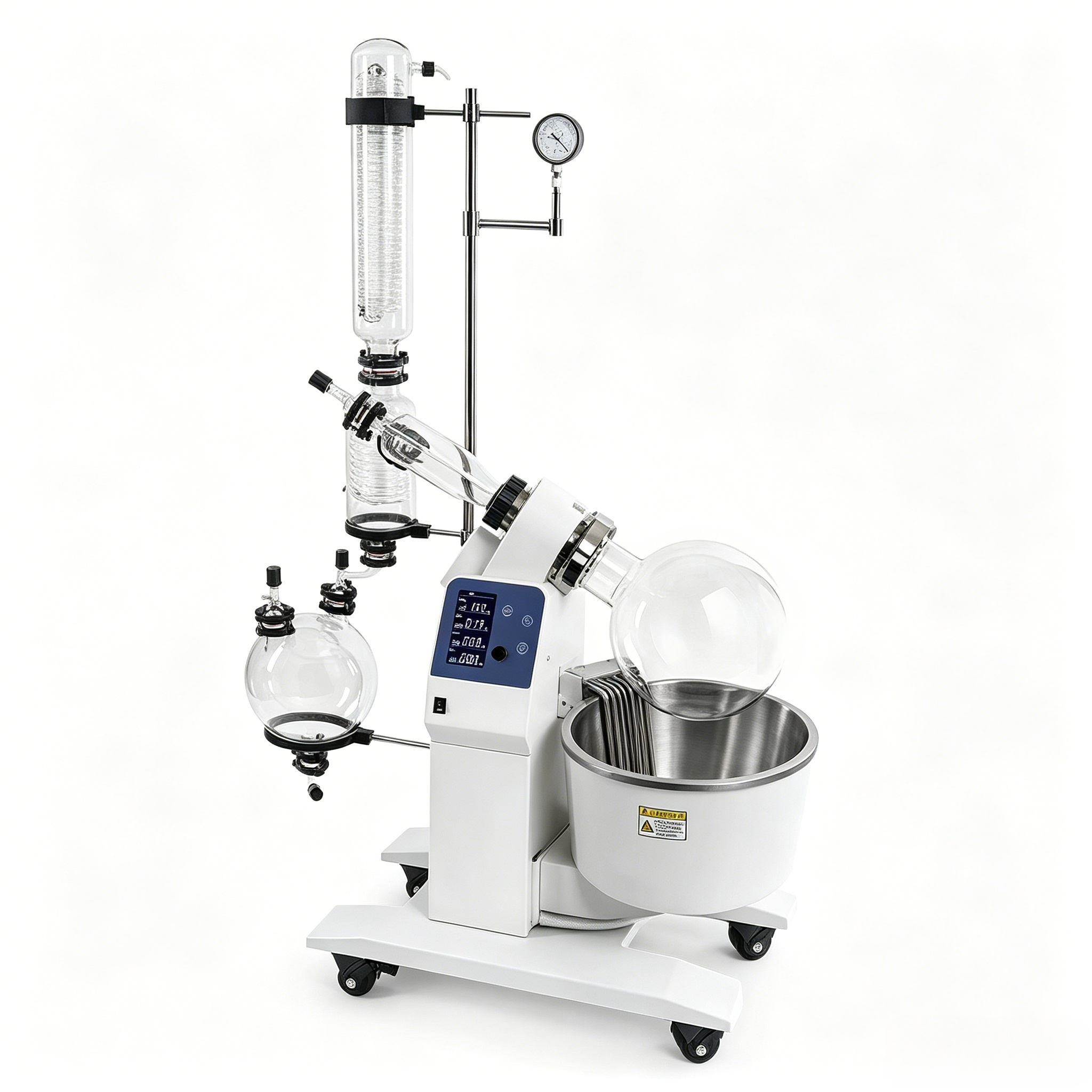

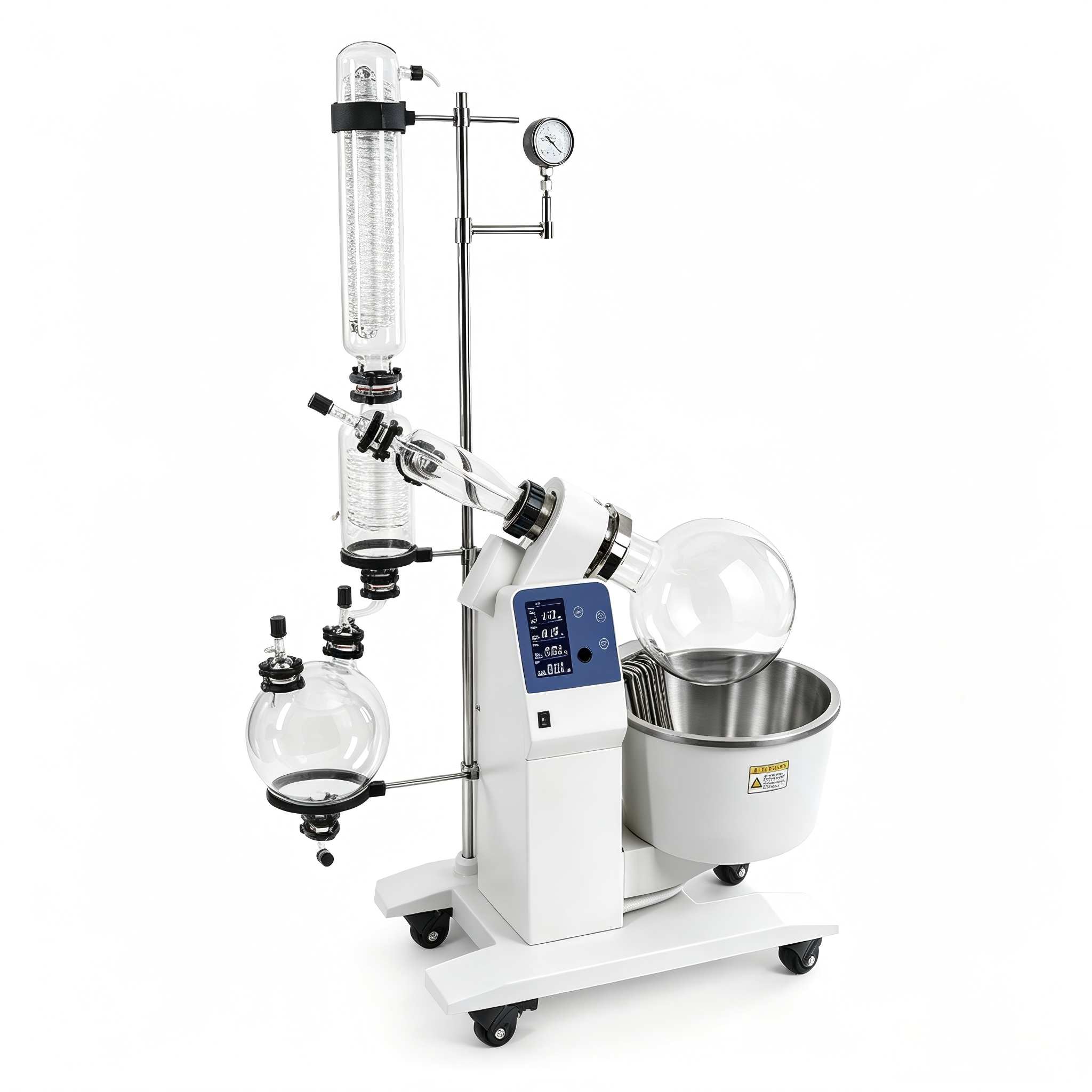

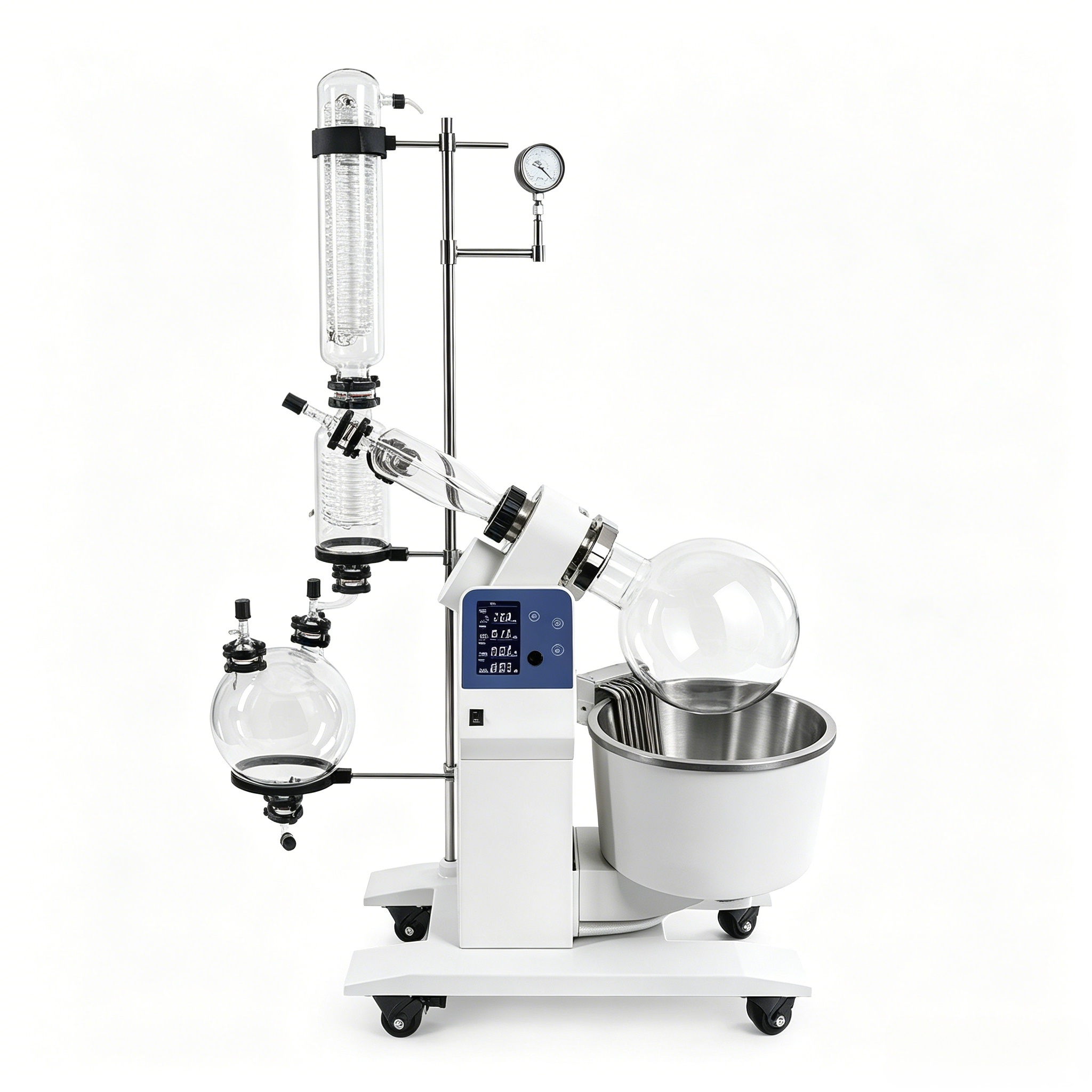

Industrial Digital Rotary Evaporator

• Wide-range bidirectional brushless rotation system: 20–200rpm stepless speed regulation, alternating clockwise & counterclockwise operation prevents sedimentation of powder suspensions, suitable for small-batch viscous & solid-containing samples.

• RT~180℃ dual water/oil PID temperature control: ±1℃ high precision water bath protects heat-sensitive materials, oil bath extends working temp up to 180℃ for high-boiling reagents, one-switch mode shift between water & oil heating.

• Manual dual-stage main & auxiliary lift: 110mm primary manual lift plus 100mm auxiliary lift enables flexible positioning for glassware, accurate adjustment of sample immersion depth.

• LED triple-parameter simultaneous digital display: Single screen clearly shows rotation speed, real-time bath temperature and interval timer, intuitive workflow for new operators to set up trials quickly.

• 1–999s interval cyclic timer: Supports short-cycle reciprocating evaporation & drying, auto on-off cycle eliminates repeated manual operation.

• Two optional high-efficiency condenser sizes: 1200 / 1700cm² cooling surface area for selection, larger heat exchange area improves solvent recovery rate for samples with different volatility.

• PTFE double-spring sealing structure: Double corrosion-resistant rings maintain air tightness under long-term negative pressure, compatible with acid, alkali and various organic extraction solvents for continuous distillation.

• Multi-dimensional interlock safety protection: Triple safeguards including 220℃ overheat alarm, auto power-off on boil-dry and high-temperature warning above 50℃; heating cuts off automatically when bath is empty to eliminate hazards.

• USB data communication port: Supports experimental data export and local firmware upgrade, traceable data archiving to meet compliance lab record standards.

• Lightweight wide-voltage body: Main unit only 7kg, heating bath 3kg with compact footprint to save bench space; auto-adaptive 100–240V voltage for direct use in domestic and overseas labs.

• Glassware assembly & selection: Install 50–3000mL evaporating flask as required; explosion-proof film glass kit is optional for enhanced safety, match with selected condenser and inspect air tightness of PTFE double spring sealing ring.
• Heat medium filling & power connection: Fill pure water for water bath mode, heat conduction silicone oil for oil bath mode; connect auto-adaptive 100–240V power supply, LED screen completes full-unit self-check.
• Experimental parameter programming: Set bidirectional rotation speed 20–200rpm, target bath temperature and 1–999s interval cycle timer on screen, switch water/oil heating mode with single button.
• Manual lifting positioning: Operate dual-stage main & auxiliary lift to adjust and fix immersion depth of evaporation flask into heating medium, activate clockwise & counterclockwise intermittent rotation.
• Vacuum distillation workflow: Connect external vacuum pump and vacuum controller to build negative pressure, PID system maintains constant temperature automatically; condenser continuously condenses and recovers solvent, interval cycle timer can be enabled for short-cycle drying trials.
• Data export & firmware upgrade (optional): Export full runtime temperature & speed records via USB port after test completion for lab report archiving; local firmware upgrade is also supported through USB.
• Post-test shutdown sequence: Release system vacuum first, manually lift heating bath away from evaporation flask, stop rotation and heating; drain bath medium after unit & glassware cool down to ambient temperature, clean residual materials on sealing fittings.
• Long-term storage protection: Cut off power supply, wipe unit surface and drain residual solvent; detach glassware for separate storage to prevent PTFE sealing ring aging under long-term compression.

• Shockproof packaging: Standard protective packaging equipped with integrated high-density shock-absorbing inner cushion materials separating main unit, heating bath, glass components, power cord and printed user manuals for collision damage prevention during long sea & land transit; reinforced protective structure will be applied by default for bulk export orders.

• Full package contents: LRE-2L-S compact rotary evaporator main unit, heating bath assembly, optional matched glassware kit, 100–240V wide-voltage power cord, printed factory full user manual, factory temperature & evaporation capacity quality inspection certificate.

• Note on reference package size & gross weight: Outer package dimensions and full-set gross weight are only industry estimated reference values, final specifications subject to actual factory outgoing packaging.

• Lead time rule: In-stock standard models ship within 3–10 working days; orders with custom explosion-proof glassware and optional 1700cm² condenser take 15–30 working days.

• Logistics options: Sea freight, air freight and LTL full-truck road transport available, dedicated logistics line for bulk overseas export of lab-scale pretreatment instruments.

Selling Units

Single item

Package size perbatch

95*65*70

Gross weight perbatch

36kg

Name

Qty.

Main unit

1

Vertical glass assembly

1

Operating manual

1

• Specify required condenser size (1200/1700cm²), optional explosion-proof glassware demand, order quantity and destination country to receive tiered bulk discount quotation
• Free customized full distillation matching scheme for university teaching and small-scale R&D labs, official PI issued within 24 working hours
• Exclusive tiered discounted pricing available for bulk procurement from colleges, universities and small R&D laboratories
