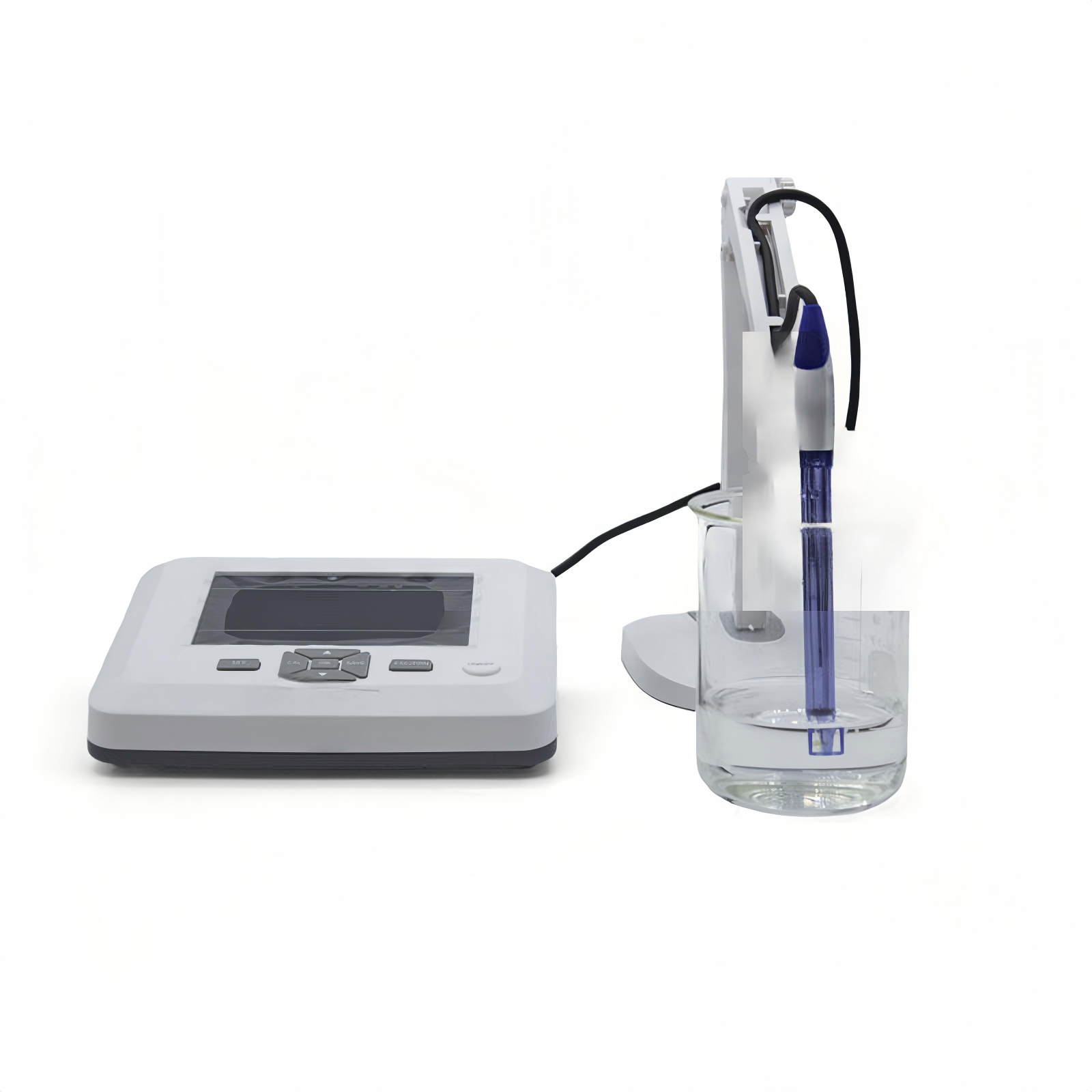

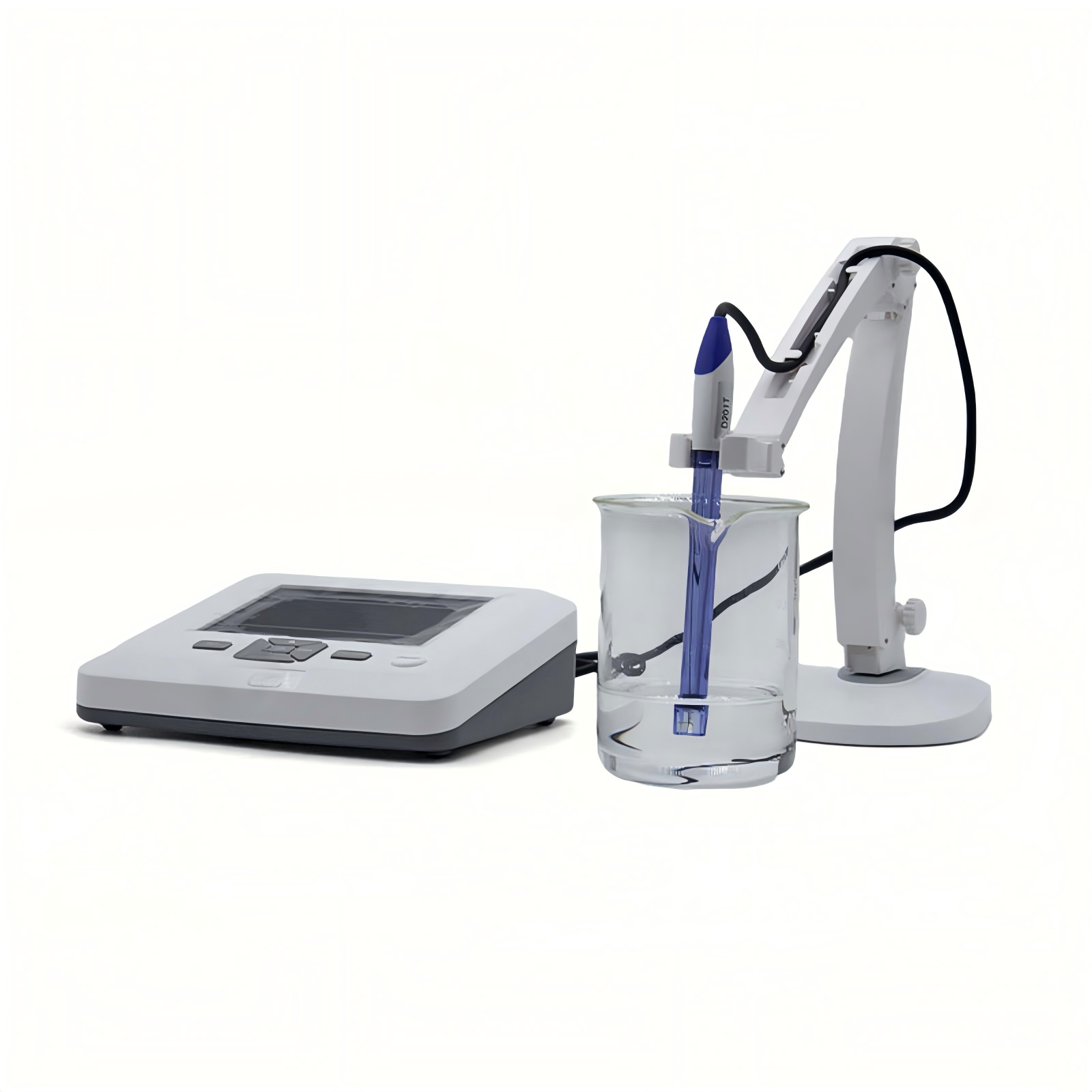

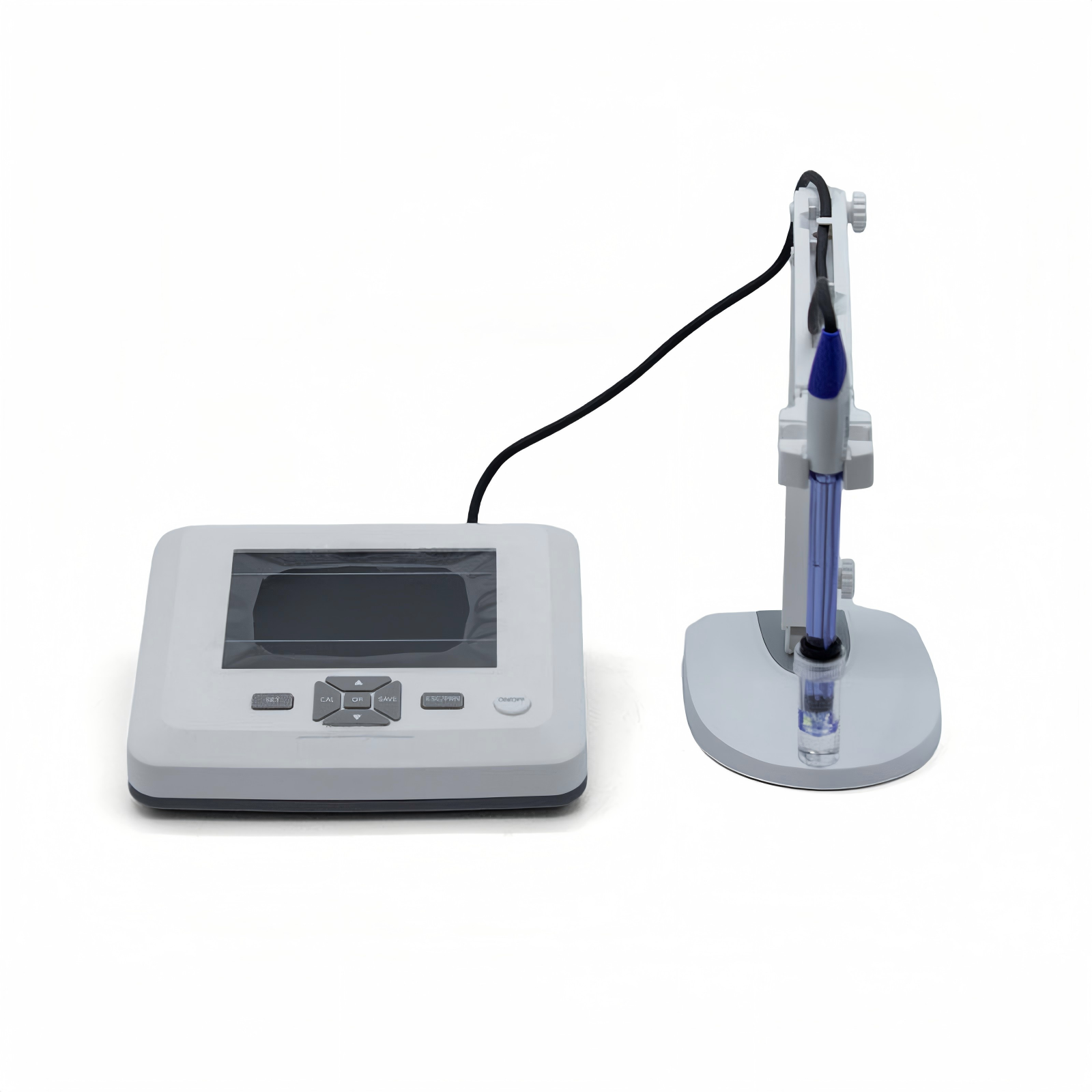

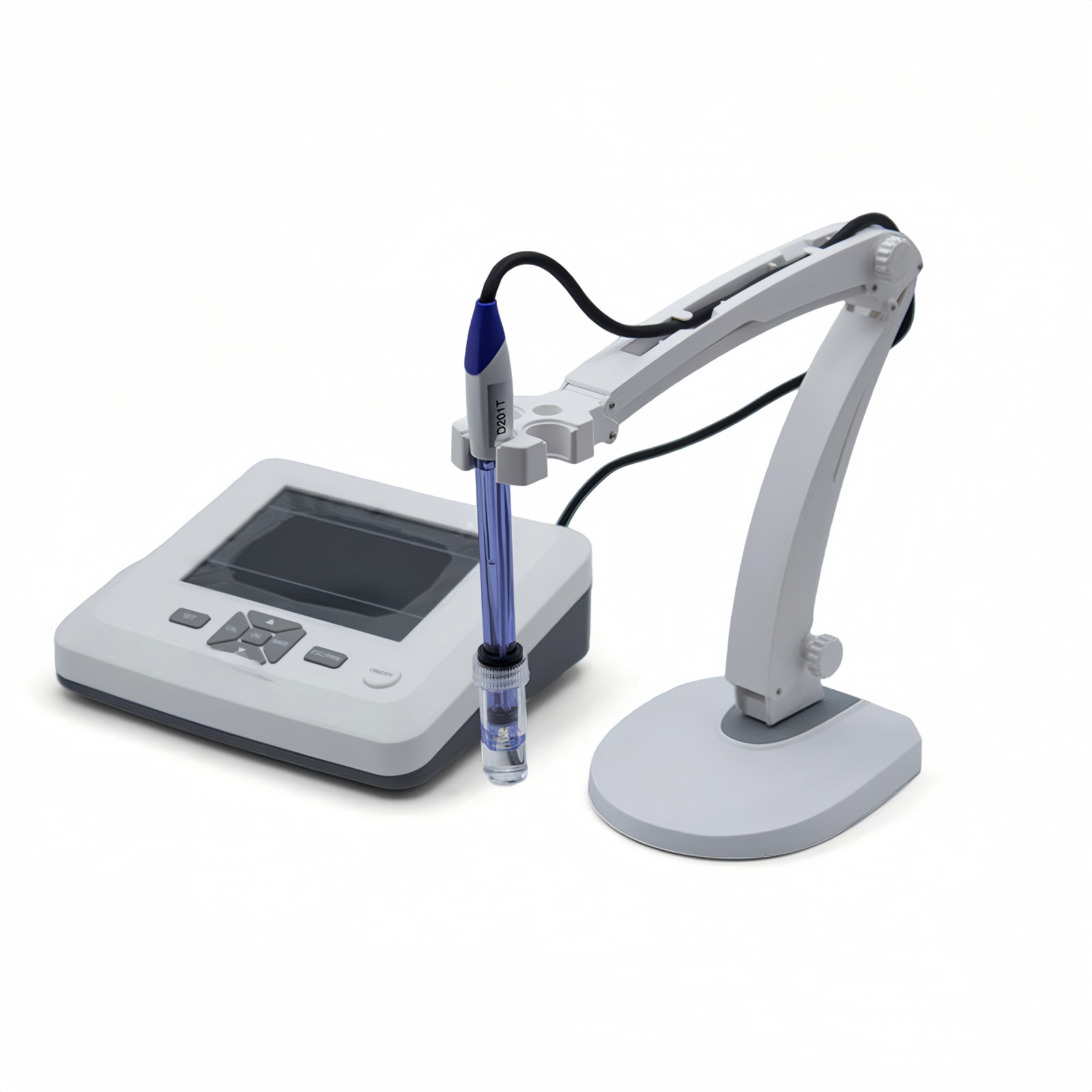

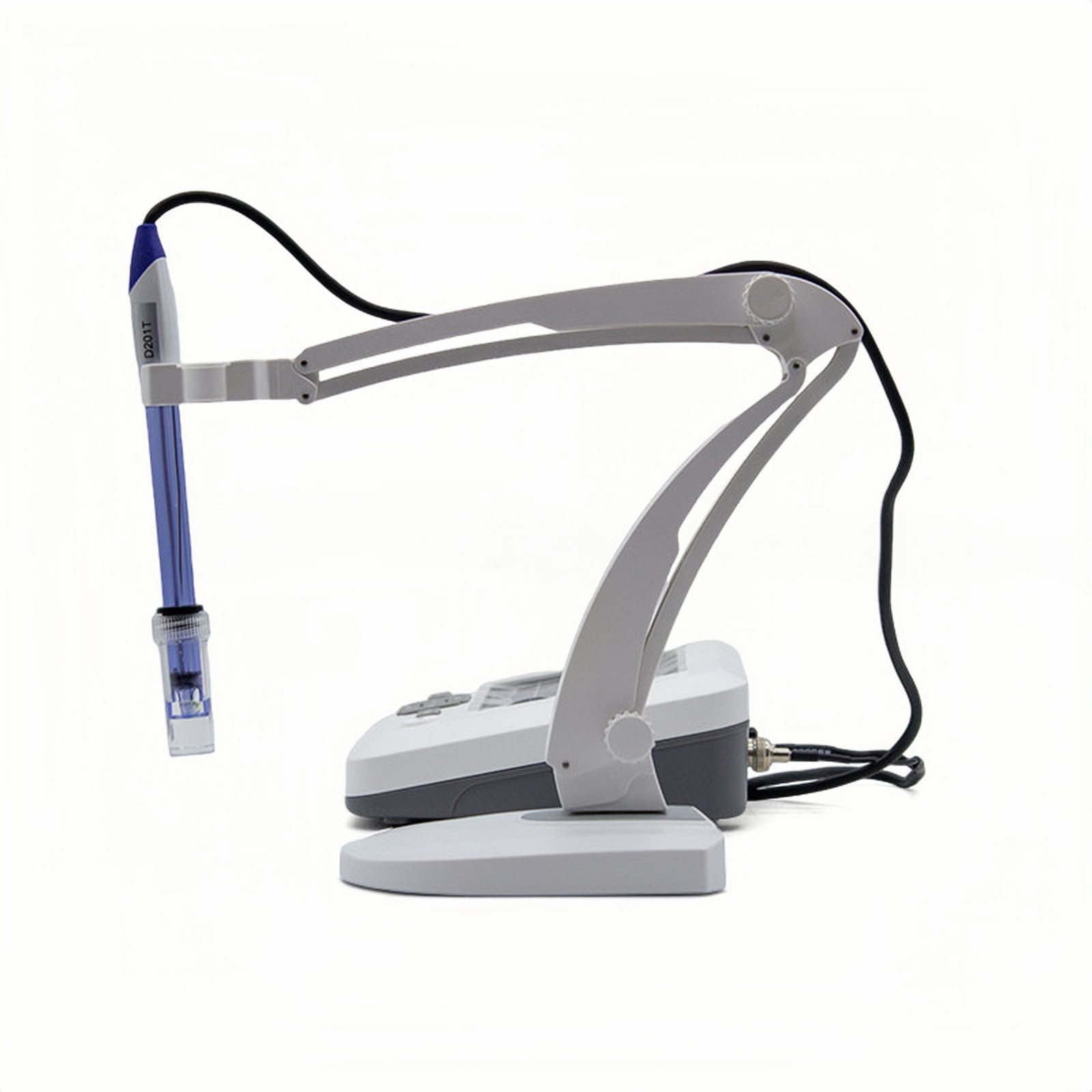

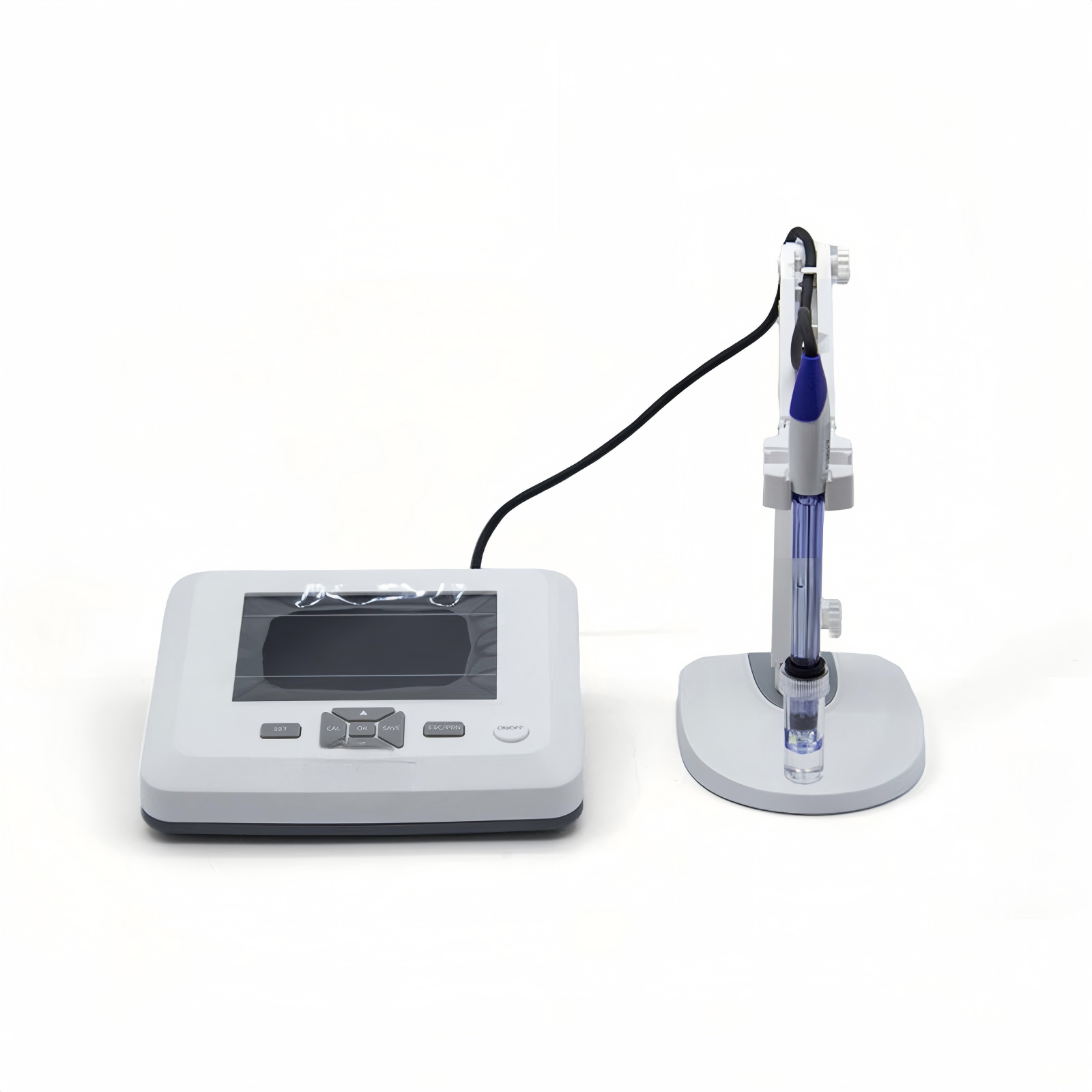

Name: Benchtop Multi-Parameter Button Meter
Brand: labcarta Technology Co., Ltd.
SKU: LBPC100/LBPD100/LBCD100/LBPCD100
Availability: InStock

This button-type benchtop multi-parameter water analyzer series has 4 models, supporting pH+conductivity, pH+dissolved oxygen, single conductivity and simultaneous pH+conductivity+dissolved oxygen testing respectively. It fits biotech, pharmaceutical, university education, food, environmental water quality and third-party testing labs for water quality QC, R&D sample detection, surface/aquaculture water monitoring and purified water testing.

It solves common drawbacks of traditional water meters: tiny display, fragile touch screen prone to water damage, complicated calibration, limited data storage, single export method and unstable readings affected by temperature, pressure and salinity. Equipped with 7-inch high-resolution white backlight screen, physical buttons deliver stable performance under humid lab conditions. It integrates intelligent functions: auto calibration, automatic temperature compensation and stable reading prompt, with storage capacity for 450 readings. Data can be exported via flash disk or wireless printer. A full set of plastic electrodes, calibration consumables and flexible adjustable probe holder are supplied as standard. IP54 protection class plus multi-dimensional auto compensation eliminate environmental interference to guarantee high repeatability of test data. One unit covers single/dual/triple water parameter testing to cut multi-instrument procurement cost. The durable button structure extends service life for long-term frequent bench operation.

7-inch high-definition white backlight screen: Clear readout under strong light or dim lab environment, soft white background reduces visual fatigue during long-time testing.
Physical button operation: More durable than water-sensitive touch screens, stable under splashes & high humidity with lower failure rate and longer service life.
Full intelligent auto routines: Auto calibration, full-range ATC auto temperature compensation, stable reading indicator and calibration completion reminder to cut manual supervision and human reading error.
Large on-board data storage: 450 independent readings stored locally to avoid accidental data loss during batch sample testing.
Dual data export modes: Flash disk local copy + wireless printer hard-copy printout, satisfying both electronic ledger and paper original record archiving demands.
Full environmental compensation system: Universal auto temperature & barometric compensation for all models; DO-integrated units add 0–45ppt manual salinity compensation for accurate seawater & high-salinity aquaculture correction.
Complete standard lab accessories: Flexible height-adjustable probe holder, power adapter, full plastic test electrodes, matching calibration buffer & DO membrane consumables included for out-of-box full testing without extra accessory purchase.
IP54 protection class: Resist minor bench splashes of reagent and water to extend service life on open lab workstations.
Optional multi-model matching: 4 versions precisely fit different lab test items without redundant functions to control procurement budget.

Specifications			LBPC100	LBPD100	LBCD100	LBPCD100
Parameter		pH/mV.°C	√	√	-	√
		mV(ORP).°C	√	√	-	√
		Cond/TDS/Sal./Res.°C	√	-	√	√
		DO.°C	-	√	√	√
pH	Measurement range	(-2.00~20.00)pH	√	√	-	√
	Resolution	0.1/0.01	√	√	-	√
	Accuracy	±0.01pH ±one digit	√	√	-	√
	Calibration points	1,2,3pts automatic	√	√	-	√
	ATC range	(0.0~100.0)°C/(32.0~212.0)°F	√	√	-	√
ORP	Measurement range	(-1999.9~+1999.9) mV	√	√	-	√
	Resolution	0.1/1	√	√	-	√
	Accuracy	±0.1%F.S ±one digit	√	√	-	√
Conductivity	Measurement range	0~200.0mS/cm, auto-ranging: 0~19.99μS/cm; 20.0~199.9μS/cm; 200~1999μS/cm; 2.00~19.99mS/cm; 20.00~199.9mS/cm; TDS:0~100.0g/L Resistivity:5.00Ω·cm~100.0MΩ·cm Salinity:0~100 ppt	√	-	√	√
	Calibration points	one point	√	-	√	√
	Resolution	0.001	√	-	√	√
	ATC range	(0.0~50.0)°C/(32.0~122.0)°F	√	-	√	√
	Accuracy	±1.0%F.S ±one digit	√	-	√	√
DO	Measurement range	(0.00~20.00)mg/L	-	√	√	√
	Accuracy	±0.30 mg/L	-	√	√	√
	DO saturation	(0.0~200.0)%	-	√	√	√
	Automatic barometric pressure compensation	(0~200.0)kPa	-	√	√	√
	Automatic temperature compensation	(0.0~50.0)°C/(32.0~122.0)°F	-	√	√	√
	Manual salinity compensation	0~45ppt	-	√	√	√
Temperature	Measurement range	(0.0~100.0)°C/(32.0~212.0)°F	√	√	√	√
	Accuracy	±0.2°C	√	√	√	√
Others	Data export	Flash disk/Printer	√	√	√	√
	Power supply	DC12V	√	√	√	√
Test kit	Meter	Meter	√	√	√	√
	Plastic ATC pH probe D201T	√	√	-	√
	Plastic ATC Cond probe DCON201T, K=1.0	√	-	√	√
	Polarographic DO probe DDO01-2M, cable length:2m	-	√	√	√
	pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each	√	√	-	√
	Standard Cond solution: 84μS/1413μS/12.88mS/cm, 50mL, one for each	√	-	√	√
	Membrane refill solution: DDOS-01, 30mL, 1btl	-	√	√	√
	Membrane sensor caps DDOSC: 3pcs/group, 1pkg	-	√	√	√
	Power adaptor:1pc	√	√	√	√
	Flexible probe holder DF01:1pc	√	√	√	√

Model Matching Selection: LBPC100 for pH+conductivity only; LBPD100 for pH+dissolved oxygen; LBCD100 for single purified water conductivity test; LBPCD100 for simultaneous three-indicator batch sample testing.
Accessory Assembly: Mount matched test electrode on DF01 flexible height-adjustable holder, connect electrode cable to corresponding meter port, place magnetic stir bar inside sample beaker for homogenization.
Auto Calibration Routine: Enter calibration menu via physical buttons, immerse electrode into supplied calibration buffer; meter automatically completes 1/2/3-point pH or single-point conductivity calibration. For DO models, input sample salinity value manually to activate auto barometric & temperature compensation.
Sample Measurement & Reading: Submerge probe into water sample; the unit detects ambient temperature & pressure to apply automatic compensation, and triggers stable reading reminder once value stabilizes for manual record or one-click data storage.
Data Export & Archiving: After all tests, insert flash disk to copy all 450 archived readings; optional wireless printer can print hard-copy raw records on-site if required.
Daily Maintenance & Storage: Rinse electrodes after measurement; replace DO membrane caps & refill solution as needed for DO models, fold probe holder, wipe meter surface and store dust-free.

Select model based on routine test indicators
Purified water & reagent pH+conductivity QC: LBPC100 supplied with plastic pH & conductivity electrodes for pharmaceutical & pure water labs;
Surface water & aquaculture pH+DO monitoring: LBPD100 with 2m long polarographic DO probe for environmental & aquaculture testing;
Single purified/deionized water conductivity/TDS test only: LBCD100 cost-effective single-parameter simplified unit;
Third-party testing & biopharma R&D batch multi-indicator testing: LBPCD100 three-in-one meter for simultaneous triple measurement to raise daily testing throughput.
Screen selection based on lab humidity
High humidity, frequent bench splashes & shared student teaching labs: Button operation model is preferred; physical buttons avoid water-induced failure common to touch screens and deliver lower long-term failure rate.
Compensation function for saline water samples
Seawater & high-salinity aquaculture samples: LBPD100 & LBPCD100 support 0–45ppt manual salinity compensation to correct DO reading deviation caused by salt content;
Regular fresh water & reagent samples: All models feature automatic temperature & barometric compensation without manual parameter setup.
Data archiving demand
Electronic ledger for tender & lab filing: Flash disk export enables permanent PC data storage;
Mandatory paper raw record retention: Optional wireless printer for real-time hard-copy printout of each reading.
Long-term consumable cost control
Full set of plastic electrodes, calibration buffers and DO membrane refill consumables are supplied as standard for immediate out-of-box use, eliminating separate multi-time electrode & reagent procurement to cut total supply expenditure.

Model Matching Application Scenarios

LBPC100: Dual parameter pH+conductivity button benchtop meter, ideal for university basic teaching, pharmaceutical reagent pH control and daily purified water conductivity QC.

LBPD100: pH+DO dual parameter meter for river surface water, aquaculture water and waste water environmental monitoring; long cable DO probe fits large-volume beaker samples.

LBCD100: Dedicated single conductivity analyzer for pure water, deionized water and food raw material TDS/salinity testing, an economical option for basic labs.

LBPCD100: Integrated three-parameter button meter for third-party testing and biopharmaceutical R&D labs, finishing pH, conductivity and DO testing for each batch sample in one single run to shorten test cycle.

Target Buyers: University education labs, biopharmaceutical research institutes, pharmaceutical & chemical QC labs, food testing facilities, environmental water monitoring stations, industrial water treatment QC labs.

Shockproof protective packaging: Thick rigid carton with integrated custom foam insert separating main unit, glass calibration bottles and electrode probes to prevent breakage & extrusion damage during transit.
Standard full set packing: Button benchtop meter main unit, matched complete plastic test electrodes, DF01 flexible probe holder, power adapter, full set calibration buffer, DO membrane caps & refill solution (DO-equipped models), operation manual.
Lead time: In-stock standard models ship within 3–10working days; custom electrode & color orders take 15–30working days.
Logistics options: Sea freight, air freight and global door-to-door courier available for bulk complete overseas lab equipment orders.
Outer package specification: Full set packed per individual unit with separated fixed accessories to reduce per-unit international shipping cost for bulk procurement.

Selling Units	Single item	Package size perbatch	604313cm
Gross weight perbatch	3.1kg

Name	Qty. (DPD100)	Qty. (DPC100)	Qty. (DCD100)	Qty. (DPCD100)
Main unit	1	1	1	1
pH composite electrode	1	1	-	1
Conductivity electrode	-	1	1	1
Dissolved oxygen electrode	-	-	-	1
Electrode stand	1	1	1	1
pH calibration solutions (4.00/6.86/9.18)	3 bottles	3 bottles	-	3 bottles
Conductivity calibration solution	-	3 bottles	3 bottles	3 bottles
Dissolved oxygen zero solution	-	-	-	1 bottle
Power adapter	1	1	1	1
Operating Manual	1	1	1	1
Certificate of Quality	1	1	1	1

Contact customer service to receive full documents: integrated complete technical datasheet, equipment operation manual, product drawings and brochure for lab filing and water quality testing tender submission.

1.What test parameters do LBPC100 / LBPD100 / LBCD100 / LBPCD100 measure respectively?

LBPC100: pH, ORP, Conductivity, TDS, Salinity, Resistivity, Temperature

LBPD100: pH, ORP, Dissolved Oxygen DO, Temperature

LBCD100: Conductivity, TDS, Salinity, Resistivity, DO, Temperature

LBPCD100: Full parameters including pH, ORP, full conductivity series and DO

Screen size and backlight type of the meter?

7-inch high-resolution display with white backlight, operated via physical buttons.
IP protection class and power supply mode?

IP54 dustproof & splash-proof bench protection; uniform external DC12V power adapter, no built-in rechargeable battery.
Local data storage capacity and available export methods?

Up to 450 test readings stored locally; data export via flash disk, on-site report printing with optional wireless printer.
Original probe model supplied with each model?

LBPC100: D201T pH probe + DCON201T conductivity probe;

LBPD100: D201T pH probe + 2m DDO001-2M DO probe;

LBCD100: DCON201T conductivity probe + DDO001-2M DO probe;

LBPCD100: Complete set of D201T pH, DCON201T conductivity and DDO001-2M DO probes.
Calibration rules for pH, conductivity and DO?

pH supports automatic 1/2/3-point calibration; conductivity supports 1-point auto calibration; DO uses air zero calibration with dedicated membrane liquid.
Temperature measurement range, accuracy and ATC compensation range for each channel?

All models measure temperature from 0~100℃ with accuracy ±0.2℃; pH ATC range 0~100℃, conductivity & DO ATC range 0~50℃.
Three compensation functions equipped for DO measurement?

Auto barometric compensation (0~200kPa), auto temperature compensation (0~50℃), manual salinity compensation (0~45ppt).
Standard calibration consumables supplied with each model by factory default?

LBPC100: pH buffer solutions, conductivity standard solutions;

LBPD100: pH buffer, DO membrane refill liquid, DO sensor caps;

LBCD100: conductivity standards, full DO membrane consumables;

LBPCD100: Complete set of pH, conductivity and DO calibration consumables.
Universal accessories standard for all four models?

DC12V power adapter and DF01 adjustable flexible probe holder.
Core advantages of benchtop multi-parameter button meters vs portable pocket testers?

7-inch large screen fixed bench viewing, matched adjustable probe holder without hand holding, large 450-group storage, 24h continuous external power supply, IP54 anti-splash protection, more suitable for long-term static precise lab experiments.
Is wireless printer included in factory standard kit?

No, wireless printer is separate optional extended accessory, not supplied in original factory kit.
Does polarographic DO probe require regular membrane consumable replacement?

Yes, LBPD100/LBCD100/LBPCD100 are all supplied with DO membrane refill liquid and sensor caps, regular replacement is required to guarantee DO measurement precision.
Does the meter have indicator lights for stable reading and calibration completion?

Equipped with dual intelligent indicator lights to real-time prompt stable reading and calibration finish status, avoiding wrong data recording.
Is TDS conversion factor of conductivity adjustable manually?

Yes, the built-in TDS conversion factor can be customized to fit test standards of different water bodies.
Main applicable lab industries?

Biopharmaceutical labs, university teaching labs, third-party environmental testing institutes, aquaculture research, waste water treatment, pure water production and fine chemical labs.
