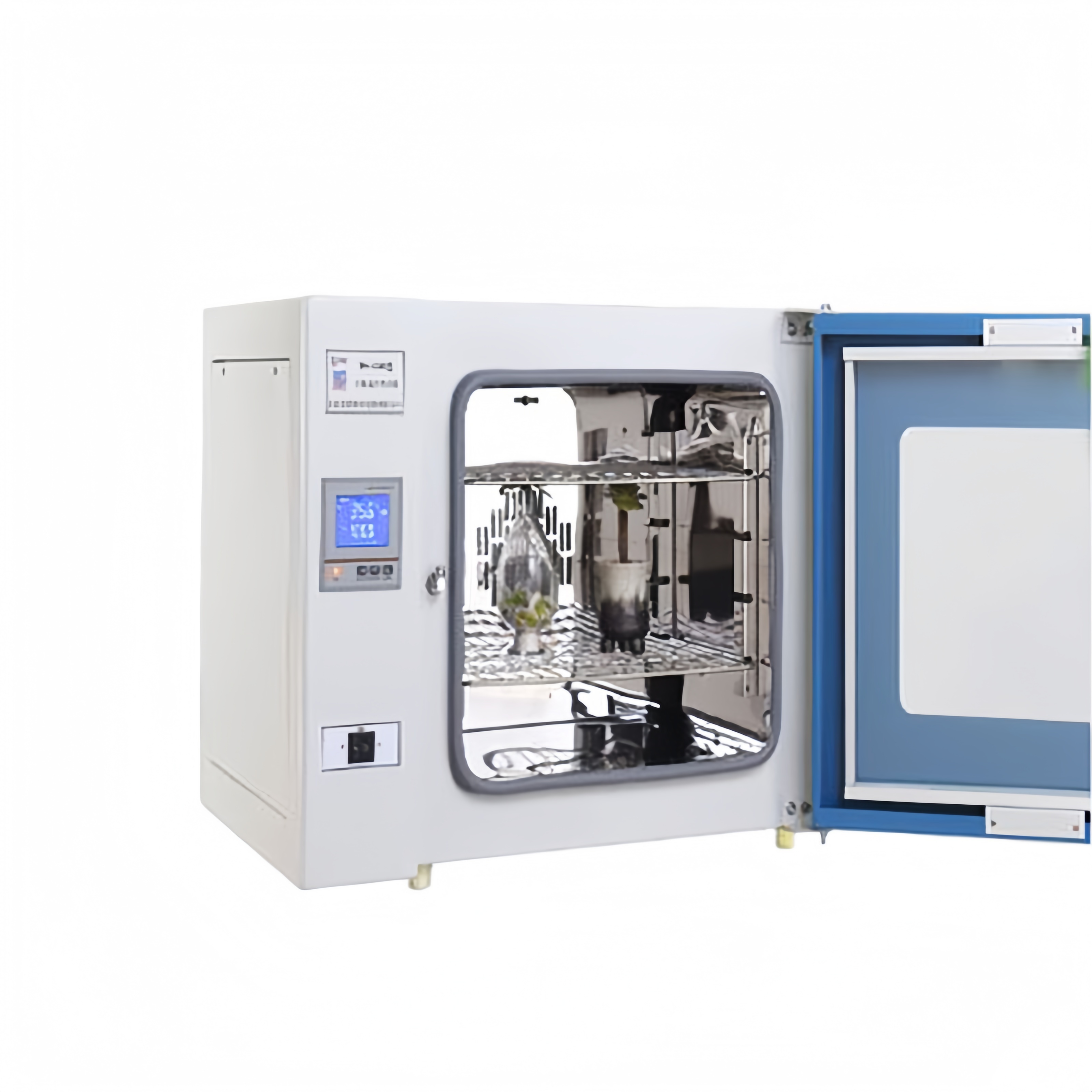

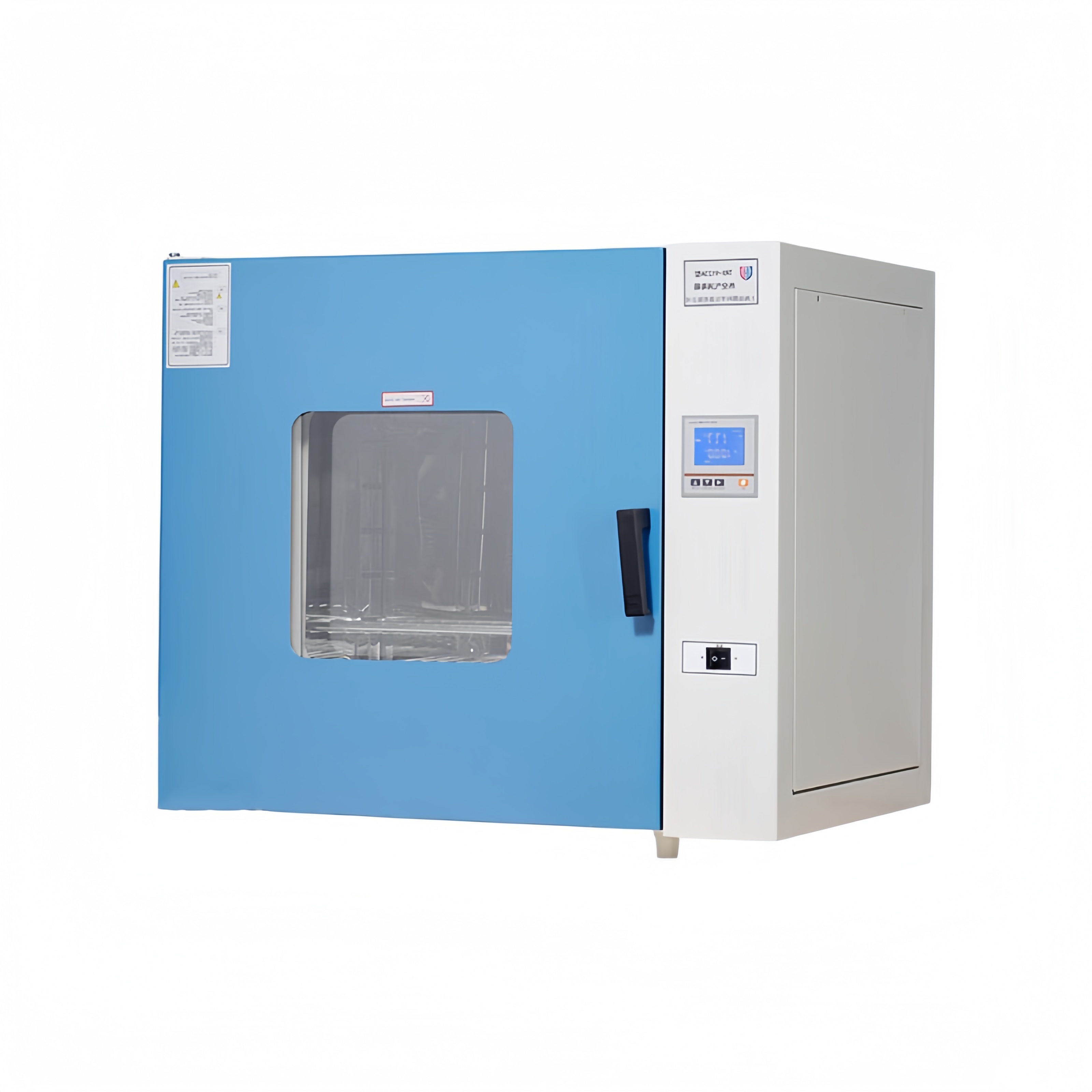

Digital display dry heat sterilization and mold incubator

Name: Digital display dry heat sterilization and mold incubator
Brand: labcarta Technology Co., Ltd.
SKU: 1601673437467 (TRX TPH)
Availability: InStock

No.1601673437467 (TRX TPH)

The TRX series dry heat sterilization box uses high-temperature dry air to kill microorganisms for sterilization. It is ideal for heat-resistant glass, metalware, Vaseline, oils and high-temperature resistant powder chemicals, but not for rubber, plastics or most drugs. The TPH series drying and cultivation dual-purpose box adopts forced air convection, widely used in universities, scientific research and production.

$964.70

Inner Size:

250*260*250

model:

TRX

TPH

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

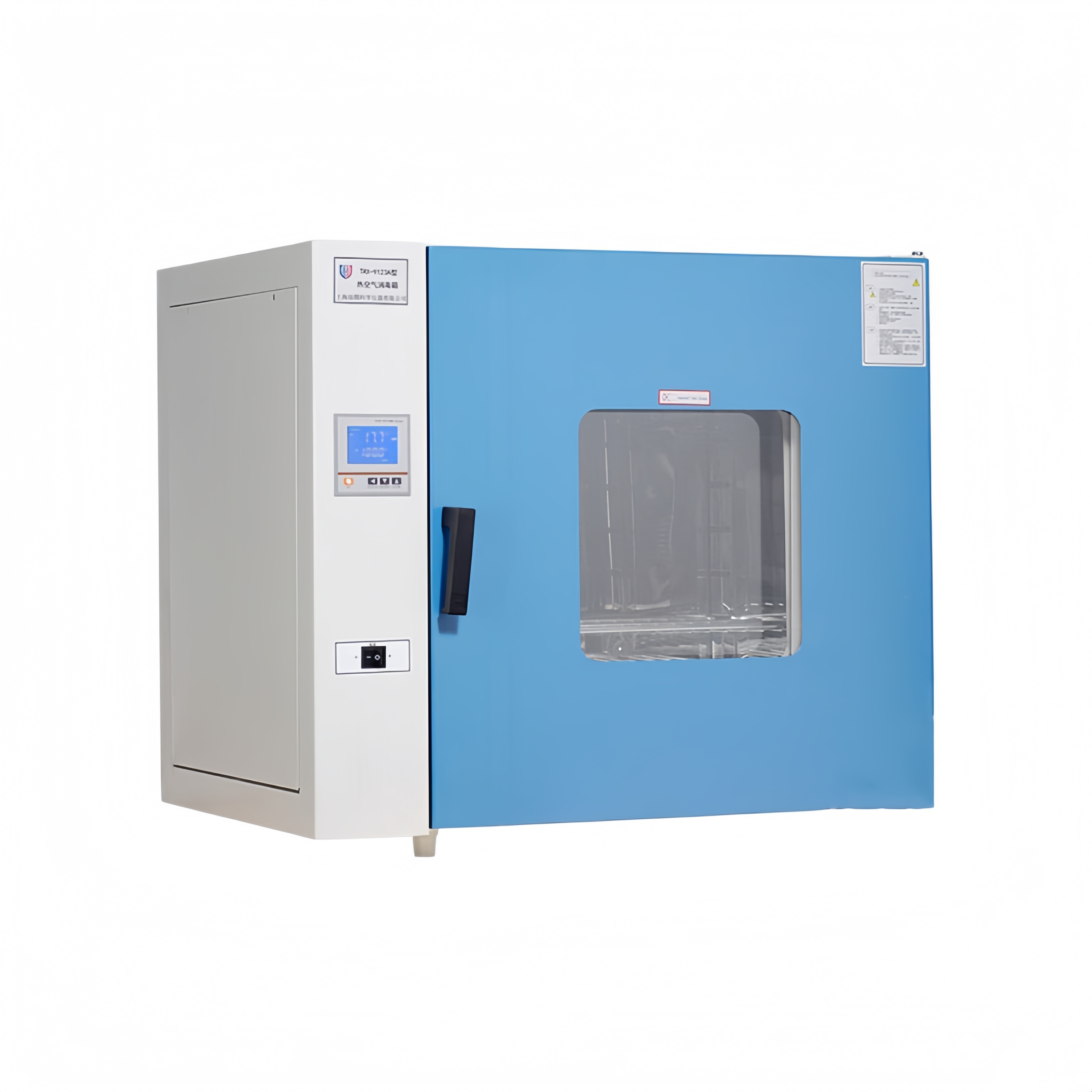

TRX series dry heat sterilization box adopts high-temperature dry heat air sterilization method. High-temperature dry air oxidizes and destroys microbial cell membrane structure to realize sterilization. It is suitable for dry heat sterilization of high-temperature resistant and moisture-free materials, metal utensils and glassware, not applicable for rubber and plastic.

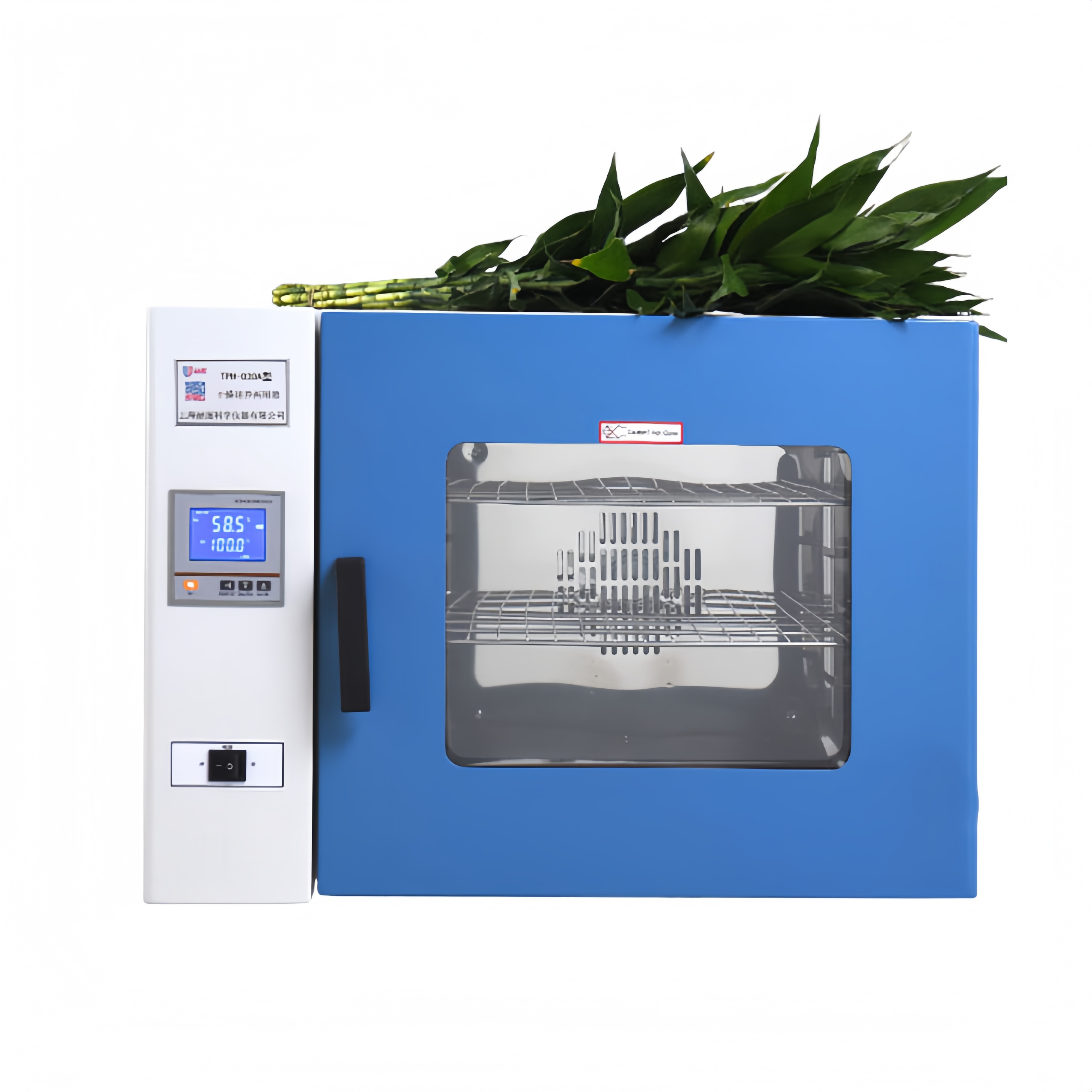

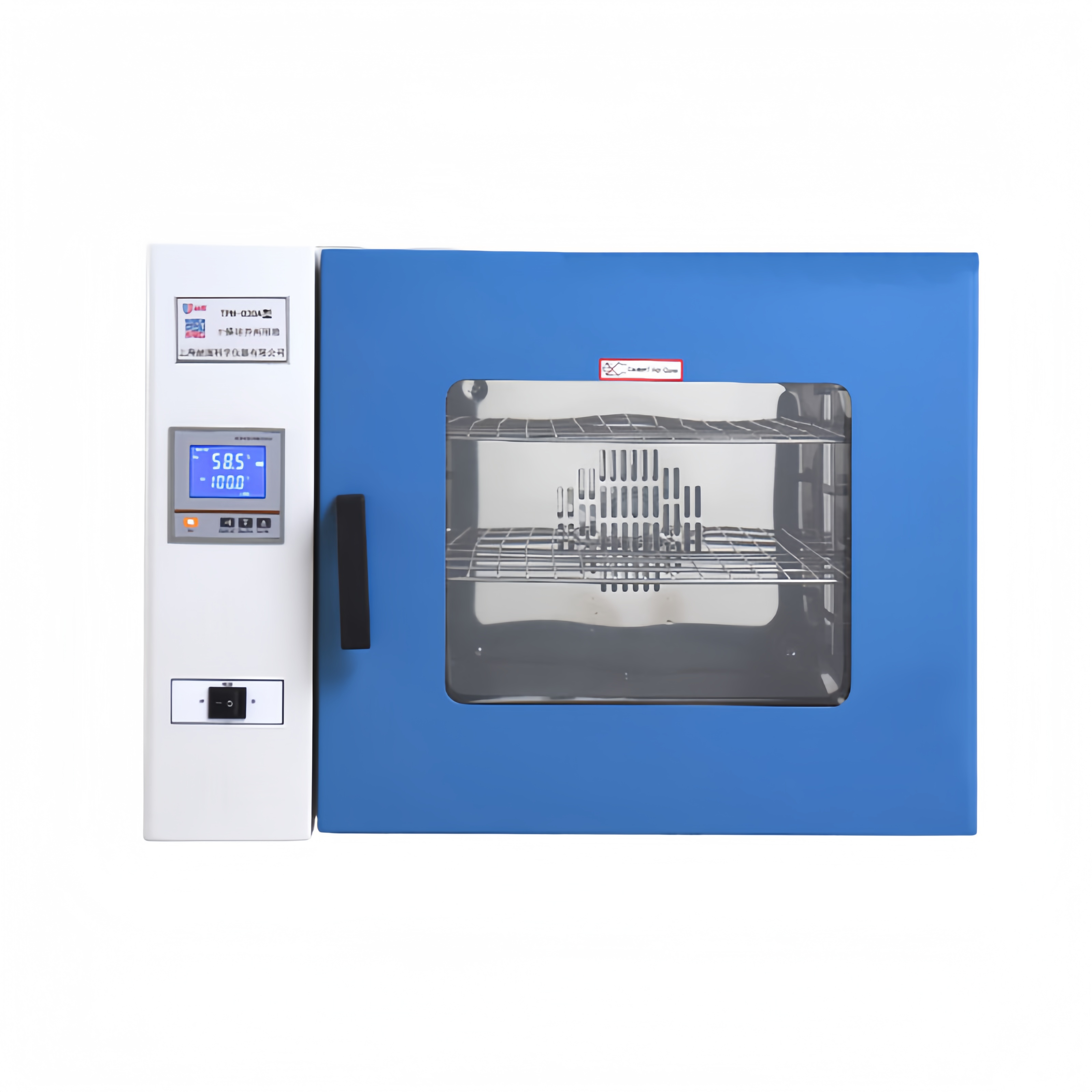

TPH series dual-purpose drying & cultivation incubator is equipped with dual-mode control system: cultivation mode RT+5~80℃; drying mode 80~250℃. One unit meets two kinds of experiments including low-temperature cultivation and high-temperature drying.
All models are equipped with large-screen LCD microcomputer PID temperature controller with overtemperature deviation protection and fault self-diagnosis. Forced hot air circulation duct realizes fast heating and uniform temperature field.
Double-layer cabinet structure, electrostatic sprayed outer shell and stainless steel inner liner. Double-layer tempered glass observation window on door, drawer-style sample rack with adjustable partition spacing.
Available volumes: 16L, 35L, 50L, 70L, 140L, 230L. All models adopt standard AC220V 50Hz power supply with standard timing function 1~9999min.

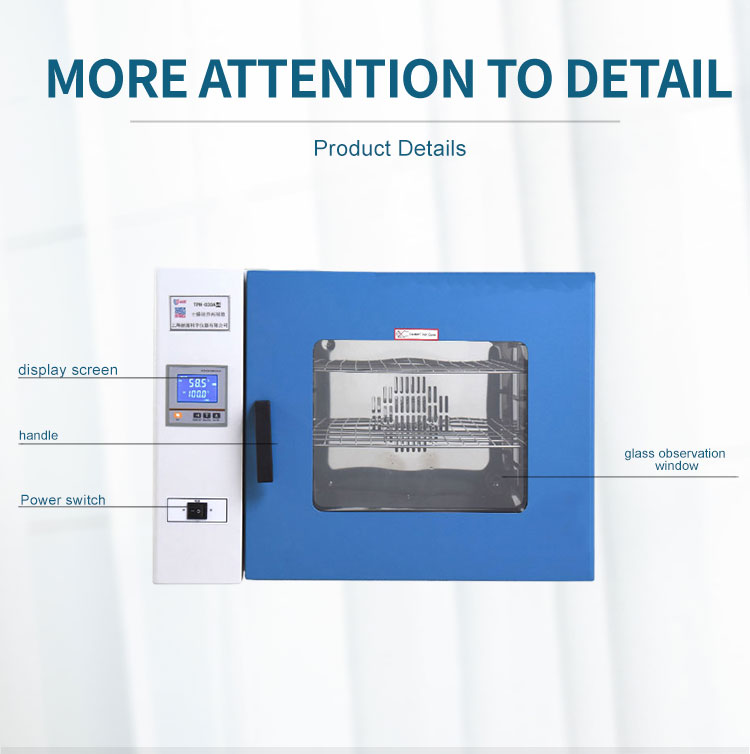

Large-screen LCD instrument panel displays data in three colors with intuitive operation interface. Built-in self-diagnosis function allows direct reading of fault codes for rapid troubleshooting.
Microcomputer PID temperature controller with overtemperature deviation protection, real-time LCD temperature display and timing function to achieve accurate and stable temperature control.
Electrostatic sprayed outer shell with attractive appearance and durability. Stainless steel inner liner and load carrier are corrosion-resistant and easy to wipe and clean.
Large double-layer tempered glass observation window fitted on door; drawer-style sample rack with adjustable partition spacing for convenient sample access and chamber cleaning.
Long-handle zinc alloy outward flip door lock with two-stage rotary locking structure ensures tight door sealing, reduces heat loss and maintains stable temperature field.
Special built-in hot air circulation channel provides forced convection airflow to guarantee uniform temperature inside working area and shorten heating time.
High-temperature resistant low-noise motor matched with multi-blade centrifugal fan enables long-term continuous stable operation. Multiple built-in electrical protections cover leakage, short circuit, overheating and overload.
Parameter memory function prevents experiment data loss caused by power failure or unexpected shutdown. Overtemperature alarm threshold can be set freely, audio-visual alarm will be triggered automatically once exceeding limit.
Optional accessories: USB data transfer interface, intelligent program controller, RS485 communication interface, test port, micro printer, wind speed adjustment switch, color touch screen.

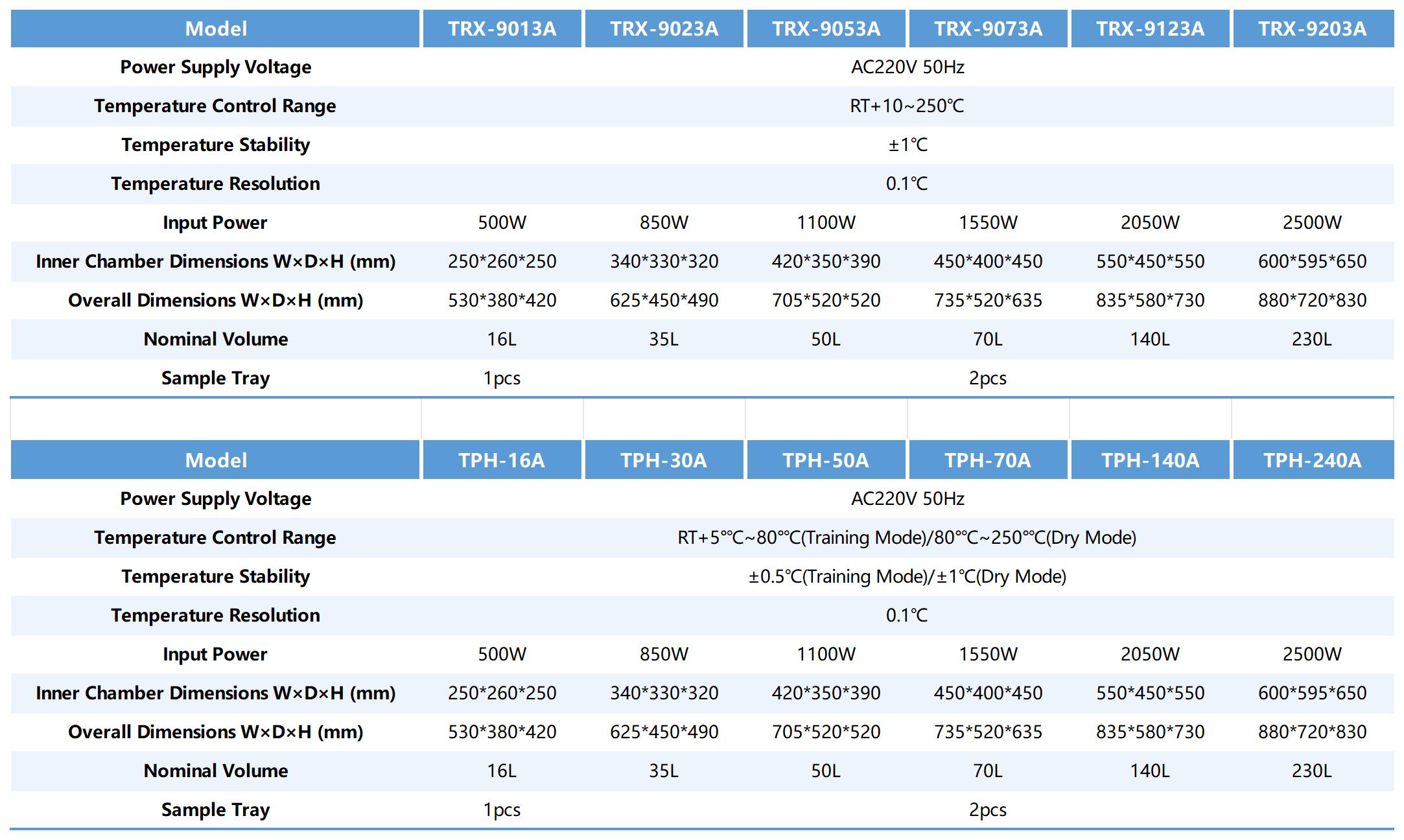

	TRX-9013A	TRX-9053A	TRX-9053A	TRX-9073A	TRX-9123A	TRX-9203A
Model	TRX-9013A	TRX-9033A	TRX-9053A	TRX-9073A	TRX-9123A	TRX-9203A
power supply voltage	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Temperature control range	RT+10~250℃	RT+10~250℃	RT+10~250℃	RT+10~250℃	RT+10~250℃	RT+10~250℃
Constant temperature fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃
temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
input power	500W	850W	1100W	1550W	2050W	2500W
inner dimensions WDH(mm)	250260250	340330320	420350350	450400450	550450550	600595650
Nominal volume	16L	35L	50L	70L	140L	230L
Load carrier	1 piece	1 piece	2 pieces	2 pieces	2 pieces	2 pieces
timing range	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min
Optional accessories	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen

	TPH-16A	TPH-30A	TPH-50A	TPH-70A	TPH-140A	TPH-240A
Model	TPH-16A	TPH-30A	TPH-50A	TPH-70A	TPH-140A	TPH-240A
power supply voltage	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Temperature control range	Cultivation mode: RT+5~80℃; Drying mode:80~250℃	Cultivation mode: RT+5~80℃; Drying mode:80~250℃	Cultivation mode: RT+5~80℃; Drying mode:80~250℃	Cultivation mode: RT+5~80℃; Drying mode:80~250℃	Cultivation mode: RT+5~80℃; Drying mode:80~250℃	Cultivation mode: RT+5~80℃; Drying mode:80~250℃
Constant temperature fluctuation	±0.5℃ (cultivation) / ±1℃ (drying)	±0.5℃ (cultivation) / ±1℃ (drying)	±0.5℃ (cultivation) / ±1℃ (drying)	±0.5℃ (cultivation) / ±1℃ (drying)	±0.5℃ (cultivation) / ±1℃ (drying)	±0.5℃ (cultivation) / ±1℃ (drying)
temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
input power	500W	850W	1100W	1550W	2050W	2500W
inner dimensions WDH(mm)	250260250	340330320	420350350	450400450	550450550	600595650
Nominal volume	16L	35L	50L	70L	140L	230L
Load carrier	1 piece	1 piece	2 pieces	2 pieces	2 pieces	2 pieces
timing range	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min
Optional accessories	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, wind speed adjustment switch, color touch screen

TRX dry heat sterilization box realizes sterilization by high-temperature dry hot air, suitable for dry heat sterilization of glassware, metal utensils and oily materials. It cannot be used for high-temperature intolerant materials such as rubber and plastic.
TPH dual-purpose drying & cultivation box supports automatic dual-mode switching: cultivation mode below 80℃ for microbial constant temperature cultivation; drying mode above 80℃ for high-temperature sample drying, one unit for two applications.
Forced hot air circulation system realizes fast heating and uniform temperature distribution. PID precise temperature control with 0.1℃ resolution meets high-precision experiment requirements of microbiology laboratories.
Double-layer thermal insulation cabinet with stainless steel inner liner. Double-layer tempered observation window on door allows sample observation without opening door.
Drawer-style adjustable shelves for convenient sample access and residue cleaning. Long-handle rotary door lock delivers excellent sealing and heat insulation performance.
Standard timing function 1~9999min. Optional intelligent program controller supports automatic multi-segment heating & cooling curves for unattended experiments.
Multiple safety protections: leakage, short circuit, overheating and overload protection. Standard audio-visual overtemperature alarm; optional independent temperature limiter for double protection.
Multiple optional data accessories: USB export, RS485 host communication and micro printer to fully record temperature curves and meet data traceability requirements for test reports and research papers.
All models adopt AC220V power supply. Compact desktop structure can be directly placed on lab bench, suitable for daily use in universities, pharmaceutical factories and CDC laboratories.

Only high-temperature sterilization of glassware and metal instruments required: choose TRX dry heat sterilization box.
Both low-temperature microbial cultivation and high-temperature sample drying required: prefer TPH dual-purpose drying & cultivation box.
Small-batch sample processing for laboratories: choose 16L /35L small-volume models.
Conventional batch sample and vessel processing: select mainstream 50L /70L models.
Continuous experiments of mass parallel specimens: choose 140L /230L large-volume models.
Automatic multi-segment temperature cycle unattended process required: equip intelligent program controller or upgrade to color touch screen.
High-value experimental samples requiring double overheat safety protection: install independent temperature limiting controller.
Complete temperature curve recording and data export required: select USB interface or RS485 communication port.
External temperature probe measurement requires optional test port; micro printer optional for hard-copy archiving.

Standard factory package: main unit, stainless steel shelves, power cord and bilingual operation manual. Extended accessories are optional separately.
Thick shockproof package with foam buffer protects fragile parts including inner liner, control panel and observation window glass against collision damage during long cross-border transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Name	Qty
Digital display dry heat sterilization and mold incubator	1
Stainless steel mesh shelf	2 pcs
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Selling Units	Single item	Package size per batch	655451cm
Gross weight per batc	28.000kg

Complete factory electronic documents can be obtained upon request for cross-border website listing, overseas biomedicine & CDC exhibition promotion and technical consultation for overseas buyers.
Supporting digital files: bilingual full specification sheet, standard operation manual, temperature control & fan maintenance guide, overall dimension drawing, programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and photos of optional accessories for unified multi-category online store operation.

What is the difference between TRX and TPH? TRX is dry heat sterilization oven, mainly for high-temperature sterilization of glass and metal tools. TPH is dual-purpose model for both cultivation and drying.
What is the temperature range of TPH cultivation and drying mode? Cultivation mode: RT+5~80℃; Drying mode: 80~250℃.
Can TRX sterilize rubber and plastic products? No, TRX adopts high-temperature dry heat sterilization, which is not suitable for rubber, plastic and other heat-sensitive materials.
What is constant temperature fluctuation standard? TPH: ±0.5℃ under cultivation mode, ±1℃ under drying mode; TRX: ±1℃.
Can samples be observed without opening the door? Yes, double-layer tempered glass observation window is equipped as standard.
Will settings be lost after power failure? Built-in memory chip automatically retains all parameters after power recovery.
Does it support multi-segment programmable temperature curve? Single segment constant temperature is standard. Intelligent program controller can be selected for automatic multi-segment process.
Is overtemperature alarm protection available? Standard built-in audio-visual overtemperature alarm; independent temperature limiter can be added for double protection.
What is the maximum timing length? Timing range: 1~9999 minutes.
Can temperature operation curves be exported? Optional USB interface supports exporting temperature data via flash drive.
Can it connect to PC remote monitoring? Optional RS485 communication interface supports connection with upper computer system.
Is test port for external temperature probe optional? Yes, the test port belongs to optional accessories.
What is the structure of the door lock? Long-handle two-stage rotary outward flip lock with good sealing and heat insulation effect.
Is the running noise loud for laboratory long-term use? Low-noise circulation fan with moderate noise, suitable for continuous experiments in labs.
Can flammable and volatile solvent samples be processed? Not allowed. Only non-flammable materials without explosion risk can be treated.
What power supply do all models adopt? All available volumes adopt AC220V 50Hz power supply.
Is the shelf detachable and adjustable? Yes, drawer-style adjustable partitions, easy to take out and clean residues.

TRX dry heat sterilization box is used for dry heat sterilization of glassware, metal utensils and oily materials; TPH dual-purpose box is used for microbial cultivation and sample drying. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, special inner liner requirement, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory inspection.
Contact ways: Email, WhatsApp, online website message. Please state model (TRX/TPH), volume, optional accessories and order quantity. A complete formal quotation will be provided within 24 hours to resolve all purchasing questions at one time.
