Home > All Collections > Rotary Evaporators > Digital Rotary Evaporator

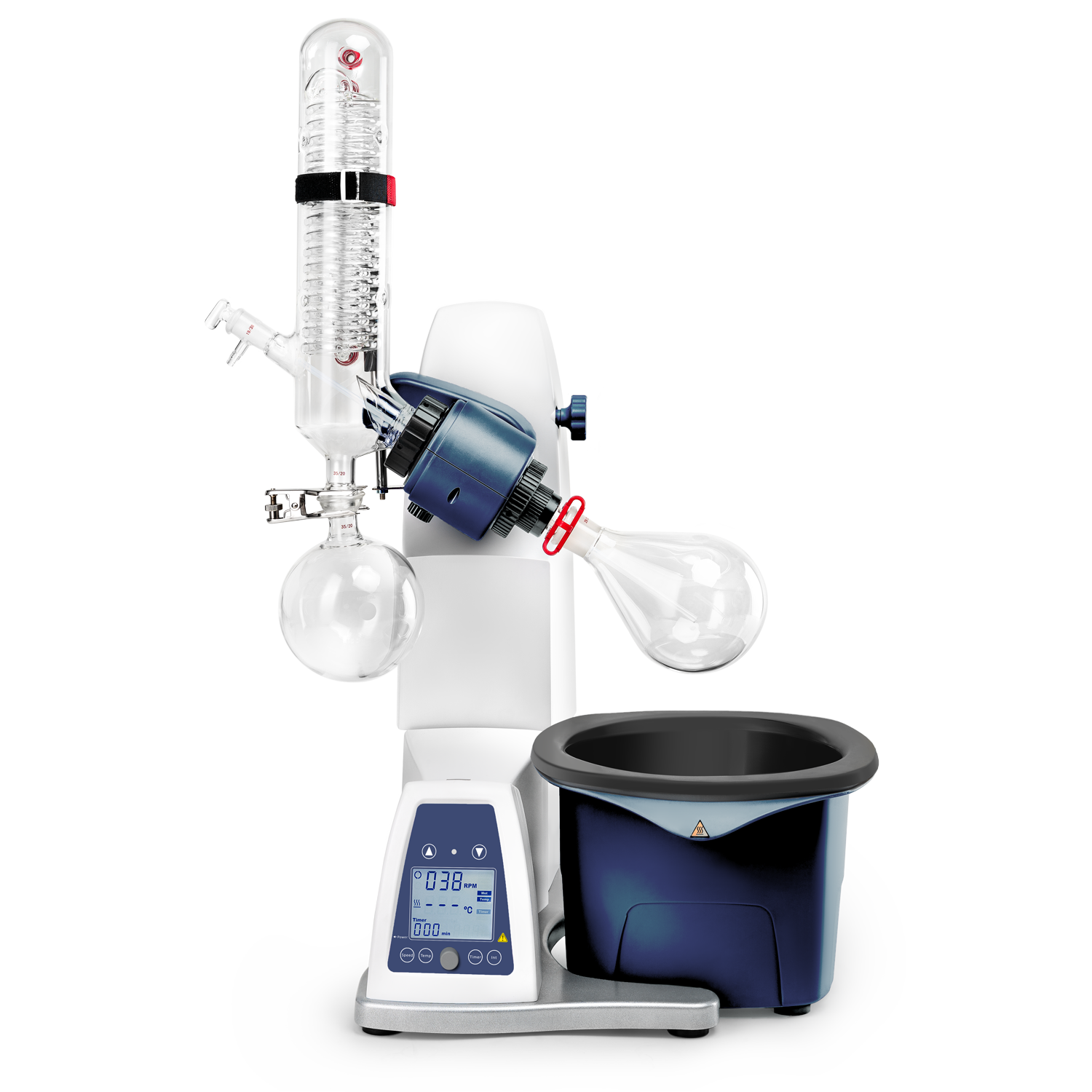

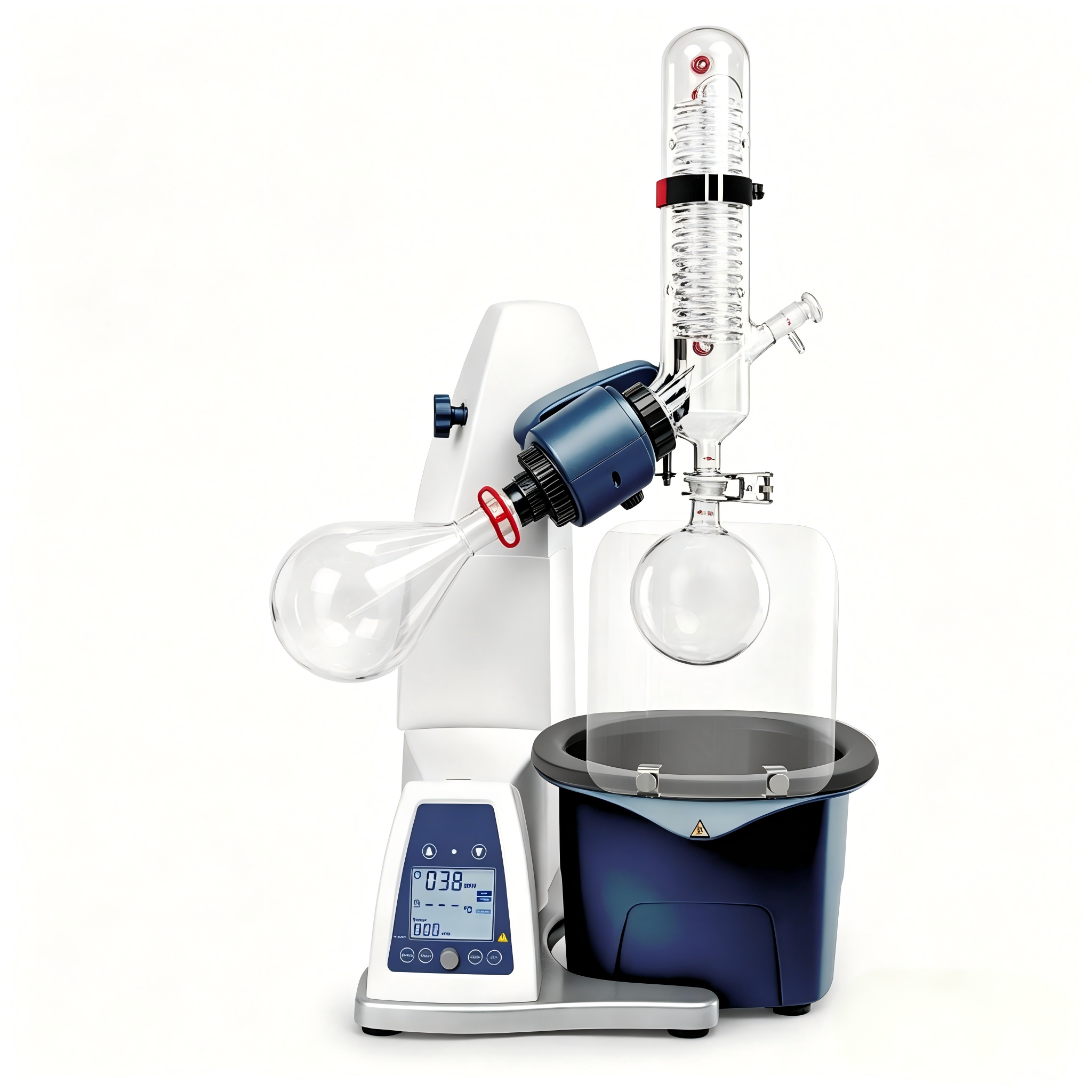

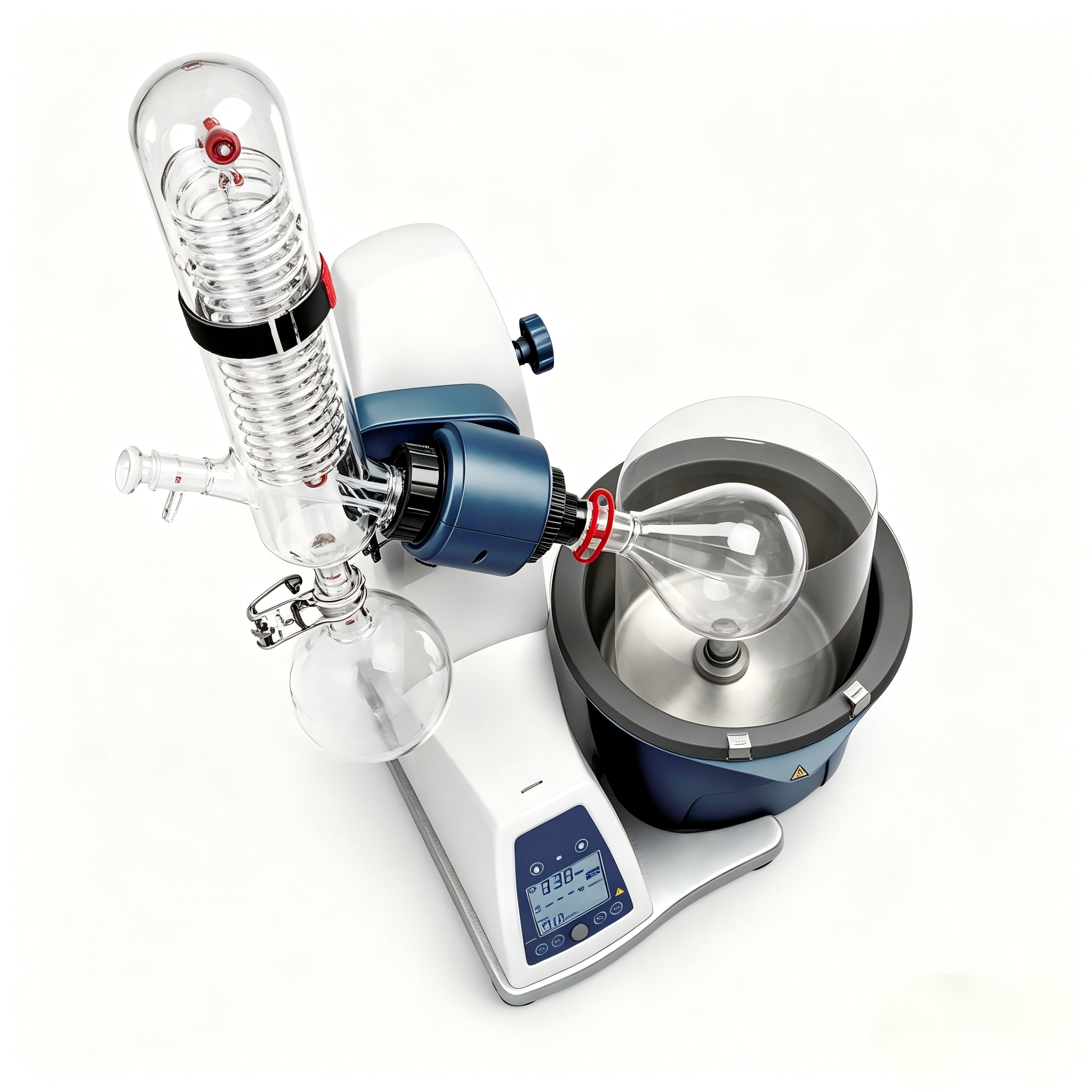

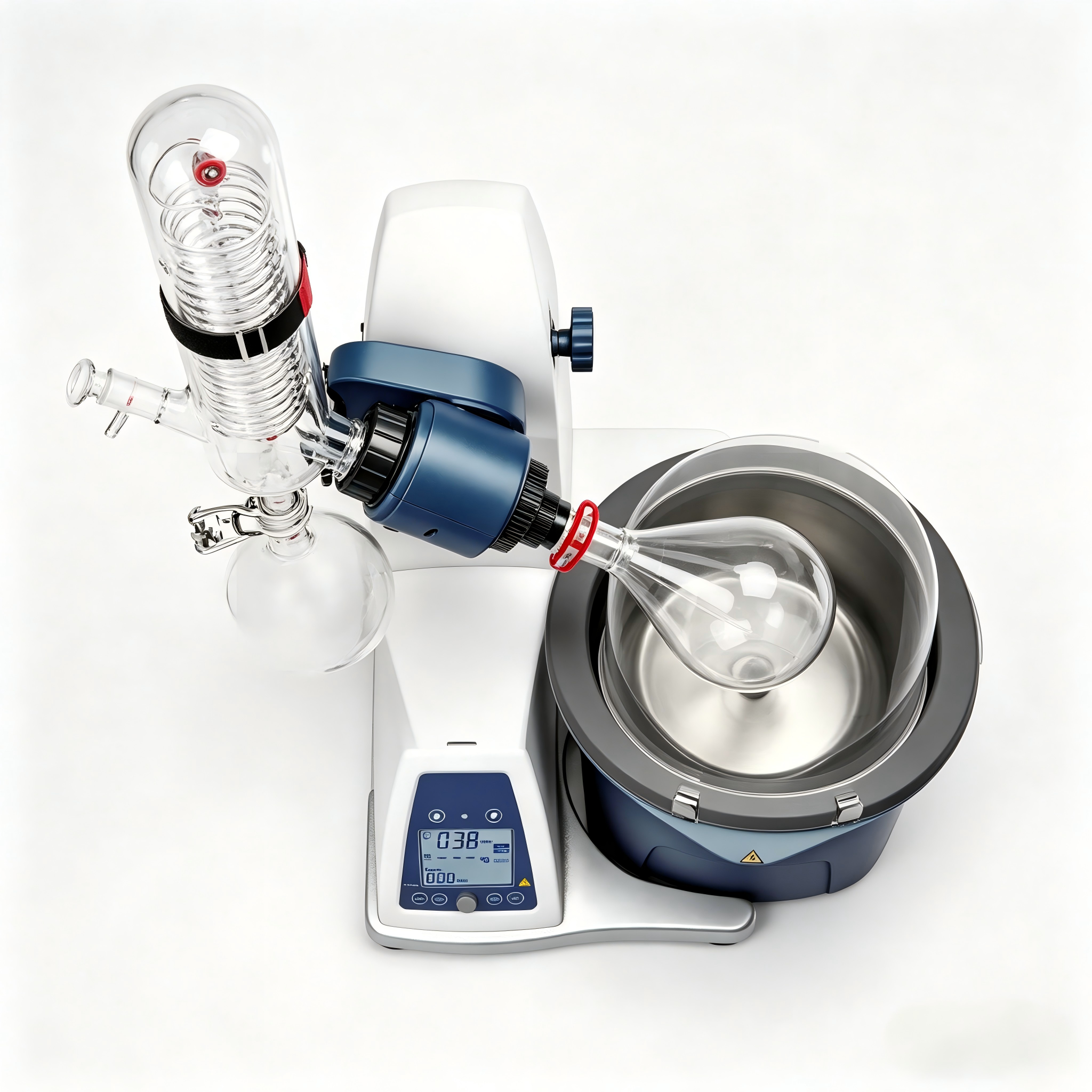

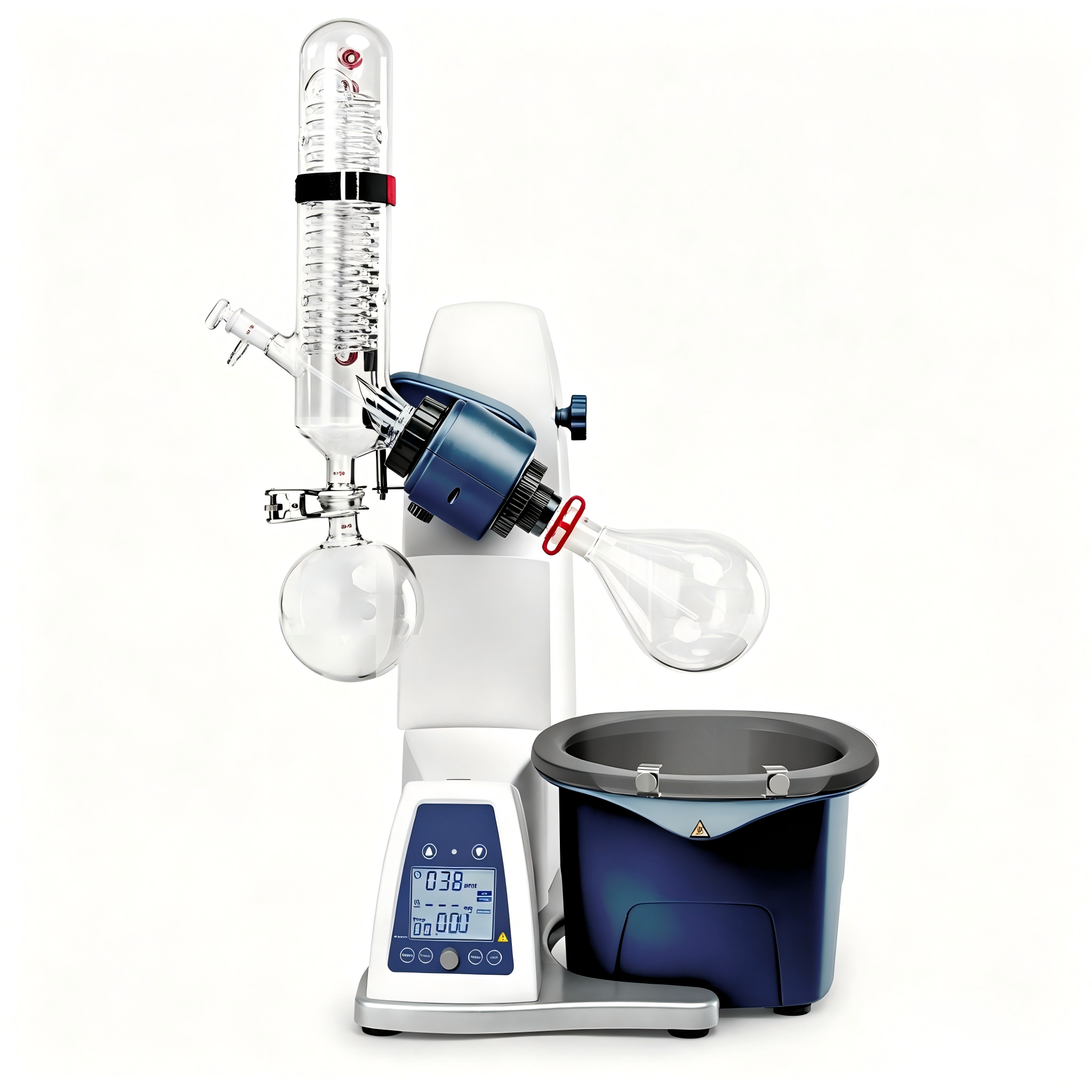

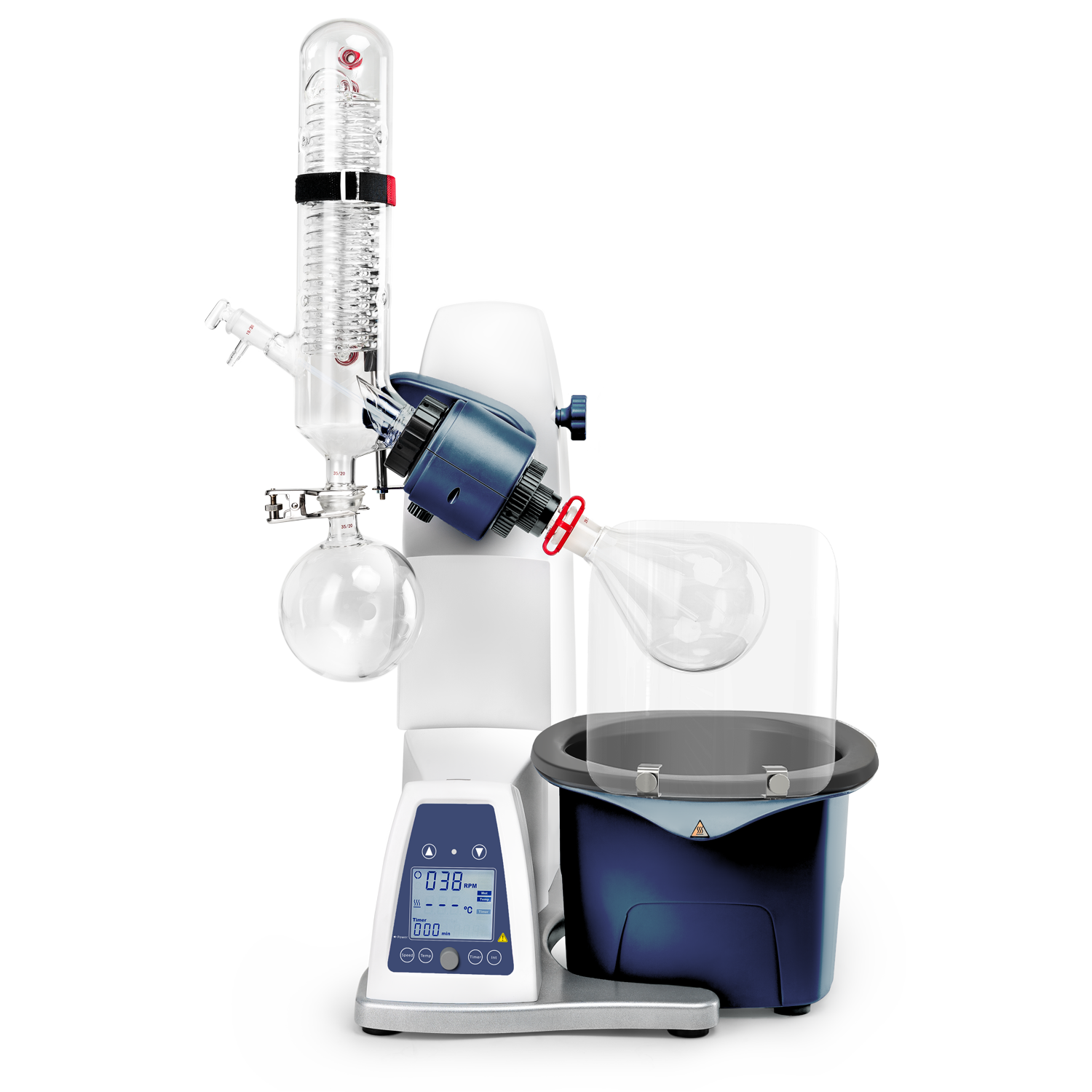

Digital Rotary Evaporator

Name: Digital Rotary Evaporator
Brand: labcarta Technology Co., Ltd.
SKU: LRE-2L-Pro
Price: 2751.70 USD
Availability: InStock

No.LRE-2L-Pro

The LRE-2L-Pro is aimed at biochemical, medical, andchemical laboratories for efficient solvent removal fromsamples via evaporation. It's used in chemical, pharmaceutical,food, and education sectors for rapid solvent recovery andsample concentration, while protecting sensitive substances.It's also utilized in chemical industries, pharmaceuticalindustries, and higher learning institutions.

$2751.70

Model:

LRE-2L-Pro

Request a Quote

Product Overview
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

LRE-2L-Pro digital rotary evaporator targets biochemical, medical, chemical, pharmaceutical, food and university research laboratories. Forming a complete distillation system with vacuum pump, vacuum controller and low-temperature circulator, it is applied to efficient solvent removal, vacuum concentration, purification of heat-sensitive substances and organic phase separation & recovery for automated lab and pilot trials.

Compatible with 50–3000mL evaporating flasks, optional thickened glass shaft fits 3L flasks. Equipped with brushless DC motor supporting 20–280rpm clockwise & counterclockwise intermittent rotation. Large LCD screen synchronously displays rotation speed, heating temperature and runtime. Integrated 5L heating bath ranges from ambient temperature to 180℃ with PID precise control: ±1℃ accuracy for water bath, ±3℃ for oil bath. Ultimate stable vacuum distillation environment, maximum water evaporation capacity reaches 1.56L/h, heating power 1300W, total unit power 1400W. One-click motorized lifting with 150mm stroke, the flask will be lifted to safe position automatically once power fails, segmented timer ranging 1–999min. Built-in USB communication interface, IP20 protection class. Overall dimension 465×457×583mm, net weight 15kg. Standard 1700cm² large-area triple coil condenser, double-spring corrosion-resistant PTFE sealing ring with ejection mechanism for easy flask disassembly, explosion-proof film glassware kit optional. Five-fold interlock safety protections cover 220℃ overheat shutdown, boil-dry auto power-off and high-temperature warning above 50℃. Auto-adaptive 100–120V / 200–240V wide voltage, higher automation level than manual-lift counterpart, serving as standard high-precision distillation & concentration equipment for key research labs.

Wide-range 20–280rpm bidirectional brushless rotation system: Higher maximum rotation speed than manual counterpart, alternating clockwise & counterclockwise stirring eliminates sedimentation and wall caking of powder & high-viscosity suspensions for uniform stable concentration.
Integrated RT~180℃ dual water/oil PID temperature control: ±1℃ high-precision water bath protects heat-labile active substances; oil bath extends working temperature up to 180℃ for high-boiling organic reagents, one single button switches heating modes conveniently.
150mm full motorized lift + emergency power-off lift protection: Labor-saving one-touch control, the flask automatically separates from heating bath after unexpected power cut to prevent boil-dry damage, far superior to manual-lift LRE-2L-S on automation and safety.
Large LCD triple-parameter visual operation panel: Simultaneous display of real-time rotation speed, bath temperature and remaining runtime with intuitive workflow for researchers to program long-duration distillation trials quickly.
1–999min ultra-long segmented cyclic timer: Supports all-day uninterrupted distillation and slow drying experiments with auto on-off circulation, removing repeated manual monitoring work.
Standard built-in 1700cm² large cooling area condenser: High-spec large heat exchange surface comes as factory standard to boost recovery rate of low-boiling organic solvents without extra optional upgrade.
One-click flask ejection disassembly mechanism: Simplifies installation & removal of large glass flasks, single operator can finish sample replacement rapidly to cut lab operation time.
Double-spring double-layer PTFE vacuum sealing ring: Dual layers resist acid, alkali and organic solvent corrosion to maintain perfect air tightness under long-term negative pressure, stable enough for multi-batch continuous experiments.
USB port for data export & local firmware upgrade: Full raw runtime temperature & speed data can be exported for lab report archiving, U-disk local firmware update supported to meet GLP compliance record requirements.
Three-fold full-range interlock safety protection: Auto shutdown at 220℃ overheat, auto power-off on boil-dry, high-temperature warning above 50℃, combined with power-off motor lift to guarantee safety for long unattended distillation runs.

Category	Parameter Item	LRE-2L-Pro Specification
Sample Loading Configuration	Compatible Evaporating Flask Volume	50–3000mL, optional thickened glass shaft for 3L flasks
Rotation System	Motor Type	Brushless DC Motor
	Speed Range	20–280 rpm
	Rotation Mode	Clockwise & Counterclockwise bidirectional intermittent rotation
Temperature & Evaporation Performance	Heating Bath Capacity	5L integrated heating bath
	Temperature Range	Room temp. ~ 180℃ (compatible for water & oil bath)
	Temperature Control Accuracy	Water bath: ±1℃; Oil bath: ±3℃
	Max Evaporation Capacity (Water)	1.56 L/h
	Heating Power	1300 W
	Total Unit Power	1400 W
Lifting & Timer	Lifting Structure	Full motorized lift, 150mm stroke, flask auto lifts after power cut
	Timer Range	1–999 min
Human-Machine Interface	Display	Large LCD screen (simultaneous display of speed / temp / timer)
Condenser Configuration	Standard Cooling Surface Area	1700cm²
Sealing & Accessories	Sealing Structure	Double-spring double-layer PTFE sealing ring
	Flask Disassembly	One-click ejection mechanism, explosion-proof film glassware optional
Communication Expansion	Data Interface	USB port (experimental data export, local firmware upgrade)
Safety Protection	Protection Class	IP20
	Interlock Safety Functions	3-fold protection: auto shutdown at 220℃ overheat, boil-dry auto power-off, high temp warning above 50℃
Physical Dimension & Weight	Overall Size(D×W×H)	465×457×583 mm
	Net Unit Weight	15 kg
Power Supply	Voltage & Frequency	Auto-adaptive 100–120V / 200–240V, 50/60Hz
Operating Ambient	Ambient Temp Range	5–40℃
	Max Ambient Humidity	≤80%RH (non-condensing)

Glassware assembly & selection: Install matched 50–3000mL evaporating flask as required; explosion-proof film glass kit optional for flammable & explosive solvent workflows; connect standard 1700cm² condenser and inspect air tightness of double-layer PTFE sealing ring to avoid vacuum leakage.
Heat medium filling & power connection: Fill pure water for water bath mode, heat conduction silicone oil for oil bath mode; connect auto-adaptive 100–240V power supply, large LCD screen completes automatic full-unit self-check.
Process parameter programming: Set bidirectional rotation speed 20–280rpm, target water/oil bath temperature and 1–999min long-cycle timer on screen; activate forward-reverse intermittent stirring for high-solid powder samples.
Motorized lifting positioning & power-off safeguard: Tap one-key lift to fully submerge evaporation flask into heating bath and lock position; flask automatically lifts away from heat source once unexpected power cut occurs to prevent sample damage from dry heating.
High-vacuum distillation operation: Connect external vacuum pump and vacuum controller to build stable negative pressure, PID system maintains constant temperature automatically. 1700cm² condenser continuously condenses and recycles solvent, continuous feed port supports uninterrupted supplementation of raw material.
Experimental data export for compliance labs: Export full raw temperature & speed runtime logs via USB port after test completion for lab report archiving; local device firmware upgrade via U-disk is also supported.
Standard post-test shutdown sequence: Release system vacuum firstly, motor-lift heating bath away from evaporation flask, stop rotation and heating; drain bath medium after unit and all glassware fully cool down to ambient temperature, clean residual materials on condenser pipeline and sealing fittings.
Long-term shutdown storage protection: Cut off power supply, wipe outer unit surface and drain residual solvent; detach all glassware for separate storage to slow aging of compressed double-layer PTFE sealing ring.

1. Core Differences between LRE-2L-Pro and Manual LRE-2L-S

Lifting System: LRE-2L-Pro adopts 150mm full motorized lift with auto power-off lift to avoid boil-dry; LRE-2L-S only has manual dual-stage lift without power failure safeguard.

Max Rotation Speed: Pro up to 280rpm vs 200rpm of S, delivering superior uniform stirring for viscous & powder suspensions.

Power Rating: Pro heating power 1300W, total unit power 1400W; S heating power only 1200W.

Condenser Configuration: 1700cm² large-area condenser is factory standard for Pro; two sizes (1200/1700cm²) are optional add-ons for S.

Operation Display: Large LCD screen for Pro, basic simple LED digital screen for S.

Unit Weight: Pro net weight 15kg with heavy stable automated frame; main unit of S only 7kg.

Applicable Scenarios: Pro for key research labs requiring overnight unattended runs, traceable data and high-viscosity sample treatment; S for basic teaching, short-duration micro trials and low-budget demands.

2. Heating Mode Matching Materials

Water bath (RT~100℃, ±1℃ accuracy): Aqueous extracts, heat-labile active substances, low-boiling organic solvents.

Oil bath (RT~180℃, ±3℃ accuracy): High-boiling grease, long-chain organic intermediates, high-temperature vacuum distillation workflows.

3. Scenarios Prioritizing LRE-2L-Pro

Overnight unattended distillation trials requiring auto flask lift protection to prevent boil-dry sample damage.

Treatment of high-viscosity powder-rich suspensions demanding 280rpm high-speed alternating bidirectional stirring.

GLP-compliant research labs needing export & archiving of complete raw experimental data.

Frequent disassembly & assembly of large evaporating flasks, motorized lift drastically cuts manual operation workload.

Mass recovery of highly volatile low-boiling solvents, standard 1700cm² condenser improves solvent recovery efficiency.

Application Scenarios

1. Research Laboratories: Natural product purification, vacuum concentration of viscous solutions, solvent recovery and sample enrichment.

2. Universities & Education: Chemical and pharmaceutical distillation teaching, process exploration experiments, unattended long-term concentration training.

3. Pharmaceutical & Chemical: Concentration of drug intermediates, vacuum distillation of heat-sensitive APIs, laboratory solvent recycling.

4. Food, Environmental & Industrial Testing: Concentration of food active extracts, enrichment of environmental organic pollutants, industrial waste solvent recovery.

5. Medical & Healthcare: Low-temperature concentration of biological reagents, separation and purification of natural medicinal components

Shockproof packaging: Standard protective packaging equipped with integrated high-density shock-absorbing inner cushion materials separating main unit, full glassware kit, power cord and printed user manuals for collision damage prevention during long sea & land transit; reinforced protective structure will be applied by default for bulk export orders.
Full package contents: LRE-2L-Pro digital rotary evaporator main unit, standard 1700cm² condenser glassware kit, 100–240V wide-voltage power cord, printed factory full user manual, factory ultimate vacuum & temperature accuracy quality inspection certificate.
Note on reference package size & gross weight: Outer package dimensions and full-set gross weight are only industry estimated reference values, final specifications subject to actual factory outgoing packaging.
Lead time rule: In-stock standard models ship within 3–10 working days; orders with custom explosion-proof film glassware kit take 15–30 working days.
Logistics options: Sea freight, air freight and LTL full-truck road transport available, dedicated logistics line for bulk overseas export of automated lab-scale distillation instruments.

Selling Units	Single item	Package size perbatch	1106064cm
Gross weight perbatch	36kg

Name	Qty.
Main unit	1
Heating bath	1
Power cable	2
Vertical glass assembly	1
Operating manual	1

Contact customer service to receive full documents: Complete LRE-2L-Pro full motorized digital rotary evaporator datasheet, motorized lift & USB data export operation manual, dimension drawings, product brochure and factory temperature accuracy & evaporation rate inspection report for tender archive of key research institutes and pharmaceutical R&D labs.

What are the core differences between LRE-2L-Pro and manual LRE-2L-S?
7 key distinctions: ①Lifting: Pro 150mm full motorized lift with auto power-off anti-boil-dry safeguard; S purely manual lift without power failure protection. ②Max speed: Pro 280rpm vs 200rpm of S. ③Heating power: Pro 1300W, S 1200W. ④Condenser: 1700cm² large condenser standard for Pro, optional upgrade for S. ⑤Display: Large LCD screen for Pro, basic simple LED screen for S. ⑥Unit weight: Pro net weight 15kg, S main unit only 7kg. ⑦Automation: Pro built-in USB data export function for full traceability, S without complete data logging.
Will the evaporating flask lift automatically after sudden power cut?
Yes, the 150mm motorized lift integrates emergency power-off lifting mechanism. Once power fails unexpectedly, the flask will be automatically separated from heating medium to avoid sample damage from dry heating, this safety feature is unavailable on manual LRE-2L-S.
Will powder suspension samples stick to flask wall and agglomerate at max 280rpm?
20–280rpm clockwise & counterclockwise intermittent alternating rotation continuously stirs materials back and forth, powder & high-solid suspensions will not sediment or form local wall caking during long-time concentration, stirring performance better than LRE-2L-S with 200rpm speed limit.
Is the condenser factory standard or an extra optional accessory?
1700cm² large high-efficiency condenser is fully standard equipped for LRE-2L-Pro with no extra cost; LRE-2L-S provides two sizes (1200/1700cm²) as separate optional upgrades.
Can runtime experimental data be exported to meet compliance lab record standards?
Built-in standard USB communication port logs full raw temperature, speed and runtime data for each batch, records can be exported via U-disk for archiving, local device firmware upgrade via flash drive is also supported to meet GLP traceability requirements.
Can it work directly in overseas 110V labs?
Auto-adaptive 100–120V / 200–240V wide voltage with automatic 50/60Hz frequency detection, no extra transformer required for European, American and Southeast Asian labs.
Does the unit have protection if heating bath runs empty without medium?
Boil-dry auto power-off protection activates when bath contains no water or heat conduction oil; two extra safeguards including 220℃ overheat shutdown and 50℃ high-temperature warning form three-fold interlock to eliminate empty heating hazards.
What is the maximum compatible evaporating flask volume?
Standard compatible with 50–3000mL round-bottom flasks; 3L large flasks can be installed after ordering optional thickened glass shaft accessory.

Specify optional explosion-proof film glassware demand, order quantity and destination country to receive tiered bulk discount quotation
Free customized full automated distillation matching scheme for key pharmaceutical & university research labs, official PI issued within 24 working hours
Exclusive tiered discounted pricing available for bulk procurement from pharmaceutical research institutes and university key labs
