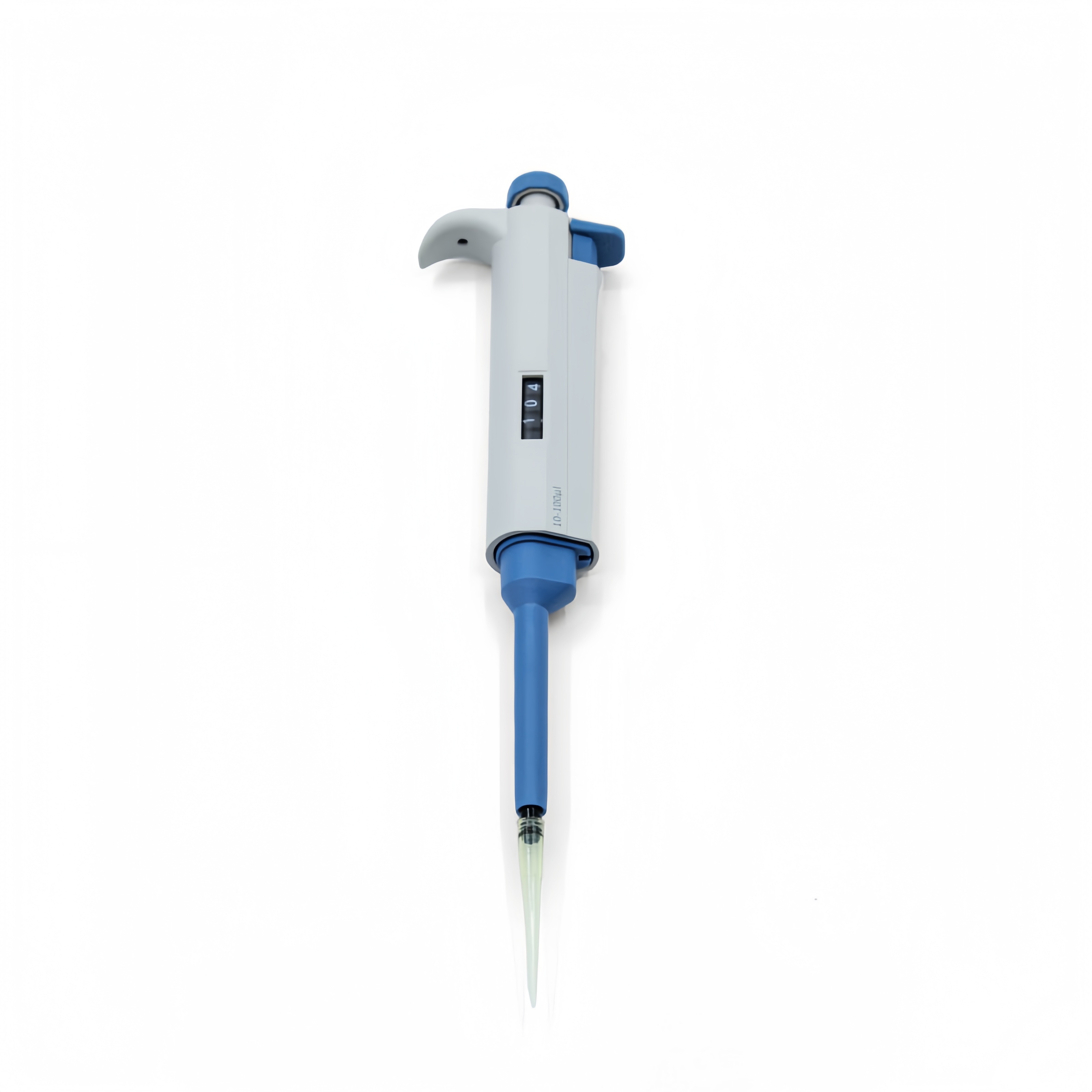

Name: Manual fixed pipette
Brand: labcarta Technology Co., Ltd.
SKU: 1601458205305---LTP
Price: 22.90 USD
Availability: InStock
Rating: 5 (1 reviews)

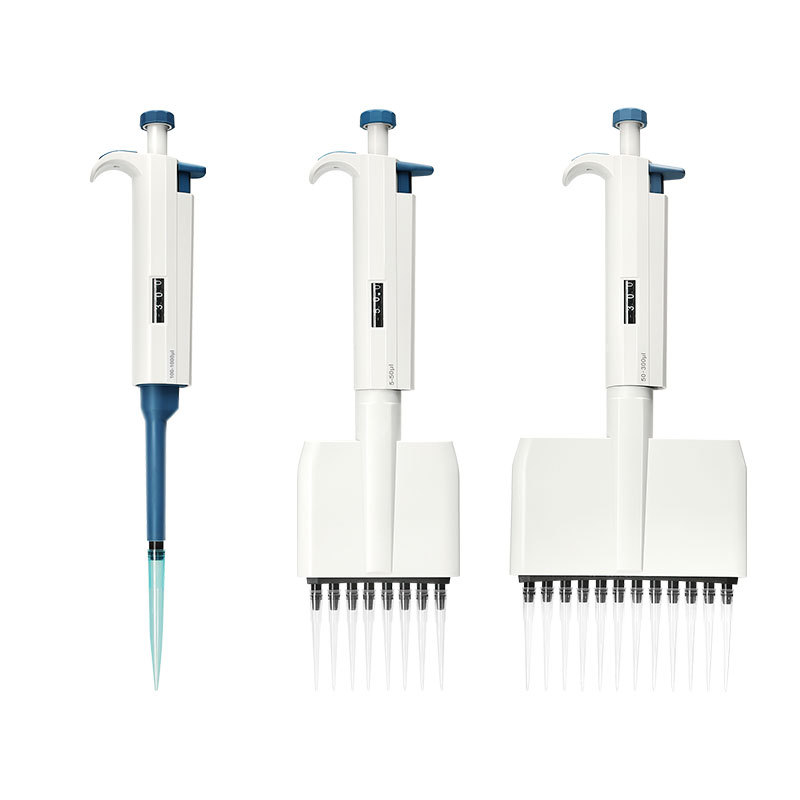

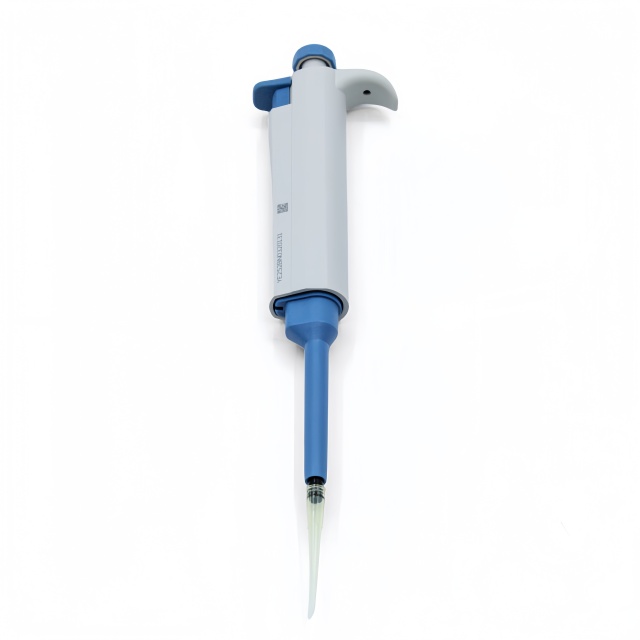

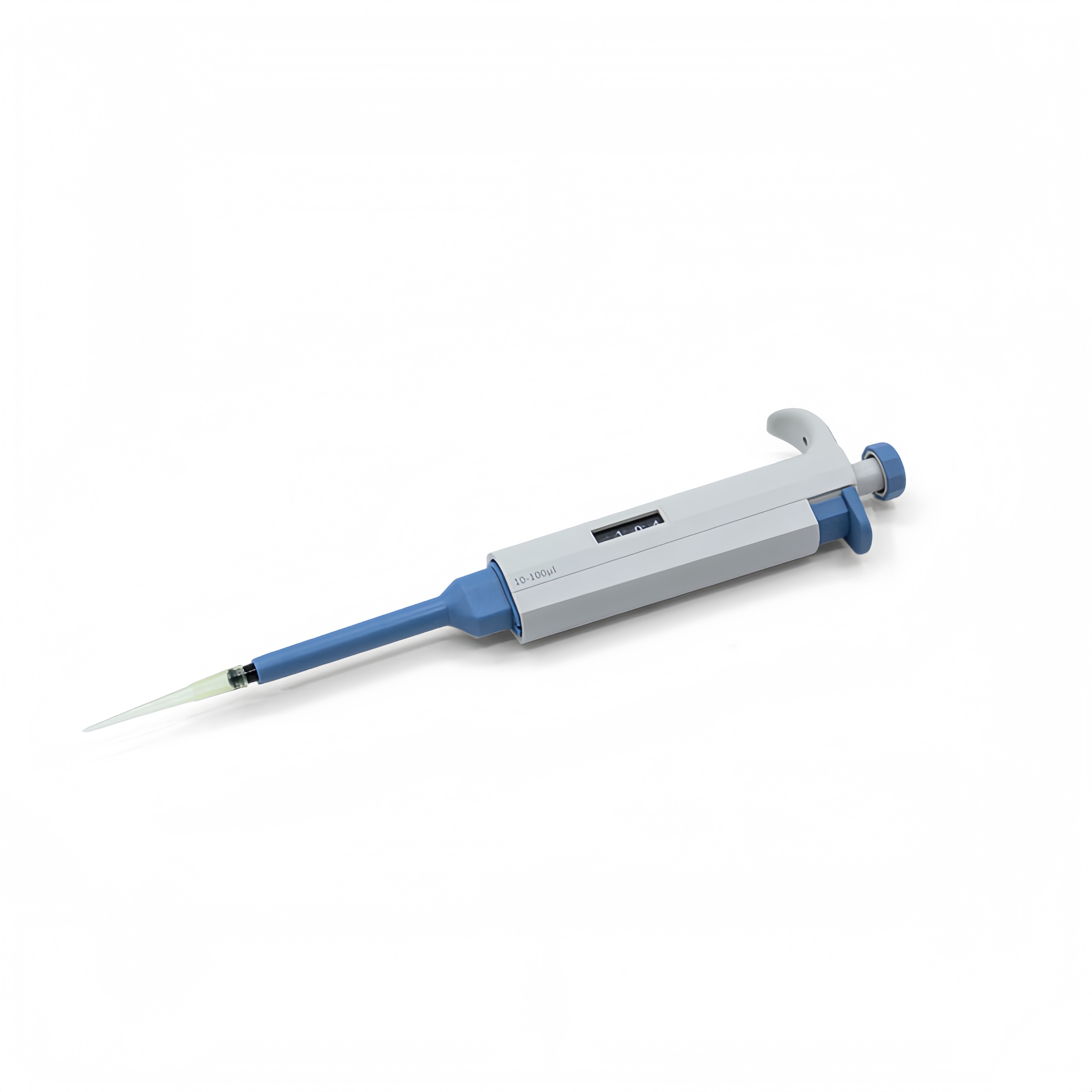

Manual fixed pipette

No.1601458205305---LTP

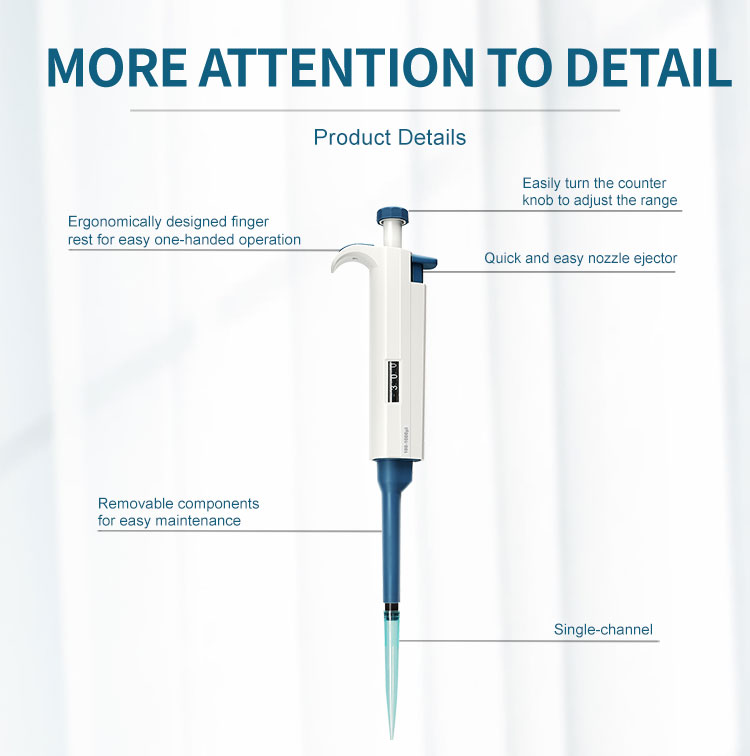

.Lightweight, comfortable for prolonged use. Digital window for clear volume reading. Broad volume range: 0.1 µL to 10 mL. Quick calibration & maintenance with included tools. Calibrated per EN/ISO 8655 standards for accuracy. Lower part can be autoclaved. Supports online calibration

$32.47 - 42.04

Graduation value:

0.05ul

capacity:

LTP-2.5(0. 1-2.5ul)

LTP-10(0.5-10ul)

LTP-20(2-20ul)

LTP-50(5-50ul)

LTP-100(10-100ul)

LTP-200(20-200ul)

LTP-200R(50-200ul)

LTP-1KF(100-1000ul)

LTP-1KR(200-1000ul)

LTP-5KR(1-5ml)

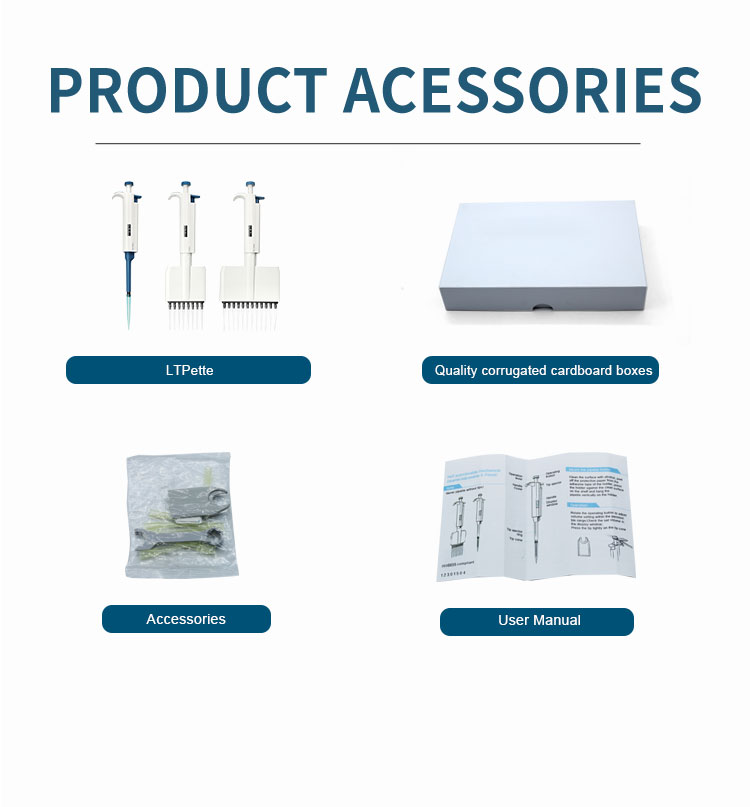

Item Name

Qty

Manual Pipette

1 unit

Calibration Tool

1 pc

User Manual

1 copy

Certificate & Warranty Card

1 set

Research Laboratories

Instrument solutions for academic research, routine testing, and experimental workflows.

Universities & Education

Reliable equipment for teaching laboratories and student training environments.

Pharmaceutical & Chemical

Suitable for sample preparation, distillation, testing, and controlled thermal processes.

Food Environmental and Industrial Testing

Food, Environmental & Industrial Testing

Used in quality control, analysis, and laboratory-based process verification.

Mechanical Pipette VolumeSelection
Technical Parameters
Single-channel Adjustable Volume Pipettes
Model	Volume Range	Increment	Test Volume	Errorlimits in accordance withIS08655-2
				Systematic Error		Random Error
	μL	μL	μL	μL	%	μL	%
LTP-2.5	0.1-2.5	0.05	2.5	±0.0625	±2.50	±0.05	±2.00
			1.25	±0.0375	±3.00	±0.0375	±3.00
			0.25	±0.03	±12.00	±0.015	±6.00
LTP-10	0.5-10	0.1	10	±0.1	±1.00	±0.08	±0.80
			5	±0.075	±1.50	±0.0075	±1.50
			1	±0.025	±2.50	±0.015	±1.50
LTP-20	2-20	0.5	20	±0.18	±0.90	±0.08	±0.04
			10	±0.12	±1.20	±0.1	±1.00
			2	±0.06	±3.00	±0.04	±2.00
LTP-50	5-50	0.5	50	±0.3	±0.60	±0.15	±0.30
			25	±0.225	±0.90	±0.15	±0.60
			5	±0.1	±2.00	±0.1	±2.00
LTP-100	10-100	1	100	±0.8	±0.80	±0.15	±0.15
			50	±0.5	±1.00	±0.2	±0.40
			10	±0.3	±3.00	±0.15	±1.50
LTP-200	20-200	1	200	±1.2	±0.60	±0.3	±0.15
			100	±0.8	±0.80	±0.3	±0.30
			20	±0.6	±3.00	±0.2	±1.00
LTP-200R	50-200	1	200	±1.2	±0.60	±0.3	±0.15
			100	±0.8	±0.80	±0.3	±0.30
			50	±0.5	±1.00	±0.2	±0.40
LTP-1KF	100-1000	5	1000	±6	±0.60	±2	±0.20
			500	±3.5	±0.70	±1.25	±0.25
			100	±2	±2.00	±0.7	±0.70
LTP-1KR	200-1000	5	1000	±6	±0.60	±2	±0.20
			500	±3.5	±0.70	±1.25	±0.25
			200	±1.8	±0.90	±0.6	±0.30
LTP-5K	500-5000	50	5000	±25	±0.50	±7.5	±0.15
			2500	±15	±0.60	±7.5	±0.30
			500	±3.5	±0.70	±1.5	±0.30
LTP-5KR	1000-5000	50	5000	±25	±0.50	±7.5	±0.15
			2500	±15	±0.60	±7.5	±0.30
			1000	±7	±0.70	±3	±0.30
LTP-10K	1000-10000	100	10000	±60	±0.60	±20	±0.20
			5000	±60	±1.20	±15	±0.30
			1000	±30	±3.00	±6	±0.60
LTP-20K	2000-10000	100	10000	±60	±0.60	±20	±0.20
			5000	±60	±1.20	±15	±0.30
			2000	±60	±3.00	±12	±0.60

Model	Volume Range	Increment	Test Volume	Systematic Error		Random Error
Model	L	-	L	L	%	L	%
LTP-5F	5	-	5	0.065	1.3	0.06	1.2
LTP-10F	10	-	10	0.08	0.8	0.08	0.8
LTP-20F	20	-	20	0.12	0.6	0.1	0.5
LTP-25F	25	-	25	0.125	0.5	0.075	0.3
LTP-50F	50	-	20	0.25	0.5	0.15	0.3
LTP-100F	100	-	100	0.5	0.5	0.3	0.3
LTP-200F	200	-	200	0.8	0.4	0.4	0.2
LTP-250F	250	-	250	1.0	0.4	0.5	0.2
LTP-500F	500	-	500	1.5	0.3	1.0	0.2
LTP-1KF	1000	-	1000	3.0	0.3	2.0	0.2
LTP-2KF	2000	-	2000	6.0	0.3	3.0	0.15
LTP-5KF	5000	-	5000	15	0.3	7.5	0.15

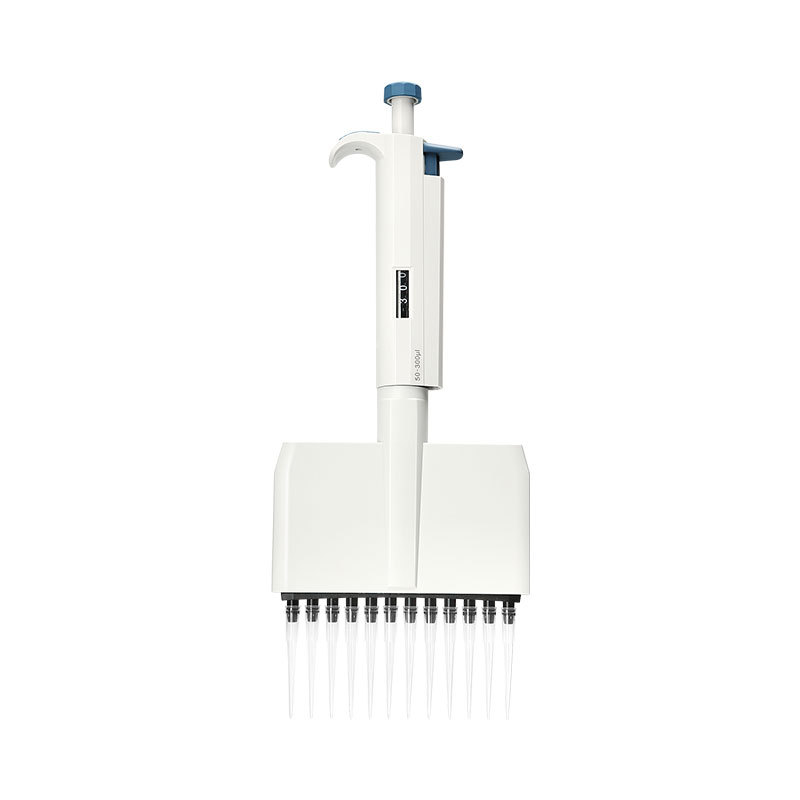

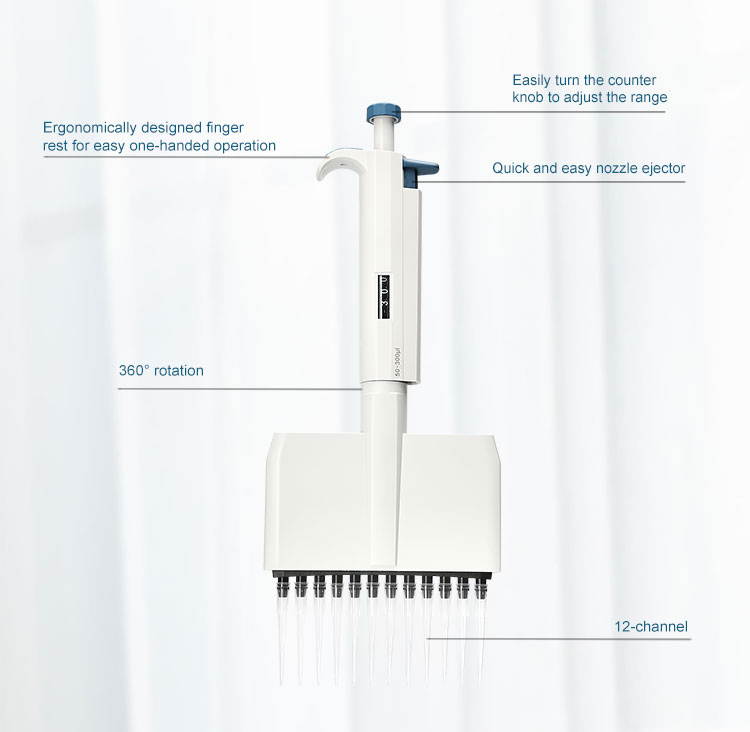

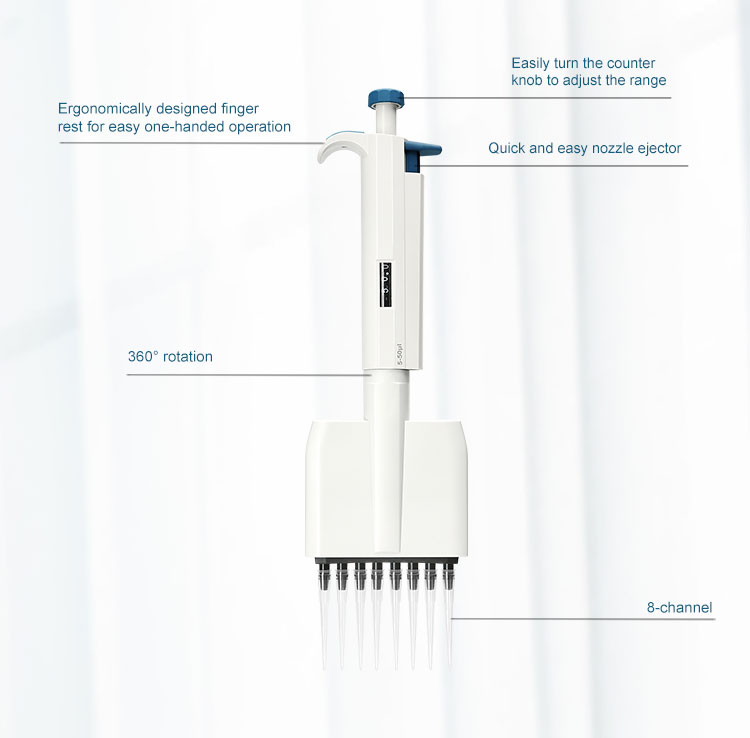

Model	Increment	Test Volume	Systematic Error		Random Error
Model				%		%
8-LTP-10	0.1	10	0.15	1.50	0.15	1.50
		5	0.125	2.50	0.125	2.50
		1	0.04	4.00	0.04	4.00
8-LTP-50	0.5	50	0.5	1.00	0.25	0.50
		25	0.375	1.50	0.25	1.00
		5	0.15	3.00	0.1	2.00
8-LTP-100	1	100	0.8	0.80	0.3	0.30
		50	0.5	1.00	0.4	0.80
		10	0.3	3.00	0.2	2.00
8-LTP-300	5	300	2.1	0.70	0.75	0.25
		150	1.5	1.00	0.75	0.50
		50	0.75	1.50	0.4	0.80

Volume Range	Increment	Test Volume	Systematic Error		Random Error
μL	μL	μL	μL	%	μL	%
0.5-10	0.1	10	±0.15	±1.50	±0.15	±1.50
		5	±0.125	±2.50	±0.125	±2.50
		1	±0.04	±4.00	±0.04	±4.00
5-50	0.5	50	±0.5	±1.00	±0.25	±0.50
		25	±0.375	±1.50	±0.25	±1.00
		5	±0.15	±3.00	±0.1	±2.00
10-100	1	100	±0.8	±0.80	±0.3	±0.30
		50	±0.5	±1.00	±0.4	±0.80
		10	±0.3	±3.00	±0.2	±2.00
50-300	5	300	±2.1	±0.70	±0.75	±0.25
		150	±1.5	±1.00	±0.75	±0.50
		50	±0.75	±1.50	±0.4	±0.80

Selling Units	Single item	Package size perbatch	28X8X4cm
Gross weight perbatch	0.500kg
