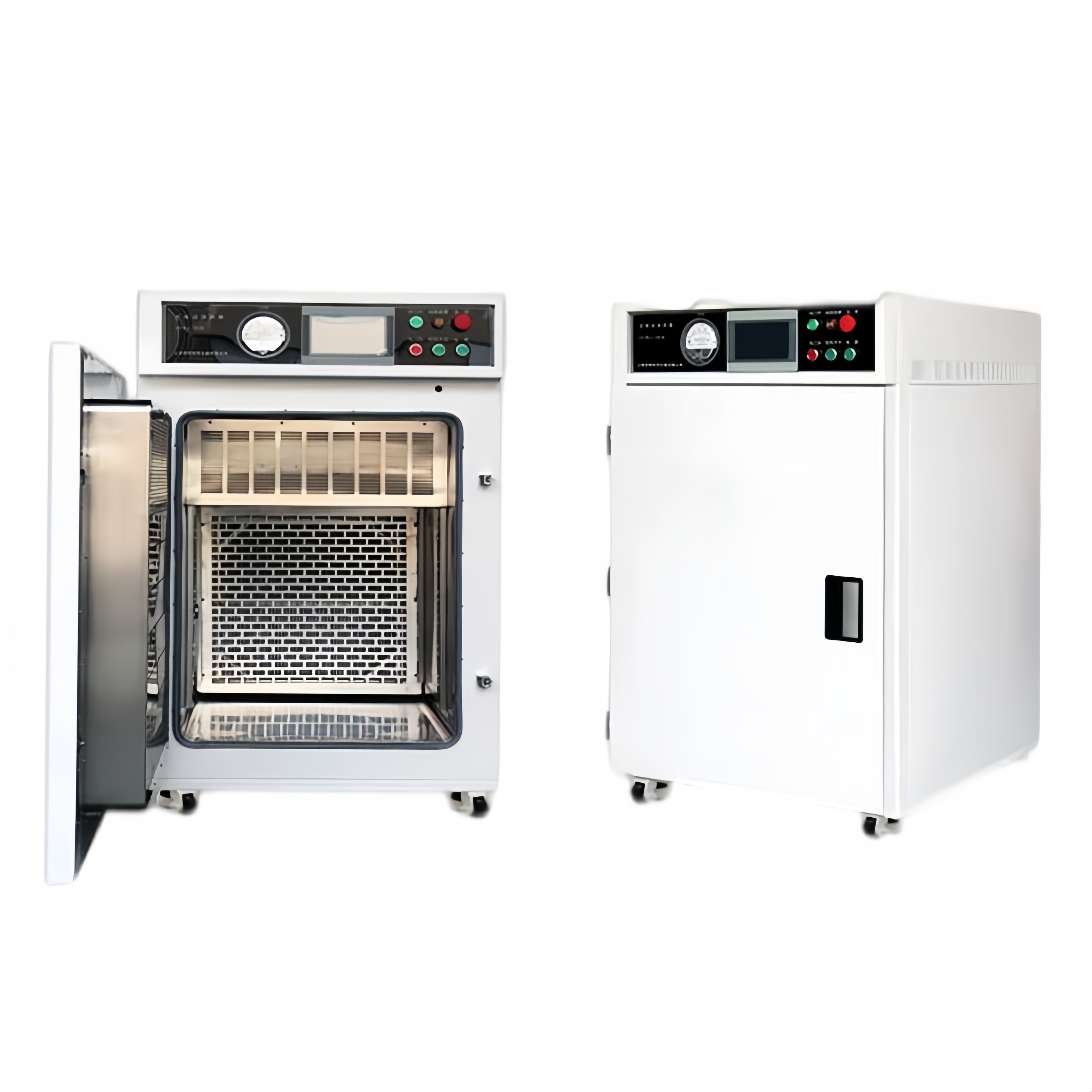

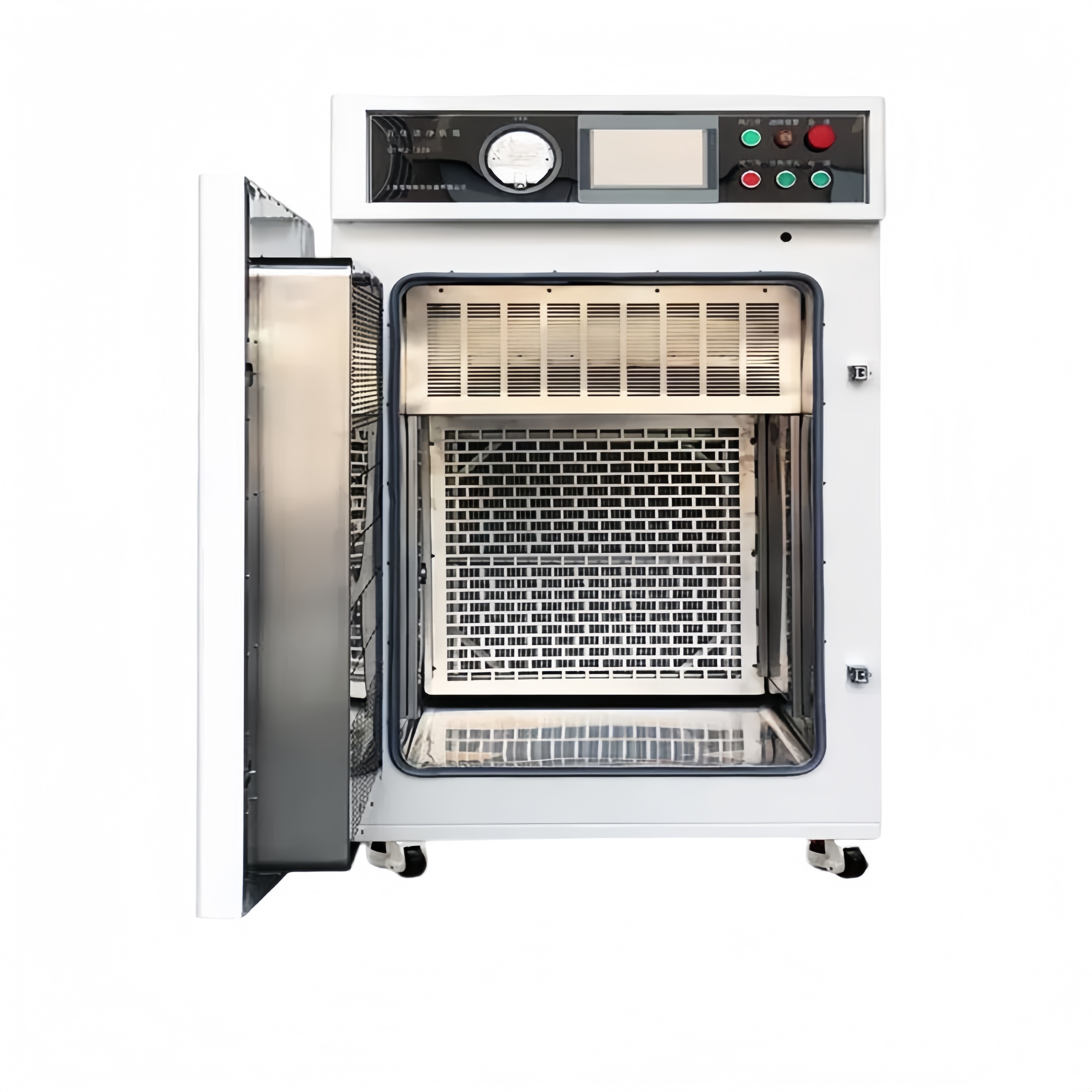

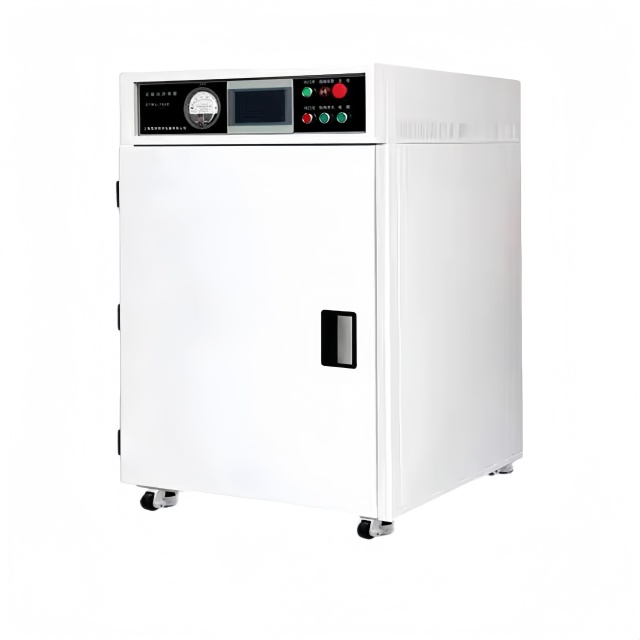

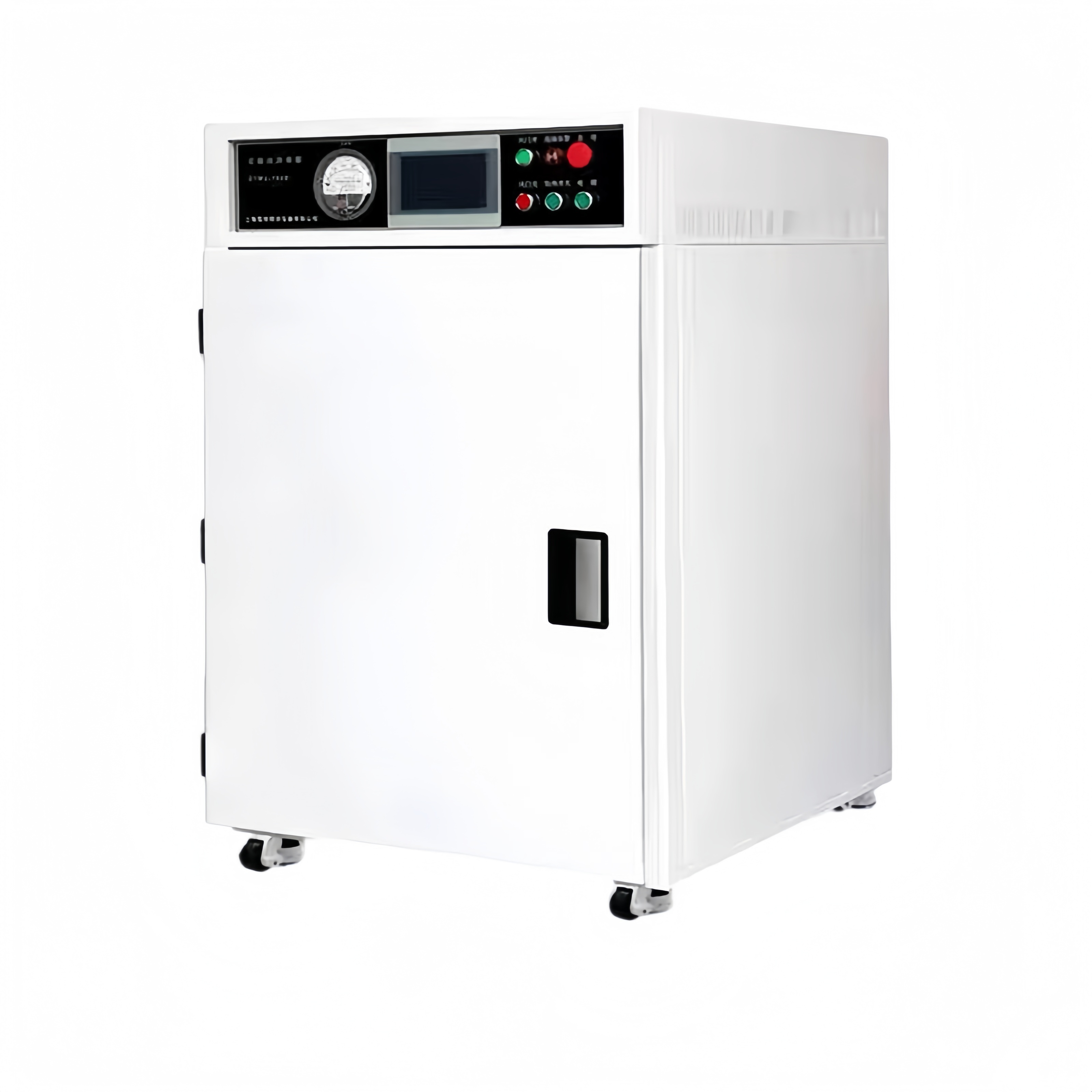

Class 100 clean drying oven

Name: Class 100 clean drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601586655478 ( TBJ)
Price: 22117.60 USD
Availability: InStock

No.1601586655478 ( TBJ)

Class 100 Clean Drying Oven (Dust‑Free Oven) is designed for electronic product heat treatment and aging in dust‑free workshops to ensure precision and cleanliness. It is widely used in LCD, CMOS, pharmaceuticals, laboratories and research departments, suitable for drying, heat treatment, aging and high‑temperature testing of non‑volatile, non‑flammable, non‑explosive materials. For semiconductors, it performs pre‑coating, post‑coating and post‑development baking for silicon wafers, lithium niobate, arsenide and glass.

$22117.60

model:

TBJ

Inner Size:

400*400*450mm

Request a Quote

Description
Key Features
Parameter

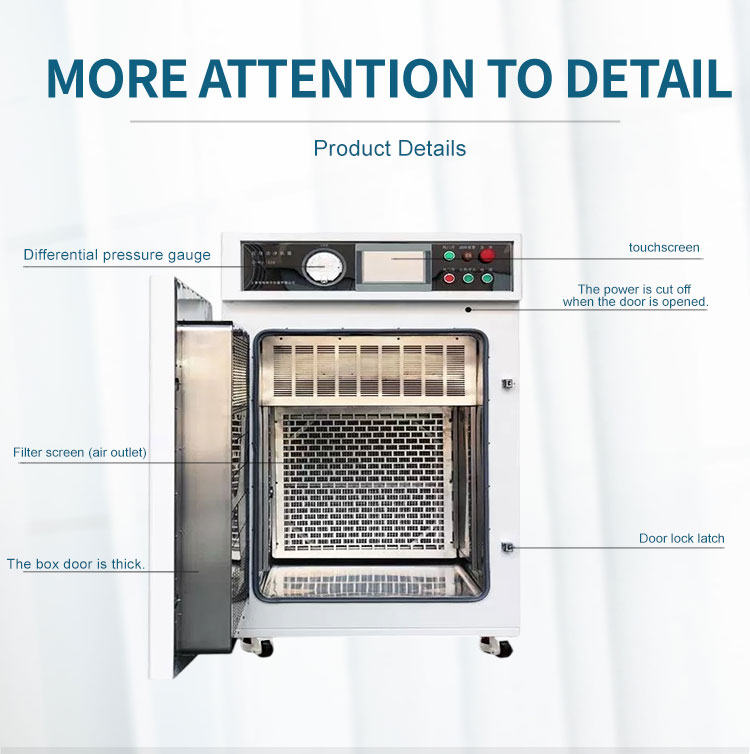

Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

TBJ series Class 100 clean drying oven, also known as dust-free oven, is used for heat treatment of workpieces in dust-free workshops to guarantee workpiece cleanliness. It can be applied for drying and aging of LCD, CMOS, IS and semiconductor components, as well as drying and heat treatment of samples under high-cleanliness environment in pharmacy, laboratories and optical component industries.
Cleanliness Class 100 (ISO 5), equipped with high-efficiency air filter with filtration efficiency of 99.995%. Adopting forced hot air circulation, temperature range RT+50~250℃, temperature uniformity ±2.5%, constant temperature fluctuation ±1℃.
Color touch screen intelligent temperature control system supports three-stage program heating, operation tracking, password lock and data storage & export. Optional RS485 interface connects to factory MES system.
316 stainless steel fully welded inner chamber, electrostatic sprayed outer shell. Multi-layer heat insulation structure and spiral air duct, built-in fan forms positive pressure circulation to continuously discharge dust inside and maintain static cleanliness.
Available volumes:72L, 180L, 270L, 480L, 980L. Small-volume models adopt AC220V power supply; 480L and 980L large-capacity models adopt AC380V industrial power supply.

Intelligent temperature control system supports multiple controls including constant temperature, heating rate and timing for precise and reliable control. Equipped with screen password lock, three-stage program heating and operation track tracking.
Color touch screen with PID self-tuning; supports program storage, remote monitoring and alarm record query. Optional RS485 interface connects to laboratory MES system for data interconnection.
316 stainless steel inner liner with full argon welding; electrostatic sprayed durable outer shell. Multi-layer thermal insulation and spiral air duct structure ensures stable and uniform temperature field.
Built-in fan generates positive pressure circulating airflow to remove particles in real time, avoid secondary pollution after shutdown and maintain continuous static cleanliness.
Standard high-efficiency air filter with 99.995% filtration efficiency, real-time cleanliness monitoring, complying with semiconductor SEMI standards and GMP clean process requirements.
Over-temperature power-off and pressure balance design conforms to GMR, ISO14644-1 standards. Multiple safety protections include phase loss detection, self-diagnosis, electric leakage and fan overload protection.
Automatic shutdown upon fault and power-off memory function. Clear fault codes displayed on screen during abnormal operation for rapid troubleshooting.
Forced convection hot air circulation realizes uniform temperature distribution, stable temperature field even under full load, suitable for synchronous clean baking of bulk workpieces.
Standard shelf load ≤30KG, customized reinforced shelves available for heavy workpieces. Timing range:1~9999min.

	TBJ-72	TBJ-180	TBJ-270	TBJ-480	TBJ-980

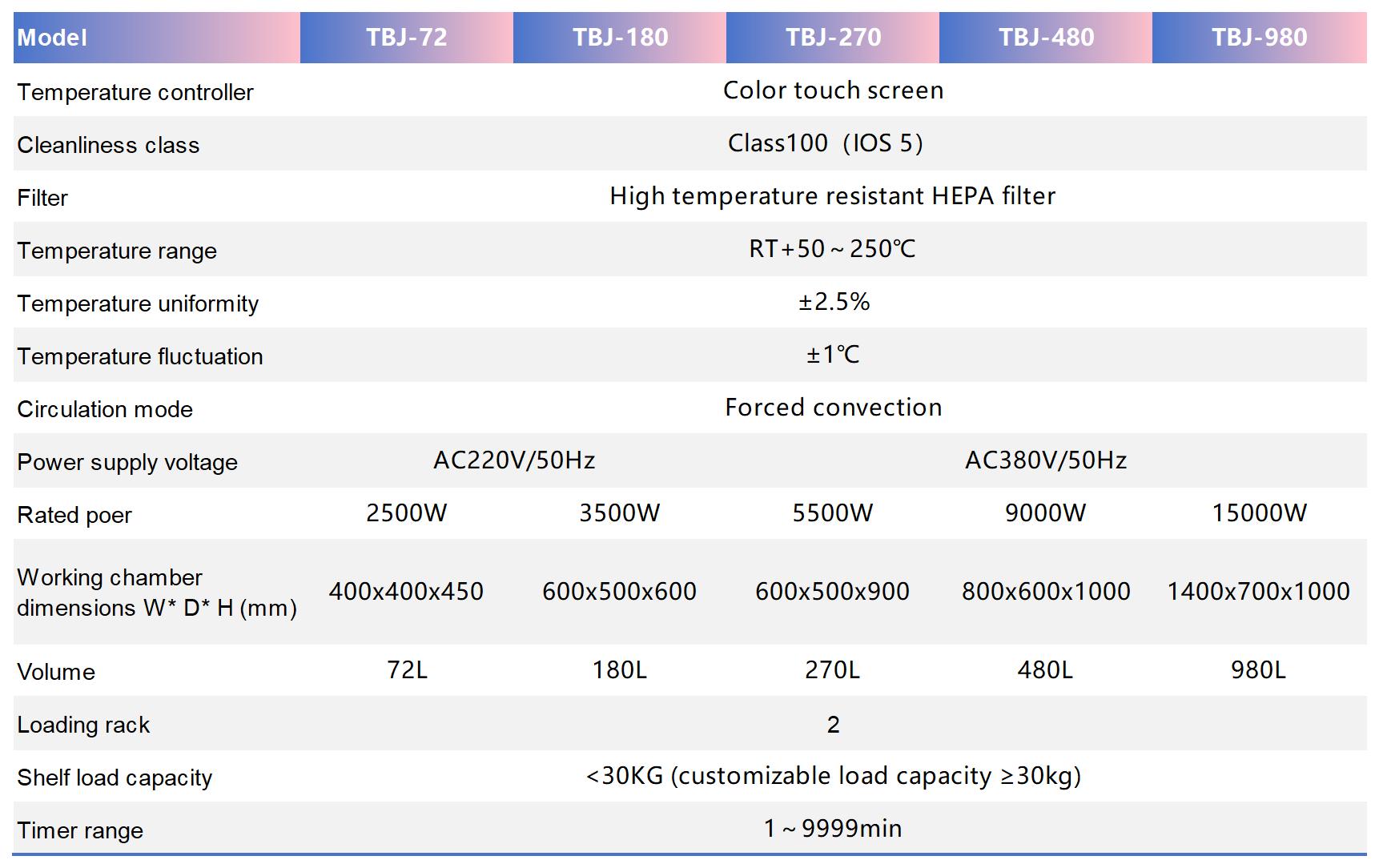

Model	TBJ-72	TBJ-180	TBJ-270	TBJ-480	TBJ-980
Temperature Controller	color touch screen	color touch screen	color touch screen	color touch screen	color touch screen
Cleanliness level	Class100 (IOS 5)	Class100 (IOS 5)	Class100 (IOS 5)	Class100 (IOS 5)	Class100 (IOS 5)
filter	High temperature resistant and efficient air filter	High temperature resistant and efficient air filter	High temperature resistant and efficient air filter	High temperature resistant and efficient air filter	High temperature resistant and efficient air filter
temperature range	RT+50 ~ 250℃	RT+50 ~ 250℃	RT+50 ~ 250℃	RT+50 ~ 250℃	RT+50 ~ 250℃
Temperature Uniformity	±2.5%	±2.5%	±2.5%	±2.5%	±2.5%
temperature fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃
Circulation mode	forced convection	forced convection	forced convection	forced convection	forced convection
power supply voltage	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz	AC380V/50Hz	AC380V/50Hz
Rated power	2500W	3500W	5500W	9000W	15000W
inner dimensions WDH(mm)	400400450	600500600	600500900	8006001000	14007001000
volume	72L	180L	270L	480L	980L
Load carrier	2	2	2	2	2
Shelf load-bearing capacity	< 30KG (customizable load-bearing capacity ≥ 30kg)	< 30KG (customizable load-bearing capacity ≥ 30kg)	< 30KG (customizable load-bearing capacity ≥ 30kg)	< 30KG (customizable load-bearing capacity ≥ 30kg)	< 30KG (customizable load-bearing capacity ≥ 30kg)
timing range	1 ~ 9999min	1 ~ 9999min	1 ~ 9999min	1 ~ 9999min	1 ~ 9999min

Class100 (ISO5) cleanliness level designed for dust-free workshops. Built-in high-temperature HEPA filter continuously purifies circulating airflow to prevent dust contamination during workpiece baking.
316 stainless steel fully welded inner liner with smooth dead-corner-free surface, anti-dust accumulation and easy cleaning. Multi-layer thermal insulation reduces outer shell temperature and workshop heat load.
Spiral air duct and built-in fan positive pressure circulation continuously remove particles during operation, maintaining static cleanliness after shutdown and avoiding secondary pollution caused by dust fall in traditional ovens.
Color touch screen PID intelligent control system supports multi-segment program heating and operation data storage. Operation password management meets data traceability standards of pharmaceutical and semiconductor industries.
Forced hot air circulation achieves uniform temperature field. Temperature range RT+50~250℃, suitable for clean baking of optical components, chips and pharmaceutical consumables.
Comprehensive safety protection system includes over-temperature power-off, pressure balance, phase loss, electric leakage, fan overload and self-diagnosis, complying with semiconductor SEMI and ISO14644 standards.
Two power supply options: 72L/180L/270L adopt single-phase AC220V; large-capacity 480L/980L adopt three-phase AC380V industrial power.
Standard shelf load 30KG, customized reinforced brackets available for heavy substrates and large workpieces. Timing range:1~9999min.
Optional RS485 communication interface connects to factory MES system. Custom internal dimension, door orientation and cleanliness upgrade schemes available upon request.

Clean baking of small batches of optical components and chip samples in laboratories: choose 72L small-volume model.
Mass production of medium & small workpieces and component aging in dust-free workshops: select mainstream volumes 180L /270L.
Continuous clean heat treatment of large substrates and bulk workpieces: choose large-capacity 480L and 980L models.
Confirm workshop power supply: 72~270L fit AC220V; 480L/980L require three-phase AC380V industrial power.
Automatic multi-segment temperature process and production data traceability required: standard color touch screen programming function, optional RS485 for MES connection.
Heavy substrates or workpieces over 30KG per batch: customized reinforced load-bearing shelves should be confirmed in advance.
Industry compliance: semiconductor and optoelectronic customers shall verify Class100 cleanliness and long-term filter maintenance plan.
Max process temperature ≤250℃ matches standard specification; lower starting temperature can be customized.
For long-term continuous mass production, reserve maintenance space for regular filter replacement to sustain cleanliness level.

Standard factory package: Class100 clean drying oven main unit, stainless steel shelves, power cord and bilingual operation manual. Extended accessories such as filter and communication module are optional separately.
Thick shockproof wooden crate with foam buffer protects precision parts including inner liner, touch screen, sealing door and HEPA filter against collision damage during long cross-border transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Selling Units	Single item	Package size per batch	89127153cm
Gross weight per batc	110.000kg

Name	Qty
Class 100 clean drying oven	1
Stainless steel clean mesh shelf	2 pcs
Built-in HEPA high efficiency filter	1 set
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Complete factory electronic documents can be obtained upon request for cross-border website listing, overseas semiconductor & biopharma clean equipment exhibition promotion and technical consultation for overseas buyers.
Supporting digital files: bilingual full specification sheet, standard operation manual, HEPA filter maintenance & replacement guide, overall dimension drawing, touch screen programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and filter structure photos for unified multi-category online store operation.

What international standard does Class100 correspond to?
Class100 equals ISO 5 cleanliness level, complying with ISO14644-1 cleanroom standard.
What is the minimum starting working temperature? Standard temperature range RT+50 ~ 250℃, cannot operate near ambient temperature directly.
What is circulation mode and cleaning principle? Forced hot air positive pressure circulation. Air continuously passes through high-temperature HEPA filter (99.995% efficiency) to remove chamber dust.
Will dust fall and cause contamination after shutdown?
Positive pressure duct design maintains static cleanliness after shutdown and prevents secondary dust pollution found on ordinary ovens.
How often should the filter be replaced?
Depends on workshop dust concentration. Regular pressure difference inspection every 6~12 months and replace as needed for standard clean environment.
What is controller configuration, does it support programmed heating?
Standard color touch screen PID controller with 3-stage program heating, data logging and password authority management.
Can it connect to factory MES system?
Optional RS485 interface supports remote monitoring and data upload via host computer.
What is standard shelf load, can load capacity be increased?
Standard ≤30KG, customized reinforced brackets available for higher load.
What power supply is required for large-capacity models?
480L and 980L models require three-phase AC380V industrial power.
What is inner liner material and its advantages?
316 stainless steel with full argon welding, smooth dead-corner-free surface, anti-dust accumulation, corrosion resistance and easy cleaning for clean environment.
What safety protection functions are equipped? Over-temperature power-off, pressure balance, phase loss protection, electric leakage, fan overload and fault self-diagnosis alarm.
Will programs and settings be lost after power failure?
Built-in memory chip automatically retains all settings after power recovery.
What is maximum timing duration?
Timing range:1~9999 minutes.
Can flammable and explosive solvent samples be dried?
Not allowed. This oven is only used for clean heat treatment of non-flammable materials without explosion risk.
Can internal samples be observed?
Clean-grade tempered glass observation window is optional; standard model does not include viewing window.
Test condition for temperature uniformity and fluctuation?
Tested without load; uniformity ±2.5%, constant temperature fluctuation ±1℃.
Can it be used in pharmaceutical GMP clean workshops?
Cleanliness meets requirements. It can satisfy GMP management with regular filter maintenance records and site validation.

TBJ Class100 clean drying oven is suitable for clean drying and aging test of semiconductor chips, optical lenses, LCD components and sterile pharmaceutical consumables under dust-free environment. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, chamber resizing, door orientation change, reinforced load capacity, MES communication matching), assisting parameter verification, production scheduling, cross-border logistics and factory cleanliness inspection.
Contact ways: Email, WhatsApp, online website message. Please state target model, volume, power specification, RS485 requirement, load customization demand and order quantity. A complete formal quotation will be provided within 24 hours to resolve all purchasing questions at one time.
