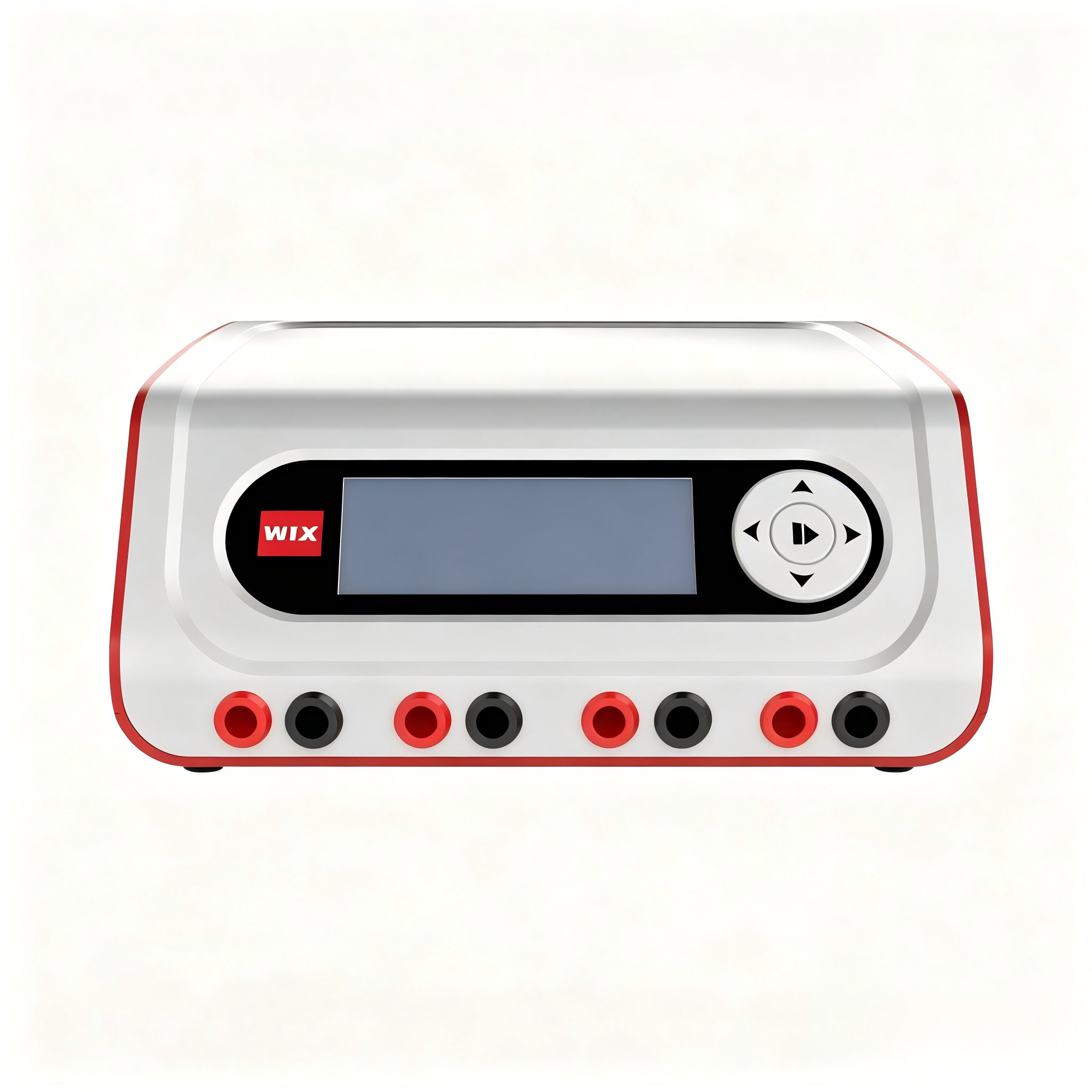

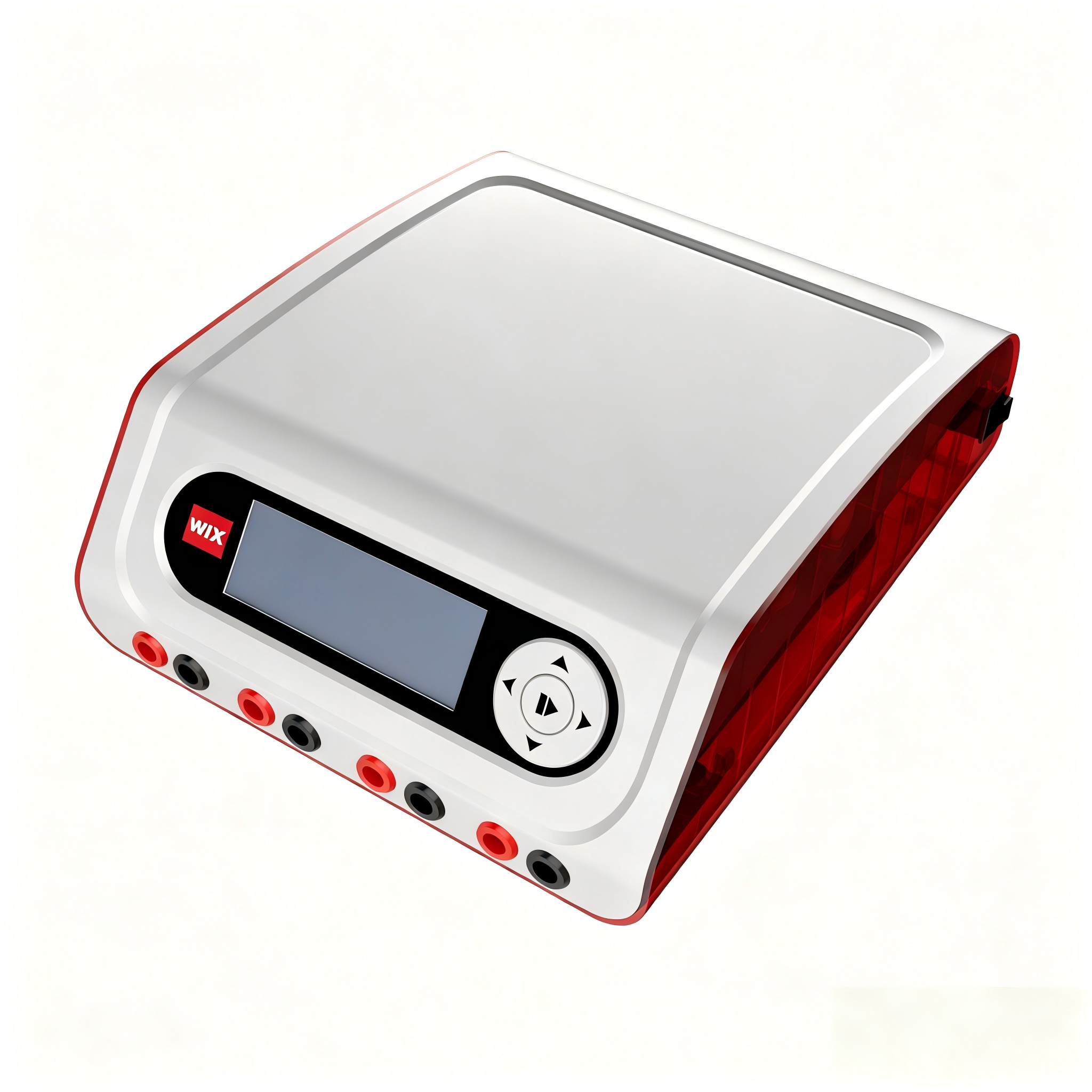

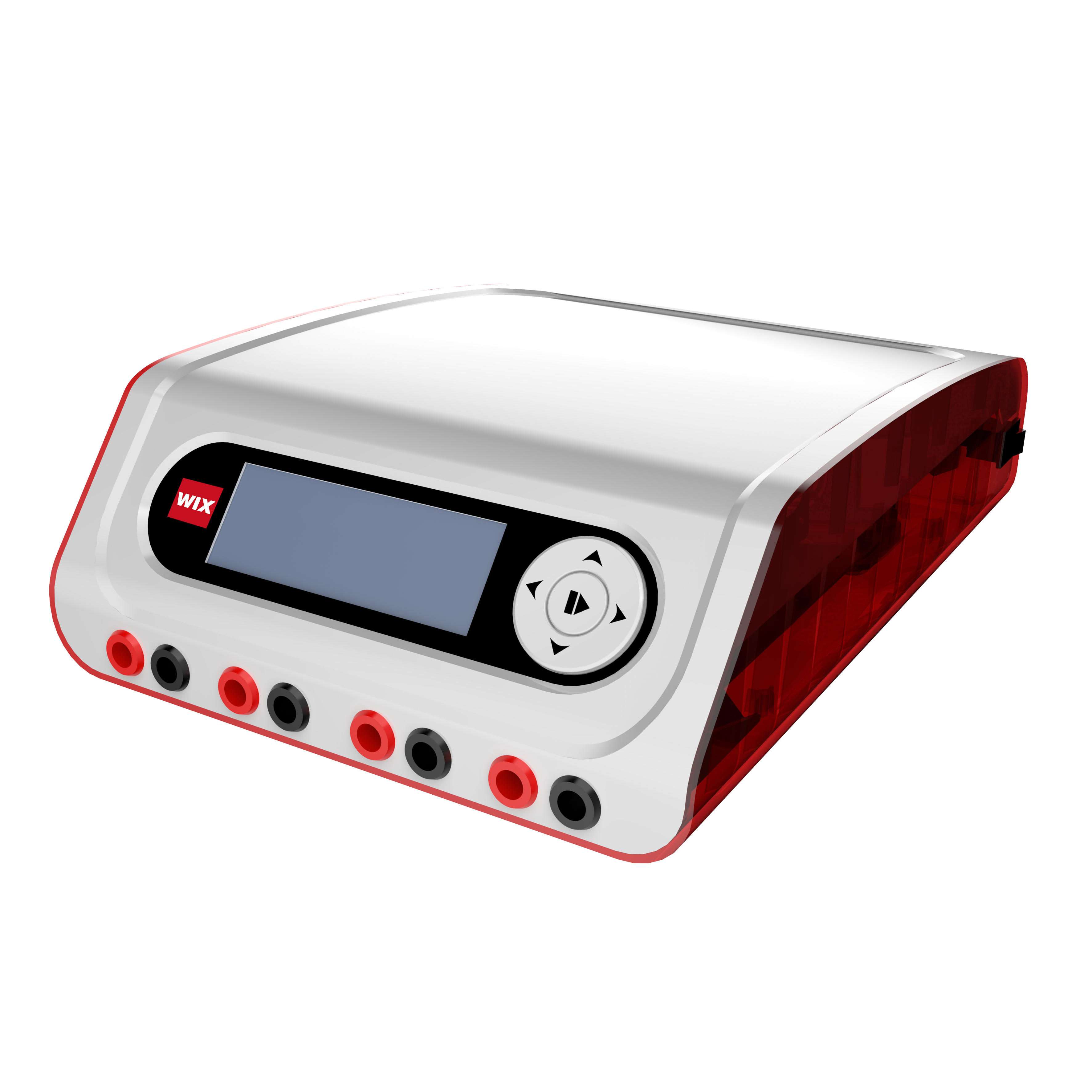

Multi-functional laboratory electrophoresis power supply with constant voltage, constant current and constant power modes. It supports 4 gel units running simultaneously, built-in automatic protein electrophoresis program and full-range safety protection. Storable custom experimental protocols fit research, teaching, pharmaceutical and testing labs to boost experimental efficiency and data reproducibility.
This basic electrophoresis power supply supports three output modes: constant voltage, constant current and constant power to meet diverse electrophoresis experimental demands.

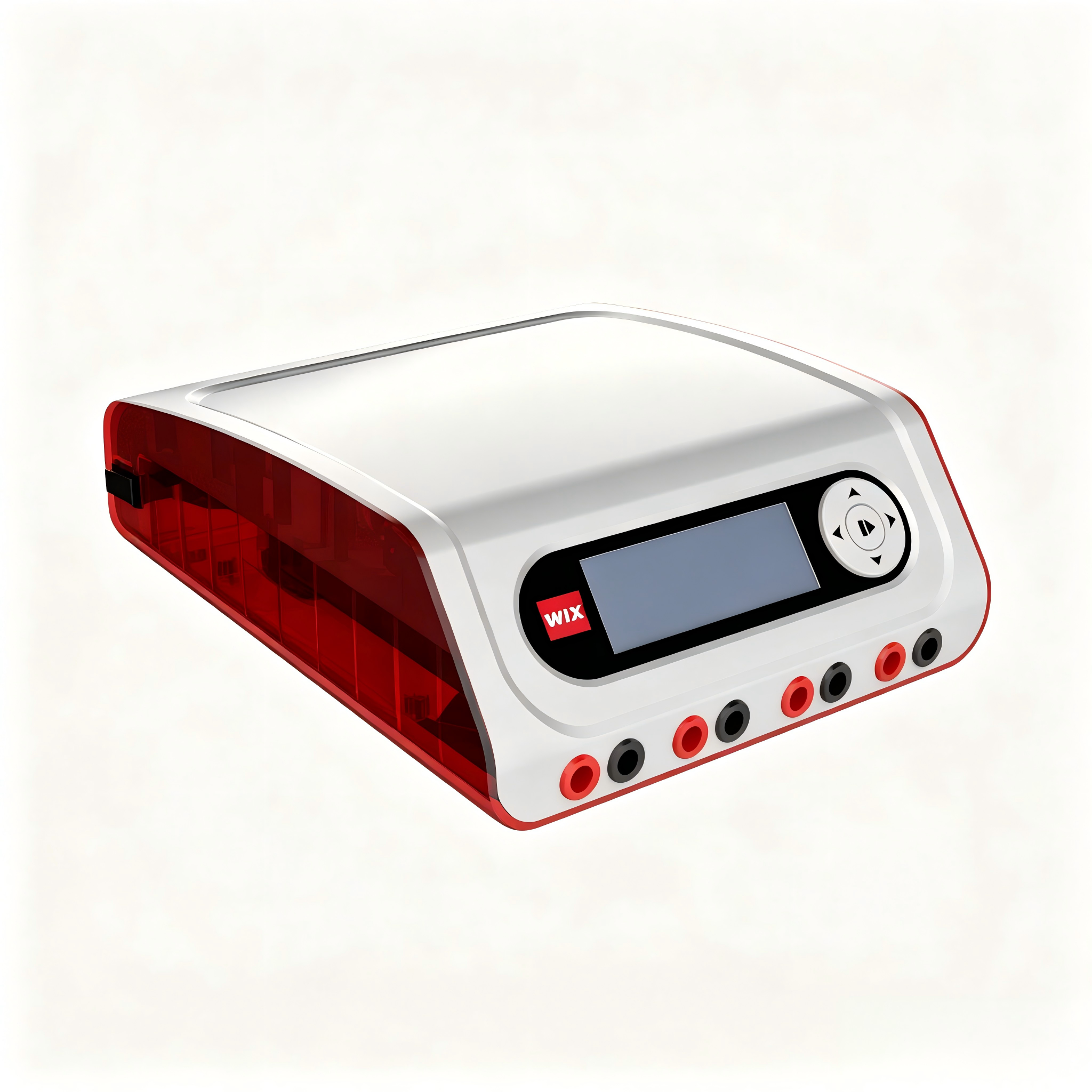

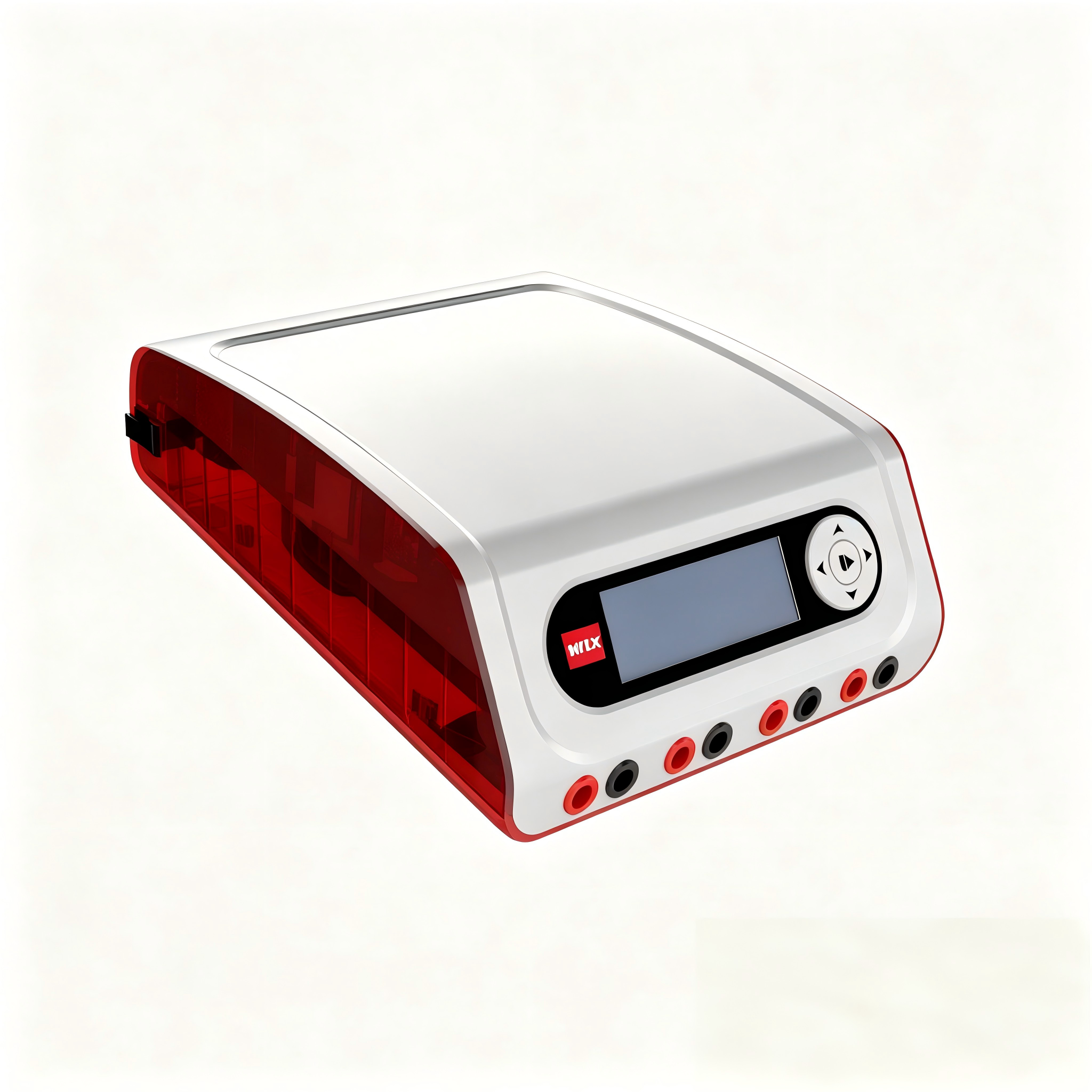

Adopts transparent instrument housing, allowing direct observation of the internal structural layout of the equipment for routine inspection and maintenance.
Built-in dedicated protein electrophoresis program, which automatically switches to separating gel operation after concentrated gel electrophoresis is finished to reduce repeated manual parameter setting.
Equipped with automatic parameter generation function, micro-current protection after experiment, multi-dimensional safety monitoring, power-off recovery and pause-resume functions. It supports four groups of parallel output to drive multiple electrophoresis tanks simultaneously, and can store 10 sets of programmable experimental methods for repeated experiments.
Applicable to conventional nucleic acid electrophoresis, protein gel electrophoresis experiments for university teaching laboratories, scientific research institutions and testing laboratories.
Three optional output types: constant voltage, constant current, constant power, covering common electrophoresis experimental conditions.
Transparent outer casing design for intuitive viewing of internal components, convenient for equipment maintenance and fault checking.
Automatic gel switching for protein electrophoresis to avoid repeated manual parameter configuration.
Automatic parameter generation: set one fixed constant value, the other two electrical parameters will be generated automatically to prevent setting errors caused by manual operation.
Post-experiment micro-current function to avoid sample diffusion and over-running after timed shutdown.
LCD screen synchronously displays voltage, current, power and running timing for real-time experimental status checking.
Four-channel parallel output, capable of driving multiple electrophoresis tanks to run experiments at the same time to improve experimental efficiency.
10 groups of experimental programs can be stored, each program supports up to 2 segmented running steps
Serial Number
Parameter Item
Technical Specification
1
Output Range
Voltage: 5–300V; Current: 1–400mA; Power: 1–75W
2
Output Resolution
Voltage 1V, Current 1mA, Power 1W
3
Display Mode
192×64 LCD liquid crystal display screen
4
Timing Range
1min – 99h59min, continuously adjustable
5
Overall Dimension
308×242×100mm (L×W×H)
6
Net Weight
2Kg
Transparent casing design realizes visual internal observation, users can quickly judge the working state of internal circuit components during daily use.
Four groups of parallel output terminals support multi-tank simultaneous electrophoresis, suitable for laboratory batch sample testing.
The built-in concentrated gel and separating gel automatic switching program simplifies the operation flow of vertical protein electrophoresis and ensures consistent experimental parameters for batch samples.
Automatic electrical parameter matching function reduces the threshold for new operators to set experimental parameters and lowers the probability of experimental failure caused by parameter errors.
Micro-current holding after timing avoids sample damage caused by delayed gel cutting when operators cannot arrive on time after the experiment ends.
Multi-level safety circuit will trigger an alarm and cut off power output under short circuit, overvoltage and leakage faults to protect electrophoresis tanks, gel samples and the main power supply.
Storable segmented experimental programs are convenient for solidifying mature experimental schemes and one-click recall for repeated tests.
Laboratories with demand for batch electrophoresis experiments: four-way parallel output can drive multiple electrophoresis tanks at once to boost testing throughput.
Teaching laboratories for student electrophoresis experiments: transparent casing is convenient for teachers to explain the internal structure of power supply to students.
Laboratories focusing on conventional agarose nucleic acid electrophoresis and vertical SDS-PAGE protein electrophoresis: 5–300V output range fully matches low and medium voltage conventional electrophoresis requirements.
Experimental staff cannot be on-site for gel cutting after the experiment: micro-current anti-diffusion function effectively protects gel samples.
Laboratories with unstable mains power supply: power-off automatic recovery function can continue electrophoresis after power restoration to avoid long-time experimental failure.
Laboratories with fixed repeated experimental protocols: program storage function realizes quick parameter calling and standardized operation.
Packaging: Hard export carton with integrated thick foam liner for shockproof and crashproof protection for long-distance transportation.
In-stock lead time: 3–10 working days after order confirmation.
Standard packing list: electrophoresis power main unit, power cord, multi-group electrode connecting wires, operation manual, factory inspection certificate.
Neutral unbranded packaging and customized outer box printing are available upon customer requests.
Selling Units
Single item
Package size perbatch
380×320×160mm
Gross weight perbatch
6.7kg
Accessory Name
Standard Quantity
Description
Electrophoresis Power Supply Main Unit
1 set
Main power supply for electrophoresis
Universal Power Cord
1 piece
For equipment power supply
Red & Black Electrode Output Cables
4 sets
Connect various electrophoresis cells
Paper Instruction Manual
1 copy
Equipment operation guide
Factory Qualification Certificate
1 piece
Factory inspection certificate
Warranty Card
1 piece
1-year warranty voucher
Contact support team to get complete digital documents: bilingual specification sheet and electronic brochure PDF.
