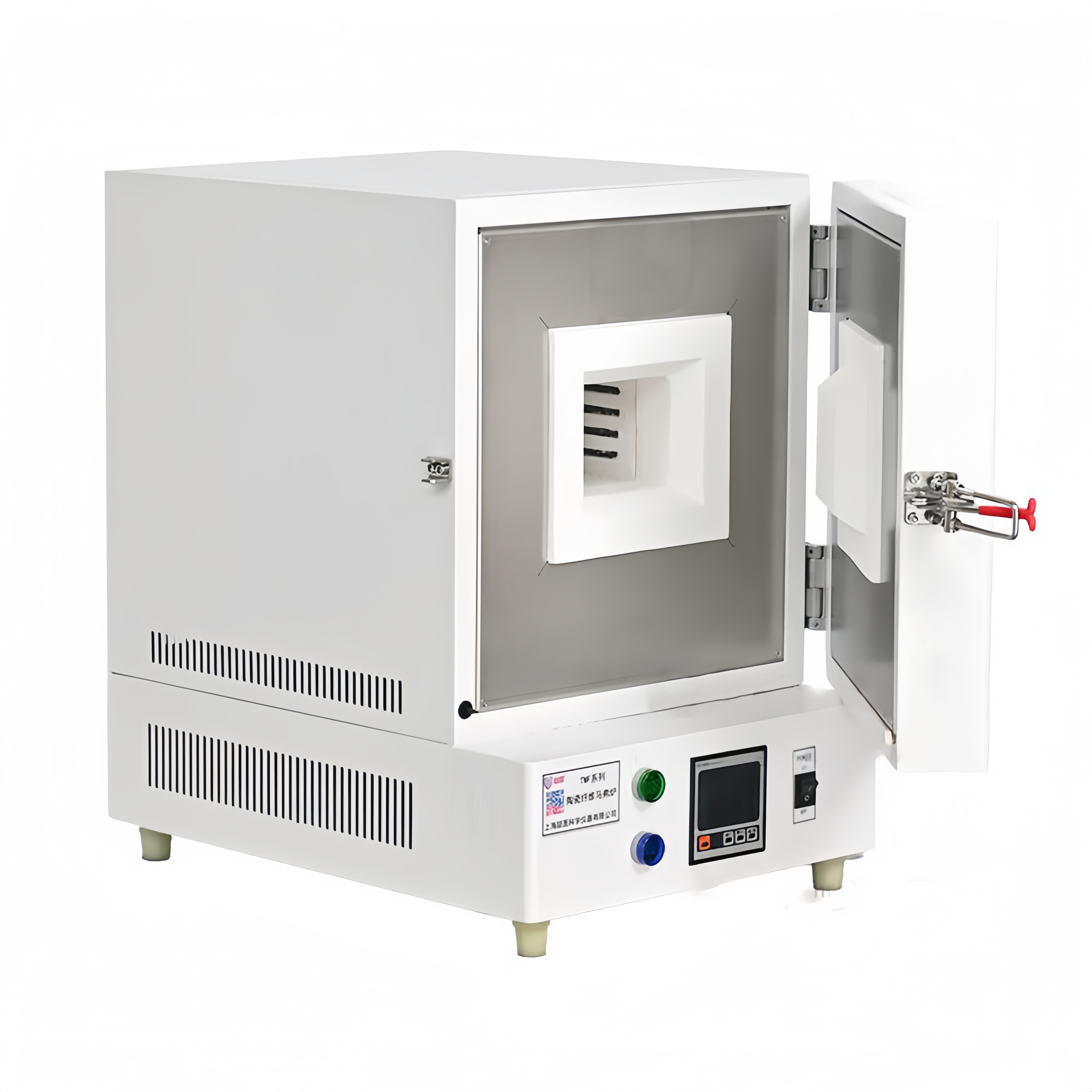

Ceramic Fiber Muffle Furnace

Name: Ceramic Fiber Muffle Furnace
Brand: labcarta Technology Co., Ltd.
SKU: 1601639097934-TMF
Price: 2731.20 USD
Availability: InStock

No.1601639097934-TMF

This ceramic fiber muffle furnace features a lightweight ceramic fiber body, solving the problems of heavy weight, fragile heating wires and slow heating in traditional models. It is widely used in laboratories, industrial and mining enterprises and research institutions for elemental analysis, ceramic sintering, annealing, powder metallurgy, nanomaterial sintering, and metal heat treatment.

$2731.20

model:

TMF

Inner Size:

120*200*800

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

Ceramic fiber box muffle furnace is laboratory high-temperature heat treatment equipment. Equipped with ceramic fiber insulation and high-temperature heating elements for precise heating, widely used for sample ashing, annealing, quenching, sintering and quantitative composition analysis.
Four door structures are optional: standard side opening, automatic vertical lifting door, pull-out trolley type, double transparent through type. Temperature grades include 1000℃, 1200℃, 1400℃, 1700℃, with chamber volume from 2L to 36L to fit different sample loads and processes.
Integrated ceramic fiber chamber delivers fast heating and outstanding heat insulation. Compared with traditional firebrick furnaces, it has lower heat loss and cooler outer shell, achieving remarkable energy efficiency.
LCD programmable temperature controller supports 30-segment heating profiles, users can customize multi-stage heating, holding and cooling cycles. Closed-loop PID control ensures even chamber temperature for consistent batch test results.
Complete electrical safety system with audible & visual over-temperature alarm and automatic heating cut-off. Various models fit heat treatment, sintering and ash testing for university labs, inspection institutes, new material and metal processing factories.

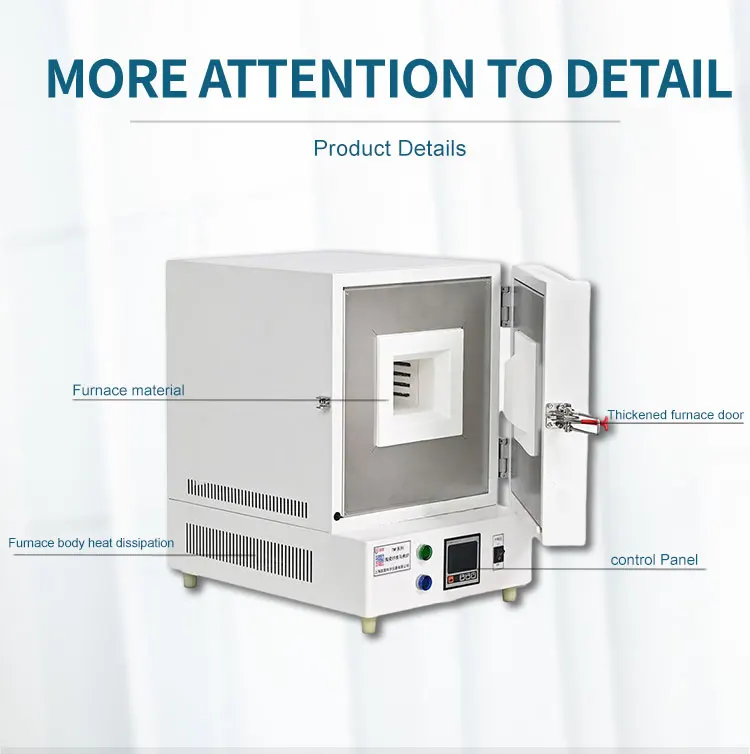

Details Images

30-segment programmable LCD temperature controller allows custom multi-stage heating, holding and cooling cycles for complex continuous heat treatment without constant manual monitoring.
Lightweight ceramic fiber chamber with low heat storage heats up rapidly. Low thermal conductivity insulation keeps cool outer housing to prevent scald and cut long-term power consumption.
Evenly distributed heating elements create uniform internal temperature field with minimal temperature difference across samples inside crucibles, delivering high test repeatability.
High-precision intelligent PID temperature control maintains tiny temperature fluctuation and stable long-running temperature to reduce experimental error.
Full safety package including over-temperature, leakage, short-circuit and overload protection to eliminate hazards during high-temperature tests.
Four door designs available to match regular sampling, frequent loading, heavy workpieces and real-time sample observation respectively.
Corrosion-resistant high-temperature alloy inner chamber resists deformation and cracking under sustained high heat for extended service life.
Reserved gas inlet & exhaust ports support inert shielding gas feeding and high-temperature volatile waste gas discharge for oxidation-sensitive material sintering.
Compact benchtop layout fits standard lab workbenches, simple installation and ready to use after power connection.

Model	TMF-2-12T TMF-2-12TP TMF-2-12TC	TMF-7.2-12T TMF-7.2-12TP TMF-7.2-12TC	TMF-12-12T TMF-12-12TP TMF-12-12TC	TMF-16-12T TMF-16-12TP TMF-16-12TC	TMF-30-12T TMF-30-12TP TMF-30-12TC	TMF-36-12T TMF-36-12TP TMF-36-12TC	TMF-80-12T TMF-80-12TP TMF-80-12TC	TMF-120-12T TMF-120-12TP TMF-120-12TC
power supply voltage	AC220V 50Hz			AC380V 50Hz
Current voltmeter	Voltmeter and ammeter(1 set each)			Voltmeter and ammeter(3 set each)
Instrumentation	LCD display (T series)/Programmable LCD display(TP series)/Color touch screen (TC series)
heating element	High-Temperature Alloy			High-Temperature Alloy
Temperature control range	RT(Room Temperature)+50~1200℃			RT(Room Temperature)+50~1200°℃
controlaccuracy	±1℃			±1℃
input power	3000W	4000w	5000W	9000w	10000w	12000w	17000w	21000W
Furnace size WDH(mm)	12020080	200300120	200300200	250400160	300500200	300400300	400500400	450600450
Overall dimensions WDH(mm)	440570590	520670650	540700670	570800700	640880730	620800760	740900980	8209801025
Nominalvolume	2L	7.2L	12L	16L	30L	36L	80L	120L
timing range	1~9999min

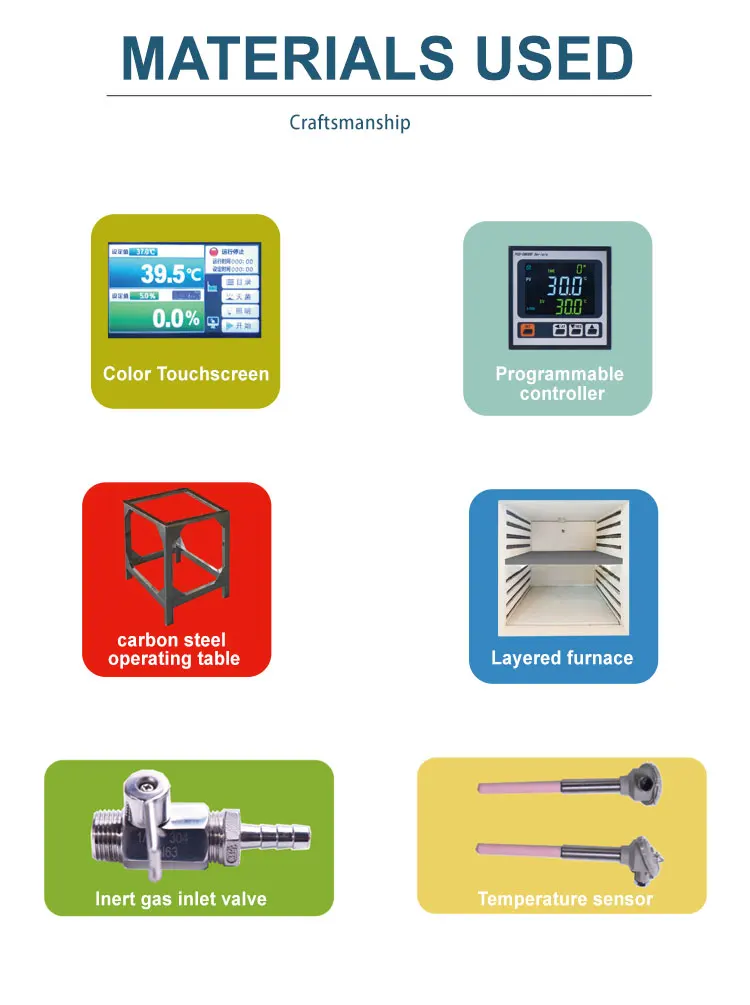

Optional accessories	Exhaust chimney (for discharging smoke and waste gas),muffle furnace operation platform,mini printer,RS485 interface,inert gas valve,color touch screen,CF layered furnace chamber/SC crucible support

Lightweight ceramic fiber furnace replaces heavy firebrick units, greatly shortening preheating time and cutting overall power consumption for frequent long-term lab heat treatment.
30-segment programmed control eliminates constant temperature monitoring. Full heating, holding and cooling sequences run automatically after one-time setup for long annealing and sintering processes.

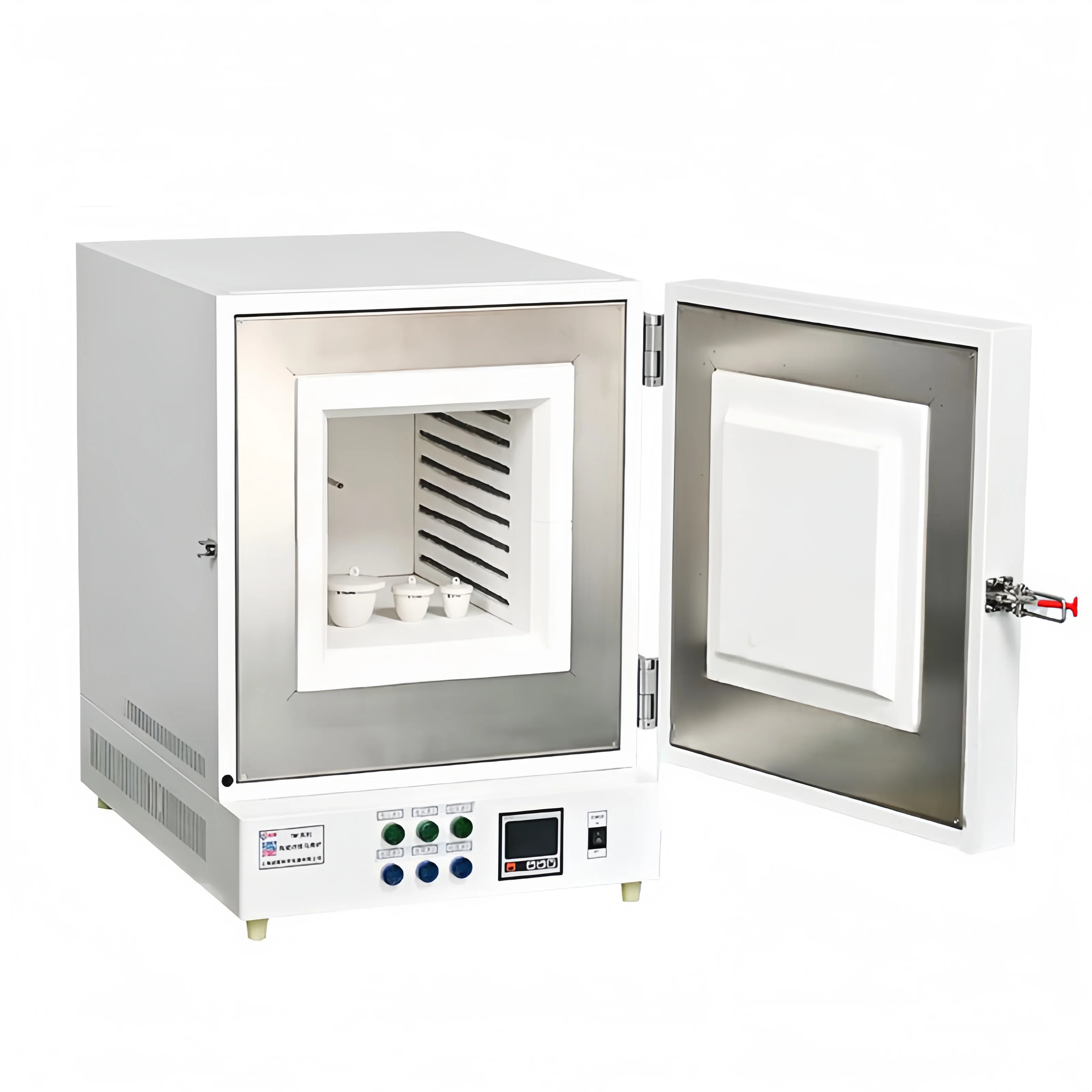

Surrounding heating layout delivers even chamber temperature, ensuring identical heating for multiple crucibles in one batch and minimizing parallel test deviation.
Low-density ceramic fiber insulation locks heat efficiently and keeps cool outer housing, lowering scald risk for multi-operator labs and saving power.
Linked multi-safety system cuts heating and triggers audio-visual alert immediately upon overtemperature to prevent sample waste and equipment overheat damage.
Vertical lift door requires no side clearance, enabling labor-saving repeated sample loading for high-throughput sample preparation labs.
Full pull-out trolley hearth allows heavy crucibles and large workpieces to be moved without reaching into hot chamber for safer operation.
Double transparent through structure enables real-time observation of samples under high heat, and can substitute tube furnaces for continuous through-type heat treatment.
Small-volume benchtop units fit regular lab benches without custom floor base, ready for commissioning after delivery and power connection.

Routine ash test and low-temperature annealing below 1000℃: Select 1000℃ standard side door model to cover general lab demands.
Metal quenching and regular ceramic sintering at 1000–1200℃: 1200℃ models adopt durable heating elements for stable long operation.
Special ceramic and high-melting powder sintering at sustained 1400℃: Pick 1400℃ series with high temperature resistant chamber and heating components.
Sapphire and ultra-high temp new material sintering up to 1700℃: Adopt 1700 silicon molybdenum rod furnace for extreme temperature processes.
Small university labs with low sample throughput: 2–7.2L chambers with standard AC220V power without industrial circuit renovation.
Factory QC and pilot labs with large batch samples: 12–36L large-volume high-power 380V models hold multiple crucibles simultaneously.
Daily frequent door opening and mass sample preparation: Automatic lift door type reduces manual high-temperature operations.
Large heavy workpieces hard to retrieve inside hot chamber: Trolley pull-out furnace for safe, easy handling.
Real-time sample observation and continuous through heat treatment: Double transparent through furnace is recommended.

Standard package includes furnace main body, high-temperature crucible tongs, power cord, bilingual operation manual. Atmosphere assembly and custom crucibles are optional separate parts.

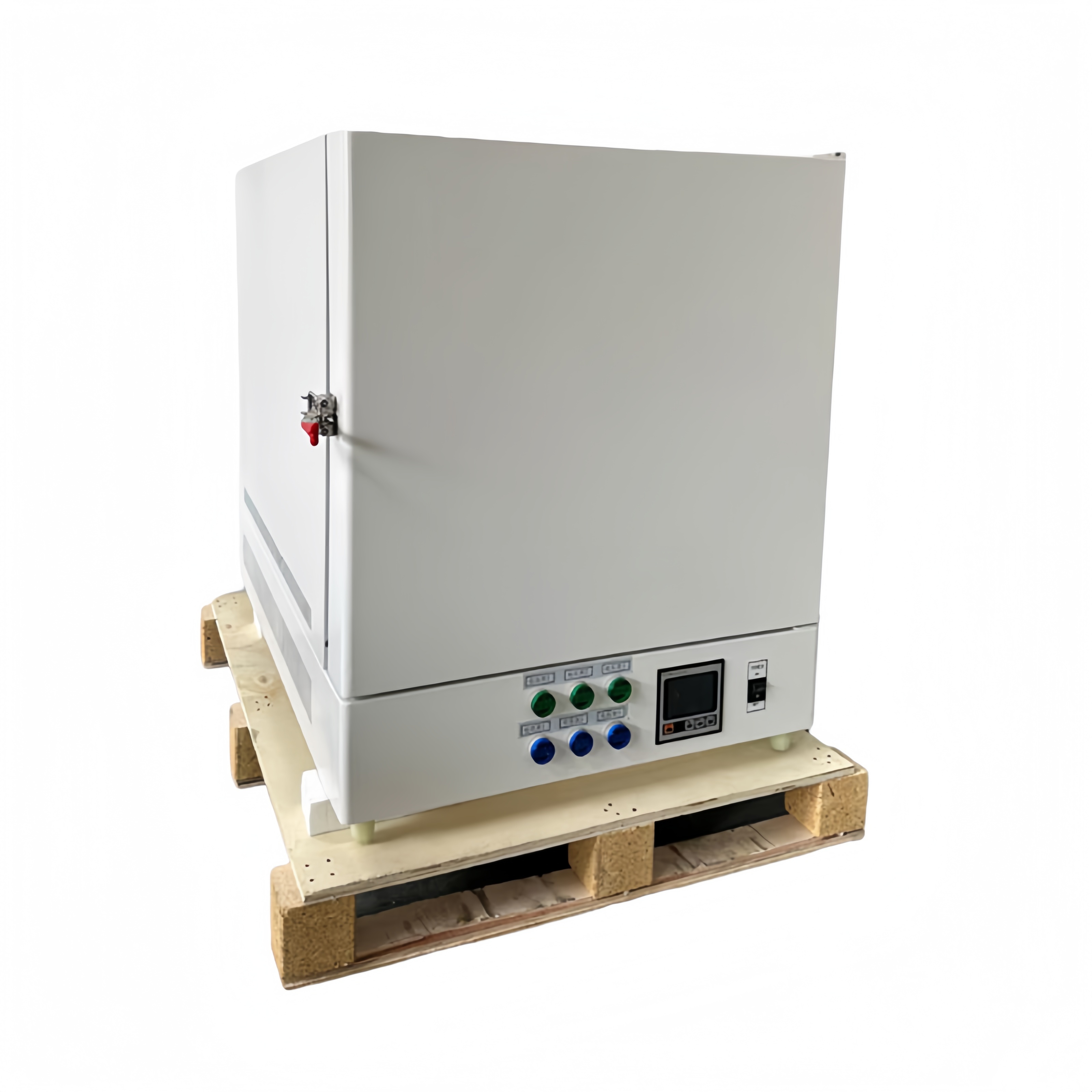

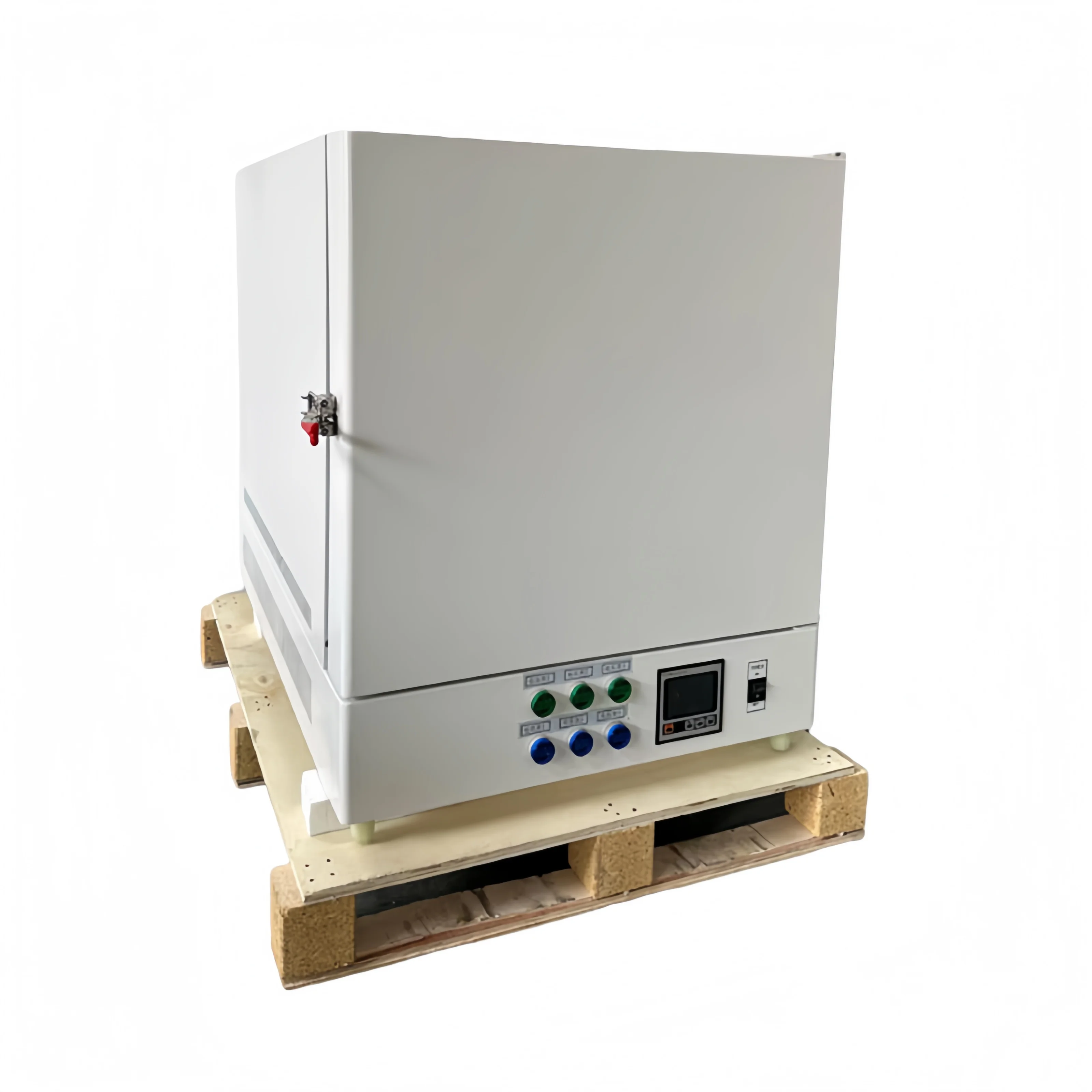

Shockproof thick wooden crate with ceramic wool & high-density foam buffer protects chamber, controller and heating elements against damage during long sea and air transit.
In-stock shipment: within 3–10 working days. Bulk orders support OEM customization, such as logo silk printing and customized outer packaging.
Two categories (220V small bench / 380V large floor) can be shipped in separate consolidated containers to cut cross-border logistics cost.
Custom body marking and exclusive packaging are offered for bulk buyers including instrument distributors, university material departments, new material factories and inspection centers, suitable for overseas exhibition and cross-border store promotion.

Selling Units	Single item	Package size per batch	57.569.582.5cm
Gross weight per batch	63.000kg

Name	Qty
Ceramic fiber muffle furnace	1
High temperature crucible tongs	1
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Full factory electronic documents are available upon request for cross-border store listing, overseas metallurgy & new material exhibition and technical consultation for overseas buyers.
Supporting digital files: bilingual full spec sheet, standard operation guide, heating element maintenance manual, overall dimension drawing, product brochure, temperature programming tutorial.
Marketing materials: real photos of all models, footage of high-temperature sintering & annealing, operation demo of four door types, accessory comparison table for each temperature grade to unify multi-category online store promotion.

What is the maximum heating temperature of the furnace? A Four grades available: 1000℃, 1200℃, 1400℃, 1700℃, select based on actual process temperature.
What advantages does ceramic fiber chamber have over firebrick chamber? A Lighter weight, faster heating, superior insulation, cooler outer housing and lower power consumption.
Does multi-segment programmed heating support? A All units equipped with 30-segment programmable PID controller, freely set heating rate, holding time and cooling steps for automatic full-cycle process.
How to select among four door types? A Standard side door for regular tests; lift door for frequent loading; trolley type for heavy workpieces; double transparent through type for real-time sample observation.
Any power difference between small and large chambers? A 2L–9L: AC220V 50Hz; 12L and above large chambers adopt industrial AC380V 50Hz.
What safety protection functions are equipped? A Audio-visual over-temperature alarm with automatic heating cut-off, plus leakage, short-circuit and overload protection to protect operators and samples.
Can shielding inert gas be filled inside? A Optional gas inlet assembly can be purchased separately for nitrogen, argon to prevent sample oxidation under high heat.
What is the service life of chamber and heating elements? A Ceramic fiber chamber resists cracking under standard operation, alloy heating parts are durable; avoid sudden extreme temperature change to extend service cycle greatly.
Does bulk order support custom body logo and outer packaging? A Silk printing logo and exclusive carton customization are available, consult sales staff for customization plan and lead time.

This ceramic fiber furnace series fits lab and pilot applications including material sintering, metal heat treatment, ash testing, sample annealing and composition analysis. Contact support for full detailed solution; tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, non-standard chamber size, custom packaging), assisting parameter confirmation, production scheduling, cross-border logistics and factory quality inspection.
Contact via Email, WhatsApp or website message. Please state required model, max temperature, chamber volume, door type and order quantity. Full formal solution will be issued within 24h covering equipment details, lead time and complete shipping plan to resolve all procurement inquiries.
