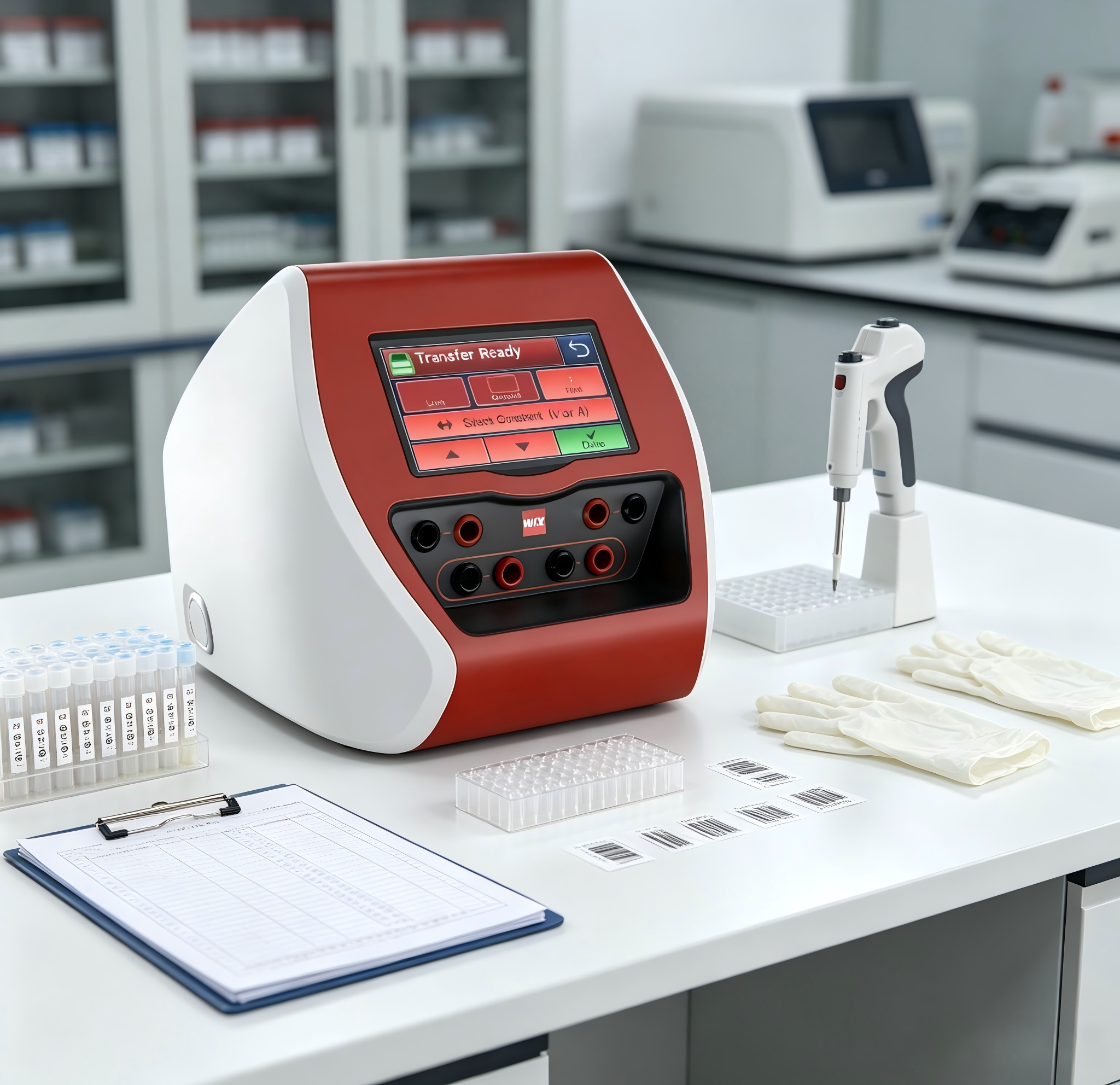

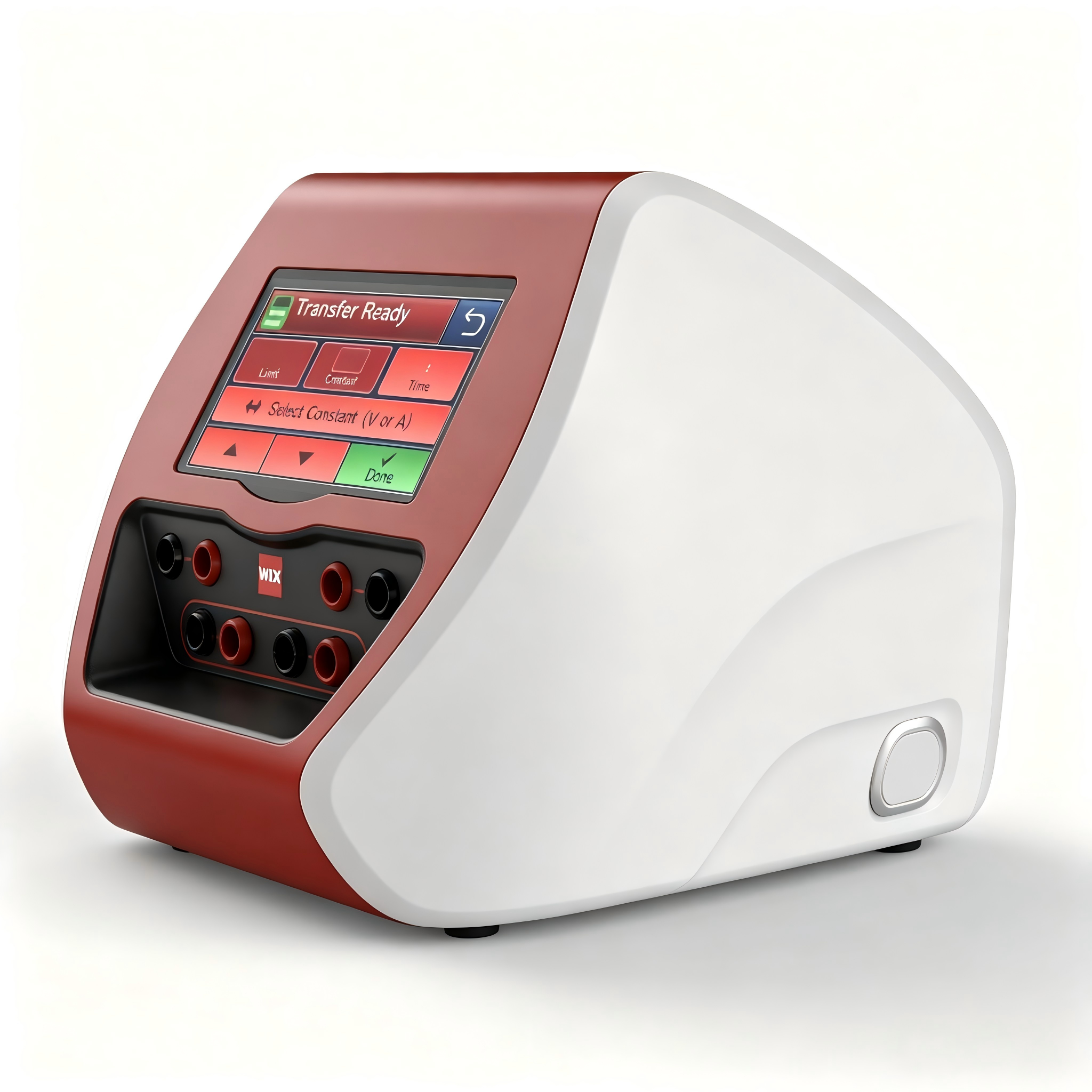

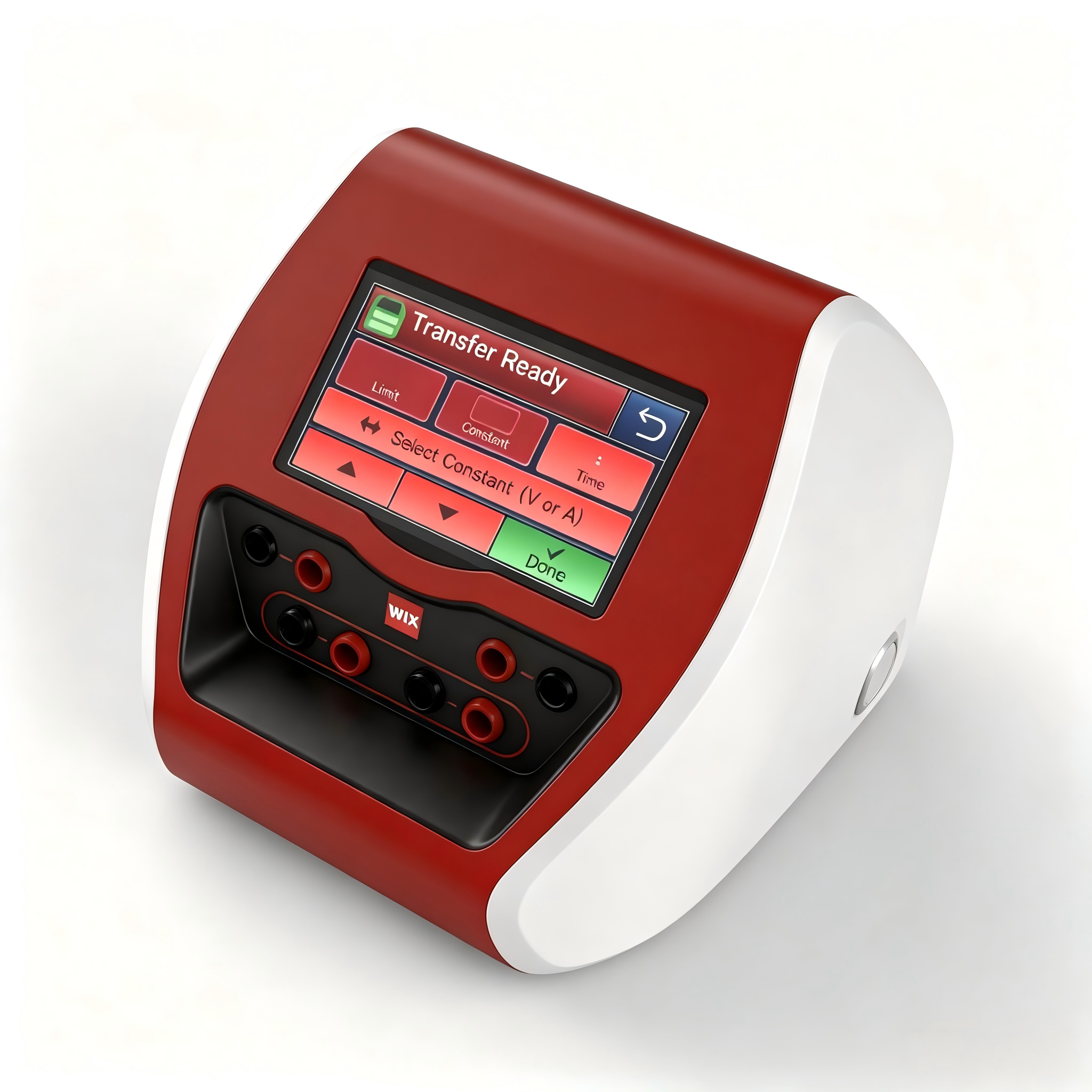

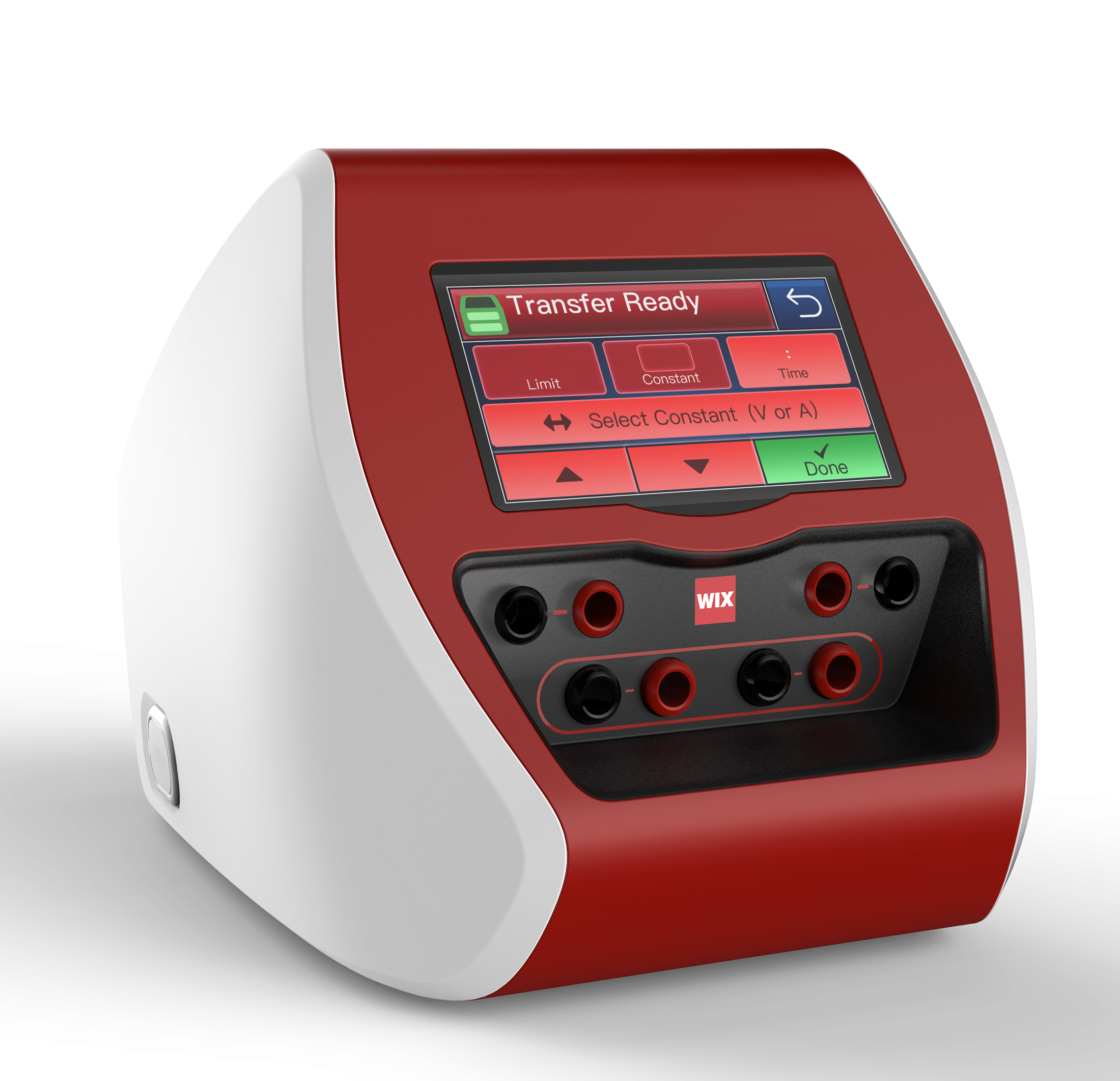

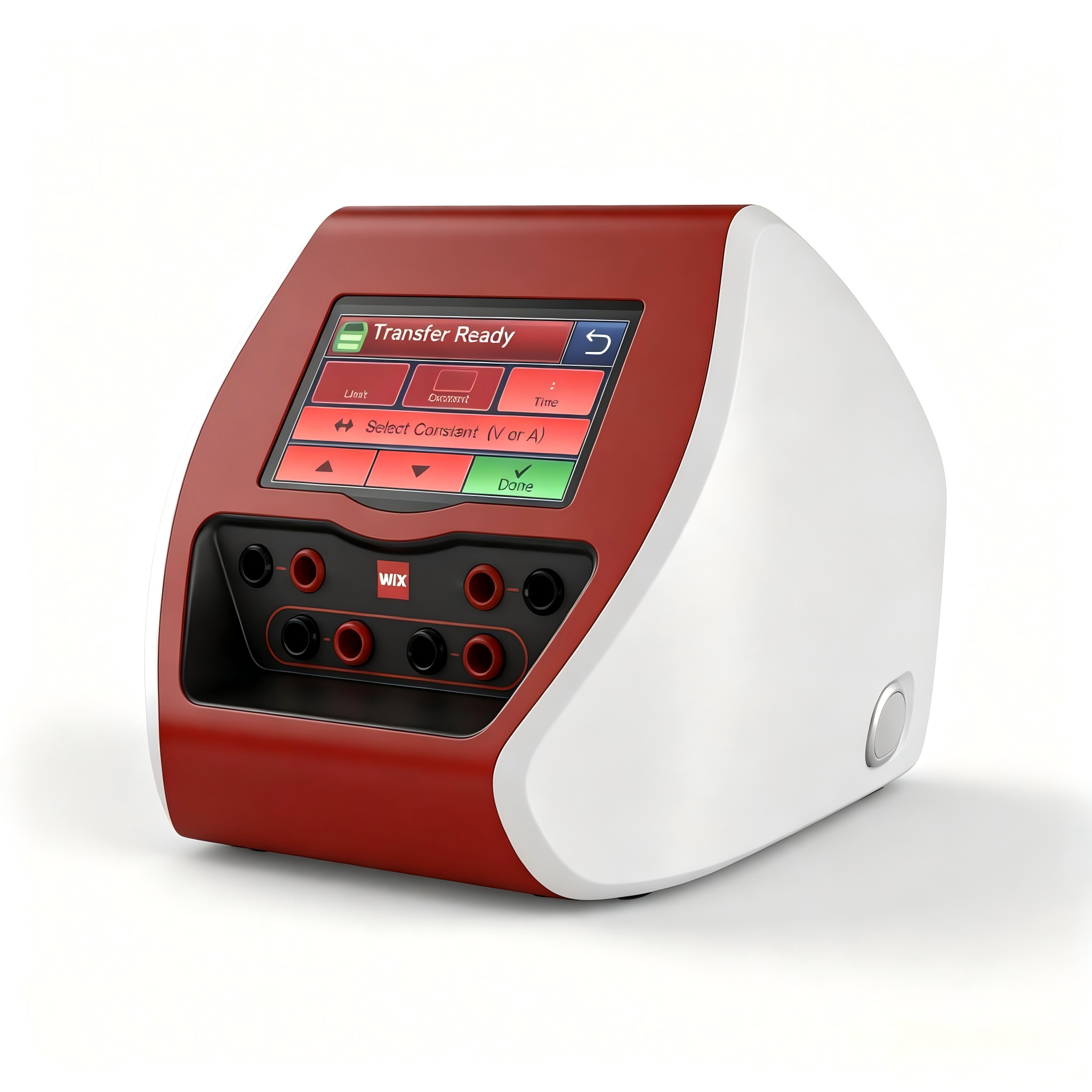

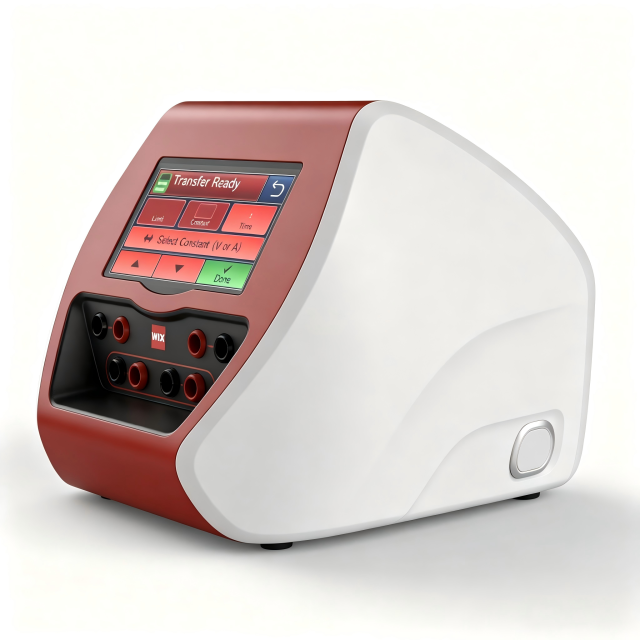

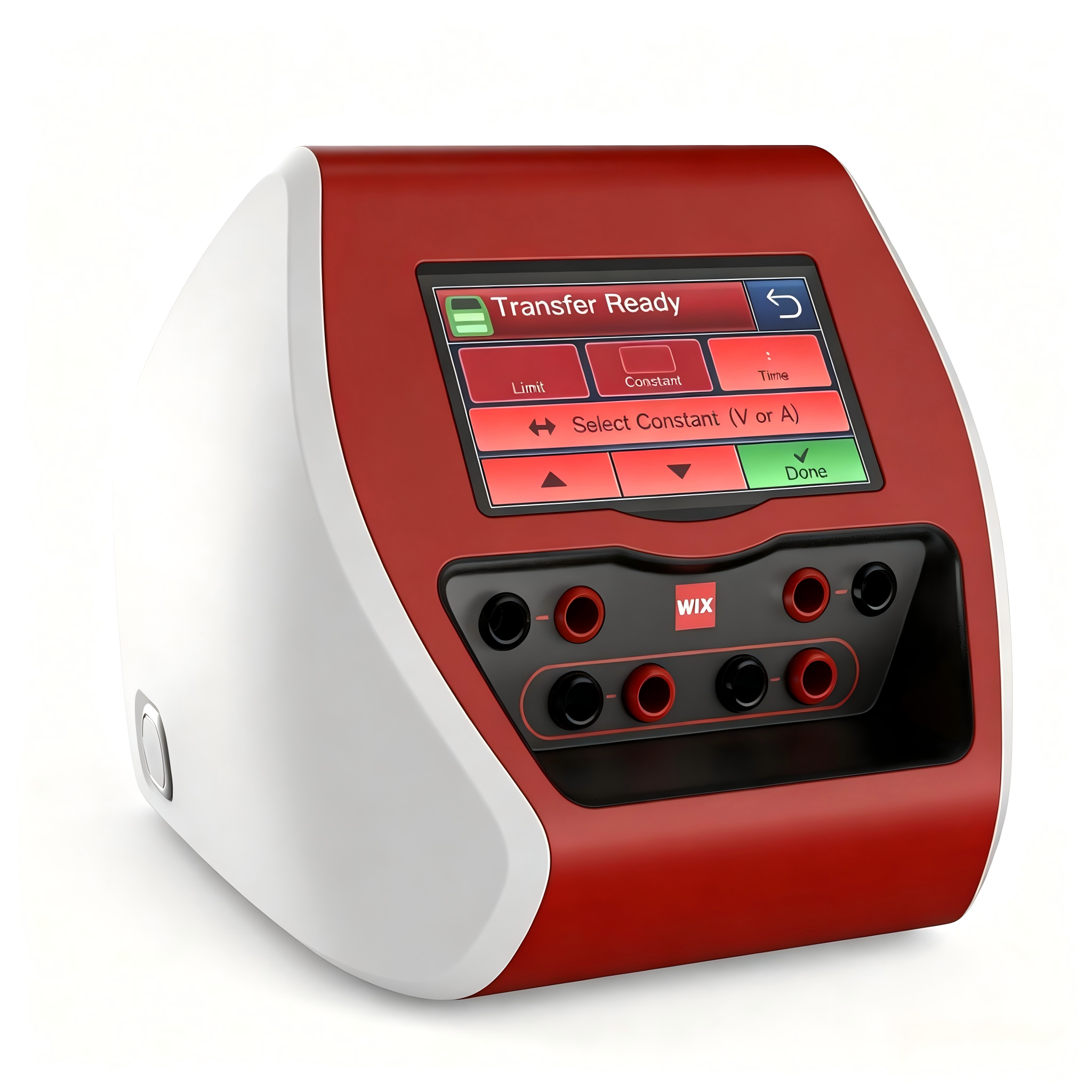

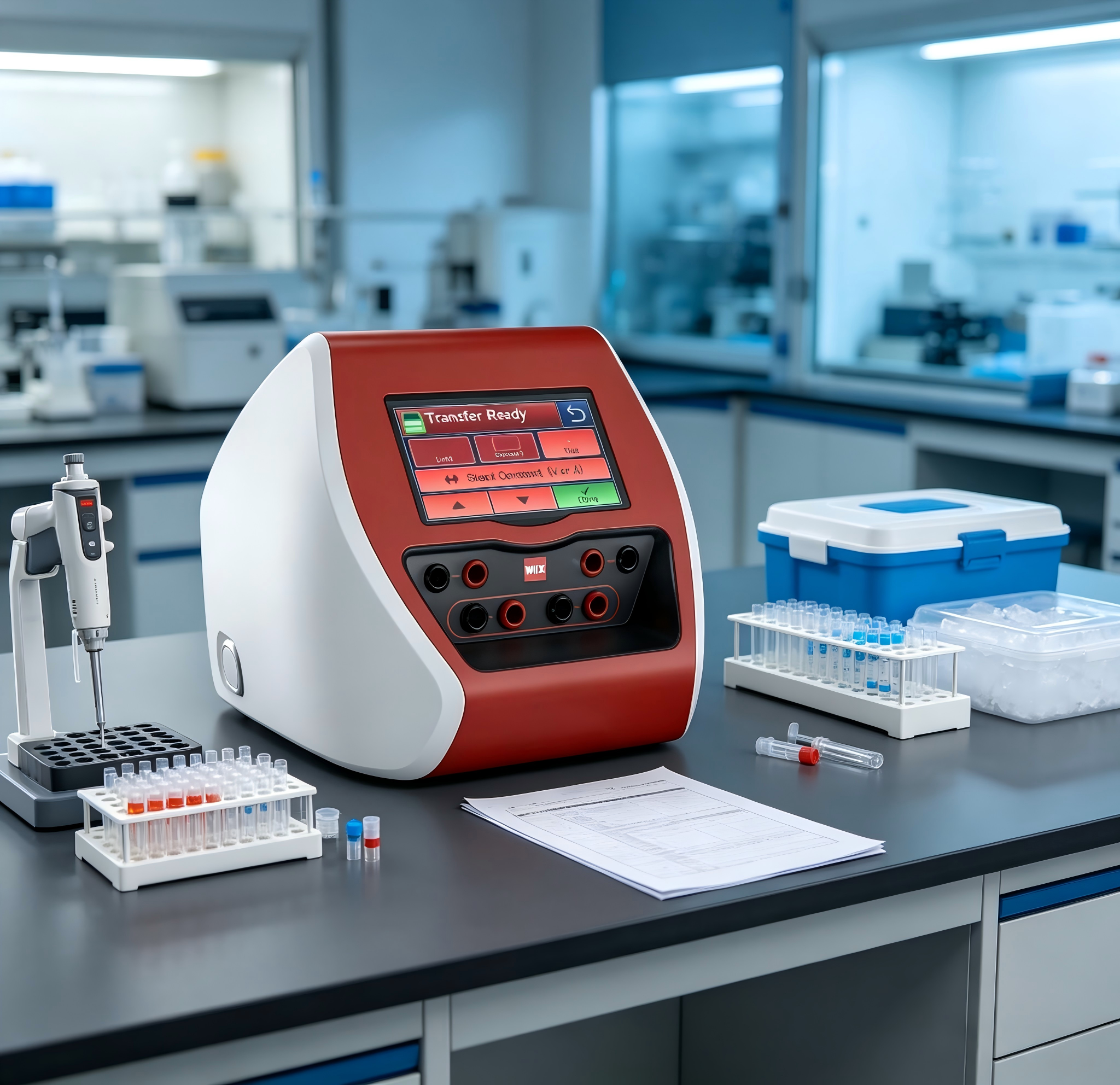

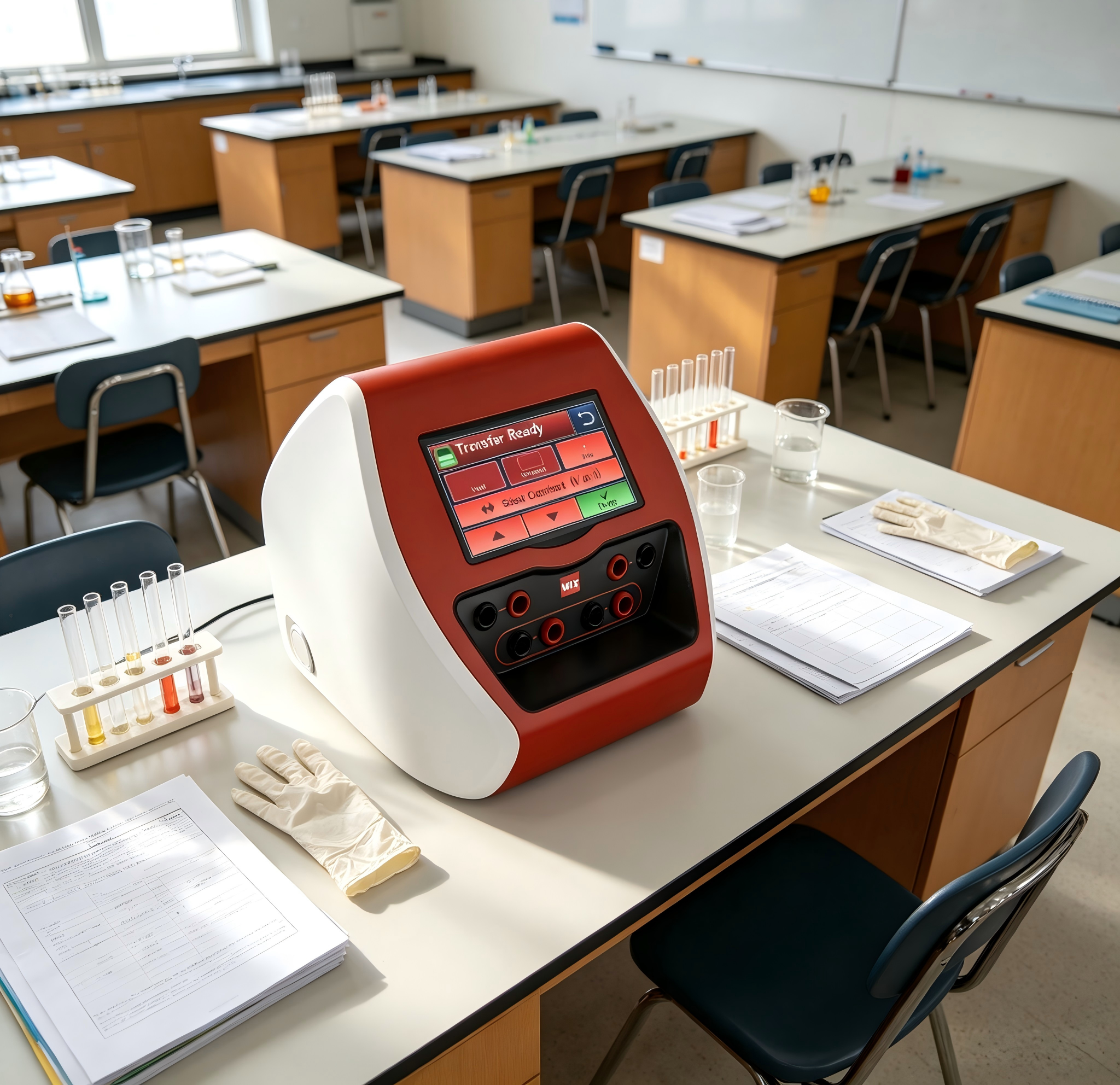

Four-Channel Control Electrophoresis Power Supply

Name: Four-Channel Control Electrophoresis Power Supply
Brand: labcarta Technology Co., Ltd.
SKU: four-EP300
Price: 1429.40 USD
Availability: InStock

No.four-EP300

Four-channel isolated electrophoresis power supply drives four electrophoresis tanks for asynchronous experiments. It features automatic protein gel switching, intelligent parameter calculation, power-off resume and multi-circuit safety protection. The post-run microcurrent keeps gel bands intact, with storage for 10 experimental programs, ideal for high-volume nucleic acid and protein electrophoresis in research, university and testing labs.

$1429.40

Request a Quote

Product Overview
Key Features
Parameter
Product Details
How to Choose
Download
Packaging & delivery
FAQ
Get a Quote

Labcarta four-channel independent control electrophoresis power supply, one main unit can independently drive four electrophoresis tanks at the same time, realizing multi-group parallel electrophoresis to greatly boost laboratory sample testing throughput.
Equipped with 5.0-inch LED capacitive touch screen + physical digital button dual control panel, parameter setting is convenient and quick, real-time operating data of each channel is displayed on the screen synchronously.
Three adjustable output modes: constant voltage, constant current and constant power. It is equipped with automatic gel switching for protein electrophoresis, intelligent parameter automatic matching, and post-run microcurrent anti-diffusion protection function.
Built-in full-range safety early warning circuit and power-off resume operation function, supports storage of 10 groups of custom experimental programs, suitable for high-volume nucleic acid agarose electrophoresis, vertical SDS-PAGE protein electrophoresis, and conventional molecular biology testing projects.

Four-channel isolated independent circuit design, each channel operates separately without electrical interference between different experimental groups.
Dual operation of large touch screen + physical buttons, easy to operate even with latex gloves in wet laboratory environment.
Real-time display of voltage, current, output power and remaining countdown time for each independent channel.
Three mainstream output modes cover all conventional electrophoresis experimental working conditions.
Dedicated protein electrophoresis mode: automatic switch from stacking gel program to separating gel program to eliminate repeated manual parameter adjustment.
Intelligent parameter auto-calculation: lock one fixed value, the other two electrical parameters are automatically calculated to avoid human error in parameter setting.
Low microcurrent continuous maintenance after electrophoresis timing ends to prevent nucleic acid and protein bands diffusion and over-running due to delayed sampling.
Comprehensive safety protection: overvoltage, arc, no-load, load mutation, short-circuit, electric leakage protection, open-circuit audible alarm, automatic program recovery after power failure.
Integrated display of four core operating indicators for quick judgment of experimental operation status.
Programmable storage for 10 experimental schemes, each program supports up to 2 gradient electrophoresis steps for segmented experiment setting.

Serial No.	Item	Specification
1	Channel Structure	4 independent isolated control channels
2	Output Range	Voltage:5–300V; Current:1–400mA; Power:1–75W
3	Output Resolution	Voltage:1V; Current:1mA; Power:1W
4	Display Device	5.0-inch LED capacitive touch screen
5	Timing Setting Range	1min – 99h59min continuously adjustable
6	Overall Dimension	350×235×235mm(L×W×H)
7	Net Weight	4.5Kg

Four groups of independent power conversion modules are used inside the equipment, and the start-stop and parameter adjustment of a single channel will not affect the stable operation of other three groups of electrophoresis experiments.
Hybrid operation mode of touch screen and physical keys adapts to different operation habits of experimental operators, and the physical keys are reserved for emergency parameter adjustment when the touch screen is abnormal.
The built-in automatic gel transition function is tailor-made for Western Blot pre-electrophoresis preparation, greatly reducing repeated manual operations for batch WB sample preparation.
Post-experiment microcurrent holding function solves the pain point of sample failure caused by temporary leave or delayed gel cutting after electrophoresis.
Multi-stage overload protection circuit cuts off power output instantly and triggers sound alarm when short circuit, electric leakage and abnormal high voltage occur, effectively protecting electrophoresis tank, gel sample and internal power circuit.
High-strength engineering plastic shell, scratch-resistant and impact-resistant, suitable for long-term fixed placement on laboratory bench for daily repeated use.

Select this WIX-fourEP300 four-channel model if your laboratory needs to run 3–4 electrophoresis tanks simultaneously. If you often arrange multiple groups of electrophoresis experiments at the same time, one power supply can replace 2–4 single-channel power supplies to save laboratory bench space and procurement cost.
If you are engaged in routine molecular testing, third-party testing laboratory, university teaching laboratory with large daily sample volume, multi-channel parallel electrophoresis can shorten the overall experiment cycle and improve daily testing capacity.
If your experimental team needs to carry out different types of electrophoresis experiments at the same time (such as one channel for agarose nucleic acid electrophoresis, two channels for vertical protein electrophoresis, another channel for pre-electrophoresis conditioning), independent channel asynchronous operation can meet differentiated experimental parameter requirements.
If you need to repeatedly perform SDS-PAGE protein electrophoresis for a long time, the built-in automatic gel switching function can reduce manual parameter modification frequency and reduce operational errors caused by frequent parameter adjustment.
If the laboratory has unstable mains power supply, the power-off memory recovery function can avoid complete failure of long-time electrophoresis experiments caused by accidental power outage.
Applicable matching equipment: conventional horizontal agarose electrophoresis tank, vertical protein electrophoresis tank, mini vertical electrophoresis tank, fully matched for routine molecular biology experiment supporting use.

Contact Labcarta sales engineer to apply for free official electronic technical documents.
Available downloadable documents: Product operation manual, factory inspection certificate, complete technical parameter specification, overall outline dimension drawing, bidding technical parameter data sheet.
All documents are provided in PDF format, convenient for laboratory equipment filing, project bidding declaration and technical verification.

Packaging structure: Hard export carton + integral thick foam inner lining for shock absorption and anti-collision protection during long-distance transportation.
In-stock delivery cycle: 3–10 working days after receiving the order confirmation.
Standard packing accessories list: Electrophoresis power supply main unit, power input cable, 4 groups of electrode connecting wires, product operation manual, factory inspection certificate.
Support customized outer carton LOGO printing and neutral export packaging according to overseas customer requirements.

1.Q: Can four electrophoresis tanks run different voltage and timing programs independently at the same time?

A: Yes, four channels are completely isolated in circuit, each channel can set voltage, current and timing separately to realize asynchronous operation of multiple experimental schemes.

2.Q: Will the power supply shut down completely once the electrophoresis timing countdown ends?

A: It will not cut off power directly, it will switch to low-power microcurrent holding mode to stabilize nucleic acid and protein band morphology.

3.Q: What protective action will the device trigger when the electrophoresis tank circuit is short-circuited?

A: The equipment immediately sounds an alarm and cuts off all output power to prevent internal circuit burnout of the power host.

4.Q: Can the pre-stored 10 groups of experimental programs be edited, overwritten or deleted arbitrarily?

A: Users can freely edit, overwrite new parameters or delete useless stored programs for repeated flexible calling.

5.Q: Does the instrument retain running parameters and continue working after accidental power failure?

A: Equipped with power-off memory chip, it records the running state before power failure, and resumes the experiment automatically after power recovery.

6.Q: Can a single channel independently use constant power mode for electrophoresis testing?

A: Each channel supports free switching of constant voltage, constant current and constant power modes without linkage restriction between channels.

7.Q: Is the microcurrent maintenance intensity adjustable manually after the experiment is completed?

A: The post-operation maintenance microcurrent is set to fixed low power, no manual adjustment needed, which stably avoids sample band drift and diffusion.

8.Q: What is the shortest adjustable running time for short-time pre-electrophoresis experiments?

A: The minimum timing setting is 1 minute, which meets the parameter requirements of short-time gel pre-electrophoresis and balance treatment.

9.Q: Can the equipment adapt to all-day continuous batch electrophoresis operation in the laboratory?

A: Optimized internal heat dissipation structure, supporting long-term continuous boot operation to meet all-day batch sample detection work.

10.Q: Can the matched electrode connecting wire be purchased and replaced separately after damage?

A: Electrode wires are standard general accessories. After aging and damage, you can purchase spare parts separately for replacement.

Submit your procurement demand through official email, WhatsApp, independent station message board or online consultation window.
Clearly mark core information: purchase quantity, destination country, port of destination, special functional customization needs, annual framework procurement intention.
Our professional overseas sales team will issue a formal detailed quotation with unit price, delivery cycle and trade term within 24 working hours.
Bulk centralized procurement enjoys stepped price discount and priority production & delivery arrangement.

Applications 应用场景模块

Applications

Supporting diverse laboratory and industrial environments with practical instrument solutions.

Research Laboratories

Conduct SDS-PAGE protein separation, nucleic acid electrophoresis and molecular specimen analysis for life science research..

Universities & Education

Complete protein & gene electrophoresis experiments for biotech, biology and chemistry course training.

Pharmaceutical & Chemical

Analyze target protein, separate biological ingredients and test biopharmaceutical sample purity.

Food Environmental and Industrial Testing

Food, Environmental & Industrial Testing

Identify microbial nucleic acid and detect protein composition in food and environmental samples..
