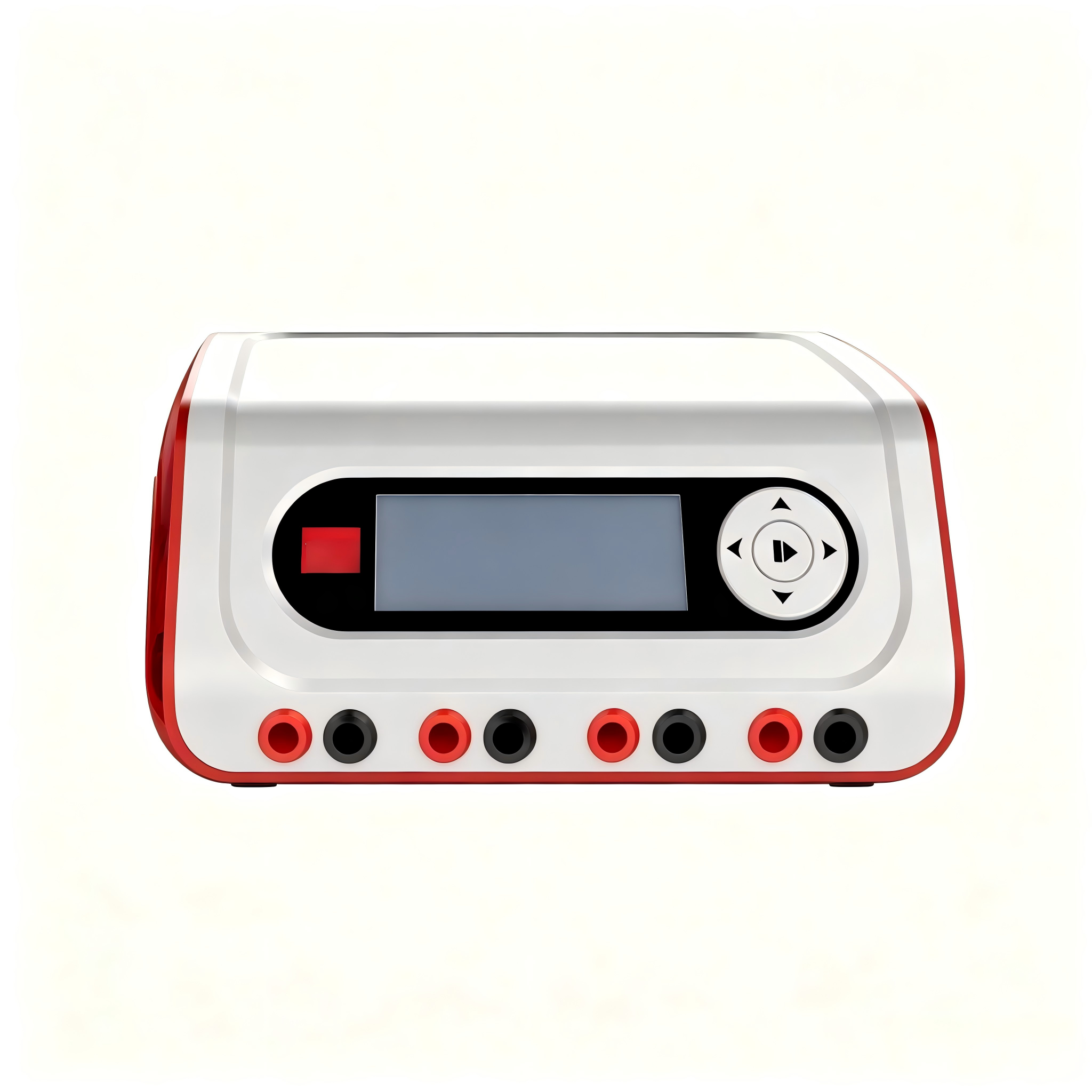

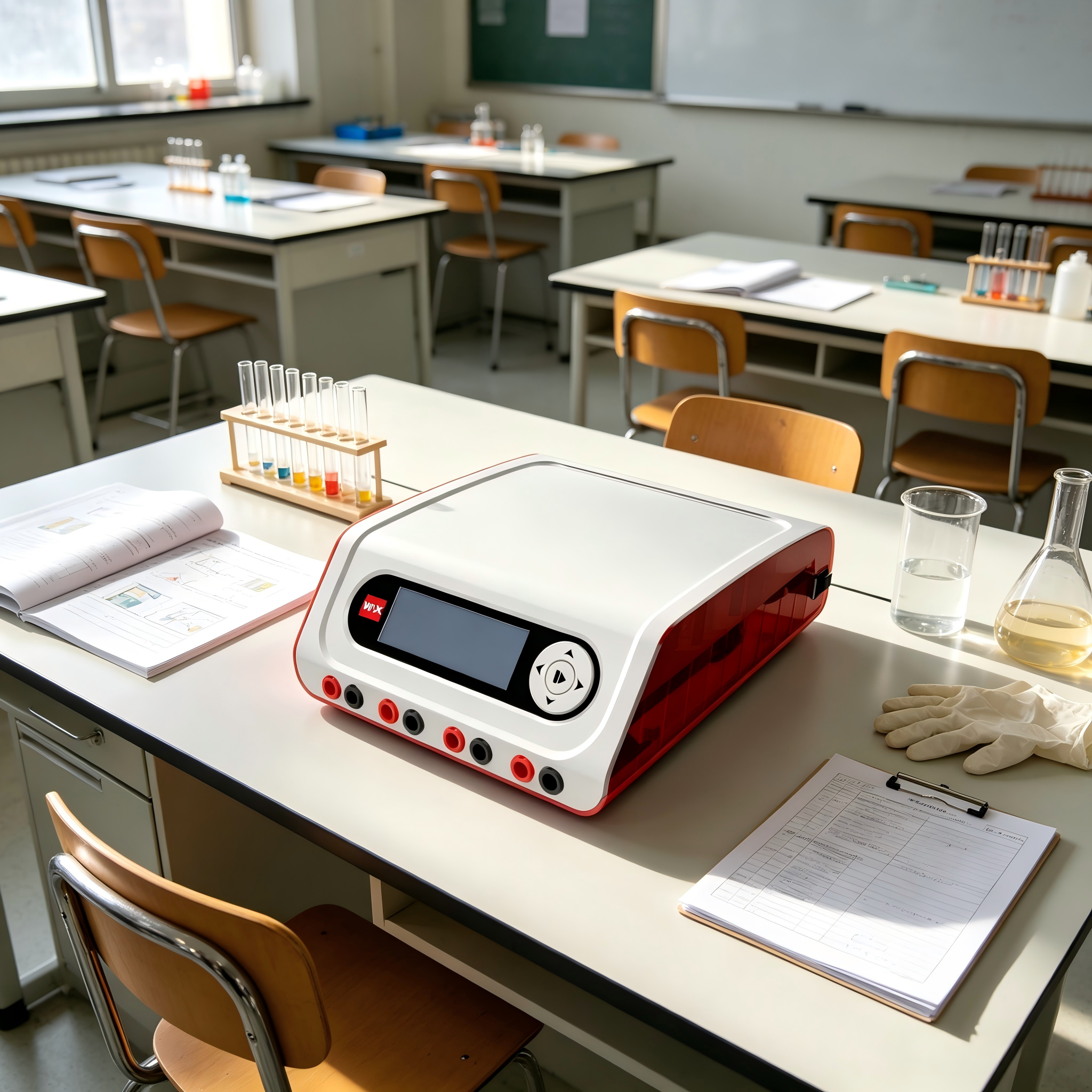

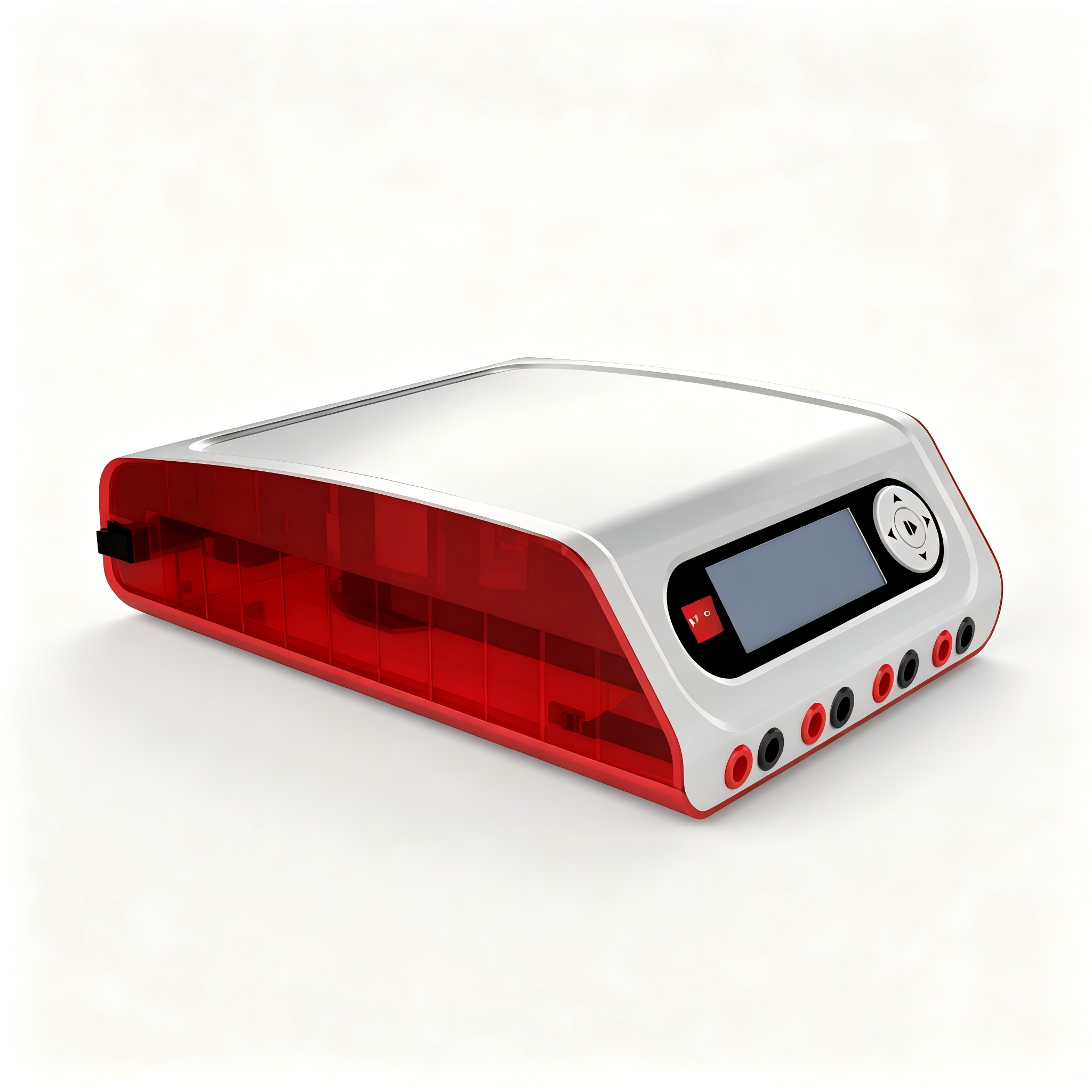

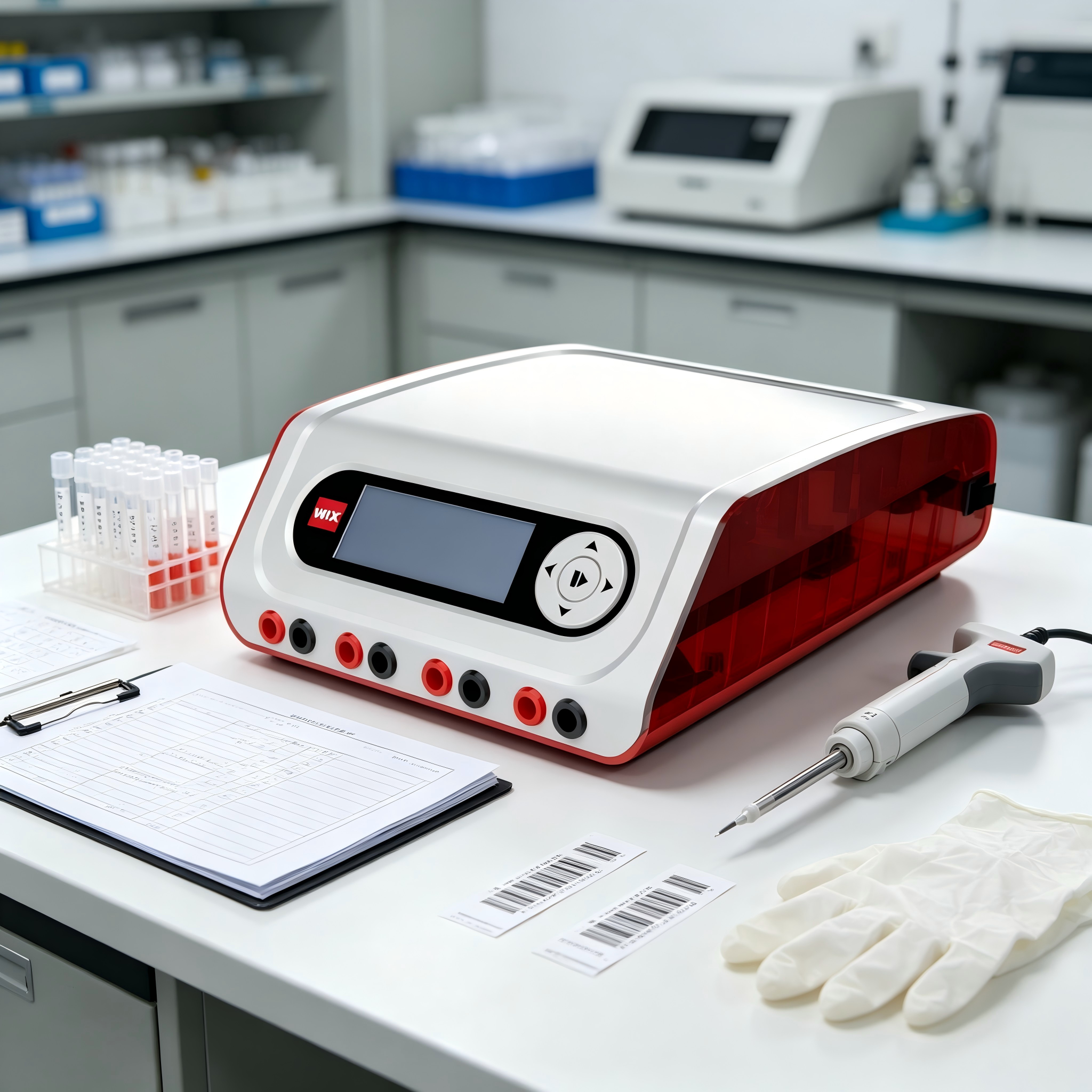

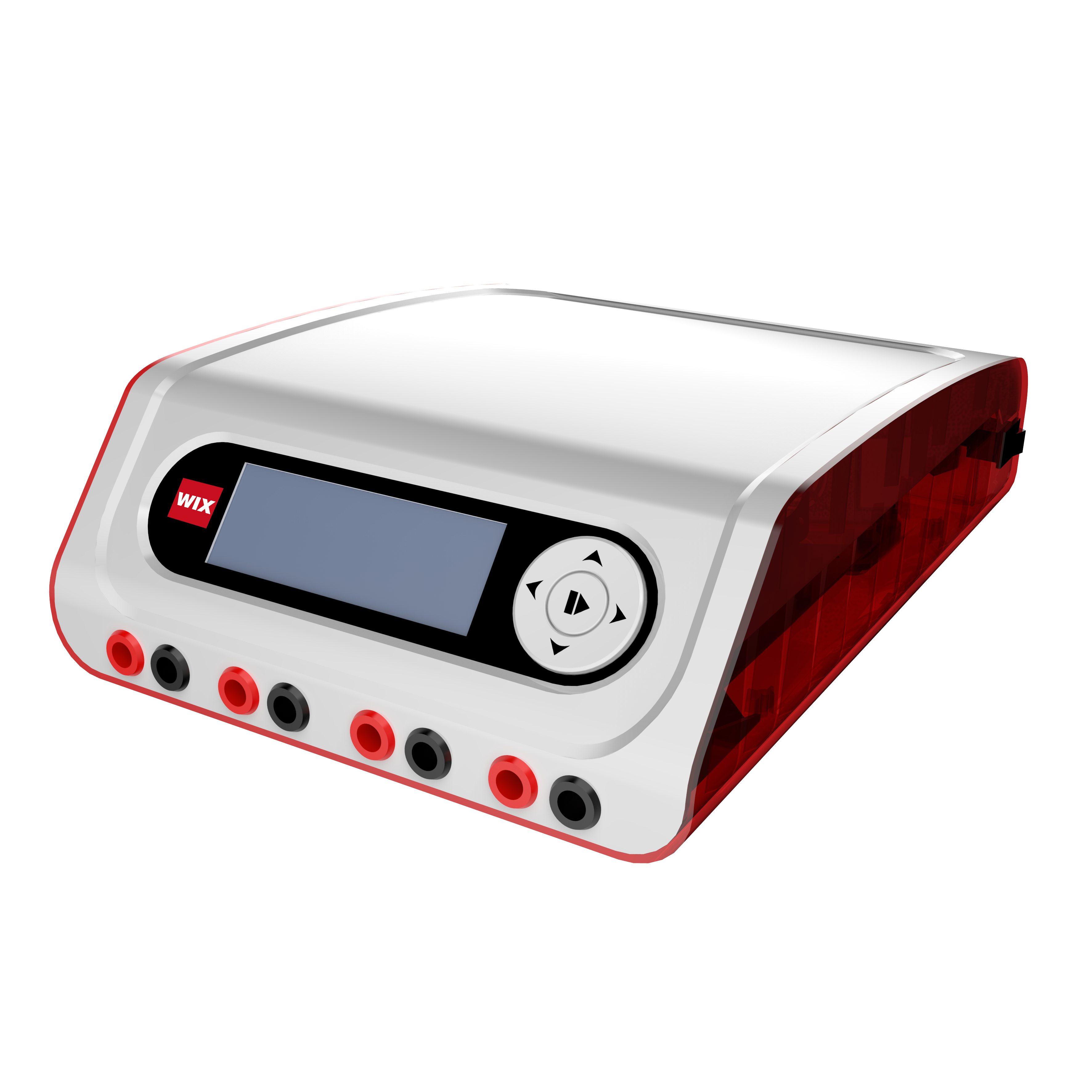

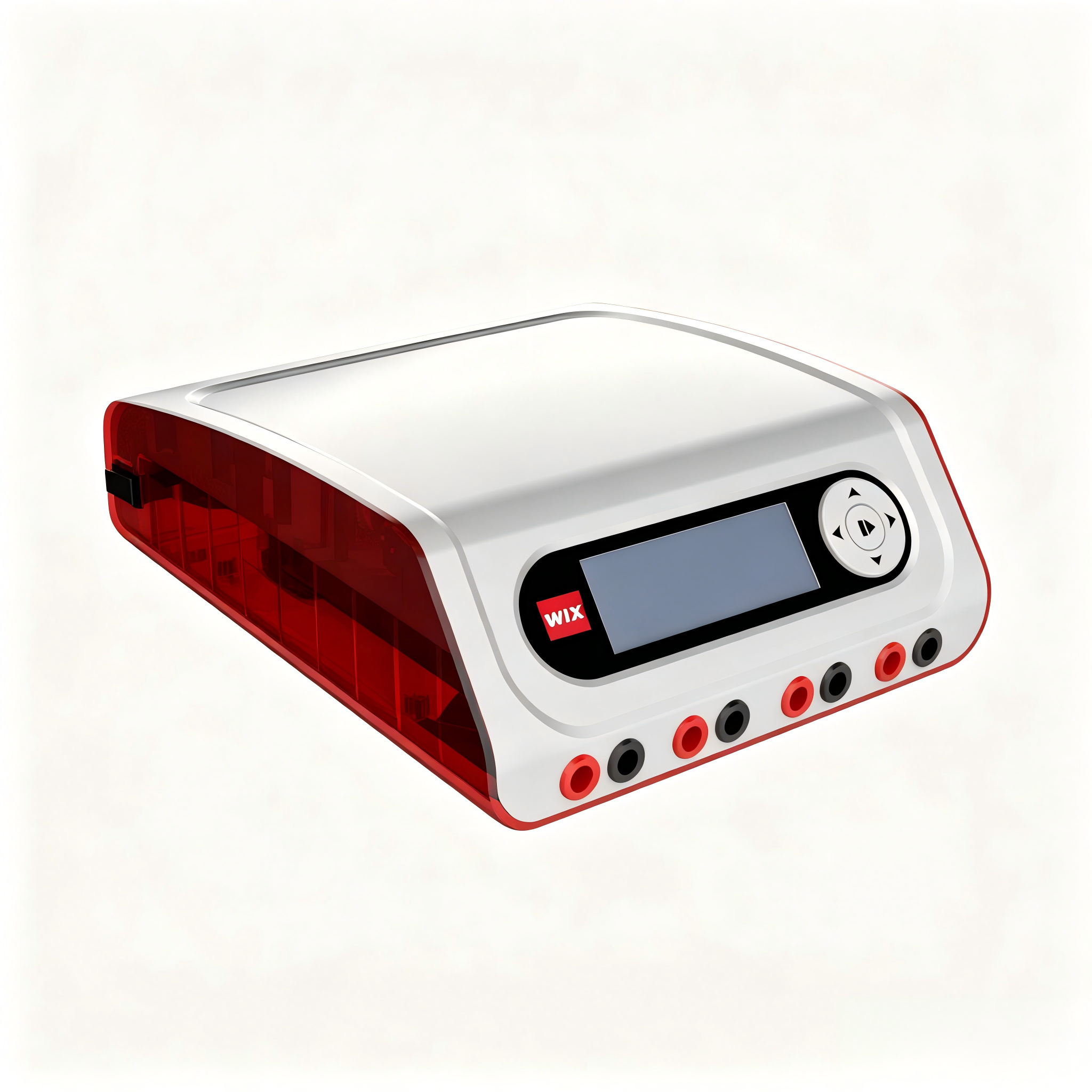

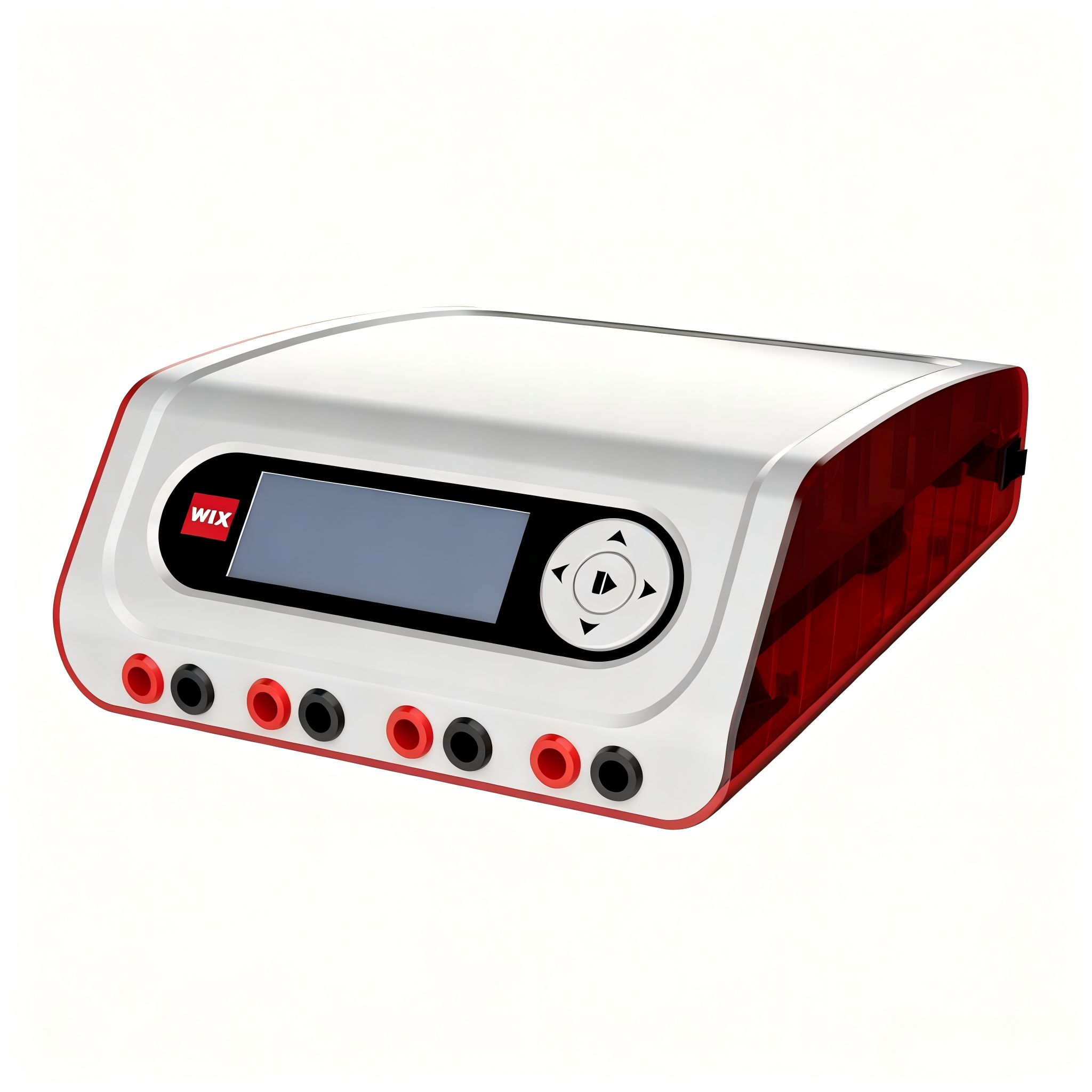

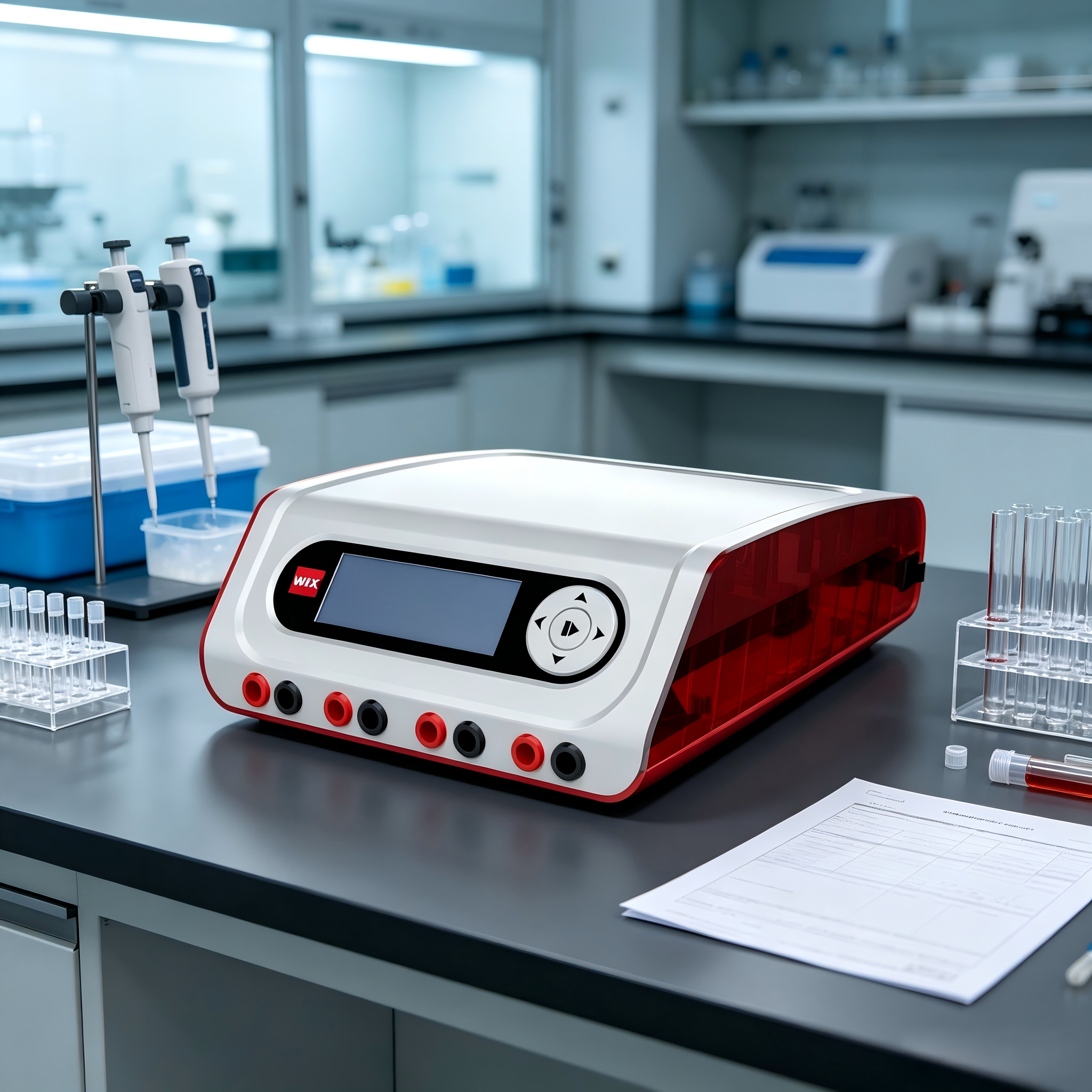

Multi‑Functional Temperature‑Controlled Electrophoresis Power Supply

1.Q: What is the core difference compared with ordinary electrophoresis power supply?

A: It adds real‑time temperature monitoring and automatic cooling function to prevent buffer over‑heating during long‑time high‑power electrophoresis.

2.Q: How many electrophoresis tanks can this device drive at the same time?

A: Four groups of parallel outputs support simultaneous connection of multiple electrophoresis tanks for synchronous operation.

3.Q: Will the power supply cut off output completely when the timing ends?

A: It will switch to micro‑current output to prevent sample diffusion and over‑running instead of direct power‑off.

4.Q: What protection action will be triggered if the electrophoresis tank is short‑circuited?

A: The device will trigger an audible alarm and cut off power output to protect the internal circuit of the host.

5.Q: Can users modify or delete the stored 10 experimental methods?

A: Users can edit, overwrite or delete stored experimental programs freely according to experimental needs.

6.Q: Can the equipment resume unfinished experiments after a sudden power failure?

A: Equipped with power‑off automatic recovery function, it can continue electrophoresis after power is restored.

7.Q: Does the machine support constant voltage, constant current and constant power mode switching?

A: Three working modes are switchable to match different electrophoresis experimental requirements.

8.Q: Is the post‑experiment micro‑current value adjustable manually?

A: The post‑experiment micro‑current adopts fixed logic output without manual adjustment.

9.Q: What is the minimum adjustable timing value of the equipment?

A: The minimum setting time is 1 minute, meeting the demand of short‑time pre‑electrophoresis.

10.Q: Can the temperature trigger automatic cooling without extra external accessories?

A: The temperature‑control function is built‑in the main unit and no additional accessories are needed.

11.Q: Are electrode connecting wires replaceable separately?

A: Electrode wires are general standard accessories and can be purchased separately for replacement after aging and damage.
