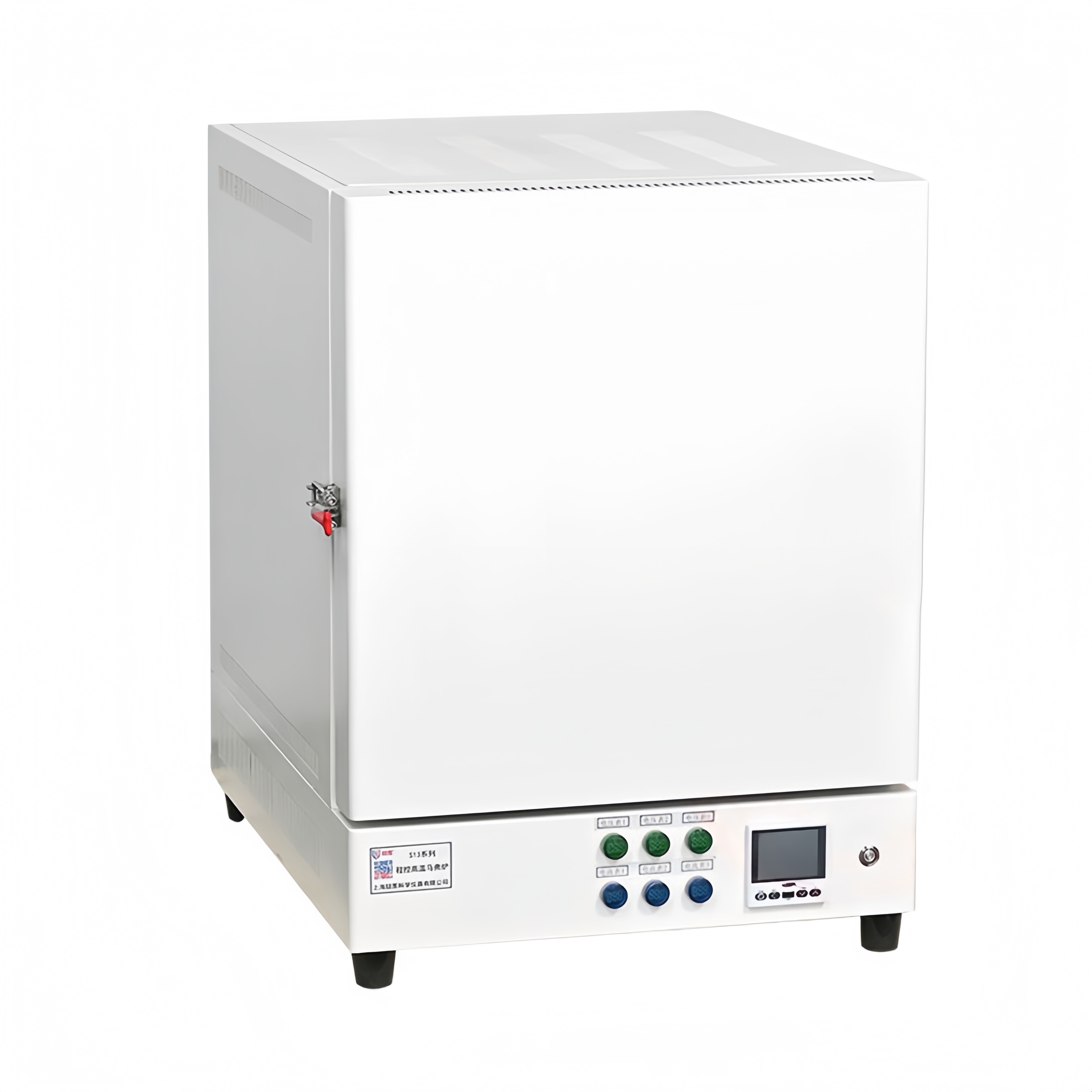

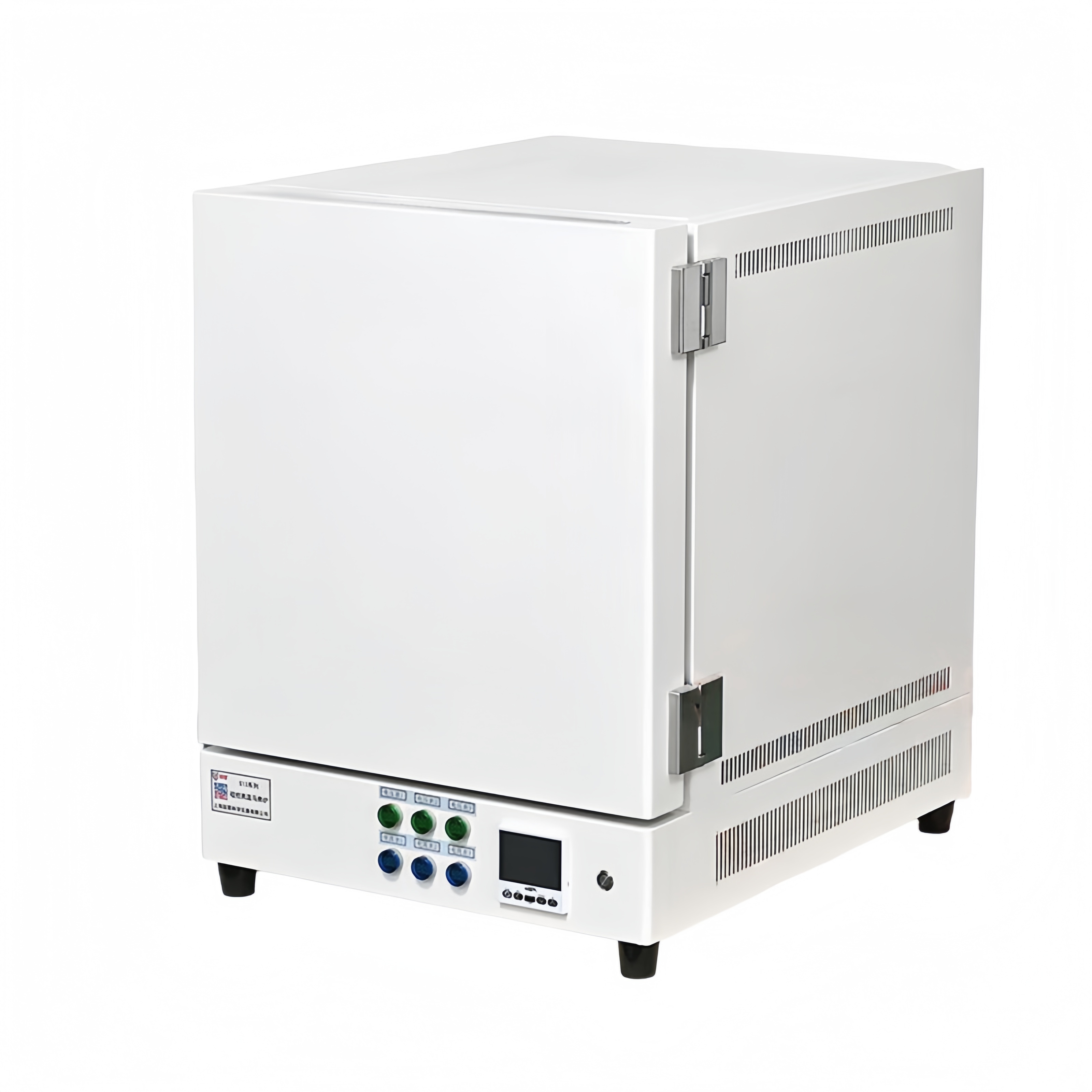

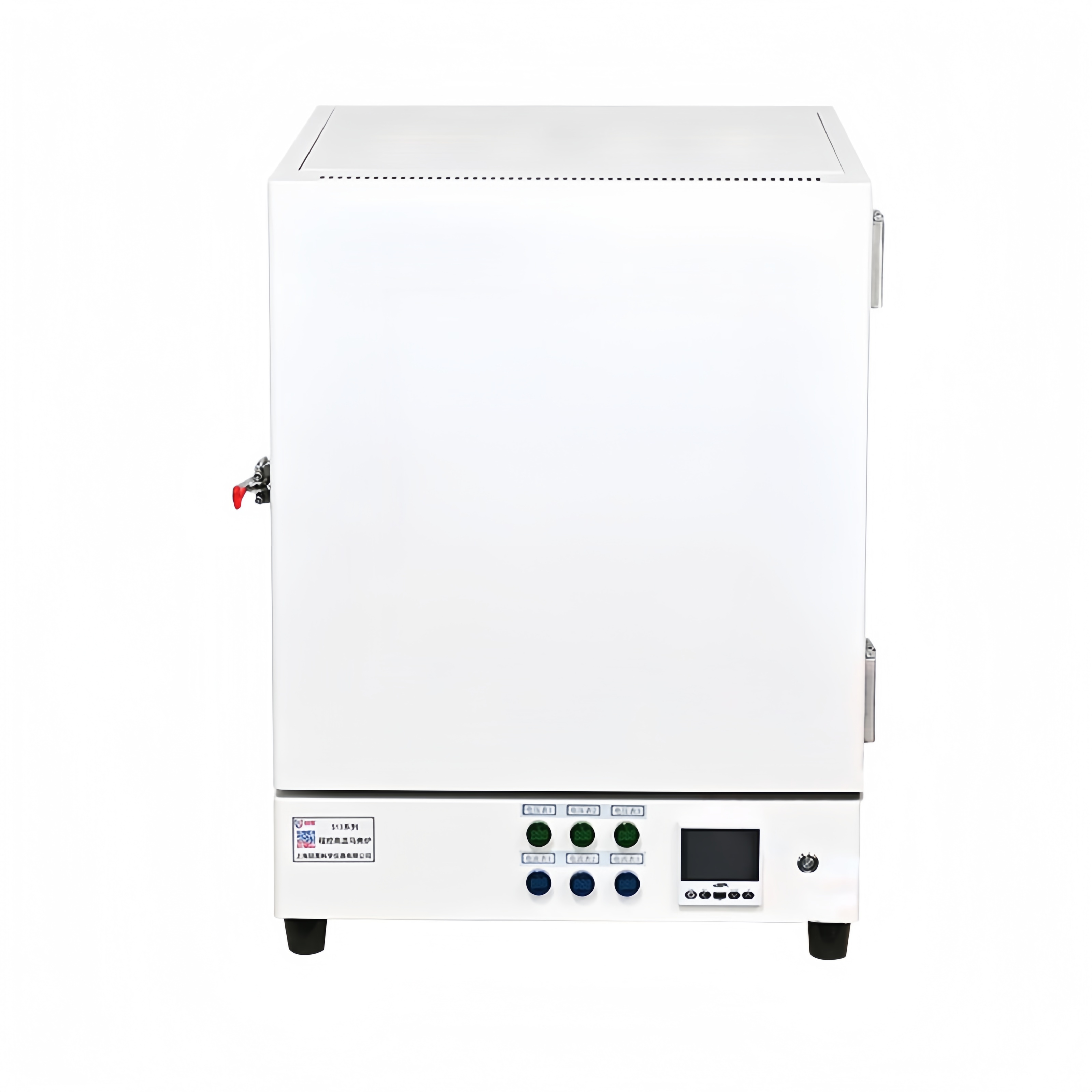

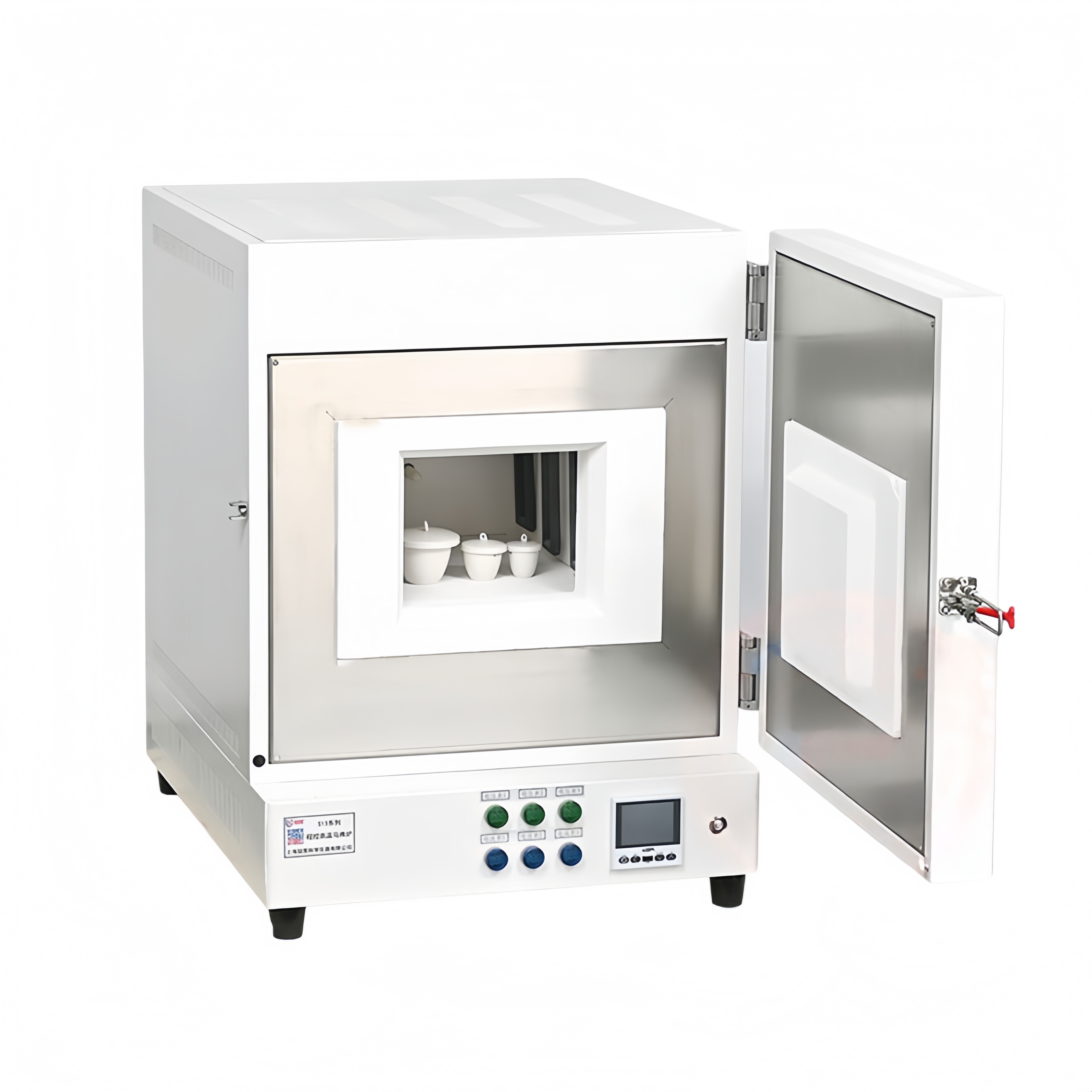

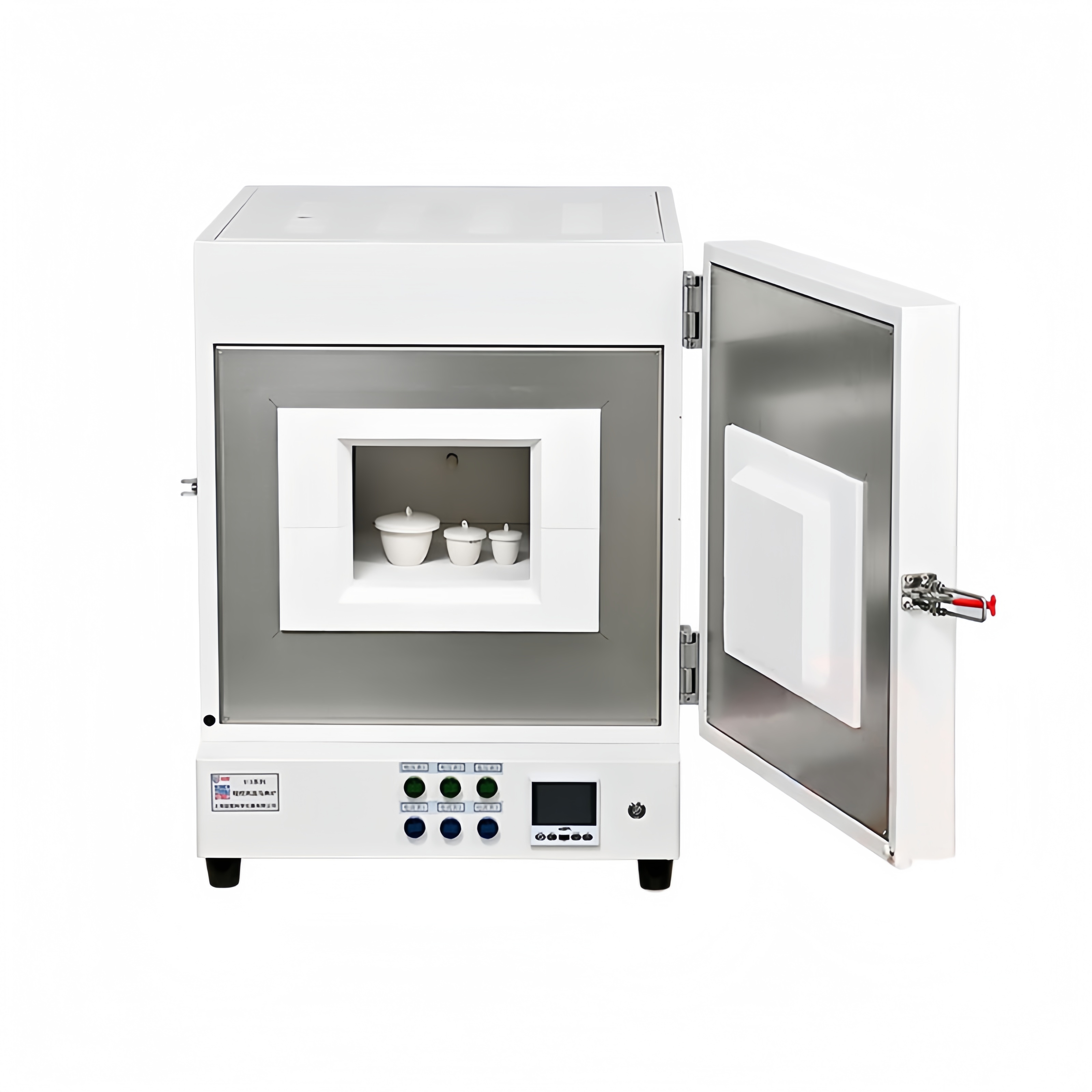

Program-Controlled Heat Treatment Muffle Furnace

Name: Program-Controlled Heat Treatment Muffle Furnace
Brand: labcarta Technology Co., Ltd.
SKU: 1600797364513- s13 s14
Availability: InStock

No.1600797364513- s13 s14

The programmable heat treatment muffle furnace runs automatically according to set temperature and time. It is widely used in hot working, building materials, pharmaceuticals, analytical chemistry and petroleum industries. In coal quality analysis, it measures moisture, ash, volatile matter, ash melting point and composition, and elemental components, and can also be used as a general ashing furnace.

$6989.70

Inner Size:

150*250*100mm

color:

S13

S14

Request a Quote

Description
Key Features
Parameter

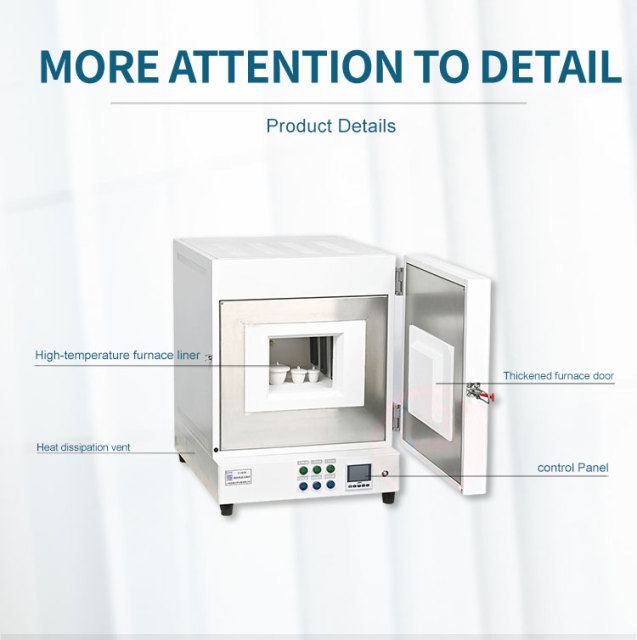

Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

Programmable heat treatment muffle furnace is a temperature-programmable high-temperature heat treatment device. It runs automatically according to preset temperature curves, widely adopted for heat treatment of small workpieces, pharmaceutical dry heat sterilization, sample composition analysis, ash measurement and sample melting in industrial enterprises, pharmaceutical industry and analytical testing labs.
Two temperature control ranges are available: RT+10~1300℃ and RT+10~1500℃. Four chamber volumes (4L,7L,18L,36L) meet heat treatment demands from lab-scale samples to medium-batch specimens.
The chamber adopts microporous lightweight high-temperature resistant ceramic fiber boards, featuring low heat storage, fast heating speed and outstanding heat preservation for excellent energy-saving performance. Silicon carbide rods are used as heating elements with high heat resistance, low high-temperature deformation and long service life.
Equipped with intelligent PID programmable control system supporting multi-segment heating, constant temperature and cooling program editing. Multiple safety mechanisms including door-open power-off protection, overtemperature alarm and fault self-check ensure stable and reliable operation.
The outer shell is treated by phosphate passivation spraying for corrosion resistance and neat appearance. The furnace door locking structure ensures good sealing. 3D radiation heating inside forms a uniform temperature field to guarantee consistent heat treatment results of samples.

Auto power-off protection upon door opening: heating stops immediately when the door is opened and resumes automatically after closing, effectively preventing high-temperature scalding and improving operation safety.
Intelligent adaptive PID temperature control algorithm supports parameter self-tuning for precise temperature regulation. Complete heating & cooling programs can be edited, and the unit can shut down automatically once constant temperature duration is completed.
Lightweight ceramic fiber insulation for fast heating and lower power consumption. Surrounding silicon carbide rod layout achieves uniform temperature distribution inside the chamber.
Passivation-sprayed outer shell resists oxidation and discoloration under high temperature. Integrated furnace body plus compression door lock prevents air leakage during long-term high-temperature operation.
Built-in ambient temperature automatic detection. The system calculates initial heating parameters automatically to shorten heating time and optimize energy consumption.
Optimized layout of furnace chamber and controller balances furnace temperature, heating rate and environmental protection, extending service life while saving energy.
Thickened furnace shell owns good heat retention and anti-shock performance, avoiding deformation and cracking under frequent high-low temperature cycles.
Various optional expandable accessories: color touch screen, RS485 communication port, inert gas inlet valve, exhaust chimney, silicon carbide operation platform and more.
Complete safety alarm system: overtemperature alarm, power failure alarm and thermocouple break alarm; fault status can be directly displayed on the operation panel.

		S13-4P	S13-7P S13-18P S13-36P	S14-4P	S14-7P S14-18P S14-36P
Model		S13-4PV	S13-7PV S13-18PV S13-36PV	S14-4PV	S14-7PV S14-18PV S14-36PV
		S13-4PV-II	S13-7PV-II S13-18PV-II S13-36PV-II	S14-4PV-II	S14-7PV-II S14-18PV-II S14-36PV-II
power supply		AC220V 50Hz	AC380V 50Hz	AC220V 50Hz	AC380V 50Hz
voltage
Current		Voltmeter and	Voltmeter and ammeter(3 sets each)	Voltmeter and	Voltmeter and ammeter(3 sets each)
voltmeter		ammeter(1 set each)		ammeter(1 set each)
Instrumentation		Progrmmasl disitaaseaǎgseresocasieolotuc screen Pr( r e)7d pl yr e s ) s r o( V-t c e n
heating			silicon carbide rod silicon carbide rod
element
Temperature			RT(Room Temperature)+50~1300℃ RT(Room Temperature)+50~1400℃ ±1℃ ±1℃
control	range
controlaccuracy
input power		400ow 600ow 800ow 1200ow 500ow 600ow 100oow 1500ow 150250100 150300150 250400180 300400300 150250100 150300150 250400180 300400300
Furnace size
WDH(mm)
Nominalvolume
timing range			1~9999min 1~9999min
Optional			Exhaust chimney,muffle furnace operation platform,mini printer,RS485 interface,inert gas inlet valve,
accessories			flow meter,CF layered furnace chamber,SC crucible support

Benchtop programmable muffle furnace fits standard laboratory workbenches, no civil foundation required. It can be put into heat treatment tests after power connection and commissioning.
Silicon carbide rod heating elements adapt to medium-high temperature conditions at 1300℃ and 1500℃ with excellent oxidation resistance, stable long-term operation and easy replacement & maintenance.

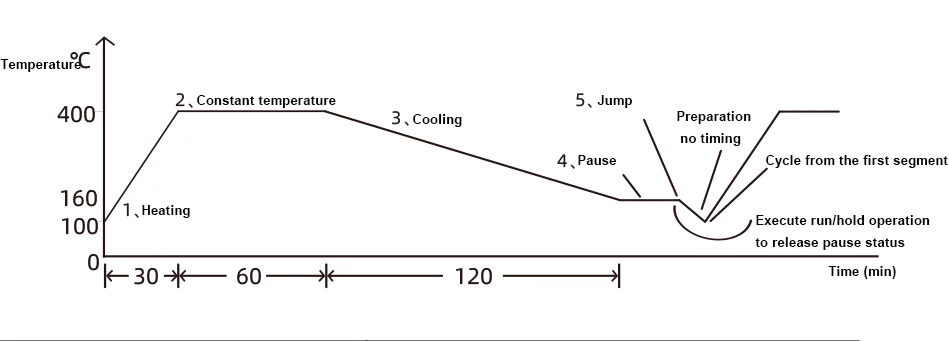

Multi-segment program temperature control supports automatic execution of complete processes including heating, constant temperature, cooling, buffer and jump shutdown without continuous manual attendance.
Safety interlock switch built into furnace door cuts heating circuit immediately when opened to prevent accidental scalding, complying with laboratory safety standards.
Microporous ceramic fiber chamber features light weight and low heat storage. It cools down rapidly after shutdown for quick start of next batch parallel tests and higher experimental efficiency.
The controller displays real-time voltage and current values, allowing operators to directly monitor equipment load and predict potential faults in advance.
Optimized air duct and heat dissipation layout keeps the controller away from hot chamber, preventing electronic component aging caused by long-term high-temperature baking.
Optional waste gas exhaust structure and gas inlet port are available for tests of volatile samples and oxidation-prone powder sintering.
Three control interfaces optional: basic programmable digital display, color touch screen and expandable touch screen to meet different demands of basic experiments, data archiving and remote communication.

Routine sample ashing and annealing with max process temperature ≤1300℃: Select RT+10~1300℃ series for high cost performance to satisfy most regular high-temperature experiments.
Special ceramic and high-melting powder sintering with sustained temperature close to 1500℃: Adopt RT+10~1500℃ models for higher continuous temperature resistance.
Small university labs with low sample throughput: 4L / 7L models with AC220V power supply, no industrial 380V circuit modification needed.
Enterprise quality inspection and material pilot test with large sample batches: 18L / 36L large-volume AC380V high-power models to hold multiple crucibles at the same time.
Basic heating & constant temperature experiments with limited budget: Choose basic P series programmable digital display version.
Intuitive curve display and experimental data recording required: Upgrade to PV color touch screen version.
Upper computer communication and remote experiment monitoring needed: Select PV-II expandable touch screen matched with RS485 interface.
Samples generating smoke and volatile gas under high temperature: Equip optional exhaust chimney to discharge waste gas inside the chamber timely.
Powders prone to oxidation under high heat: Select inert gas inlet valve for shielding atmosphere with nitrogen or argon.

Standard factory package: muffle furnace main unit, high-temperature crucible tongs, power cord, Chinese & English operation manual. All extended accessories are separately optional.
The unit is packed in thick shockproof wooden case with buffer materials protecting fragile precision parts such as chamber, controller and silicon carbide rods from vibration during long-distance cross-border transportation.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
The products are divided into 220V small-volume benchtop models and 380V large-volume models, which can be shipped in separate consolidated containers to optimize sea and air freight cost.
Custom packaging is available for bulk buyers including instrument distributors, pharmaceutical factories, material & chemical research institutes and university departments, suitable for overseas exhibitions and cross-border store promotion.

Selling Units	Single item	Package size per batch	746477.5cm
Gross weight per batch	76.000kg

Name	Qty
Program-controlled muffle furnace	1
High temperature crucible tongs	1
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Full factory electronic documents can be obtained upon request for cross-border store listing, overseas industry exhibition promotion and technical consultation for overseas buyers.
Supporting digital documents: bilingual specification sheet, standard operation manual, silicon carbide rod maintenance guide, overall dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, heating curve demonstration pictures and photos of optional accessories for unified online store operation and promotion.

What maximum temperature options are available? A Two series: RT+10~1300℃ and RT+10~1500℃, select according to actual process temperature.
What is the heating element and its service life? A Silicon carbide rod with good oxidation resistance for long-term medium-high temperature heat treatment. Standard operation and avoiding sudden temperature change can extend service life.
Does multi-segment programmed heating function available? A All models support multi-segment program editing for automatic heating, holding, cooling and shutdown processes.
Will the furnace keep heating after opening the door? A No. Built-in safety interlock cuts heating automatically when door opens and resumes after closing to guarantee operation safety.
Any difference on power supply for different volumes? A 4L and 7L models use AC220V; large capacity 18L and 36L models adopt industrial AC380V power supply.
How to distinguish three controller versions? A P: Basic programmable digital display; PV: Color touch screen; PV-II: Expandable touch screen supporting RS485 remote communication.
Can shielding atmosphere be filled to avoid sample oxidation? A Yes. Optional inert gas inlet valve assembly supports nitrogen, argon and other shielding gas feeding.
How to handle waste gas generated during sample heating? A Exhaust chimney accessory can be purchased to discharge smoke and volatile substances inside the chamber timely.
What is the chamber material and insulation performance? A Microporous lightweight ceramic fiber board, light weight, fast heating and excellent thermal insulation, more energy-saving than traditional firebrick.

This series of programmable heat treatment muffle furnaces are applied to material sintering, metal workpiece annealing, pharmaceutical dry heat sterilization, ash testing and sample melting analysis. Contact support to obtain complete technical solutions. Tiered discounts are available for bulk purchase without hidden charges.
Dedicated sales support for bulk customization (body logo printing, non-standard chamber size, bundled accessory package), assisting parameter verification, production scheduling, logistics arrangement and factory quality inspection.
For inquiry, please note: required model, maximum temperature grade, chamber volume, control screen type, optional accessories demand and order quantity. Formal complete solution will be provided within 24 hours.
