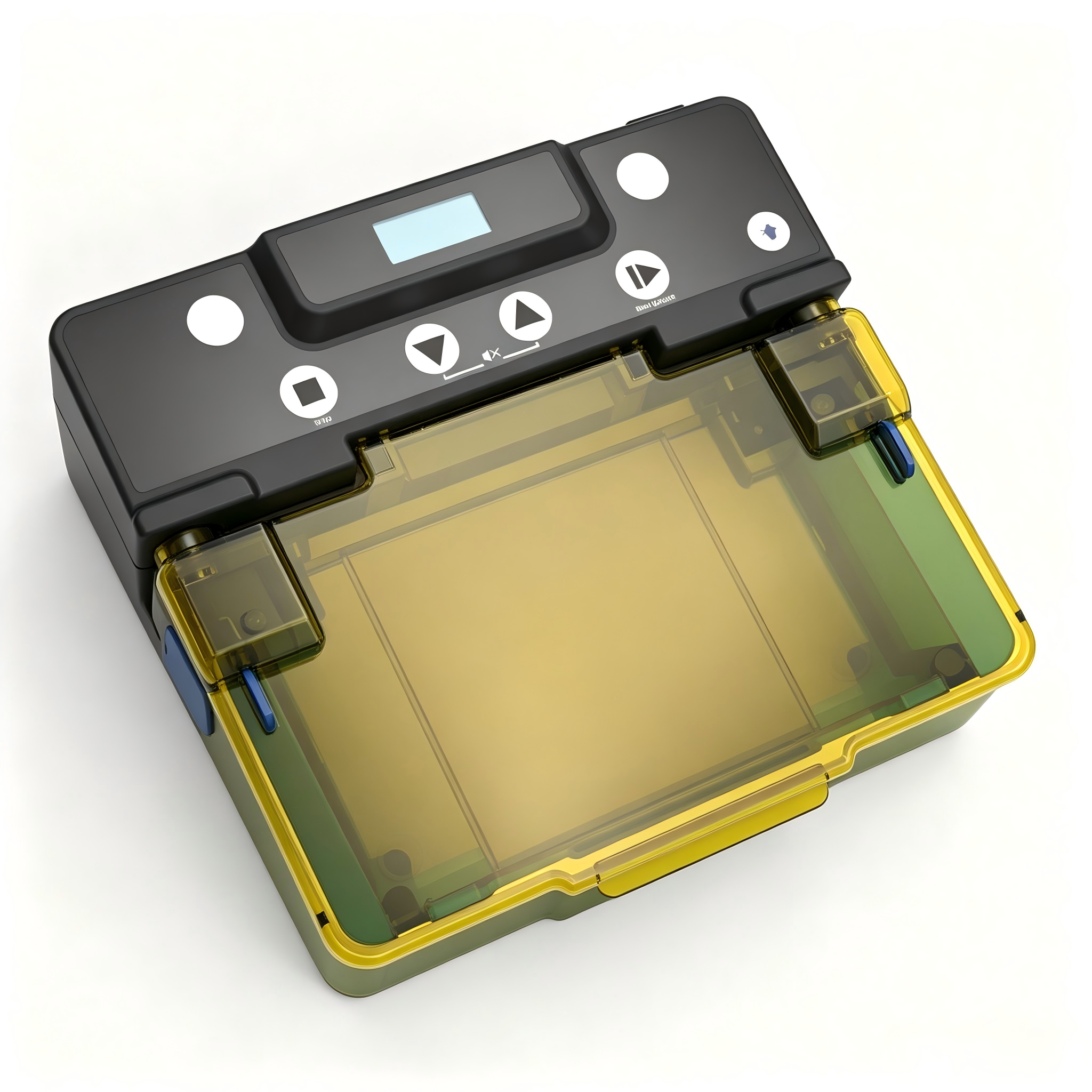

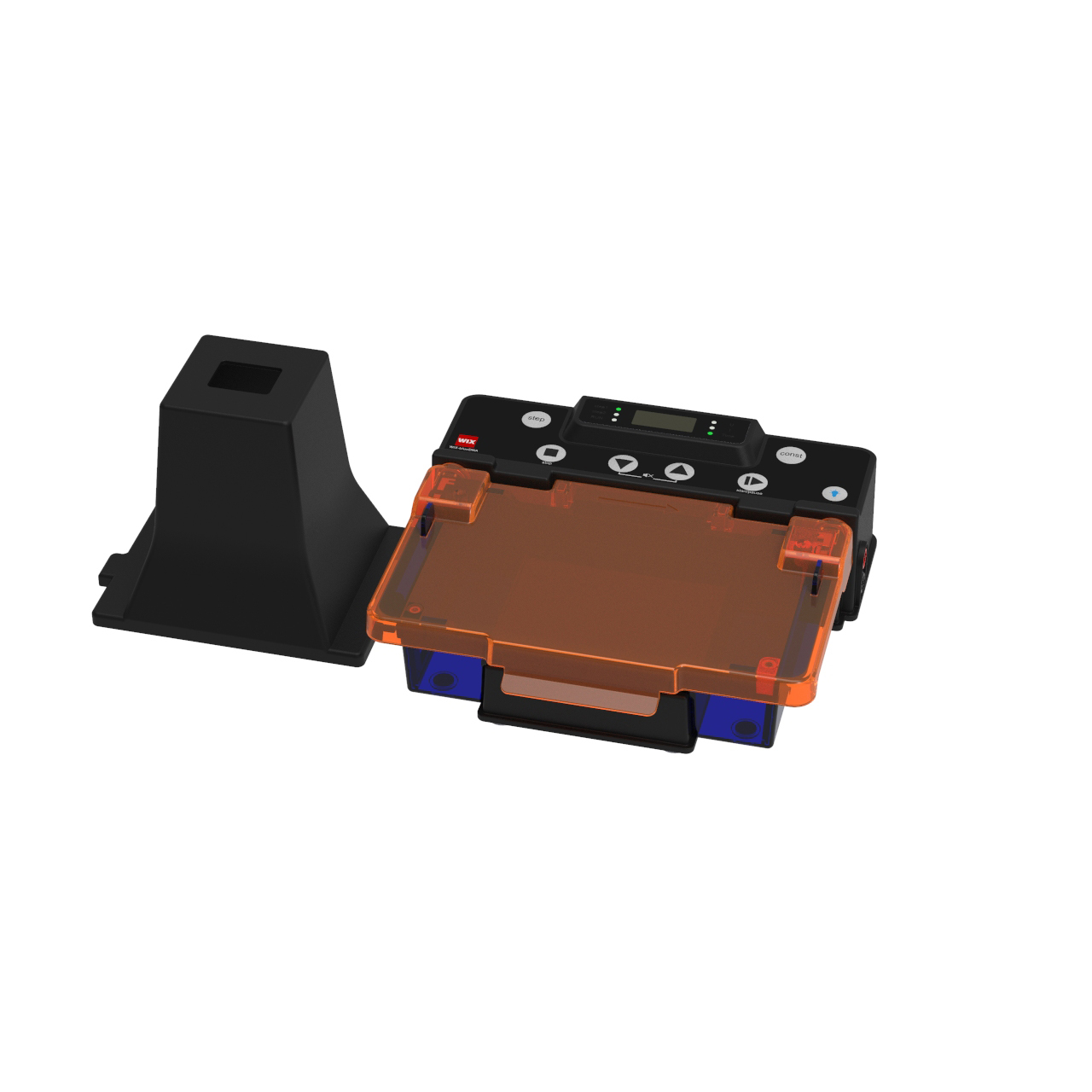

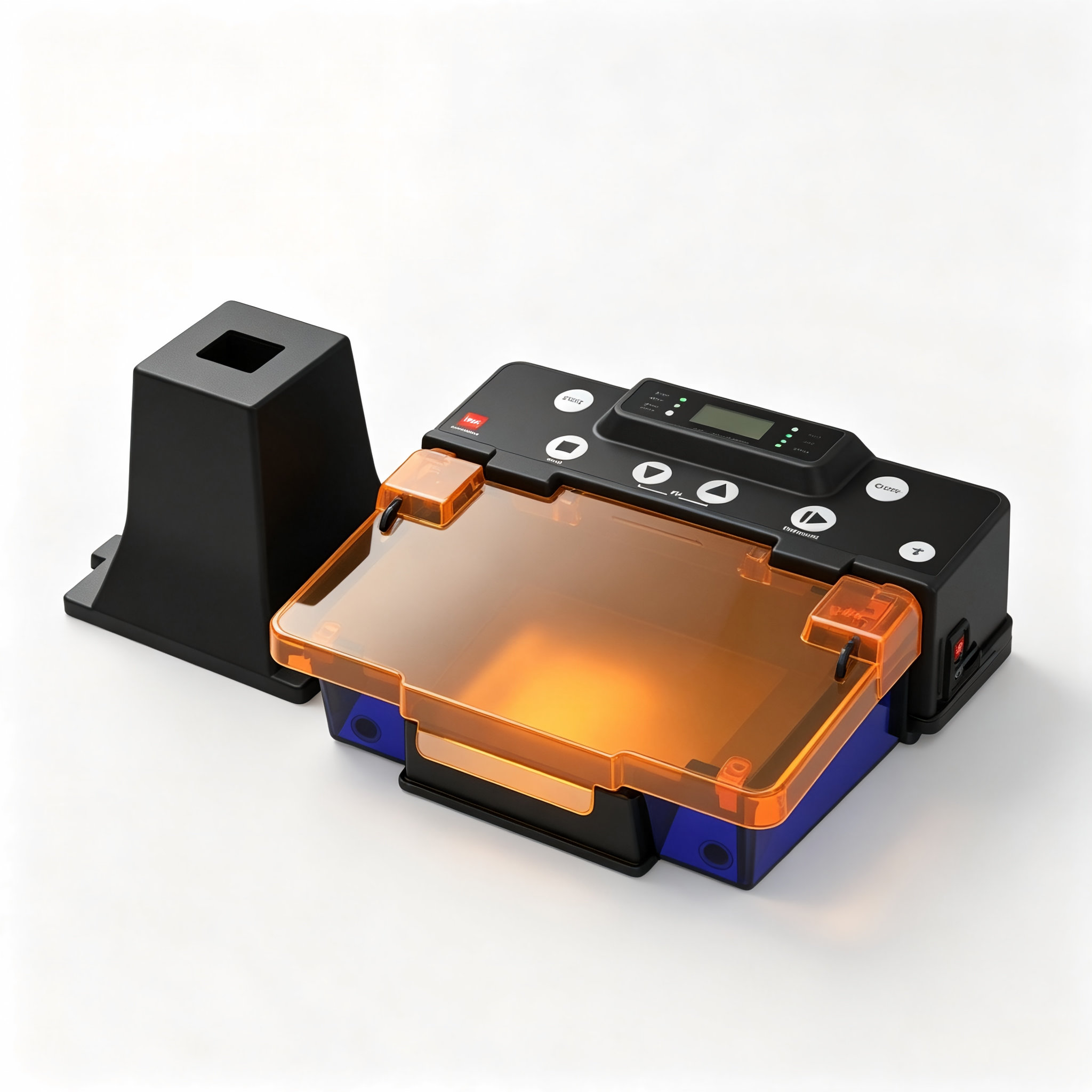

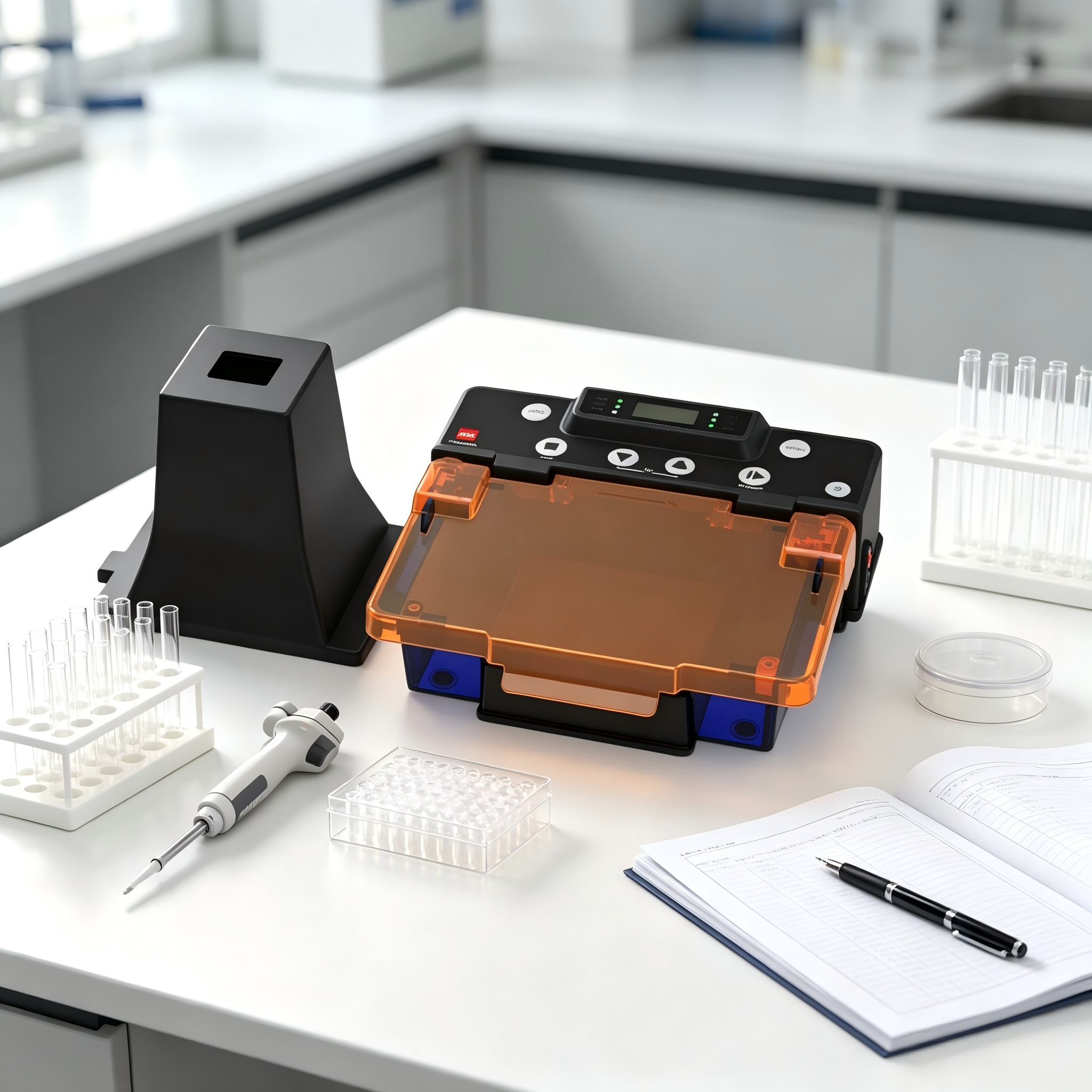

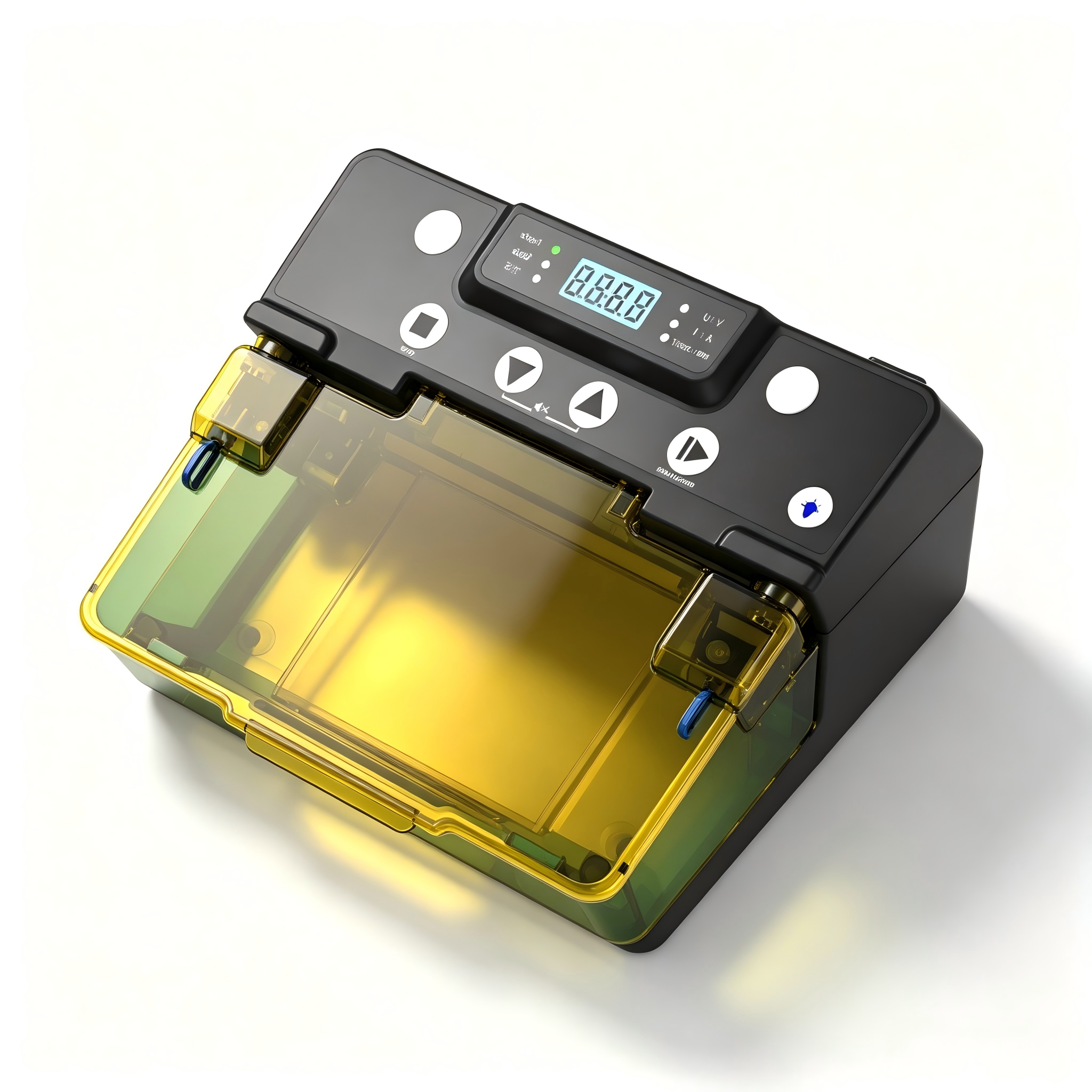

Horizontal Blue Ray Electrophoresis System

No.blueDNA
All-in-one horizontal blue-light electrophoresis device integrates power supply, electrophoresis tank and blue-light gel cutting function. It is equipped with a patented anti-fog structure, 3-level blue light brightness adjustment, storage for 5 experimental programs and high-temperature resistant gel trays, enabling high-throughput PCR electrophoresis testing for up to 100 samples.
$684.72
Request a Quote
  • Horizontal blue‑light electrophoresis system for lab DNA RNA nucleic acid gel electrophoresis experiment
  • Horizontal Blue Ray Electrophoresis SystemIlabcarta Technology Co., Ltd.
  • Horizontal Blue Ray Electrophoresis SystemIlabcarta Technology Co., Ltd.
  • Horizontal Blue Ray Electrophoresis SystemIlabcarta Technology Co., Ltd.
  • Horizontal Blue Ray Electrophoresis SystemIlabcarta Technology Co., Ltd.
  • Horizontal Blue Ray Electrophoresis SystemIlabcarta Technology Co., Ltd.

  • Product Overview

  • Key Features

  • Parameter

  • Product Details

  • How to Choose

  • Download

  • Packaging & delivery

  • FAQ

  • Get a Quote

  • Labcarta WIX-blueDNA Horizontal Blue Ray Electrophoresis System is an all-in-one integrated device integrating horizontal electrophoresis tank, electrophoresis power supply, blue light gel cutting and blue light imaging functions (imaging requires an external camera).
  • Built-in protein electrophoresis program, one-key automatic operation of stacking gel and separating gel electrophoresis workflow, 5 groups of experimental programs can be stored for quick recall.
  • Blue light brightness supports 3-level adjustable brightness, to meet gel cutting, observation and long-term imaging different light intensity demands.
  • Equipped with patented forced convection cooling structure inside the electrophoresis chamber, effectively eliminate water mist condensation on the tank cover, avoid blurred observation and gel contamination.
  • High-throughput PCR electrophoresis capability: match 1mm 25-well comb with 4 rows layout, realize simultaneous detection of up to 100 samples including Marker.
  • Multiple interchangeable gel tray sizes to freely switch gel preparation areas for analytical electrophoresis and preparative electrophoresis.
  • High-temperature resistant gel tray, stable without deformation under 100°C hot agarose glue pouring, no waiting for glue liquid cooling to save gel preparation time.
  • Equipped with a multi-purpose 91-hole multi-caliber centrifugal tube rack for laboratory auxiliary sample placement.
  • Integrated power and tank design, compact overall dimension 300×170×80mm, total weight only 2kg, maximum buffer loading volume 1000mL, φ0.25mm platinum electrode for stable electrophoresis electric field.
  • All-in-one machine design: Power supply, electrophoresis tank, blue light excitation source integrated, reduce desktop equipment occupation, simplify laboratory wiring layout.
  • Patented anti-fog forced convection structure: Eliminate lid water mist, continuous long-time electrophoresis observation without interruption.
  • Programmable memory function: 5 sets of electrophoresis parameter storage, repeat experiments without repeated parameter setting.
  • Three-level blue light dimming: Low light for gel cutting, medium light for band observation, high light for gel image shooting.
  • Dual nucleic acid & protein electrophoresis mode: Compatible with agarose nucleic acid electrophoresis and PAGE protein vertical electrophoresis pre-program.
  • High temperature resistant gel mold: Direct hot glue casting, shorten experiment cycle and improve laboratory work efficiency.
  • Ultra-high sample throughput: 100-sample simultaneous PCR electrophoresis detection, suitable for large-scale screening experiments.
  • Rich comb & gel tray accessories: Diversified gel area and well number options to adapt to conventional detection, preparation gel recovery, small sample identification.
  • Thickened platinum electrode (φ0.25mm): Anti-oxidation and anti-corrosion, long service life, uniform electric field to ensure consistent band migration.
Item Specification
Output Power Parameters Constant Voltage 10–200V, Constant Current 10–500mA, Max Power 100W
Standard Gel Tray Size(W×L) 120×120mm、120×60mm、60×120mm、60×60mm
Expanded Gel Tray Size(W×L) 130×130mm、130×65mm、65×130mm、65×65mm
Standard Comb Configuration 1.0mm:11+11 wells/25 wells
1.5mm:6+6 wells/13 wells、8+8 wells/18 wells、11+11 wells/25 wells
Expanded Comb Configuration 0.75mm:7+7 wells/14 wells、9+9 wells/19 wells
1.0mm:12+12 wells/27 wells
1.5mm:7+7 wells/14 wells、9+9 wells/19 wells
2.0mm:3+2 wells/3+3 wells
Quantity of Double-sided Combs 9 pieces
Max Buffer Volume 1000mL
Platinum Electrode Diameter φ0.25mm
Overall Dimension(L×W×H) 300×170×80mm
Net Weight 2Kg
Blue Light Adjustment 3 brightness levels
Program Storage Capacity 5 groups of programs
Max Throughput(PCR) 100 samples(4 rows × 25-well comb)
Accessory Configuration 91-hole multi-caliber centrifuge tube rack

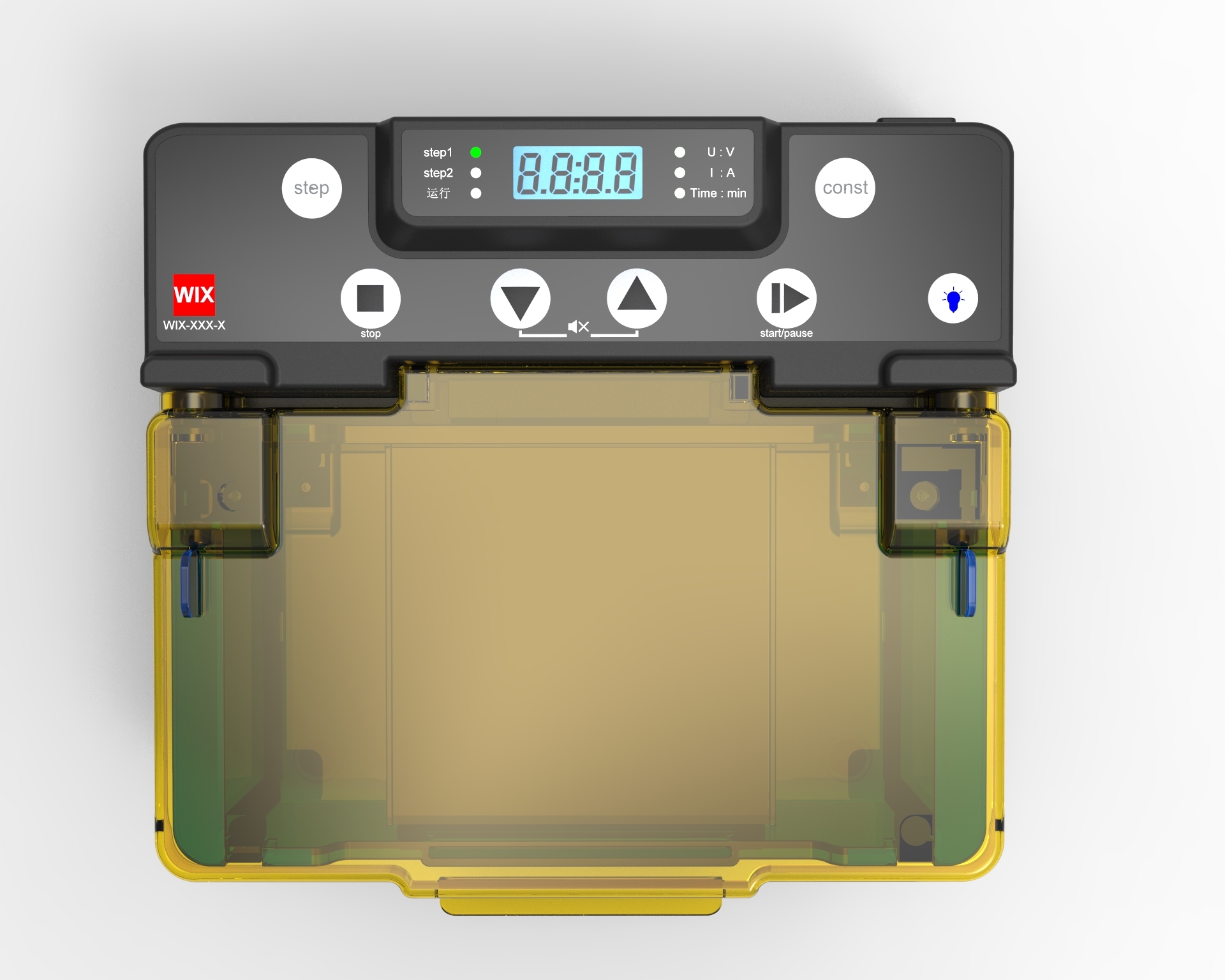

  • Integrated operation panel: Physical buttons for program call, parameter adjustment, start/stop, blue light switch, intuitive operation without complicated setting.
  • Gel tray replacement: Directly take out the original gel tray and place the target size tray for quick switching of gel area.
  • Hot agarose gel casting: Pour molten agarose gel at nearly 100°C directly into the gel tray, insert comb vertically to complete gel preparation.
  • Buffer filling: Inject TAE/TBE electrophoresis buffer into the tank to submerge the gel surface, close the tank cover to start forced convection anti-fog operation.
  • Program selection: Select nucleic acid electrophoresis or protein electrophoresis pre-program, or call stored custom program, set voltage/time to start electrophoresis.
  • Post-electrophoresis operation: Turn on the built-in blue light source, adjust brightness to observe bands, cut target gel blocks directly on the blue light surface, or connect a camera for gel imaging recording.
  • High-throughput PCR experiment: Install four rows of 25-well combs to complete simultaneous loading of 100 PCR samples for batch screening.
  • Daily maintenance: Drain waste buffer after use, wipe the tank body, electrode frame, gel tray and combs with deionized water, air-dry to prevent salt crystallization corrosion on platinum electrodes.
  • Accessory storage: The matched centrifuge tube rack is used for placing PCR tubes, EP tubes, loading tip tubes during sample preparation to tidy the experimental bench.
  • Choose WIX-blueDNA if you need integrated electrophoresis + blue light cut gel to save independent power supply and blue light transilluminator procurement cost.
  • Select this model for PCR batch screening laboratories relying on high-throughput 100-sample simultaneous electrophoresis function.
  • Laboratories that need both nucleic acid agarose electrophoresis and PAGE protein electrophoresis choose this machine for dual-mode one-device use.
  • Choose for limited laboratory bench space, the all-in-one structure saves placement space compared with split electrophoresis tank + power supply + blue light instrument.
  • Frequent gel cutting operation users benefit from built-in adjustable blue light, no extra mobile blue light equipment arrangement.
  • Document acquisition method: Contact Labcarta customer service to obtain full electronic technical documents free of charge.
  • Document list: ①Complete technical datasheet of WIX-blueDNA integrated electrophoresis system; ②Nucleic acid & protein electrophoresis standard operation SOP; ③Overall dimension drawing of the equipment; ④Blue light brightness, electrode conductivity, anti-fog structure factory test report.
  • Packaging structure: Export-grade hard carton + full surrounding shockproof foam inner liner, independent clamping groove for host, gel trays, combs and accessories to prevent collision damage.
  • Bulk order reinforcement: Large-volume orders adopt thickened foam and reinforced outer carton to protect integrated power supply circuit and platinum electrodes.
  • Standard packing list: Integrated electrophoresis host, full set of standard gel trays, 9 double-sided electrophoresis combs, multi-purpose 91-hole centrifuge tube rack, power cord, operation manual, factory inspection certificate.
  • Optional expansion accessories: Extended-size gel trays, multi-specification thick combs, high-density PCR dedicated combs can be ordered separately.
  • Packaging weight reminder: Outer box dimension and gross weight are estimated values, subject to actual factory delivery.
  • Standard stock lead time: Conventional standard configuration delivery within 3–10 working days.
  • Customization lead time: Custom comb well shape, customized gel tray size orders delivery within 15–30 working days.
  • Available logistics: Sea freight, air freight, international door-to-door express for laboratory instrument export.
Accessory Name Quantity
Power Connection Cable 1 Piece
Paper Operation Manual 1 Copy
Factory Inspection Certificate 1 Set
91-hole Centrifuge Tube Rack 1 Piece
Standard Double-sided Electrophoresis Combs 9 Pieces
  • Q: Does the built-in blue light support direct gel photography?
    A: The blue light only provides excitation light source, need to connect an external camera or imaging system to complete gel image capture.
  • Q: How to eliminate water mist on the tank cover during long electrophoresis?
    A: The patented forced convection device runs automatically after closing the cover to prevent condensation fog without manual wiping.
  • Q: Can I store my commonly used electrophoresis voltage and time parameters?
    A: The device supports storing 5 groups of independent experimental programs for one-click recall of mature experimental parameters.
  • Q: Can the gel tray be poured directly with freshly boiled agarose gel?
    A: Yes, the gel tray is resistant to 100°C high temperature without deformation for direct hot glue casting.
  • Q: What is the maximum number of PCR samples detected in one electrophoresis?
    A: With 4 rows of 25-well combs installed, up to 100 samples including Marker can be tested at once.
  • Q: Is the machine compatible with protein vertical electrophoresis experiments?
    A: Built-in protein electrophoresis automatic program, support stacking gel and separating gel sequential electrophoresis operation.
  • Q: What is the adjustable range of the output power supply?
    A: Constant voltage 10–200V, constant current 10–500mA, maximum output power 100W.
  • Q: Are the gel combs and gel trays available for separate purchase as spare parts?
    A: All specifications of gel trays and electrophoresis combs can be purchased separately as consumable spare parts.
  • Q: What is the total weight of the integrated machine?
    A: The net weight of the complete machine is 2kg, easy to move between experimental stations.
  • Q: How many brightness levels does the blue light source have?
    A: Three adjustable brightness levels to adapt to cutting, observation and imaging work scenarios.
  • Q: What is the maximum buffer volume that the tank can hold?
    A: The maximum filling volume of electrophoresis buffer is 1000mL.
  • Q: Is the platinum electrode resistant to long-term buffer corrosion?
    A: φ0.25mm thickened platinum wire electrode, strong oxidation resistance and long service life.
  • Q: Can different sizes of gel trays be freely replaced?
    A: Standard and extended size gel trays are interchangeable on the host tank body.
  • Quotation required information: Confirm purchase quantity, whether to purchase extended gel trays/combs accessories, submit demand to obtain stepped bulk preferential quotation.
  • Contact method for quotation: Send procurement demand through Labcarta official email, WhatsApp, independent station background message, professional international sales will reply within working hours.
  • Customized supporting service: Free electrophoresis experiment scheme matching for university molecular biology laboratories, third-party testing institutions and biopharmaceutical R&D departments.
  • Quotation issuing cycle: Official formal PI quotation will be issued within 24 working hours after confirming all procurement details.
  • Labcarta contact channel: Official business email and WhatsApp contact information are displayed on the Labcarta independent website for one-stop consultation, quotation and order confirmation.
Applications 应用场景模块

Applications

Applications

Supporting diverse laboratory and industrial environments with practical instrument solutions.

Research Laboratories

Research Laboratories

Conduct SDS-PAGE protein separation, nucleic acid electrophoresis and molecular specimen analysis for life science research..

Universities and Education

Universities & Education

Complete protein & gene electrophoresis experiments for biotech, biology and chemistry course training.

Pharmaceutical and Chemical

Pharmaceutical & Chemical

Analyze target protein, separate biological ingredients and test biopharmaceutical sample purity.

Food Environmental and Industrial Testing

Food, Environmental & Industrial Testing

Identify microbial nucleic acid and detect protein composition in food and environmental samples..
