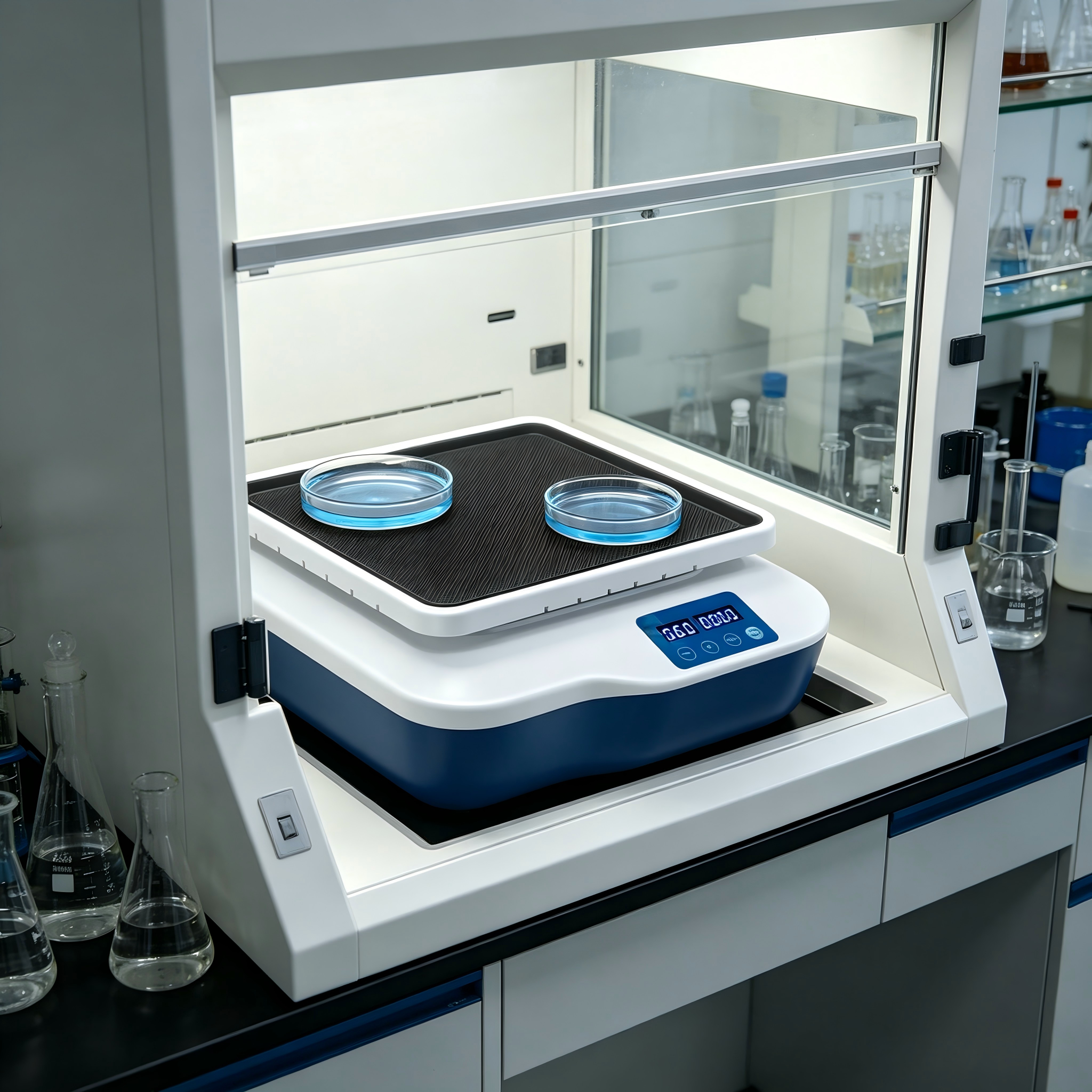

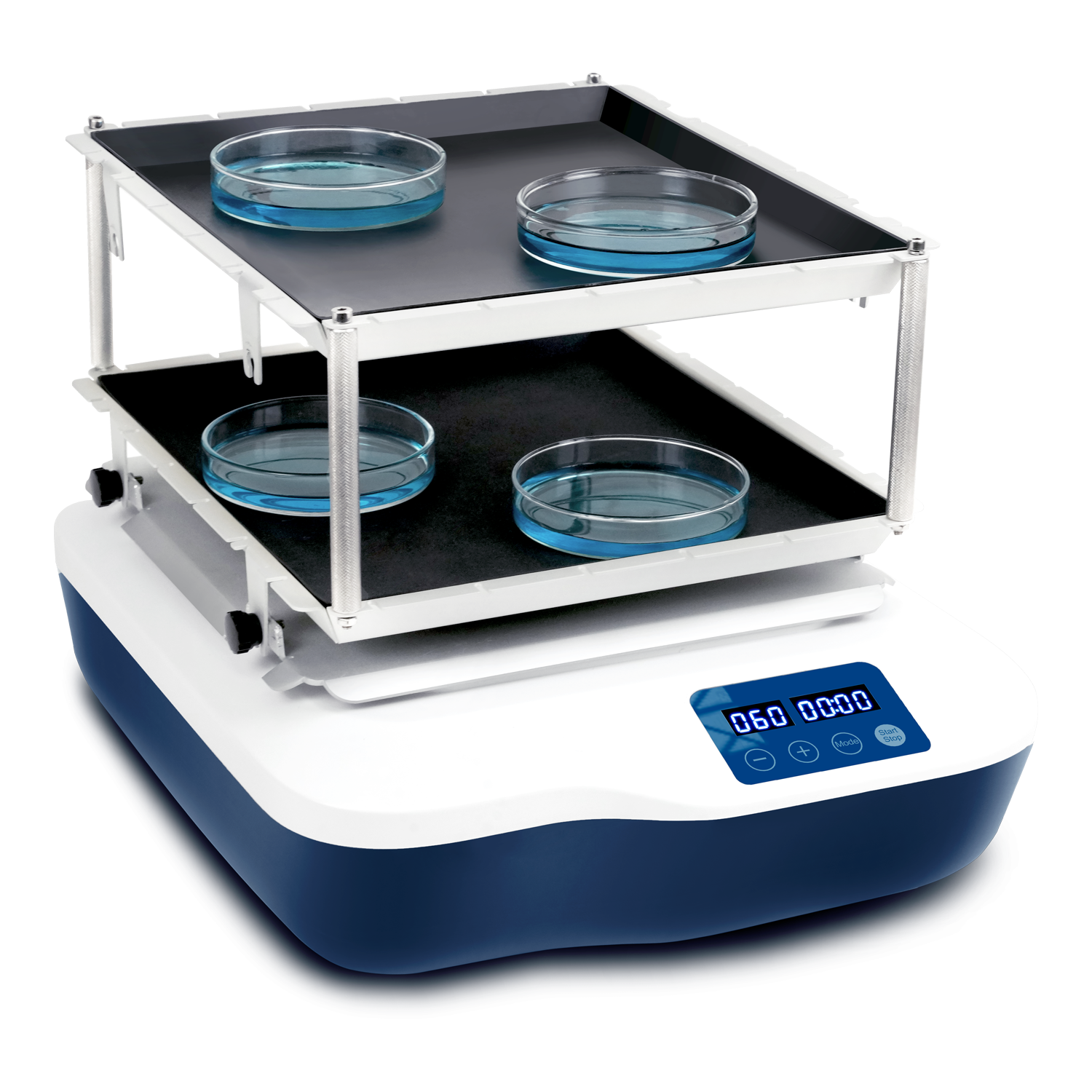

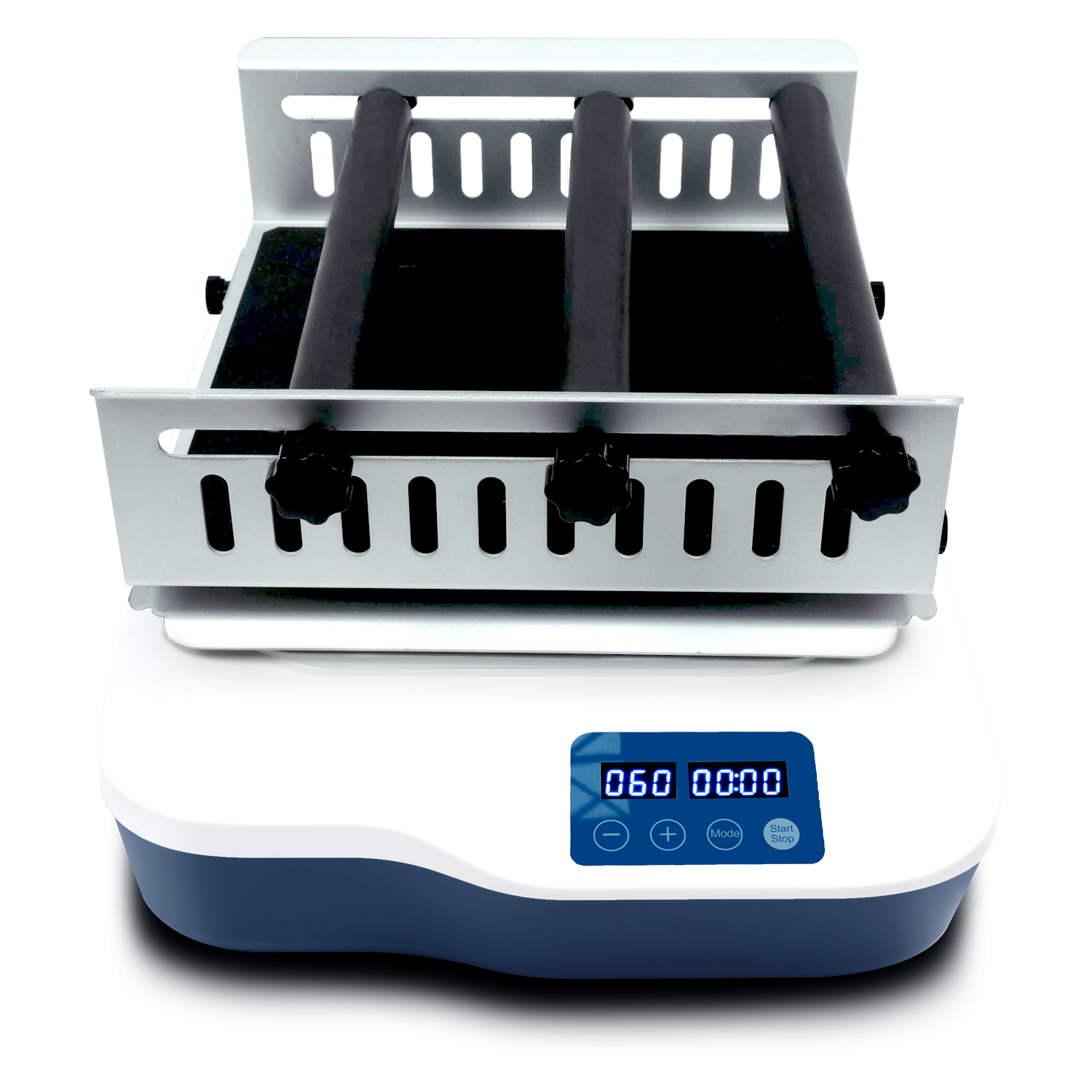

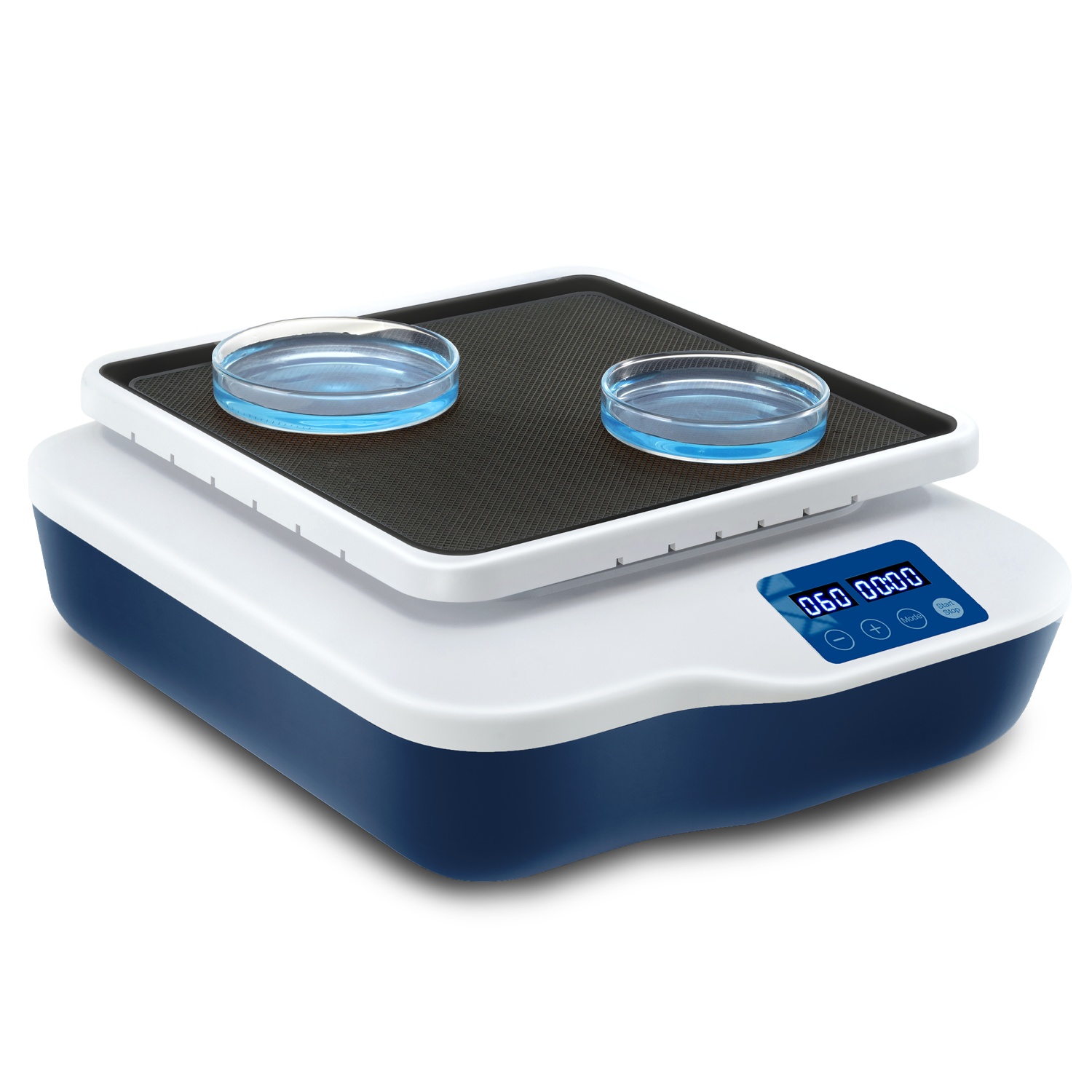

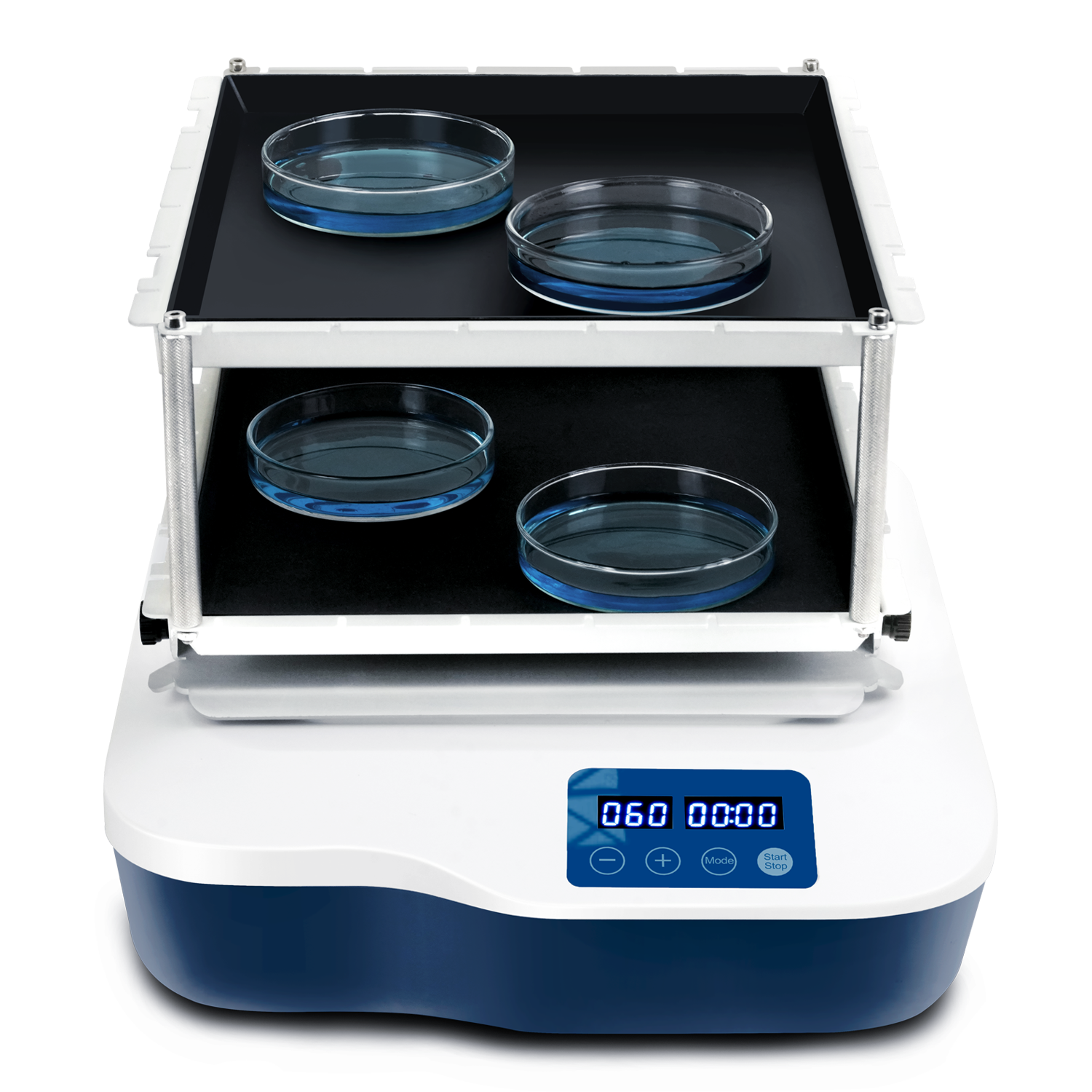

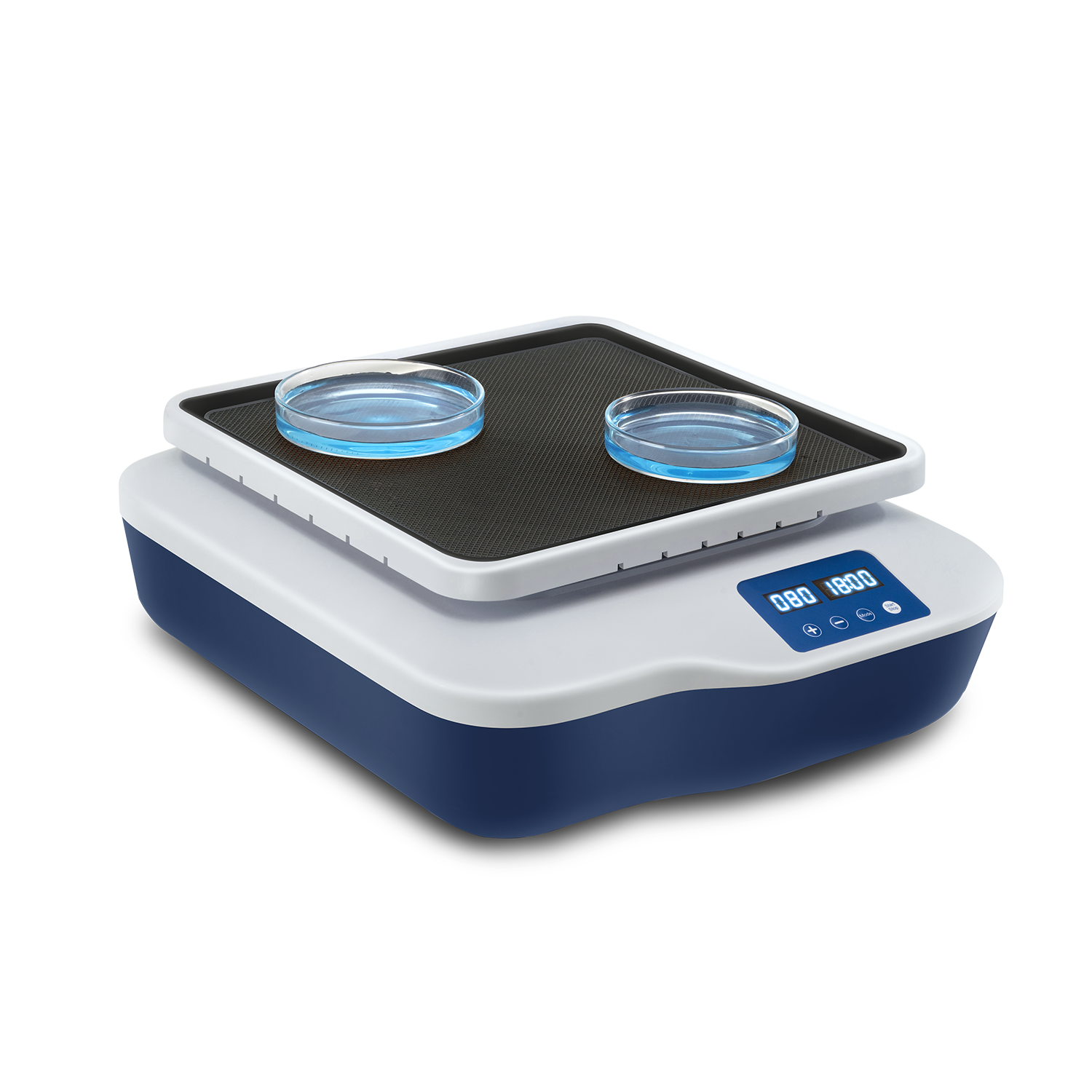

Intelligent Decolorizing Shaker

Name: Intelligent Decolorizing Shaker
Brand: labcarta Technology Co., Ltd.
SKU: LSK18-O00-S
Price: 160.50 USD
Availability: InStock

No.LSK18-O00-S

Orbital shaker is an ideal choice for various applications suchas bacterial resuspension, solubility studies, bacterial and yeastcultivation, extraction processes, elution processes, diagnostictesting, hybridization, general mixing, blotting & washing, andmore. It can be used for continuous mixing of culture dishes,flasks, and conical flasks. Suitable for aerated reactions andextraction applications. It can be placed in environmentaltest chambers or CO2 incubators for use.

$160.50

Model:

LSK18-O00-S

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

LSK18-O00-S intelligent decolorizing orbital shaker adopts standard 20mm orbital diameter, designed for microbial culture and mixing of micro biochemical samples. It supports continuous shaking of culture dishes, flasks and conical flasks, applicable to bacterial resuspension, solubility analysis, bacteria & yeast cultivation, extraction & elution, hybridization, blotting washing, diagnostic testing and other lab workflows.
Compact mini body design saves bench space, low-profile structure allows full placement inside environmental test chambers and standard CO₂ incubators, realizing integrated constant-temperature cell incubation and synchronous orbital shaking, lowering contamination risks from repeated sample transfer.
Equipped with maintenance-free brushless DC motor with adjustable speed range of 40–200rpm, covering full gradient working conditions from low-speed gentle incubation to medium-speed extraction. Dual independent LED screens display rotation speed and accumulated runtime separately, supporting two operation modes: timed auto-stop (1min–99h59min) and 24-hour continuous shaking, suitable for overnight and multi-day unattended microbial culture experiments.
The unit is equipped with 268×268mm flat work plate, rated max load capacity of 2kg, total power 20W, auto-adaptive 100–240V universal voltage and IP21 protection class. Overall dimension 294×348×123mm, net weight 3.1kg. Two versions are available: basic fixed tray model and multi-functional interchangeable tray model. The multi-functional version supports various optional trays and clamps to expand compatible vessel types, with built-in overspeed safety protection for stable and safe operation.

Standard 20mm orbital diameter: Uniform circular motion balances gentle cell culture and efficient organic extraction without partial sedimentation and stratification of samples.
2kg rated load and wide adjustable speed range 40–200rpm: Fully meets experimental demands including low-speed microbial proliferation culture, medium-speed protein elution and gel destaining.
Dual independent LED separate displays: Rotation speed and runtime data are displayed in separated zones for intuitive reading and full control of long-term culture experiments.
Two switchable operation modes: Timed auto-stop and 24-hour continuous shaking, freely matched for short-term elution and multi-day microbial incubation.
Long-cycle electronic timer 1min–99h59min: No repeated manual time reset required for multi-day strain amplification and hybridization incubation workflows.
Two optional model configurations: Basic fixed tray version and multi-functional interchangeable tray version; the multi-functional model supports various clamps and trays to expand compatible lab vessel types.
Maintenance-free brushless DC motor: Low vibration and low noise, no carbon brush replacement during long-term use, no disturbance to fragile live cell and strain samples.
Built-in speed safety protection: Automatic overspeed limitation prevents motor overload damage and extends overall service life.
Space-saving compact body design: Mini footprint allows direct placement inside CO₂ incubators and constant-temperature environmental chambers for synchronous shaking.
100–240V wide universal voltage design: Compatible with global lab power standards, IP21 basic dust & splash resistance for routine microbiology and biochemistry lab environments.

Specifications	LSK18-O00-S
Orbital diameter	20mm
Max. load capacity (with platform)	2kg
Motor type	Brushless DC motor
Motor input power	20W
Motor output power	16W
Speed range	40-200rpm
Speed display	LED
Timer display	LED
Time settings range	1min-99h59min
Voltage, Frequency	100-240V, 50/60Hz
Power	20W
Weight	3.1kg
Permissible ambient temperature and humidity	5-40℃, 80%RH
Dimension [W×D×H]	294×348×123mm
Protection class	IP21
Work plate Dimension [W×D]	268×268mm

Labware fixing placement operation: For basic model, place culture dishes and flasks directly on fixed platform; multi-functional model matches dedicated clamps/trays to fix vessels stably without sliding during 20mm orbital shaking.
Power connection & self-check standby operation: Connect 100–240V AC power cord, dual LED screens light up automatically, the unit completes hardware self-check and enters parameter-adjustable standby mode.
Experimental parameter setting operation: Adjust knob to set orbital shaking speed 40–200rpm, switch between continuous or timed operation mode, set runtime from 1min to 99h59min; speed and timer data are displayed on separated LED panels.
Synchronous constant-temperature shaking for microbes: Compact low-profile body allows full placement inside standard CO₂ incubators and environmental test chambers for simultaneous strain proliferation and uniform orbital mixing without batch sample transfer.
Standard long-term culture running operation: Start the shaker after parameter confirmation, uniform 20mm orbital track provides gentle shaking to protect strains and live cells for multi-day bacteria & yeast amplification incubation.
Standard shutdown operation after experiment: The shaker auto stops orbital motion when timed cycle expires; manual shutdown is required for continuous mode, cut off power then remove all labware and clamps.
Daily cleaning maintenance operation: Wipe residual culture medium and buffer liquid off work plate and clamp gaps after each experiment to keep the unit dry and clean and prevent platform corrosion.
Storage maintenance for long idle periods: Disconnect power during long downtime, remove all optional clamps and trays, store the whole unit under dry low-humidity environment of 5–40℃ to extend service life of brushless motor and LED screens.

Selection based on experimental type: Prioritize this model with gentle 20mm orbital track for bacteria/yeast culture, hybridization, blotting washing and low-impact solubility studies; linear reciprocating shakers fit crude samples with heavy sediment.
Selection based on incubator placement demand: Compact low-profile body fits full placement inside CO₂ incubators and constant-temperature chambers for synchronous incubation & shaking; large high-load shakers cannot fit into incubators.
Selection based on tray expansion demand: Choose basic fixed tray model for simple culture dish incubation; select multi-functional interchangeable tray model if compatibility with flasks, ELISA plates and various clamps is required.
Selection based on total load weight: This model is applicable when total weight of vessels and samples ≤2kg; high-capacity orbital shakers are required for specimens with total load over 2kg.
Selection based on speed range demand: 40–200rpm full gradient covers low-speed strain culture and medium-speed extraction & elution for routine full-set microbial experiments; dedicated vortex shakers are alternatives for high-intensity violent mixing.
Selection based on operating environment limit: Stable operation only within 5–40℃ and ≤80%RH non-condensing environment; condensed high humidity will corrode internal brushless motor circuits, not recommended for such working conditions.
Application Scenarios
1. Research Laboratories: Multi-day constant-temperature amplification culture of bacteria & yeast, gentle shaking for micro protein hybridization, solubility analysis of low-precipitation samples, synchronous washing of blotting membranes, low-speed extraction of micro organic phases.
2. Universities & Education: Teaching training of microbial strain culture, gel blotting washing experiments for molecular biology, undergraduate biochemistry solubility exploration operations.
3. Pharmaceutical & Chemical: Constant-temperature incubation of drug strains, low-speed elution of micro raw drug components, pre-treatment shaking for diagnostic kit samples.
4. Food, Environmental & Industrial Testing: Constant-temperature enrichment culture of food microbial strains, low-impact resuspension mixing of environmental water bacteria.
5. Medical & Healthcare: Pre-treatment shaking of clinical diagnostic samples, low-damage synchronous mixing for constant-temperature cell incubation, gentle washing & destaining of pathological blotting specimens.

Packaging structure: Standard export hard color carton fully lined with high-density shock-absorbing foam, separate slots for main unit and power cord to prevent collision damage to LED screens during long sea and land transit.
Bulk order protection: Reinforced thickened buffer protection is applied by default for large-volume export orders to reduce screen failure risk caused by transit impact of compact small body.
Standard package accessories: LSK18-O00-S orbital shaker main unit, matching wide-voltage power cord, full printed operation manual; clamps and interchangeable trays for multi-functional version are optional accessories not included.
Package size note: Outer carton dimension and full-set gross weight are estimated reference values only, final data subject to actual factory outgoing packaging.
In-stock lead time: Standard models without optional clamps and trays ship within 3–10 working days.
Optional logistics channels: Sea freight, air freight and full-truck land transport available, dedicated logistics line for bulk overseas export of compact lab shaking instruments.

Selling Units	Single item	Package size perbatch	42.53620.5cm
Gross weight perbatch	3.82kg

Name	Qty
Power Cable	1 pc
User Manual	1 copy
Packing List / Certificate of Conformity	1 set
Warranty Card	1 copy

Complete technical datasheet of LSK18-O00-S: Original specification sheet fully records all hardware parameters including orbital diameter, load capacity, motor power, unit dimension and work plate size, fully supported by official data.
Standard operation guide for microbial shaking inside CO₂ incubators: The original brochure marks the unit can be placed inside environmental chambers and CO₂ incubators, supported by native product function.
Optional tray & clamp selection manual for two versions (basic / multi-functional): The brochure clearly distinguishes two models and compatible interchangeable trays & clamps, the selection manual is real and compliant.
Overall dimension engineering drawing of the unit: Original official parameters provide W×D×H unit size and 268×268mm work plate size for outline drawing reference.
Factory inspection report for stability test of brushless motor and full 2kg load: The original sheet marks brushless DC motor and 2kg rated load, the inspection report only corresponds to inherent hardware performance without adding unsubstantiated parameters.

Can the orbital diameter of this orbital shaker be adjusted manually?
Answer: The orbital track is fixed at 20mm, no amplitude adjustment structure is equipped on the unit.
What is the maximum allowable total weight of work plate, labware and samples?
Answer: Rated max total load is 2kg, overload operation is forbidden to prevent brushless motor overload and unbalanced body shaking.
What is the continuous adjustable speed range?
Answer: Rotation speed can be continuously adjusted from 40rpm to 200rpm, covering full workflows from low-speed culture to medium-speed extraction.
What two switchable operation modes does the unit support?
Answer: Uninterrupted continuous running mode and timed auto-stop mode.
What is the maximum unattended experimental duration supported by electronic timer?
Answer: Max setting 99 hours 59 minutes, minimum 1 minute, supporting multi-day overnight constant-temperature strain culture experiments.
Do rotation speed and remaining runtime share one single display screen?
Answer: No, two independent LED screens show parameters separately without visual obstruction.
What is the protection class and required temperature & humidity for stable operation?
Answer: Protection class IP21; operating environment 5–40℃, relative humidity ≤80%RH without condensation.
What are overall dimension, work plate size and net weight of the unit?
Answer: Unit dimension W×D×H: 294×348×123mm; work plate size 268×268mm; net weight 3.1kg.
What two versions does this model have, and what is the difference?
Answer: Basic fixed tray version and multi-functional interchangeable tray version; the multi-functional model supports various clamps and replaceable trays to expand compatible vessels, while the basic model only has fixed platform without expandable accessories.
What are motor type, motor input power, motor output power and total unit power respectively?
Answer: Brushless DC motor; motor input power 20W, motor output power 16W, total unit power 20W.
Can the unit work with overseas 110V lab power supply without extra transformer?
Answer: Auto-adaptive 100–240V wide voltage with automatic 50/60Hz frequency identification, no extra transformer needed.
Does the unit have safety protection against overspeed and overload?
Answer: Built-in speed safety protection automatically limits excessive rotation speed to effectively protect the brushless DC motor.
Can the whole unit be fully placed inside standard CO₂ cell incubators?
Answer: Compact low-profile body allows full placement inside conventional CO₂ incubators and constant-temperature environmental test chambers for synchronous shaking and incubation.
Are dedicated clamps for conical flasks and ELISA plates included in standard delivery package?
Answer: Clamps and interchangeable trays are optional accessories only for multi-functional version, not included in standard package which only contains main unit, power cord and operation manual.
What core basic biochemical and microbial experiments is this unit suitable for?
Answer: It is ideal for general mixing tests including bacteria & yeast culture, solubility analysis, hybridization, blotting washing, organic extraction & elution and diagnostic sample pre-treatment

Information required for quotation: Provide required model, version (basic / multi-functional), total order quantity, destination country and demand for optional clamps/trays to receive tiered bulk discount quotation.
Matching scheme service: Free customized constant-temperature shaking experimental scheme matched with incubators for university microbiology labs and pharmaceutical strain R&D departments.
Quotation lead time: Official formal PI quotation will be issued within 24 working hours after full purchase demand confirmation.
Bulk purchase discount: Exclusive tiered volume discounted pricing negotiable for mass procurement of multiple units from university key microbial research labs and pharmaceutical enterprises.
