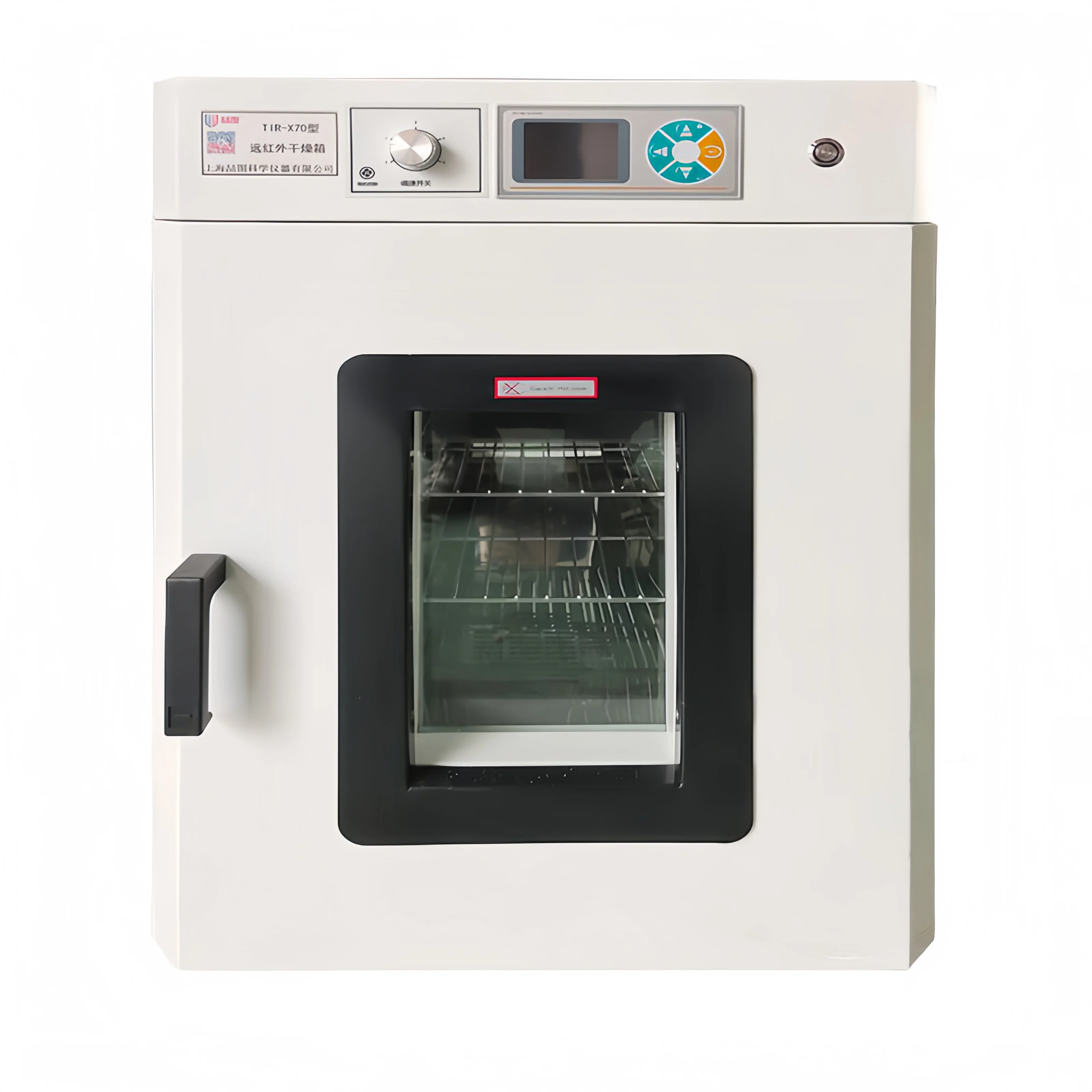

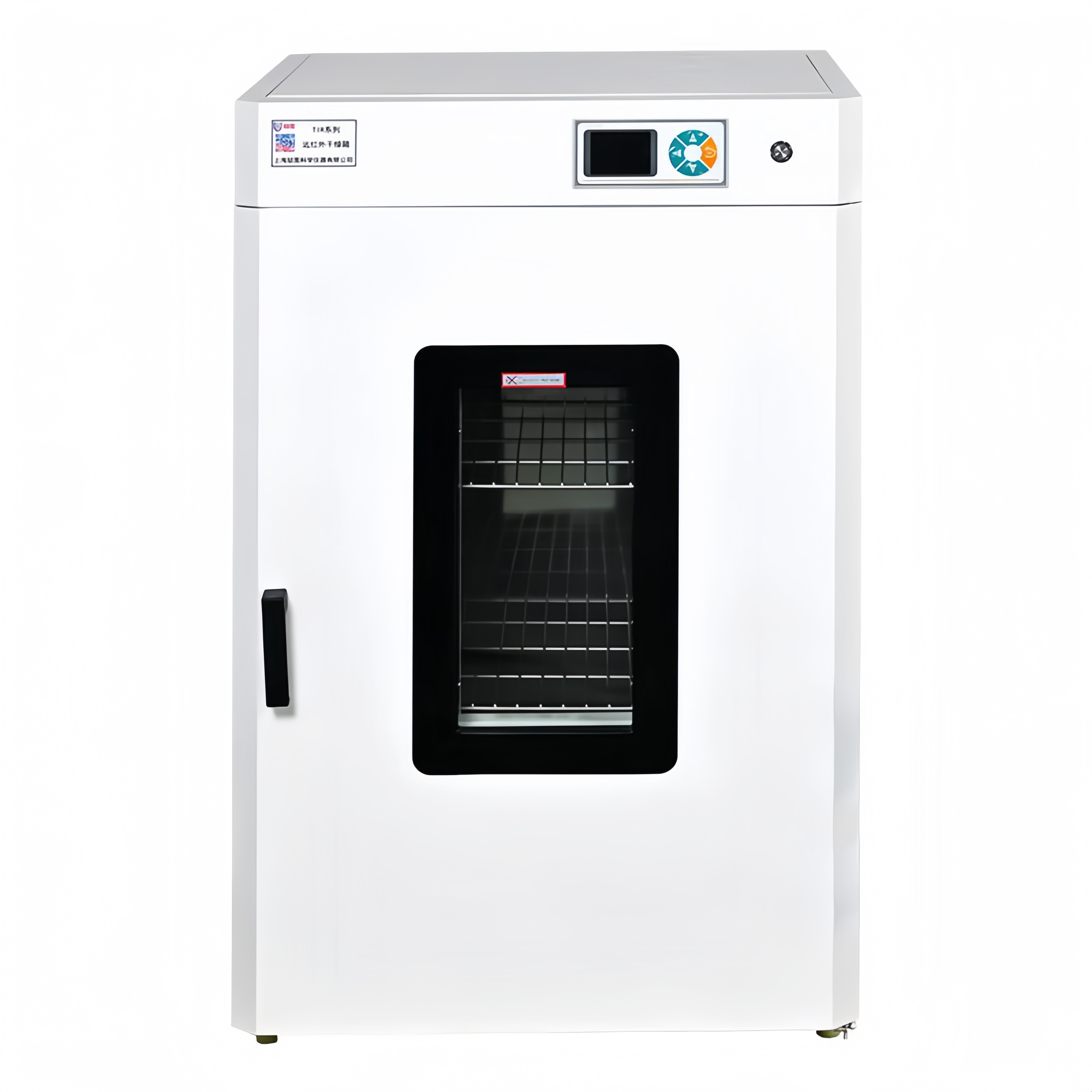

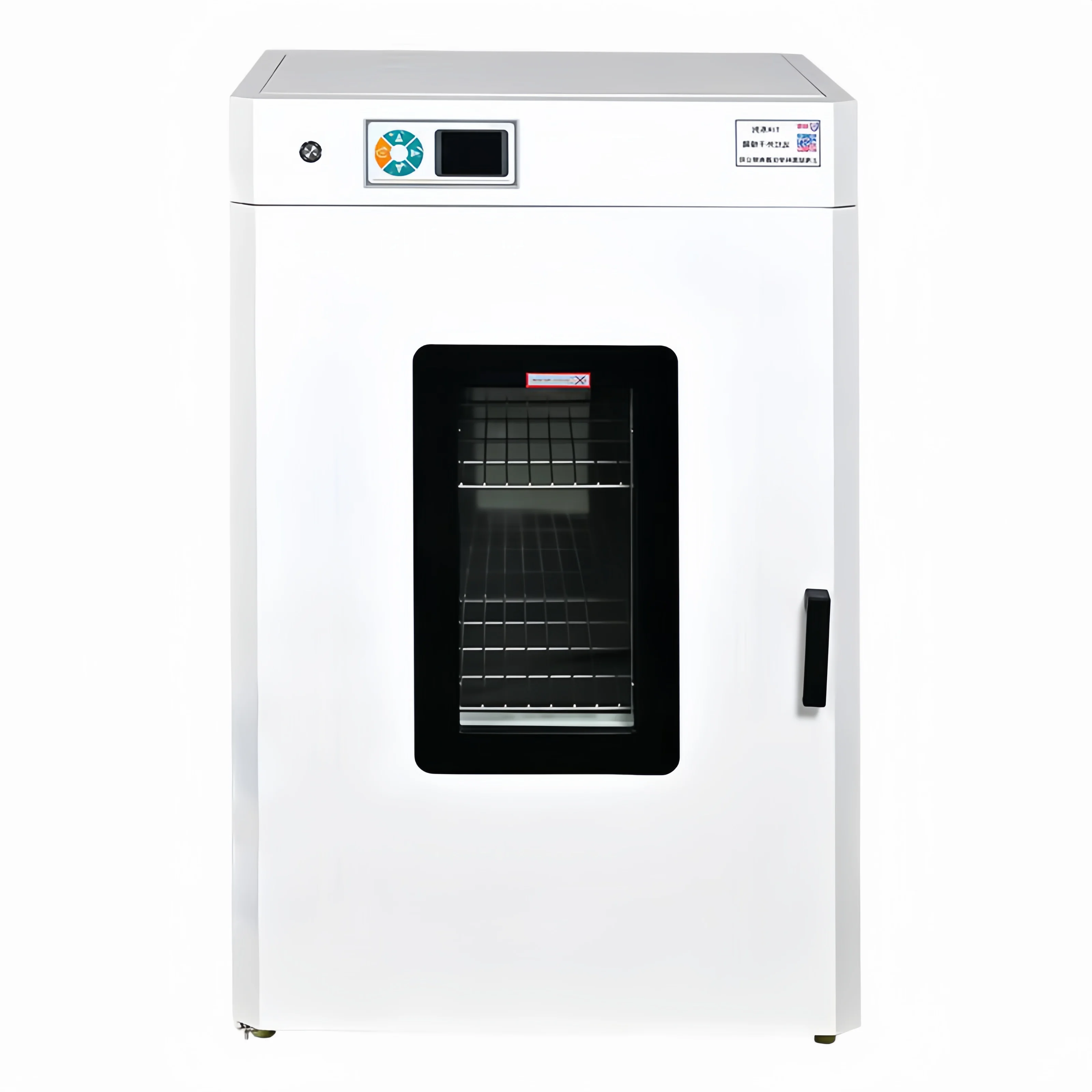

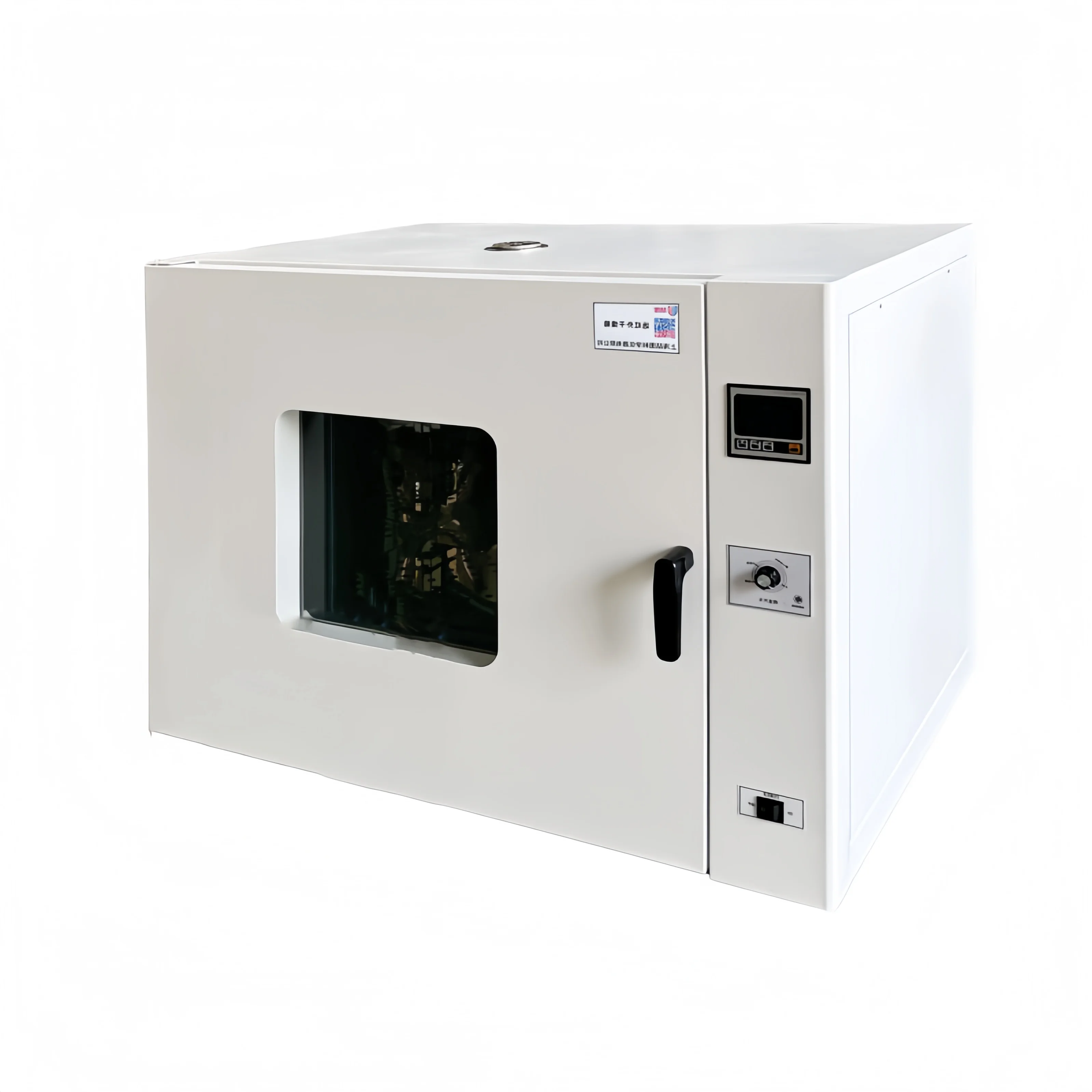

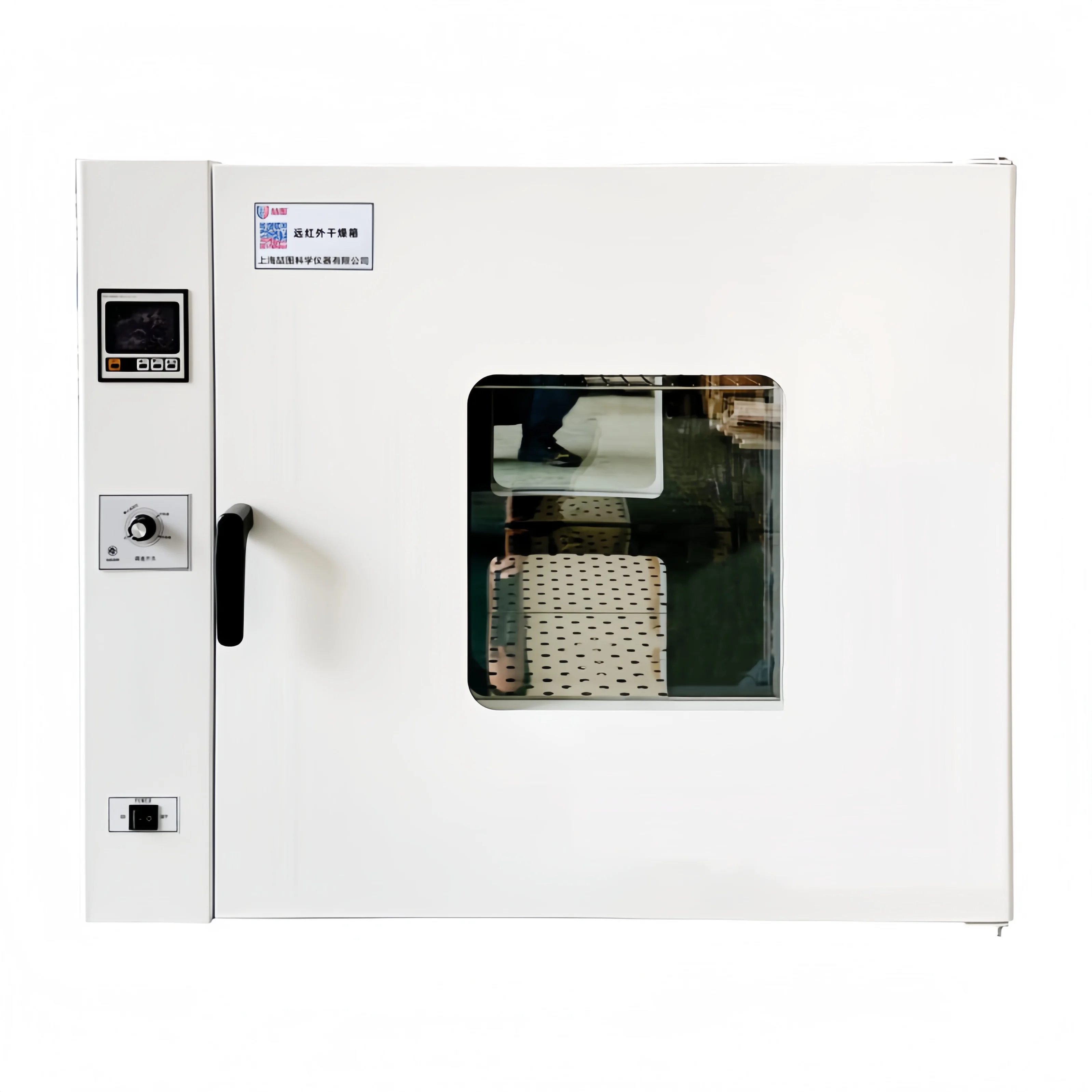

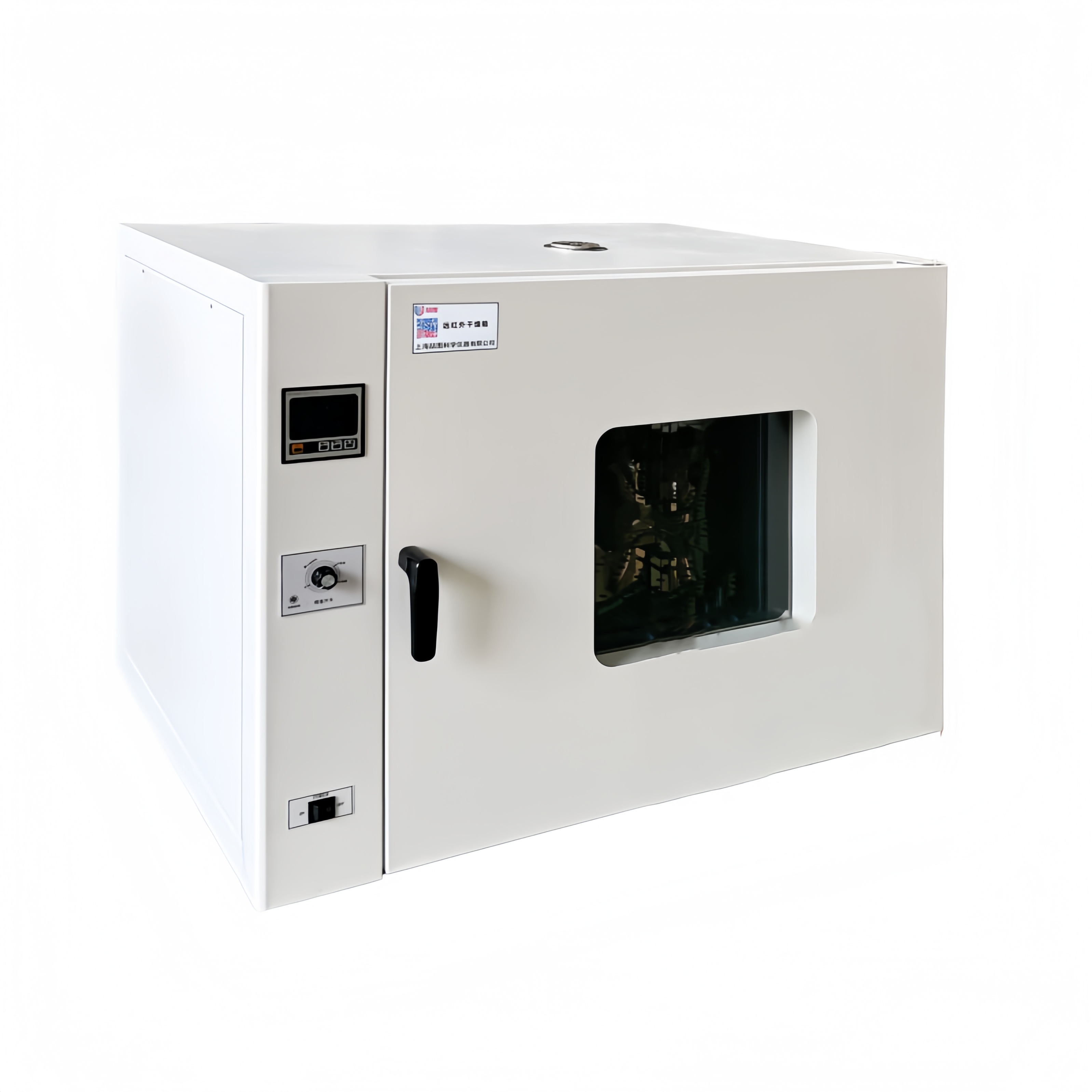

Digital display far-infrared drying oven

Name: Digital display far-infrared drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601663602817 (TIR)
Price: 1644.60 USD
Availability: InStock

No.1601663602817 (TIR)

The TIR series far-infrared drying oven, after rigorous testing, incorporates a controllable fan. This not only addresses the
issue of forced convection in conventional drying ovens dispersing powdered experimental samples, but also meets the demand for temperature uniformity. It is widely applicable in industries, agriculture, higher education institutions, medical and research projects, and laboratories.

$1644.60

model number:

TIR

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

TIR series drying oven adopts bidirectional temperature control system supporting cooling and heating with wide application range. It can maintain constant temperature all year round, suitable for water content & BOD determination, microbiology, genetics, medicine, epidemic prevention, environmental protection, agriculture, forestry, animal husbandry and other constant temperature tests & cultivation experiments.
Equipped with far-infrared heating source and 3D cyclic refraction temperature field structure. Built-in hot air channel can automatically discharge water vapor inside the chamber. Infinitely variable fan wind speed is available, supporting windless steady state mode for fine samples susceptible to airflow disturbance.
Large-screen LCD operation panel with touch button operation. Microcomputer PID temperature controller with LCD temperature display and overtemperature alarm function. Lockable universal casters at the bottom enable flexible movement and positioning.
Double-layer cabinet structure. Electrostatic sprayed anti-corrosion outer shell; stainless steel inner liner and load carriers. The door is fitted with large tempered glass observation window, drawer-style sample rack with adjustable partition spacing.
Two series available: Series A temperature range RT+10~250℃; Series B temperature range RT+10~300℃. Volumes: 36L,78L,148L,250L. All models adopt AC220V 50Hz power supply.

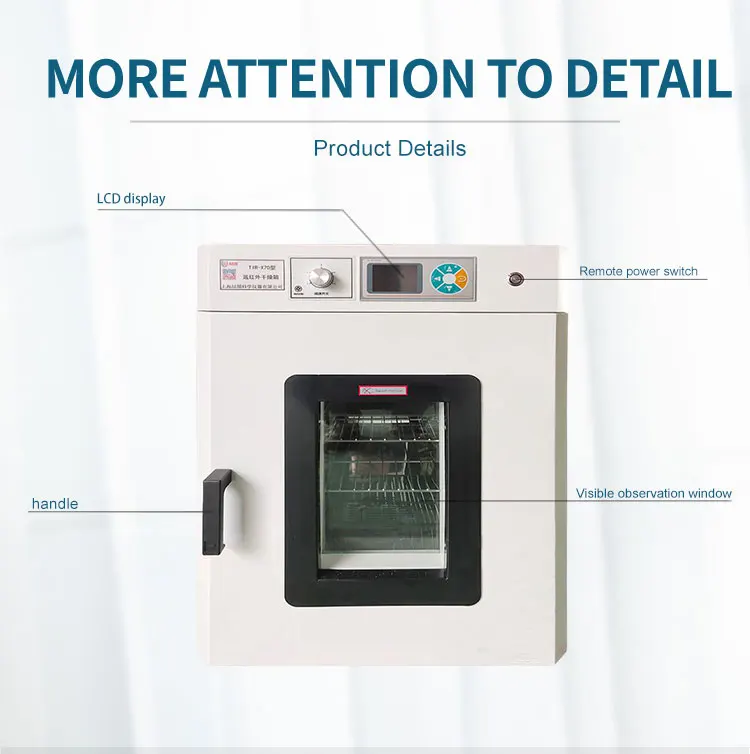

Details Images

Large LCD instrument panel with touch button operation, simple and intuitive interface. Microcomputer PID intelligent temperature controller displays temperature on LCD screen and provides built-in overtemperature alarm protection.
Universal casters and independent fixed feet are equipped at the bottom. Casters can be locked for flexible transportation and stable positioning, convenient for laboratory layout adjustment.
3D cyclic multi-angle refraction temperature field ensures uniform temperature inside the chamber and realizes wide-area precise temperature control. Far-infrared heating elements feature low thermal inertia, high heat conversion efficiency and stable long-term radiation performance.
Built-in internal hot air circulation channel with reasonable duct layout automatically exhausts water vapor and maintains even temperature distribution.
Infinitely adjustable fan speed, fan can be fully shut down. Windless steady mode is suitable for drying fine samples that are easily blown away by airflow.
Electrostatic sprayed outer shell with attractive appearance and corrosion resistance. Stainless steel inner liner and load carriers are sturdy, durable and easy to wipe and clean.
Large transparent tempered glass observation window on the door allows real-time sample observation. Drawer-style sample rack with freely adjustable partition spacing for convenient sample access and chamber cleaning.
New high-temperature resistant silicone rubber sealing material features high heat resistance, anti-aging property, reliable long-term sealing and long service life.
Multiple built-in electrical protections against leakage, short circuit, overheating and overload. Parameter memory function prevents experiment data loss caused by power failure or accidental shutdown. Overtemperature alarm threshold can be set freely.

	TIR-36A TIR-36AP	TIR-78A TIR-78AP	TIR-148A TIR-148AP	TIR-250A TIR-250AP	TIR-36B TIR-36BP	TIR-78B TIR-78BP	TIR-148B TIR-148BP	TIR-250B TIR-250BP
Model	TIR-36A TIR-36AP	TIR-78A TIR-78AP	TIR-148A TIR-148AP	TIR-250A TIR-250AP	TIR-36B TIR-36BP	TIR-78B TIR-78BP	TIR-148B TIR-148BP	TIR-250B TIR-250BP
power supply voltage	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Heating method	Far infrared heat source	Far infrared heat source	Far infrared heat source	Far infrared heat source	Far infrared heat source	Far infrared heat source	Far infrared heat source	Far infrared heat source
Wind speed switch	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)	Infinite variable speed switch (adjustable wind speed, can also be turned off)
Temperature control range	RT+10~250℃	RT+10~250℃	RT+10~250℃	RT+10~250℃	RT+10~300℃	RT+10~300℃	RT+10~300℃	RT+10~300℃
Constant temperature fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃
temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
input power	1000W	1500W	2000W	3000W	1400W	2000W	2800W	4000W
inner dimensions WDH(mm)	350300350	500350450	600450550	700550650	350300350	500350450	600450550	700550650
Nominal volume	36L	78L	148L	250L	36L	78L	148L	250L
Load carrier	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces
timing range	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min	1~9999min
Optional accessories	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen	USB interface, intelligent program controller, RS485 interface, test port, micro printer, color touch screen

Vertical cabinet equipped with lockable universal casters at the bottom for flexible transportation and firm positioning after locking. No extra base required, easy to adjust layout inside laboratories.
Far-infrared heating combined with 3D cyclic refraction temperature field achieves uniform temperature distribution. Fan can be shut down for windless operation, suitable for powder and light samples to avoid material loss caused by airflow.
Built-in hot air circulation channel automatically discharges water vapor during drying and accelerates sample dehydration. Infinitely variable speed fan allows airflow adjustment for different specimens.
Double-layer thermal insulation cabinet with electrostatic sprayed anti-corrosion outer shell. Stainless steel inner liner and drawer-style adjustable shelves for easy sample access and residue cleaning.
Large tempered glass observation window on door enables direct sample viewing without opening door, reduces heat loss and maintains stable chamber temperature.
PID intelligent temperature control with 0.1℃ resolution, standard timing function 1~9999min. Optional program controller supports automatic multi-segment heating and cooling cycles.
Multiple safety protections with standard overtemperature audio-visual alarm. Optional independent temperature limiter provides double protection to prevent sample damage caused by control failure.
High-temperature resistant silicone rubber sealing strip resists hardening and deformation under high temperature, maintains long-term tight sealing and reduces heat leakage.
Wide range of optional components: USB data export, RS485 remote communication, test port, micro printer, color touch screen and intelligent program controller to meet scientific research data recording requirements.

Drying light samples, powder materials and basic constant temperature tests for small labs: choose 36L /78L small-volume models.
Conventional sample baking, moisture testing and material constant temperature aging: select mainstream 148L model.
Mass sample heat treatment and continuous drying processes: choose 250L large-volume model.
Max process temperature ≤250℃: select Series A; max process temperature ≤300℃: select Series B.
For powder or lightweight samples that are easy to be blown away: make full use of the windless steady state function.
Automatic multi-segment temperature cycle and unattended continuous experiment required: equip intelligent program controller or upgrade to color touch screen.
High-value research samples requiring double overheat safety protection: install independent temperature limiting controller.
Complete temperature curve recording and data export required: select USB interface or RS485 communication port.
External temperature probe measurement requires optional test port; micro printer optional for hard-copy records.

Standard factory package: far infrared drying oven main unit, stainless steel shelves, power cord and bilingual operation manual. All extended accessories are separately optional purchases.
Thick shockproof wooden crate with foam buffer protects precision fragile parts including inner liner, control panel and observation window glass against collision damage during long cross-border transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.

Selling Units	Single item	Package size per batch	78.556.561.5cm
Gross weight per batc	38.000kg

Name	Qty
Digital display far-infrared drying oven	1
Stainless steel mesh shelf	3 pcs
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Complete factory electronic documents can be obtained upon request for cross-border store listing, overseas agriculture & biomedicine exhibition promotion and technical consultation for overseas buyers.
Supporting digital files: bilingual full specification sheet, standard operation manual, far-infrared heating & fan maintenance guide, overall dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, inner chamber photos and photos of all optional accessories for unified multi-category online store operation.

What is the maximum temperature difference between Series A and Series B? A Series A max temperature 250℃; Series B max temperature 300℃ for higher-temperature drying processes.
Can the fan be fully turned off? What is its function? A The fan supports infinitely variable speed and can be completely shut down. Windless mode is suitable for powder and lightweight samples to prevent material loss caused by airflow.
What is the difference between its heating method and ordinary blast drying ovens? A This oven adopts far-infrared heating source with 3D cyclic refraction temperature field for better temperature uniformity and lower thermal inertia.
Under what condition is constant temperature fluctuation tested? A Tested without load, constant temperature fluctuation ±1℃.
Can samples be observed without opening door? A Double-layer tempered glass window allows direct observation of internal samples with door closed.
Can bottom casters be locked? A Universal casters with support feet can be locked after positioning for stable long-term operation.
Will settings and timing data be lost after power failure? A Built-in memory chip automatically retains all settings after power recovery.
Does it support multi-segment heating & cooling programs? A Standard single segment constant temperature. Optional intelligent program controller realizes automatic multi-segment process curves.
Is overtemperature alarm protection available? A Standard audio-visual overtemperature alarm; optional independent temperature limiter provides double protection.
What is maximum timing duration? A Timing range:1~9999 minutes.
Can continuous temperature operation curves be exported? A Optional USB interface supports temperature data storage and export via USB flash drive.
Can temperature be monitored remotely via PC? A Optional RS485 interface connects upper computer for remote viewing and data export.
Is test hole reserved for external temperature probe? A Test hole is optional accessory.
What is rack structure, is it easy to clean? A Drawer-style pull-out adjustable shelves, convenient to take out and clean sample residues.
Is running noise loud? A Low-noise circulation fan with moderate noise, suitable for long-term continuous lab operation.
Can flammable, explosive or highly volatile solvent samples be dried? A Not allowed. This oven is only used for treatment of non-flammable, non-explosive materials.
What do suffix AP and BP stand for? A AP/BP are upgraded configuration versions, which can be pre-installed with color touch screen or intelligent program controller.

TIR far infrared drying oven is suitable for powder sample drying, material constant temperature aging, pharmaceutical sample processing, agriculture & animal husbandry sample cultivation and environmental testing constant temperature experiments. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, special inner liner specification, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory quality inspection.
Contact ways: Email, WhatsApp, online message on website. Please state target model, volume, temperature version (A/B), optional accessory demands and order quantity. A complete formal quotation will be provided within 24 hours to resolve all purchasing questions at one time.
