isothermal oscillating metal bath

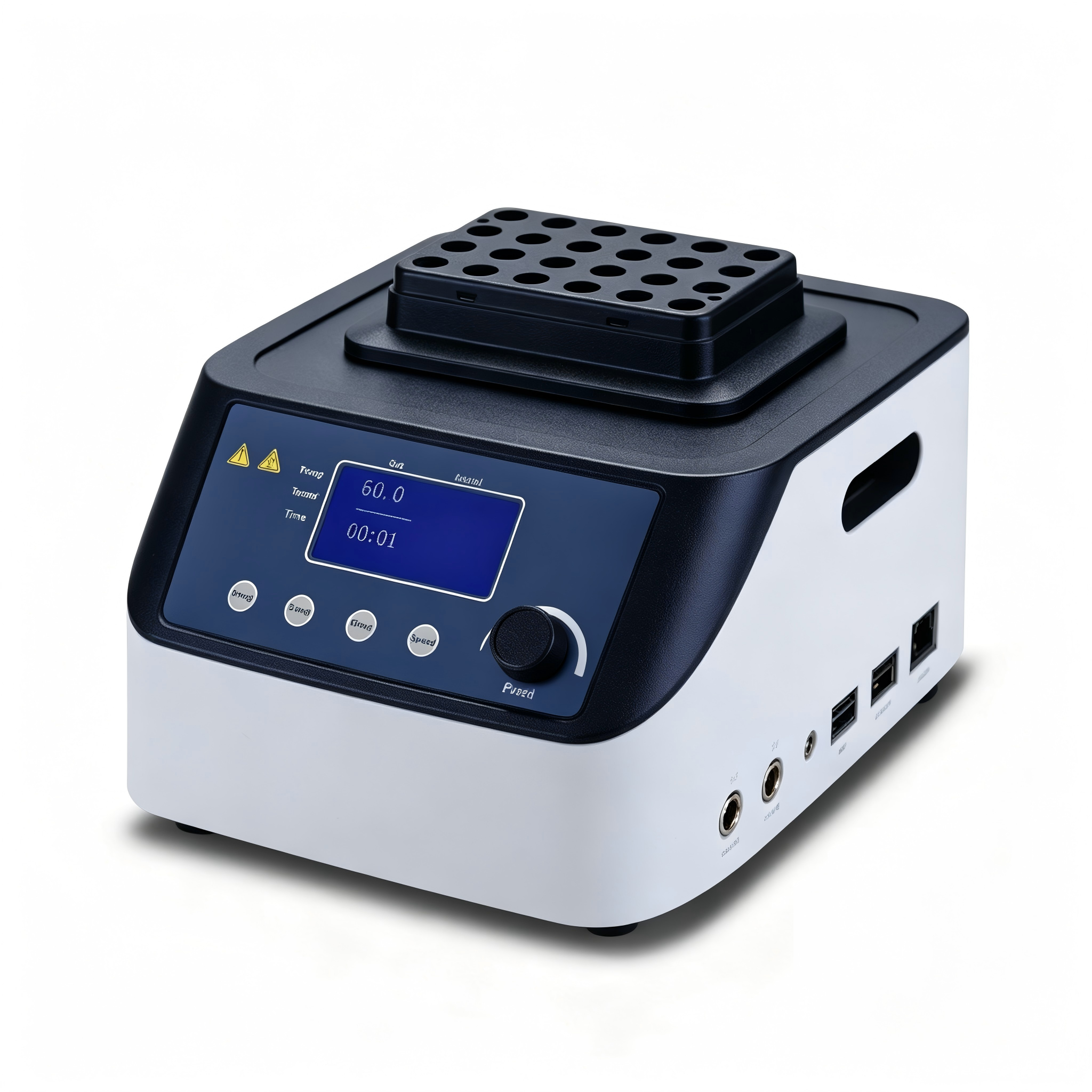

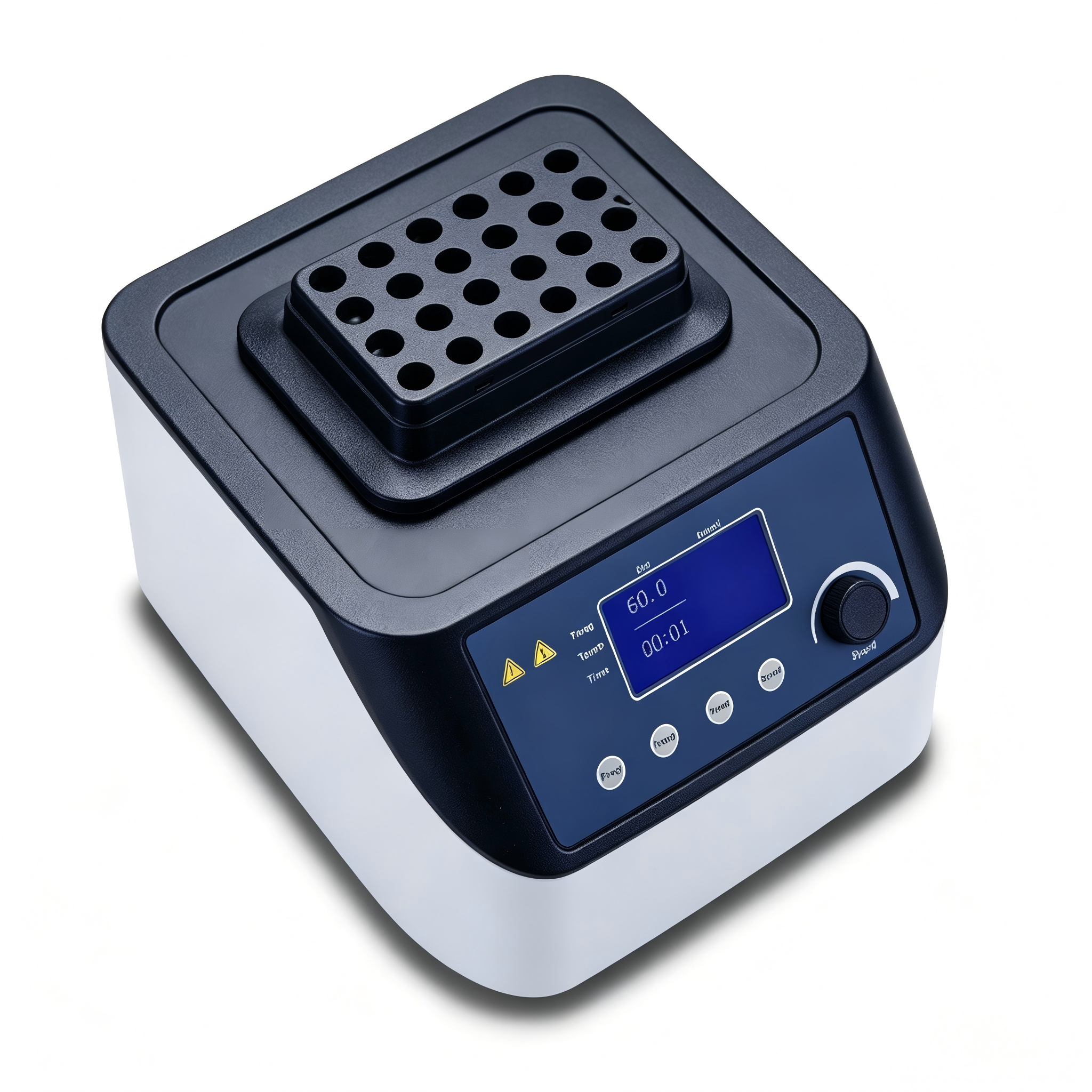

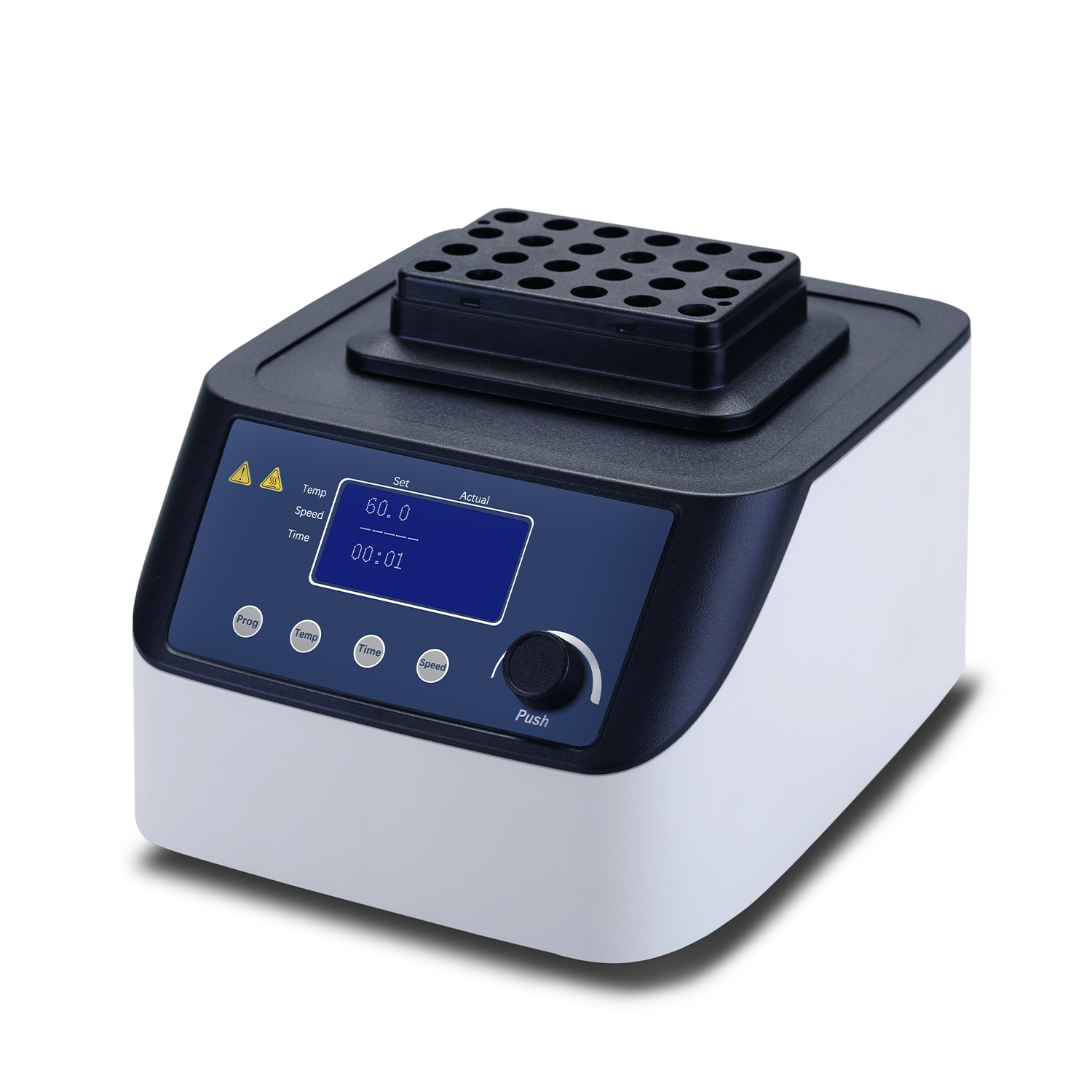

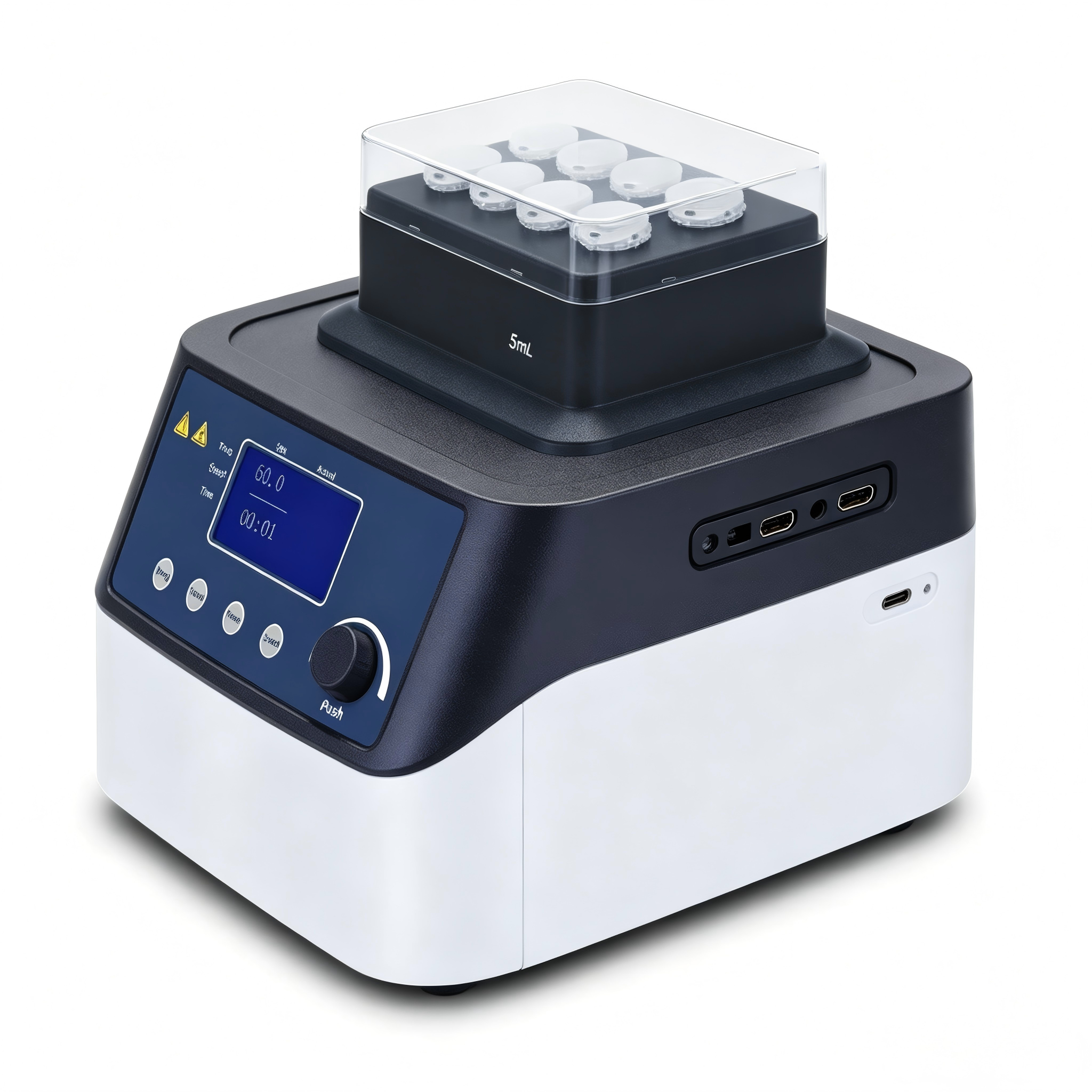

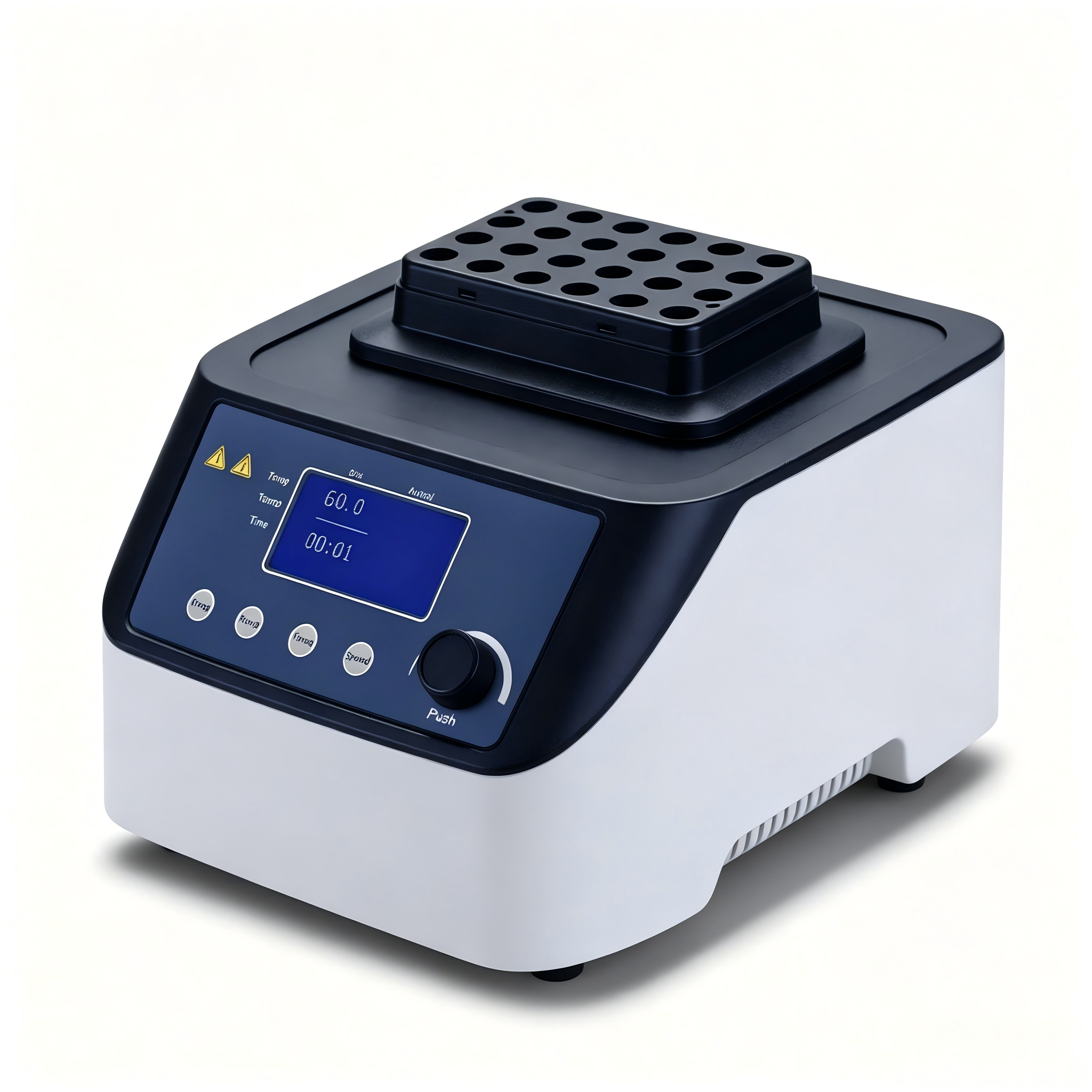

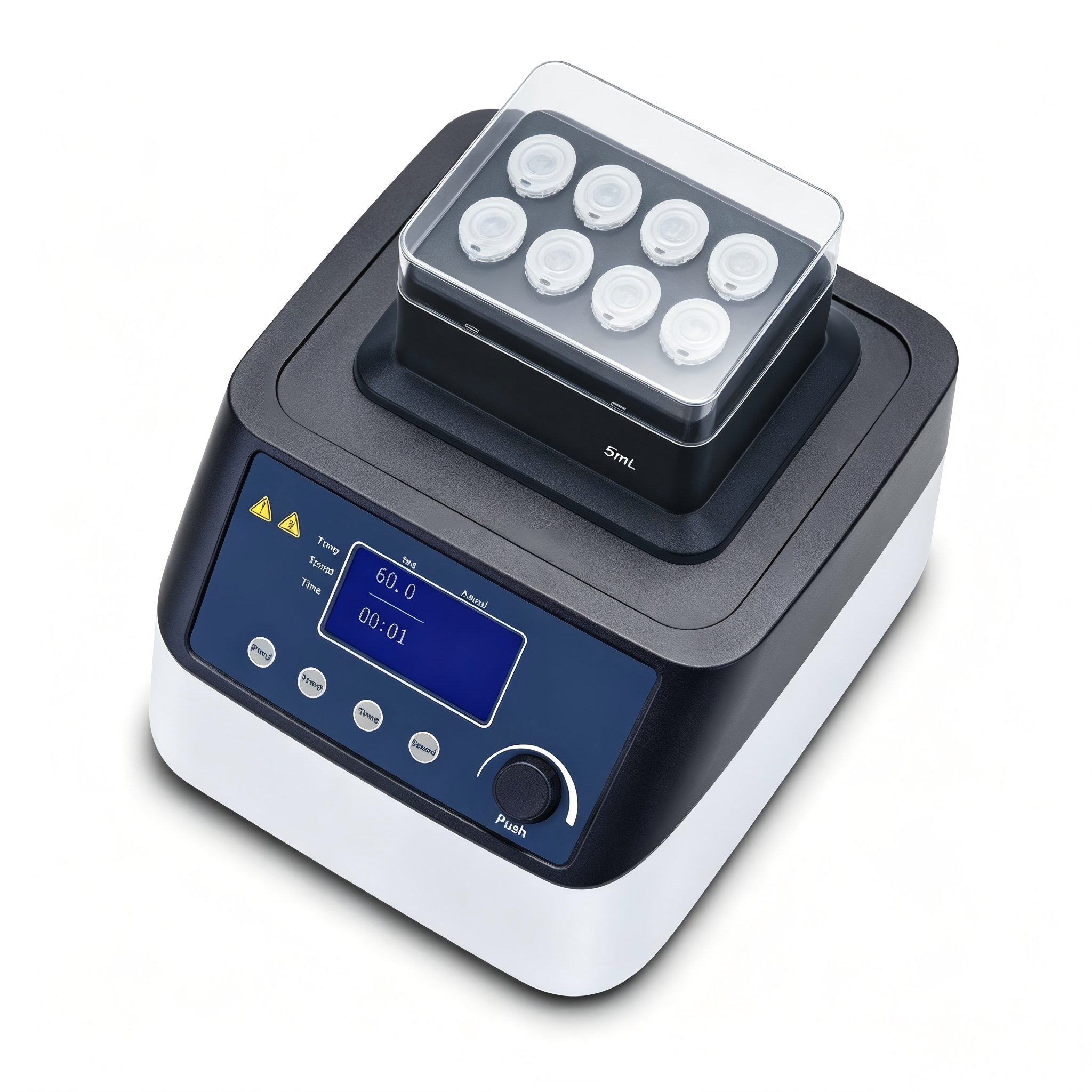

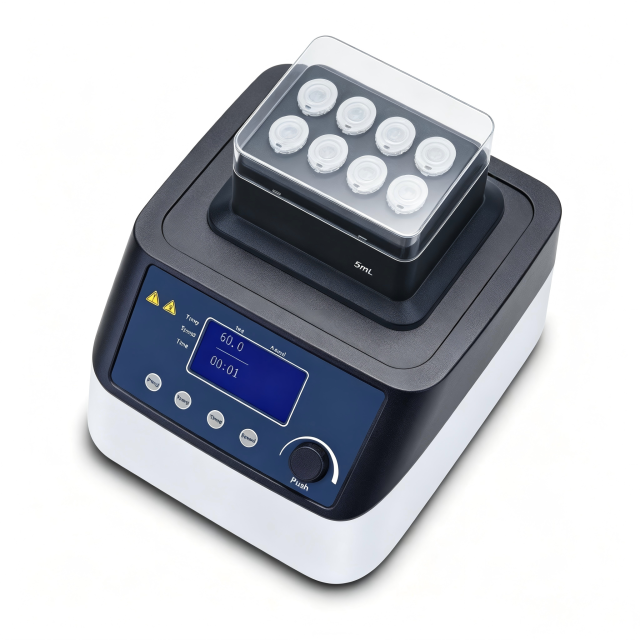

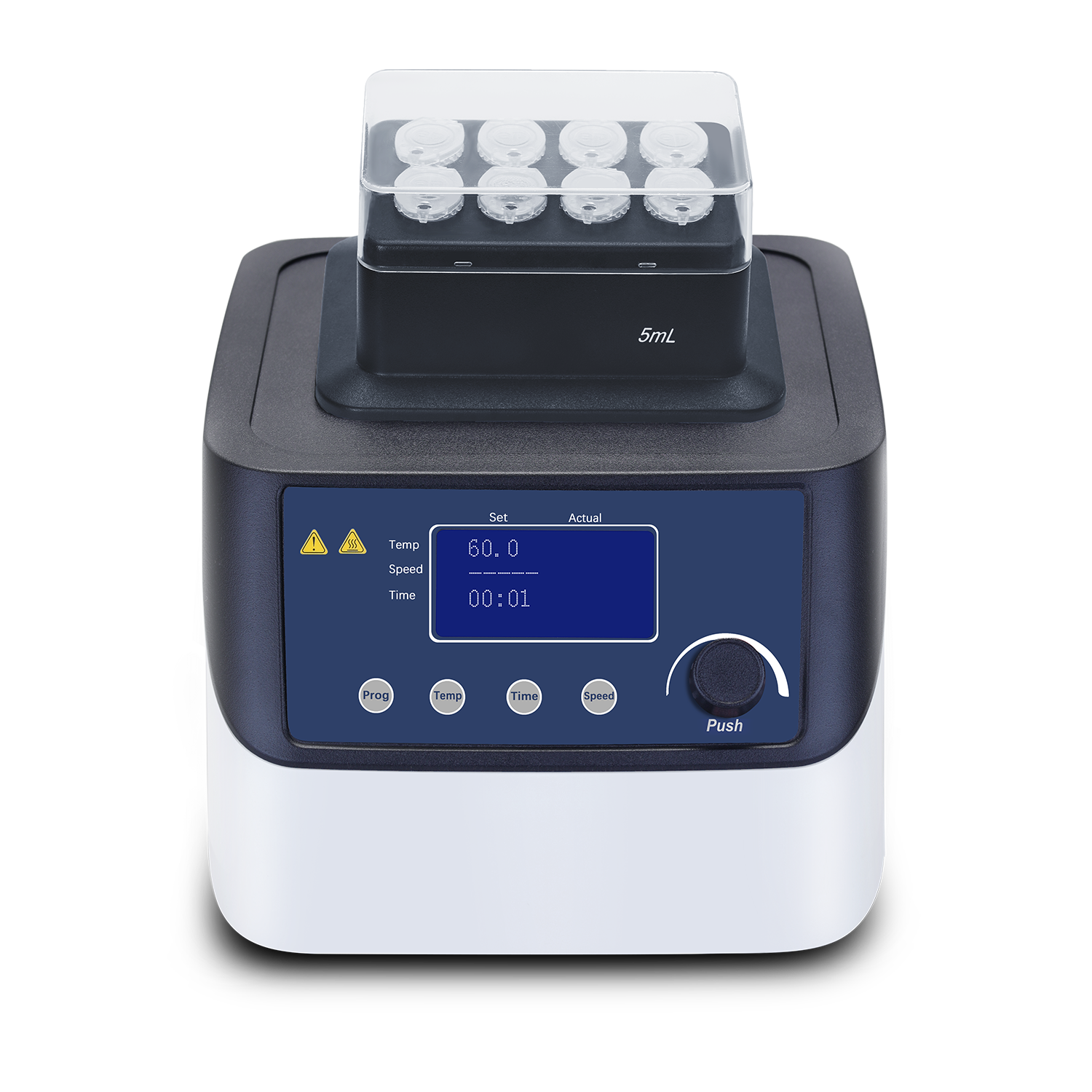

• L100HM-Pro Thermo Mix integrates heating and mixing functions, widely applied in gene synthesis, gene purification, nucleic acid & protein denaturation, enzymatic reaction, bacterial cultivation and other molecular biology experiments.

• Heating-only design without cooling function. Actual working temperature ranges from ambient temperature to 100℃, with setting range 0–100℃. Temperature control accuracy and uniformity both reach ±0.5℃ under 20–45℃ for consistent thermal performance.

• Equipped with TFT display to show real-time speed, temperature and time parameters. Mixing speed adjustable from 200 to 1500rpm with 3mm orbit diameter to deliver thorough uniform mixing.

• Supports editing and storage of 9 groups of programs. Built-in overheating protection triggers power cut at 150℃. Comes with heat preservation lid and user temperature calibration function. Compatible with magnet adsorption & screw-on heating blocks with automatic block recognition, matching most standard lab tubes and consumables.

• 200W power consumption, compatible with 110/220V 50/60Hz power supply. Dimension 200×235×120mm, total weight 7.3kg. Operates stably under ambient temperature 10–40℃ and relative humidity below 80%RH, no extra temperature control equipment required for standard labs.

• Integrated heating & mixing unit completes incubation and homogenization simultaneously, replacing separate dry bath and shaker to save lab bench space.
• Precise thermal control system achieves ±0.5℃ control accuracy and temperature uniformity at 20–45℃, with maximum heating speed 5.5℃/min for fast temperature rise.
• TFT color screen displays real-time mixing speed, temperature and runtime for clear status monitoring.
• Wide adjustable mixing range: 200–1500rpm with 3mm orbit diameter, covering low-speed gentle mixing and high-speed particle suspension for diverse samples.
• Dual interchangeable heating blocks (magnetic adsorption & screw type) with automatic block identification to fit various experimental consumables.
• Standard heat preservation lid minimizes heat loss and temperature fluctuation for stable micro-sample incubation. User self-calibration function maintains long-term temperature precision.
• 9 groups of editable program storage allows one-click recall of repeated experimental protocols to improve batch testing efficiency.
• Complete safety protection: auto power-off at 150℃ over-temperature threshold to avoid dry burning and sample damage. Timer range 0min–99h30min supports long-duration cultivation tests.
• Compatible with standard lab power supply, operates stably under 10–40℃ and RH＜80%, fits most mainstream laboratory consumables worldwide.

• L100HM-Pro Thermo Mix integrates heating and mixing into one unit, replacing separate dry bath and shaker to realize incubation and homogenization at the same time, suitable for gene synthesis, gene purification, enzymatic reaction, bacterial cultivation and other molecular biology applications.
• Heating-only design without cooling function. Temperature setting range 0–100℃, actual working range from ambient temperature to 100℃. At commonly used 20–45℃ zone, both temperature control accuracy and uniformity reach stable ±0.5℃, with max 5.5℃/min heating speed to reach target temperature rapidly.
• Equipped with TFT display to real-time show mixing speed, temperature and remaining runtime, clear visual status for easy operation by new lab operators.
• Wide adjustable mixing parameters: 200–1500rpm speed with 3mm orbit diameter. Low speed for gentle mixing of micro samples, high speed for particle suspension, covering samples of various viscosity and concentration.
• Compatible with magnet adsorption & screw-on heating blocks with automatic recognition, matching mainstream PCR tubes, centrifuge tubes and common lab consumables to handle multiple sample formats on one machine.
• Standard heat preservation lid reduces heat loss and temperature fluctuation to protect low-concentration micro samples. Built-in user temperature calibration maintains consistent thermal accuracy after long-term frequent use.
• 9 groups of editable program storage for one-click recall of repeated experimental protocols to boost batch testing efficiency. Timer supports up to 99h30min for long-duration bacterial incubation.
• Overheating protection cuts power automatically at 150℃ to prevent sample and equipment damage caused by over-limit temperature. 200W power, compatible with global 110/220V lab power supply.
• Dimension 200×235×120mm, net weight 7.3kg with stable anti-shake structure. Operates reliably at 10–40℃ and RH＜80%RH, no extra temperature & humidity control equipment needed for standard labs.

1. Require simultaneous heating and mixing, want to save bench space without separate dry bath and shaker:
   Select L100HM-Pro all-in-one unit combining heating and mixing, ideal for nucleic acid, protein and microbial thermomixing experiments.
2. Daily experiments mainly within 20–45℃ with strict requirements on temperature uniformity and precision:
   This model delivers ±0.5℃ control accuracy and uniformity at 20–45℃, perfect for high-precision tests like enzymatic reactions and cell incubation.
3. Frequently test various tube sizes and switch sample formats:
   Automatic recognition for magnet & screw type heating blocks, compatible with most mainstream lab consumables without complicated setup.
4. Need long-term incubation or repeated batch experiments:
   Max 99h30min timer and 9 sets of saved custom programs cut repetitive operation steps.
5. Work with low-concentration micro samples and avoid temperature fluctuation from heat loss:
   Equipped with standard heat preservation lid to stabilize internal temperature and guarantee reliable micro-sample test results.

Applicable Scenarios

• Standard factory package includes L100HM-Pro thermo mix main unit, matched heating block, power cord and printed English operation manual. Customers can carry out lab experiments right after unboxing without purchasing extra basic accessories.
• OEM private label customization service under Labcarta brand is available with custom exclusive brand LOGO printing and simple procedures, suitable for overseas instrument distributors to build their own laboratory instrument brands.
• The machine is packed in thick shockproof separate carton filled with inner buffer foam, which effectively resists extrusion and collision during long-distance ocean freight and air freight, greatly reducing the risk of equipment damage in cross-border transportation.
• The shipping lead time for in-stock orders ranges from 3 to 10 working days. Goods will be packed and delivered uniformly after order confirmation to shorten stock waiting cycle for overseas buyers.
• Multiple cross-border logistics options including sea freight, air freight and international courier are available. We can match the most cost-effective shipping solution according to customers’ total order quantity and required arrival time.

Selling Units

Single item

Package size perbatch

41.5*37.5*24.5cm

Gross weight perbatch

5.44kg

• Full set of factory digital documents are available for website listing, lab tender and equipment evaluation.
• The package includes spec sheet, English manual, dimension drawing and product brochure with unmodified authentic factory data.
• Documents cover applicable industries and equipment performance to quickly judge if L100HM-Pro matches your lab demands.

• If you purchase L100HM-Pro thermo mix in bulk for lab self-use or instrument distribution, contact our support team to get itemized official quotation without hidden fees. Please inform us your order quantity and Labcarta OEM branding demand.
• Unit price will be more favorable with larger order quantity, suitable for centralized procurement of overseas universities and stock-up orders of instrument distributors.
• During quotation consultation, you can confirm all purchasing information including stock shipping lead time, cross-border logistics and custom LOGO details, solving all procurement inquiries at one time.
