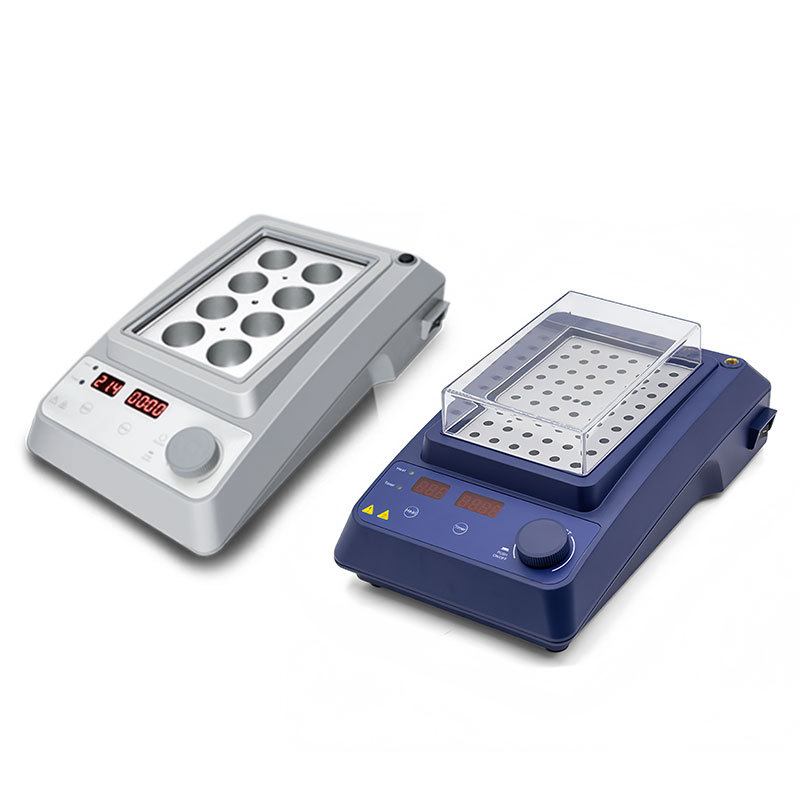

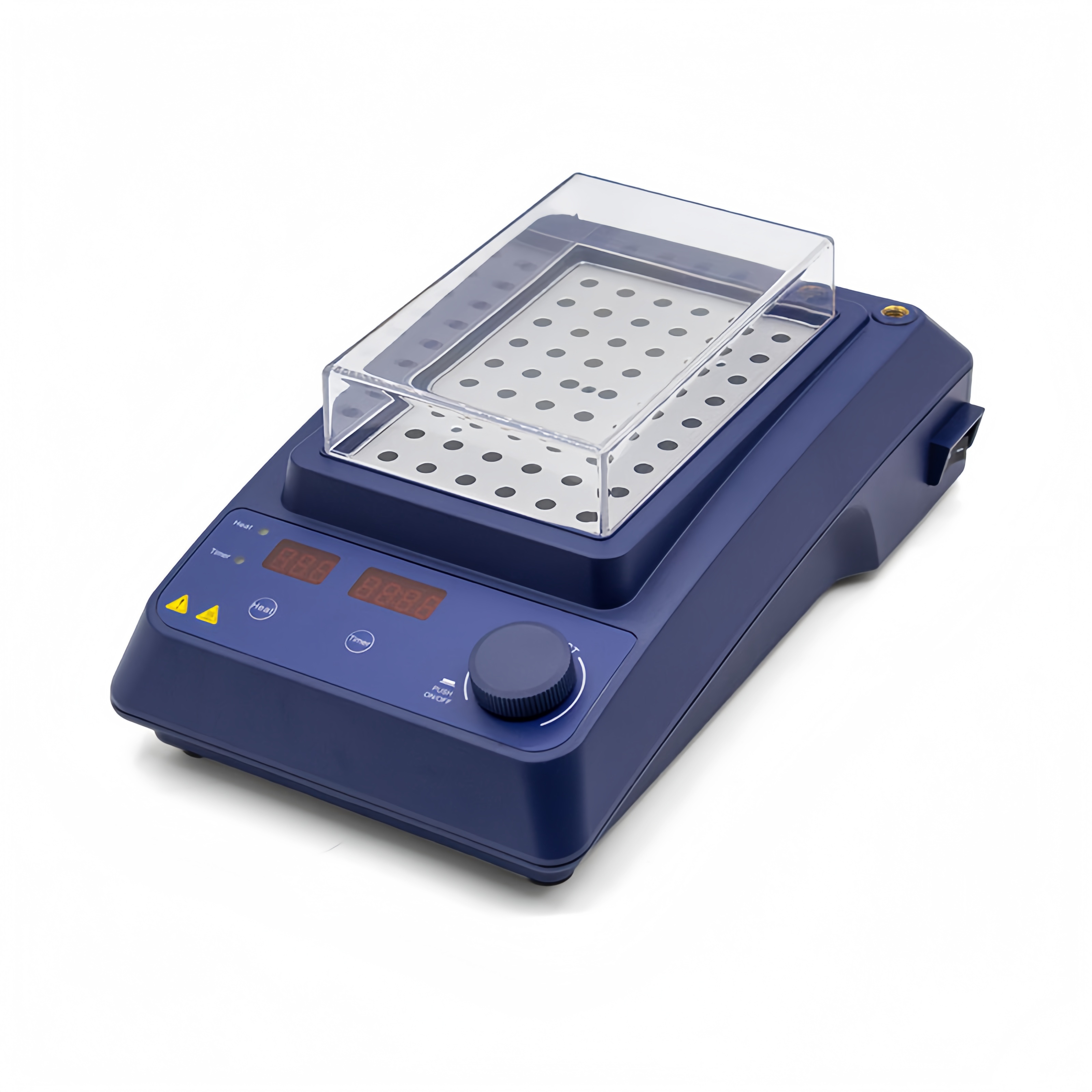

LED Digital Display Dry Metal Bath

No.1601560846111 - L120HB-S
The L120HB-X is designed for labs in molecularbiology, histology, clinical testing, environmentalscience, and chemical analysis needing precisetemperature control for various experiments
$324.64
Model Number:
L120HB-S
  • LED digital display heating dry bath for lab sample incubation
  • LED Digital Display Dry Bath Incubator
  • LED Digital Display Dry Metal BathIlabcarta Technology Co., Ltd.
  • LED Digital Display Dry Metal BathIlabcarta Technology Co., Ltd.
  • LED Digital Display Dry Metal BathIlabcarta Technology Co., Ltd.
  • LED Digital Display Dry Metal BathIlabcarta Technology Co., Ltd.
  • Description

  • Key Features

  • Parameter

  • Product Details

  • How to Choose

  • Packaging & delivery

  • Download

  • FAQ

  • Get a Quote

  1. L120HB-S and L120HB-SC are LED digital display heating dry baths. Designed for laboratories of molecular biology, histology, clinical testing, environmental science and chemical analysis to provide precise temperature control for various experiments.
  2. Temperature control range: Room temp.+5℃ ~ 120℃; temperature setting range:15~120℃. Temperature control accuracy ±0.5℃, temperature uniformity ±0.5℃ at 37℃.

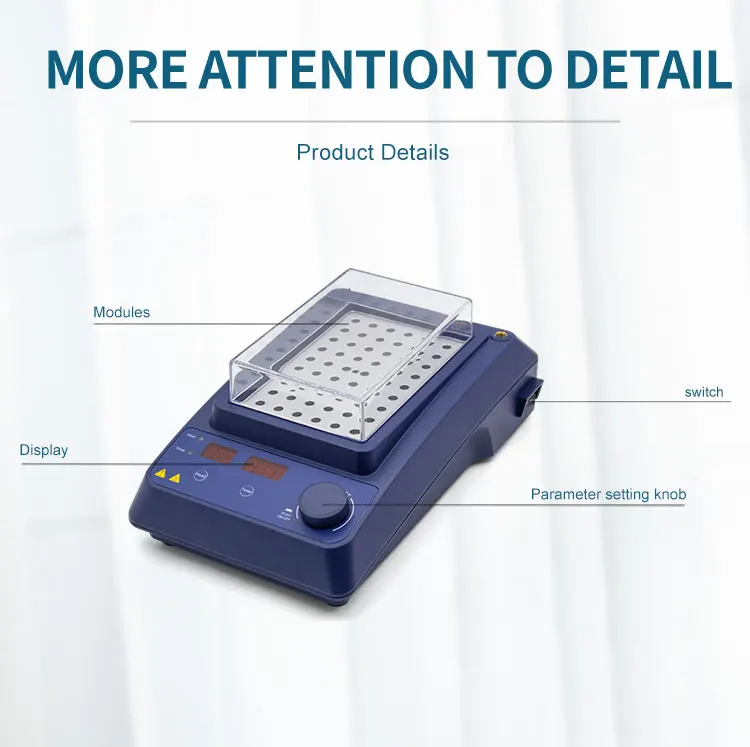

  3. Timed operation or continuous operation supported. Dual display screens monitor temperature and time simultaneously. Built-in over-temperature protection; insulated module cover is equipped to avoid heat loss.
  4. Core difference: L120HB-SC supports single-point temperature self-calibration and buzzer function, while L120HB-S does not. Multiple interchangeable heating modules are available for easy replacement.
  5. Power 160W, compact dimension. Widely used for incubation of micro tubes & PCR tubes, enzymatic reaction, sample inactivation, nucleic acid hybridization and other experiments.
  1. Temperature control range from room temperature +5℃ up to 120℃, suitable for various incubation experiments.
  2. Supports timing control or continuous constant temperature operation.
  3. Dual display screens to monitor temperature and time at the same time.

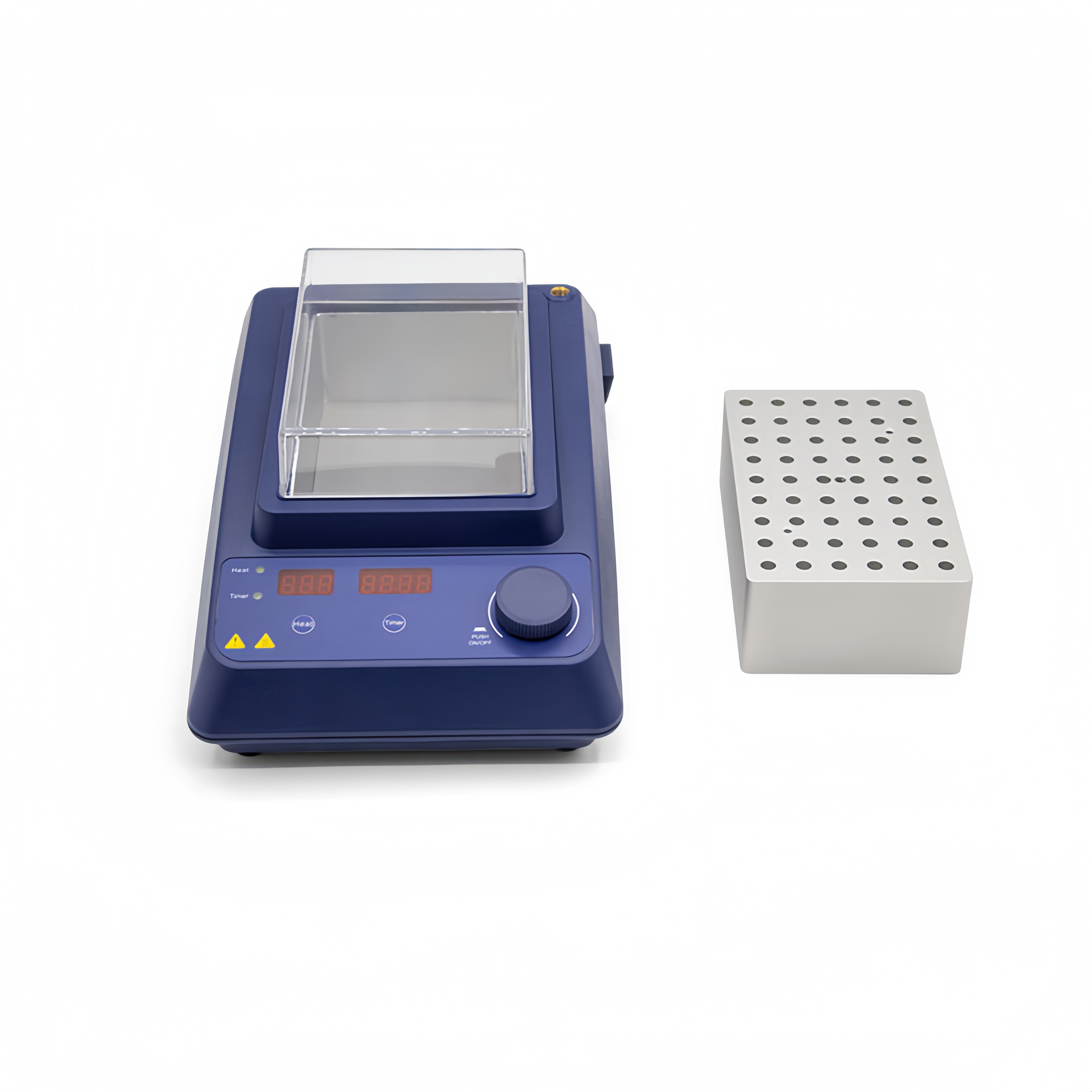

  4. Multiple optional heating modules with easy replacement.
  5. Built-in over-temperature protection improves safety and operational stability.
  6. Equipped with insulated module cover to prevent heat loss and guarantee precise temperature control.
  7. Exclusive for L120HB-SC: built-in single-point temperature self-calibration and buzzer alert function.
  8. LED digital display for clear parameter reading, simple operation.
  9. Compact and lightweight design, saving laboratory bench space.
Specifications L120HB-S / L120HB-SC
Temperature range Room temp.+5 ~ 120℃
Temperature Setting range 15 ~ 120℃
Temperature control accuracy ±0.5℃
Temperature uniformity @37℃ ±0.5℃
Power 160W
Time setting range 0min–99h59min
External sensor Not supported
Display LED
Voltage,Frequency 110/220V, 50/60Hz
External Dimension[W×D×H] 175×290×85mm
Weight 3kg
Operating temperature 10–40℃
Operating humidity <80% RH
Difference between models L120HB-SC: single-point temperature self-calibration + buzzer function
L120HB-S: without calibration & buzzer function
  1. L120HB series heating dry bath adopts metal module direct heat conduction without water bath medium, clean, pollution-free and easy to maintain.
  2. Precise PID temperature control with small fluctuation; temperature uniformity reaches ±0.5℃ at 37℃, ideal for temperature-sensitive enzymatic reactions.
  3. Timer up to 99h59min for unattended long-time incubation; continuous operation mode is optional.

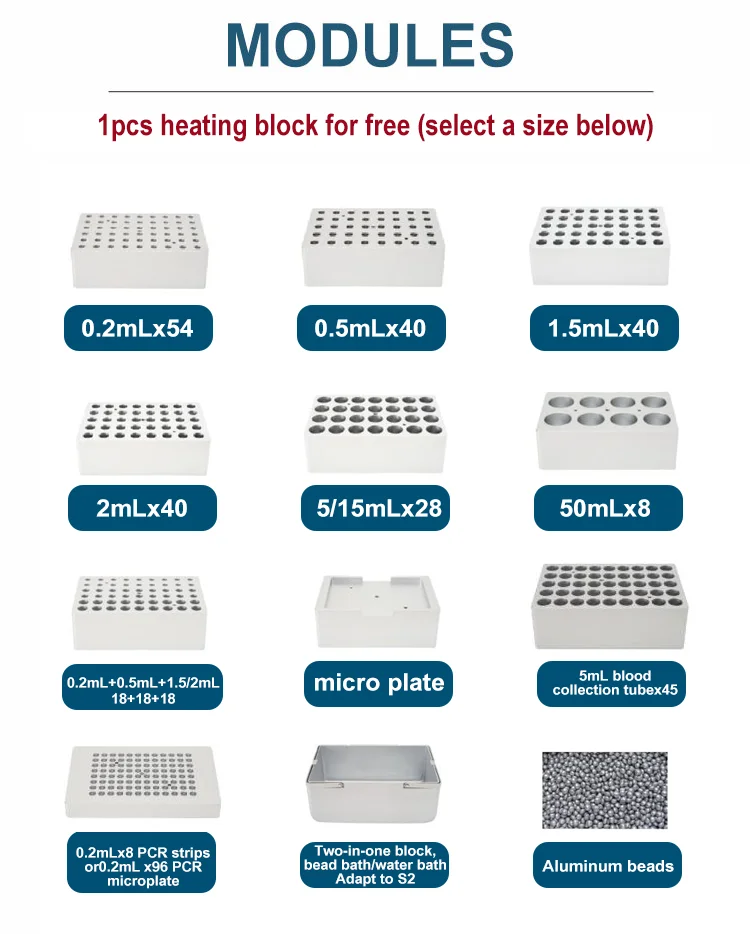

  4. Modular design, interchangeable heating modules compatible with PCR tubes, micro centrifuge tubes and more.
  5. Matching insulated cover reduces heat convection loss, shortens heating time and stabilizes block temperature.
  6. Automatic over-temperature cut-off protection avoids sample and instrument damage caused by overheating fault.
  7. L120HB-SC supports on-site single-point temperature calibration for long-term drift correction, plus buzzer alert upon program completion.
  8. Dual LED screens show temperature and time simultaneously for clear status monitoring.
  9. Net weight 3kg, compact dimension for easy moving between lab workstations.
  1. On-site temperature self-calibration and completion buzzer required: choose L120HB-SC.
  2. Basic incubation without calibration and buzzer function: cost-effective L120HB-S.
  3. Samples are PCR tubes or micro centrifuge tubes: select matched heating modules accordingly.
  4. Enzymatic reaction, cell incubation, antigen-antibody reaction: excellent temperature uniformity meets requirements.
  5. Unattended long-time incubation: both models support timer up to 99h59min and continuous operation.
  6. Clinical testing, routine sample inactivation and nucleic acid hybridization in molecular labs: this dry bath series is recommended.
  7. Limited bench space: compact body fits densely arranged laboratories.
  8. Overseas orders: compatible with 110V/220V power supply.
  9. Frequent switching between different tube types: interchangeable modules can be purchased separately as spare parts.

Packaging and delivery

Selling Units Single item Package size per
batch
39X35X26cm
Gross weight perbatch 4.000kg

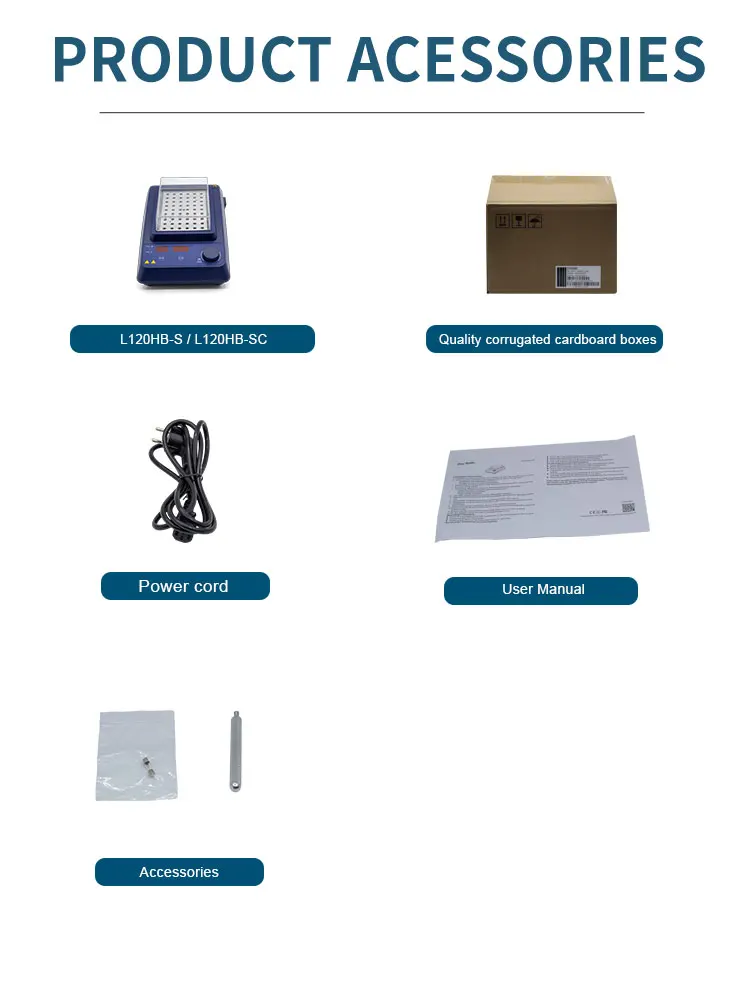

Item Name Qty
Main Unit 1 unit
Heating Block 1 pc
Power Cord 1 pc
User Manual 1 copy
Certificate & Warranty Card 1 set
  1. Contact support team to get complete digital documents: bilingual specification sheet and electronic brochure PDF.
  2. Supporting files: operation manual, heating block cleaning & maintenance guide.
  3. HD watermark-free marketing photos: unit pictures and assembly renderings with different blocks.
  4. Simple troubleshooting document for after-sales technical support

  1. What is the main difference between L120HB-S and L120HB-SC? L120HB-SC supports single-point temperature self-calibration and buzzer alert upon program completion; L120HB-S has no temperature calibration function and no buzzer.

  2. What are the working temperature range and temperature setting range? Working control range: room temp.+5℃ ~ 120℃; setting range: 15℃ ~ 120℃.

  3. What are temperature accuracy and uniformity at 37℃? Temperature control accuracy ±0.5℃; temperature uniformity ±0.5℃ at 37℃.

  4. Does it support timed incubation and continuous constant temperature operation? Yes. Timer range covers 0min–99h59min, continuous operation mode is optional.

  5. Is heating block included in standard kit? Heating blocks are NOT standard accessories. All blocks are optional and need to be ordered separately.

  6. Is over-temperature safety protection equipped? Built-in over-temperature protection will activate under abnormal temperature conditions for better lab safety.

  7. Does the unit come with insulated module cover as standard? Yes, insulated cover is included as standard to minimize heat loss and stabilize block temperature.

  8. What input voltage does it support? Can it work under 110V overseas? Voltage: 110/220V, 50/60Hz, compatible with laboratories in Europe, America and Southeast Asia.

  9. What are dimension and net weight? Will it occupy much bench space? Dimension:175×290×85mm, net weight 3kg. Compact size saves lab bench space.

  10. What are the requirements for operating ambient temperature and humidity? Operating ambient temperature: 10–40℃, relative humidity <80%RH.

  1. Please specify model L120HB-S / L120HB-SC, order quantity and required heating modules for inquiry.
  2. Formal English quotation will be issued within 24 hours. Tiered discounts are available for bulk orders without any hidden charges.
  3. OEM service is available: Logo printing on unit body and customized outer packaging.
  4. Separate quotations for heating block spare parts can be provided for future purchasing demands.
  5. Logistics solutions for sea freight and air freight can be arranged for cross-border orders.
  6. Small sample trial orders are acceptable.
  7. Stable supply prices can be negotiated for long-term framework orders.
  8. Contact channels: Email, WhatsApp and official website online message are available. Quotation covers standard main unit kit, and optional heating blocks will be listed separately.
