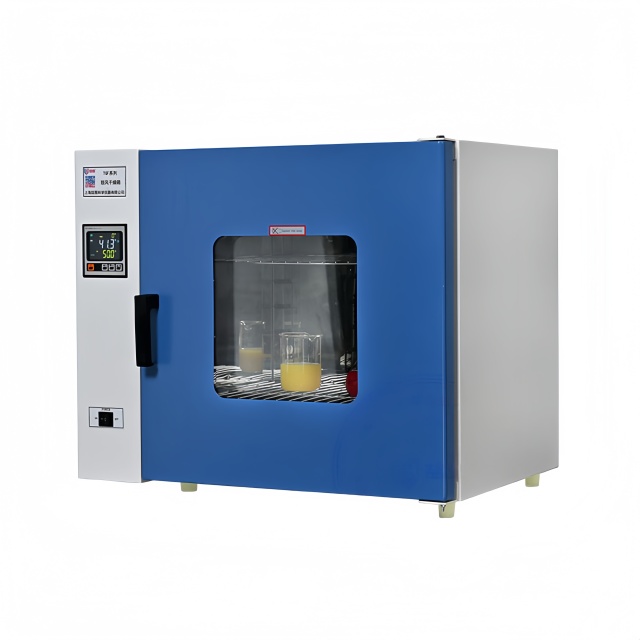

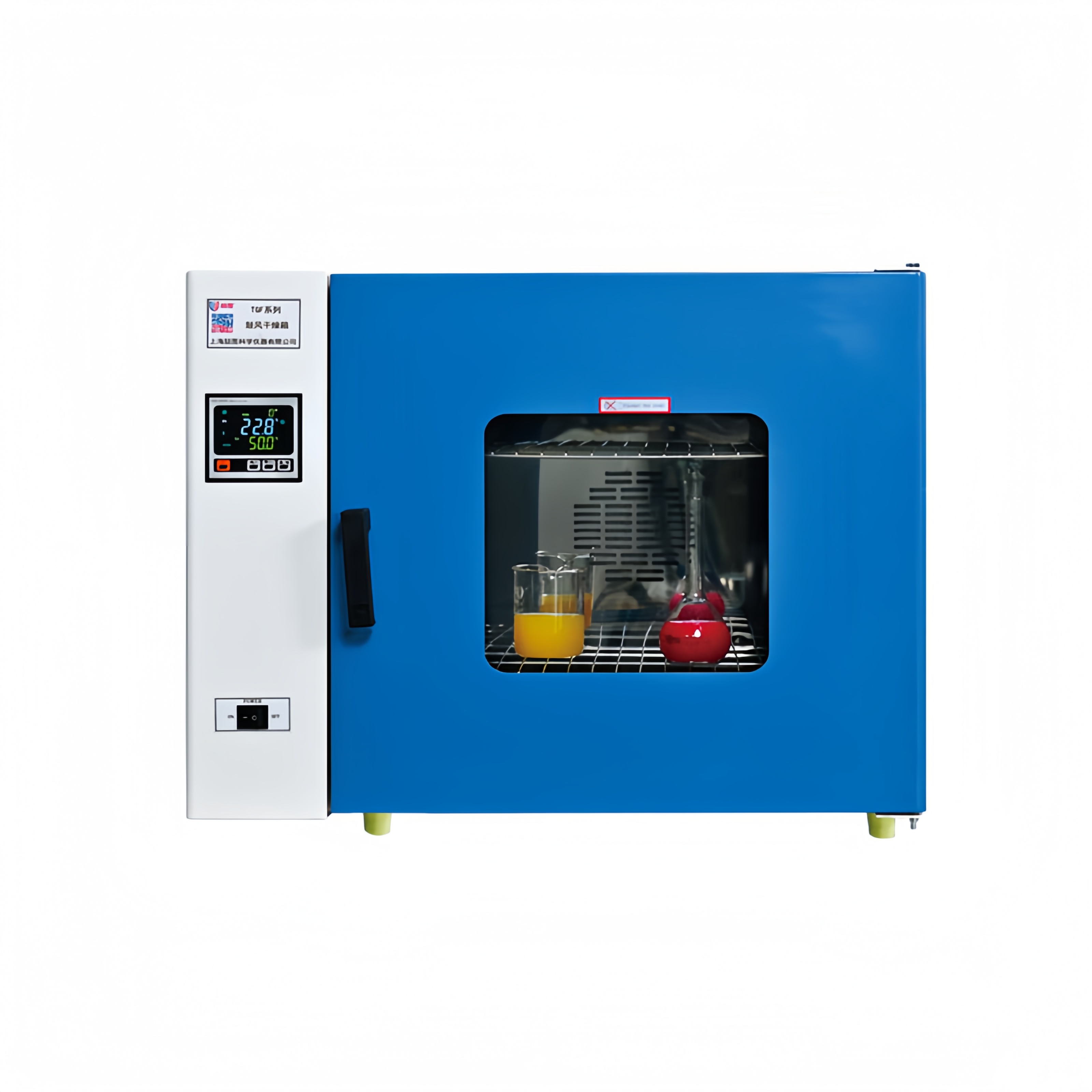

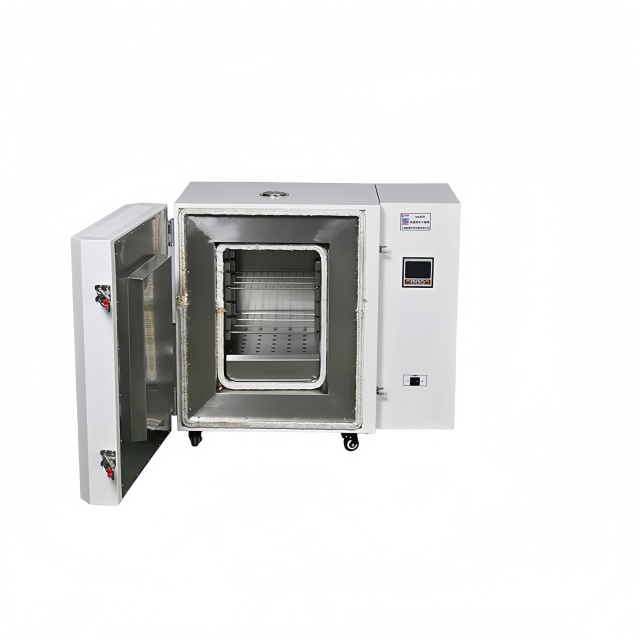

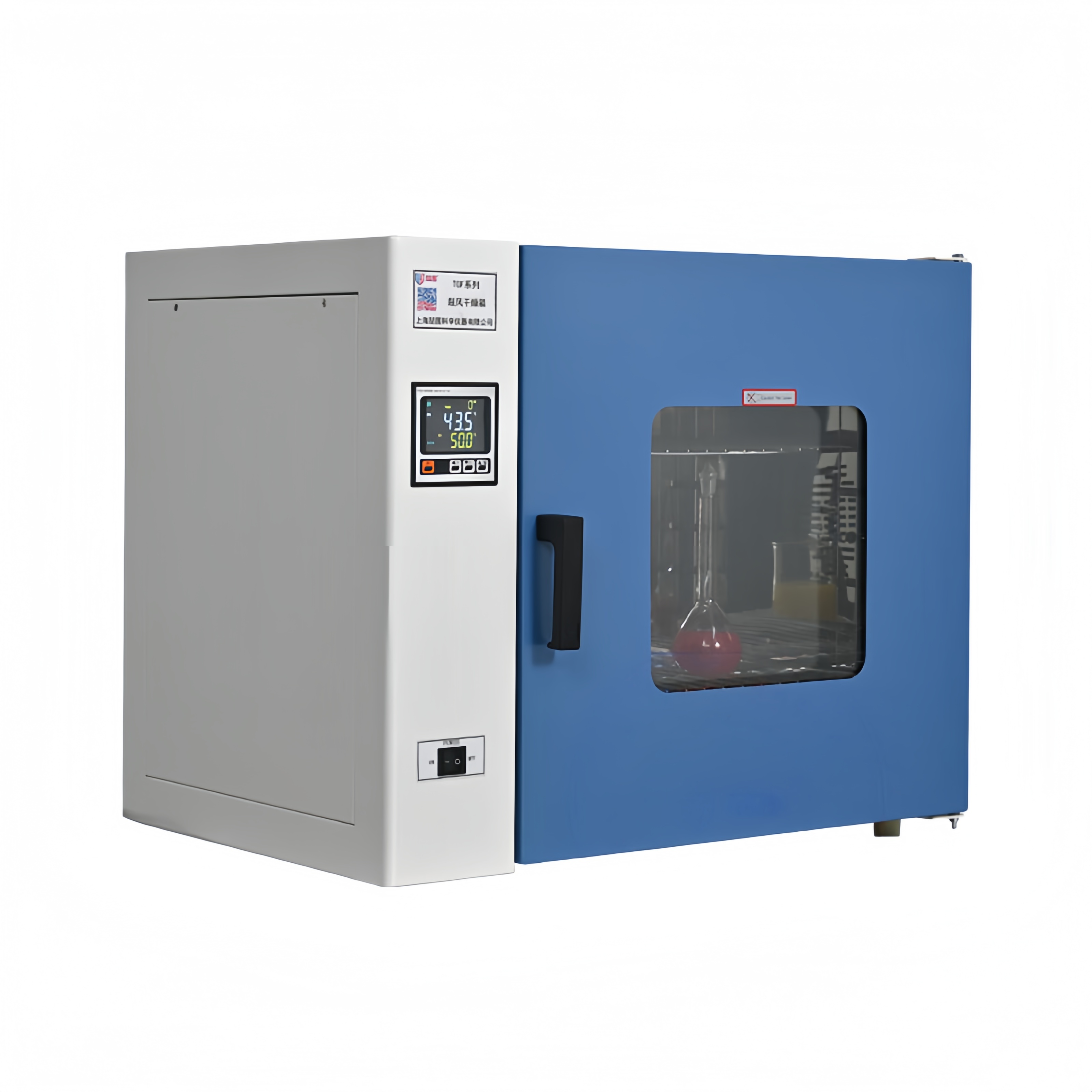

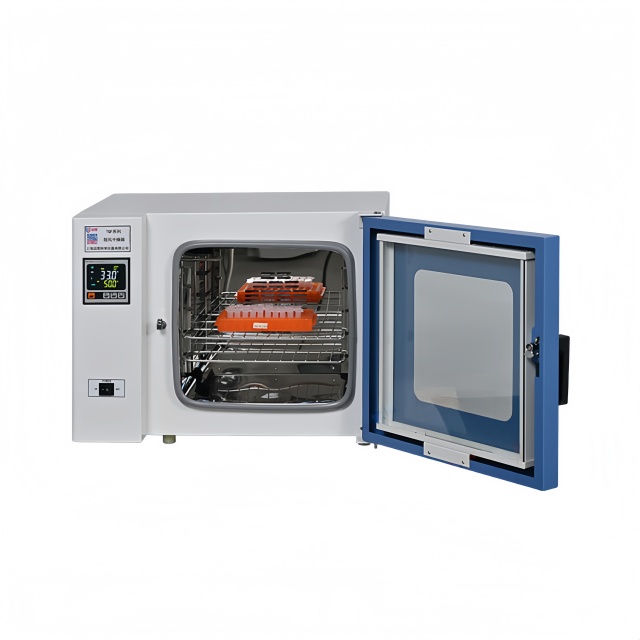

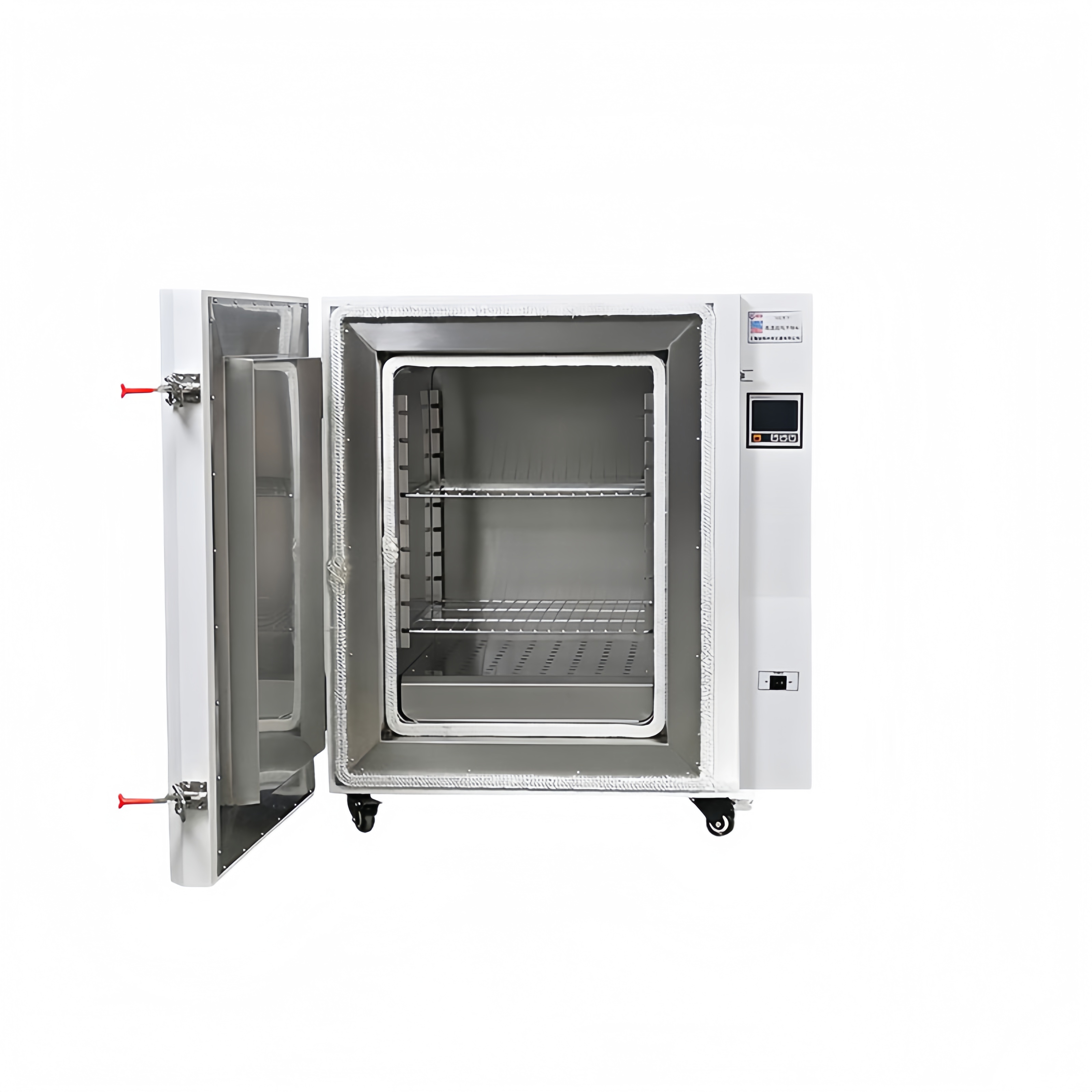

Digital display constant temperature drying oven

Name: Digital display constant temperature drying oven
Brand: labcarta Technology Co., Ltd.
SKU: 1601653357945 TGF
Price: 760.60 USD
Availability: InStock

No.1601653357945 TGF

The TGF series blast drying oven is compact and portable. It is widely used in laboratories, industrial and scientific fields for drying, baking, disinfection and sterilization of non-flammable materials, as well as sample testing, moisture removal and electronic components aging.

$760.60

color&model:

White

TGF

Inner Size:

250*260*250mm

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

TGF series blast drying oven (electric constant temperature blast drying oven) includes desktop standard models and large vertical models, nominal volume ranges from 16L to 268L, two temperature control ranges: RT+10~250℃ and RT+10~300℃. Adopting forced hot air circulation structure, it is used for drying, melting, wax melting, disinfection and sterilization of non-flammable and non-explosive materials.
Main application fields: biopharmaceutical, food processing, scientific physical & chemical experiments, glassware drying, sample thermal weight loss test, thermal treatment, thermal melting, aging & drying of electronic components; widely deployed in industrial & mining enterprises, universities and all types of laboratories.
General hardware standards: Power supply AC220V 50Hz; microcomputer PID temperature control, constant temperature fluctuation ±0.5℃, temperature resolution 0.1℃; temperature uniformity ±2.5℃ at 100℃ no-load condition; multi-layer shelves as standard, timing range 1~9999 mins; inner liner available in mirror-finished stainless steel and brushed stainless steel; double-layer tempered observation window, built-in self-exhaust hot air circulation system, multi-layer overheating power-off alarm protection.
Differentiated configurations: 16/30/50/70L small models equipped with mirror stainless steel liner; 140/240/268L large-capacity models with brushed stainless steel liner; T suffix upgraded to color touch screen, basic version with 3-color LCD display. Optional accessories include USB data export, RS485 communication, program controller, independent temperature limiter, etc.
Key advantages: Uniform forced hot air circulation, precise PID constant temperature control, power-off parameter memory, independent over-temperature limit protection, double-layer heat-insulating glass door, long-life sealing silicone strip, compact footprint, supporting segmented program heating and experimental data traceability recording.

Intelligent & Convenient Control System
① Large 3-color LCD instrument panel displays multiple groups of data on split screen, intuitive menu operation interface for easy operation;
② Built-in self-diagnosis function, fault code directly displayed on screen for quick troubleshooting when abnormality occurs;
③ Microcomputer PID temperature controller integrated with over-temperature deviation protection and timing function to deliver accurate & stable temperature control.
Premium Cabinet Craftsmanship
① Double-layer tempered insulated glass window enables clear observation of internal samples, excellent constant temperature insulation for safe operation;
② Wide-angle full-view glass door with pull-out load-bearing shelves, freely adjustable partition spacing for easy sample access;
③ Thick full-enclosed silicone door sealing strip with rotary compression latch structure to guarantee cabinet sealing and thermal insulation performance.
Multi-layer Safe & Reliable Protection
① Built-in self-exhaust hot air circulation duct automatically discharges internal water vapor to prevent liner corrosion under high humidity;
② Full parameter memory function after power failure, no repeated setup needed after power recovery to avoid experimental data loss;
③ Customizable alarm temperature threshold, heating circuit automatically cut off with audible & visual dual alarm once temperature exceeds limit.
Uniform Temperature Air Duct Design
① Forced convection circulation air duct with rational layout ensures consistent temperature distribution across the whole working chamber;
② High temperature control accuracy, small overshoot and low fluctuation, paired with independent over-temperature early warning for double protection;
③ Built-in high-temperature resistant circulation fan supports long-term continuous operation for all-day constant temperature experiments.
Premium Material Refinement
① Horizontal side-mounted instrument layout delivers compact cabinet footprint to save lab bench space;
② Anti-corrosion electrostatic sprayed outer shell, stainless steel inner liner & shelves for chemical resistance and easy cleaning;
③ New high-elastic high-temperature resistant silicone sealing mat with strong sealing performance, no deformation under high temperature, no harmful substance precipitation for extended service life.
Optional Extended Accessories
① Optional USB data transfer interface to export experimental curves & operation files via USB flash drive;
② Optional program controller / color touch screen supporting multi-segment programmable temperature curves;
③ Connectable to printer or RS485 communication port to print real-time temperature & time records, store and replay full experimental process;
④ Independent temperature limiting safety meter automatically cuts heating and triggers sound-light alarm when over-temperature occurs to guarantee safe experiment operation.

model	TGF-9010A	TGF-9035A	TGF-9050A TGF-9055A	TGF-9070A TGF-9075A	TGF-9140A TGF-9145A	TGF-9240A TGF-9245A	TGF-9240AH
power supply	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Temperature	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C	RT+10~250°C / RT+10~300°C
Temperature deviation	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)	±2.5°C (unloaded at 100°C)
Constant temperature accuracy	±0.5°C	±0.5°C	±0.5°C	±0.5°C	±0.5°C	±0.5°C	±0.5°C
Temperature resolution	0.1°C	0.1°C	0.1°C	0.1°C	0.1°C	0.1°C	0.1°C
Power	800W/850W	850W/1100W	1100W/1550W	1550W/2050W	2050W/2500W	2500W/2800W	2500W/2800W
inner dimensions	250260250	340330320	420350350	450400450	550450550	600595650	600595750
Overall dimensions WDH(mm)	535380420	625450490	705520520	735520635	835580730	880720830	880720930
Nominal volume	16L	35L	50L	70L	140L	240L	268L
inner liner material	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Mirror-finished stainless steel	Brushed stainless steel	Brushed stainless steel
Load carrier	1 piece	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces	2 pieces
Standard configuration	Independent temperature limiting controller, test hole, micro printer, wind speed adjustment switch, color touch screen

Product Positioning: General lab forced hot air drying equipment split into two lines: small desktop volume (16~70L mirror liner) and large vertical volume (140~268L brushed liner). Basic LCD model meets regular constant temperature drying demands; upgraded T touch version fits research data logging and multi-segment programmed heating experiments.
Combined forced circulation air duct & self-exhaust structure automatically discharges water vapor during drying, eliminating internal condensation and liner corrosion; no frequent chamber cleaning required for long-term wet sample processing.
PID intelligent temperature algorithm matched with independent hardware over-temperature cut-off delivers double-layer safety protection, eliminating dry-burning and overheating fire risks for unattended overnight drying runs.
Side-mounted control panel optimizes cabinet aspect ratio, occupying less bench space under equal volume, improving space utilization when multiple units are placed side by side.
Full silicone rotary compression door seal resists high-temperature deformation & hot air leakage, boosting thermal insulation efficiency and reducing power consumption vs ordinary seals; double hollow tempered glass door isolates surface high temperature to prevent operator scald when opening door.
Full range unified 220V power standard, single model compatible with mainstream global lab power grids; large-capacity AH suffix models support max 300℃ high temperature, suitable for mineral fusion and thermal treatment of high-boiling reagents.
Full set of extended accessories enables complete data traceability: USB export of experimental curves, RS485 PC connection, external printer real-time archiving, complying with compliant recording standards for third-party testing and pharmaceutical R&D.

Daily basic glassware & regular sample drying with tight budget: Choose standard A LCD model with mirror stainless steel liner, standard timing & over-temperature alarm, full core drying functions with excellent cost performance.
Require multi-segment programmed heating & experimental data export for university / pharmaceutical R&D labs: Select AT color touch upgraded version, supporting program temperature control, USB/RS485 data communication to meet traceability standards for papers and test reports.
Large batch sample processing over 200L drying capacity demand: Pick vertical large-volume models 9240A/45A / 9240AH with double shelves and thickened brushed stainless steel liner, max working temp up to 300℃.
Process high-moisture materials generating large vapor, worry about liner rusting: All units built-in auto exhaust system to rapidly remove internal humidity, no extra dehumidification accessories needed.
Long unattended overnight drying with concerns of overheating & dry burning risks: Equipped with dual cut-off protection (software PID constant temp + hardware independent temp limiter), automatic sound-light alarm & heating shutdown once exceeding threshold.
Limited bench space with multiple units to be placed side by side: 16/30/50/70L desktop models adopt side-mounted control layout with narrow chassis to save table area for side-by-side arrangement.
Experimental workflow requires max 300℃ high-temperature thermal treatment & fusion digestion: Suffix AH models support constant temperature up to 300℃, while standard A models max 250℃; AH large-volume variants are preferred for high-temperature workflows.

Standard factory package: Blast drying oven main unit, stainless steel shelves, operation manual, spare silicone sealing strips; optional accessories packed separately (USB module, RS485 communication card, micro printer, temperature limiter probe, etc.).
Thick shockproof corrugated carton with full high-density foam inner buffer; glass observation door and touch panel isolated with separate cushion to avoid breakage & impact damage during long sea & air freight.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
Multiple cross-border logistics options: sea freight, air freight, international courier; extra solid wooden frame reinforcement available for 240L/268L extra-large models to reduce transit damage risk.
Exclusive outer packaging & cabinet logo silk printing available for bulk orders of lab instrument distributors and university centralized procurement, matching unified brand promotion for overseas exhibitions and independent online stores.

Selling Units	Single item	Package size perbatch	655451cm
Gross weight perbatch	28.000kg

Name	Qty
Main Unit	1
Power Cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Contact customer service to obtain full original factory electronic documents for cross-border independent website listing, overseas lab industry exhibition promotion and customer technical consultation for model selection.
Exclusive digital files for each model include full Chinese & English technical specs, PID temperature control operation tutorial, multi-segment programmed heating setup guide, chamber cleaning & maintenance manual, dimension drawings and product brochure; all data fully extracted from original factory datasheet page 48 with verifiable authenticity.
General supporting marketing materials: real product photos, production workshop footage, full series constant-temperature drying instrument document library for unified multi-category online store operation & promotion.

What is the core difference between TGF-A standard model and TGF-AT touch model?
A: A version adopts basic 3-color LCD screen only supporting simple timing & constant temperature; AT upgraded color touch screen enables multi-segment programmable heating, USB/RS485 data export and program storage & recall, ideal for R&D workflows requiring experimental data archiving.
Is there a maximum temperature difference between AH suffix model and standard A model?
A: Yes. Standard A/AT max working temp 250℃, while large-volume 9240AH supports constant temperature up to 300℃, suitable for mineral fusion and high-boiling reagent thermal treatment.
Will water accumulate inside and corrode liner when drying high-moisture samples?
A: All units equipped with built-in auto-exhaust hot air circulation system to continuously discharge vapor during drying, eliminating condensation & water accumulation and greatly reducing liner rust risk.
What is the working principle of dual-layer over-temperature safety protection?
A: Software PID control conducts continuous real-time monitoring as first-level early warning upon overheating; independent hardware temperature limiter forcibly cuts all heating circuits if software fails, dual protection to prevent dry-burning fire hazards.
How to choose between two inner liner materials?
A: 16~70L small desktop models adopt mirror stainless steel for easy wiping & cleaning; 140~268L large vertical models use thickened brushed stainless steel with superior wear resistance for high-frequency mass sample processing.
What is the maximum available timing duration?
A: Timing range 1~9999 mins, supporting nearly 7-day continuous unattended timed drying.
Can it connect PC or printer to record temperature-time experimental curves?
A: AT touch model supports optional USB, RS485 port and micro printer; communication modules need separate selection for basic A model to realize data recording function.
Can multiple units be stacked vertically to save bench space?
A: 16/30/50/70L desktop models support stable stacking; large vertical models have heavy self-weight, stacking is not recommended.
Is power supply 110V or 220V?
A: Full series standard AC220V 50Hz; 110V variant customizable for bulk overseas orders targeting 110V power grid markets.
Does bulk order support cabinet logo silk printing and custom outer packaging?
A: OEM cabinet logo silk printing & exclusive packaging design available, consult account manager for full customization solution and production lead time.

Bulk purchase of TGF series blast drying ovens for university labs, pharmaceutical R&D, food testing, industrial physical & chemical analysis, electronic component aging workshops, contact us for full official detailed quotation; tiered unit discount for larger order volume with zero hidden charges.
Dedicated account support for bulk customization requests (touch screen upgrade, full data communication accessories, cabinet silk printing, custom packaging), assisting full-cycle spec verification, production scheduling, logistics planning and factory quality control.
Contact channels: Email, WhatsApp, website message. Please note full model (volume + A/AT/AH suffix), order quantity and list of required optional accessories in your message. Complete formal quotation sheet will be issued within 24 hours, covering unit price, tiered bulk discount, production lead time and full cross-border transportation solution.
