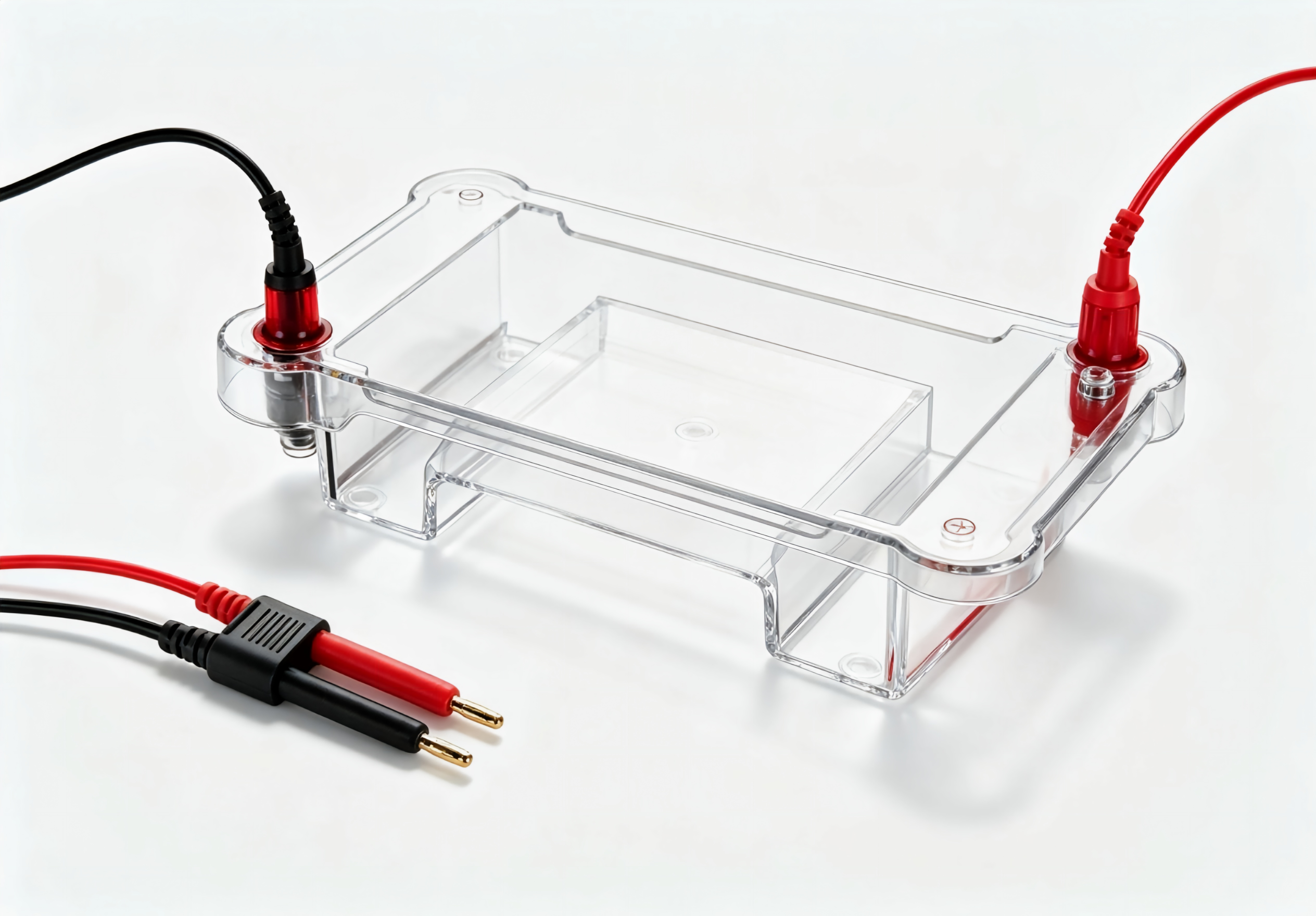

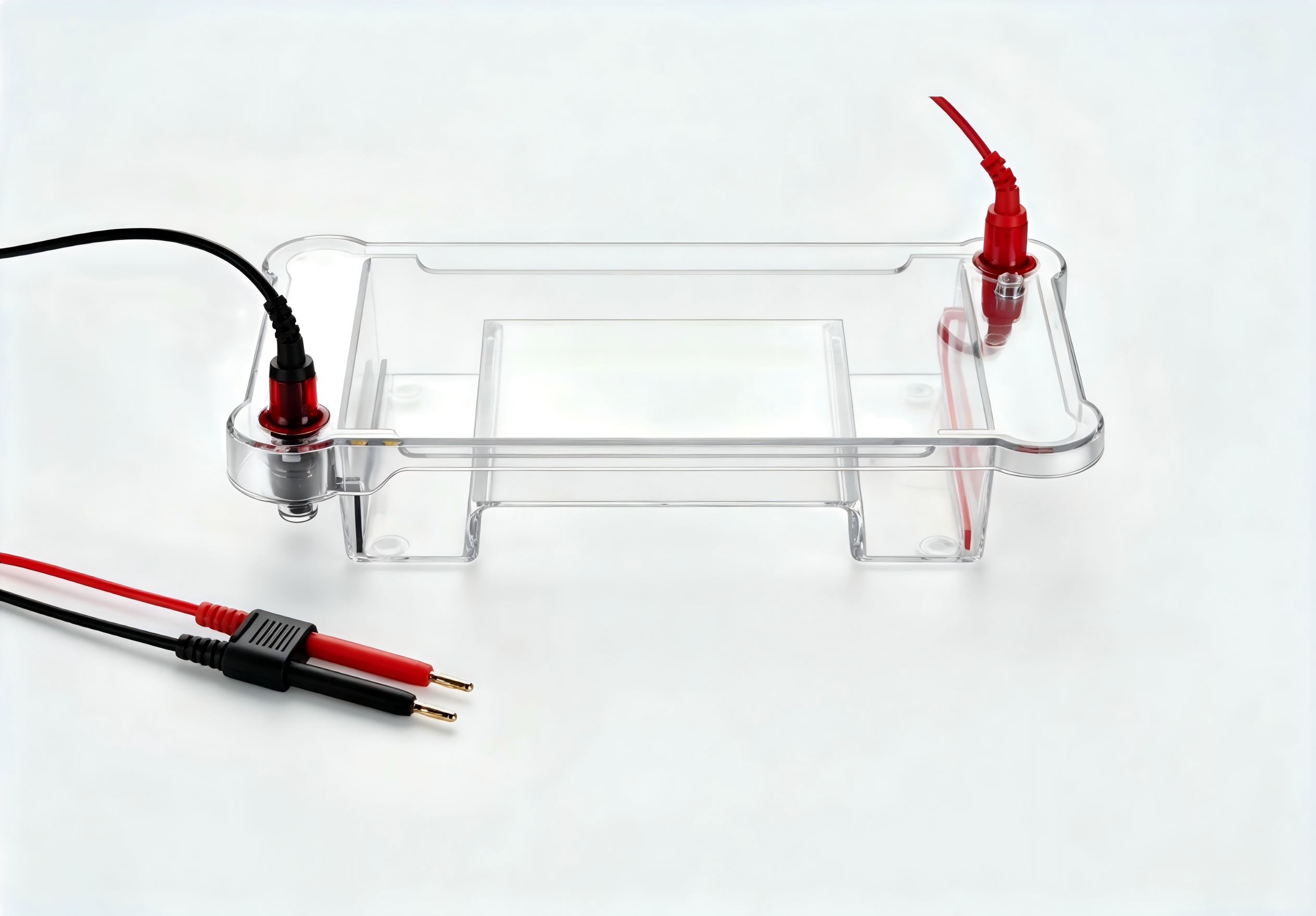

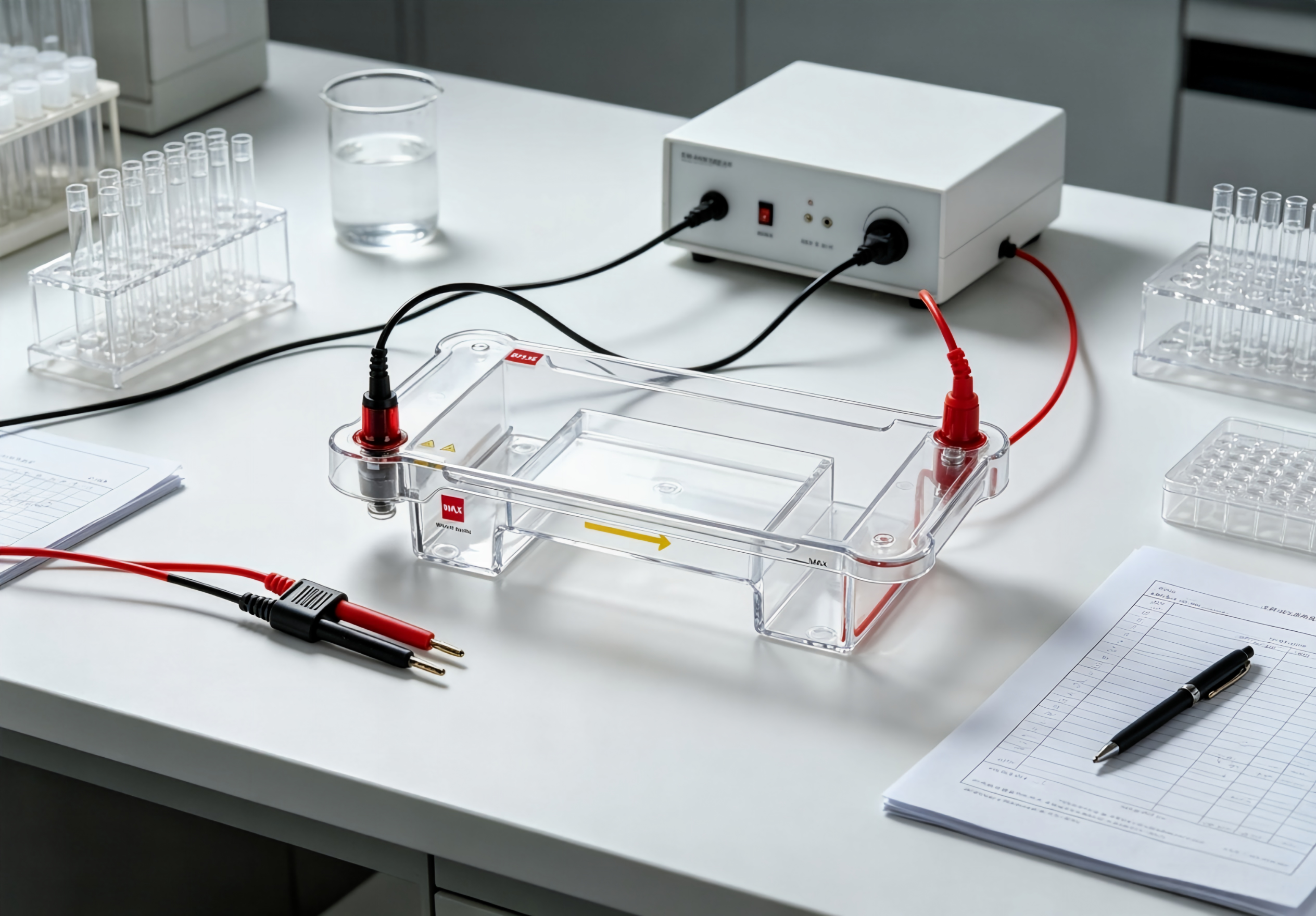

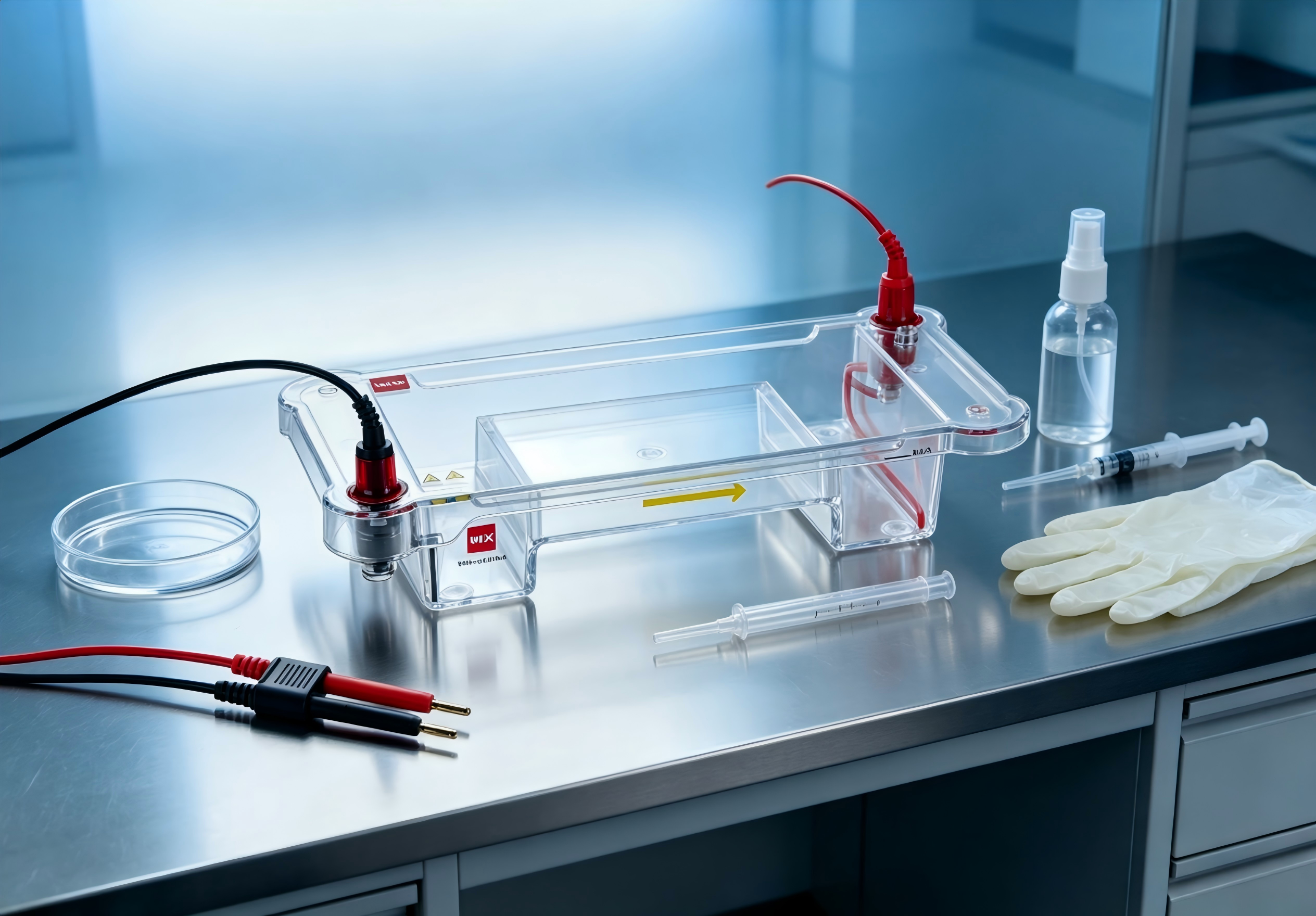

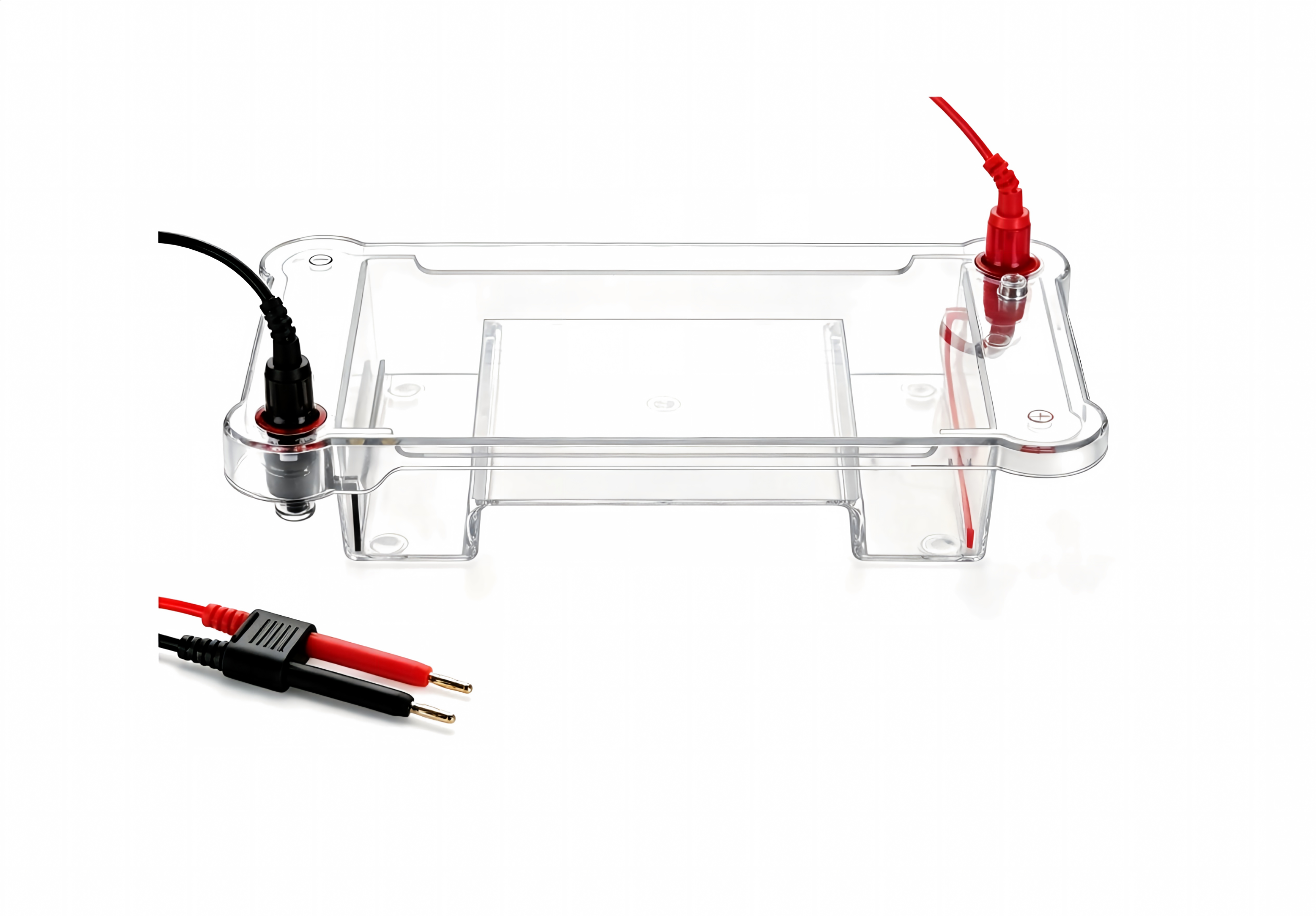

Multi‑Purpose Horizontal Electrophoresis Cell

No.midiDNA
Features
Separation and analysis of at most 108 samples within 20 minutes, which is advantageous in recycle of DNA
fragment.
The gel tray with fluorescent gauge is high temperature resistant, non-deformed in 100°C. Gel irrigation can be
done before agarose is cooled.
$234.93
Model:
LF-midiDNA

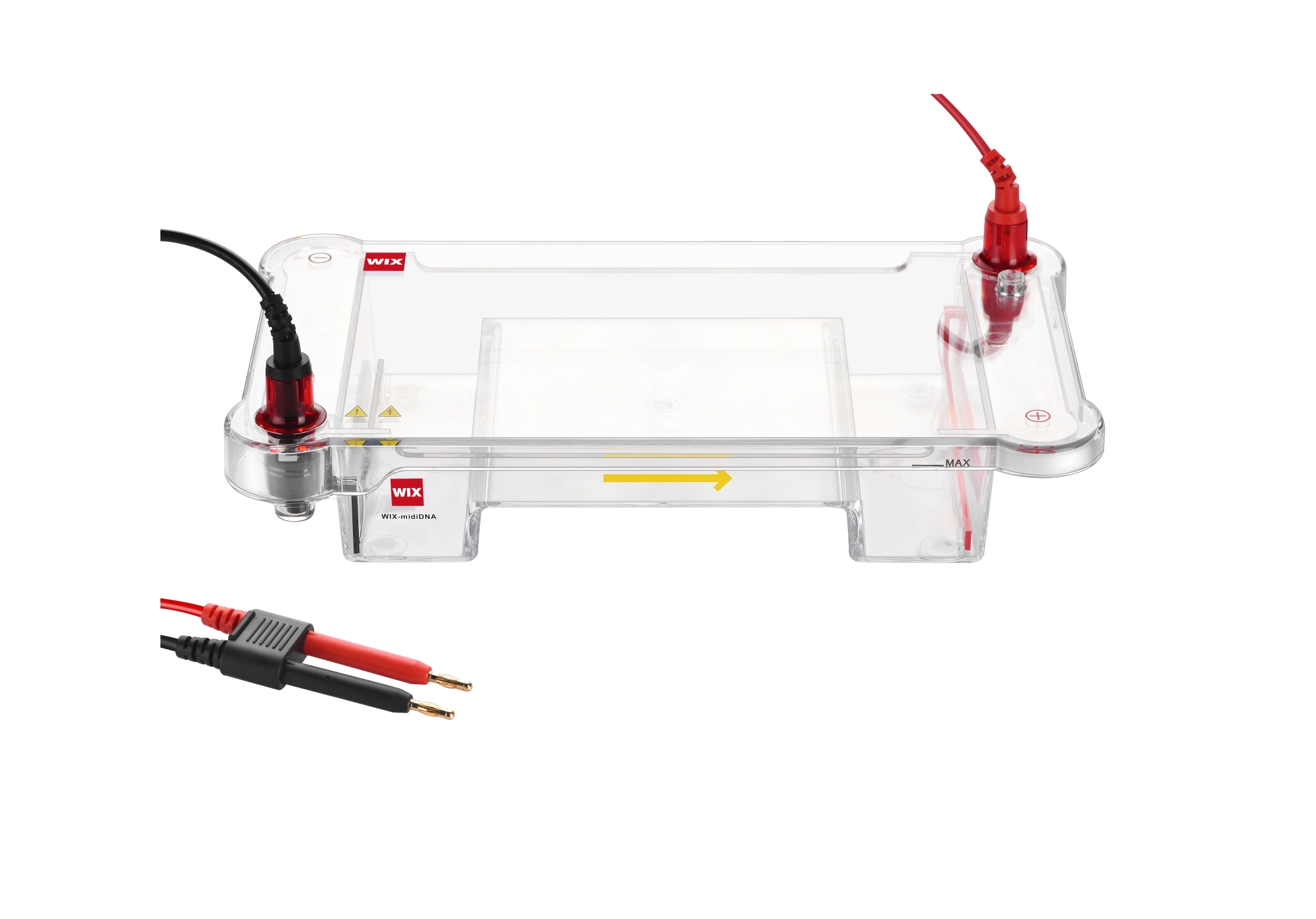

LF-liteDNA
LF-miniDNA
Request a Quote
  • Multi‑purpose horizontal electrophoresis cell for lab PCR DNA nucleic acid gel electrophoresis experiment
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.
  • Multi‑Purpose Horizontal Electrophoresis CellIlabcarta Technology Co., Ltd.

  • Product Overview

  • Key Features

  • Parameter

  • Product Details

  • How to Choose

  • Packaging & delivery

  • Download

  • FAQ

  • Get a Quote

  • Two models of Labcarta WIX horizontal electrophoresis cells: WIX-midiDNA Multipurpose Horizontal Electrophoresis Cell and WIX-miniDNA Mini Horizontal Electrophoresis Cell, used for agarose gel nucleic acid electrophoresis separation, DNA fragment recovery, PCR product qualitative identification.
  • Snap-fit electrode assembly abandons traditional screw fixation and rubber gasket sealing, effectively avoid buffer leakage caused by rubber gasket aging and deformation after long-term use.
  • Electrophoresis direction silk printing on the tank body guides correct sample loading to prevent samples flowing back into buffer liquid and causing experiment failure.
  • Adopt 0.25 mm 99.99% high-purity platinum wire electrode, wire diameter 56% thicker than ordinary electrophoresis platinum wire, stable conduction, strong oxidation resistance and longer service life.
  • All plastic parts are integrally injection molded with imported German polycarbonate, transparent tank for real-time observation of sample migration, good high temperature resistance and durability.
  • Gel tray with fluorescent scale can resist 100℃ high temperature without deformation, hot molten agarose gel can be poured directly without cooling to save gel preparation time.
  • WIX-midiDNA model can complete separation and analysis of up to 108 samples within 20 minutes, ideal for high-volume DNA fragment recovery experiments.
  • WIX-midiDNA supports multiple gel sizes and various combs, max buffer volume 1000mL, dimension 300×170×80mm, net weight 1.1kg.
  • WIX-miniDNA compact model, buffer volume 260mL, dimension 260×110×80mm, net weight 0.6kg, suitable for conventional small-sample electrophoresis verification.
  • Snap-on electrode structure: Remove rubber sealing gasket, thoroughly solve liquid leakage failure caused by aging and compression of sealing gasket in long-term repeated experiments.
  • Silk-screen electrophoresis direction mark: Clear direction reminder to standardize sample loading operation and avoid experimental failure caused by reverse electrophoresis.
  • 0.25mm thickened 99.99% pure platinum wire electrode: 56% thicker wire than ordinary electrodes, stable electric field output, corrosion and oxidation resistance, extended service cycle.
  • Imported German polycarbonate integrated molding: Transparent tank body for real-time observation of electrophoresis bands, resistant to TAE/TBE buffer corrosion, impact-resistant and long service life.
  • High temperature resistant gel tray with fluorescent scale: Direct pouring of hot agarose gel to shorten gel making time; fluorescent scale for fast target band positioning.
  • High efficiency of midiDNA model: Finish electrophoresis detection of 108 samples in 20 minutes, greatly improve efficiency for batch DNA recovery work.
  • Multi-size gel tray interchangeable for midiDNA model: Freely switch between large-area preparative electrophoresis and small-area analytical electrophoresis.
  • Rich optional comb specifications: Multiple thickness and well size combs to meet different experimental detection needs.
  • Dual model differentiated design: midiDNA for high-throughput batch experiments; miniDNA for teaching experiments and small sample daily detection.

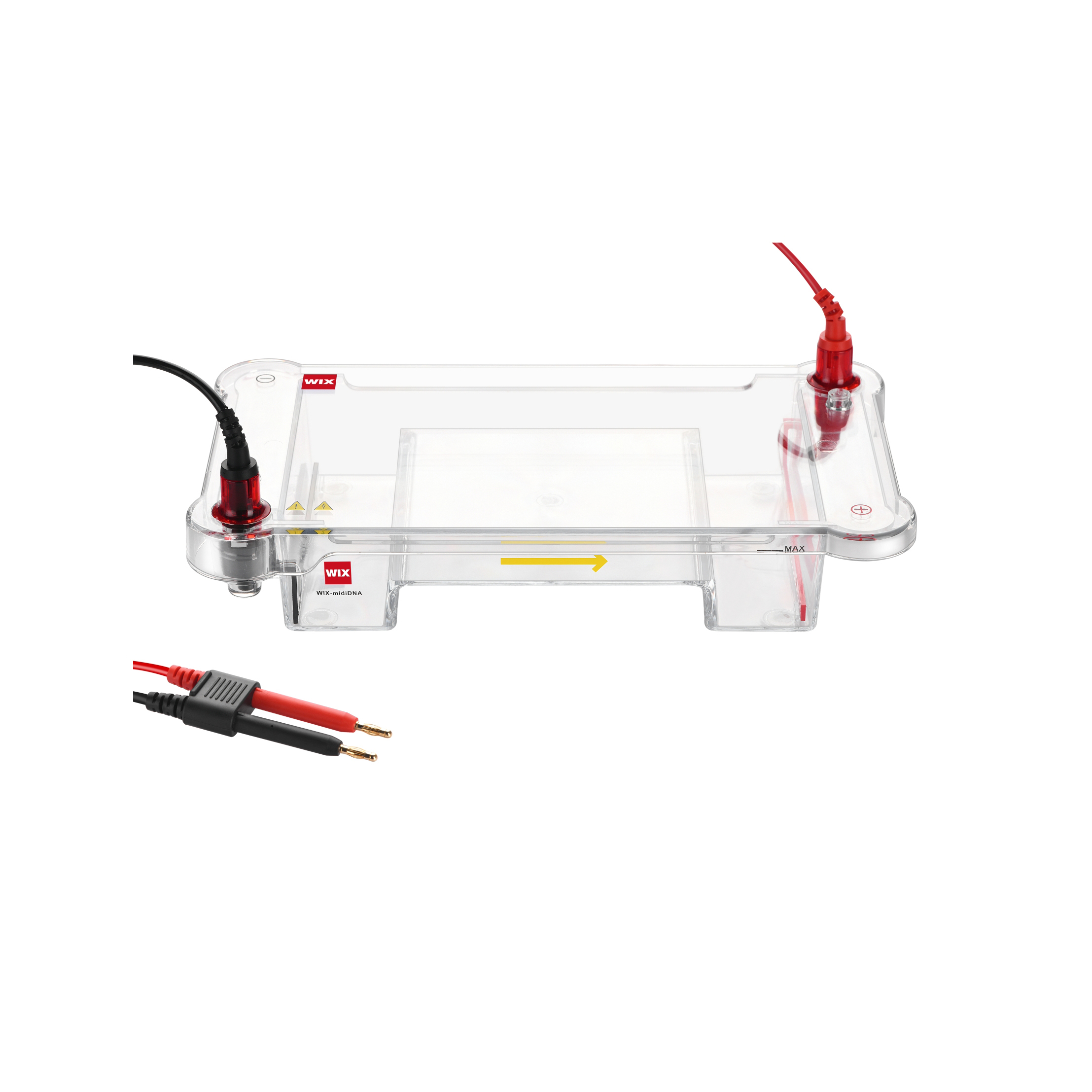

Specifications WIX-midiDNA Multipurpose Horizontal Electrophoresis Cell WIX-miniDNA Mini Horizontal Electrophoresis Cell
Gel size 130×130mm，130×65mm，65×130mm，65×65mm 70×70mm，70×100mm
Combs 0.75mm：7+7wells/14wells，9+9wells/19wells
1.0mm：12+12wells/27wells
1.5mm：7+7wells/14wells，9+9wells/19wells
2.0mm：3+2wells/3+3wells		 0.75mm：9wells/16wells
1.0mm：9wells/16wells
1.5mm：9wells/16wells
Max samples 108 32
PCR electrophoresis comb 27 wells comb ×4 rows Not available
Buffer volume 1000mL 260mL
Dimension(L×W×H) 300×170×80mm 260×110×80mm
Weight 1.1kg 0.6kg
  • Electrode installation: Align the electrode frame with the tank bayonet for snap assembly, no screws needed, easy disassembly for cleaning residual buffer liquid.
  • Gel tray installation: Choose the gel tray of matching size and place it stably in the tank to avoid glue leakage during gel pouring.
  • Hot agarose gel pouring: Pour freshly melted high-temperature agarose gel into the gel tray, insert the comb vertically, wait for gel solidification for sample loading.
  • Buffer addition: Inject TAE/TBE electrophoresis buffer into the tank until the liquid level slightly covers the gel surface, confirm electrophoresis direction via tank body marking.
  • Sample loading: Add nucleic acid samples mixed with loading buffer into comb wells following the direction mark to ensure correct sample migration direction.
  • Electrophoresis operation: Connect the electrophoresis tank and constant voltage power supply with power cord, set voltage to start electrophoresis, observe band migration through transparent tank wall.
  • Post-experiment operation: Take out the gel tray after electrophoresis, use the fluorescent scale to locate target bands for gel cutting and recovery.
  • Daily maintenance: Drain waste buffer after use, clean tank, electrode frame, gel tray and combs with deionized water, air dry for storage to prevent salt crystallization corrosion on platinum wire.
  • Long-term storage maintenance: Disassemble all detachable accessories, store the host and spare parts in dry and ventilated place, avoid high temperature and direct sunlight to prevent plastic aging.
  1. Select midiDNA for batch PCR screening, mass DNA fragment recovery, high-frequency multi-sample electrophoresis in laboratories; select miniDNA for university teaching experiments, single sample identification and small sample verification electrophoresis.
  2. Choose midiDNA if you need to switch multiple gel sizes between preparative gel and analytical gel; miniDNA only supports two fixed gel sizes for simple identification tests.
  3. Choose midiDNA if high-density PCR electrophoresis is required, equipped with exclusive 27-well high-throughput combs; miniDNA has no matched high-density PCR combs.
  4. Choose miniDNA for low reagent consumption to save buffer cost; midiDNA is suitable for long-time continuous electrophoresis with large buffer volume.
  5. For occasional laboratory use, miniDNA has lower procurement cost; both models adopt thickened platinum electrodes for low later maintenance cost.
  • Packaging form: Export standard hard carton + full-surround high-density shockproof foam liner, independent positioning groove for each component to prevent collision damage during transportation.
  • Bulk order packaging upgrade: Large quantity orders use thickened foam and reinforced outer carton to protect electrodes and plastic accessories.
  • Standard packing accessories: Electrophoresis tank main body, snap-fit platinum electrode frame, matched gel trays, multi-specification electrophoresis combs, power cord, operation manual, factory certificate of conformity.
  • Complete set configuration specification
    （1）WIX-midiDNA: Main tank ×1, platinum electrode frame ×1, replaceable gel tray (130×130mm / 130×65mm) ×2, full set of matched multi-thickness combs, power cord ×1, manual + certificate ×1
    （2）WIX-miniDNA: Main tank ×1, platinum electrode frame ×1, integrated gel tray ×1, matched multi-size combs, power cord ×1, manual + certificate ×1
  • Packaging weight & size note: Outer carton dimension and gross weight are estimated values, subject to actual factory delivery.
  • Standard stock lead time: Standard non-customized products delivery within 3–10 working days.
  • Customization lead time: Custom comb well size, customized gel tray size orders delivery within 15–30 working days.
  • Available logistics mode: Sea freight, air freight, international door-to-door express for laboratory instrument export.
Accessory Name Quantity
Power Connection Cable 1 Piece
Paper Operation Manual 1 Copy
Packing List & Certificate of Conformity 1 Set
Product Warranty Card 1 Copy
  • Document access method: Contact Labcarta customer service to get full electronic documents for free.
  • Document list: ①Complete technical datasheet for midiDNA & miniDNA two models; ②Agarose gel standard electrophoresis operation guide; ③Overall dimension drawing of electrophoresis tank; ④Factory inspection report of platinum electrode conductivity, gel tray heat resistance and tank tightness.
  • Document usage: Used for bidding filing, laboratory equipment file archiving, laboratory standardized operation guidance for universities and research institutes.
  • Document access method: Contact Labcarta customer service to get full electronic documents for free.
  • Document list: ①Complete technical datasheet for midiDNA & miniDNA two models; ②Agarose gel standard electrophoresis operation guide; ③Overall dimension drawing of electrophoresis tank; ④Factory inspection report of platinum electrode conductivity, gel tray heat resistance and tank tightness.
  • Document usage: Used for bidding filing, laboratory equipment file archiving, laboratory standardized operation guidance for universities and research institutes.
  • Q: Why cancel traditional screw-fixed electrode with rubber gasket?
    A: Snap-fit electrode removes rubber sealing ring, completely eliminate leakage caused by rubber gasket aging for long-term use.
  • Q: What is the advantage of 0.25mm platinum wire electrode with 99.99% purity?
    A: The wire diameter is 56% thicker than ordinary electrodes, stable electric field output, strong anti-corrosion and anti-oxidation ability, greatly extend electrode service life.
  • Q: Can the gel tray hold freshly boiled hot agarose gel?
    A: Yes, the gel tray can withstand 100℃ high temperature without deformation, hot gel can be poured directly to shorten gel preparation time.
  • Q: What is the maximum sample processing capacity of midiDNA model for single electrophoresis?
    A: midiDNA high-throughput tank can finish electrophoresis analysis for up to 108 samples within 20 minutes.
  • Q: Is the tank resistant to conventional TAE and TBE electrophoresis buffer?
    A: Imported German polycarbonate material has excellent buffer corrosion resistance for long-term cyclic use.
  • Q: Can different size gel trays be interchanged on midiDNA electrophoresis tank?
    A: Yes, the tank is compatible with multiple sizes of gel trays for flexible gel area switching.
  • Q: How much buffer volume does miniDNA mini electrophoresis tank need?
    A: Standard buffer filling volume of WIX-miniDNA is 260mL.
  • Q: Does midiDNA support high-density PCR electrophoresis screening?
    A: Equipped with exclusive 27 wells comb ×4 rows, specially for high-throughput batch PCR electrophoresis screening.
  • Q: Will the electrophoresis direction screen printing mark wear off after long-term wiping?
    A: Adopt screen printing craft, wear-resistant and scratch-resistant, the direction mark remains clear after long-term cleaning.
  • Q: Can electrode frame, gel tray and electrophoresis combs be purchased separately as spare parts?
    A: Platinum electrode frame, gel tray, full-size electrophoresis combs and other wearing parts are available for separate purchase and replacement.
  • Q: What is the maximum buffer capacity of midiDNA electrophoresis tank?
    A: The maximum buffer loading volume of midiDNA horizontal electrophoresis tank is 1000mL.
  • Q: What is the net weight of the two electrophoresis tank models?
    A: midiDNA net weight 1.1kg, miniDNA net weight 0.6kg.
  • Q: Can the device connect to electrophoresis power supplies of other brands?
    A: The electrode terminal uses universal banana plug interface, compatible with all mainstream laboratory electrophoresis power supplies on the market.
  • Required quotation information: Confirm the required model (midiDNA / miniDNA), purchase quantity, additional demand for spare combs/gel tray accessories, submit relevant information to obtain step-by-step bulk preferential quotation.
  • Quotation contact way: Send your procurement demand via Labcarta official email, WhatsApp, independent station background message, our professional international sales manager will reply you within working hours.
  • Custom supporting service: Provide free laboratory electrophoresis experiment scheme matching service for university molecular biology laboratories, third-party testing institutions and biopharmaceutical R&D departments.
  • Quotation issuing time: Official formal PI quotation will be issued within 24 working hours after confirming all your procurement requirements.
  • Bulk procurement discount: Negotiable exclusive volume discount for centralized procurement of key university laboratories, third-party testing institutions and biopharmaceutical enterprises.
  • Contact Information of Labcarta: Official business email & WhatsApp contact are displayed on the Labcarta official independent website for one-stop consultation, quotation and order confirmation.
