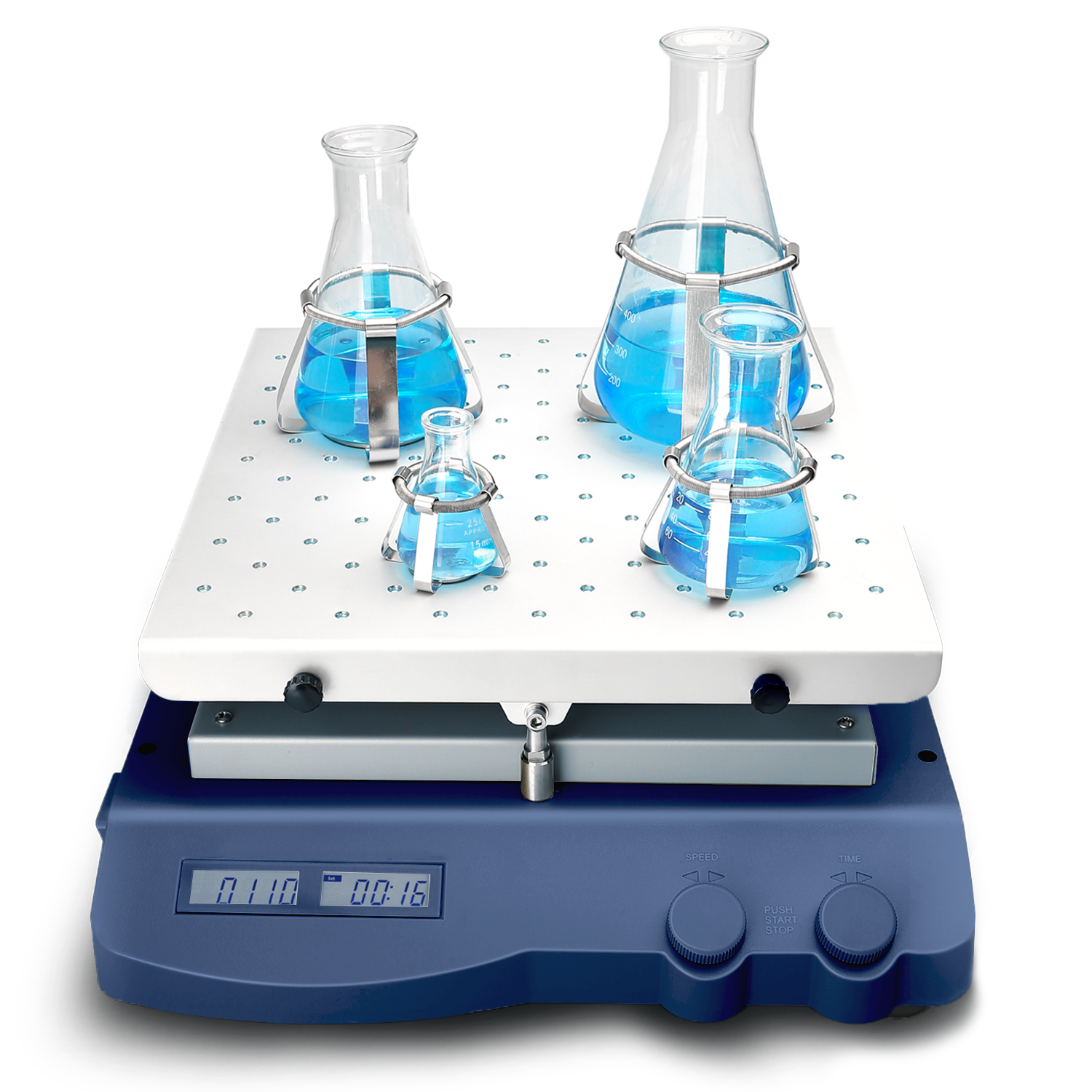

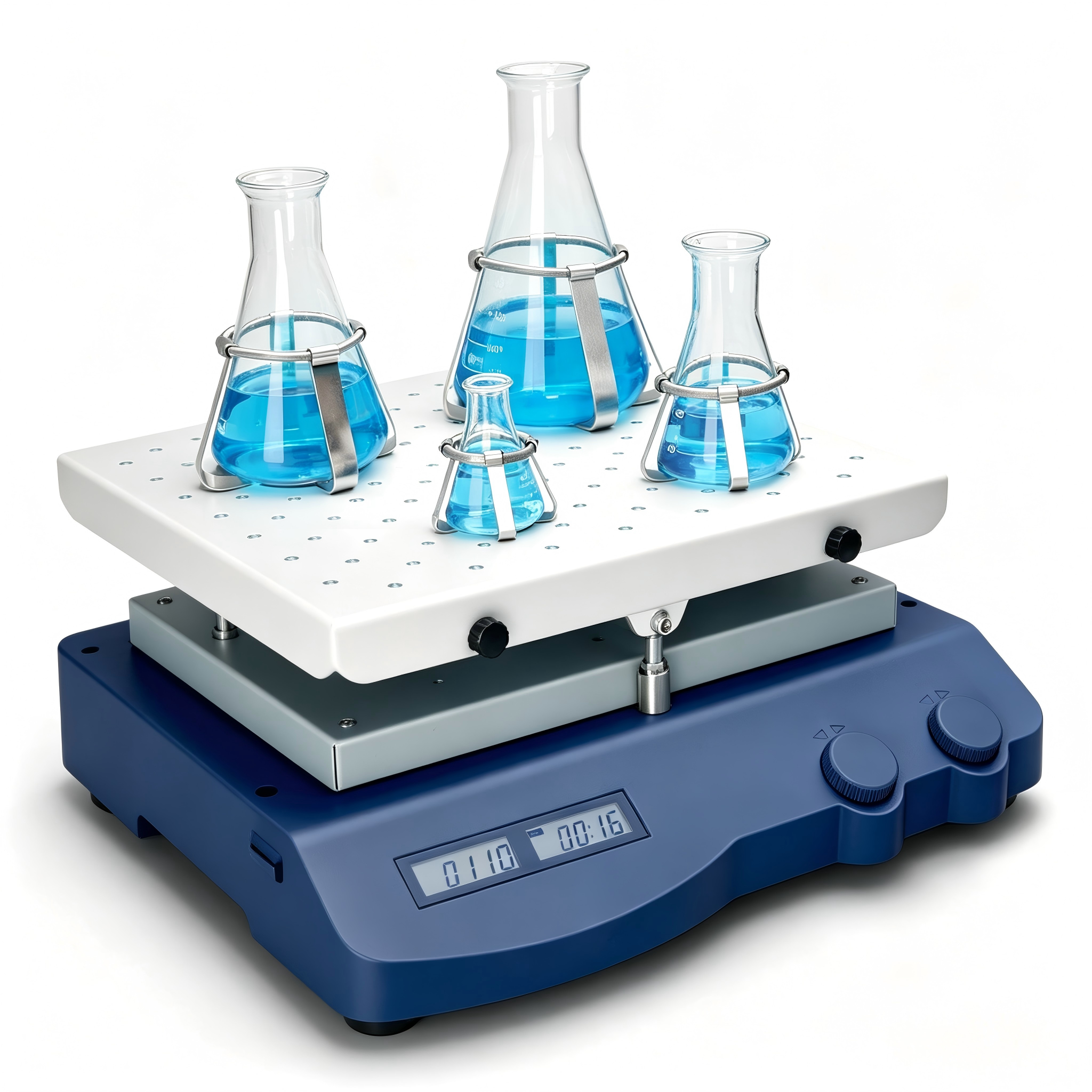

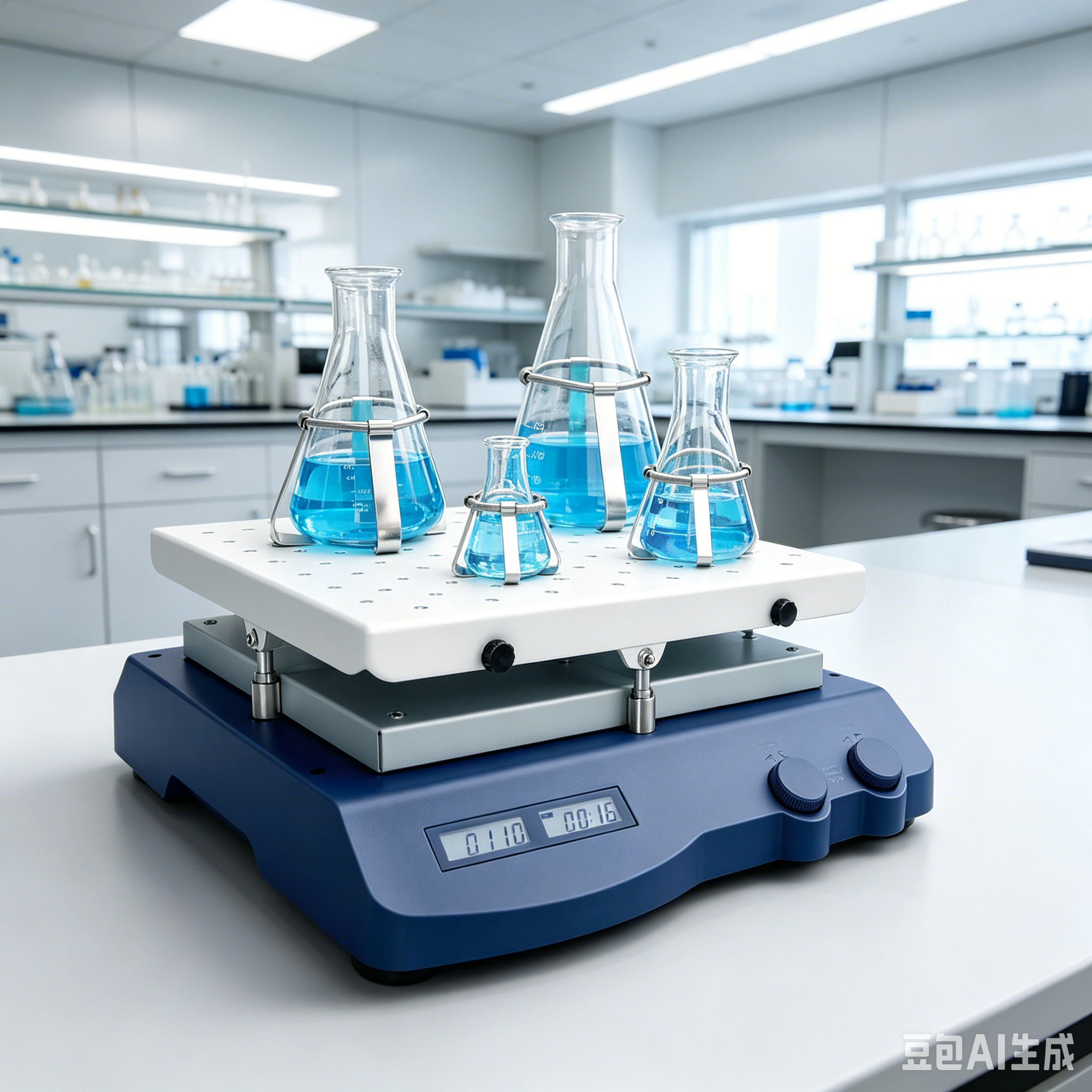

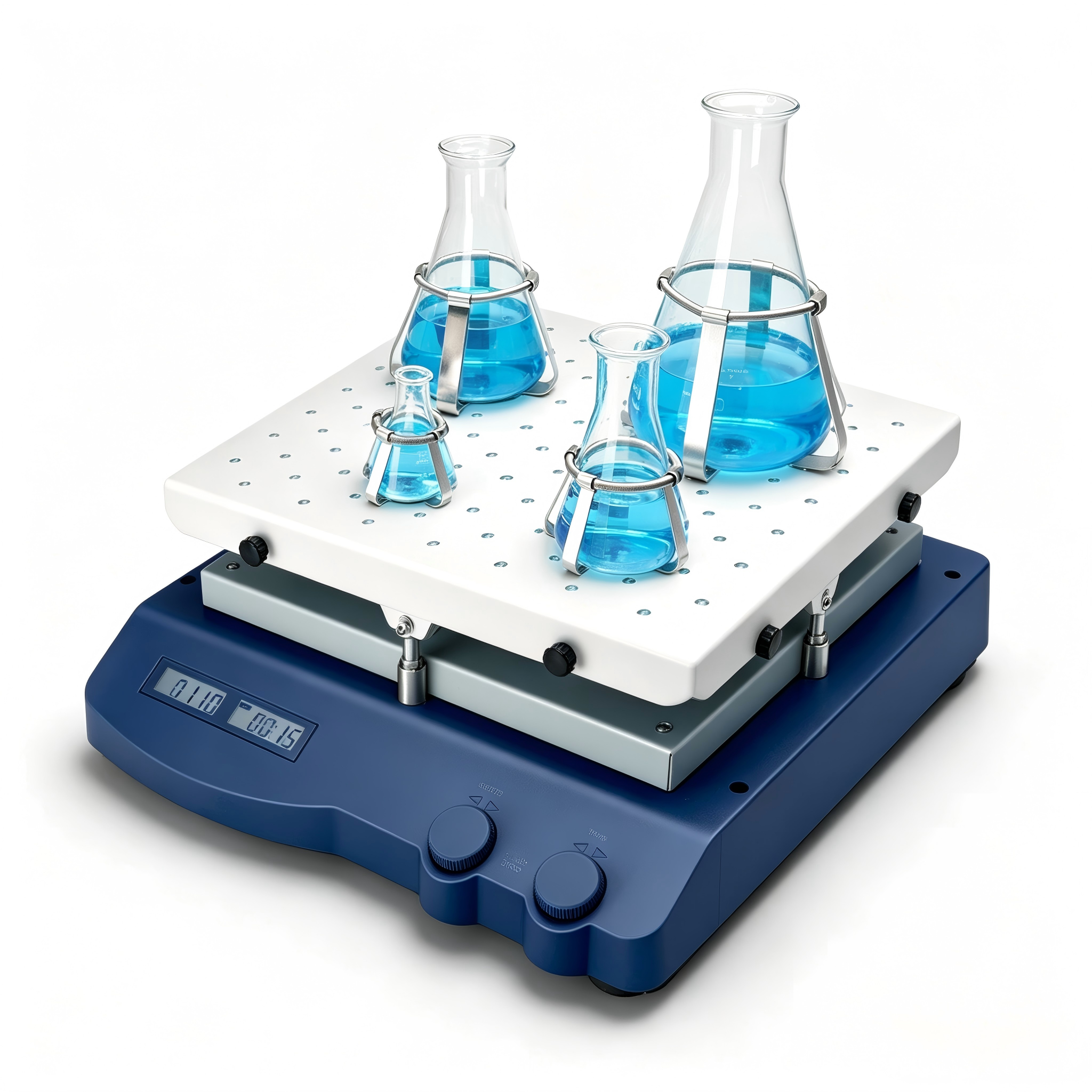

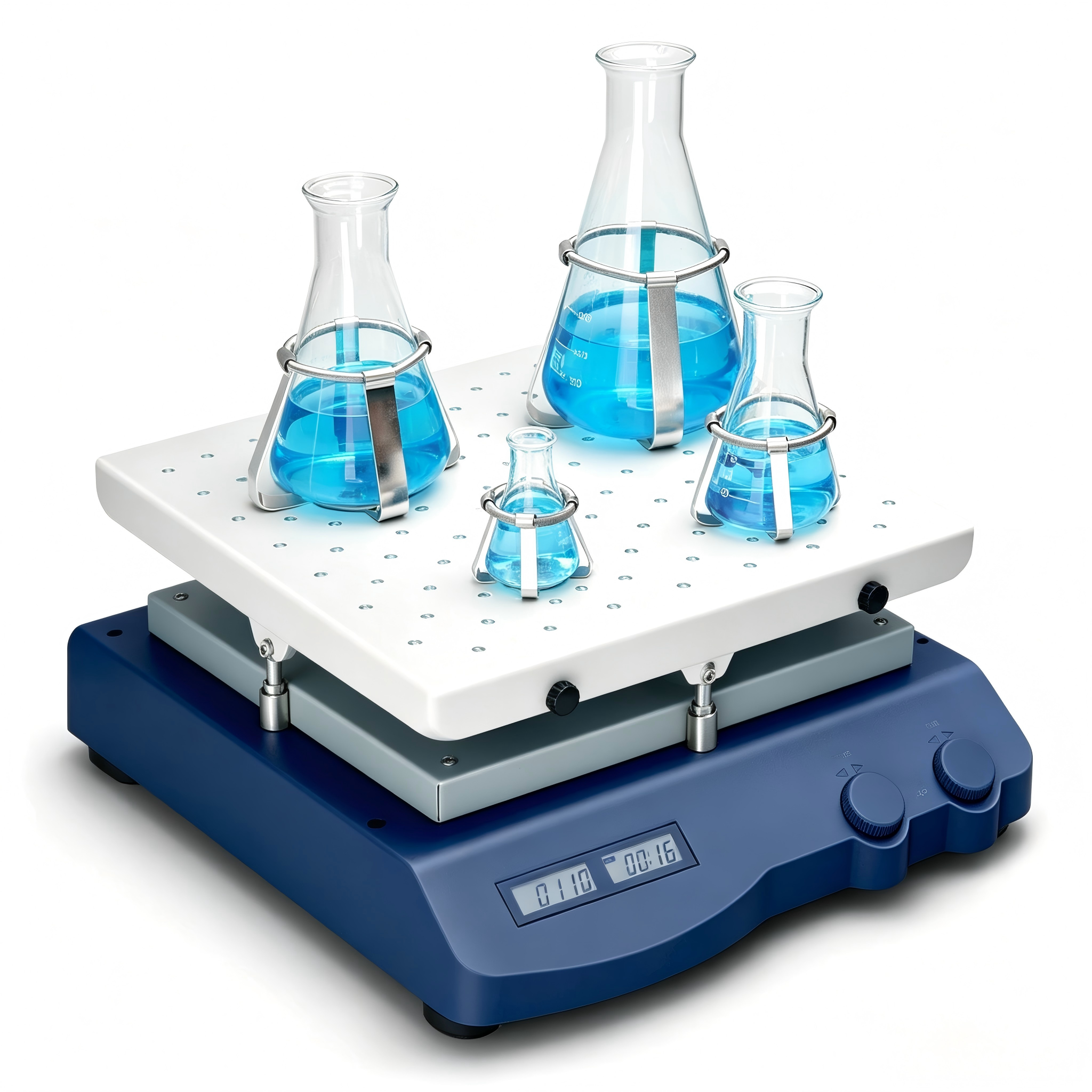

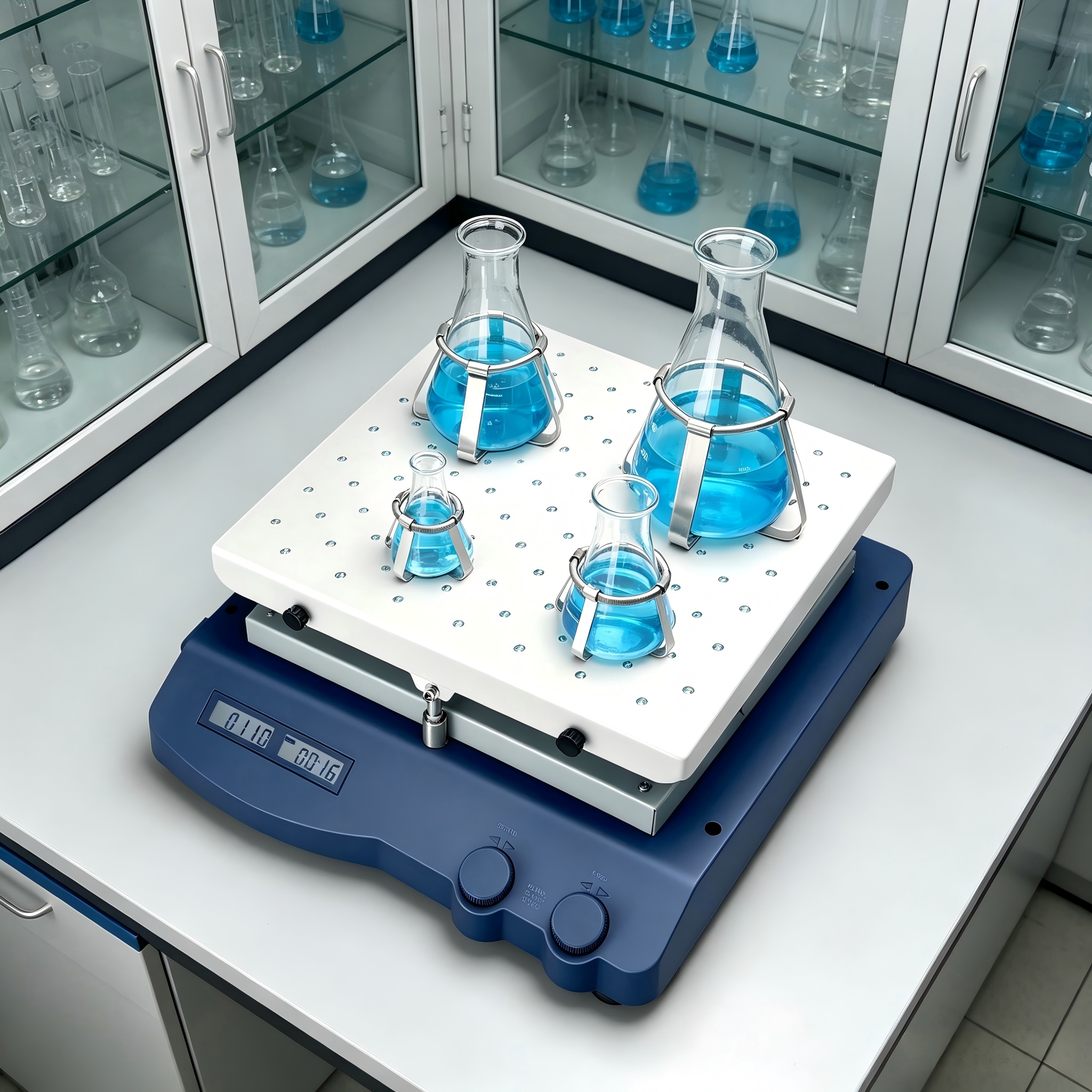

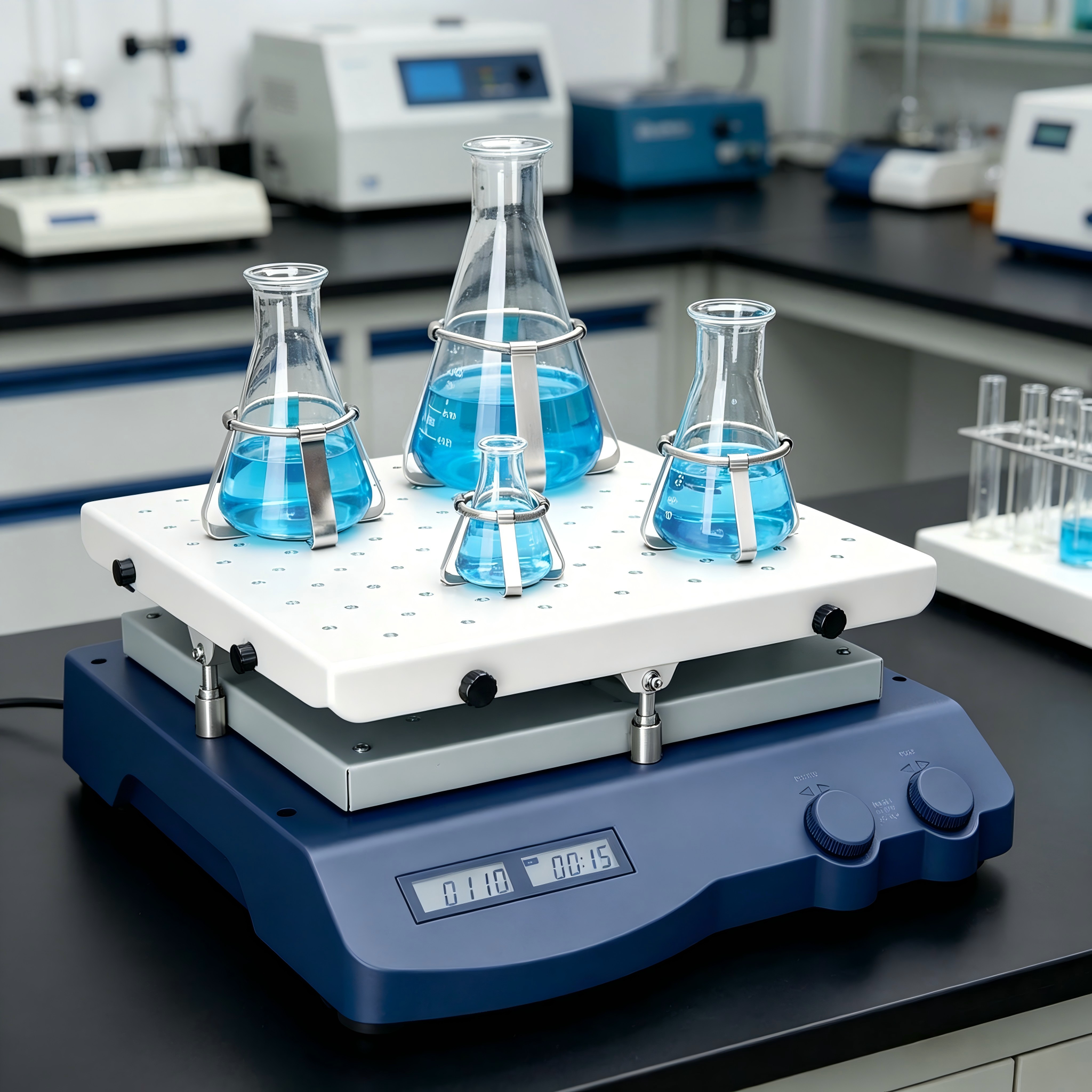

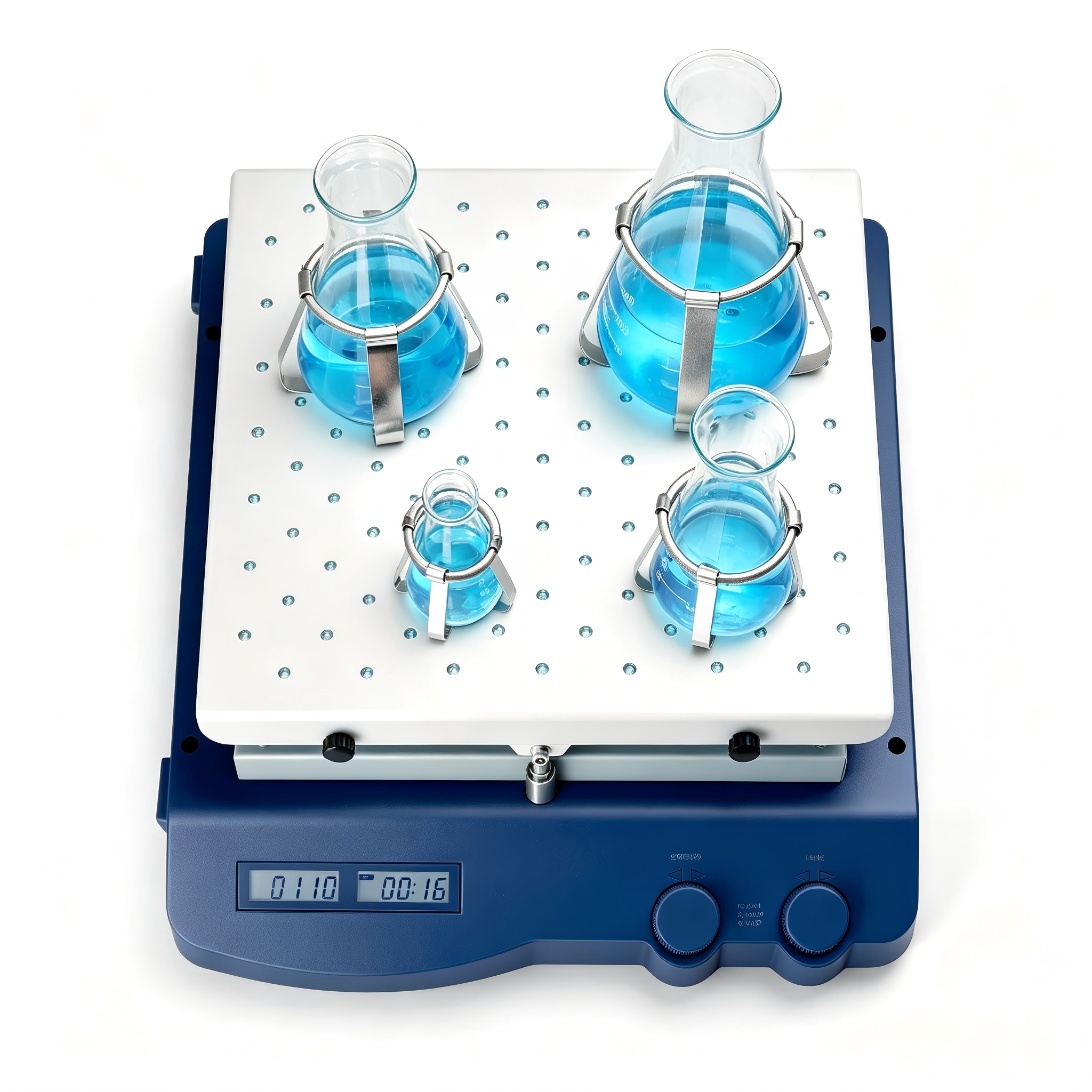

Large Multifunctional Transference Rocking Shaker

• LSK33-R09-Pro large multifunctional transference rocking shaker is developed for low-rpm and time-sensitive shaking experiments, including ELISA plate washing, enzyme immunoassay, protein synthesis, gel staining and destaining for nucleic acid hybridization, immune precipitation, Western blot, cell culture and pharmaceutical screening.

• It adopts fixed 9° rocking tilt angle with large platform compatible with various lab vessels. Equipped with DC driving motor, the adjustable speed range is 10–70rpm. Dual independent LCD screens display rotation speed and runtime separately, supporting continuous operation and timed auto-stop operation with timer ranging from 1min to 99h59min.

• The unit supports max load capacity of 10kg, total power 50W, auto-adaptive 100~240V 50/60Hz voltage, IP21 protection class. Overall dimension 360×410×200mm, net weight 9kg, high-load design for simultaneous mixing of mass samples.

• Labware fixing and placement operation: Match corresponding clamps to fix beakers, conical flasks, gel incubation boxes and ELISA plates on wide work platform; stable high-load surface avoids sliding of mass samples during rocking.
• Power connection & self-check standby operation: Connect 100~240V universal AC power supply, dual LCD screens light up automatically for unit self-check and parameter adjustment standby.
• Experimental parameter programming operation: Adjust knob to set 10–70rpm gentle rocking speed, select continuous running or timed auto-stop mode, set runtime from 1min to 99h59min, speed and timer data are displayed on separated LCD panels.
• Low-speed rocking for mass biological samples: Start the shaker after parameter confirmation, it performs mild reciprocating rocking at fixed 9° tilt angle; low impact protects fragile gel and Western blot samples, supporting simultaneous long-time incubation and destaining of dozens of specimens.
• Standard post-test shutdown sequence: The shaker auto stops when timed cycle expires; manual shutdown is required for continuous mode, cut off power then remove all labware.
• Daily cleaning & maintenance operation: Wipe residual buffer and staining liquid off platform and clamp gaps after each experiment to keep the unit dry and clean.
• Long-term shutdown storage maintenance: Disconnect power during long idle periods, remove all clamps and vessels, store the whole unit under dry 5–40℃ low-humidity environment to extend service life of motor and platform accessories.

• Selection based on sample throughput: Choose this 10kg high-load model if dozens of large-volume beaker and flask samples need simultaneous processing; compact low-load shakers fit small-volume trace specimens.
• Selection based on sample fragility: This 9° low-tilt mild rocking unit prevents tearing of fragile gels, Western blot membranes and ELISA plates; high-tilt mixing equipment suits crude suspensions with high tolerance.
• Selection based on total load weight: This model is applicable when total weight of clamps, vessels and samples ≤10kg; specimens with total load over 10kg require higher-capacity shaker models.
• Selection based on experimental duration demand: The timed auto-stop function fits overnight unattended gel destaining and blot blocking incubation; simple continuous shakers are alternatives for short-time rapid mixing.
• Selection based on operating environment limit: Stable operation only within 5–40℃ and ≤80%RH non-condensing environment; condensed high humidity will corrode internal circuits, not recommended for such working conditions.
• Application Scenarios
  1. Research Laboratories: Simultaneous blocking & antibody incubation for batches of Western blots, long-time mild destaining of multiple groups of nucleic acid gels, low-speed mixing for high-throughput immune precipitation, oscillation of bulk micro protein synthesis samples.
  2. Universities & Education: Mass gel training experiments for molecular biology courses, overnight Western blot culture of multi-group samples for postgraduates, batch ELISA plate washing teaching operations.
  3. Pharmaceutical & Chemical: Simultaneous low-speed mixing of multiple groups of heat-sensitive microbial strains, constant temperature incubation screening of bulk drug target cells, high-throughput oscillation pre-treatment of trace peptide proteins.
  4. Food, Environmental & Industrial Testing: Mild shaking extraction of batches of food active biological ingredients, long-time enrichment and mixing of multiple groups of environmental microbial samples.
  5. Medical & Healthcare: Simultaneous batch washing of clinical ELISA specimens, continuous staining and destaining of complete sets of pathological gel specimens, low-speed homogenization mixing of bulk biological preparations.

1. Packaging structure: Standard export hard color carton fully lined with high-density shock-absorbing foam, separate slots for main unit and power cord to prevent collision damage during long sea and land transit.

2. Bulk order protection: Reinforced thickened protective structure is applied by default for large-volume export orders to reduce transportation damage risk.

3. Standard package accessories: LSK33-R09-Pro shaker main unit, matching wide-voltage power cord, full printed operation manual; vessel fixing clamps are optional accessories not included.

4. Package size note: Outer carton dimension and full-set gross weight are estimated reference values only, final data subject to actual factory outgoing packaging.

5. In-stock lead time: Standard models without custom clamps ship within 3–10 working days.

6. Optional logistics channels: Sea freight, air freight and full-truck land transport available, dedicated logistics line for bulk overseas export of high-capacity lab mixing instruments.

Selling Units

Single item

Package size perbatch

52*47*33cm

Gross weight perbatch

14kg

Power Cable

1 pc

User Manual

1 copy

Packing List / Certificate of Conformity

1 set

Warranty Card

1 copy
