Home > All Collections > Mixing and Vibration Equipment Series > LCD Digital Tube Roller

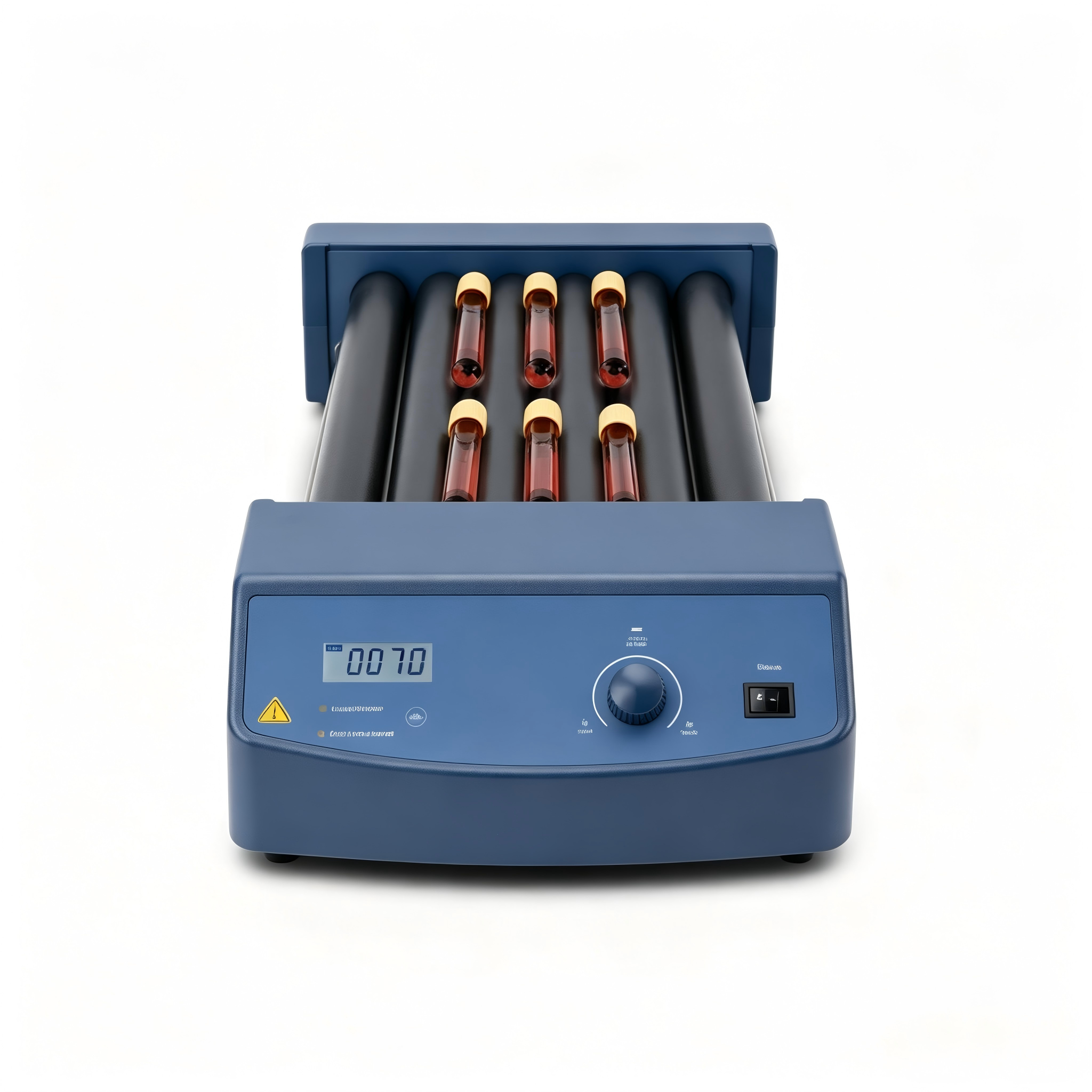

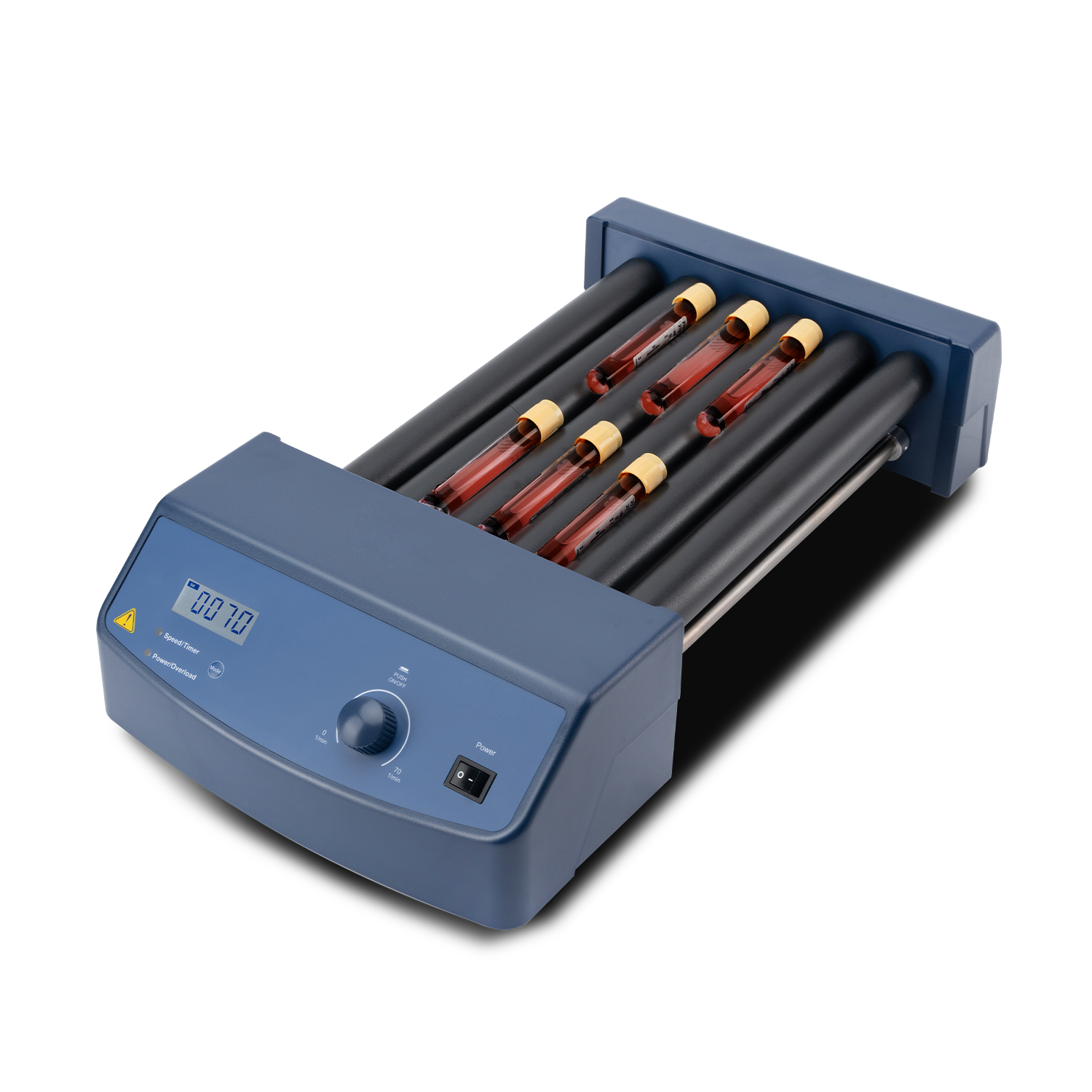

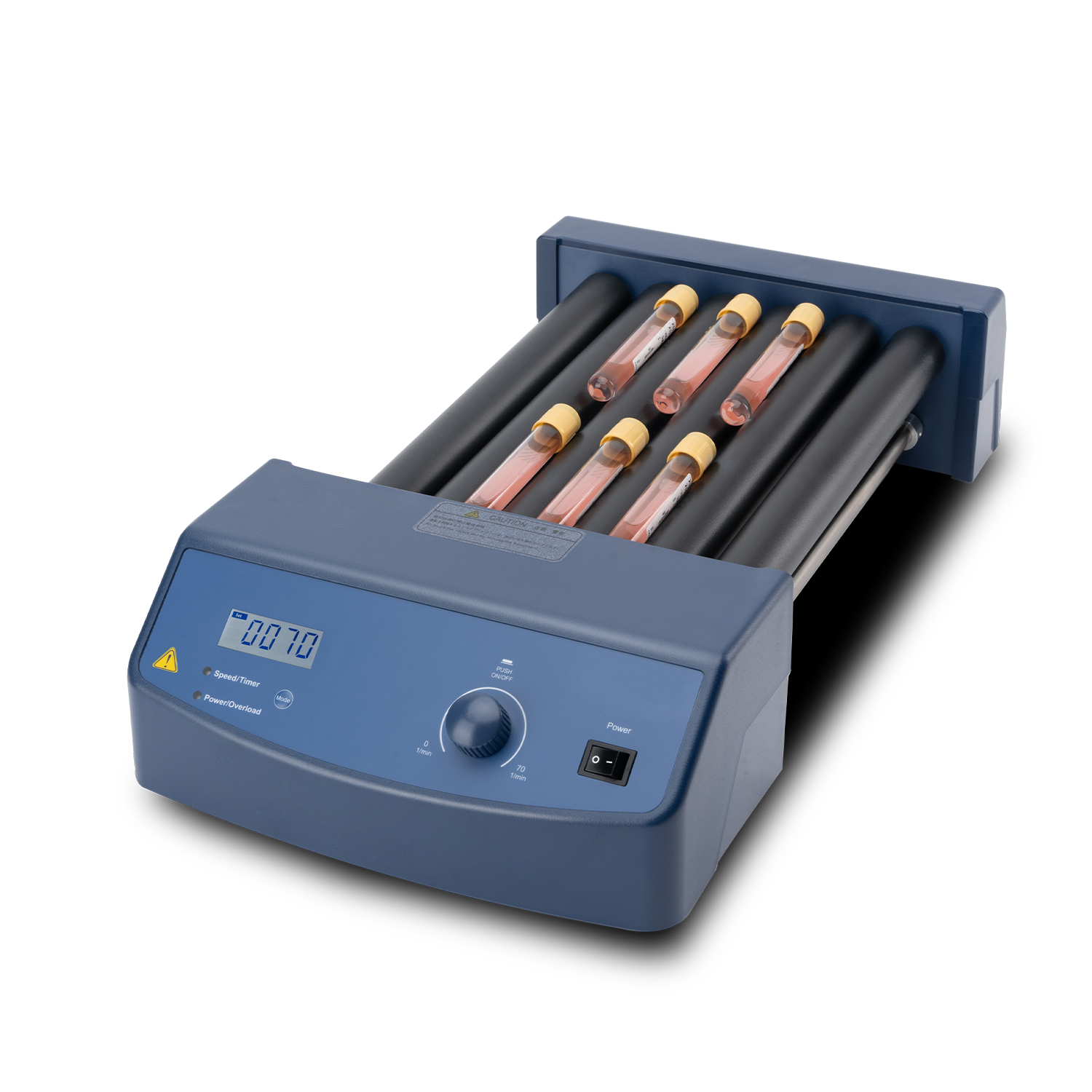

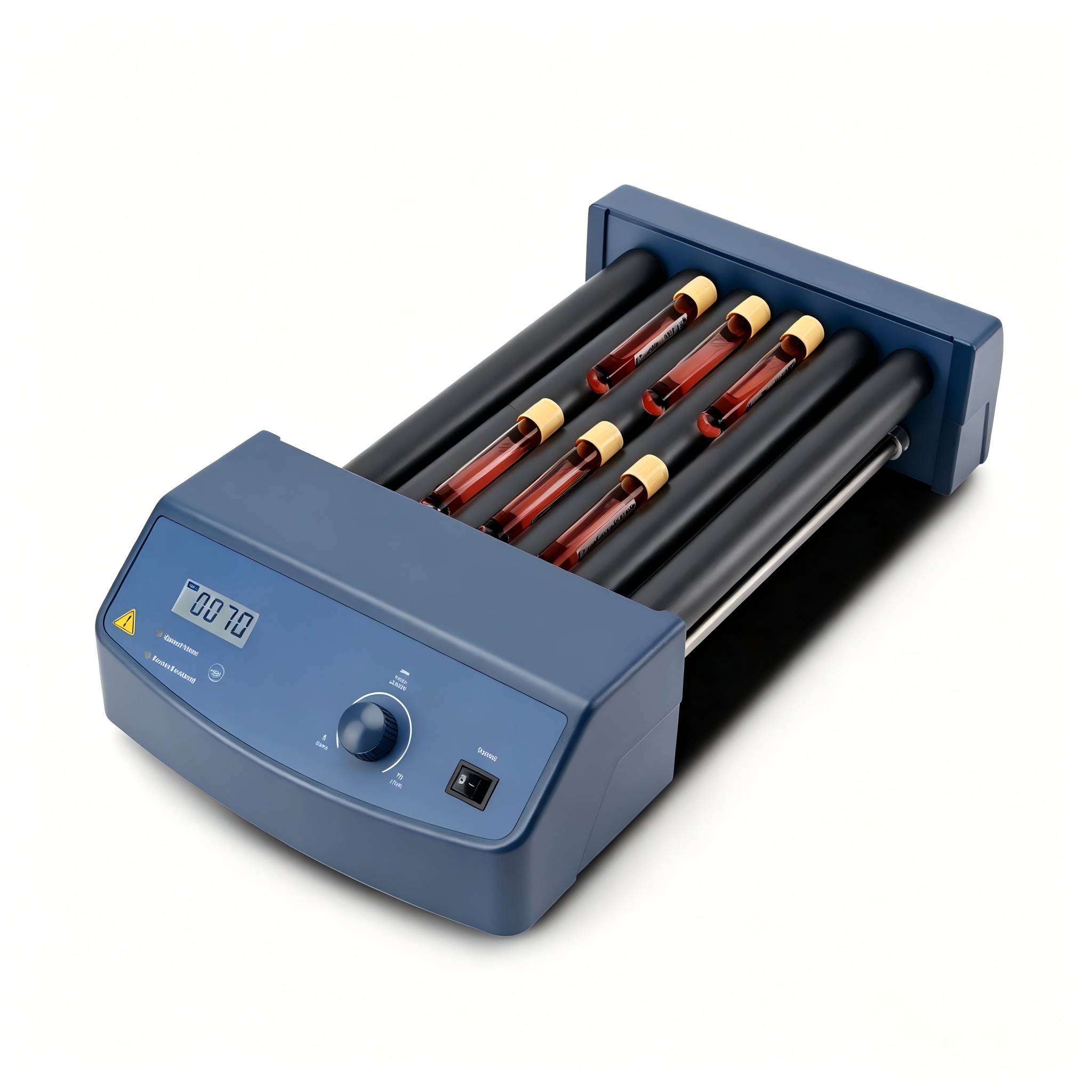

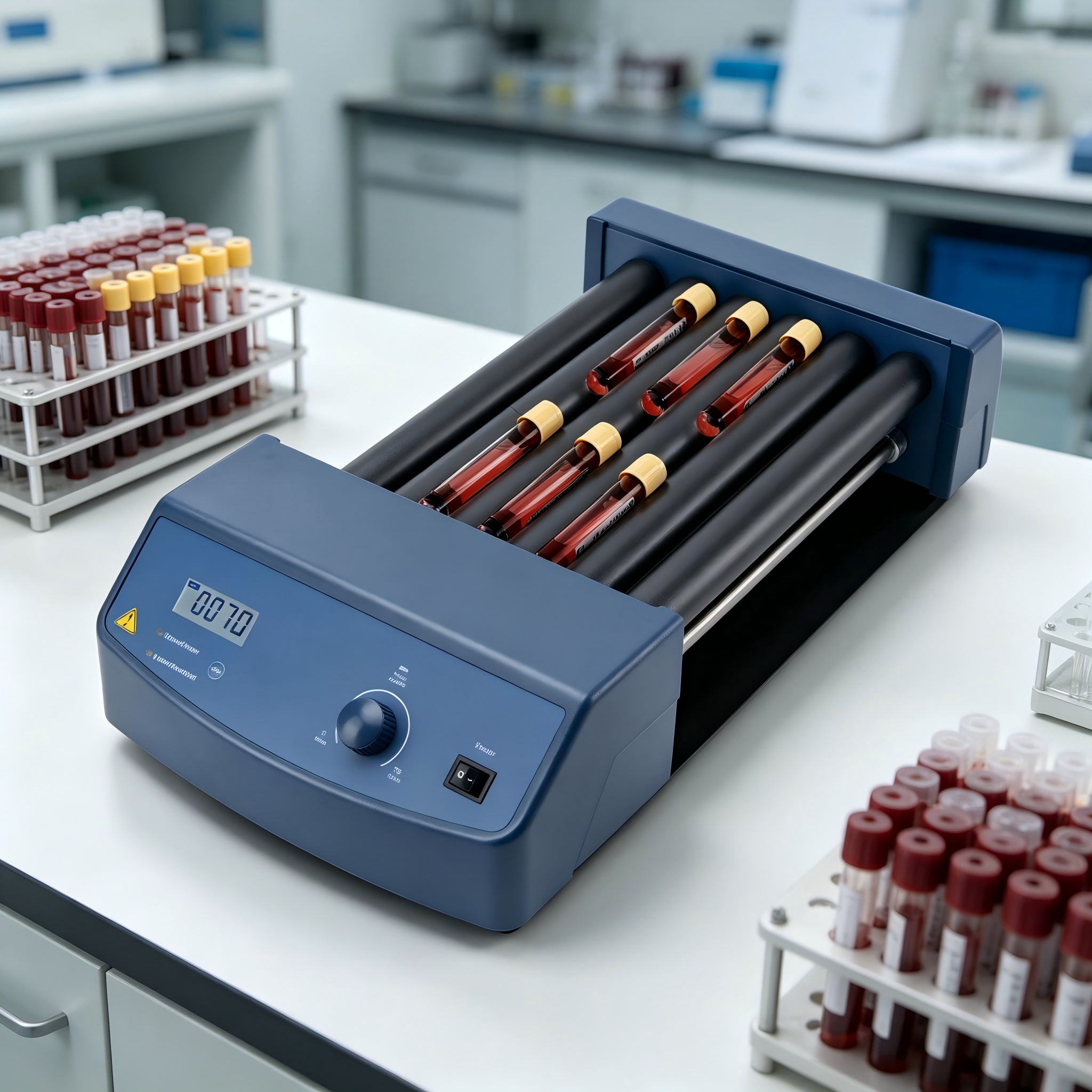

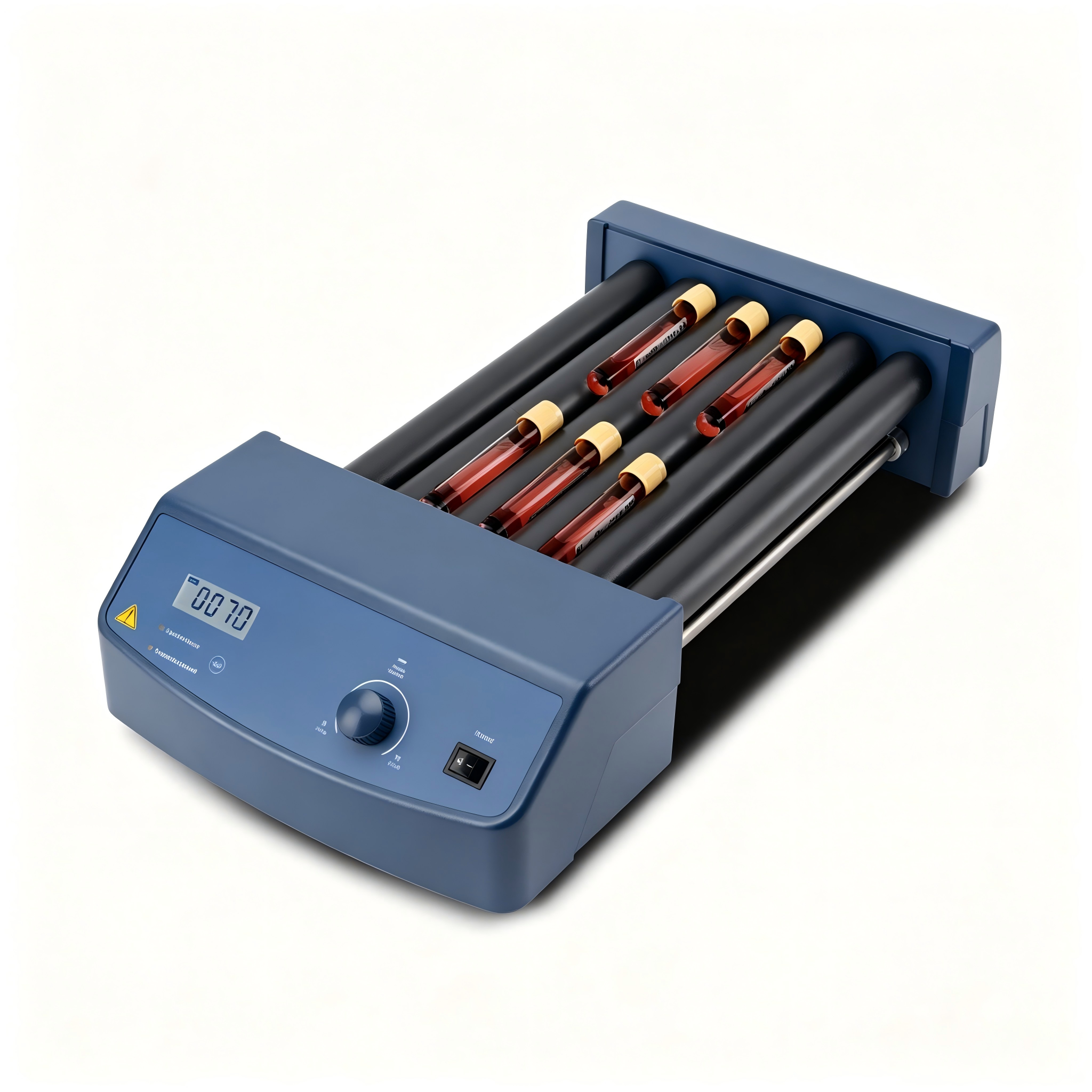

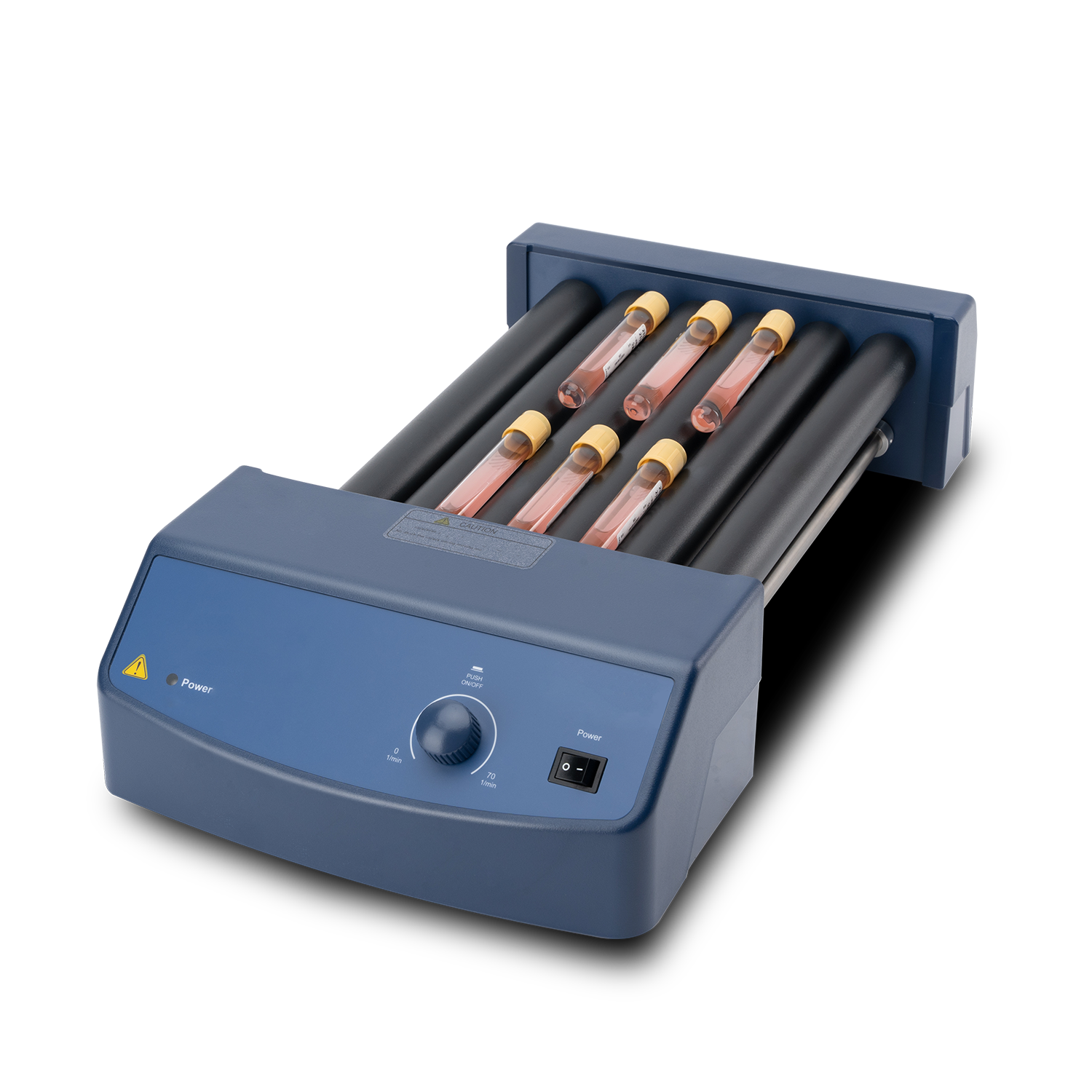

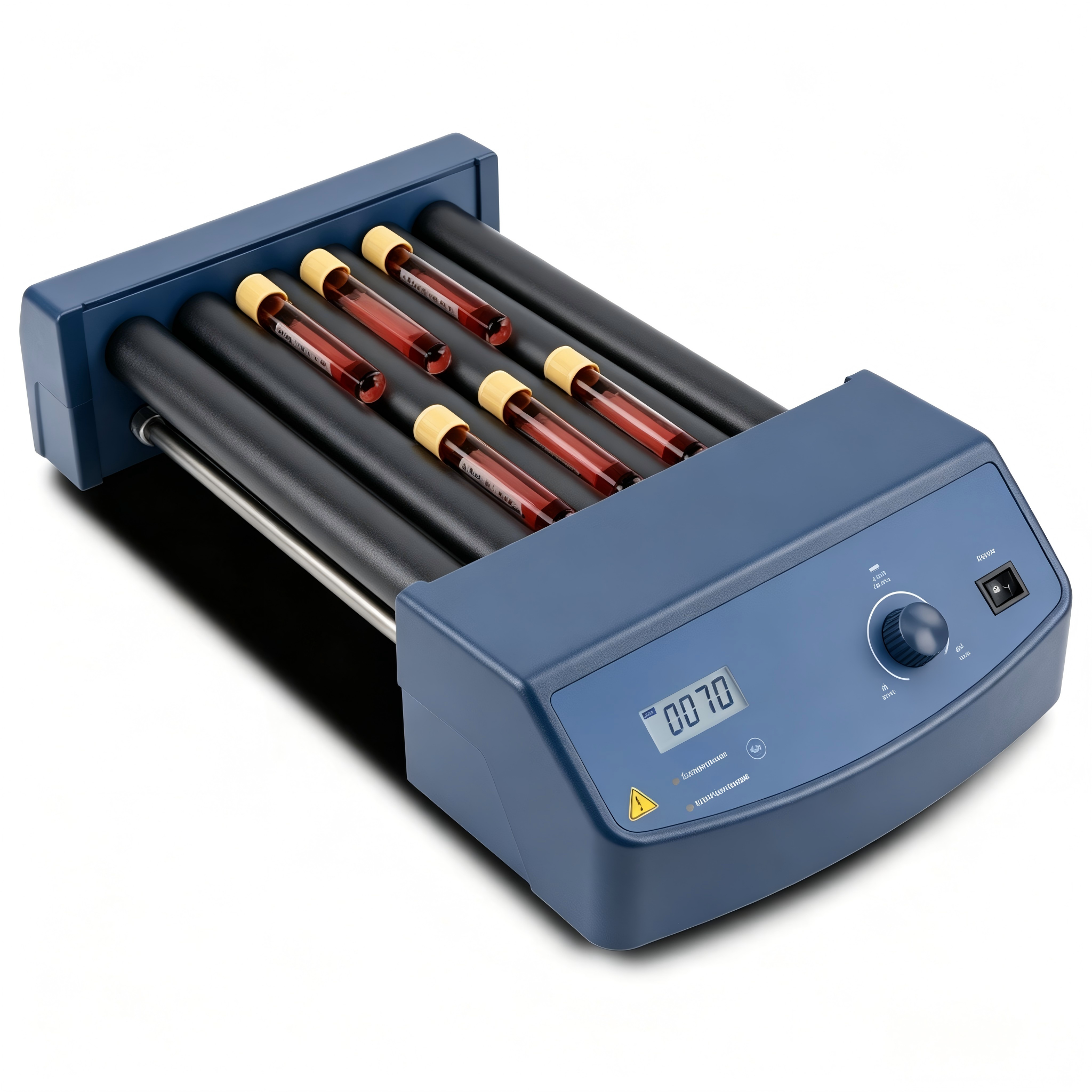

LCD digital display roller mixer

Name: LCD digital display roller mixer
Brand: labcarta Technology Co., Ltd.
SKU: LRM-R6-Pro
Price: 412.60 USD
Availability: InStock

No.LRM-R6-Pro

The LRM-R6-Pro is aimed at laboratories in fieldssuch as molecular biology, biochemistry, clinicaldiagnostics, and research

$412.60

Model:

LRM-R6-Pro

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

1. If you work with blood samples, viscous reagents and liquid-solid suspensions in molecular biology, biochemistry, clinical diagnostic or research labs and need a stable mixing device compatible with low-temperature environments and precise time control, the LRM-R6-Pro LCD Digital Tube Roller is designed for your routine pre-processing tests.

2. Conventional analog tube rollers only rely on scale estimation without auto-stop function, and samples need extra transfer for low-temperature incubation. This model features LCD screens to display real-time speed and time, supports 1–1199 min timed auto-stop, and can be directly placed inside cold rooms and incubators.

3. It comes with six 280mm rollers, fixed 24mm rocking & rolling amplitude, stepless speed range of 10–70rpm and 4kg rated load capacity, with maintenance-free brushless DC motor. Dimension: 485×250×100mm, net weight: 5.1kg, power: 30W, universal 100–240V wide voltage and IP21 dust & splash resistance. Its low-profile compact body saves valuable bench space, and minimal structural gaps simplify post-test cleaning work.

1. Six 280mm extended rollers for batch mixing: Hold multiple blood and centrifuge tubes simultaneously to avoid repeated batch operation and sample transfer, improving throughput for clinical and research labs. Gentle uniform rolling and minimal structural gaps enable easy wiping of residual reagents after tests.

2. Stepless adjustable speed from 10–70rpm: Low speed delivers smooth anti-coagulation mixing to prevent blood cell damage; medium-high speed evenly disperses viscous liquids and suspended particles to cover gradient mixing of various biological samples without extra equipment replacement.

3. Combined rocking & rolling motion with 24mm amplitude: Gentle integrated rolling and shaking prevents cell and precipitate stratification, eliminating sample degradation caused by harsh mixing and ensuring consistent, repeatable experimental results.

4. Dual LCD digital real-time display: Replace scale-based speed estimation with visible, traceable speed and timer readings, meeting standardized recording requirements for clinical and research laboratory tests.

5. Dual operation modes (timed / continuous): Set 1–1199 min countdown auto-stop for short-term mixing without manual supervision; unlimited continuous mode supports overnight incubation for immune precipitation and low-temperature tests to cut down manual monitoring work.

6. Maintenance-free brushless DC motor: Low noise and low vibration during operation, no carbon brush replacement required throughout service life to reduce frequent maintenance for hospitals and universities with year-round high-frequency use.

7. 4kg maximum load capacity: Process dozens of tubes per run to accelerate high-throughput pre-processing workflow in clinical labs and shorten daily operation time.

8. Cold room and incubator compatible: Directly placed inside low-temperature enclosed equipment to finish constant-temperature mixing in one step, removing the extra sample transfer step for cold experiments.

9. Universal 100–240V wide voltage: Compatible with global lab power standards; IP21 dust and splash resistance protects the unit from minor reagent spills to extend service life under regular lab conditions.

10. Low-profile compact layout: Small footprint fits standard benches, biosafety cabinets and low-temperature equipment, maximizing limited bench space for compact small laboratories.

11. Private brand customization supported: Distributors and labs with bulk orders can customize the device appearance and print self-owned brand logos to create exclusive instrument styles, differentiated from standard general models.

Specifications	LRM-R6-Pro
Amplitude	24mm
Motor type	Brushless DC motor
Rocking motion	Rocking and rolling
Max. load capacity	4kg
Number of rollers	6
Roller size[length]	280mm
Speed range	10-70rpm
Speed display	LCD
Timer	Yes
Timer display	LCD
Time setting range	1-1199min
Operation mode	Continuous/timer
Voltage,Frequency	100-240V,50/60HZ
Power	30W
Dimension [DxWxH]	485x250x100mm
Weight	5.1kg
Pemissible ambienttemperature and humidity	5-40℃,80%RH
Protection class	IP21

1.Tube loading operation: Place blood and centrifuge tubes stably between two rollers for natural clamping without extra fixtures; tubes will not slide or tip during 24mm rocking & rolling motion to simplify sample loading steps.

2. Power-on operation: Connect 100–240V power cord, LCD screens light up automatically. Adjust the knob to set target speed from 10–70rpm, real-time speed value is displayed on screen without repeated shutdown for speed check.

3. Mode switching operation: Select operation mode based on test duration. Set 1–1199 min countdown for short-term mixing with auto-stop function; switch to continuous mode for overnight constant-temperature incubation with non-stop rolling.

4. Low-temperature operation: The low-profile body can be directly placed inside cold rooms and incubators, enabling integrated mixing and incubation without separate sample transfer.

5. Post-test shutdown operation: Timed mode stops automatically when countdown finishes; cut off power manually after continuous-mode tests, take out all tubes and wipe residual blood and reagent liquid off rollers with lint-free cloth.

6. Daily maintenance operation: Wipe residual liquid on rollers and body gaps after each test to avoid long-term reagent corrosion. The brushless motor requires no regular carbon brush replacement, only keep the unit dry and clean.

7. Long-term storage operation: Disconnect power when the unit is idle for long periods, clean stains off rollers and store in dry non-condensing environment of 5–40℃ to extend the service life of motor and body.

1. Selection for low-temperature experiments: Choose LRM-R6-Pro if you need sample mixing and incubation inside cold rooms and incubators; basic non-low-temperature compatible models are available if cold environment operation is not required.

2. Selection for standardized timed tests: This model with LCD digital display and 1–1199 min timed auto-stop function fits clinical tests and overnight research incubation requiring precise timing and traceable data; basic non-timed units work for short-term mixing without time control demands.

3. Selection for year-round high-frequency use: Hospitals, medical universities and pharmaceutical R&D labs processing bulk blood samples daily can benefit from maintenance-free brushless motor to cut down equipment maintenance frequency and long-term workload.

4. Selection based on sample type: This tube roller is designed for gentle mixing of whole blood, plasma, viscous biological stock solutions and liquid-solid suspensions; vortex mixers are recommended for intensive fragmentation of micro samples.

5. Operating environment limit: Stable operation within dry labs of 5–40℃ and ≤80%RH without condensation; long-term high-humidity condensing environment accelerates body and motor corrosion, so store and operate in dry ventilated test areas.

6. Selection guide for private brand customization: If you are an instrument distributor or place bulk orders for exclusive branded equipment, this model supports appearance customization and private brand logo printing. The standard off-the-shelf version is enough for single-unit regular lab use.

2. Application Scenarios

1. Research Laboratories: Low-temperature anti-coagulation mixing of blood samples, low-speed constant-temperature rolling incubation for immune precipitation, homogeneous mixing experiments of viscous protein reagents

2. Universities & Education: Medical college teaching of blood sample pre-processing, basic training courses of low-temperature immune precipitation

3. Pharmaceutical & Chemical: Low-temperature constant-temperature rolling incubation of biological stock solutions, low-speed homogeneous mixing R&D tests of viscous polypeptide liquids

4. Medical & Healthcare: Batch pre-processing of blood tubes in clinical labs, timed overnight constant-temperature balancing mixing of pathological serum samples

Packaging structure & bulk protection: Standard export hard carton fully lined with high-density shock-absorbing foam. The main unit and power cord are placed in separate slots to avoid collision damage to LCD screen, rollers and speed knob during long sea and land transit. Reinforced buffer layers are provided by default for bulk foreign trade orders to reduce screen damage risk from extrusion and impact.

Standard package accessories: LRM-R6-Pro tube roller main unit, wide-voltage power cord and complete printed operation manual. No optional replaceable roller accessories are available for this model.
Customization service: Private brand customization is supported. Distributors and labs with bulk orders can customize device appearance and print self-owned brand logos to create exclusive instrument styles different from standard general models. Lead time for customized orders will be negotiated separately.
Package note: Outer carton dimension and total gross weight are estimated reference values only, final specifications subject to actual factory delivery packaging.
Lead time rule: In-stock standard models ship within 3–10 working days; orders with matched high-power vacuum pumps and custom continuous feeding kits take 15–30 working days.
Logistics options: Sea freight, air freight and full-truck land transport are available, with dedicated export logistics routes for bulk shipment of medium-sized laboratory mixing instruments.

Selling Units	Single item	Package size perbatch	58.53823.5cm
Gross weight perbatch	4.42kg

Name	Qty
Power Cable	1 pc
User Manual	1 copy
Packing List / Certificate of Conformity	1 set
Warranty Card	1 copy

Complete technical datasheet of LRM-R6-Pro: Fully based on all hardware values in the original specification table

2. Unit overall dimension drawing: Generated in accordance with official 485×250×100mm dimension data

3. Factory stability inspection report for brushless motor and full 4kg load: Corresponds to motor type and max load marked on spec sheet, only reflects actual measured hardware performance

4. Standard operation SOP for tube mixing under low-temperature environment: Supported by original brochure description of cold room & incubator compatibility

1. Can the combined rocking & rolling amplitude of this tube roller be adjusted manually? Answer: The amplitude is fixed at 24mm with no adjustable structure on the unit.

2. What is the maximum allowable total weight of rollers, test tubes and samples? Answer: Rated max total load is 4kg, overload operation is forbidden to prevent motor overload and unbalanced body shaking.

3. What is the continuously adjustable speed range, and is digital display equipped? Answer: Speed is stepless adjustable from 10–70rpm; built-in LCD digital screen displays real-time speed and timer values simultaneously.

4. Does the unit support timed auto-stop function, what is the timing range? Answer: Timed mode is available with adjustable range from 1 to 1199 minutes, the unit stops automatically after countdown ends; unlimited continuous running mode is also selectable.

5. Can the unit be placed inside cold rooms and incubators? Answer: This model is marked cold room and incubator compatible on the original brochure, the low-profile body can be directly placed inside low-temperature enclosed equipment for constant-temperature mixing experiments.

6. What is the protection class and required temperature & humidity for stable operation? Answer: Protection class IP21; standard operating environment 5–40℃, relative humidity ≤80%RH, operate only under dry non-condensing conditions.

7. What are overall unit dimension, single roller length and net weight of the unit? Answer: Unit dimension L×W×H: 485×250×100mm; 6 rollers with single length of 280mm; net weight 5.1kg.

8. What are motor type, total unit power and power supply voltage range respectively? Answer: Brushless DC motor; total unit power 30W; auto-adaptive 100–240V 50/60Hz wide voltage, no extra transformer needed.

9. Does the motor require regular carbon brush replacement for maintenance? Answer: The unit adopts fully maintenance-free brushless DC motor, no carbon brush replacement required throughout its service life.

10. Are replaceable rollers or dedicated tube clamps available as optional accessories? Answer: Standard package only contains main unit and power cord; no optional spare rollers or special fixing clamps are provided.

11. Is private brand customization available for this tube roller? Answer: Private brand customization is supported. Distributors and labs with bulk orders can customize the appearance and print self-owned brand logos to form exclusive instrument styles, and lead time for customized orders will be negotiated separately.

1. Information required for quotation: Model LRM-R6-Pro, total order quantity and destination country. If you require private brand appearance customization, please provide your order quantity and customization requirements to receive tiered bulk discount or exclusive customized quotation.

2. Quotation lead time: Official formal PI quotation will be issued within 24 working hours after full purchase demand confirmation.

3. Bulk purchase discount: Exclusive tiered volume preferential pricing negotiable for mass procurement of multiple units from hospitals, key university research labs and pharmaceutical enterprises.
