Home > All Collections > Mixing and Vibration Equipment Series > Long Deck Rocking Rotator

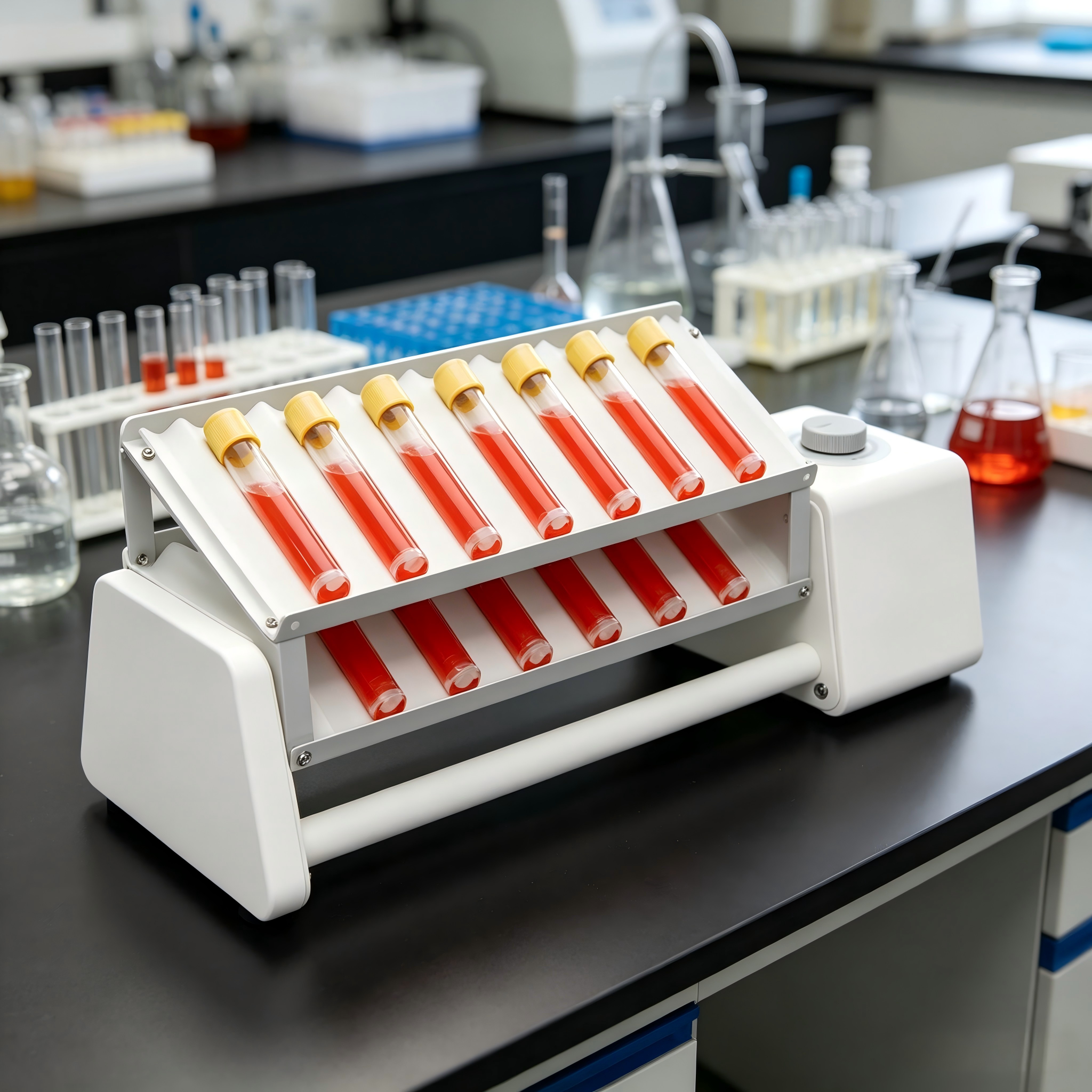

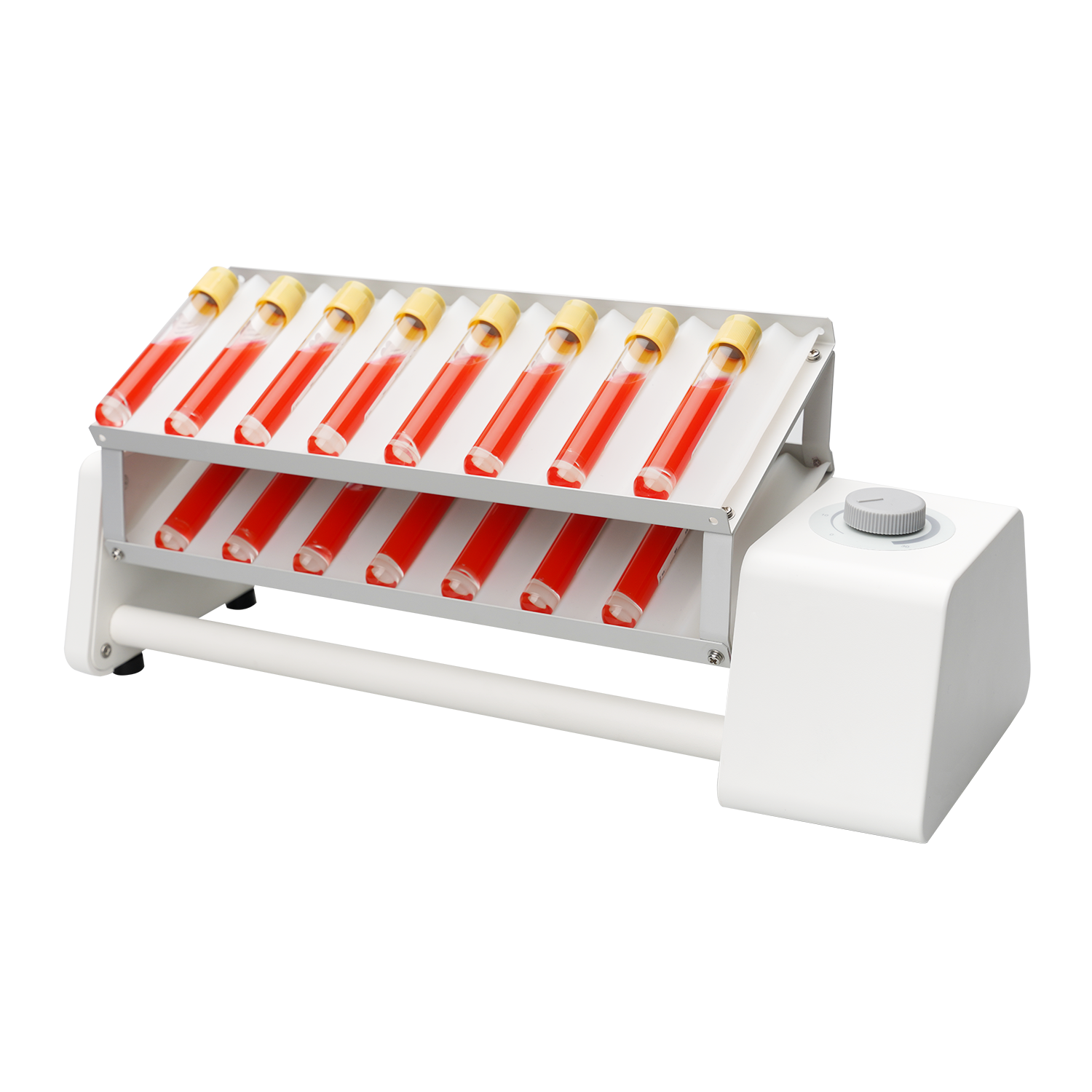

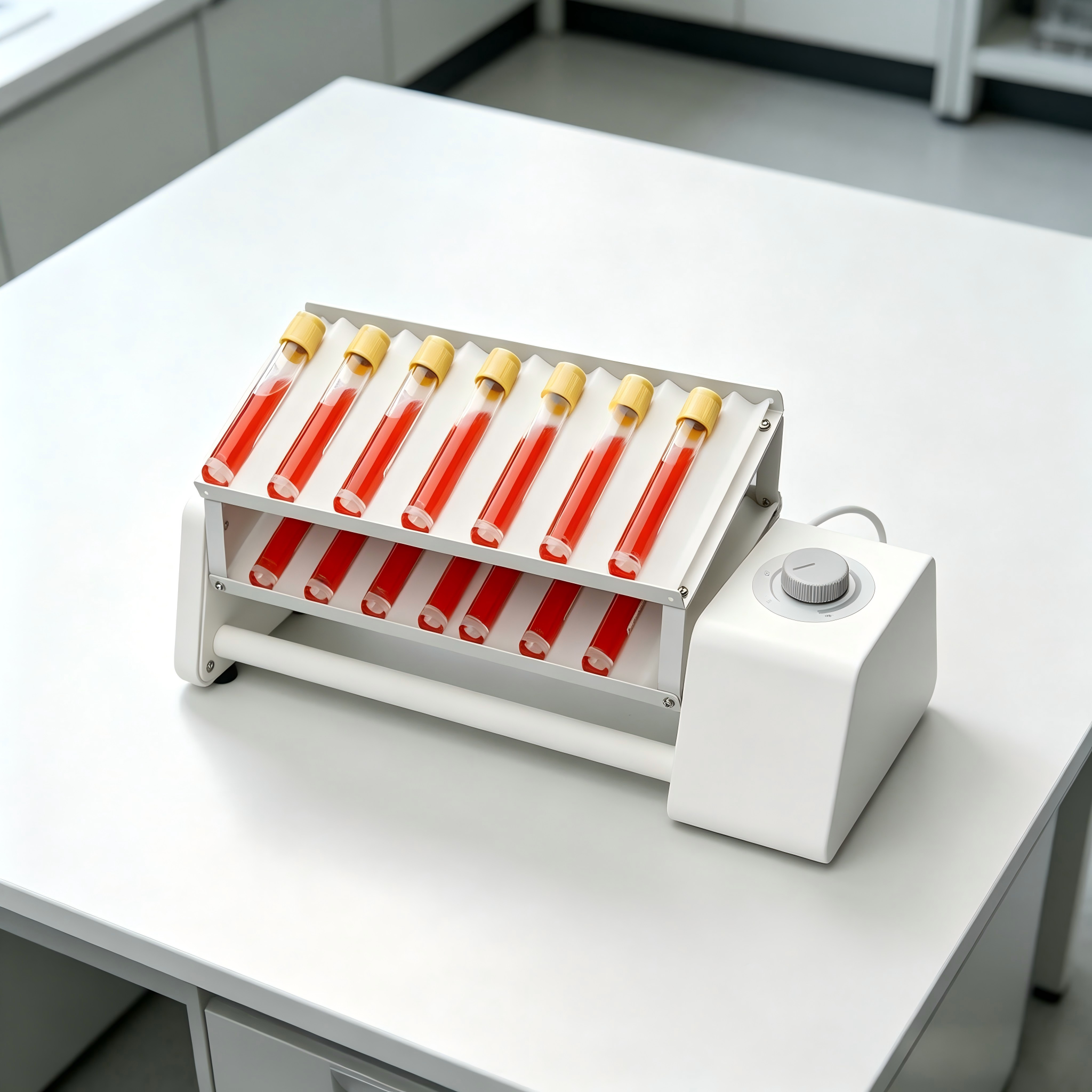

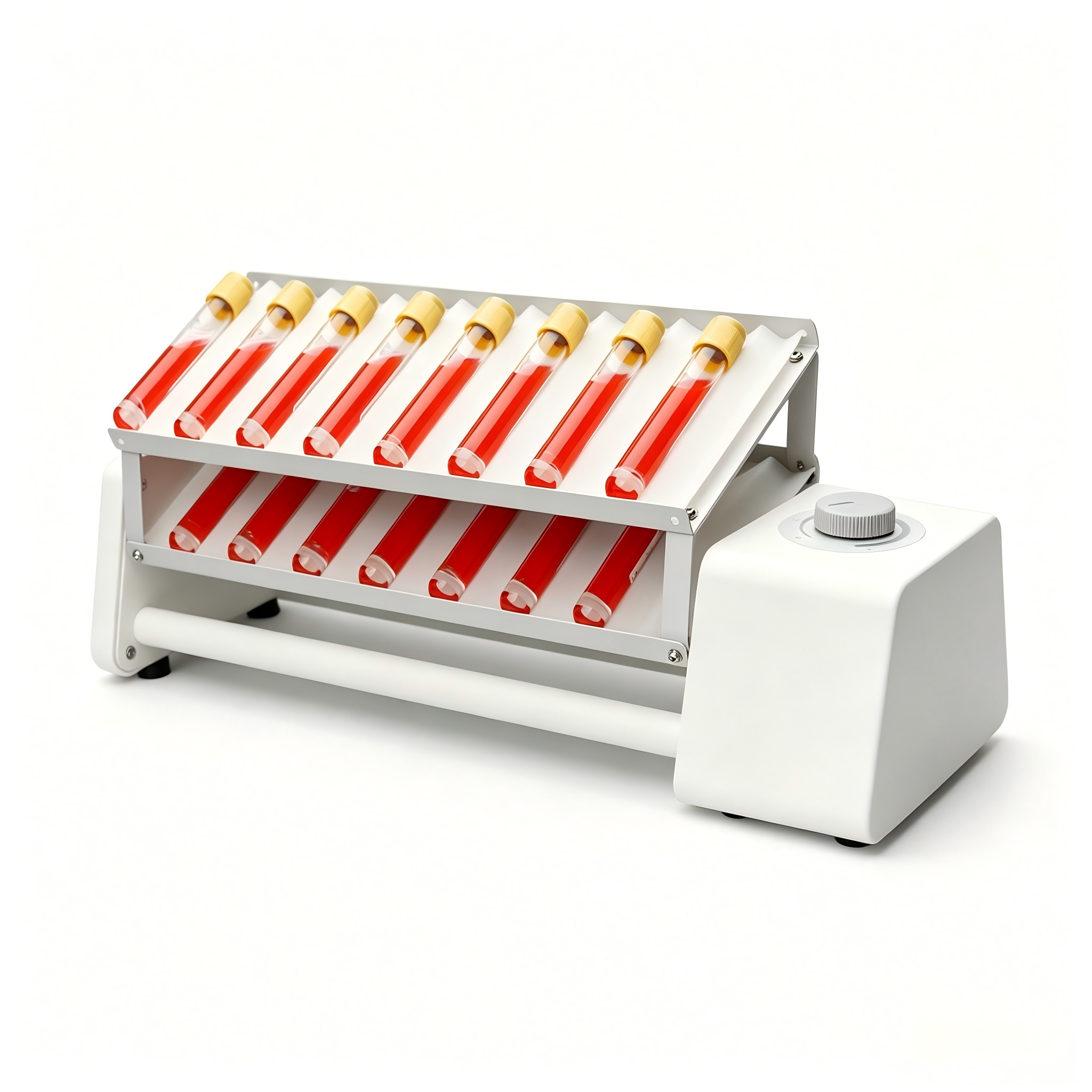

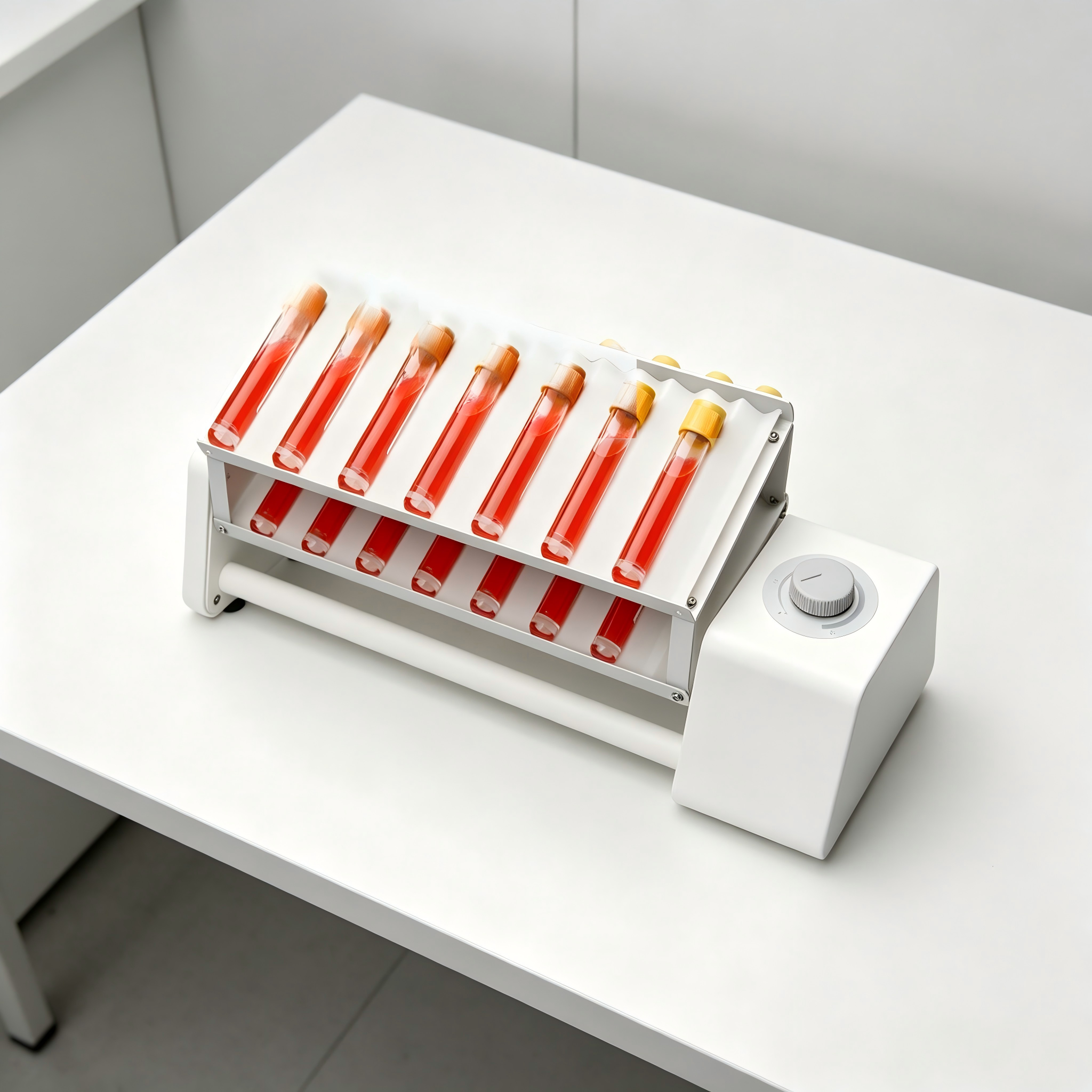

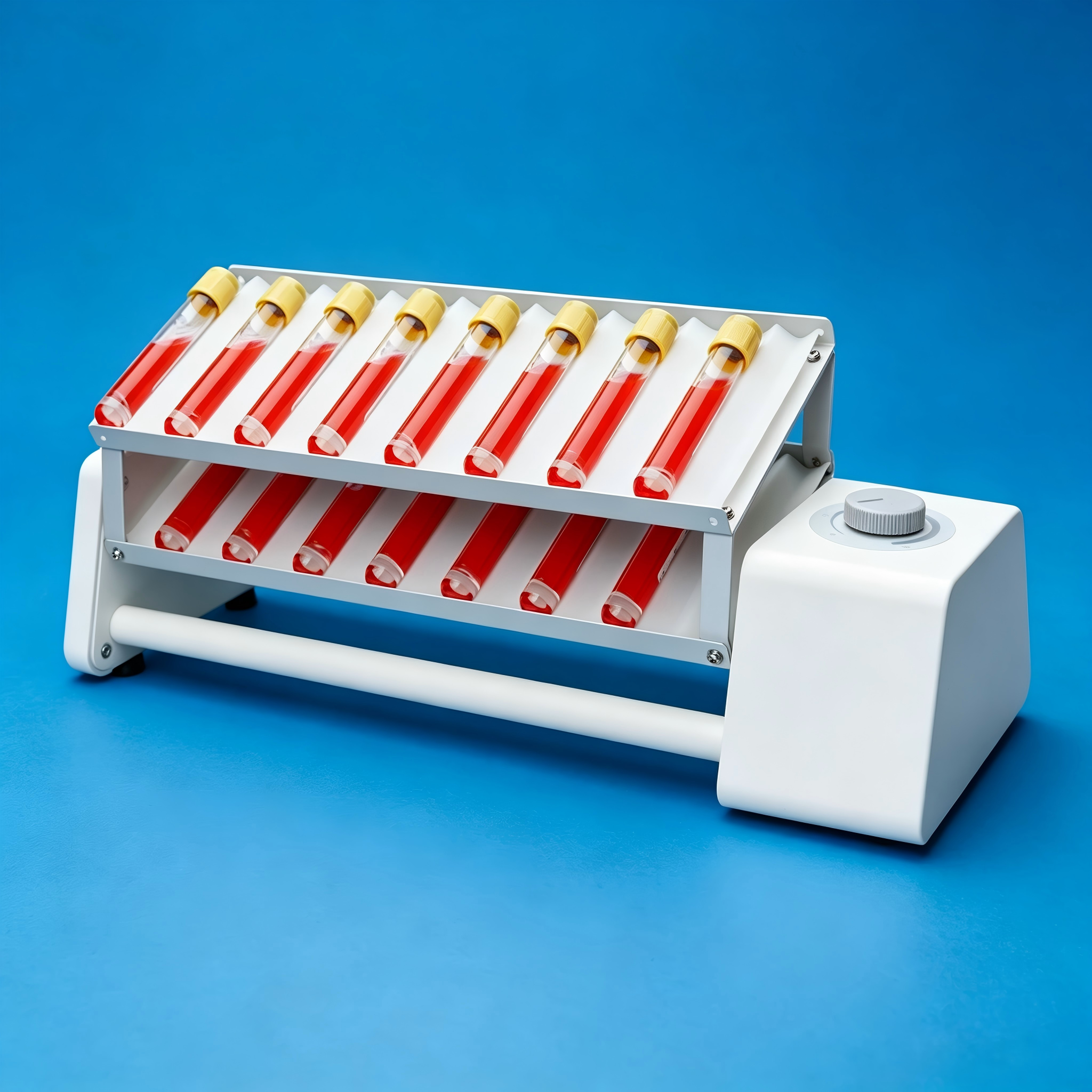

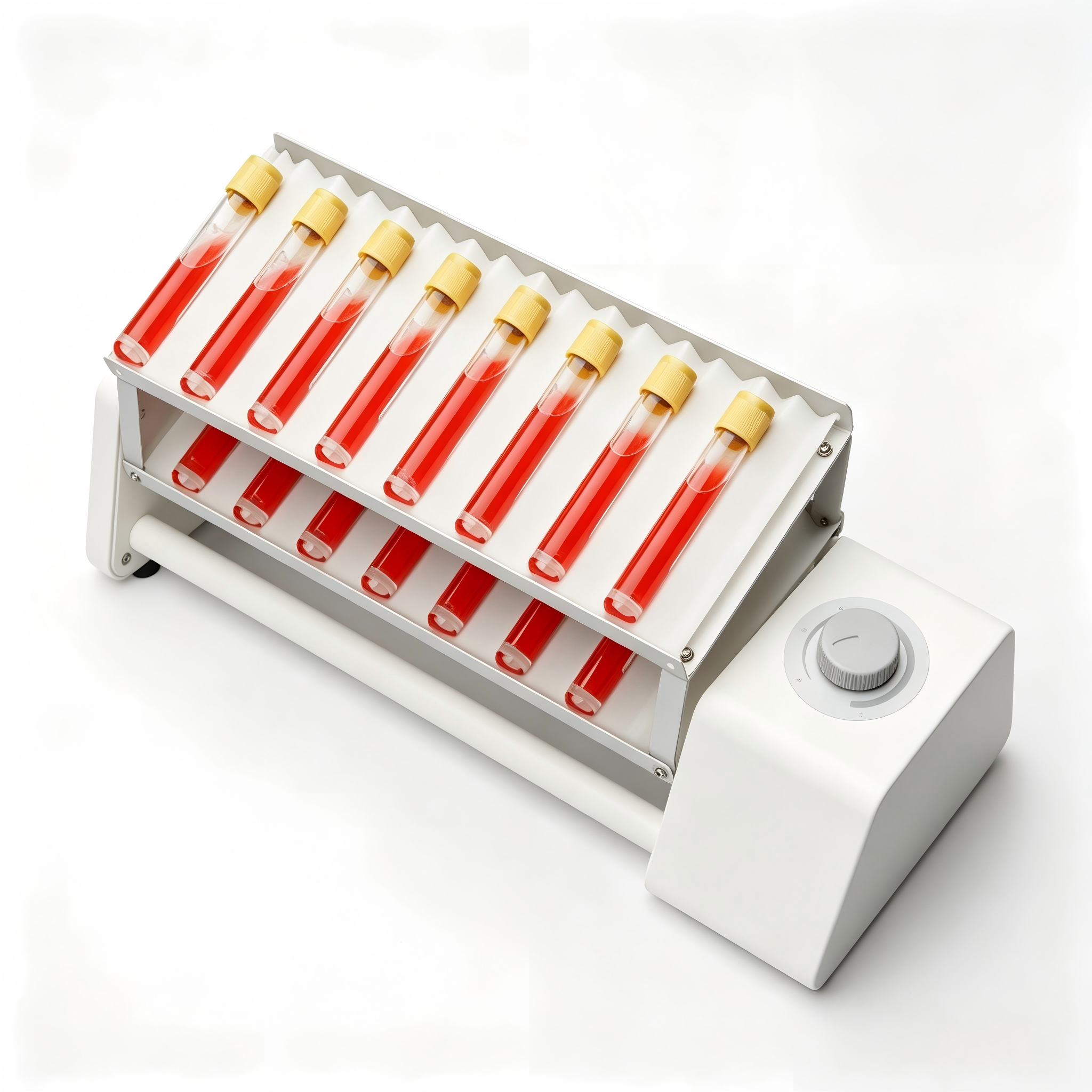

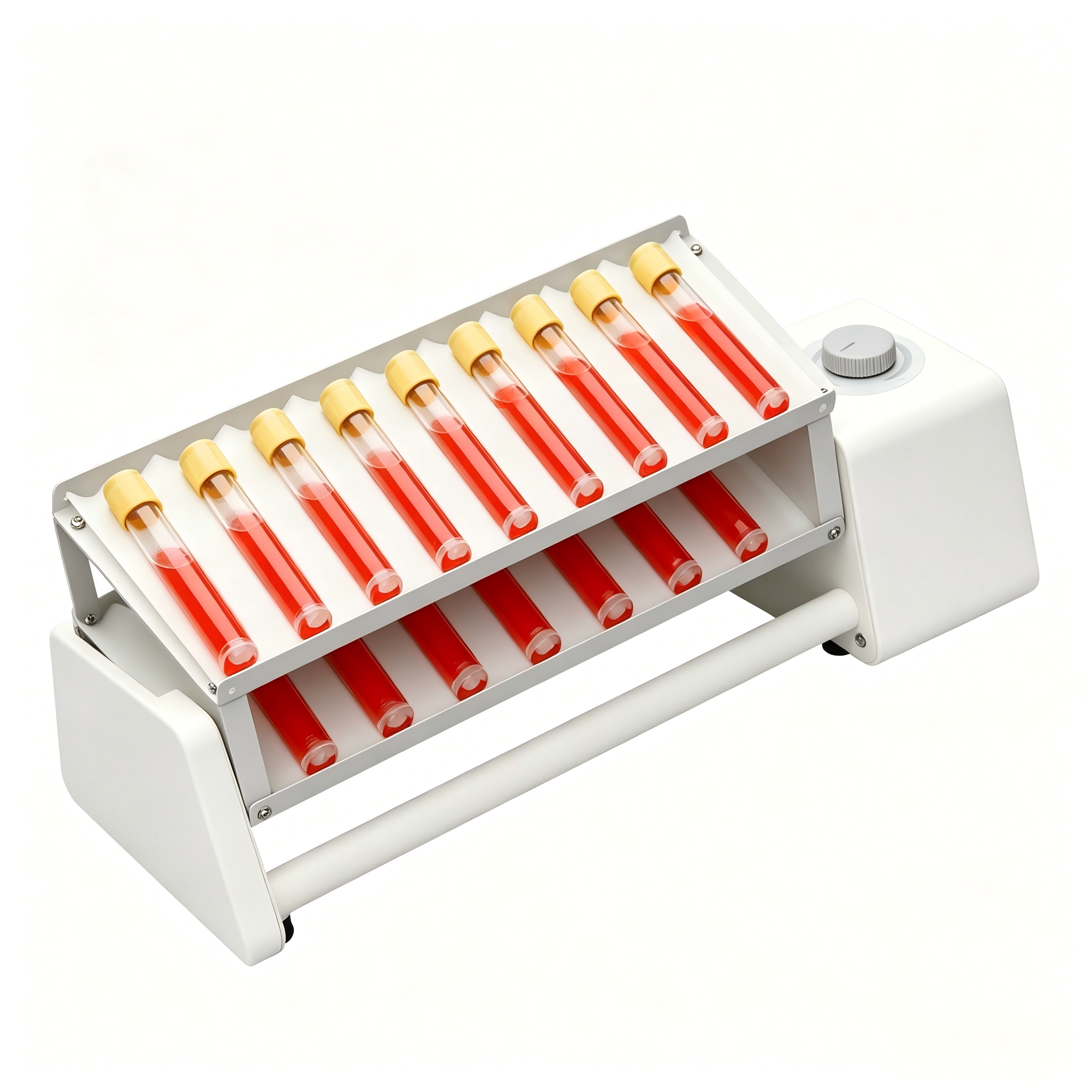

Long-axis oscillating mixer

Name: Long-axis oscillating mixer
Brand: labcarta Technology Co., Ltd.
SKU: LSK30-RD-E
Price: 240.80 USD
Availability: InStock

No.LSK30-RD-E

The LSK30-RD-E is aimed at laboratories in fieldssuch as molecular biology, microbiology, pathology,immunology, and clinical diagnostics. Its targetaudience includes researchers and technicians whorequire efficient mixing of biological samples forvarious applications, including blood sampleprocessing.

$240.80

Model:

LSK30-RD-E

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

If you process various biological samples including blood specimens in molecular biology, microbiology, pathology, immunology and clinical diagnostic labs and require a device for long-term continuous gentle mixing, the LSK30-RD-E Long Deck Rocking Rotator fits your routine pre-processing workflow.
Equipped with brushless DC motor for continuous-only operation without timed stop function, fixed tilt angle of 40±3°, stepless speed range from 0–30rpm and rated load capacity of 1kg. Dimension: 405×160×160mm, net weight: 2.2kg, power: 15W, universal 100–240V wide voltage compatible with global lab power supply. It operates within 5–40℃ and ≤80%RH environment, and supports multiple silicon mattress accessories to match various tube sizes.

Driven by brushless DC motor: Low-noise and stable operation, no carbon brush replacement required, suitable for long-term uninterrupted use in hospitals, universities and research labs to cut regular maintenance workload.
Continuous-only operation mode: No timer auto-stop function, supports all-day non-stop rocking mixing for overnight immune precipitation and long-duration blood incubation tests without manual supervision.
Optional multi-size silicon mattress accessories: Replaceable silicone mats for different tube diameters firmly secure blood tubes and prevent sliding or tipping during mixing, compatible with simultaneous processing of diverse samples.
Fixed tilt angle of 40±3°: Moderate gentle rocking achieves thorough mixing while avoiding damage to blood cells and immune complexes caused by harsh vibration, preserving intact biological samples and repeatable test results.
Stepless adjustable low speed range 0–30rpm: Designed for mild mixing of fragile biological samples, covering routine specimen processing demands of clinical diagnostic and basic research labs without extra mixing equipment.
1kg maximum rated load: Process multiple tubes in one run to boost daily batch processing efficiency for small & medium clinical and research labs and shorten overall operation time.
Universal 100–240V wide voltage: Compatible with global lab power standards, stably operates long-term under regular lab environment of 5–40℃ and ≤80%RH to extend service life.
Compact long deck layout: Overall dimension 405×160×160mm with small footprint, fits standard lab benches and saves limited operating space.

Specifications	LSK30-RD-E
Tilt angle	40±3°
Load capacity	1kg
Motor type	Brushless DC motor
Speed range	0~30rpm
Operation mode	Continuous
Dimension(W×D×H)	405×160×160mm
Voltage, Frequency	100~240V, 50/60HZ
Power	15W
Weight	2.2kg
Permissible ambient temperature and humidity	5-40℃, 80%RH

Tube loading operation: Lay silicon mattress matching your tube size flat on the deck, place blood tubes steadily into slots. Tubes will not slide or tip during 40° tilted rocking without extra binding fixtures.
Power-on operation: Connect 100–240V power cord, rotate speed knob to set target speed from 0–30rpm, the unit runs continuously after startup.
Long-duration test operation: This model only supports continuous operation without timed auto-stop function. Keep power connected for overnight or long-time constant-temperature incubation, cut off power manually after all tests finish.
Post-test cleaning operation: Manually cut off power, take out all tubes and wipe residual blood and reagent liquid off silicon mat and body with lint-free cloth.
Daily maintenance operation: Clean deck stains after each test. The brushless motor requires no regular carbon brush replacement, only keep the unit dry and clean.
Long-term storage operation: Disconnect power during long idle periods, remove and air-dry silicon mats separately, store the whole unit in dry ventilated non-condensing environment of 5–40℃ to extend the service life of motor and body.

How to Choose

Selection for long continuous mixing demands: If you conduct overnight immune precipitation and long-duration blood balancing tests, LSK30-RD-E with continuous-only operation is suitable; choose timed models for segmented short-term mixing.
Selection for moderate gentle biological sample mixing: 40° tilt rocking and 0–30rpm low speed range achieve thorough mixing without damaging blood cells and immune complexes, matching daily testing in clinical diagnostic, immunology and pathology labs.
Selection for batch tube processing: Small and medium labs with daily multi-tube blood pre-processing can utilize the 1kg load capacity to process multiple tubes at once and boost daily throughput.
Selection for multi-size tube compatibility: Replaceable silicon mats fit various blood tube diameters, eliminating the need to purchase multiple separate devices and cutting lab procurement costs.
Selection guide for private brand customization: If you are an instrument distributor or place bulk orders for exclusive branded equipment, this model supports appearance customization and private brand logo printing. The standard off-the-shelf version is enough for single-unit regular lab use.

2. Application Scenarios

Research Laboratories: Constant-temperature incubation of molecular biology samples, long-term balancing of microbial suspensions, continuous mixing for immune precipitation
Universities & Education: Basic training of immunology, pathology and clinical diagnostics in medical colleges, teaching operation of blood sample pre-processing
Medical & Healthcare: Batch blood sample mixing and clinical immune precipitation testing in hospital clinical and pathology labs
Emergency Control Centres: Long-duration continuous mixing treatment of pathogenic microbial samples

Packaging structure: Standard export hard carton lined with high-density shockproof foam. Deck and speed knob are separated in dedicated slots to prevent transit damage. Reinforced buffer layers are provided by default for bulk orders.
Standard package accessories: Main rocking rotator unit, wide-voltage power cord and full printed manual. Silicon mats are optional, not included as standard.
Customization service: Bulk OEM private brand customization (appearance & logo printing) is available to make exclusive instrument styles, lead time for full custom orders will be negotiated separately.
Package note: Outer carton dimension and total gross weight are estimated for reference only, subject to actual factory shipment packaging.
Lead time: Standard in-stock items ship within 3–10 working days; separate customized accessories take 15–30 working days; full unit OEM lead time to be confirmed via separate discussion.
Logistics options: Sea freight, air freight, full-truck land transport and global door-to-door courier are available for small & bulk overseas shipments.

Selling Units	Single item	Package size perbatch	502321cm
Gross weight perbatch	5.2kg

Name	Qty
Power Cable	1 pc
User Manual	1 copy
Packing List / Certificate of Conformity	1 set
Warranty Card	1 copy

Complete technical datasheet of LSK30-RD-E: Fully based on all hardware values in the original specification table
Unit overall dimension drawing: Generated in accordance with official 405×160×160mm dimension data
Factory stability inspection report for brushless motor and full 1kg load: Corresponds to motor type and max load marked on spec sheet, only reflects actual measured hardware performance
Standard operation SOP for continuous mixing of biological samples: Supported by brochure description of compatibility with molecular, immunology, pathology and clinical diagnostic labs

Can the combined rocking tilt angle of this rotator be adjusted manually?
Answer: The tilt angle is fixed at 40±3° with no adjustable structure on the unit.
What is the maximum allowable total weight of deck, test tubes and samples?
Answer: Rated max total load is 1kg, overload operation is forbidden to prevent motor overload and unbalanced body shaking.
What is the continuously adjustable speed range, and does it support timed auto-stop function?
Answer: Speed is stepless adjustable from 0–30rpm; this model only works in continuous mode without timer auto-stop function.
Can the unit be placed inside cold rooms and incubators?
Answer: The brochure does not mark low-temperature built-in compatibility. It can only be used on open lab benches within 5–40℃, placement in enclosed low-temperature equipment is not recommended.
What are the required temperature & humidity conditions for stable operation?
Answer: Stable operation within dry ventilated labs of 5–40℃ and ≤80%RH without condensation.
What are overall unit dimension, net weight and power consumption?
Answer: Unit dimension W×D×H: 405×160×160mm; net weight: 2.2kg; power: 15W.
What are motor type, total power and power supply voltage range respectively?
Answer: Brushless DC motor, total power 15W; auto-adaptive 100–240V 50/60Hz wide voltage, no extra transformer needed.
Does the motor require regular carbon brush replacement for maintenance?
Answer: The unit adopts fully maintenance-free brushless DC motor, no carbon brush replacement required throughout its service life.
Are silicon mats included as standard factory accessories?
Answer: Standard package only contains main unit and power cord; silicon mats are optional accessories requiring separate orders.
Is private brand customization available for this rocking rotator?
Answer: Private brand customization is supported. Distributors and labs with bulk orders can customize the appearance and print self-owned brand logos to form exclusive instrument styles, and lead time for customized orders will be negotiated separately.

Information required for quotation: Model LSK30-RD-E, total order quantity and destination country. If you require optional silicon mats or private brand appearance customization, please provide your order quantity and customization requirements to receive tiered bulk discount or exclusive customized quotation.
Quotation lead time: Official formal PI quotation will be issued within 24 working hours after full purchase demand confirmation.
Bulk purchase discount: Exclusive tiered volume preferential pricing negotiable for mass procurement of multiple units from hospitals, key university research labs and emergency control centres.
