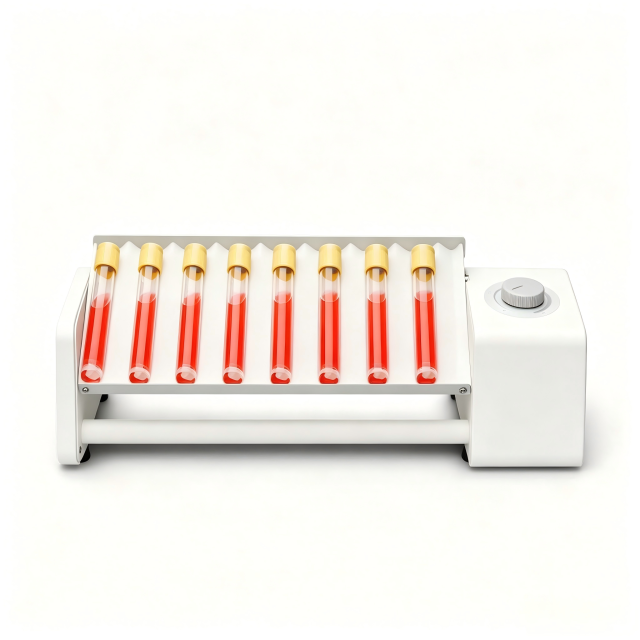

Long-axis oscillating mixer

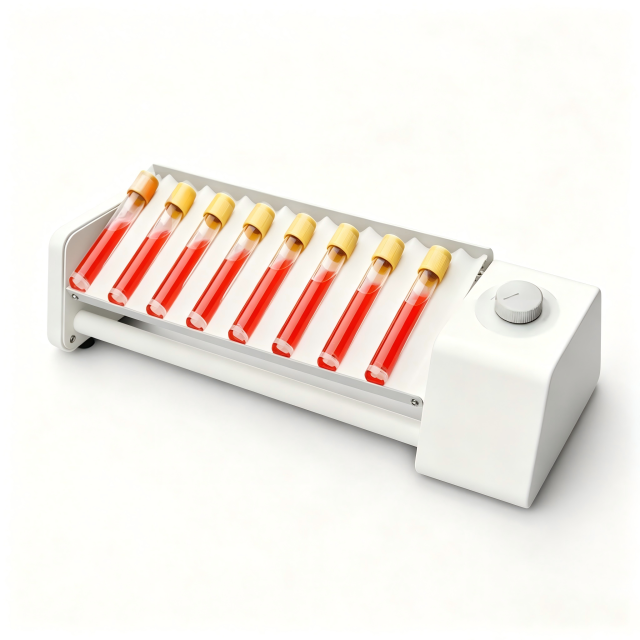

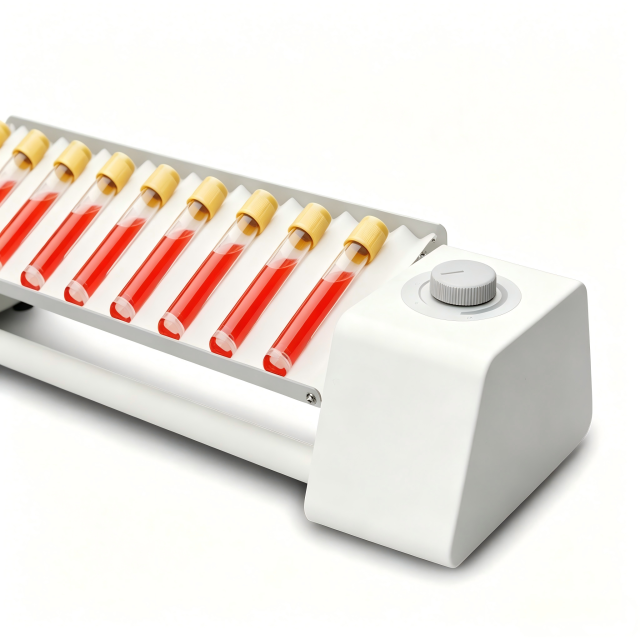

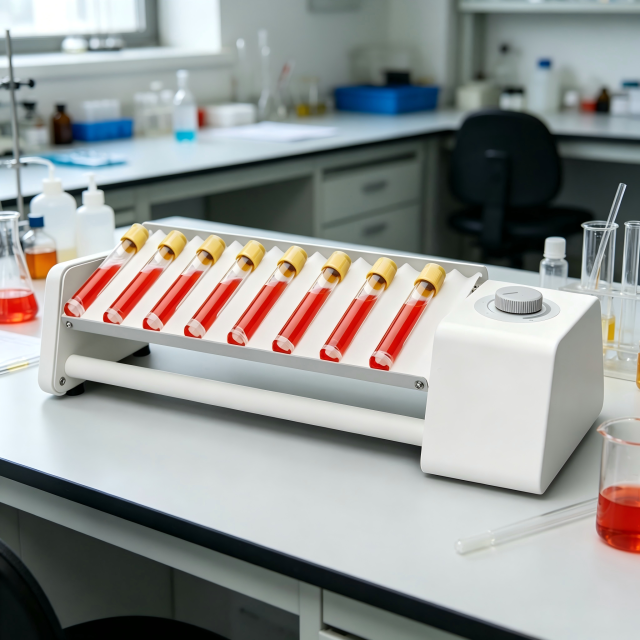

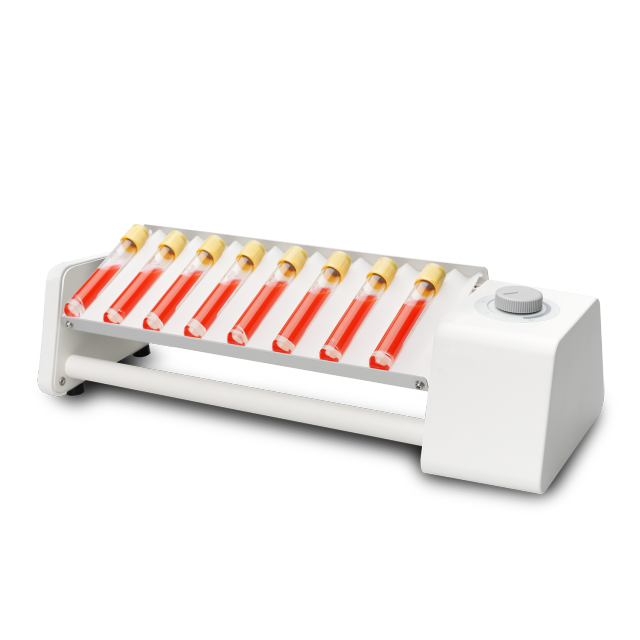

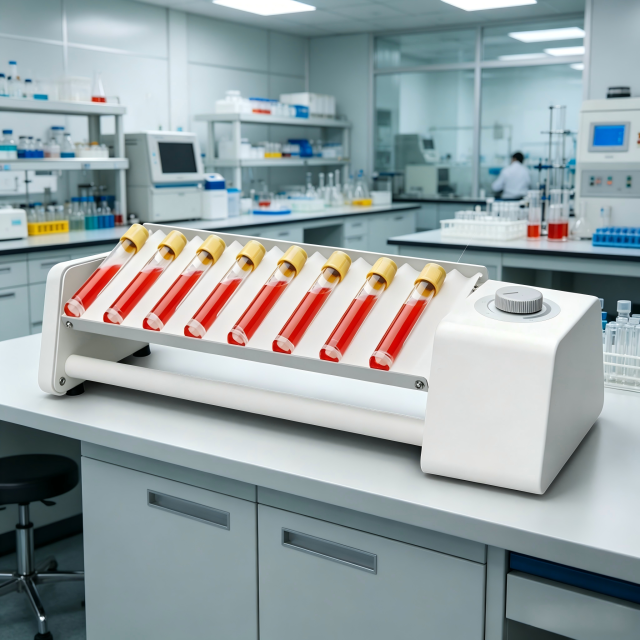

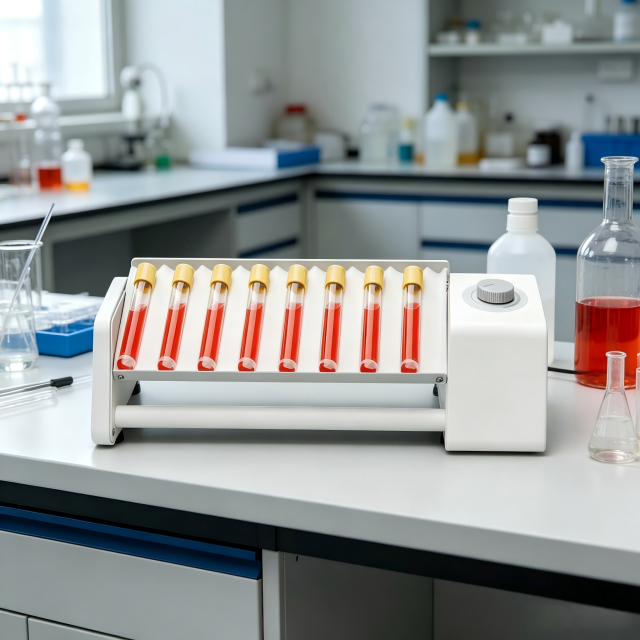

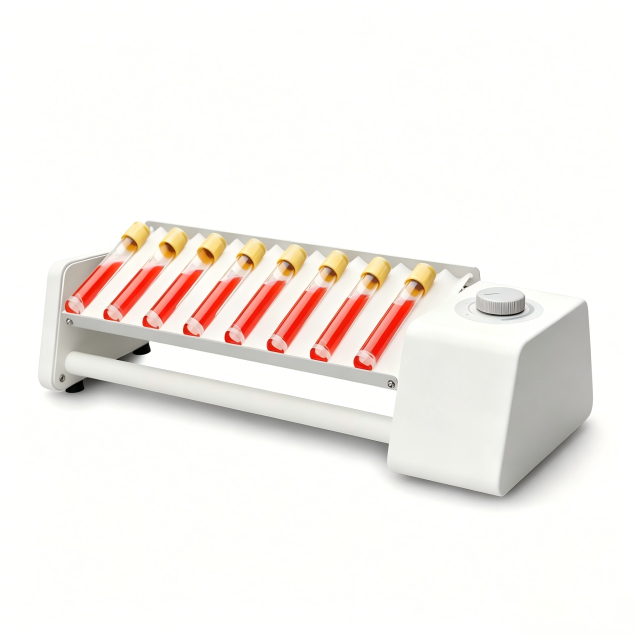

• If you process biological samples such as blood specimens and immune precipitations in molecular biology, virology, microbiology, pathology and immunology labs and need a device for long-term continuous gentle mixing, the LSK30-RL-E Long Deck Rocking Rotator matches your routine sample pre-processing demands.
• Equipped with brushless DC motor for unlimited continuous operation without timed stop function, fixed tilt angle of 30±3°, speed range from 0–30rpm and rated load capacity of 1kg. Dimension: 405×160×120mm, net weight: 2kg, power: 15W, universal 100–240V wide voltage compatible with global lab power supply. It operates under 5–40℃ and ≤80%RH environment, and supports various silicon mattress accessories to fit different tube sizes.

• Driven by brushless DC motor: Low-noise and stable operation, no carbon brush replacement required, suitable for long-term uninterrupted use in research and medical labs to cut regular maintenance workload.
• Pure continuous operation mode: Without auto-timer stop function, it supports all-day non-stop mixing for overnight immune precipitation and long-duration blood sample incubation without manual start-stop supervision.
• Optional various silicon mattress accessories: Match silicone mats for different tube sizes to fix blood tubes and prevent sliding or tipping during mixing, adapting to diverse sample processing requirements.
• Fixed tilt angle of 30±3°: Gentle rocking motion avoids damage to blood cells and immune complexes caused by harsh vibration, maintaining intact biological sample structure and consistent repeatable test results.
• Stepless adjustable speed 0–30rpm: Low speed range realizes mild mixing for fragile biological samples, covering basic gradient sample processing needs of clinical and research labs without extra mixing equipment.
• 1kg maximum rated load: Hold multiple tubes in one run for daily batch blood sample processing in small and medium labs to shorten daily operation time.
• Universal 100–240V wide voltage: Compatible with global lab power standards, stably runs long-term under regular lab environment of 5–40℃ and ≤80%RH.
• Compact long deck layout: Overall dimension 405×160×120mm with small footprint, fits standard lab benches and saves limited operating space.

• Tube loading operation: Lay silicon mattress matching your tube size on the deck, place blood tubes steadily into slots. Tubes will not slide or tip during 30° tilted rocking without extra binding fixtures.

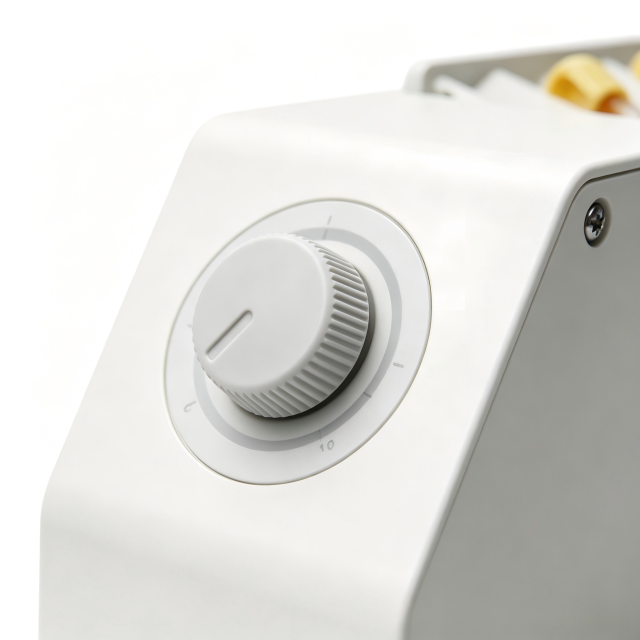

• Power-on operation: Connect 100–240V power cord, rotate speed knob to set target speed from 0–30rpm, the unit runs continuously after startup.
• Long-duration test operation: This model only supports continuous operation without timed auto-stop function. Keep power connected for overnight or long-time incubation, cut off power manually after tests finish.
• Post-test cleaning operation: Disconnect power, take out all tubes, wipe residual reagent and blood off silicon mat and body to keep the unit dry and clean.
• Daily maintenance operation: Clean deck stains after each test. The brushless motor requires no regular carbon brush replacement, only store the unit under dry non-condensing environment of 5–40℃.
• Long-term storage operation: Disconnect power during long idle periods, remove and air-dry silicon mats separately, store the whole unit in dry ventilated lab area to extend motor and body service life.

Selling Units

Single item

Package size perbatch

50*23*21cm

Gross weight perbatch

5.2kg

• Information required for quotation: Model LSK30-RL-E, total order quantity and destination country. If you need optional silicon mats or private brand appearance customization, please provide order quantity and accessory/customization requirements to receive tiered bulk discount or exclusive customized quotation.
• Quotation lead time: Official formal PI quotation will be issued within 24 working hours after full purchase demand confirmation.
• Bulk purchase discount: Exclusive tiered volume preferential pricing negotiable for mass procurement of multiple units from hospitals, key university research labs and emergency control centres.
