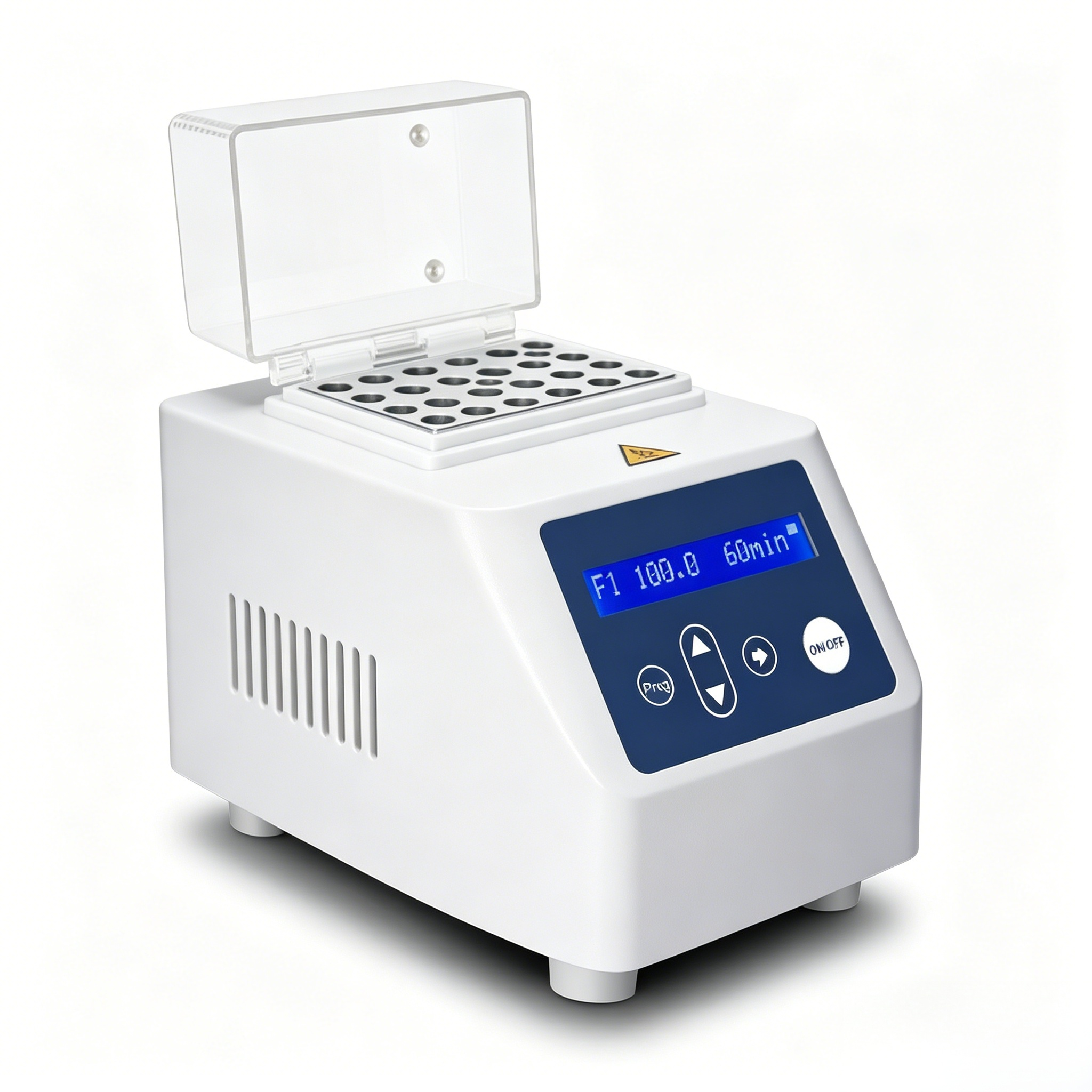

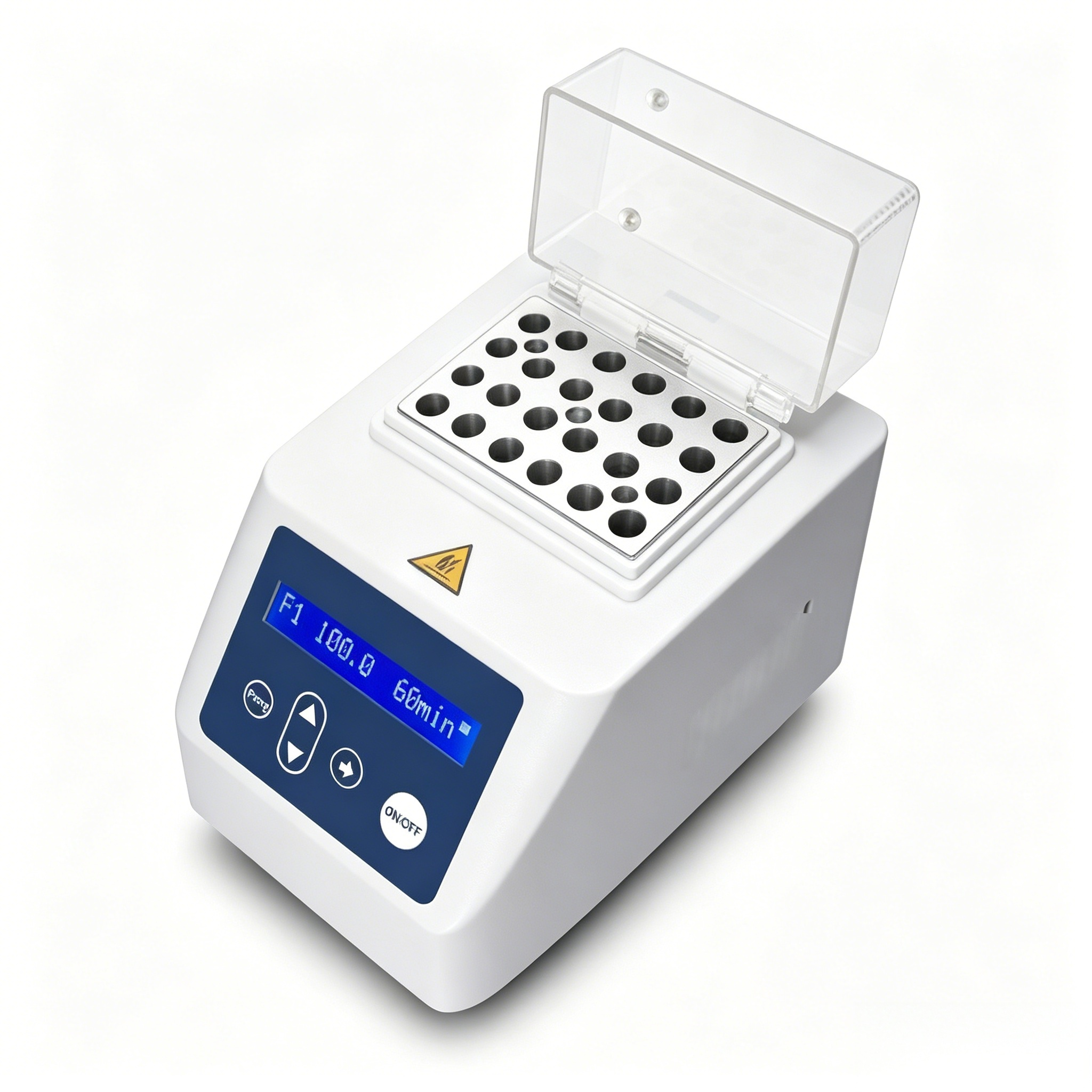

Mini dry thermostat

• This series includes 3 models of mini dry bath: L100HCL-Mini, L100HC-Mini, L100H-Mini, designed for rapid and uniform temperature control of biological samples, applied in sample preservation, nucleic acid & protein denaturation and other experiments.

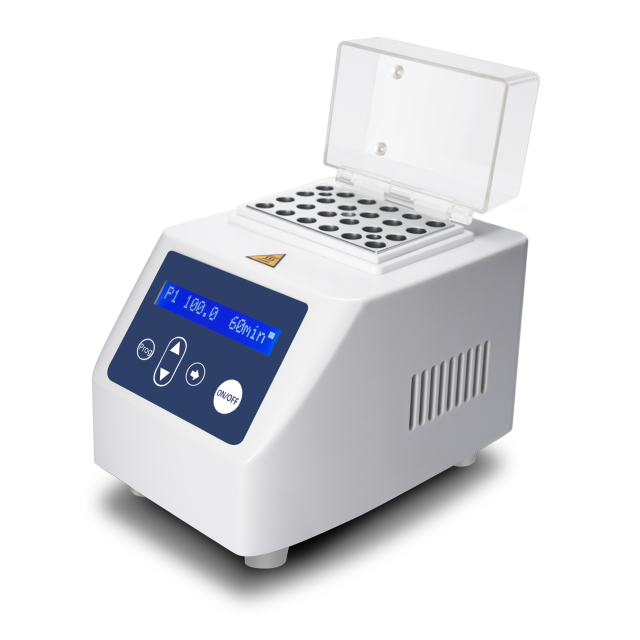

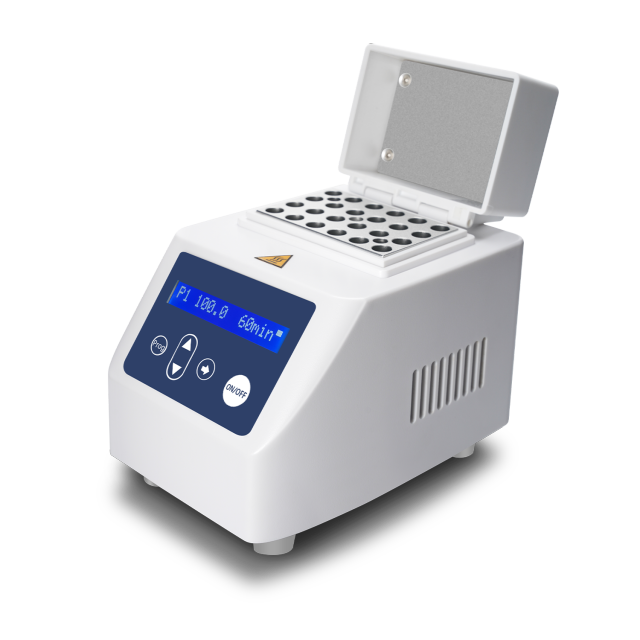

• Clear functional differentiation among models: L100H-Mini only heating function; L100HC-Mini supports heating & cooling; L100HCL-Mini integrates heating and cooling plus a hot lid to avoid condensation on tube caps.
• Compact and lightweight unit (total weight ≤1kg) equipped with LCD display for digital temperature & time control, with ±0.5℃ temperature control accuracy and 0.1℃ display resolution.
• Built-in program memory, temperature self-calibration and error code display, with overheating protection. Interchangeable blocks fit various tube sizes. Wide voltage input 100-240V or DC12V, power 60W.
• Uniform dimension 110×162×140mm, works stably under 10–40℃ ambient temperature and relative humidity below 80%RH. Stable heating & cooling rate, pre-installed 9 program memories with 2 steps each.

• L100 series mini dry bath is compact biological thermostatic equipment developed for micro biological samples, applied in sample preservation, nucleic acid denaturation, protein denaturation and other molecular biology experiments. Three versions including heating-only, heating & cooling, heating & cooling with hot lid are available for flexible selection.
• Ultra-lightweight unit with total weight ≤1kg and compact footprint to save bench space. Equipped with LCD screen for digital visualization of temperature and time parameters, simple operation suitable for new lab operators.
• Built-in temperature self-calibration program maintains steady ±0.5℃ control accuracy after long repeated operation. Overheating protection cuts off power automatically at over-limit temperature to prevent damage to samples and machine.
• Interchangeable heating blocks fit various sizes of centrifuge tubes and PCR tubes, enabling multi-format sample tests without replacing the whole unit for high reusability.

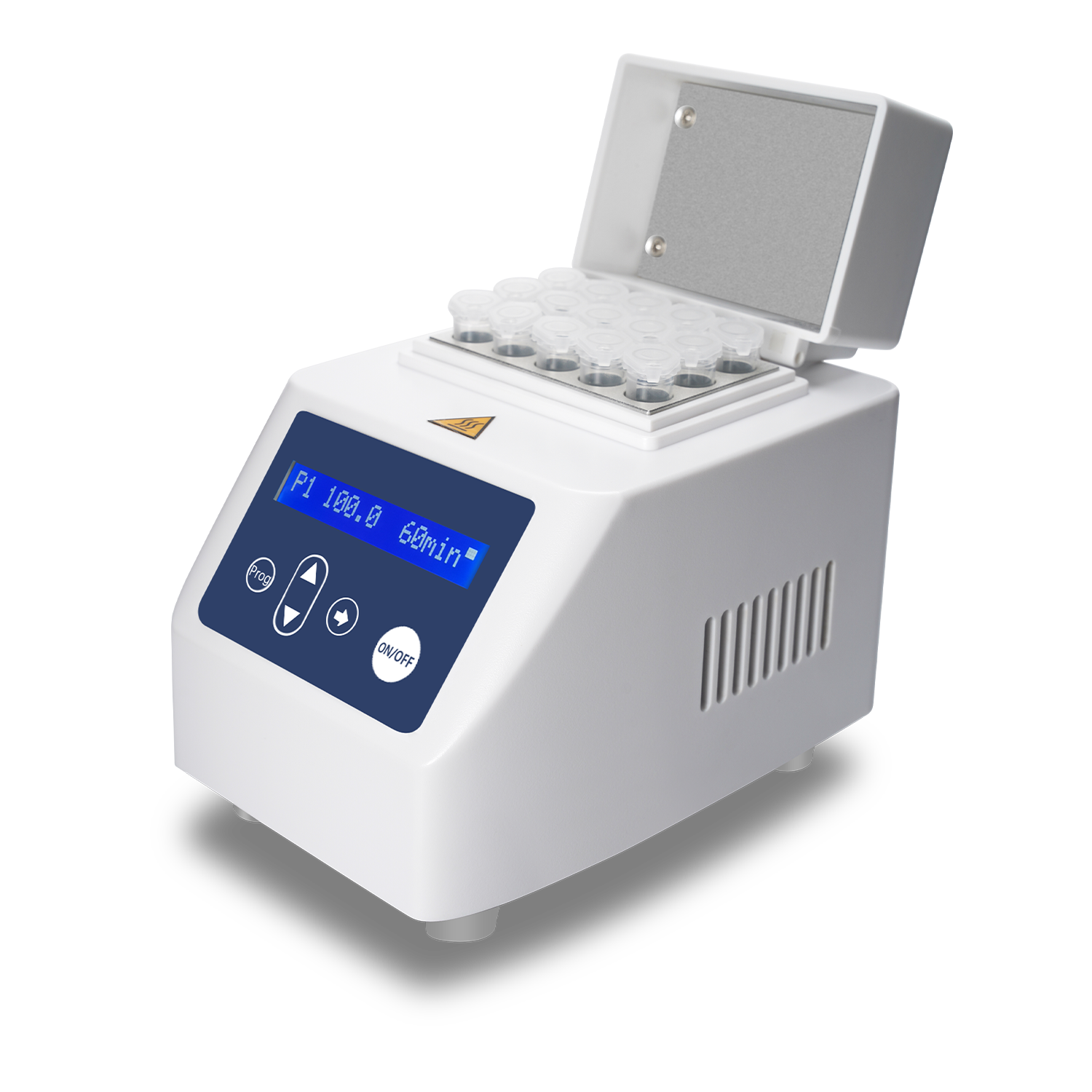

• Exclusive hot lid on L100HCL-Mini prevents water condensation on tube caps during low-temperature incubation, avoiding sample dilution and contamination, ideal for low-concentration micro-sample experiments.
• 9 groups of programmable memory with 2-step gradient program per group support complex workflows such as gradient incubation and staged denaturation. Error code display pops up automatically for fast fault location to reduce maintenance downtime.
• Dual power input supports universal 100-240V AC and DC12V with low 60W power consumption, applicable for fixed lab benches and field portable sampling tests with extra power adapter.
• Stable heating & cooling performance: heating-only model max heating rate 6.5℃/min, cooling models reach 8℃/min heating and 3℃/min cooling. It takes ≤20min to heat from 25℃ to 100℃, cooling models cool from 20℃ to 0℃ within ≤25min to cut waiting time.
• Wide operating tolerance for standard labs, runs stably at 10–40℃ ambient temperature and RH below 80%, no extra temperature & humidity control accessories required.

• Standard factory package includes L100 series mini dry bath main unit, matched heating block, power cord and printed English operation manual. Customers can carry out lab experiments right after unboxing without purchasing extra basic accessories.
• OEM private label customization service under Labcarta brand is available with custom exclusive brand LOGO printing and simple procedures, suitable for overseas instrument distributors to build their own laboratory instrument brands.
• The machine is packed in thick shockproof separate carton filled with inner buffer foam, which effectively resists extrusion and collision during long-distance ocean freight and air freight, greatly reducing the risk of equipment damage in cross-border transportation.
• The shipping lead time for in-stock orders ranges from 3 to 10 working days. Goods will be packed and delivered uniformly after order confirmation to shorten stock waiting cycle for overseas buyers.
• Multiple cross-border logistics options including sea freight, air freight and international courier are available. We can match the most cost-effective shipping solution according to customers’ total order quantity and required arrival time.

Selling Units

Single item

Package size perbatch

30*24*22cm

Gross weight perbatch

2kg

• Full set of factory digital documents are available for website listing, lab tender and equipment evaluation.
• The package includes spec sheet, English manual, dimension drawing and product brochure with unmodified authentic factory data.
• Documents cover applicable industries and equipment performance to quickly judge if L100 series matches your lab demands.

• If you purchase L100 series dry bath in bulk for lab self-use or instrument distribution, contact our support team to get itemized official quotation without hidden fees. Please inform us your order quantity and Labcarta OEM branding demand.
• Unit price will be more favorable with larger order quantity, suitable for centralized procurement of overseas universities and stock-up orders of instrument distributors.
• During quotation consultation, you can confirm all purchasing information including stock shipping lead time, cross-border logistics and custom LOGO details, solving all procurement inquiries at one time.
