Home > All Collections > Electrophoresis Series > Mini Easy Vertical Electrophoresis Cells

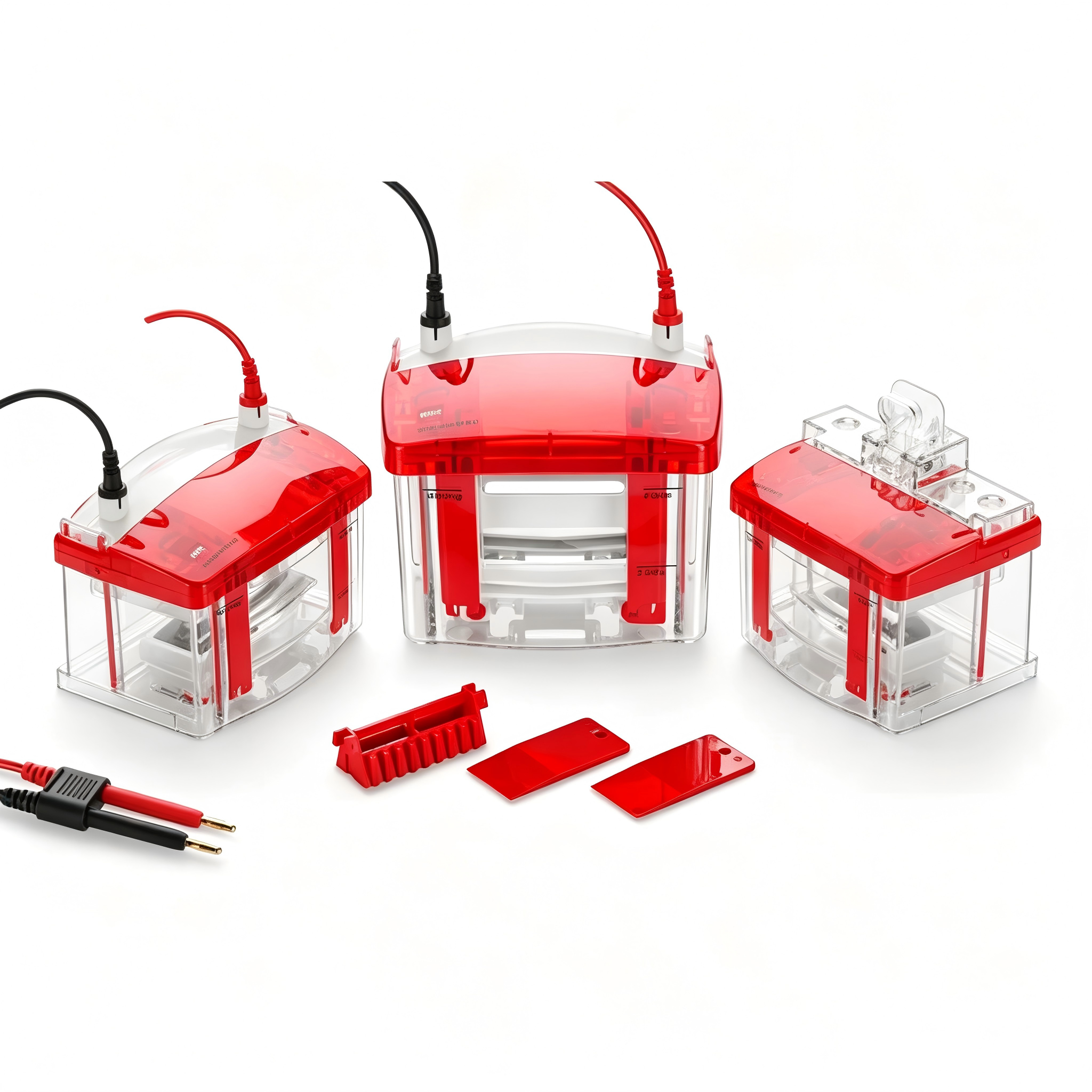

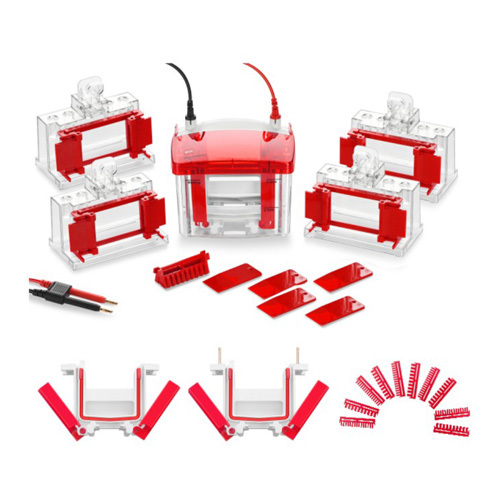

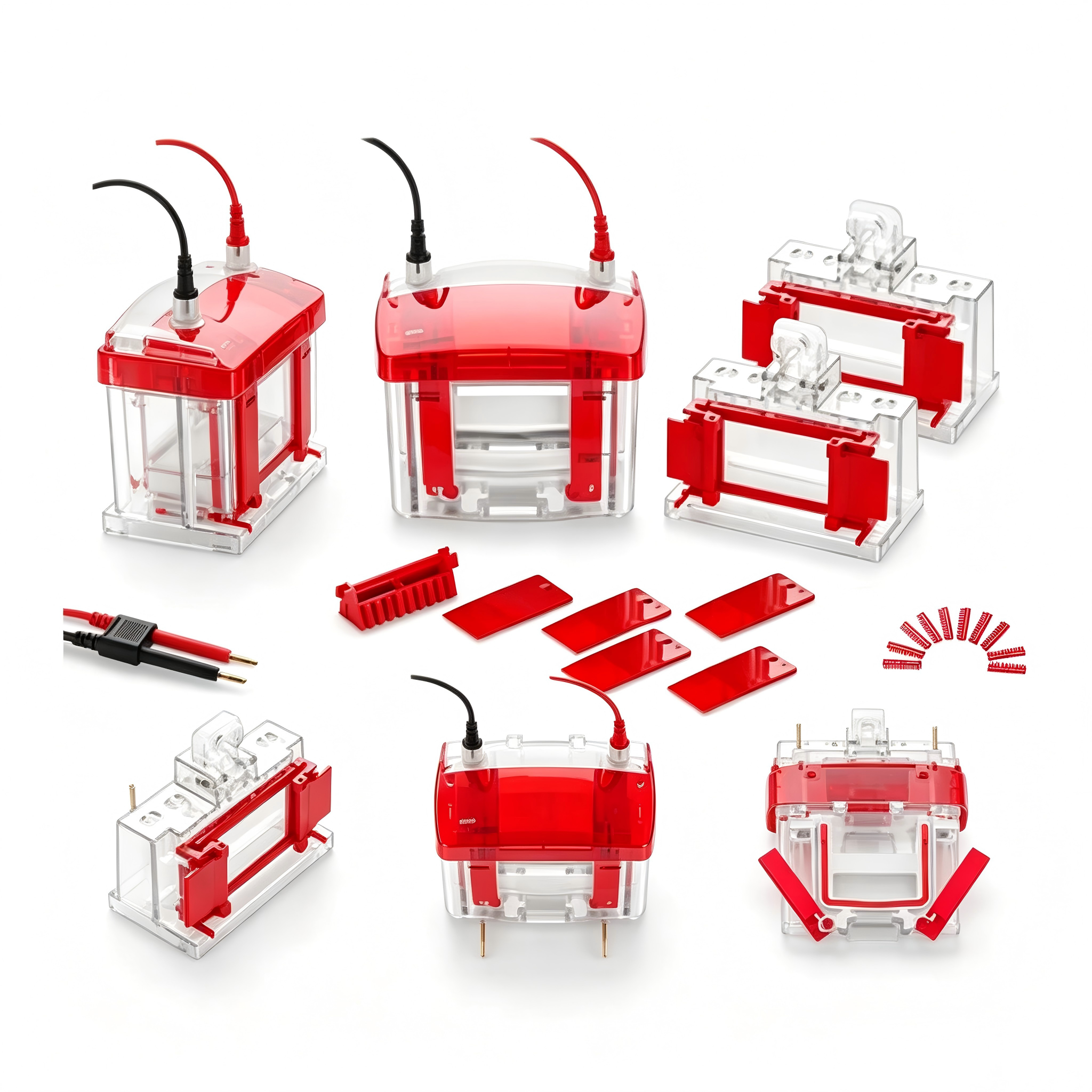

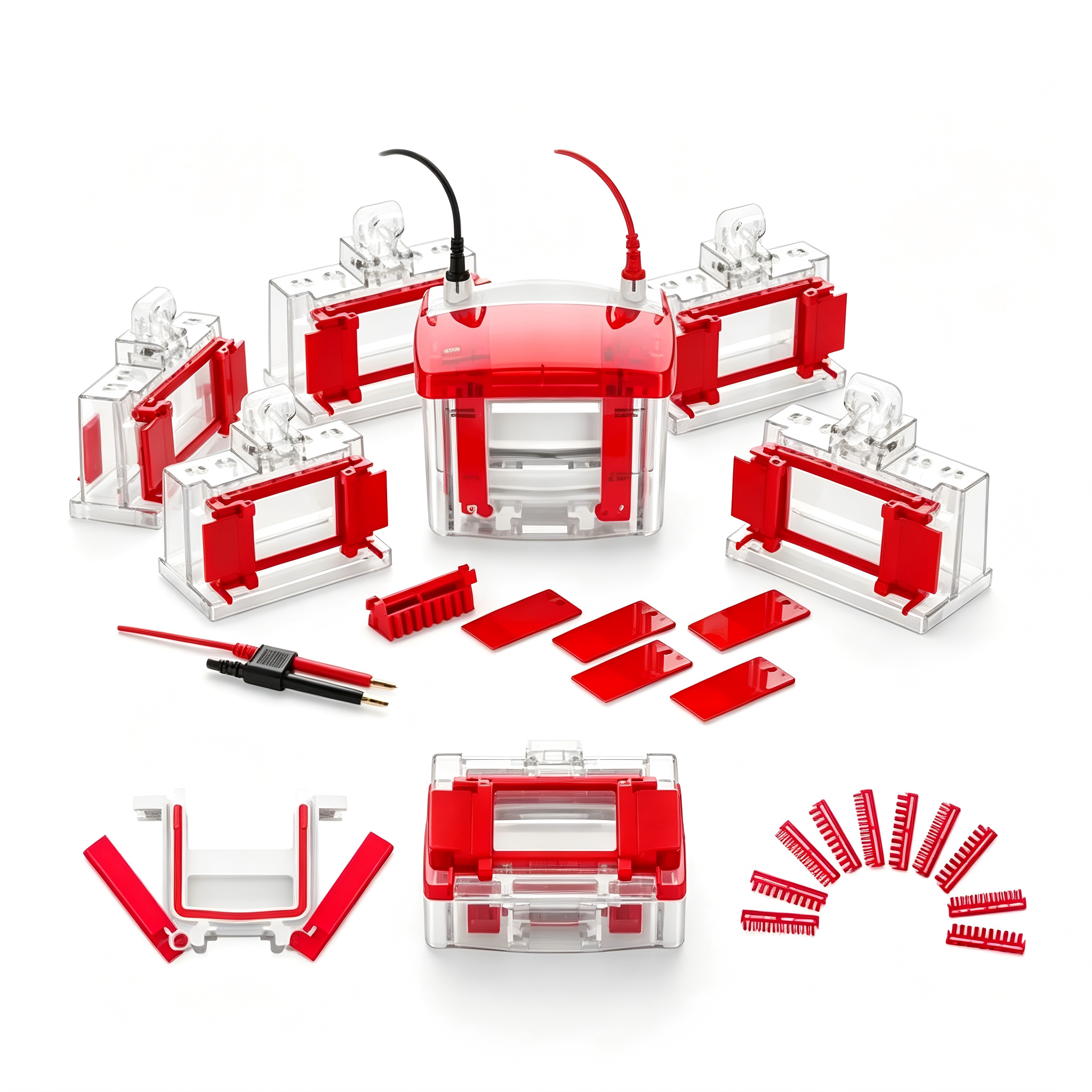

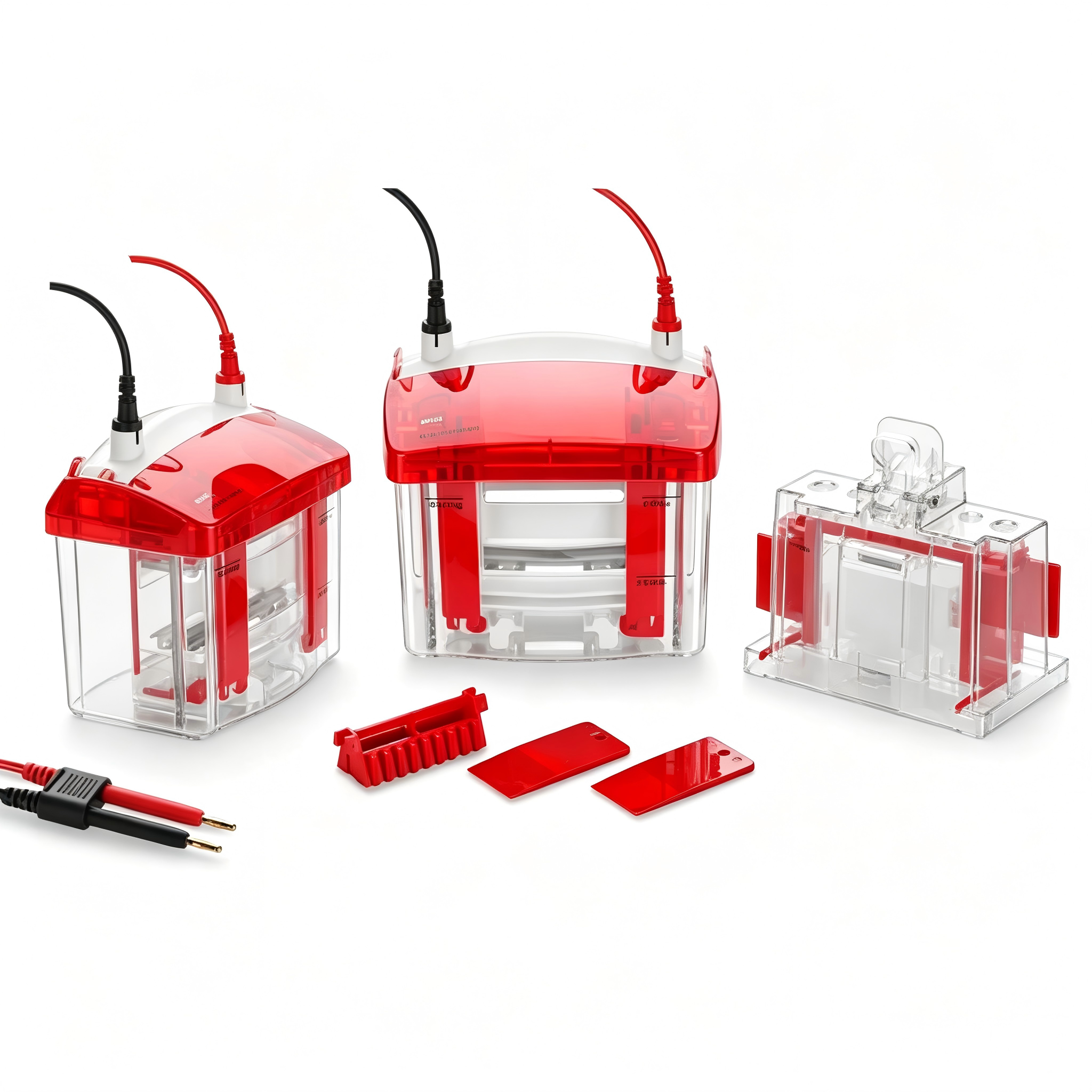

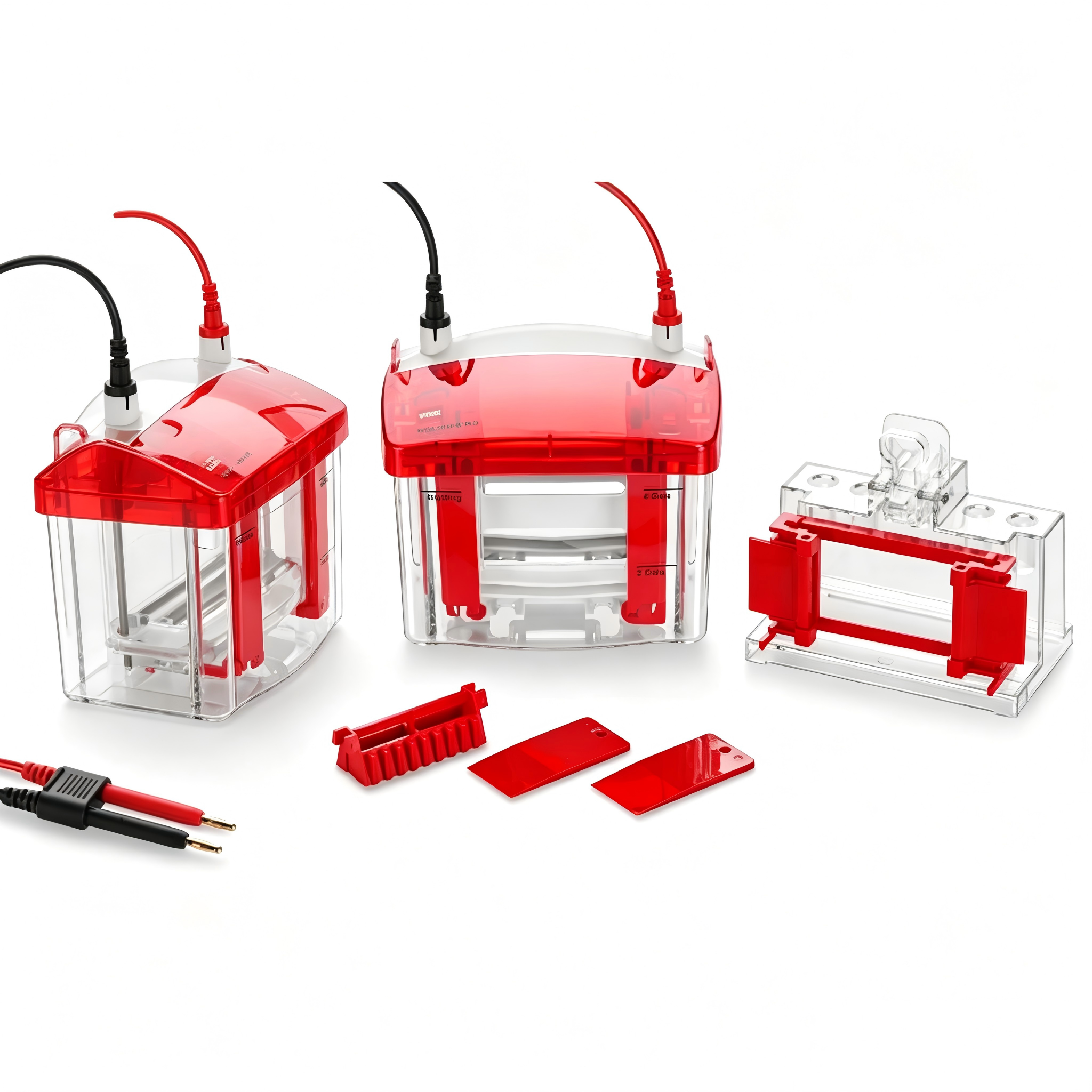

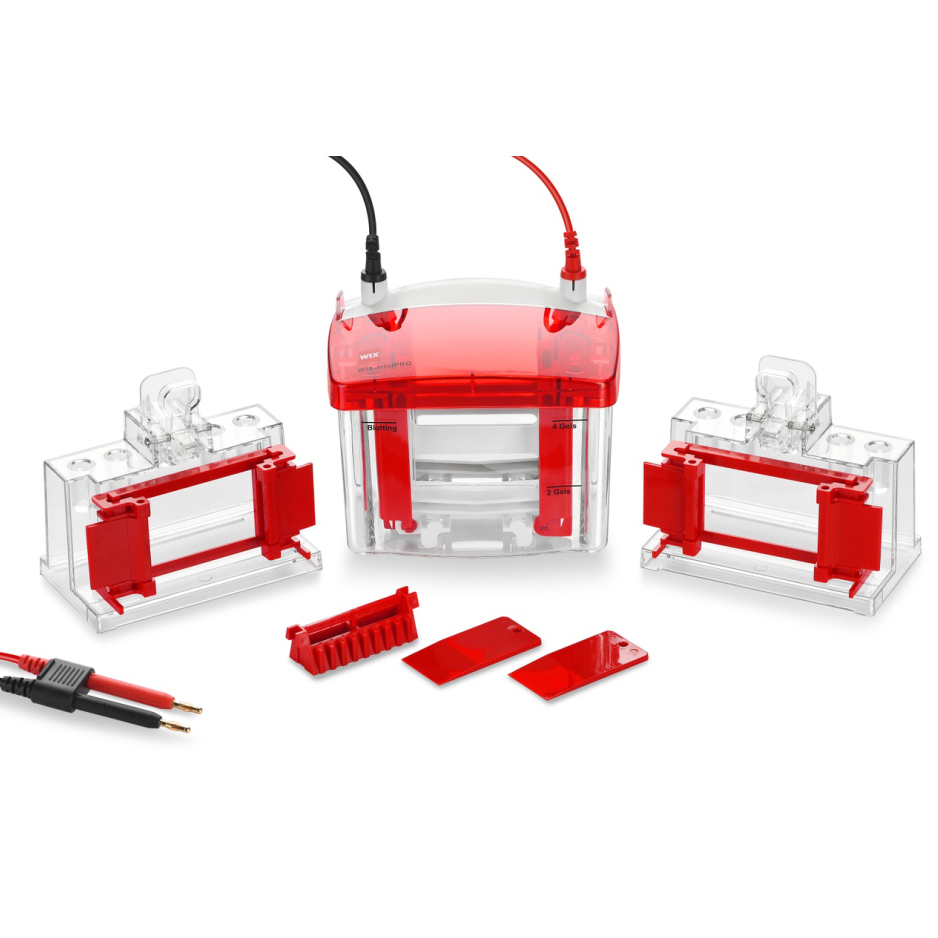

Mini Vertical Electrophoresis Cell

Name: Mini Vertical Electrophoresis Cell
Brand: labcarta Technology Co., Ltd.
SKU: LF-easyPRO4、PRO2
Availability: InStock

No.LF-easyPRO4、PRO2

Labcarta Mini Easy Vertical Electrophoresis Cell adopts slide rail electrophoresis core, reinforced PC locking base and flat casting frame. Built-in leakproof structure supports 1–4 gels cast at once. Calibrated glass plates and labeled combs simplify operation, boosting protein electrophoresis efficiency to match lab routine workflows.

$459.63 - 705.97

Model:

LF-easyPRO2

LF-easyPRO4

Request a Quote

Product Overview
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

This mini vertical electrophoresis cell fits research laboratories, university teaching labs, pharmaceutical, food and environmental testing labs for routine protein electrophoresis. It solves common drawbacks of traditional tanks, including gel leakage from aged spring clamps, sliding glass plates, misaligned casting frames, laborious assembly and side liquid seepage.

It adopts sliding wedge side fasteners and press-lock gel casting frames with flat bottom supports to hold glass plates steady, matched with corrosion-resistant platinum electrodes. Multiple gels can be cast simultaneously, compatible with mainstream precast gels. Reinforced PC locking parts deliver long service life, simplify full gel preparation and running steps, and maintain reliable sealing without leakage, delivering uniform protein band separation for standard SDS-PAGE and small molecule protein analysis.

Press-lock gel casting frame: No aging-prone springs, full visual access during gel pouring, bottom bracket prevents glass plates falling.
Sliding wedge side fastener: Tightly presses glass against sealing gaskets to eliminate side leakage, no manual glass lifting for easy assembly.
Cam alignment casting frame: Precisely align glass plates for evenly formed offset-free gels.
Batch gel casting: High-capacity model casts 1–4 gels per batch, compact model casts 1–2 gels to reduce repetitive operations.
Multi-size combs: 0.75mm/1.0mm/1.5mm thickness options, 10-well & 15-well combs included for all thicknesses to fit different sample volumes.
Φ0.25mm platinum electrode: Stable conductivity, anti-corrosion and anti-oxidation for consistent long-term separation results.
Graduated glass plates & marked combs: Clear visual reference for gel height during casting and sample loading.
Reinforced PC lock structure: Wear and pressure resistant, suitable for frequent student teaching and repeated daily lab assembly.

参数项	LF-easyPRO4 Mini Easy Vertical Electrophoresis Cell	LF-easyPRO2 Mini Easy Vertical Electrophoresis Cell
Cat. No.	10110001	10110002
Gel quantity	1-4 gels	1-2 gels
Gel thickness	1.0mm, 0.75mm, 1.5mm	1.0mm, 0.75mm, 1.5mm
Glass plates	Short glass plate: 100×73mm; Spacer glass plate: 100×83mm	Short glass plate: 100×73mm; Spacer glass plate: 100×83mm
Gel size	83×73mm	83×73mm
Combs	1.0mm: 10 and 15 wells (standard accessories) 0.75mm: 10 and 15 wells 1.5mm: 10 and 15 wells	1.0mm: 10 and 15 wells (standard accessories) 0.75mm: 10 and 15 wells 1.5mm: 10 and 15 wells
Compatible precast gels and size	Compatible with BIO-RAD mini-PROTEAN TGX Max: 10×8 cm	Compatible with BIO-RAD mini-PROTEAN TGX Max: 10×8 cm
Dimension (mm)	180×130×160 (L×W×H)	180×130×160 (L×W×H)

Plate assembly: Place short and spacer glass plates into casting frame, fasten via press lock; bottom bracket holds glass steadily without manual support.
Sealed gel pouring: Slide side wedges to press glass tightly against gaskets to stop leakage; cam structure align plates evenly during gel polymerization.
Comb installation: Select matching thickness and well comb based on sample volume, graduated glass allows clear observation of gel height.
Tank assembly & electrophoresis: Transfer solidified gel to tank and connect power supply; platinum electrodes provide stable current for protein separation.
Disassembly & cleaning: Loosen side wedges to remove glass plates easily, no residual gel stuck for quick washing.

Select model based on daily lab throughput
Small research teams, university teaching labs running 1–2 gels daily: Compact model, space-saving for basic low-volume screening.
High-throughput research labs, pharmaceutical QC, third-party testing labs running 3–4 gels daily: High-capacity model casting up to 4 gels to cut repeated casting time.
Choose gel thickness based on sample loading volume
Micro samples & high-resolution small protein analysis: 0.75mm thin gel for sharper bands.
Standard routine protein expression testing: 1.0mm universal thickness for most general experiments.
High-concentration crude large-volume samples: 1.5mm thick gel with larger loading capacity to prevent overflow.
Durability & sealing demand for long-term use
Shared student labs with frequent assembly: Reinforced PC press-lock resists aging, low spare part replacement frequency.
No tolerance for gel leakage & wasted samples: Slide wedge sealing eliminates leakage defects of traditional spring clamps.
Precast gel compatibility
Labs using standard mini precast gels: Both models support self-cast gels and commercial precast gels for flexible workflow switching.

Model Matching Guide

Compact Mini Vertical Electrophoresis Cell: Economical compact unit casting 1–2 gels per batch, ideal for university teaching, small research teams and budget-limited labs for basic protein screening.

High-Capacity Mini Vertical Electrophoresis Cell: Batch casting unit supporting 1–4 gels at once, designed for molecular research institutes, pharmaceutical QC and food/environmental testing labs to process batch samples efficiently.

Target Buyers: University education labs, molecular biology research institutes, pharmaceutical & chemical labs, food, environmental & industrial testing facilities.

Shockproof packaging: Thick carton with custom foam inserts, separated compartments for glass plates and combs to avoid breakage during transit.
Standard packing list: Main electrophoresis tank, matched casting frames, complete short/spacer glass plates, multi-thickness 10/15-well combs, sealing gaskets and full operation accessories.
In-stock orders ship within 3–10 working days; OEM customization including silk printing and custom outer packaging is negotiable for bulk orders.
Lead time: In-stock orders shipped within 3–7 working days; custom accessory orders take 15–25 working days.
Logistics options: Sea freight, air freight and global door-to-door courier available for bulk overseas orders.
Outer package: Individually packed per unit with light single-unit weight to reduce bulk shipping expenses.

Selling Units	Single item	Package size perbatch	181316cm
Gross weight perbatch	2.0kg

Accessories Name	Details	Quantity
Main Electrophoresis Tank	Main tank body of the unit	1 set
Gel Casting Frame	Model-matched dedicated casting frame	1 set
Glass Plates	Short plate:100×73mm, Spacer plate:100×83mm	4 pcs each type
Combs	0.75mm/1.0mm/1.5mm thickness, 10-well & 15-well for each thickness	2 pcs each specification
Sealing Gaskets	Leak-proof gaskets for gel casting	Assorted
Operation Accessories	Auxiliary parts for assembly & gel preparation	1 set

Contact us to get full documents: datasheet, operation manual, product drawings and brochure for lab filing and tender use.

What is the core difference between LF-easyPRO2 and PRO4?
PRO2 max casts 2 gels per run; PRO4 supports up to 4 gels simultaneously with higher throughput.
Is this cell compatible with BIO-RAD Mini-PROTEAN TGX precast gels?
Fully compatible, fits max 10×8 cm precast gels.
How many gel thickness options are available and well counts of matched combs?
Three thicknesses: 0.75/1.0/1.5mm; each thickness supplied with 10-well & 15-well combs as standard.
What is the standard glass plate dimension?
Short plate 100×73mm, spacer plate 100×83mm, effective gel size 83×73mm.
What is electrode material and wire diameter?
Φ0.25mm pure platinum wire electrode, corrosion resistant, stable conductivity and long service life.
Why no gel leakage caused by aged springs like traditional cells?
Adopt dual sealing structure of press-lock base + sliding wedge side fasteners without easily aging spring parts.
What is the benefit of core sliding lifting bar design?
Pull the bar to lift short plate directly after gel polymerization, no manual upward pulling to reduce glass breakage.
Function of gel casting frame bottom support structure?
Full flat support holds glass plates firmly to prevent sliding off during pouring, avoiding wasted scrapped gels.
What is the uniform overall dimension of the whole unit?
L180mm × W130mm × H160mm.
What experiments is it suitable for?
SDS-PAGE protein electrophoresis, recombinant protein expression detection, protein separation for WB pre-treatment, university molecular biology teaching experiments.
Are spare glass plates and combs available for separate purchase?
Yes, glass plates and all thickness combs are sold as separate spare parts.
Is electrophoresis power supply included in standard kit?
No, power supply is independent optional equipment and needs separate purchase.
Are combs clearly marked and glass plates graduated?
Combs with clear printed marks; matched glass plates with distinct graduation for easy gel height observation.
Does the series support OEM silk screen brand logo customization?
OEM silk screen & housing color customization available for all models, lead time 15–30 working days.
Application scenarios for 0.75/1.0/1.5mm three thicknesses?
0.75mm for micro precious samples; 1.0mm for routine teaching & general protein tests; 1.5mm for high loading volume & WB enrichment samples.
Is the gel casting process fully visible?
Integrated transparent casting frame allows full visual observation of separating & stacking gel pouring height.
