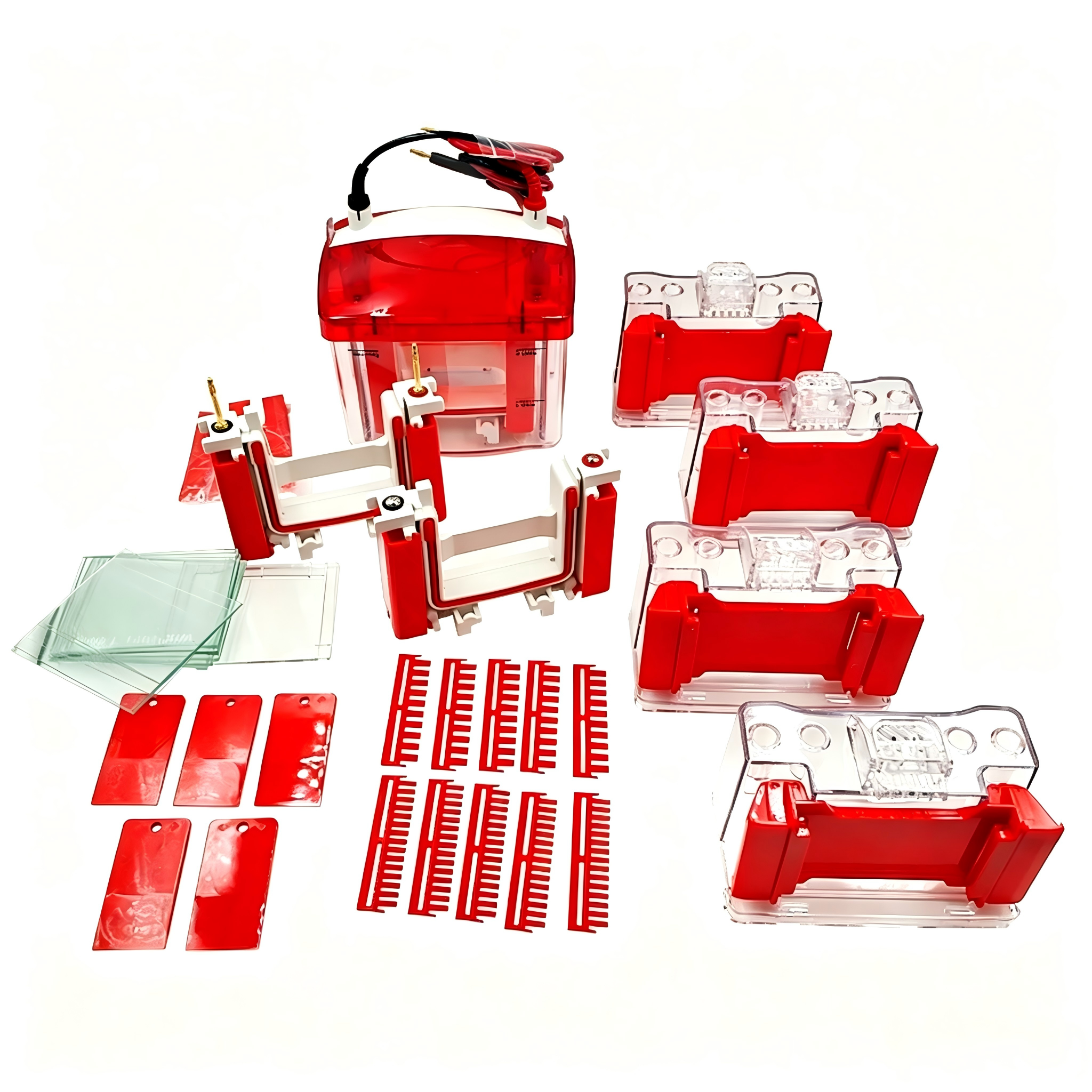

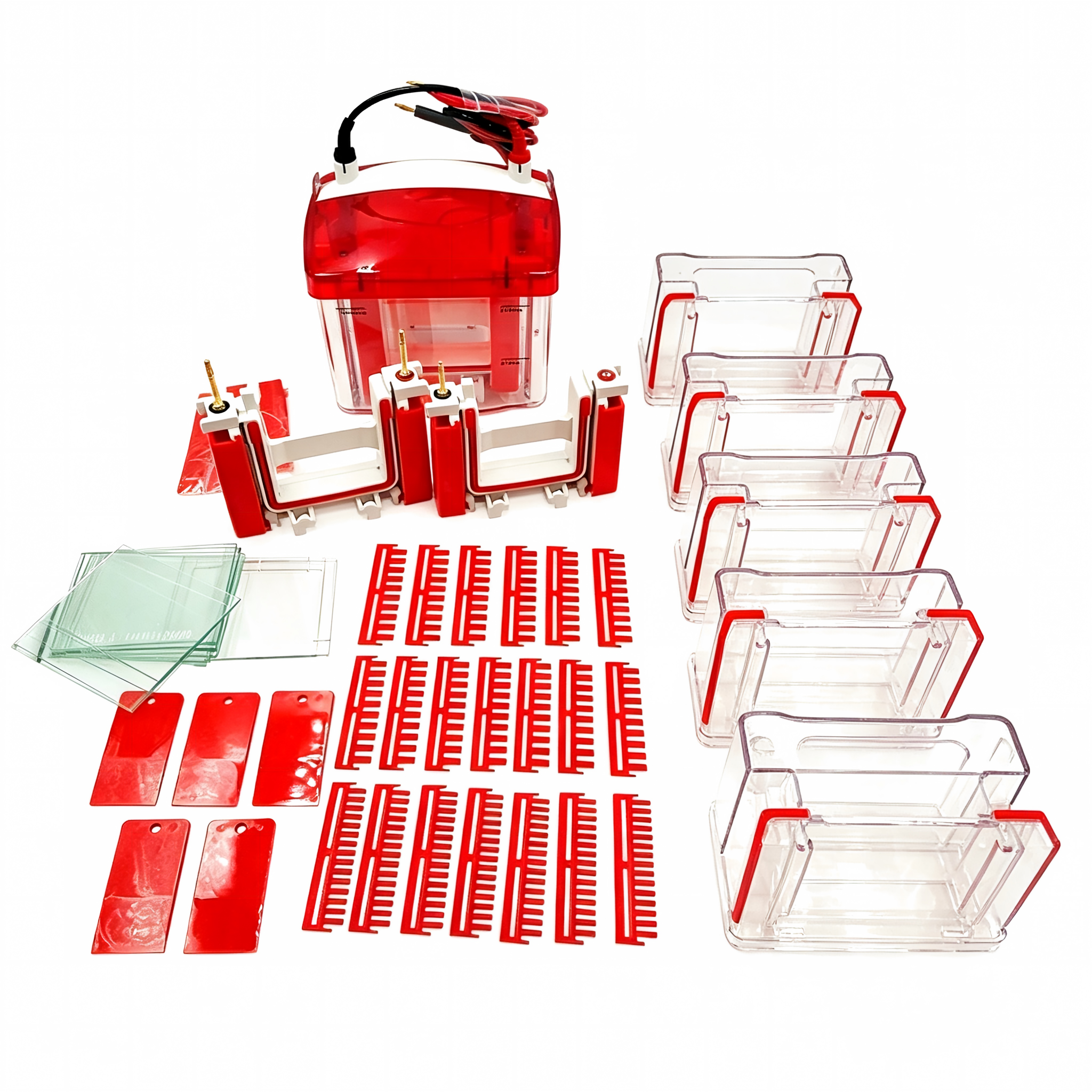

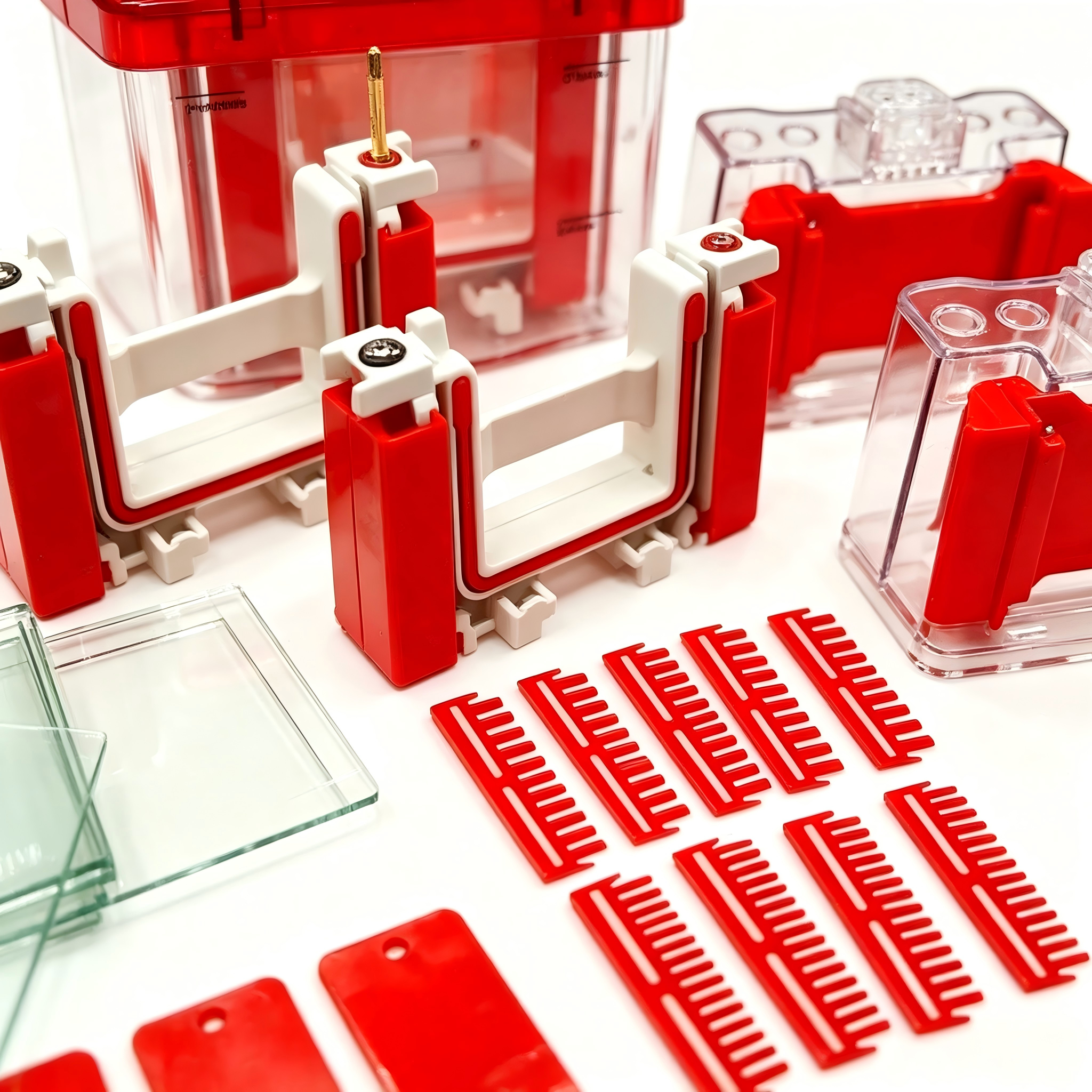

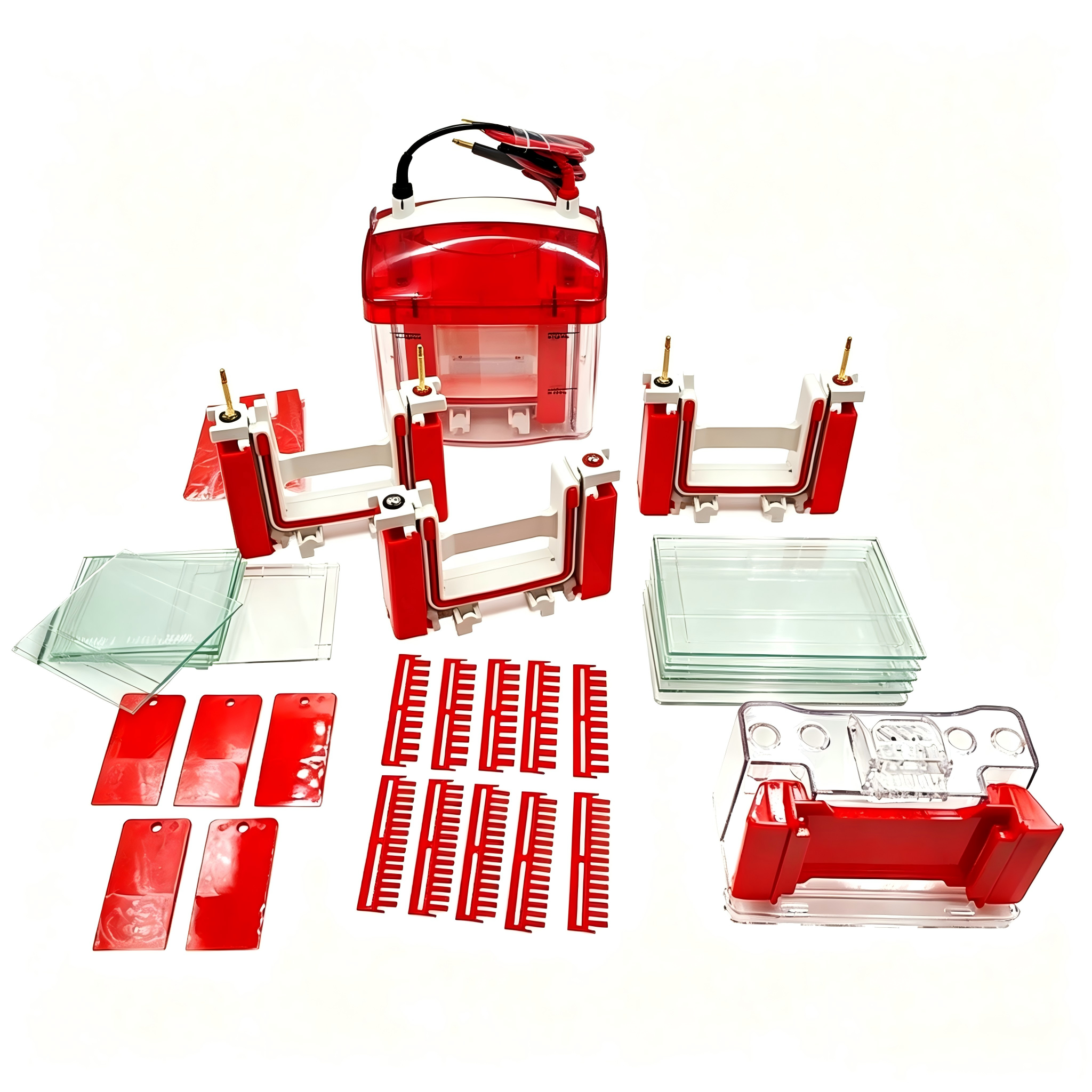

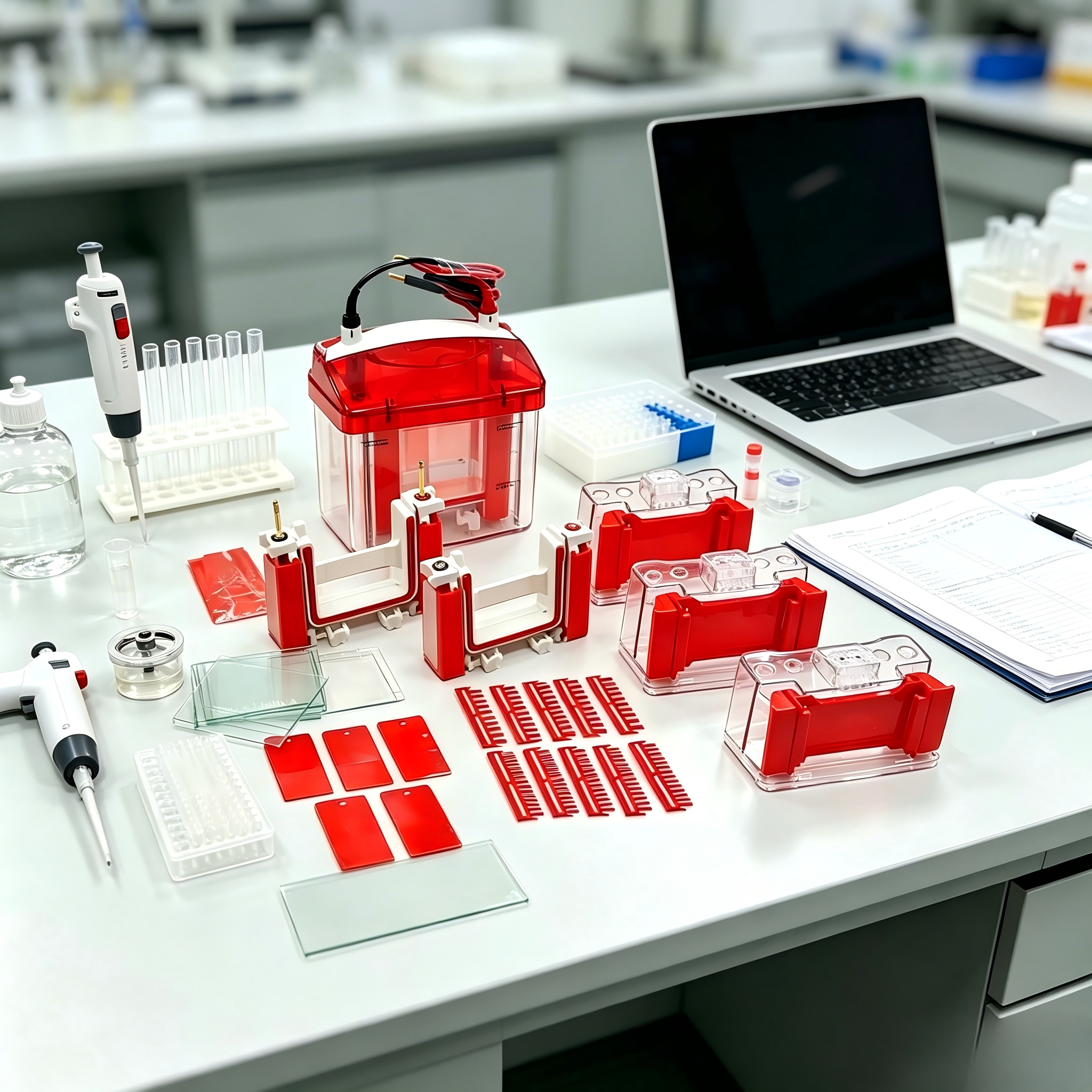

Mini Easy Vertical Electrophoresis Cells

No.PRO4 PRO2
$705.97
Model​:
LF-easyPRO4
LF-easyPRO2
Request a Quote
  • Mini easy vertical electrophoresis cells for lab SDS‑PAGE protein gel electrophoresis experiment
  • Mini Easy Vertical Electrophoresis CellsIlabcarta Technology Co., Ltd.
  • Mini Easy Vertical Electrophoresis CellsIlabcarta Technology Co., Ltd.
  • Mini Easy Vertical Electrophoresis CellsIlabcarta Technology Co., Ltd.
  • Mini Easy Vertical Electrophoresis CellsIlabcarta Technology Co., Ltd.
  • Mini Easy Vertical Electrophoresis CellsIlabcarta Technology Co., Ltd.

  • Product Overview

  • Key Features

  • Parameter

  • Product Details

  • How to Choose

  • Download

  • Packaging & delivery

  • FAQ

  • Get a Quote

  • Labcarta Mini Easy Vertical Electrophoresis Cells adopt innovative mechanical locking structure to replace traditional spring pressing structure, effectively solve gel leakage failure caused by spring aging.
  • The electrophoresis core adopts sliding round bar jacking design for short glass plate, no manual prying needed for plate disassembly; the gel casting frame has bottom supporting structure to prevent glass plate slipping and falling.
  • Equipped with Φ0.25mm high-purity platinum wire electrode for stable electrophoresis conduction, compatible with BIO-RAD mini-PROTEAN TGX precast gel, two models for 1–2 gels and 1–4 gels batch electrophoresis experiments respectively.
  • Reinforced PC locking base, even pressing force to fix glass plate firmly, integrated flat gel casting frame for intuitive observation of gel pouring status.
  • Bottom full flat support for gel casting frame, limit glass plate displacement and slipping.
  • Press-lock buckle design, stable clamping force, avoid gel leakage due to spring fatigue aging of traditional structure.
  • Side sliding wedge fastening of electrophoresis core, compress short glass closely against sealing gasket to stop side liquid leakage of tank body.
  • Cam-type gel casting frame, ensure high-precision alignment of double glass plates.
  • Independent gel casting frame configuration: PRO4 with 4 sets independent frames for 1–4 gels simultaneous casting; PRO2 with 2 sets independent frames for 1–2 gels.
  • Graduated glass plate + electrophoresis comb with clear specification marking for quick model identification.
  • Φ0.25mm platinum electrode for long service life and stable electric field output.
Specifications WIX-easyPRO4 Mini Easy Vertical Electrophoresis Cell WIX-easyPRO2 Mini Easy Vertical Electrophoresis Cell
Cat. No. 10110001 10110002
Gel quantity 1–4 gels 1–2 gels
Gel thickness 1.0mm, 0.75mm, 1.5mm 1.0mm, 0.75mm, 1.5mm
Glass plates Short glass plate: 100×73mm; Spacer glass plate: 100×83mm Short glass plate: 100×73mm; Spacer glass plate: 100×83mm
Gel size 83×73mm 83×73mm
Combs 1.0mm: 10 wells /15 wells (standard)
0.75mm: 10 wells /15 wells
1.5mm: 10 wells /15 wells		 1.0mm: 10 wells /15 wells (standard)
0.75mm: 10 wells /15 wells
1.5mm: 10 wells /15 wells
Compatible precast gels Compatible with BIO-RAD mini-PROTEAN TGX, Max:10×8cm Compatible with BIO-RAD mini-PROTEAN TGX, Max:10×8cm
Dimension (L×W×H,mm) 180×130×160 180×130×160
  • Gel casting assembly: Place the double glass plate into the gel casting frame, the bottom support baffle restricts glass plate downward sliding, lock the press buckle to complete sealing, pour gel solution from the top opening.
  • Electrophoresis core assembly: Install the prepared gel plate on the electrophoresis core, push the side sliding wedge to compress the short glass plate against the bottom sealing gasket to prevent buffer leakage.
  • Plate disassembly operation: After electrophoresis experiment, use the sliding round bar of the electrophoresis core to jack up the short glass plate directly, no sharp tool prying required to avoid glass breakage.
  • Precast gel installation: Directly put BIO-RAD mini-PROTEAN TGX precast gel into the electrophoresis core for quick assembly and power-on electrophoresis.
  • Post-experiment cleaning: Disassemble all plastic frames, glass plates and electrode components, rinse residual gel and electrophoresis buffer with deionized water.
  • Storage: Fully air-dry each component, separate comb, glass plate and tank body for classified storage, prevent plastic deformation and platinum electrode oxidation.
  • Batch sample test selection: Choose WIX-easyPRO4 for high-throughput experiments needing 3–4 gels at one time; select WIX-easyPRO2 for daily small sample 1–2 gel routine experiments.
  • Anti-leakage demand selection: Laboratories with long-term continuous use are recommended to choose this press-lock mechanical buckle model, avoiding frequent spring replacement maintenance of traditional electrophoresis tanks.
  • Gel thickness selection: 0.75mm comb for high-resolution thin gel electrophoresis; 1.0mm comb for standard conventional experiment (factory standard configuration); 1.5mm comb for high loading sample electrophoresis.
  • Precast gel matching: Both two models are fully compatible with BIO-RAD mini-PROTEAN TGX precast gel, users using commercial precast gel can choose either model according to gel quantity demand.
  • OEM customization: Distributor bulk orders support tank shell LOGO silk-screen printing, standard finished products are available for direct delivery for laboratory spot purchase.
  • Complete technical datasheet of WIX-easyPRO4 / WIX-easyPRO2 electrophoresis cell, consistent with original drawing specification parameters.
  • Overall dimension drawing of the electrophoresis tank (180×130×160mm).
  • Imported PC raw material inspection report and platinum electrode material test report.
  • Mechanical lock vertical electrophoresis gel casting and electrophoresis operation standard SOP document.
1.Packaging structure: Export-grade hard carton + full surrounding high-density shockproof foam liner, independent positioning groove for electrophoresis tank, glass plate, comb to avoid glass breakage and electrode deformation during long-distance transportation.
2.Standard accessories: Electrophoresis tank main body, matched double glass plates, multi-specification electrophoresis combs, electrode connecting wire.
3.Custom service: Support customized LOGO printing on the outer shell of the instrument, delivery time for customized orders needs separate negotiation.
4.Package note: Outer box size and gross weight are reference values, subject to actual factory shipment.
5.Lead time rule: In-stock standard products will be shipped within 3–10 working days; the delivery cycle for customized orders shall be negotiated separately.
6.Logistics: Sea freight, air freight, land transport are all available for export order delivery.
Packaging Parameter Specification
Outer carton overall dimension Customized by model configuration
Package gross weight Calculated based on actual accessory configuration
Standard Packing List Quantity
Mini Vertical Electrophoresis Tank Main Unit 1 set
Supporting double glass plate assembly 1 set
Multi-thickness multi-well electrophoresis comb set 1 set
Electrode connecting cable 1 pc
Operation manual & product certificate of conformity 1 set
Product warranty card 1 copy
  • Why can this electrophoresis tank avoid gel leakage better than traditional spring-type tanks?
    Answer: It adopts press-lock mechanical locking instead of spring compression, no elastic fatigue failure after long-term use, stable sealing effect.
  • How to take out the solidified gel glass plate conveniently?
    Answer: The electrophoresis core has sliding round bar jacking structure, directly jack up the short glass plate without prying with tools.
  • Is the gel casting frame equipped with anti-drop structure for glass plate?
    Answer: The bottom of the gel casting frame has a supporting baffle to prevent the glass plate from sliding down and falling off.
  • What is the specification of the platinum electrode?
    Answer: Φ0.25mm high-purity platinum wire electrode, stable electric field and long service life.
  • Can the tank be used with BIO-RAD mini-PROTEAN TGX precast gel?
    Answer: Yes, compatible with max 10×8cm BIO-RAD mini-PROTEAN TGX precast gel.
  • How many pieces of gel can WIX-easyPRO4 make at one time?
    Answer: It can complete 1–4 pieces of gel production at one time, suitable for high-throughput experiments.
  • What gel thickness options are supported by the equipment?
    Answer: Three optional thicknesses: 0.75mm, 1.0mm, 1.5mm, matched with corresponding combs.
  • Is OEM brand customization available for the equipment?
    Answer: Bulk orders support shell LOGO silk-screen customization, customized delivery time needs separate negotiation.
  • How to maintain the mechanical lock structure?
    Answer: Clean the residual gel solution in the lock groove after each experiment, keep the buckle sliding surface clean to ensure locking tightness.
  • Will the side sliding wedge fastening leak liquid?
    Answer: The sliding wedge pushes the short glass tightly against the sealing gasket, effectively blocking side buffer leakage.
  • Quotation required information: Confirm model (WIX-easyPRO4 / WIX-easyPRO2), purchase quantity, destination country, and whether shell LOGO customization is needed.
  • Quotation timeliness: Official formal PI quotation will be issued within 24 working hours after confirming complete purchasing requirements.
  • Bulk procurement discount: University laboratories, research institutes, biological reagent dealers with centralized bulk procurement can apply for tiered volume discount.
Applications 应用场景模块

Applications

Applications

Supporting diverse laboratory and industrial environments with practical instrument solutions.

Research Laboratories

Research Laboratories

Conduct SDS-PAGE protein separation, nucleic acid electrophoresis and molecular specimen analysis for life science research..

Universities and Education

Universities & Education

Complete protein & gene electrophoresis experiments for biotech, biology and chemistry course training.

Pharmaceutical and Chemical

Pharmaceutical & Chemical

Analyze target protein, separate biological ingredients and test biopharmaceutical sample purity.

Food Environmental and Industrial Testing

Food, Environmental & Industrial Testing

Identify microbial nucleic acid and detect protein composition in food and environmental samples..
