Program-Controlled Integrated High-Temperature Muffle Furnace

Name: Program-Controlled Integrated High-Temperature Muffle Furnace
Brand: labcarta Technology Co., Ltd.
SKU: 1601639068930- B16 B18
Availability: InStock

No.1601639068930- B16 B18

This programmable muffle furnace uses Joule heating, requires a small transformer for high-temperature operation, and is also known as a vertical high-temperature model. It is widely used in labs, factories, and research institutions for elemental analysis, heat treatment of small steel parts (quenching, annealing, tempering), and high-temperature processes like sintering, melting, and analysis of metals and ceramics.

$15535.90

Inner Size:

150*300*120mm

color:

B16

B18

Request a Quote

Description
Key Features
Parameter
Product Details
How to Choose
Packaging & delivery
Download
FAQ
Get a Quote

Programmable integrated high-temperature muffle furnace adopts Joule heat generated by current passing through conductor as heat source. Equipped with built-in three-phase dry-type isolation transformer, it is also known as vertical high-temperature electric furnace, widely used in laboratories, industrial and mining enterprises and research institutes.
It is suitable for heating in elemental analysis, quenching, annealing and tempering of small steel parts. It can also be used for high-temperature processes such as sintering and melting of ceramics and metal powders, as well as high-temperature composition analysis. Two temperature series are available: RT+50~1600℃ and RT+50~1800℃.
The chamber adopts polycrystalline alumina lightweight fiber material with excellent heat preservation, light weight, fast heating speed and lower energy consumption. Molybdenum disilicide rods work as heating elements, featuring high temperature resistance, oxidation resistance, stable resistance at high temperature and low attenuation during long-term continuous operation.
Equipped with intelligent curve-fitting program temperature control system to customize multi-stage heating, constant temperature and cooling processes. Complete safety protection includes door-open power-off, multi-stage overtemperature alarm, power-off memory and fault self-check.

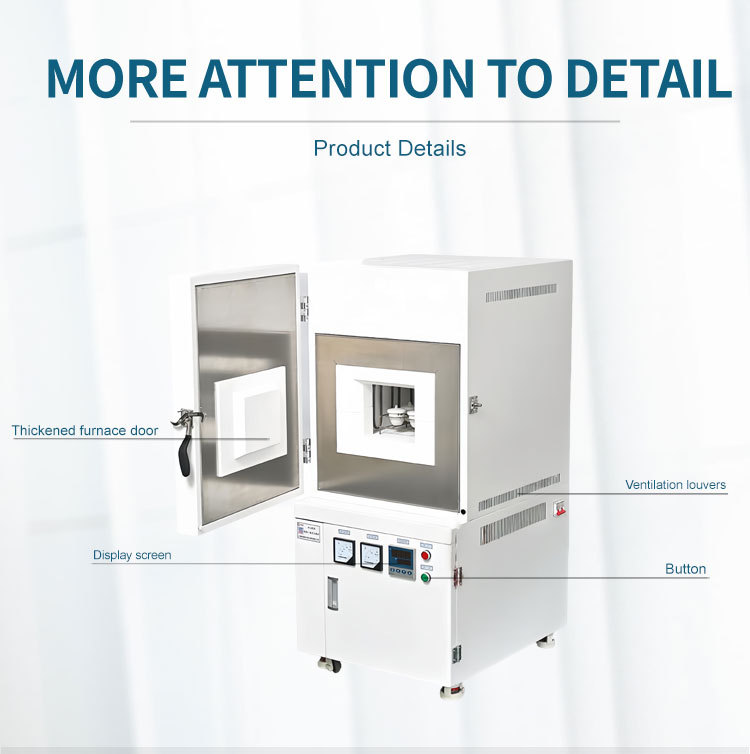

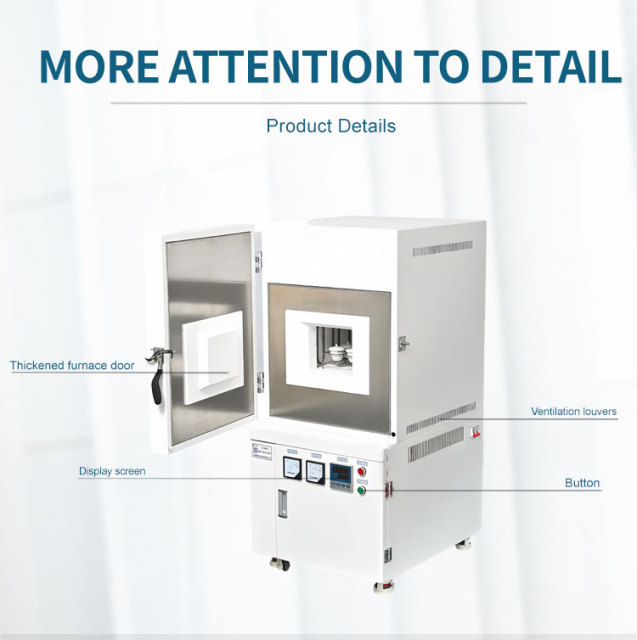

Integrated compact structure with built-in isolation transformer at the bottom. The compression lock of furnace door ensures reliable sealing. Three-sided radiation heating inside the chamber creates uniform temperature field to guarantee stable and consistent heat treatment results for samples in the same batch.

Details Images

Intelligent program controller supports curve fitting and multiple process curves. AI parameter self-tuning function allows free setting of heating, holding and cooling slope & duration.
Segment heating limit function prevents thermal shock to samples caused by excessive heating rate. Color touch screen models display real-time temperature trend curves, and historical data can be exported for experiment review.
Interlock protection of automatic power-off when door opens: heating stops immediately for sampling and resumes automatically after door closure to avoid high-temperature scalding and comply with lab safety standards.
Integrated layout with optimized integration of furnace body and transformer. Thickened shell owns good heat storage and thermal shock resistance, resisting deformation and cracking under long-term high-low temperature cycles.

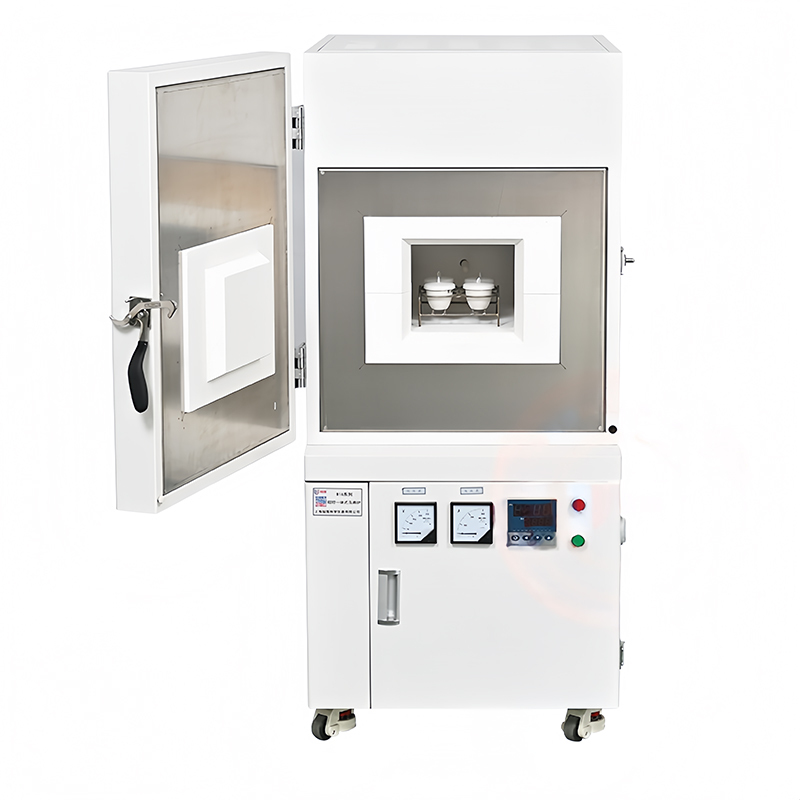

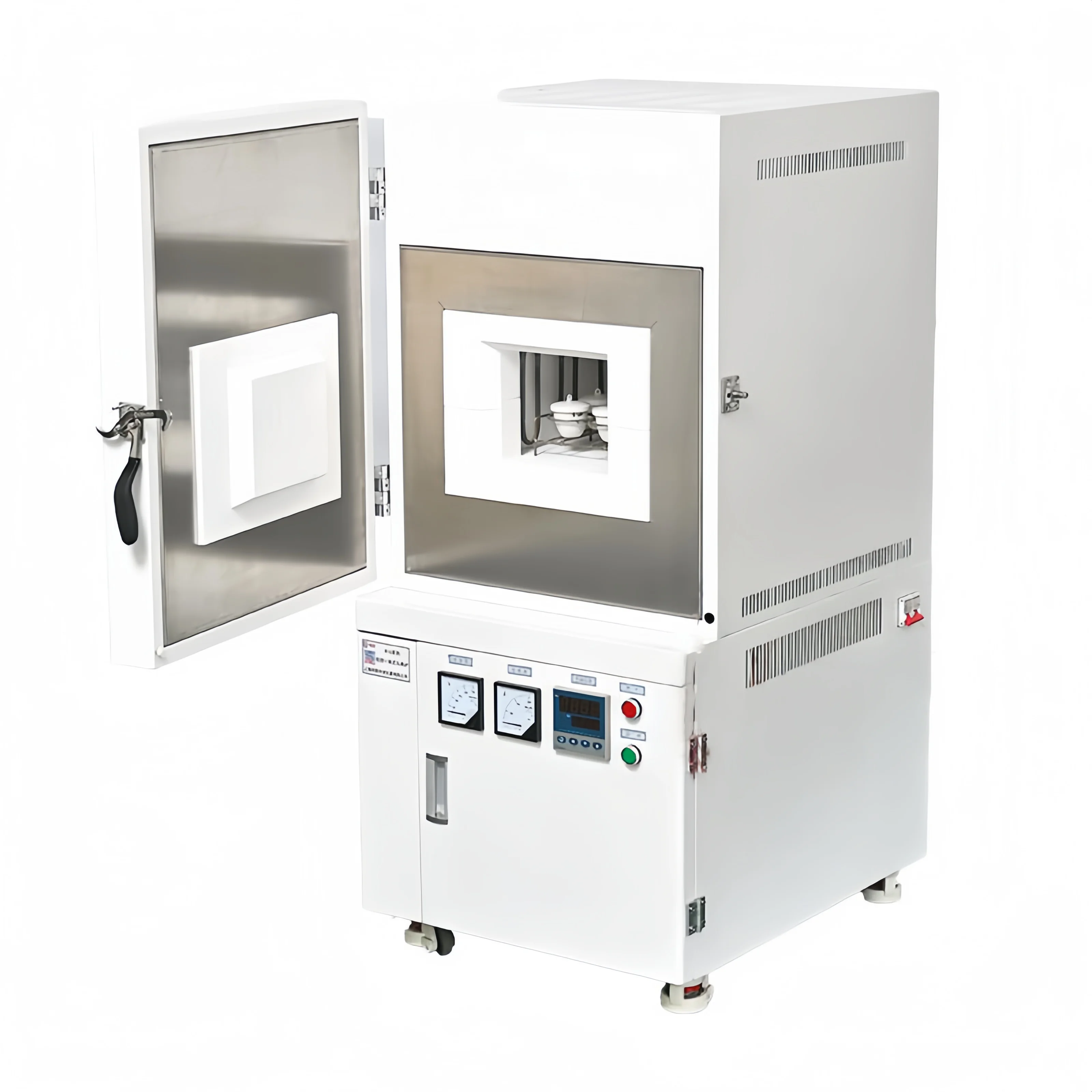

Three-sided surrounding radiation heating matched with high-temperature fire baffle reduces heat loss at furnace door. Uniform temperature distribution inside guarantees great repeatability of parallel experiments.
Polycrystalline alumina fiber chamber has low heat storage and fast heating & cooling speed after shutdown, enabling quick start of next batch of tests and higher throughput.
Two-stage safety alarm system plus independent ultra-high temperature alarm. Audible & visual alerts for power failure, phase loss and thermocouple break, with clear fault display.
Power-off memory function permanently saves all process parameters. No need to re-edit programs after power recovery, the furnace can continue operation directly.

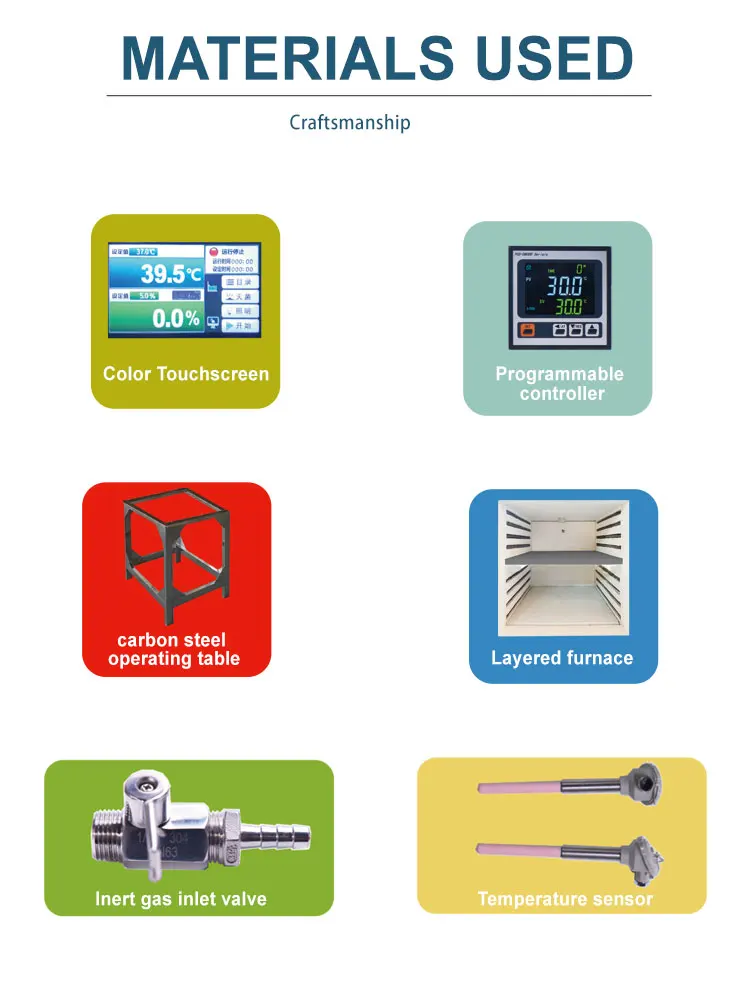

A wide range of optional components: exhaust chimney, RS485 communication port, inert gas inlet valve, silicon carbide loading platform and crucible support, suitable for special experiments such as atmosphere sintering and waste gas treatment.

Model	B16-5P B16-5AI	B16-9P B16-9AI	B16-12P B16-12AI	B16-36P B16-36AI	B18-5P B18-5AI	B18-9P B18-9AI	B18-12P B18-12AI	B18-36P B18-36AI
power supply voltage	AC380V 50Hz				AC380V 50Hz
Instrumentation	Programmab doidieHYPsre)				Programmoble diuithasdiselayAPserriss)/
heating element	Molybdenum Disilicide Rod				Molybdenum Disilicide Rod
Furnace Chamber Material	Polycrystalline Alumina Fiber				Polycrystalline Alumina Fiber
Power Transformer	Three-Phase Dry-Type Isolation Transformer				Three-Phase Dry-Type Isolation Transformer
Temperature control range	RT(Room Temperature)+50~1600℃				RT(Room Temperature)+50~1800℃
temperature ontrol accurac	y ±1℃				±1℃
input power	800ow	100oow	1200ow	1500ow	100oow	1200ow	1500ow	1800ow
Furnace size WDH(mm)	150300120	200300150	200300200	30O400300	150300120	200300150	200300200	30O400300
Nomina ivolume	5L	9L	12L	36L	5L	9L	12L	36L
timing range	1~9999min				1~9999min
Optional accessories	Exhaust chimney,mini printer,RS485 interface,inert gas inlet valve,flow meter,layered furnace chamber,crucible support
+

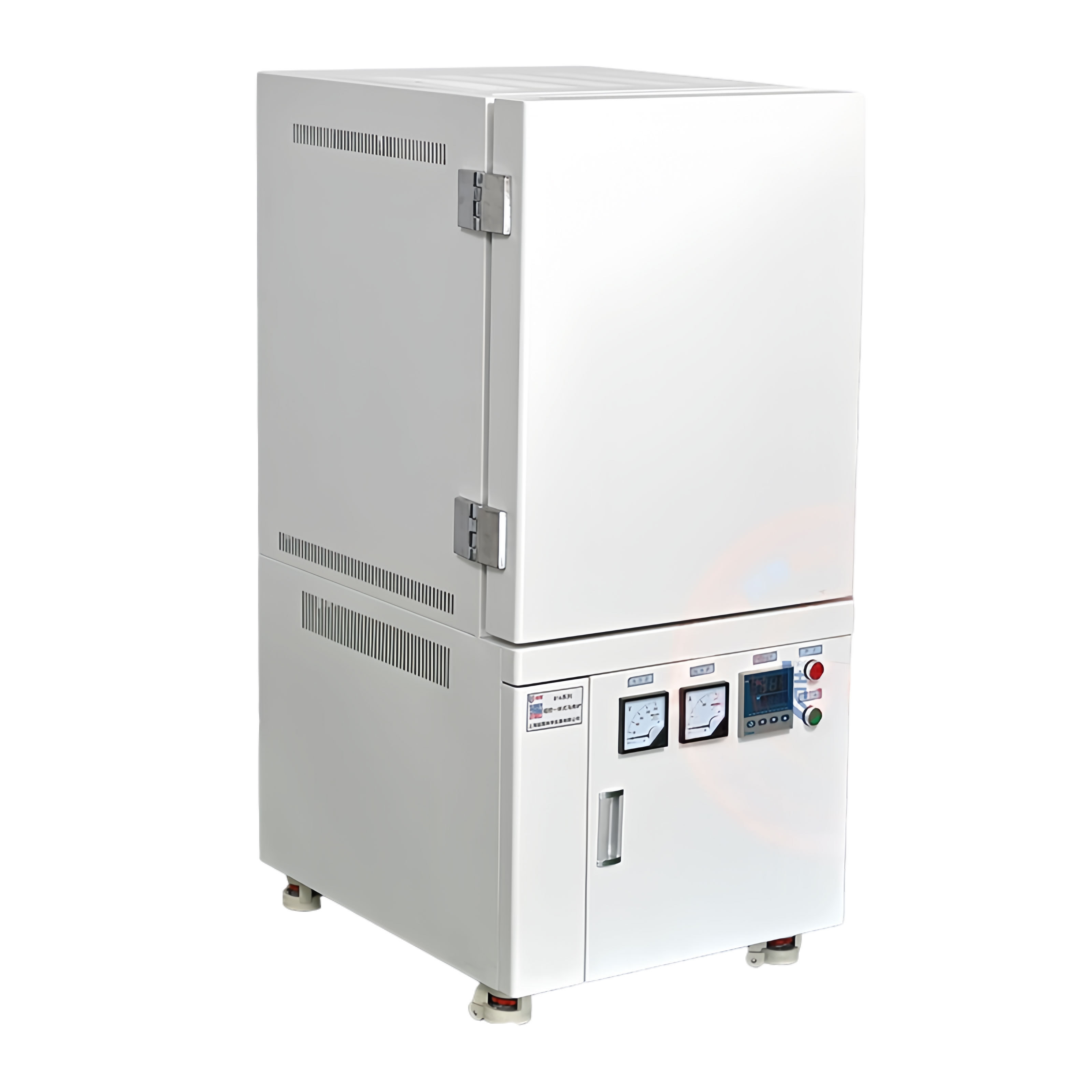

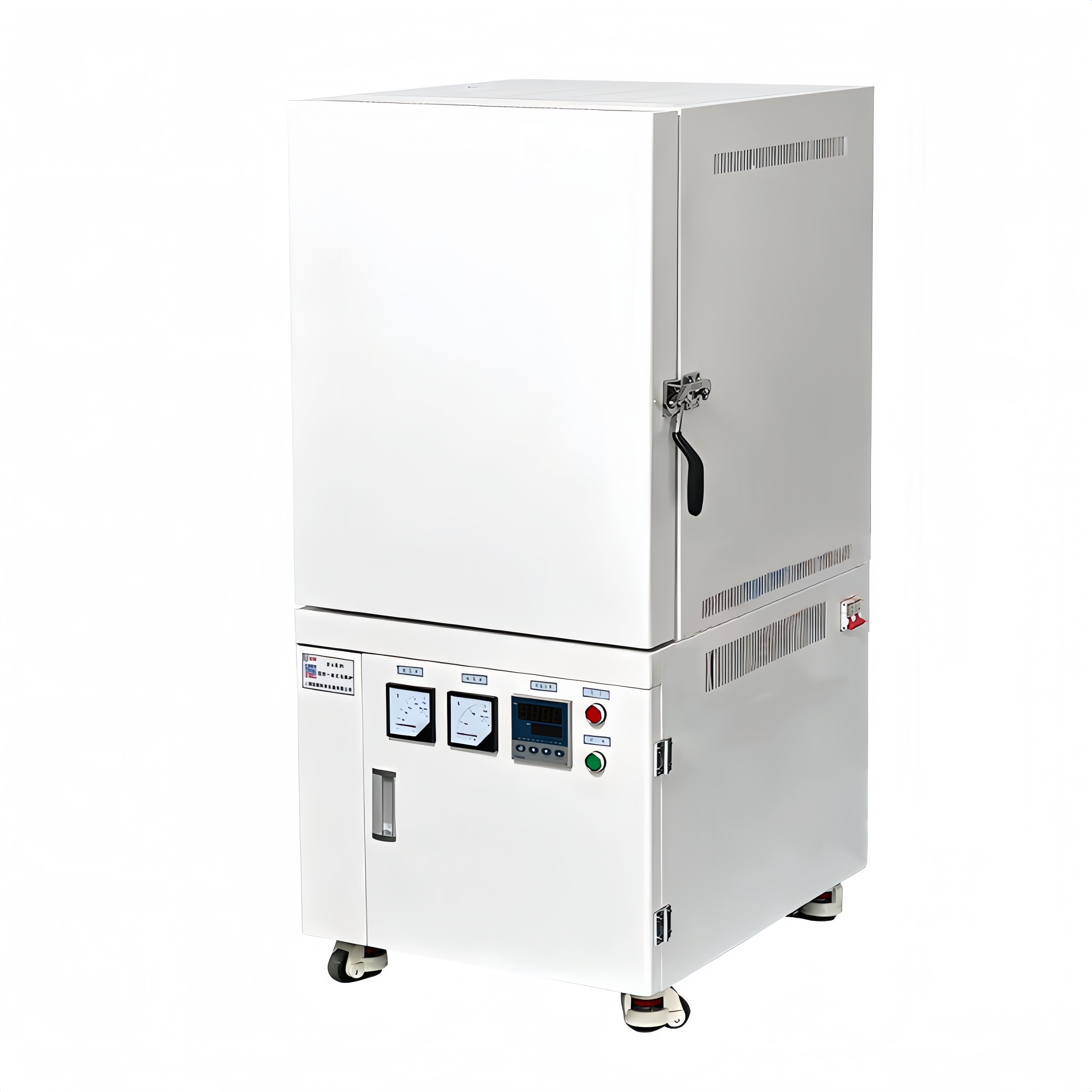

Integrated vertical structure with transformer built into furnace bottom. Compact footprint saves lab space without extra area for separate transformer placement.
Molybdenum disilicide heating elements adapt to ultra-high temperature conditions at 1600℃ and 1800℃ with excellent high-temperature oxidation resistance, stable resistance during long service and easy replacement.
Program temperature control system enables automatic operation of complete heating, holding, buffering, cooling and shutdown processes, unattended for long-duration heat treatment.
Standard furnace door safety interlock switch cuts heating circuit immediately upon opening, fundamentally preventing operator high-temperature scalding.
Alumina fiber chamber withstands ultra-high temperature. Carbon stains formed by calcination can be wiped easily to keep tidy appearance and stable insulation performance for long-term use.
Real-time voltage and current display on control panel allows operators to monitor load variation and identify potential circuit faults in advance.
Independent controller layout keeps electronic components away from thermal radiation from hot chamber to avoid aging and extend control system service life.
Two control versions available: basic programmable digital model and AI color touch screen model. Touch screen version supports curve visualization and data export for experiment report archiving.
All models adopt standard AC380V three-phase power supply. The isolation transformer effectively suppresses circuit interference, meeting strict requirements of high-precision composition analysis and new material R&D experiments.

Regular ceramic sintering, metal annealing and ash analysis with max process temperature ≤1600℃: Select RT+50~1600℃ series to meet most conventional ultra-high temperature experiments.
Ultra-high temperature sintering of high-purity special ceramics, high-melting powder and rare materials up to 1800℃: Adopt RT+50~1800℃ models.
Small sample batches for R&D teams: 5L / 9L small-volume models fit daily research tests in compact labs.
Enterprise pilot test and mass parallel experiments: 12L / 36L large-volume models hold multiple crucibles simultaneously for higher batch efficiency.
Basic programmed heating experiments with limited budget: Choose P series basic programmable digital display version.
Real-time temperature curve viewing, data export and process record archiving required: Upgrade to AI color touch screen version.
Samples generating smoke and volatile hazardous gas under heating: Equip optional exhaust chimney to discharge waste gas timely.
Sintering of powders and oxidation-prone samples: Match inert gas inlet valve and flowmeter for nitrogen or argon shielding atmosphere.
Remote monitoring by host computer and centralized lab equipment management needed: Select optional RS485 communication interface.

Standard factory package: furnace main body, high-temperature crucible tongs, power cord, bilingual operation manual. All extended accessories are optional separate purchases.
Shockproof thick wooden crate with internal buffer materials protects fragile precision parts such as chamber, controller and molybdenum disilicide rods against vibration damage during long sea and air transit.
In-stock items will be shipped within 3–10 working days. OEM customization is available for bulk orders, including brand logo silk printing and customized outer packaging.
All models adopt three-phase 380V power supply, which can be consolidated with other lab equipment in one container to optimize cross-border logistics cost.
Custom packaging service available for bulk buyers including instrument distributors, new material research institutes, university material departments and metallurgical enterprises, suitable for overseas exhibition and cross-border store promotion.

Name	Qty
Split box high temperature furnace	1
High temperature crucible tongs	1
Power cable	1
User Manual	1
Packing List / Certificate of Conformity	1
Warranty Card	1

Selling Units	Single item	Package size per batch	7189.5153.5cm
Gross weight per batch	260.000kg

Complete factory electronic documents can be obtained upon request for cross-border store listing, overseas metallurgy & new material exhibitions and technical consultation for overseas buyers.
Supporting digital documents: bilingual full specification sheet, standard operation guide, molybdenum disilicide rod maintenance manual, overall dimension drawing, temperature programming tutorial and product brochure.
Marketing materials: real photos of all models, heating curve demonstration pictures and photos of optional accessories to facilitate unified multi-category online store promotion.

What maximum temperature grades are available? A Two series: RT+50~1600℃ and RT+50~1800℃, select according to the maximum experimental temperature.
What is the heating element and its service life? A Molybdenum disilicide rod with high temperature and oxidation resistance. Standard operation and avoiding frequent sharp temperature change can extend service life effectively.
Does multi-segment programmed heating function available? A All models support multi-segment process curve editing for automatic heating, holding and cooling, equipped with power-off memory.
Will the furnace keep heating after opening the door? A No. Standard door-open power-off safety interlock, program resumes automatically after door closure.
What power supply for all models? A All series adopt AC380V 50Hz three-phase power with built-in isolation transformer.
How to distinguish P version and AI version controller? A P = Basic programmable digital display; AI = Color touch screen supporting curve display and historical data export.
Can shielding atmosphere be filled to prevent sample oxidation? A Yes. Optional inert gas inlet valve + flowmeter assembly supports nitrogen and argon shielding.
What is the chamber material and is it easy to clean? A Polycrystalline alumina fiber with high temperature resistance; stains from high-temperature calcination can be wiped directly.
Is customization available for bulk orders? A Body marking printing and outer packaging customization are available; non-standard chamber size can also be negotiated.

This integrated high-temperature muffle furnace series serves R&D and pilot scenarios including ultra-high temperature sintering, metal heat treatment, elemental composition analysis, sample melting, annealing and quenching. Contact support for complete technical solution. Tiered volume discounts apply without hidden extra charges.
Dedicated sales support for bulk customization (body logo silk print, non-standard chamber size, bundled accessory package), assisting parameter verification, production scheduling, cross-border logistics and factory quality inspection.
Contact ways: Email, WhatsApp, website online message. Please state target model, maximum temperature series, chamber volume, controller type, optional accessory requirements and order quantity when leaving messages. Full formal solution will be provided within 24 hours to resolve all procurement questions at one time.
