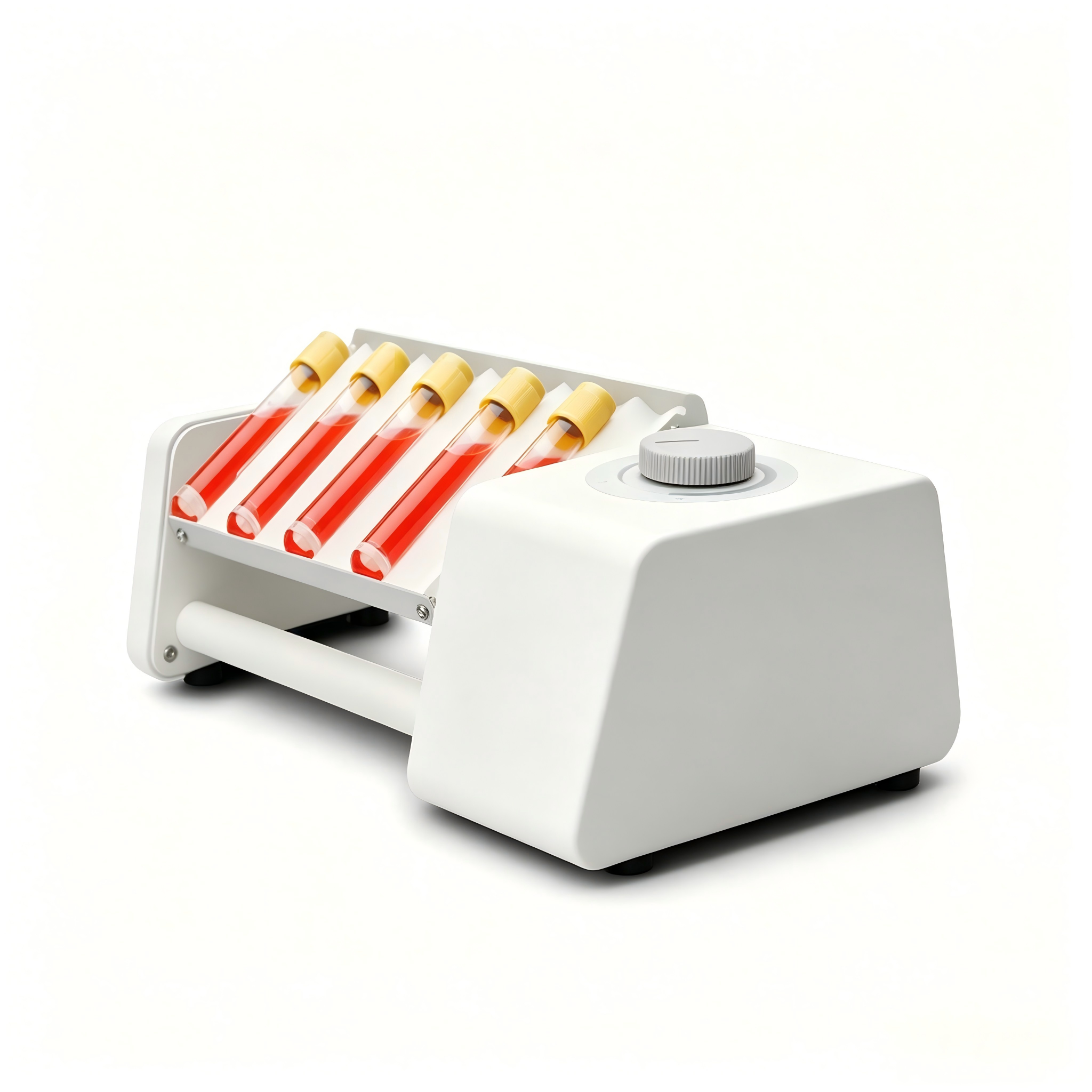

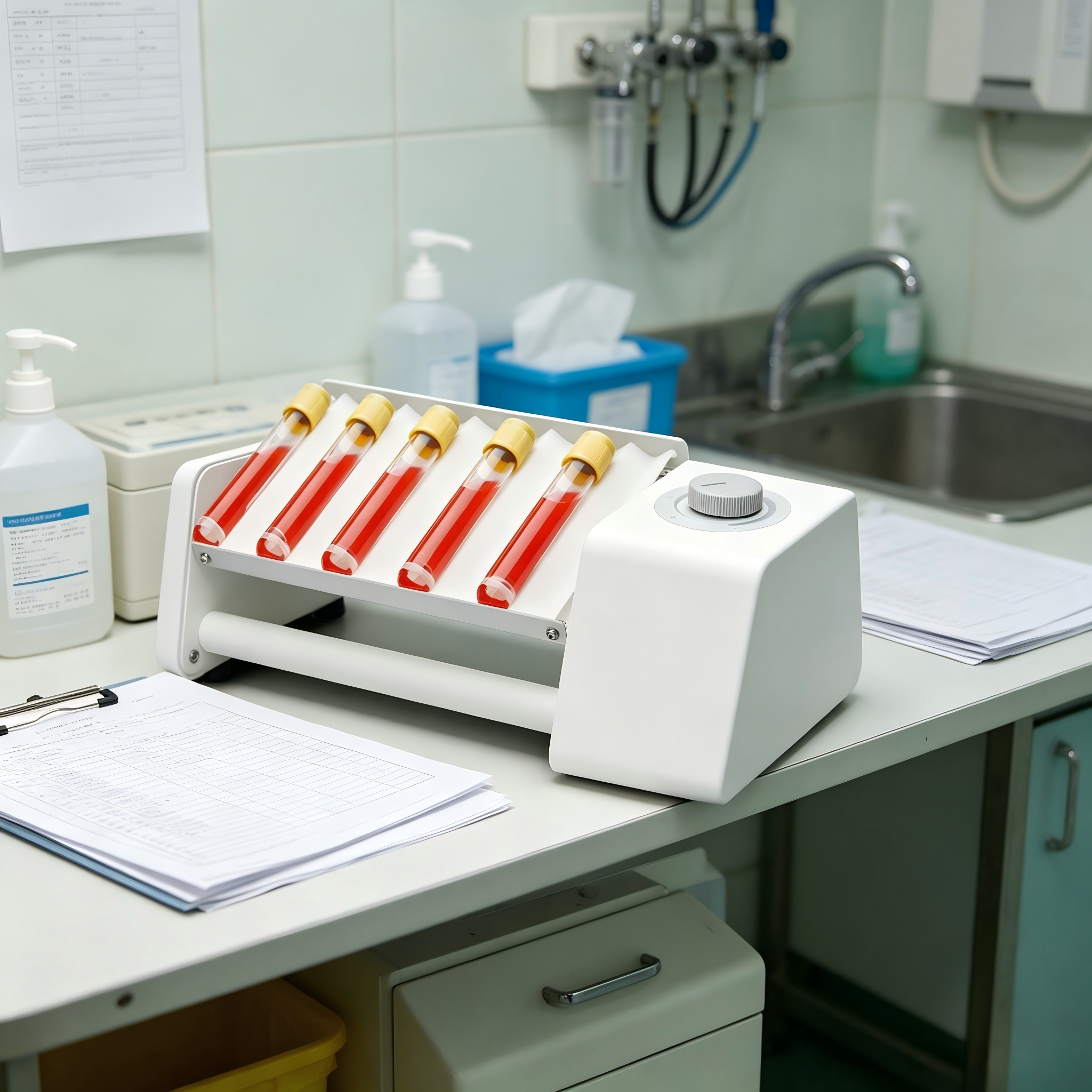

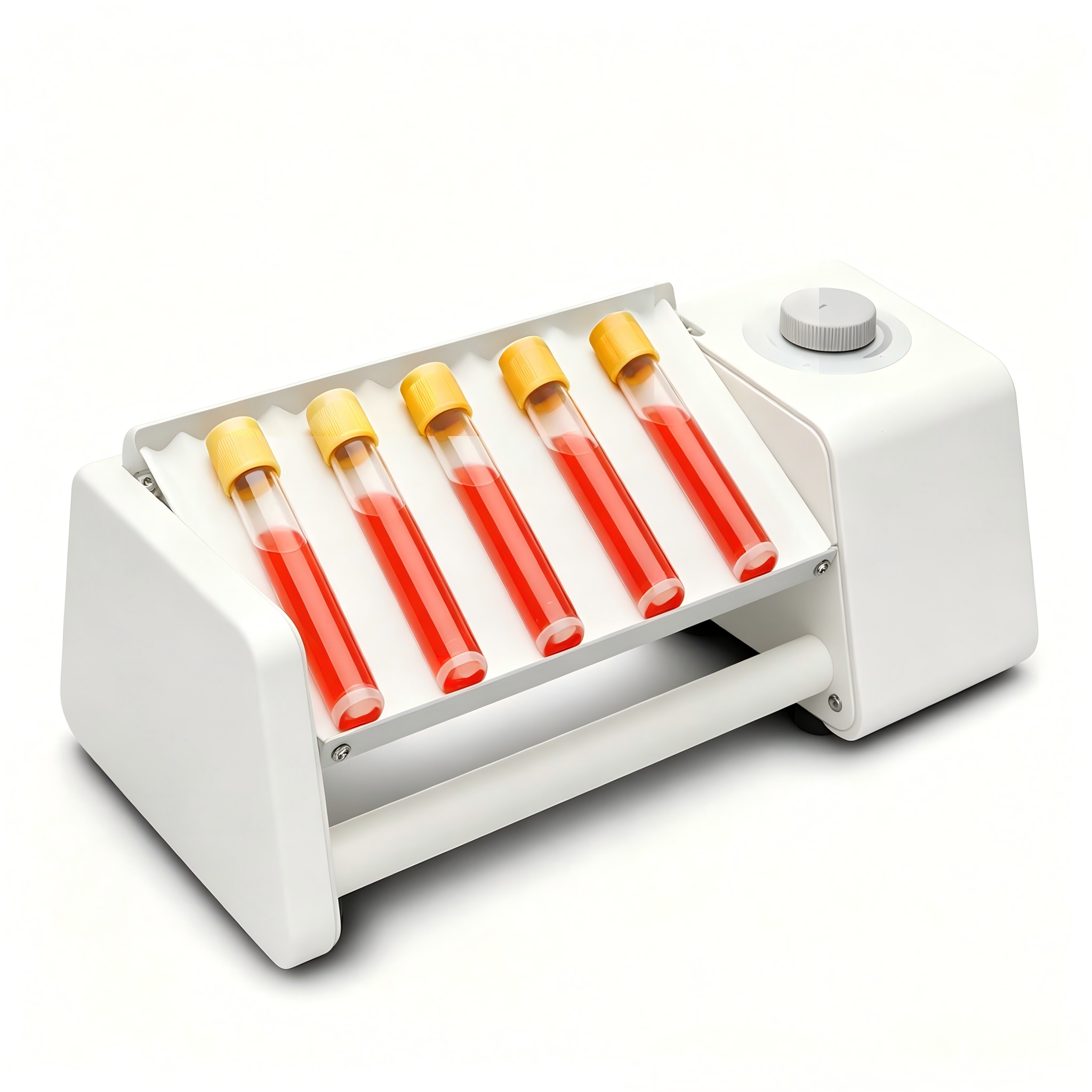

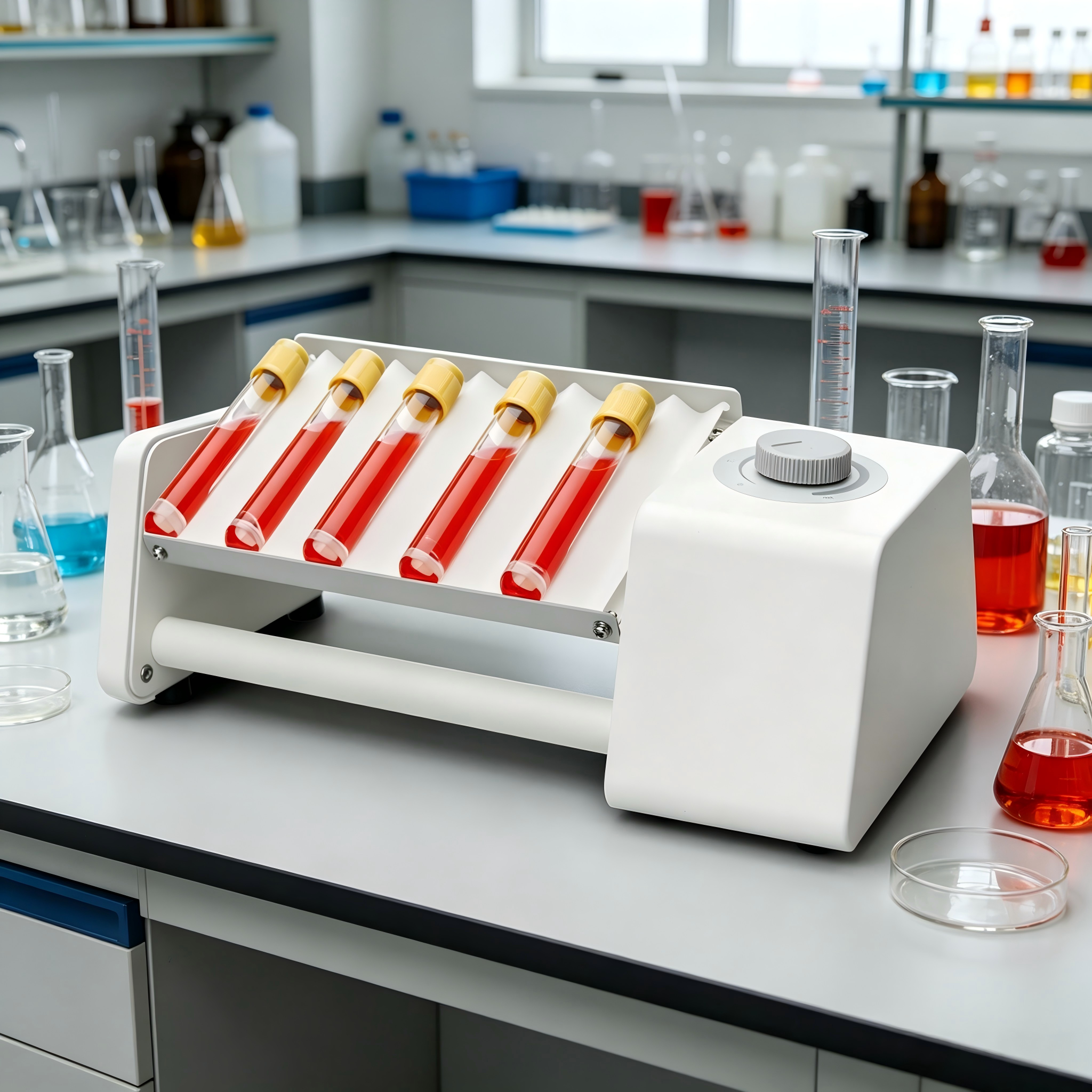

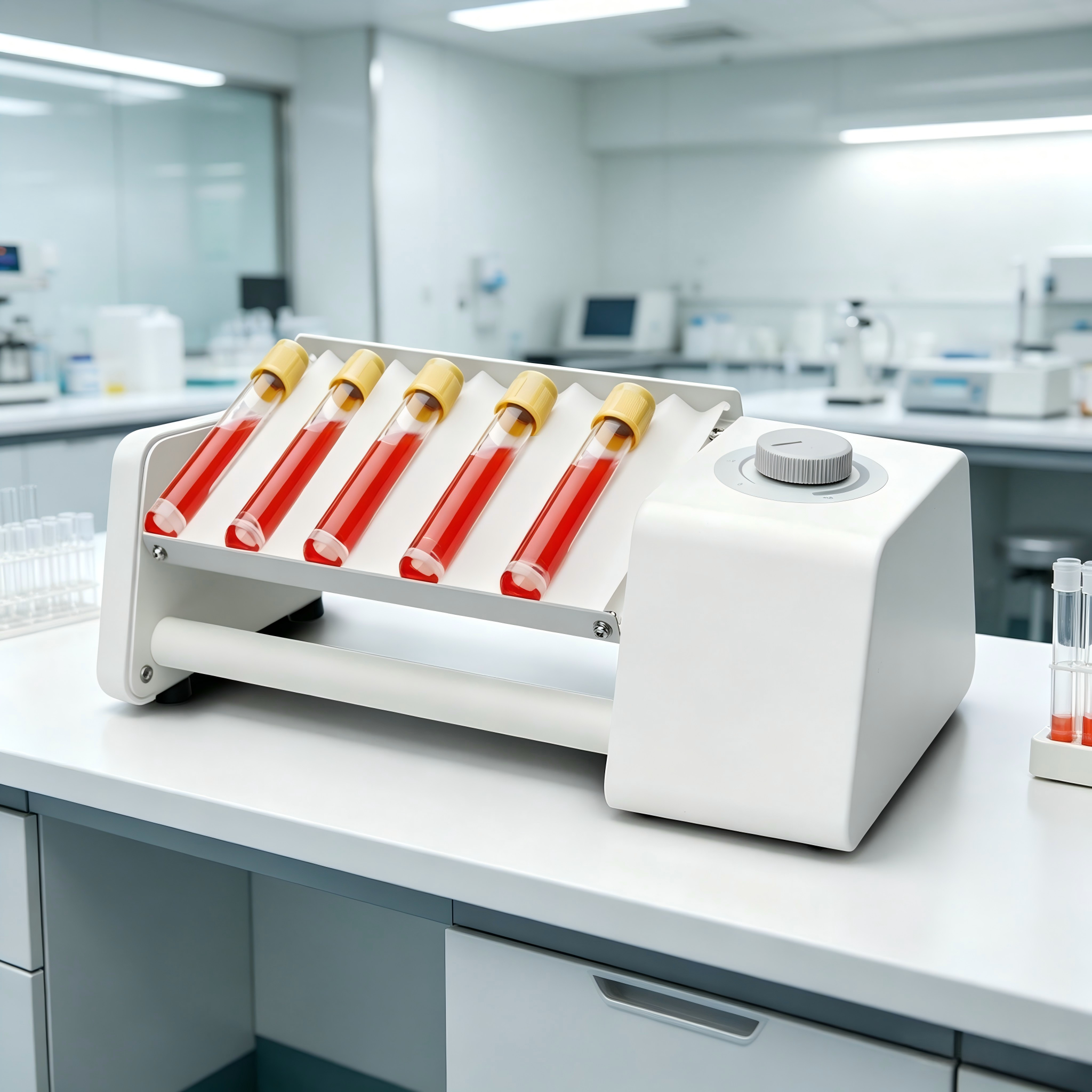

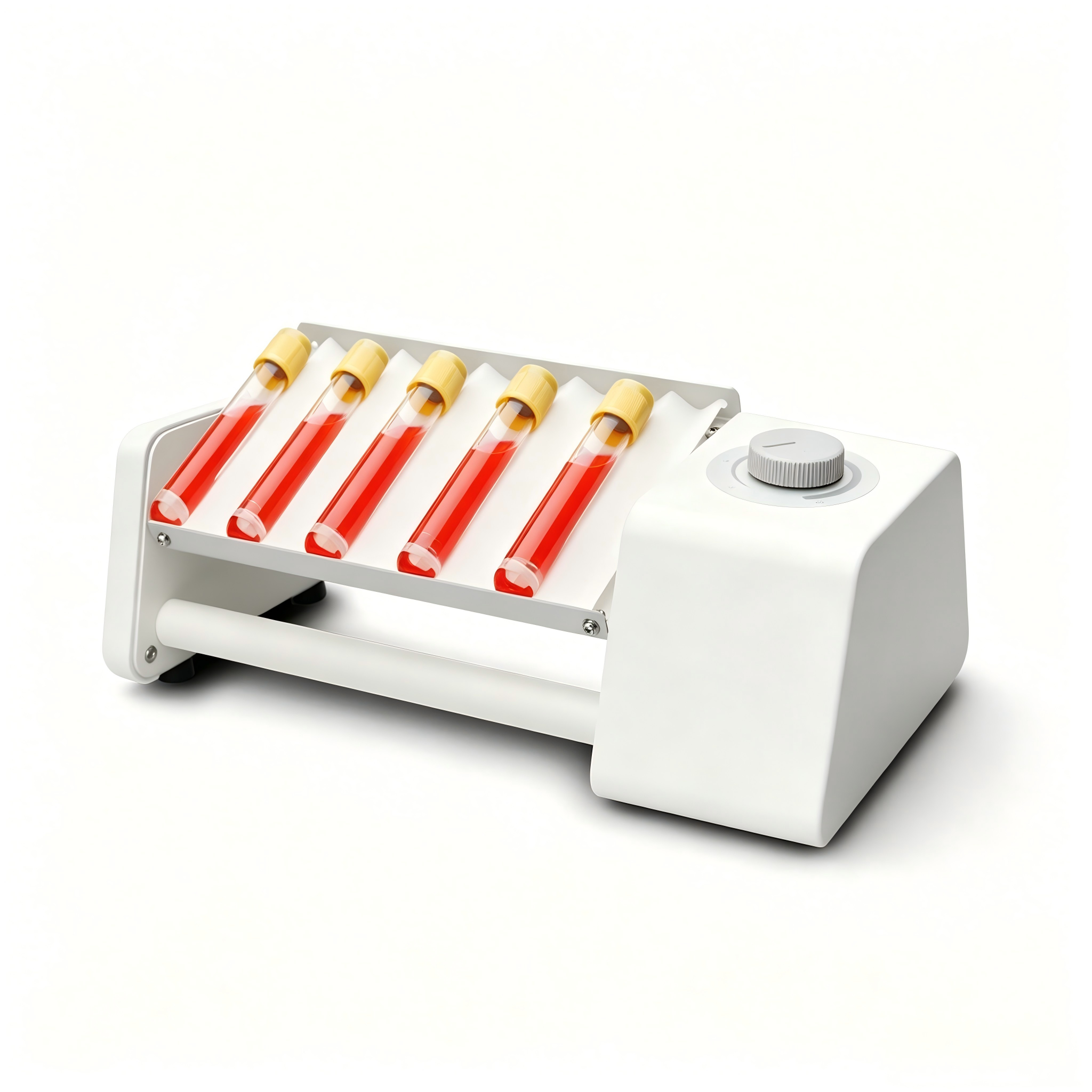

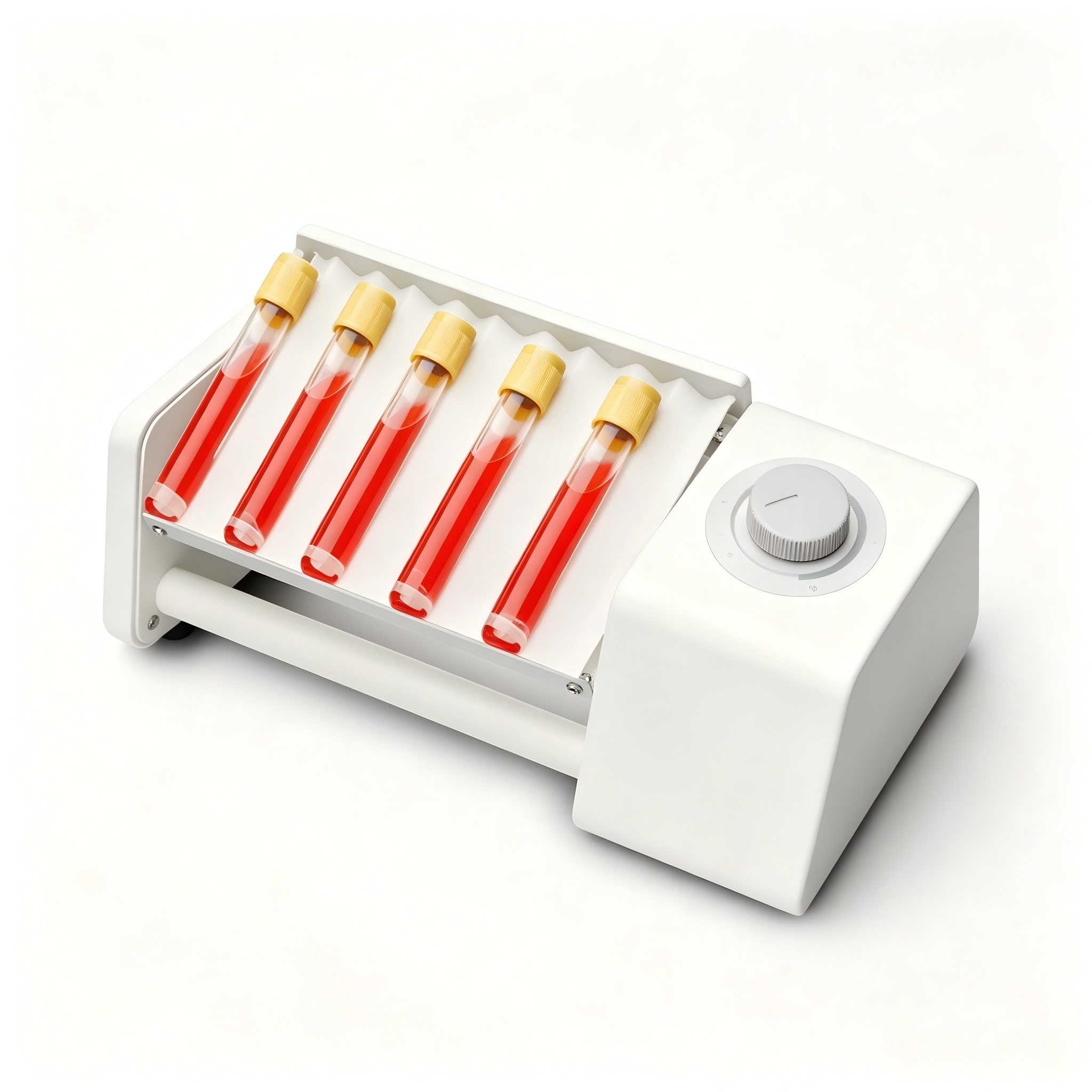

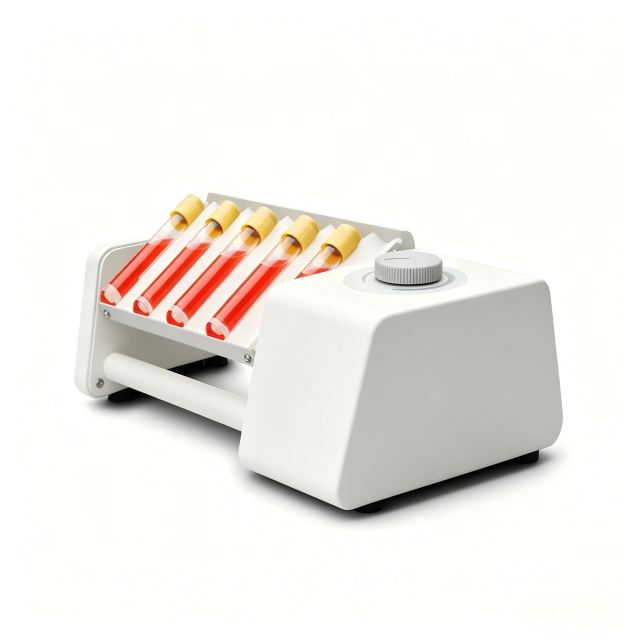

Short-platform oscillating rotary instrument

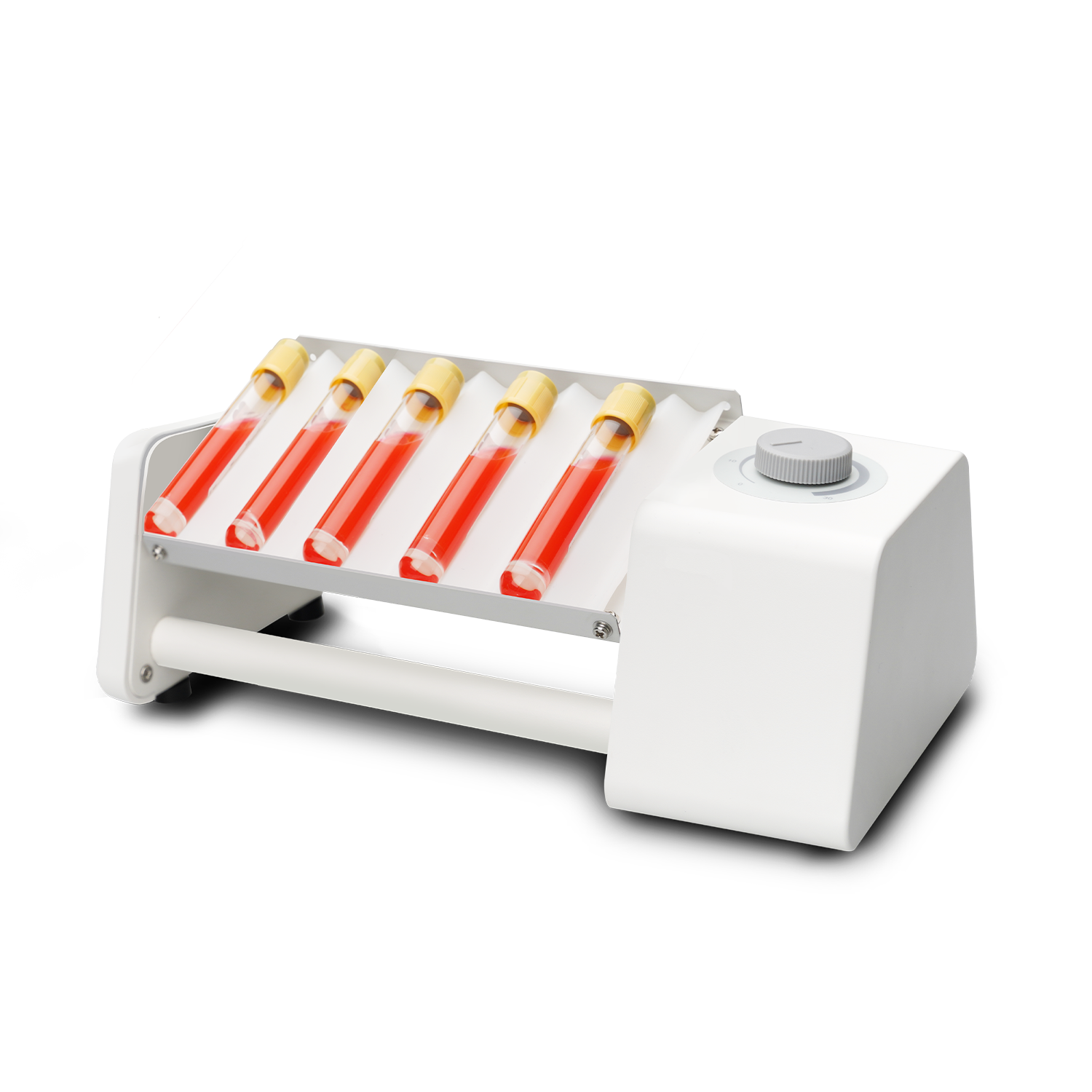

• LSK30-RS-E Short Deck Rocking Rotator is a dedicated gentle mixing device for molecular biology, immunology and clinical diagnostic experiments.
• Equipped with fixed tilt angle mild rocking structure, it only supports non-stop continuous operation without timer auto-stop, suitable for unattended overnight incubation and sample balancing tests.
• Interchangeable multi-size silicone mats are optional to fit blood tubes and centrifuge tubes of various diameters, preventing sliding and tipping during mixing.
• Adopt maintenance-free brushless DC motor, no carbon brush replacement needed for long-term continuous running, low noise and stable performance.
• Universal 100~240V wide voltage compatible with power supply standards of laboratories worldwide.
• Compact and lightweight body occupies minimal bench space, ideal for small & medium labs to process batches of fragile biological samples.

• Brushless DC motor: Fully maintenance-free, no carbon brush replacement, low noise stable operation, long-term non-stop running to cut lab maintenance cost.
• Continuous-only operation mode: No timer auto-stop program, 24h all-day rocking mixing for overnight immune precipitation and long-duration blood balancing experiments.
• Optional multi-size silicone mats: Separately ordered silicone mats matching various tube sizes firmly lock sample tubes to avoid sliding and tipping.
• Fixed tilt angle of 40±3°: Tilt angle cannot be adjusted manually, soft reciprocating swing achieves full mixing without damaging blood cells or immune complexes.
• Stepless adjustable low speed range 0~30rpm: Exclusive low-speed section for gentle mixing of sensitive samples including blood, antibody and microbial suspension.
• Rated maximum total load 1kg: Total weight of deck, tubes and samples cannot exceed limit; multiple tubes processed per run to improve batch efficiency.
• 100~240V wide voltage compatibility: Automatically adapt to global mains power without extra transformer, 50/60Hz universal.
• Compact overall dimension: Small footprint for easy placement & movement; rated power 15W, net weight 2.2kg with low energy consumption.
• Operation environment limit: Only for open lab bench use, stable running within 5–40℃ and ≤80%RH; do not place inside cold rooms or incubators.

• Optional accessory installation: Order matched silicone mats separately according to tube specifications, lay flat on deck, place blood tubes & centrifuge tubes into silicone fixing slots.
• Speed adjustment operation: Connect power supply, rotate knob to steplessly adjust mixing speed from 0 to 30rpm; unit runs continuous rocking motion without auto shutdown.
• Mixing working principle: Reciprocating soft swing at fixed 40±3° slowly flips liquid inside tubes, gently process fragile biological samples without cell breakage.
• Environment requirement: Only operate on ventilated, dry open lab benches; never place inside cold rooms or enclosed incubators.
• Load specification: Total weight of deck, tubes and samples cannot exceed 1kg; overload will trigger motor overloading and unbalanced shaking.
• Long continuous running support: Brushless motor allows all-day non-stop work, fit for multi-day unattended tests including immune precipitation and strain balancing.
• Maintenance & storage: Remove tubes after experiments, wipe residual liquid on deck and silicone mats; store in cool, dry ventilated lab area away from high temperature, humidity and direct sunlight.

• Shockproof protective package: Thick anti-collision carton with integrated foam liner, separate storage for main unit and power cord to avoid extrusion & collision damage in transit.
• Standard packing list: Rotator main unit, matched power cord; silicone mats are optional accessories not included in standard package.
• Stock lead time: In-stock standard units shipped within 3–10 working days; lead time for bulk customized orders to be discussed separately.
• Optional logistics: Sea freight, air freight and global door-to-door courier available for bulk overseas orders.
• Delivery acceptance reminder: Check intact outer package before unpacking, verify complete main unit and power cord, confirm no surface damage before operation.

Selling Units

Single item

Package size perbatch

39*23*20cm

Gross weight perbatch

2.5kg

• Contact customer service to receive full set of electronic documents: official technical datasheet, English operation manual, unit dimension drawings and product brochure.
• Documents can be used for lab filing, overseas tender submission and experiment document arrangement.
• All files are provided free in electronic format and printable on demand.
